oil temperature TOYOTA HIGHLANDER HYBRID 2006 XU40 / 2.G Owners Manual

’06 HIGHLANDER HB_U (L/O 0503)
156
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

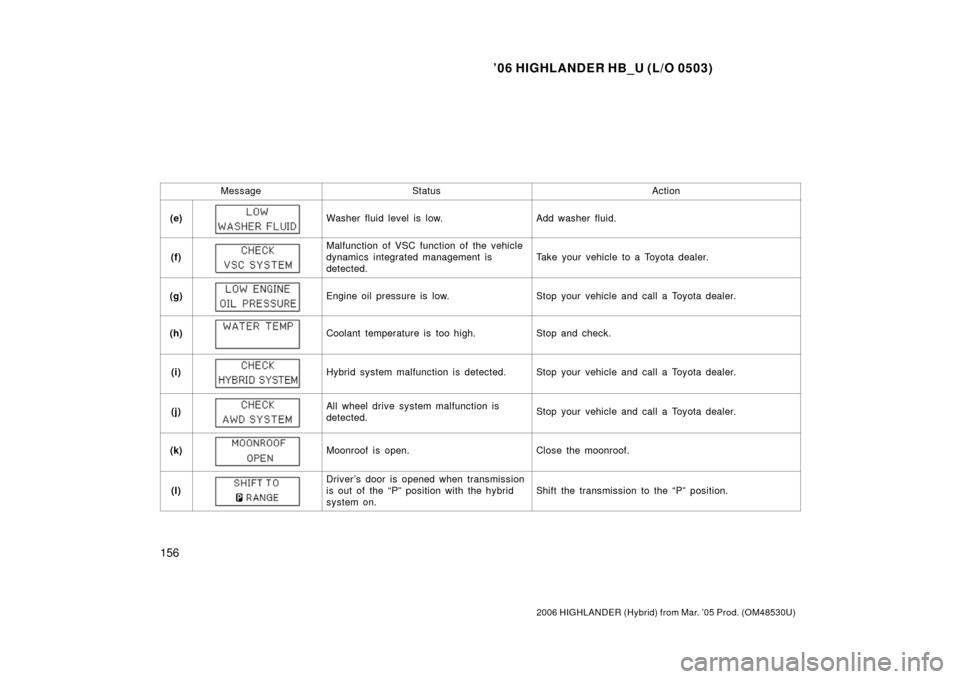

MessageStatusAction
(e)Washer fluid level is low.Add washer fluid.
(f)
Malfunction of VSC function of the vehicle
dynamics integrated management is
detected.
Take your vehicle to a Toyota dealer.
(g)Engine oil pressure is low.Stop your vehicle and call a Toyota dealer.
(h)Coolant temperature is too high.Stop and check.
(i)Hybrid system malfunction is detected.Stop your vehicle and call a Toyota dealer.
(j)All wheel drive system malfunction is
detected.Stop your vehicle and call a Toyota dealer.
(k)Moonroof is open.Close the moonroof.
(l)
Driver ’s door is opened when transmission
is out of the “P” position with the hybrid
system on.
Shift the transmission to the “P” position.

’06 HIGHLANDER HB_U (L/O 0503)
159
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Resetting the system
The system must be reset after the en-
gine oil replacement. Reset the system
by the following procedure.
1. Turn the ignition key to the “LOCK” position with the odometer reading
shown.
For details, see “—Odometer and two trip
meters” on page 154 in this Section. 2. Turn the ignition key to the “ON” posi- tion while holding down the trip meter
reset knob. A message “MAINT REQD
RESET MODE” will appear on the dis-
play.
3. Hold down the knob at least 5 sec- onds. A message “COMPLETE” will ap-
pear and a beep will sound.

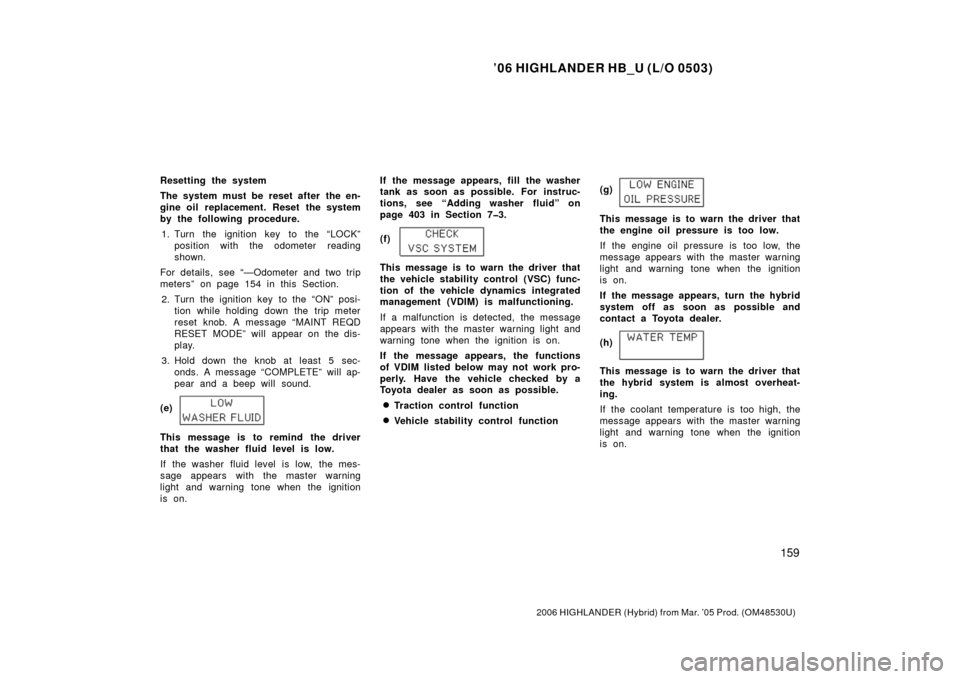

(e)
This message is to remind the driver
that the washer fluid level is low.
If the washer fluid level is low, the mes-
sage appears with the master warning
light and warning tone when the ignition
is on. If the message appears, fill the washer
tank as soon as possible. For instruc-
tions, see “Adding washer fluid” on
page 403 in Section 73.
(f)
This message is to warn the driver that
the vehicle stability control (VSC) func-
tion of the vehicle dynamics integrated
management (VDIM) is malfunctioning.
If a malfunction is detected, the message
appears with the master warning light and
warning tone when the ignition is on.
If the message appears, the functions
of VDIM listed below may not work pro-
perly. Have the vehicle checked by a
Toyota dealer as soon as possible.
Traction control function
Vehicle stability control function
(g)
This message is to warn the driver that
the engine oil pressure is too low.
If the engine oil pressure is too low, the
message appears with the master warning
light and warning tone when the ignition
is on.
If the message appears, turn the hybrid
system off as soon as possible and
contact a Toyota dealer.
(h)
This message is to warn the driver that
the hybrid system is almost overheat-
ing.
If the coolant temperature is too high, the
message appears with the master warning
light and warning tone when the ignition
is on.

’06 HIGHLANDER HB_U (L/O 0503)
305
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

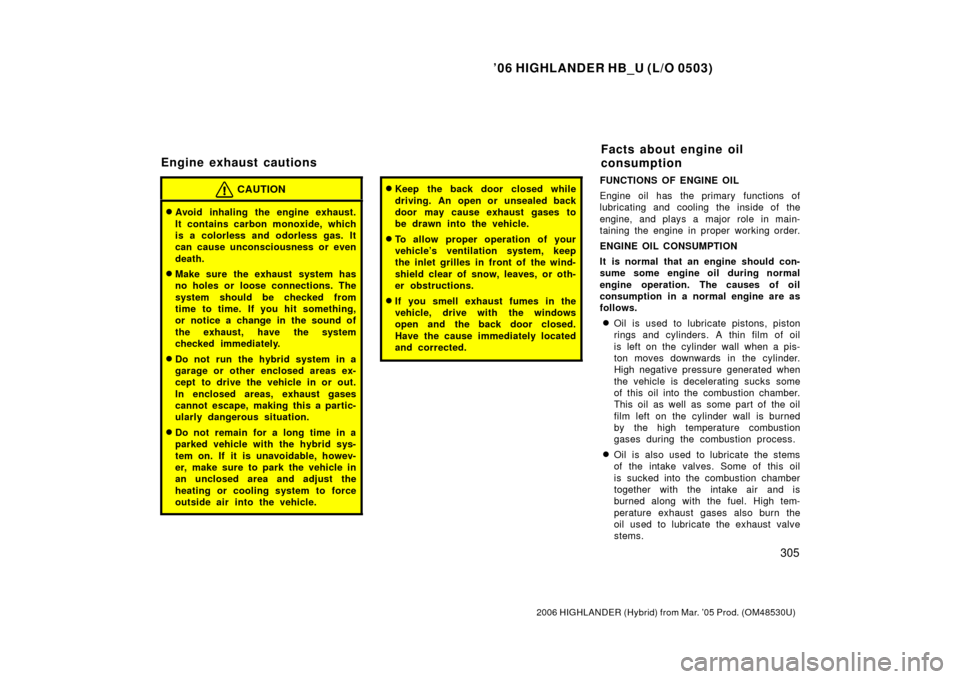

CAUTION
Avoid inhaling the engine exhaust.
It contains carbon monoxide, which
is a colorless and odorless gas. It
can cause unconsciousness or even
death.
Make sure the exhaust system has
no holes or loose connections. The
system should be checked from
time to time. If you hit something,
or notice a change in the sound of
the exhaust, have the system
checked immediately.
Do not run the hybrid system in a
garage or other enclosed areas ex-
cept to drive the vehicle in or out.
In enclosed areas, exhaust gases
cannot escape, making this a partic-
ularly dangerous situation.
Do not remain for a long time in a
parked vehicle with the hybrid sys-
tem on. If it is unavoidable, howev-
er, make sure to park the vehicle in
an unclosed area and adjust the
heating or cooling system to force
outside air into the vehicle.
Keep the back door closed while
driving. An open or unsealed back
door may cause exhaust gases to
be drawn into the vehicle.
To allow proper operation of your
vehicle’s ventilation system, keep
the inlet grilles in front of the wind-
shield clear of snow, leaves, or oth-
er obstructions.
If you smell exhaust fumes in the
vehicle, drive with the windows
open and the back door closed.
Have the cause immediately located
and corrected.
FUNCTIONS OF ENGINE OIL
Engine oil has the primary functions of
lubricating and cooling the inside of the
engine, and plays a major role in main-
taining the engine in proper working order.
ENGINE OIL CONSUMPTION
It is normal that an engine should con-
sume some engine oil during normal
engine operation. The causes of oil
consumption in a normal engine are as
follows.
Oil is used to lubricate pistons, piston
rings and cylinders. A thin film of oil
is left on the cylinder wall when a pis-
ton moves downwards in the cylinder.
High negative pressure generated when
the vehicle is decelerating sucks some
of this oil into the combustion chamber.
This oil as well as some part of the oil
film left on the cylinder wall is burned
by the high temperature combustion
gases during the combustion process.
Oil is also used to lubricate the stems
of the intake valves. Some of this oil
is sucked into the combustion chamber
together with the intake air and is
burned along with the fuel. High tem-
perature exhaust gases also burn the
oil used to lubricate the exhaust valve
stems.
Engine exhaust cautions Facts about engine oil
consumption

’06 HIGHLANDER HB_U (L/O 0503)
330
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Take all necessary safety measures
to ensure that water damage to the
traction battery, hybrid system or
other components does not occur.
Water entering the engine compart-
ment may cause severe damage to
the hybrid system. Water entering
the interior may cause the traction
battery stowed under the rear seats
to short circuit.
Water can wash the grease from
wheel bearings, causing rusting and
premature failure, and may also en-
ter the transaxle case, reducing the
gear oil’s lubricating qualities.
 Sand and mud that has accumulated
in brake drums and around brake
discs may affect braking efficiency
and may damage brake system com-
ponents.
 Always perform a maintenance in-
spection after each day of offroad
driving that has taken you through
rough terrain, sand, mud, or water.
For scheduled maintenance informa-
tion, refer to the “Scheduled Main-
tenance Guide” or “Owner’s Manual
Supplement”.Make sure your coolant is properly pro-
tected against freezing.
Only use “Toyota Super Long Life Coolant”
or similar high quality ethylene glycol
based non −silicate, non −amine, non −nitrite,
and non− borate coolant with long −life
hybrid organic acid technology. (Coolant
with long −life hybrid organic acid
technology is a combination of low
phosphates and organic acids.)
See “Checking the coolant level” on page
388 in Section 7 −2 for details of coolant
type selection.
For the U.S.A.—“Toyota Super Long Life
Coolant” is a mixture of 50% coolant and
50% deionized water. This coolant pro-
vides protection down to about −35 C
( − 31 F).
For Canada—“Toyota Super Long Life
Coolant” is a mixture of 55% coolant and
45% deionized water. This coolant pro-
vides protection down to about −42 C
( − 44 F).
NOTICE
Do not use plain water alone.
Check the status of the traction battery.
See page 4 for the status of the traction
battery. If the traction battery is dis-
charged, the hybrid system will not start
up.
Check the condition of the auxiliary
battery and cables.
Cold temperatures lower the performance
of the auxiliary battery, so it must be in
top shape to provide enough power for
winter starting. Section 7 −3 tells you how
to visually inspect the auxiliary battery.
Your Toyota dealer and most service sta-
tions will be pleased to check the charge
level.
Make sure the engine oil viscosity is
suitable for the cold weather.
See page 386 in Section 7 −2 for recom-
mended viscosity. Leaving a heavy sum-
mer oil in your vehicle during winter
months may cause harder starting. If you
are not sure about which oil to use, call
your Toyota dealer—they will be pleased
to help.
Keep the door locks from freezing.
Squirt lock de −icer or glycerine into the
locks to keep them from freezing.
Winter driving tips

’06 HIGHLANDER HB_U (L/O 0503)
343
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
If your hybrid system stalls while driv-
ing...
1. Reduce your speed gradually, keeping a straight line. Move cautiously off the
road to a safe place.
2. Turn on your emergency flashers.
3. Turn the ignition key to “ACC” or “LOCK”, and try starting the hybrid
system again.
If the hybrid system will not start, see “If
your vehicle will not start”.

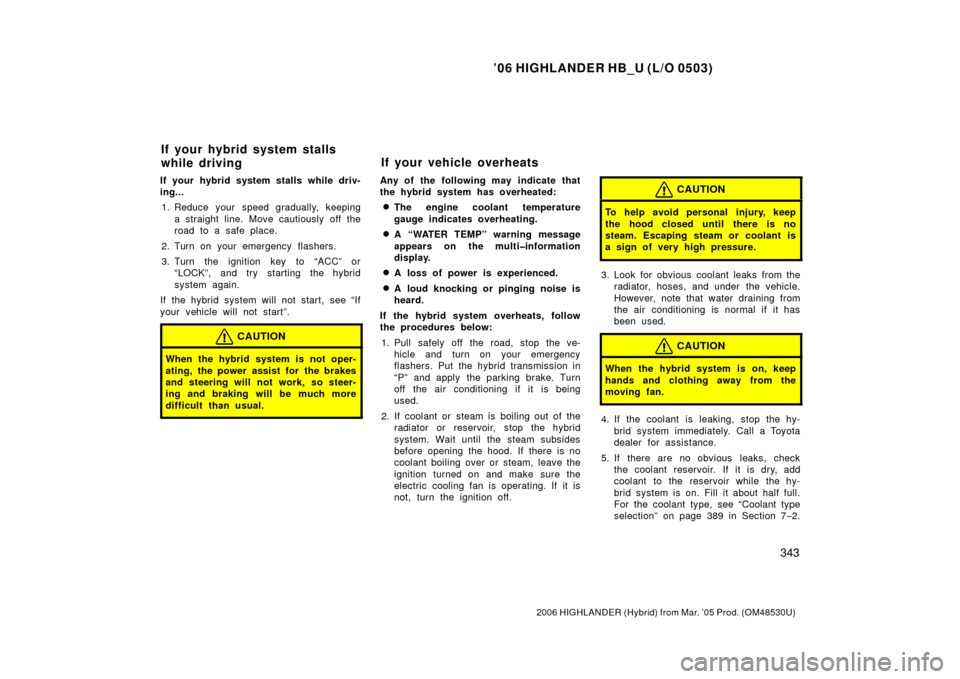

CAUTION
When the hybrid system is not oper-
ating, the power assist for the brakes
and steering will not work, so steer-
ing and braking will be much more
difficult than usual.
Any of the following may indicate that
the hybrid system has overheated:
The engine coolant temperature
gauge indicates overheating.
A “WATER TEMP” warning message
appears on the multiinformation
display.
A loss of power is experienced.
A loud knocking or pinging noise is
heard.
If the hybrid system overheats, follow
the procedures below: 1. Pull safely off the road, stop the ve- hicle and turn on your emergency
flashers. Put the hybrid transmission in
“P” and apply the parking brake. Turn
off the air conditioning if it is being
used.
2. If coolant or steam is boiling out of the radiator or reservoir, stop the hybrid
system. Wait until the steam subsides
before opening the hood. If there is no
coolant boiling over or steam, leave the
ignition turned on and make sure the
electric cooling fan is operating. If it is
not, turn the ignition off.
CAUTION
To help avoid personal injury, keep
the hood closed until there is no
steam. Escaping steam or coolant is
a sign of very high pressure.
3. Look for obvious coolant leaks from theradiator, hoses, and under the vehicle.
However, note that water draining from
the air conditioning is normal if it has
been used.
CAUTION
When the hybrid system is on, keep
hands and clothing away from the
moving fan.
4. If the coolant is leaking, stop the hy-
brid system immediately. Call a Toyota
dealer for assistance.
5. If there are no obvious leaks, check the coolant reservoir. If it is dry, add
coolant to the reservoir while the hy-
brid system is on. Fill it about half full.
For the coolant type, see “Coolant type
selection” on page 389 in Section 7 −2.
If your hybrid system stalls
while driving If your vehicle overheats

’06 HIGHLANDER HB_U (L/O 0503)
380
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

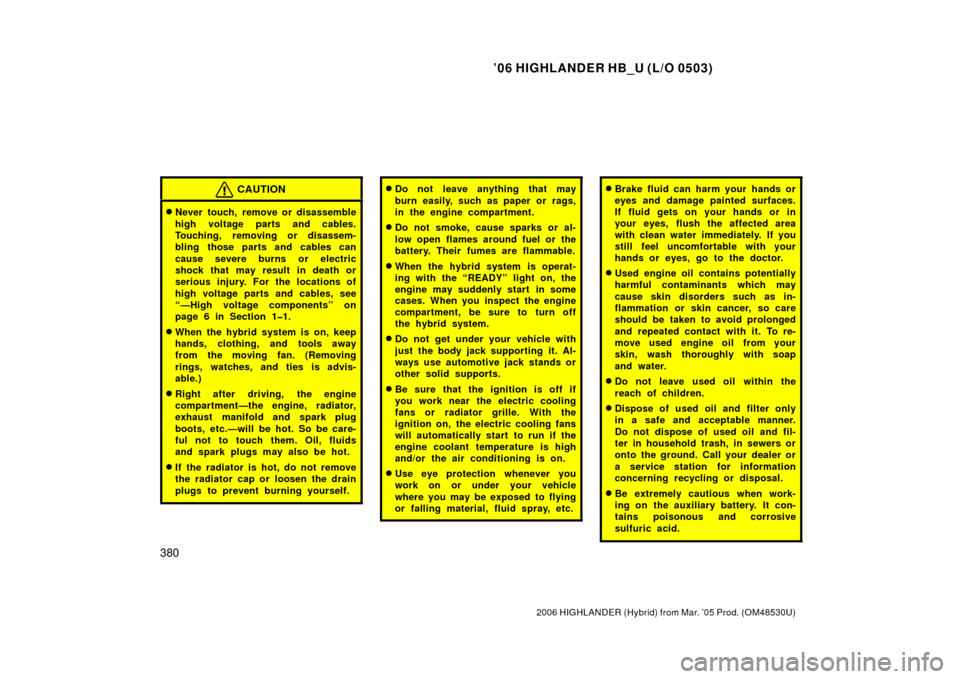

CAUTION
Never touch, remove or disassemble
high voltage parts and cables.
Touching, removing or disassem-
bling those parts and cables can
cause severe burns or electric
shock that may result in death or
serious injury. For the locations of
high voltage parts and cables, see
“—High voltage components” on
page 6 in Section 11.
When the hybrid system is on, keep
hands, clothing, and tools away
from the moving fan. (Removing
rings, watches, and ties is advis-
able.)
Right after driving, the engine
compartment—the engine, radiator,
exhaust manifold and spark plug
boots, etc.—will be hot. So be care-
ful not to touch them. Oil, fluids
and spark plugs may also be hot.
If the radiator is hot, do not remove
the radiator cap or loosen the drain
plugs to prevent burning yourself.
Do not leave anything that may
burn easily, such as paper or rags,
in the engine compartment.
Do not smoke, cause sparks or al-
low open flames around fuel or the
battery. Their fumes are flammable.
When the hybrid system is operat-
ing with the “READY” light on, the
engine may suddenly start in some
cases. When you inspect the engine
compartment, be sure to turn off
the hybrid system.
Do not get under your vehicle with
just the body jack supporting it. Al-
ways use automotive jack stands or
other solid supports.
Be sure that the ignition is off if
you work near the electric cooling
fans or radiator grille. With the
ignition on, the electric cooling fans
will automatically start to run if the
engine coolant temperature is high
and/or the air conditioning is on.
Use eye protection whenever you
work on or under your vehicle
where you may be exposed to flying
or falling material, fluid spray, etc.
Brake fluid can harm your hands or
eyes and damage painted surfaces.
If fluid gets on your hands or in
your eyes, flush the affected area
with clean water immediately. If you
still feel uncomfortable with your
hands or eyes, go to the doctor.
Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as in-
flammation or skin cancer, so care
should be taken to avoid prolonged
and repeated contact with it. To re-
move used engine oil from your
skin, wash thoroughly with soap
and water.
Do not leave used oil within the
reach of children.
Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and fil-
ter in household trash, in sewers or
onto the ground. Call your dealer or
a service station for information
concerning recycling or disposal.
Be extremely cautious when work-
ing on the auxiliary battery. It con-
tains poisonous and corrosive
sulfuric acid.

’06 HIGHLANDER HB_U (L/O 0503)
386
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Low level Full level
Add oil O.K. Too full
With the hybrid system at operating
temperature and turned off, check the
oil level on the dipstick. 1. To get a correct reading, the vehicle should be on level ground. After turning
off the hybrid system, wait a few min-
utes for the oil to drain back into the
bottom of the engine.
2. Pull the dipstick out, hold a rag under the end and wipe it clean.
3. Reinsert the dipstick—push it in as far as it will go, or the reading will not be
correct.
4. Pull the dipstick out and look at the oil level while holding a rag under the
end.
CAUTION
Be careful not to touch the hot ex-
haust manifold.
NOTICE
Be careful not to drop engine oil on
the vehicle components.
 To avoid drops of the engine oil
falling when you pull out the engine
oil dipstick, make sure to hold a
rag under the dipstick.
If the oil level is below or only slightly
above the low level, add engine oil of
the same type as already in the engine.
Remove the oil filler cap and add engine
oil in small quantities at a time, checking
the dipstick. We recommend that you use
a funnel when adding oil.
The approximate quantity of oil needed to
raise the level between low and full on the
dipstick is indicated as follows:
1.5 L (1.6 qt., 1.3 lmp. qt.)
For the engine oil capacity, see “Service
specifications” on page 412 in Section 8. When the level reaches within the correct
range, install the filler cap hand−
tight.
NOTICE
Be careful not to spill engine oil on
the vehicle components.
 Avoid overfilling, or the engine
could be damaged.
 Check the oil level on the dipstick
once again after adding the oil.
Checking the engine oil level

’06 HIGHLANDER HB_U (L/O 0503)
387
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
ENGINE OIL SELECTION
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade:
API grade SL “Energy −Conserving” or
ILSAC multigrade engine oil
Recommended viscosity: SAE 5W −30
Outside temperature
SAE 5W30 is the best choice for good
fuel economy and good starting in cold
weather.
If SAE 5W30 is not available, SAE
10W30 may be used. However, it
should be replaced with SAE 5W30 at
the next oil change.
API service symbol
ILSAC certification mark

’06 HIGHLANDER HB_U (L/O 0503)
412
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm(in.): 1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and ref ill), L (qt., Imp.
qt.): With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade: API grade SL “Energy −Conserving” or
ILSAC multigrade engine oil Recommended oil viscosity:
SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
Gasoline engine coolantWith rear heater 11.6 (12.3, 10.2)
Without rear heater
10.3 (10.9, 9.0)
Inverter coolant 3.4 (3.6, 3.0)
Coolant type: “Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details.
Service specifications
