Tires and loading on yourTo y o t a
Underinflated or overinflated tire pressure and the
excess load may result in the deterioration of
steering ability and braking ability, leading to an
accident. Check the tire inflation pressure periodi-
cally and be sure to keep the load limits given in
this Owner ’s Manual. For details about tire inflation
pressure and load limits, see pages 390 and 317.
Onpavement and offroad
driving tips
This vehicle belongs to the utility vehicle class. Utility ve-
hicles have a significantly higher rollover rate than other
types of vehicles. This vehicle will handle and maneuver
differently from an ordinary passenger car. In addition, this
vehicle has a higher ground clearance and center of gravi-
ty than that of an ordinary passenger car. This vehicle de-
sign feature causes this type of vehicle to be more likely
to rollover. Failure to operate this vehicle correctly may
result in loss of control, accidents or vehicle rollover caus-
ing death or serious injury. Be sure to read “Utility vehicle
precautions” on page 298 in Section 2 and “Off −road driv-
ing precautions” on page 326 in Section 3.

’07 HIGHLANDER HV_U (L/O 0608)
90
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The angle of
vehicle tip−up
is marginal Skidding vehicle
hitting a curb
stone

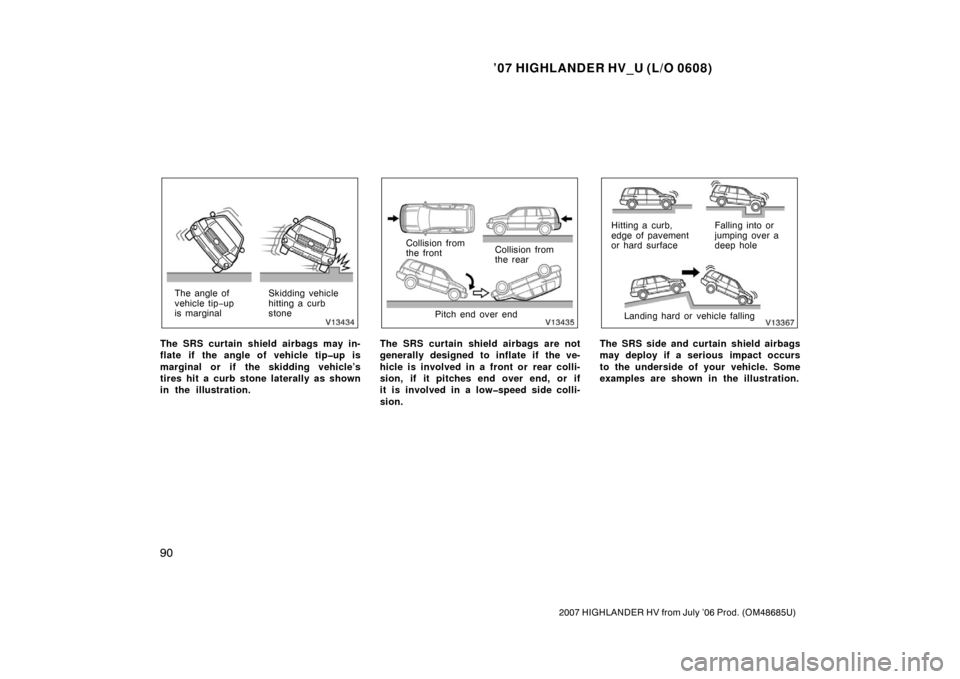

The SRS curtain shield airbags may in-
flate if the angle of vehicle tipup is
marginal or if the skidding vehicle’s
tires hit a curb stone laterally as shown
in the illustration.
Collision from
the front
Collision from
the rear
Pitch end over end
The SRS curtain shield airbags are not
generally designed to inflate if the ve-
hicle is involved in a front or rear colli-
sion, if it pitches end over end, or if
it is involved in a lowspeed side colli-
sion.
Hitting a curb,
edge of pavement
or hard surface Falling into or
jumping over a
deep hole
Landing hard or vehicle falling
The SRS side and curtain shield airbags
may deploy if a serious impact occurs
to the underside of your vehicle. Some
examples are shown in the illustration.

’07 HIGHLANDER HV_U (L/O 0608)
167
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
NOTICE
Always use the brake pedal or the
parking brake to hold the vehicle on
an upgrade. Do not attempt to hold
the vehicle using the accelerator ped-
al, as this can cause the transmission
to overheat.
(g) If you cannot shift the selector le-ver out of “P” position
If you cannot shift the selector lever from
the “P” position even though the brake
pedal is depressed, use the shift lock
override button. For instructions, see “If
you cannot shift transmission selector le-
ver” on page 358 in Section 4. Vehicle dynamics integrated manage-
ment (VDIM) is designed to control ve-
hicle motion continuously using all pos-
sible functions to stabilize the motion.
It is important to keep the tires in good
condition for the system to properly
control vehicle motion. Refer to the in-
formation for tires on pages 390
through 398 in Section 72.
The system has the functions listed below.
Each function becomes operational when
the vehicle speed exceeds the speeds as
shown below.
Brake assist function
7km/h(4mph)
Anti−lock brake system function
7km/h(4mph)
Traction control function 0km/h(0mph)
Vehicle stability control function15 km/h (9 mph)
CAUTION
Do not rely excessively on the
VDIM. Even if the system is operat-
ing, you must always drive carefully
and attentively. Reckless driving will
result in an unexpected accident. If
the slip indicator flashes, special
care should be taken.
Only use tires of specified size. The
size, manufacturer, brand and tread
pattern for all 4 tires should be the
same. If you use any tires other
than specified, or different types or
sizes, the VDIM may not function
correctly. When replacing the tires
or wheels, contact your Toyota deal-
er.
Do not modify the suspensions. If
you modify the suspensions, the
VDIM may not function correctly.
In situations where the road surface
is covered with ice or snow, snow
tires or tire chains should be used.
Vehicle dynamics integrated
management

’07 HIGHLANDER HV_U (L/O 0608)
171
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Compared with vehicles without an
antilock brake device, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or snow
covered roads.
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
If tire grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the antilock brake system does not
provide vehicle control.
TRACTION CONTROL FUNCTION
The traction control function is designed to
help prevent skid of the drive wheels dur-
ing sudden acceleration on slippery road
surfaces.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against drive wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at a moderate speed.
VEHICLE STABILITY CONTROL
FUNCTION
The vehicle stability control function is de-
signed to help prevent skid of the wheels
while cornering on slippery road surfaces
or when turning the steering wheel abrupt-
ly.
The system controls the driving and brak-
ing forces on each tire and also controls
the power steering assistance to help the
driver to recover vehicle stability.
CAUTION
Depending on the road conditions,
the vehicle stability control function
may not be able to stabilize your ve-
hicle. Always drive at a moderate
speed.

’07 HIGHLANDER HV_U (L/O 0608)
297
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Information before driving your Toyota
Utility vehicle precautions298
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Break −in period 299
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Fuel 299
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Operation in foreign countries 301
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Three −way catalytic converters 302
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions 303
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Facts about engine oil consumption 303
. . . . . . . . . . . . . . . . . . . . . . . . . .
Iridium −tipped spark plugs 304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 305
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Brake pad wear limit indicators 306
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric power steering system 306
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Your Toyota’s identification 307
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels 308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Suspension and chassis 308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Tire information 309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Vehicle load limits 317
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Cargo and luggage 318
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Types of tires 320
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 2

’07 HIGHLANDER HV_U (L/O 0608)
309
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
This illustration indicates typical tire
symbols.1. Tire size— F or det ails, see “— Ti re
size” on page 311.
2. DOT and Tire Identification Number (TIN)— For details, see
“—DOT and Tire Identification
Number (TIN)” on page 310.
3. Uniform tire quality gra- ding— For details, see “—Uniform
tire quality grading” on page 312.
4. The location of the tread wear indicators— For details, see
“Checking and replacing tires” on
page 393.
5. Tire ply composition and mate- rials— Plies mean a layer of rub-
ber −coated parallel cords. Cords
mean the strands forming the plies
in the tire.
6. Radial tires or biasply tires— A
radial tire has “RADIAL” on the
sidewall. A tire not marked with
“RADIAL” is a bias −ply tir e.
Tire information—
—Tire symbols

’07 HIGHLANDER HV_U (L/O 0608)
310
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
7. “TUBELESS” or “TUBETYPE”— A tubeless tire does not
have a tube inside the tire and air
is directly filled in the tire. A tube
type tire has a tube inside the tire
and the tube maintains the air
pressure.
8. Load limit at maximum cold tire inflation pressure— For details,
see “Checking and replacing tires”
on page 393.
9. Maximum cold tire inflation pressure— This means the pres-
sure to which a tire may be in-
flated. For details about recom-
mended cold tire inflation
pressure, see “Tires” on page 415.
10.Summer tire or all season tire— An all season tire has “M+S”
on the sidewall. The tire not
marked with “M+S” is a summer
tire. For details, see “Types of
tires” on page 320.
This illustration indicates typical DOT
and Tire Identification Number (TIN).
1. “DOT” symbol
2. Tire Identification Number (TIN)
3. Tire manufacturer ’s identification mark
4. Tire size code
5. Manufacturer ’s optional tire type code (3 or 4 letters)
6. Manufacturing week
7. Manufacturing year The “DOT” symbol certifies that the
tire conforms to applicable Federal
Motor Vehicle Safety Standards.
—DOT and Tire Identification
Number (TIN)

’07 HIGHLANDER HV_U (L/O 0608)
312
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
This information has been prepared
in accordance with regulations issued
by the National Highway Traffic Safe-
ty Administration of the U.S. Depart-
ment of Transportation. It provides
the purchasers and/or prospective
purchasers of Toyota vehicles with in-
formation on uniform tire quality grad-
ing.
Your Toyota dealer will help answer
any questions you may have as you
read this information.
DOT quality grades—All passenger
vehicle tires must conform to Fed-
eral Safety Requirements in addi-
tion to these grades. Quality
grades can be found where appli-
cable on the tire sidewall between
tread shoulder and maximum sec-
tion width. For example: Treadwear
200 Traction AA Temperature ATreadwear—
The treadwear grade is
a comparative rating based on the
wear rate of the tire when tested un-
der controlled conditions on a speci-
fied government test course. For ex-
ample, a tire graded 150 would wear
one and a half (1 −1/2) times as well
on the government course as a tire
graded 100. The relative performance
of tires depends upon the actual
conditions of their use, however, and
may depart significantly from the
norm due to variations in driving hab-
its, service practices and differences
in road characteristics and climate. Traction AA, A, B, C—
The traction
grades, from highest to lowest, are
AA, A, B, and C, and they represent
the tire’s ability to stop on wet pave-
ment as measured under controlled
conditions on specified government
test surfaces of asphalt and concrete.
A tire marked C may have poor trac-
tion performance.
Warning: The traction grade assigned
to this tire is based on braking
(straight ahead) traction tests and
does not include cornering (turning)
traction.
—Uniform tire quality grading

’07 HIGHLANDER HV_U (L/O 0608)
313
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Temperature A, B, C—T he tem per a-
ture grades are A (the highest), B,
and C, representing the tire’s resis-
tance to the generation of heat and
its ability to dissipate heat when
tested under controlled conditions on
a specified indoor laboratory test
wheel. Sustained high temperature
can cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure. The grade C cor-
responds to a level of performance
which all passenger car tires must
meet under the Federal Motor Vehicle
Safety Standard No.109. Grades B
and A represent higher levels of per-
formance on the laboratory test wheel
than the minimum required by law.
Warning: The temperature grades for
this tire are established for a tire that
is properly inflated and not over-
loaded. Excessive speed, underinfla-
tion, or excessive loading, either sep-
arately or in combination, can cause
heat buildup and possible tire failure.

’07 HIGHLANDER HV_U (L/O 0608)
317
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Vehicle load limits include total load
capacity, seating capacity, towing ca-
pacity and cargo capacity. Follow the
load limits shown below. Total load ca-
pacity and seating capacity are also
described on the tire and loading in-
formation label. For location of the tire
and loading information label, see
“Checking tire inflat ion pr es s ur e” on
page 390.
Total load capacity:
Without third seat390 kg (860 lb.)
With third seat 526 kg (1159 lb.)
Total load capacity means combined
weight of occupants, cargo and lug-
gage. Tongue load is included when
trailer towing.
Seating capacity:
Without third seatTotal 5 (Front 2, Rear 3)
With third seat
Total 7 (Front 2, Rear 5) Seating capacity means the maximum
number of occupants whose esti-
mated average weight is 68 kg (150
lb.) per person. Depending on the
weight of each person, the seating ca-
pacity given may exceed the total
load capacity.
NOTICE
Even if the number of occupants are
within the seating capacity, do not ex-
ceed the total load capacity.
Towing capacity:
Without towing package 905 kg (2000 lb.)
With towing package
1588 kg (3500 lb.)
Towing capacity means the maximum
gross trailer weight (trailer weight plus
its cargo weight) that your vehicle is
able to tow. Cargo capacity
Cargo capacity may increase or de-
crease depending on the size (weight)
and the number of occupants. For de-
tails, see “—Capacity and distribu-
tion” on page 319.
CAUTION
Do not apply the load more than
each load limit. That may cause
not only damage to the tires, but
also deterioration to the steering
ability and braking ability, which
may cause an accident.
Veh icle lo ad limit s
