51
1-3. Opening, closing and locking the doors
1
Before driving
■
Key battery depletion
●The standard battery life is 1 to 2 years. (The battery becomes depleted
even if the electronic key is not used.) If the smart key system or the
wireless remote control function does not operate, or the detection area
becomes smaller, the battery may be depleted. Replace the battery when
necessary. ( P. 456)
● To avoid serious deterioration, do not leave the electronic key within 3 ft.
(1 m) of the following electrical appliances.
•TVs
• Personal computers
• Recharging cellular phones or cordless phones
• Table lamps
■ To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from
the outside of the vehicle.
Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or the door lock prevention may not func-
tion.)
■ Note for the entry function
●Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.
• The electronic key is on the instrument panel, luggage cover, floor or in the glove box when the hybrid system is started or “POWER” switch
modes are changed.
● As long as the electronic key is within the effective range, the doors may
be locked or unlocked by anyone.
● Even if the electronic key is not inside the vehicle, it may be possible to
start the hybrid system if the electronic key is near the window.

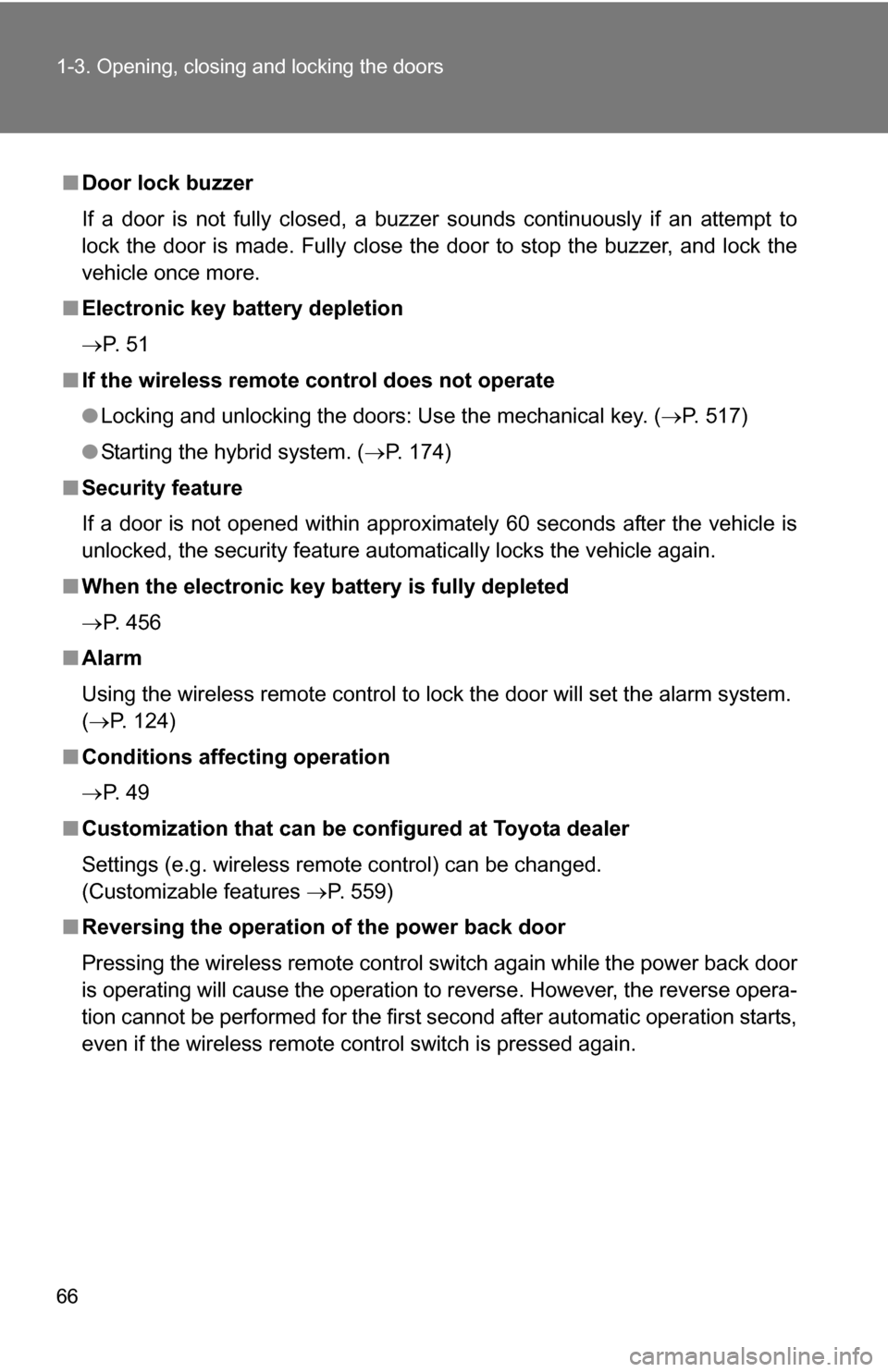

66 1-3. Opening, closing and locking the doors
■Door lock buzzer
If a door is not fully closed, a buzzer sounds continuously if an attempt to
lock the door is made. Fully close the door to stop the buzzer, and lock the
vehicle once more.
■ Electronic key battery depletion
P. 5 1
■ If the wireless remote control does not operate
●Locking and unlocking the doors: Use the mechanical key. ( P. 517)
● Starting the hybrid system. ( P. 174)
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ When the electronic key battery is fully depleted
P. 456
■ Alarm
Using the wireless remote control to lock the door will set the alarm sy\
stem.
(P. 124)
■ Conditions affecting operation
P. 4 9
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. wireless remote control) can be changed.
(Customizable features P. 559)
■ Reversing the operation of the power back door
Pressing the wireless remote control switch again while the power back door
is operating will cause the operation to reverse. However, the reverse opera-
tion cannot be performed for the first second after automatic operation starts,
even if the wireless remote control switch is pressed again.

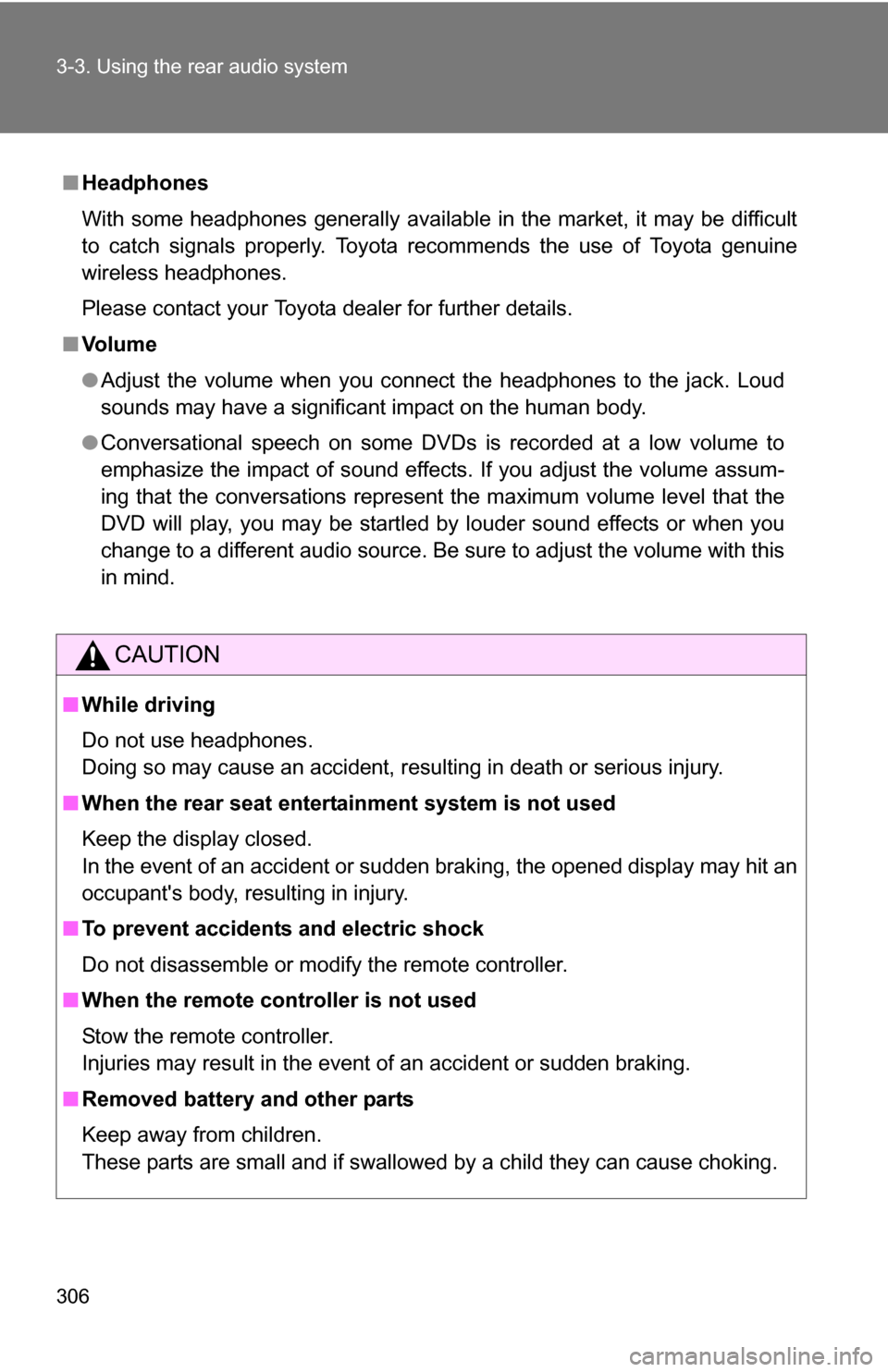

306 3-3. Using the rear audio system
■Headphones
With some headphones generally available in the market, it may be difficult
to catch signals properly. Toyota recommends the use of Toyota genuine
wireless headphones.
Please contact your Toyota dealer for further details.
■ Vo l u m e
●Adjust the volume when you connect the headphones to the jack. Loud
sounds may have a significant impact on the human body.
● Conversational speech on some DVDs is recorded at a low volume to
emphasize the impact of sound effects. If you adjust the volume assum-
ing that the conversations represent the maximum volume level that the
DVD will play, you may be startled by louder sound effects or when you
change to a different audio source. Be sure to adjust the volume with this
in mind.
CAUTION
■While driving
Do not use headphones.
Doing so may cause an accident, resulting in death or serious injury.
■ When the rear seat entert ainment system is not used
Keep the display closed.
In the event of an accident or sudden braking, the opened display may hit an
occupant's body, resulting in injury.
■ To prevent accidents and electric shock
Do not disassemble or modify the remote controller.
■ When the remote controller is not used
Stow the remote controller.
Injuries may result in the event of an accident or sudden braking.
■ Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.

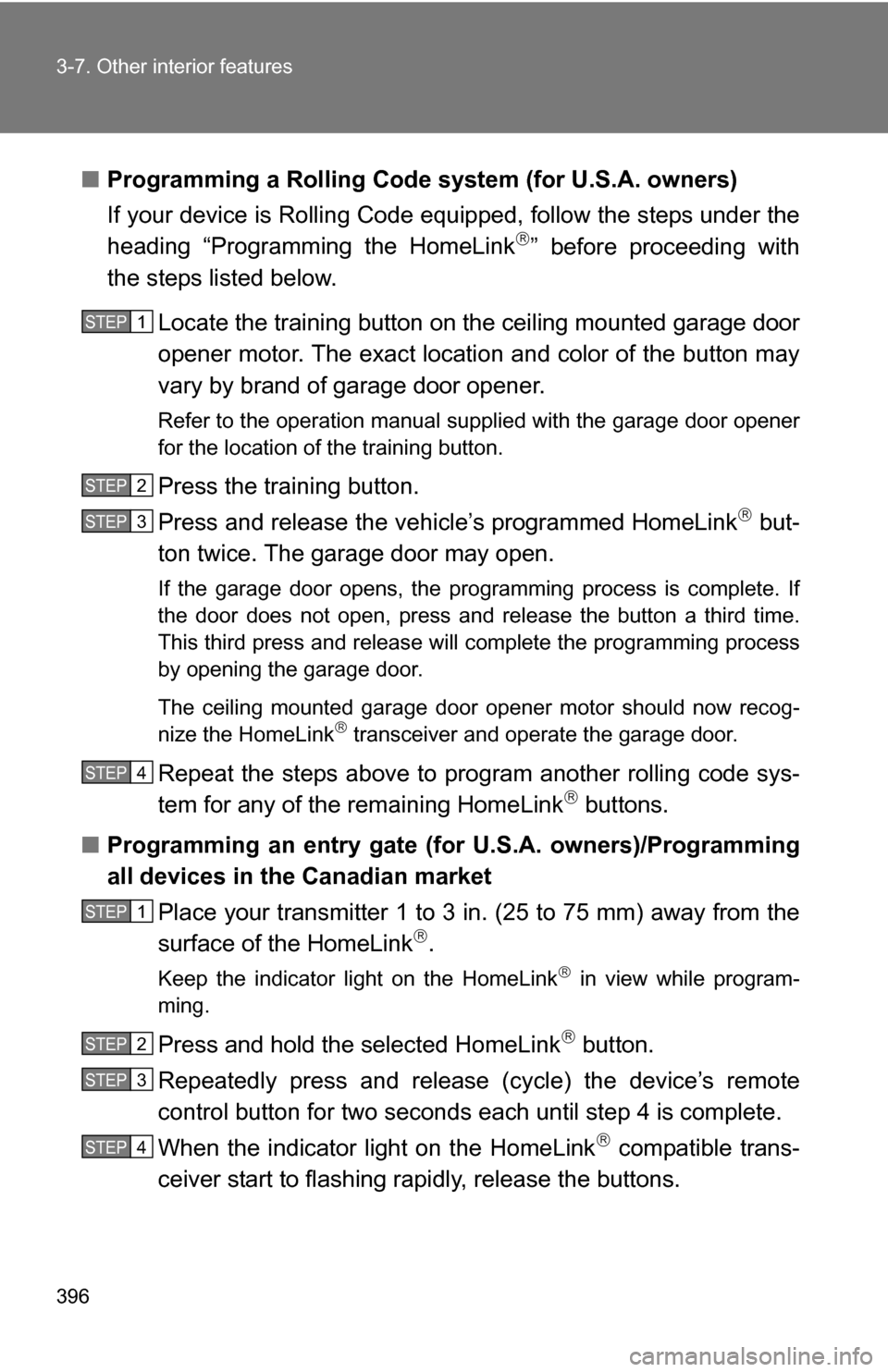

396 3-7. Other interior features
■Programming a Rolling Code sys tem (for U.S.A. owners)
If your device is Rolling Code equipped, follow the steps under the
heading “Programming the HomeLink
” before proceeding with
the steps listed below.
Locate the training button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener.
Refer to the operation manual supplied with the garage door opener
for the location of the training button.
Press the training button.
Press and release the vehicle’s programmed HomeLink
 but-
ton twice. The garage door may open.
If the garage door opens, the programming process is complete. If
the door does not open, press and release the button a third time.
This third press and release will complete the programming process
by opening the garage door.
The ceiling mounted garage door opener motor should now recog-
nize the HomeLink
 transceiver and operate the garage door.
Repeat the steps above to prog ram another rolling code sys-
tem for any of the remaining HomeLink buttons.
■ Programming an entry gate (f or U.S.A. owners)/Programming
all devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the
surface of the HomeLink
.
Keep the indicator light on the HomeLink in view while program-
ming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the device’s remote
control button for two seconds each until step 4 is complete.
When the indicator light on the HomeLink
 compatible trans-
ceiver start to flashing rapidly, release the buttons.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4

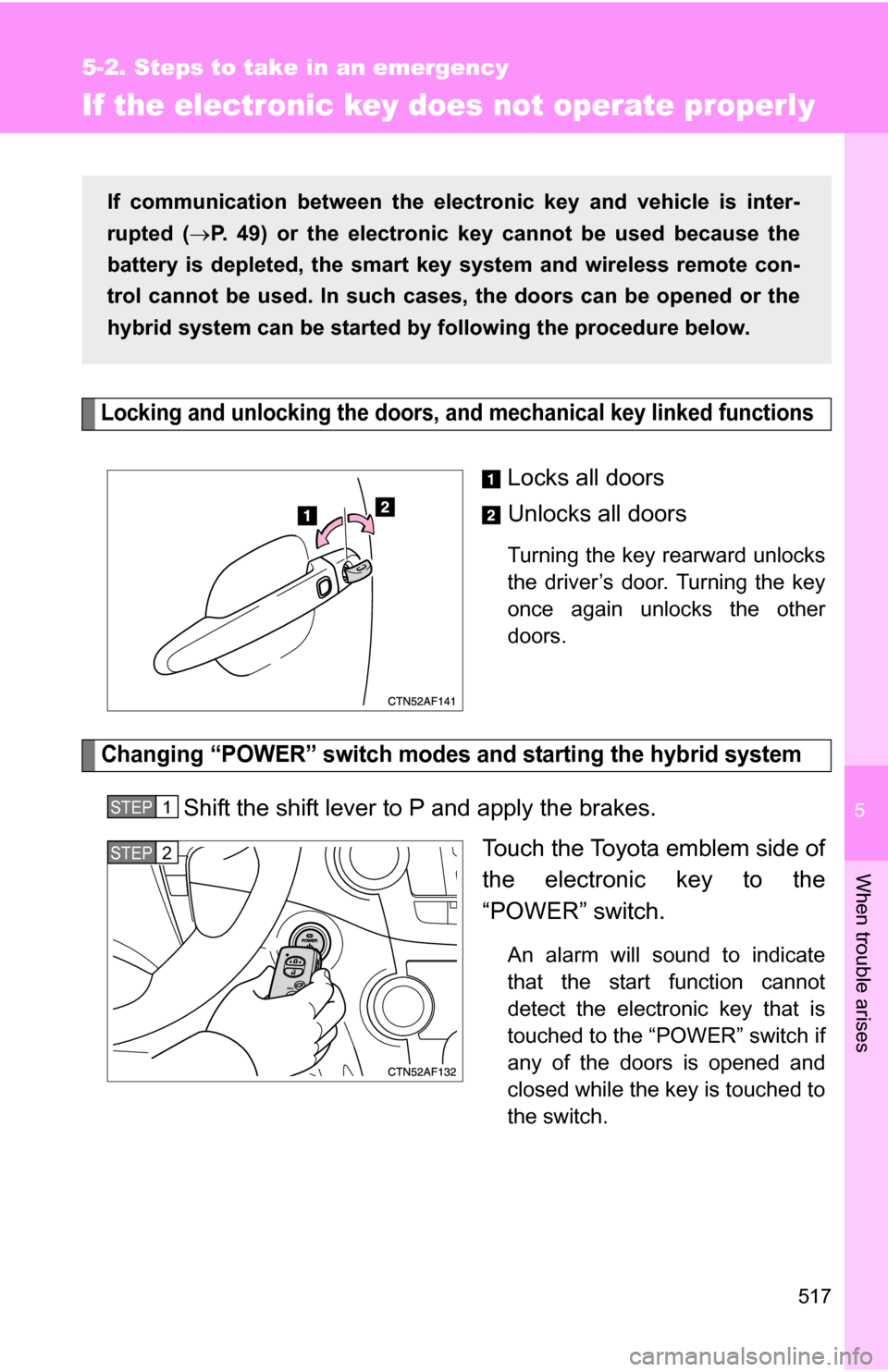

5
When trouble arises
517
5-2. Steps to take in an emergency
If the electronic key does not operate properly
Locking and unlocking the doors, and mechanical key linked functions
Locks all doors
Unlocks all doors
Turning the key rearward unlocks
the driver’s door. Turning the key
once again unlocks the other
doors.
Changing “POWER” switch modes and starting the hybrid system
Shift the shift lever to P and apply the brakes.
Touch the Toyota emblem side of
the electronic key to the
“POWER” switch.
An alarm will sound to indicate
that the start function cannot
detect the electronic key that is
touched to the “POWER” switch if
any of the doors is opened and
closed while the key is touched to
the switch.
If communication between the electronic key and vehicle is inter-
rupted (P. 49) or the electronic key cannot be used because the
battery is depleted, the smart key system and wireless remote con-
trol cannot be used. In such cases, the doors can be opened or the
hybrid system can be started by following the procedure below.
STEP1
STEP2

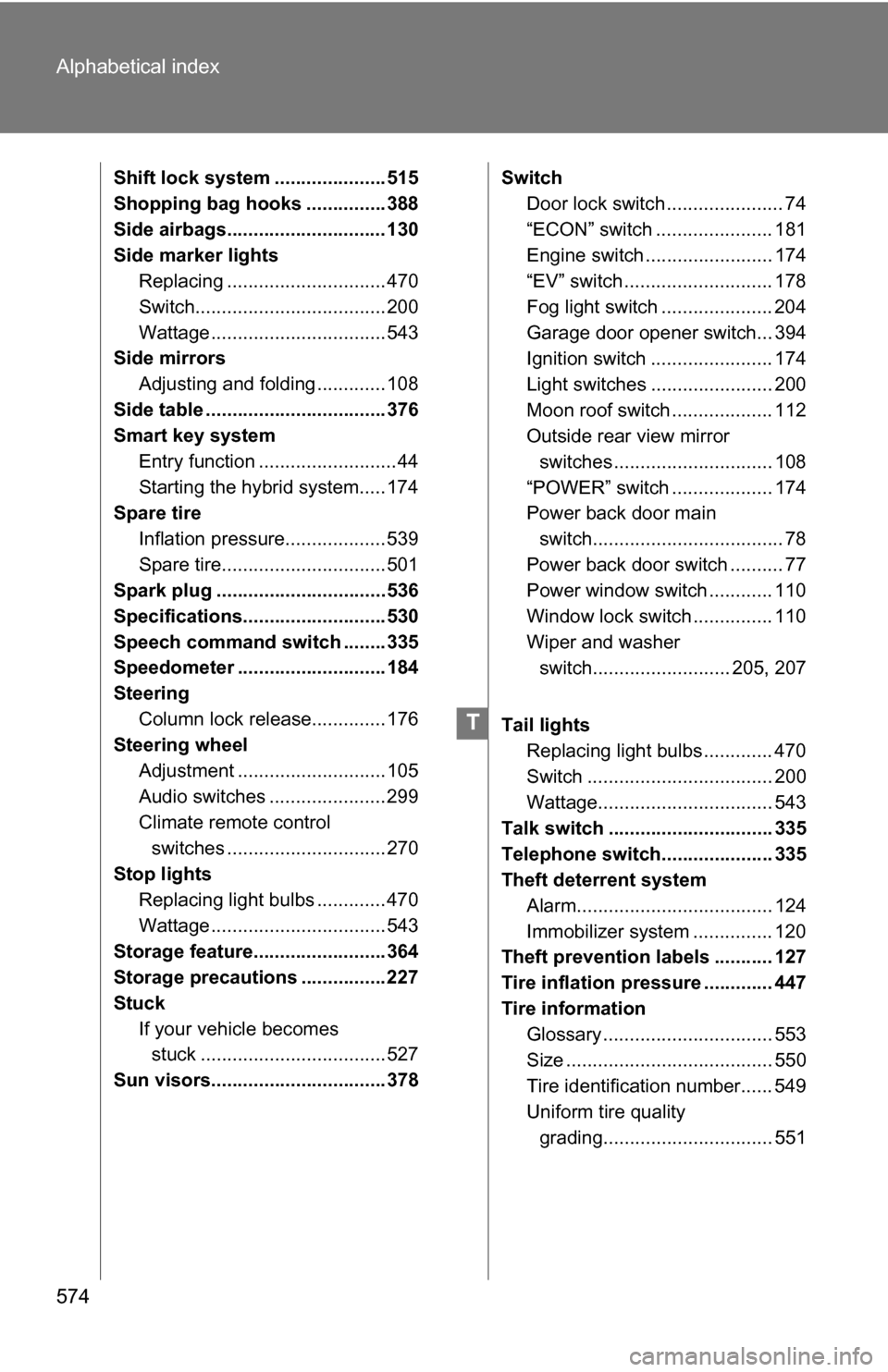

574 Alphabetical index
Shift lock system ..................... 515
Shopping bag hooks ............... 388
Side airbags.............................. 130
Side marker lightsReplacing .............................. 470
Switch.................................... 200
Wattage ................................. 543
Side mirrors
Adjusting and folding ............. 108
Side table .................................. 376
Smart key system Entry function ..........................44
Starting the hybrid system..... 174
Spare tire
Inflation pressure................... 539
Spare tire............................... 501
Spark plug ................................ 536
Specifications........................... 530
Speech command switch ........ 335
Speedometer ............................ 184
Steering
Column lock release.............. 176
Steering wheel
Adjustment ............................ 105
Audio switches ...................... 299
Climate remote control switches .............................. 270
Stop lights Replacing light bulbs ............. 470
Wattage ................................. 543
Storage feature......................... 364
Storage precautions ................227
Stuck If your vehicle becomes stuck ................................... 527
Sun visors................................. 378 Switch
Door lock switch ...................... 74
“ECON” switch ...................... 181
Engine switch ........................ 174
“EV” switch ............................ 178
Fog light switch ..................... 204
Garage door opener switch... 394
Ignition switch ....................... 174
Light switches ....................... 200
Moon roof switch ................... 112
Outside rear view mirror
switches .............................. 108
“POWER” switch ................... 174
Power back door main switch.................................... 78
Power back door switch .......... 77
Power window switch ............ 110
Window lock switch ............... 110
Wiper and washer switch.......................... 205, 207
Tail lights Replacing light bulbs ............. 470
Switch ................................... 200
Wattage................................. 543
Talk switch ............................... 335
Telephone switch..................... 335
Theft deterrent system Alarm..................................... 124
Immobilizer system ............... 120
Theft prevention labels ........... 127
Tire inflation pressure ............. 447
Tire information Glossary ................................ 553
Size ....................................... 550
Tire identification number...... 549
Uniform tire quality
grading................................ 551
T
