TOYOTA HIGHLANDER HYBRID 2008 XU40 / 2.G Quick Reference Guide

29

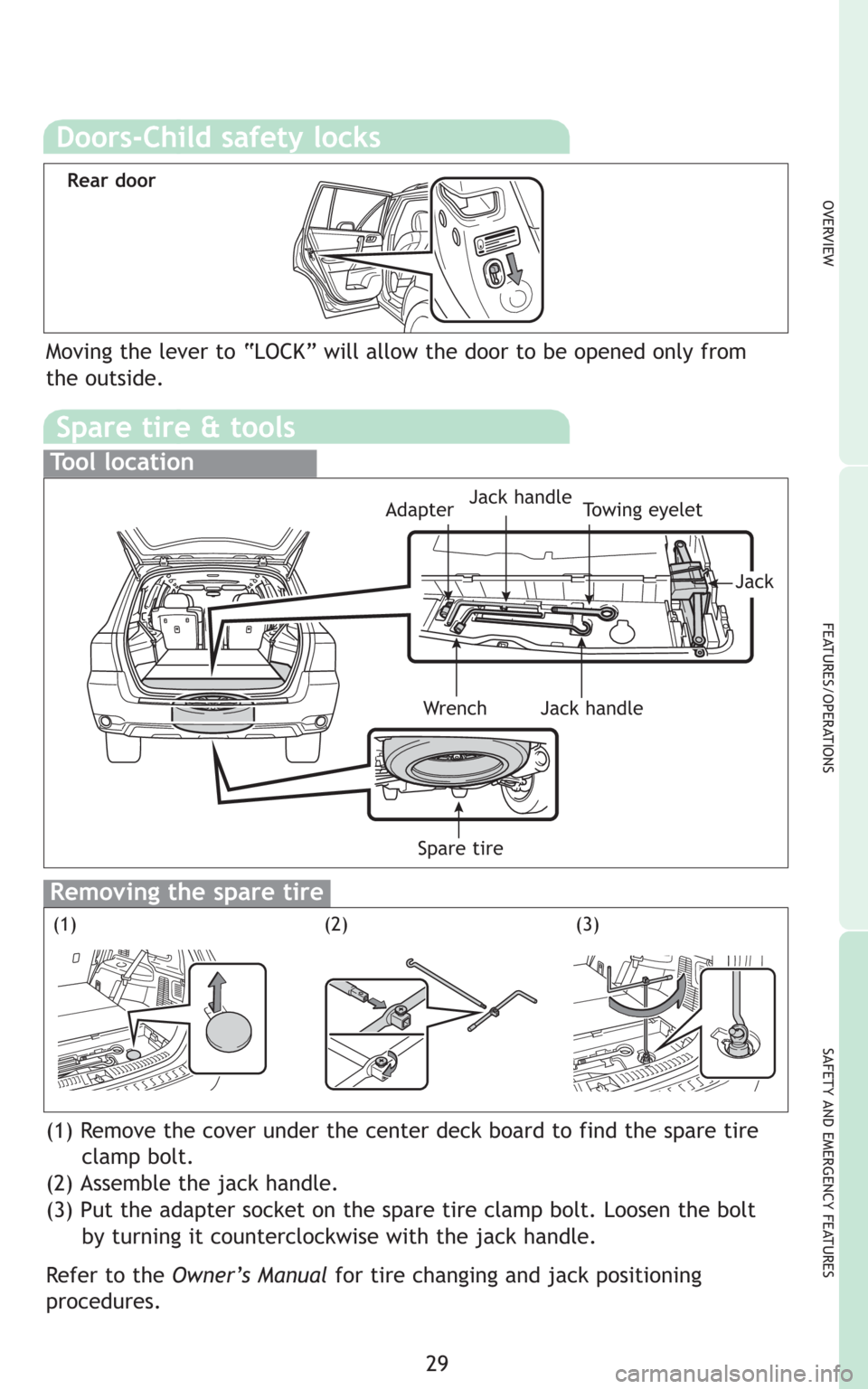

Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the cover under the center deck board to find the spare tire
clamp bolt.
(2) Assemble the jack handle.
(3) Put the adapter socket on the spare tire clamp bolt. Loosen the bolt
by turning it counterclockwise with the jack handle.
Refer to the Owner’s Manualfor tire changing and jack positioning
procedures.
Wrench
Spare tireJack handle
Towing eyeletAdapter
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear doorOVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Jack Jack handle
Doors-Child safety locks
(2)(3)(1)
