Timing TOYOTA HIGHLANDER HYBRID 2008 XU40 / 2.G Scheduled Maintenance Guide

2008 Highlander Hybrid Scheduled Maintenance Guide
90,000 Miles or 108 Months
Re-torque drive shaft boltReplace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Replace timing beltRotate tiresVisually inspect brake linings/drums and brake pads/discs4
Inspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine/inverter coolant
3
__ Exhaust pipes and mountings
__ Front differential oil__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator, condenser and/or intercooler
__ Rear differential oil
__ Steering gear box
__ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis
Driving while towing:
Tighten nuts and bolts on chassis
D
EALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:

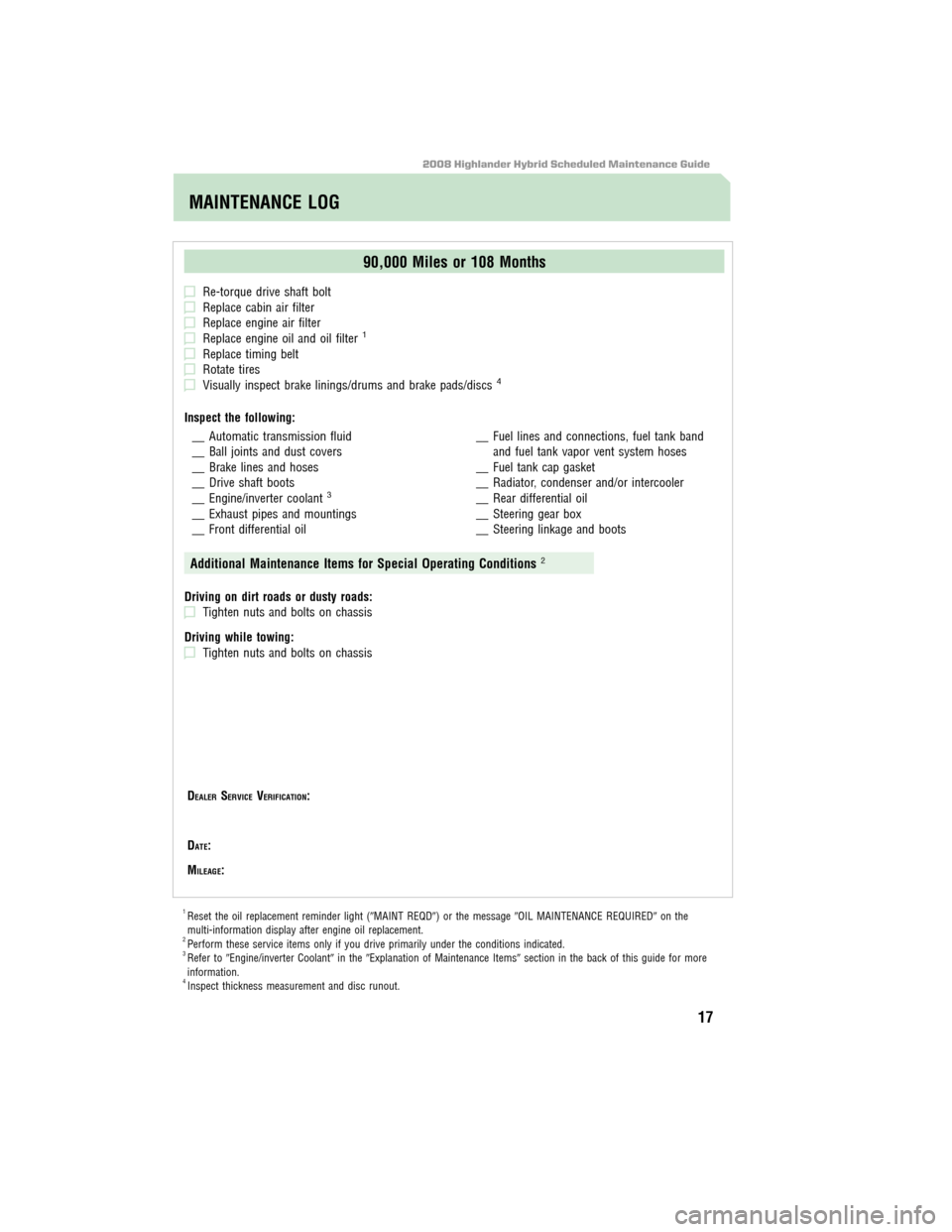

MAINTENANCE LOG
17
1Reset the oil replacement reminder light (9MAINT REQD9) or the message9OIL MAINTENANCE REQUIRED9on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Refer to9Engine/inverter Coolant9in the9Explanation of Maintenance Items9section in the back of this guide for more
information.
4Inspect thickness measurement and disc runout.
