key TOYOTA HIGHLANDER HYBRID 2009 XU40 / 2.G Owners Manual

TABLE OF CONTENTSIndex
2
1-1. Hybrid systemHybrid system ...................... 30
1-2. Key information Keys ..................................... 42
1-3. Opening, closing and
locking the doors
Smart key system................. 44
Wireless remote control ....... 65
Side doors ............................ 74
Back door ............................. 78
Glass hatch .......................... 84
1-4. Adjustable components (seats, mirrors,
steering wheel)
Front seats ........................... 86
Rear seats ............................ 89
Head restraints ..................... 98
Seat belts ........................... 101
Steering wheel ................... 108
Anti-glare inside rear view mirror ................................ 109
Outside rear view mirrors .............................. 111
1-5. Opening and closing the windows and moon roof
Power windows .................. 113
Moon roof ........................... 115 1-6. Refueling
Opening the fuel tank cap .................................... 118
1-7. Theft deterrent system Immobilizer system ............. 123
Alarm .................................. 127
Theft prevention labels (U.S.A.)............................. 130
1-8. Safety information Correct driving posture ....... 131
SRS airbags ....................... 133
Front passenger occupant classification system ......... 145
Child restraint systems ....... 151
Installing child restraints ..... 155
2-1. Driving procedures Driving the vehicle .............. 168
Power (ignition) switch........ 178
EV-Drive Mode ................... 182
Transmission ...................... 184
Turn signal lever ................. 186
Parking brake ..................... 187
Horn .................................... 188
1Before driving
2When driving

1
2
3
4
5
6
7
5
4-1. Maintenance and careCleaning and protecting the vehicle exterior............ 412
Cleaning and protecting the vehicle interior............. 415
4-2. Maintenance Maintenance requirements ..................... 418
General maintenance.......... 420
Emission inspection and maintenance (I/M)
programs........................... 423
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ....................... 424
Hood ................................... 428
Positioning a floor jack ........ 430
Engine compartment ........... 432
Tires .................................... 447
Tire inflation pressure ......... 455
Wheels ................................ 459
Air conditioning filter............ 461
Electronic key battery.......... 464
Checking and replacing fuses ................................. 467
Light bulbs........................... 478 5-1. Essential information
Emergency flashers............ 490
If your vehicle needs to be towed........................... 491
If you think something is wrong ............................ 497
Event data recorder ............ 498
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds... .......................... 500
If a warning message is displayed .......................... 509
If you have a flat tire ........... 510
If the hybrid system will not start ............................ 522
If the shift lever cannot be shifted from P ................... 524
If you lose your keys........... 525
If the electronic key does not operate properly ......... 526
If the 12-volt battery is discharged........................ 528
If your vehicle overheats .... 532
If the vehicle becomes stuck ................................. 536
4Maintenance and care5When trouble arises

26
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that will hurt or kill you,
your occupants or others.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof, or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to
children.
■ Dispose of the hybrid battery (traction battery)
If your vehicle is disposed of without the hybrid battery having been
removed, there is a danger of serious electric shock if high voltage parts,
cables and their connectors are touched. In the event of that your vehicle
must be disposed of, the hybrid battery must be disposed of your Toyota
dealer or a qualified service shop. If the hybrid battery is not disposed of
properly, they may cause electric shock that can result in death or serious
injury.

Before driving1
29
1-1. Hybrid systemHybrid system .................... 30
1-2. Key information Keys ................................... 42
1-3. Opening, closing and locking the doors
Smart key system .............. 44
Wireless remote control ..... 65
Side doors .......................... 74
Back door ........................... 78
Glass hatch ........................ 84
1-4. Adjustable components (seats, mirrors,
steering wheel)
Front seats ......................... 86
Rear seats.......................... 89
Head restraints................... 98
Seat belts ......................... 101
Steering wheel ................. 108
Anti-glare inside rear view mirror ............................. 109
Outside rear view mirrors............................ 111 1-5. Opening and closing the
windows and moon roof
Power windows ................ 113
Moon roof ......................... 115
1-6. Refueling Opening the fuel tank cap ................................. 118
1-7. Theft deterrent system Immobilizer system .......... 123
Alarm................................ 127
Theft prevention labels (U.S.A.) .......................... 130
1-8. Safety information Correct driving posture..... 131
SRS airbags ..................... 133
Front passenger occupant classification system ...... 145
Child restraint systems..... 151
Installing child restraints ........................ 155

42
1-2. Key information
Keys
Using the mechanical key
Take out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the
entry function does not operate
properly, you will need the
mechanical key. (→P. 526)

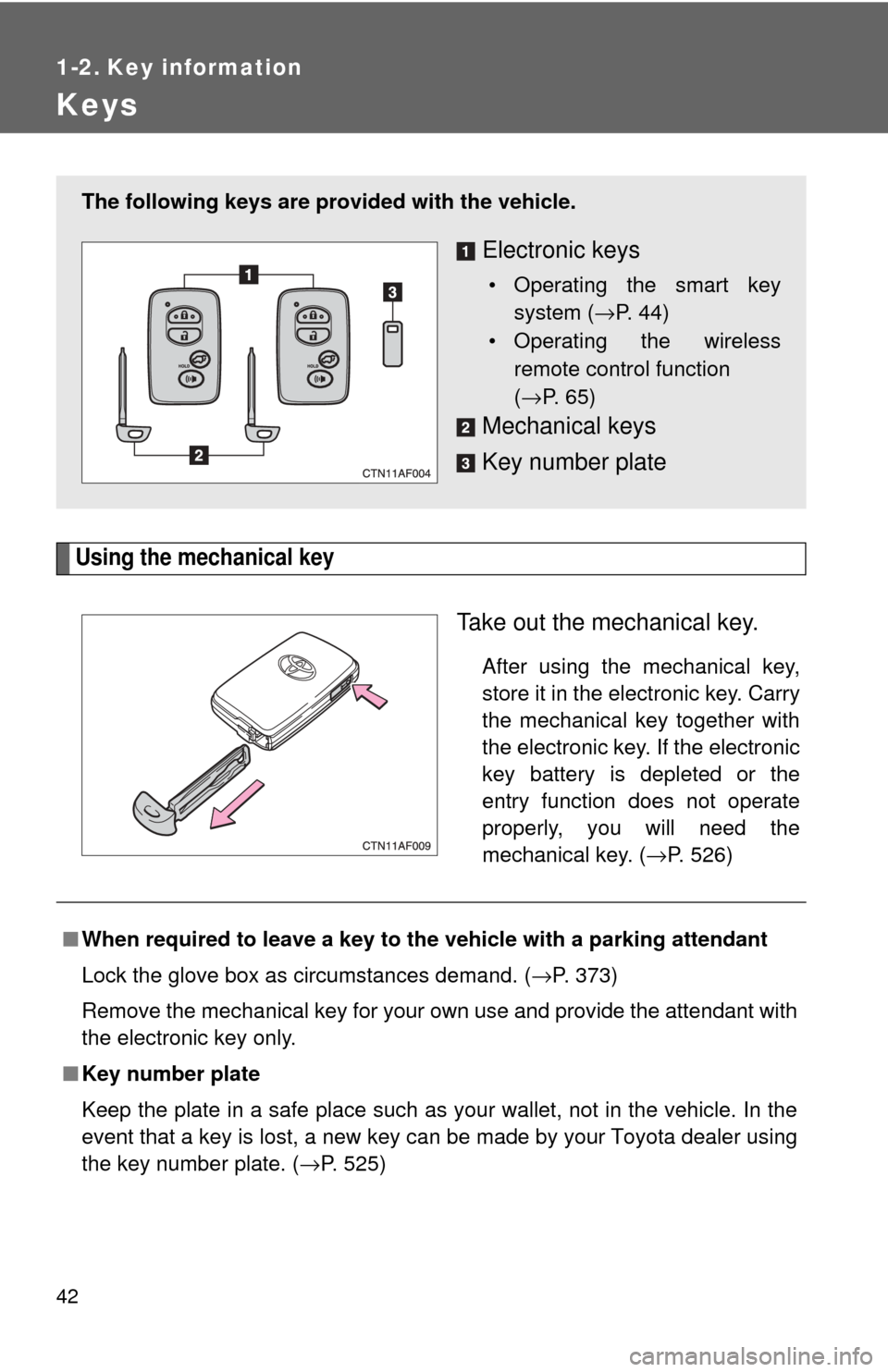

The following keys are provid ed with the vehicle.
Electronic keys
• Operating the smart key
system ( →P. 44)
• Operating the wireless remote control function
(→ P. 6 5 )
Mechanical keys
Key number plate
■When required to leave a key to the vehicle with a parking attendant
Lock the glove box as circumstances demand. ( →P. 373)
Remove the mechanical key for your own use and provide the attendant with
the electronic key only.
■ Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by your Toyota dealer using
the key number plate. ( →P. 525)

43
1-2. Key information
1
Before driving
NOTICE
■
To prevent key damage
●Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
● Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
● Do not disassemble the electronic key.

44
1-3. Opening, closing and locking the doors

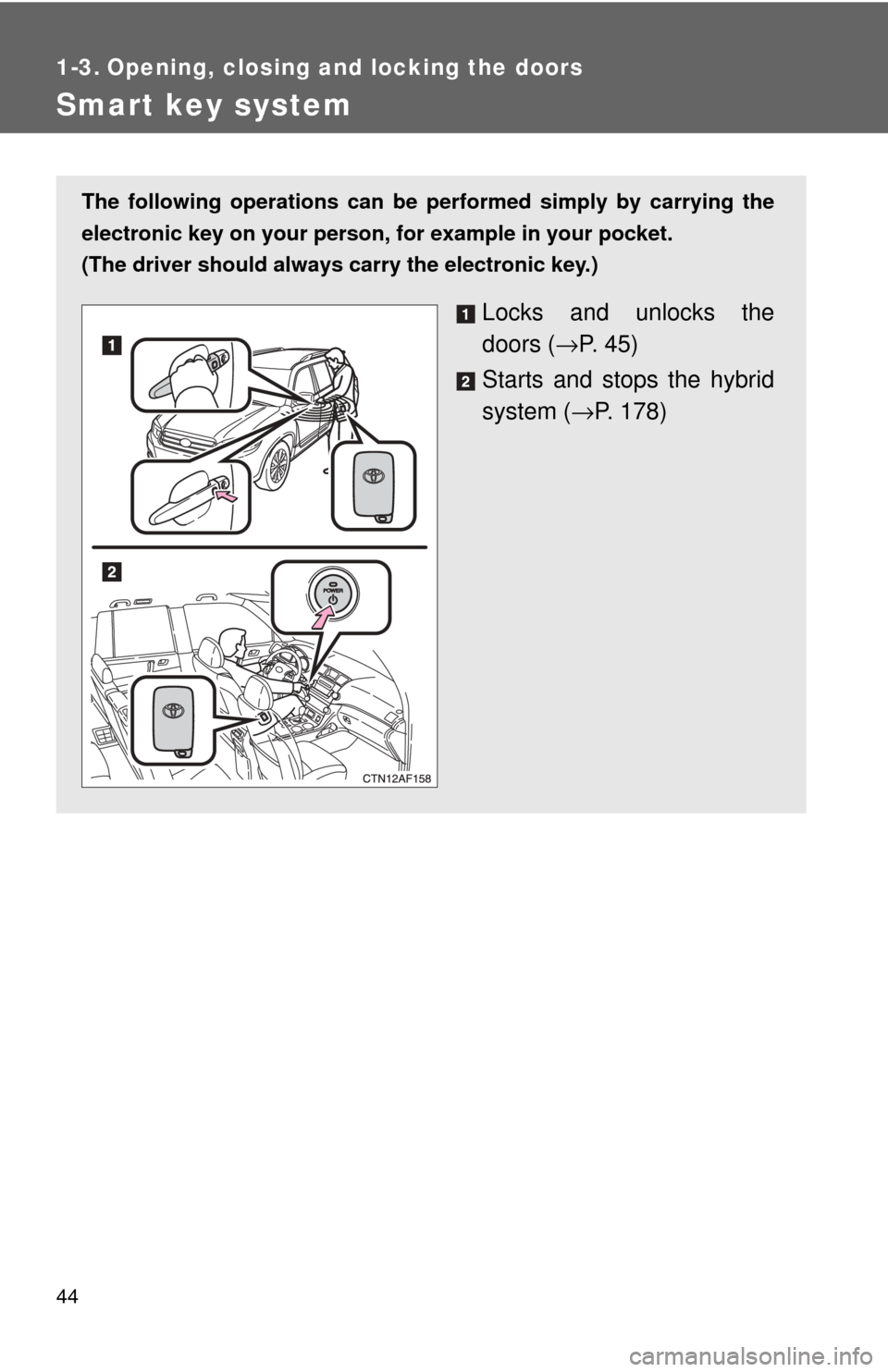

Smart key system
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the
doors ( →P. 45)
Starts and stops the hybrid
system ( →P. 178)

48 1-3. Opening, closing and locking the doors

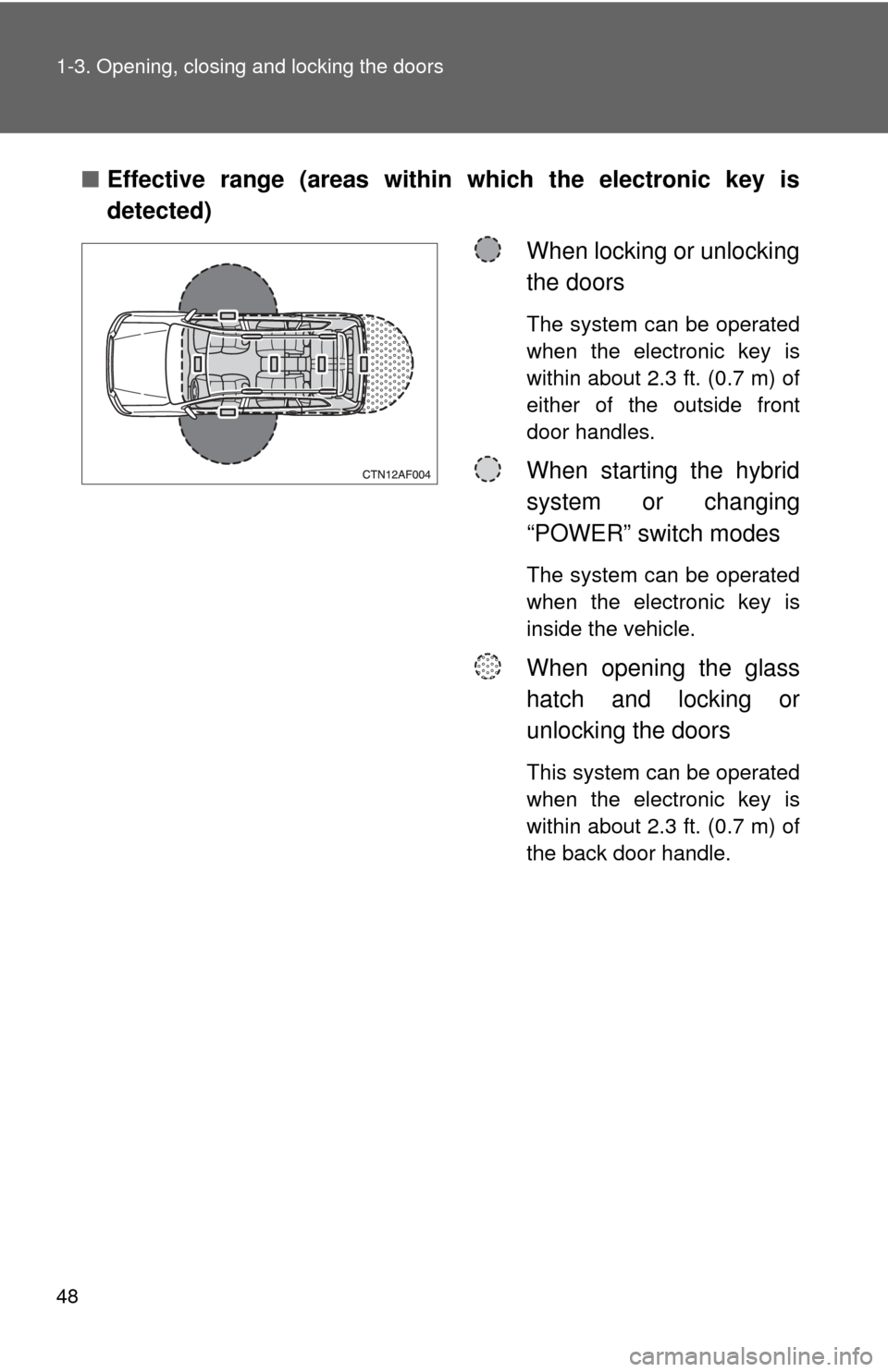

■Effective range (areas within which the electronic key is
detected)
When locking or unlocking
the doors
The system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
either of the outside front
door handles.
When starting the hybrid
system or changing
“POWER” switch modes
The system can be operated
when the electronic key is
inside the vehicle.
When opening the glass
hatch and locking or
unlocking the doors
This system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
the back door handle.

49
1-3. Opening, closing and locking the doors
1
Before driving
■
Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doo\
rs
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
■ Conditions affecting operation
The smart key system uses weak radio waves. In the following situations,
the communication between the electronic key and the vehicle may be
affected, preventing the smart key system and wireless remote control from
operating properly. (Ways of coping: →P. 526)
● When the electronic key battery is depleted
● Near a TV tower, electronic power plant, gas station, radio station, large
display, airport or other facility that generates strong radio waves or elec-
trical noise
● When carrying a portable radio, cellular phone, cordless phone or other
wireless communication devices
● When the electronic key has come into contact with, or is covered by a
metallic object
● When multiple electronic keys are in the vicinity
● When carrying or using the electronic key together with the following
devices that emit radio waves
• Another vehicle’s electronic key
• A wireless key that emits radio waves
• Personal computer
● If window tint with a metallic content or metallic objects are attached to
the rear window
■ Switching the door unlock function
It is possible to set which doors the entry function unlocks.
Turn the “POWER” switch OFF.
When the indicator on the key surface is turned off, push and hold
, , or for approximately 5 seconds while pushing
on the key.
STEP1
STEP2

50 1-3. Opening, closing and locking the doors
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at
least 5 seconds, and repeat step 2.)Unlock the doors using the wireless remote control and open one of
the doors.
If a door is not opened within 60 seconds after is pressed,
the doors will be locked again and the alarm will automatically be
set.
In case that the alarm is triggered, immediately stop the alarm.
(→P. 127)
■ Battery-saving function
In the following circumstances, the entry function is disabled in order to pre-
vent the 12-volt battery from discharging and the electronic key battery from
depleting.
●When the entry function has not been used for 2 weeks or more
● When the electronic key has been left within approximately 3 ft. (1 m) of
the vehicle for 10 minutes or more
The system will resume operation when...
● The vehicle is locked using the door handle lock button.
● The vehicle is locked/unlocked using the wireless remote control func-
tion. ( →P. 6 5 )
● The vehicle is locked/unlocked using the mechanical key. ( →P. 526)

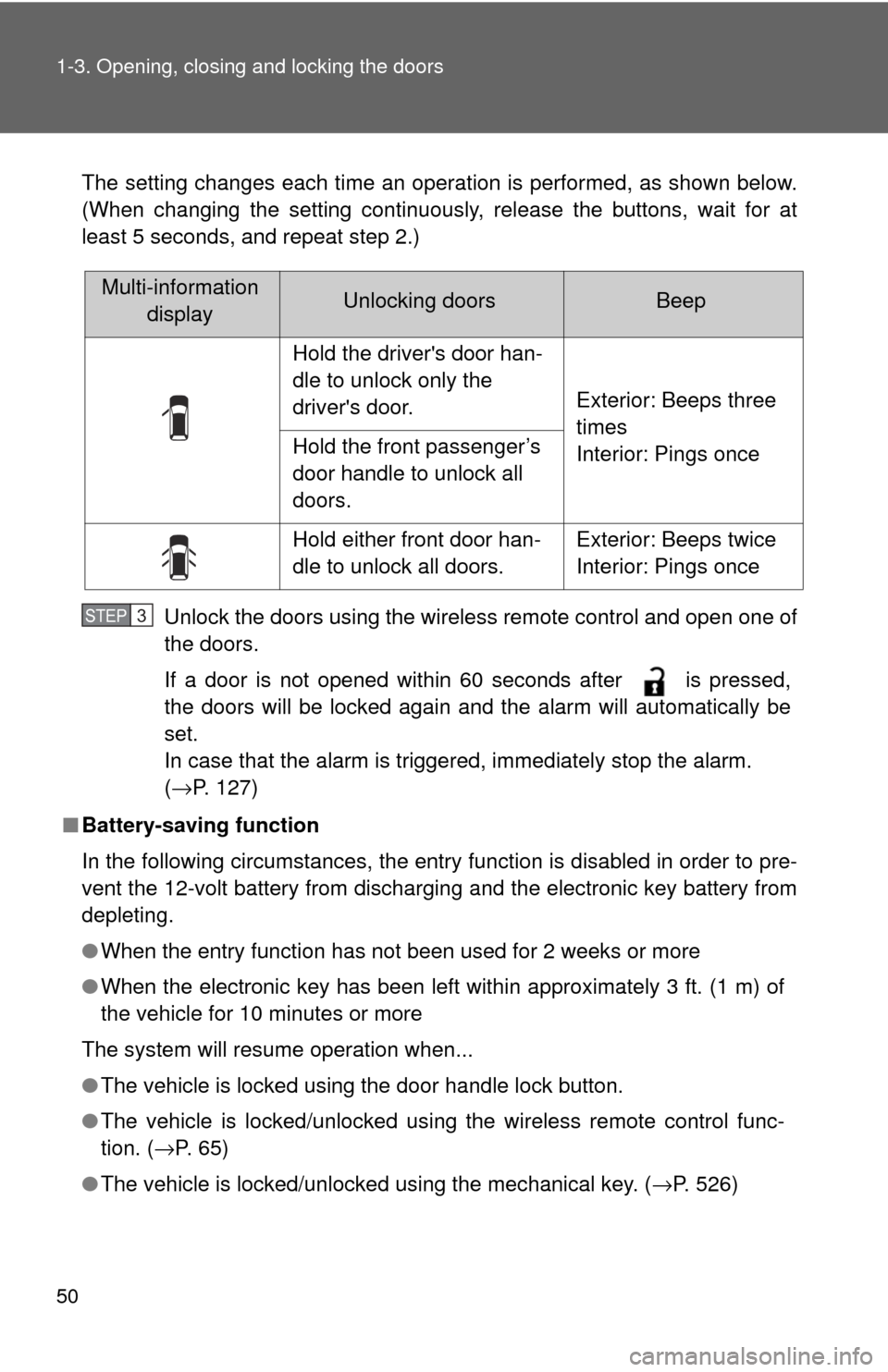

Multi-information
displayUnlocking doorsBeep
Hold the driver's door han-
dle to unlock only the
driver's door.
Exterior: Beeps three
times
Interior: Pings once
Hold the front passenger’s
door handle to unlock all
doors.
Hold either front door han-
dle to unlock all doors.Exterior: Beeps twice
Interior: Pings once
STEP3
