bluetooth TOYOTA HIGHLANDER HYBRID 2009 XU40 / 2.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance9Fuel tank door release and cap8Hood release 8Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry16Light control-Instrument panel9
Smart Key system1,27
Air Conditioning/Heating20-22Audio 24-25Auto lock functions111Clock 26Cruise control23Cup holders27Door-Power back 19EV-Drive Mode12Garage door opener (HomeLink®)323Hill-start Assist Control (HAC) 27Hybrid Synergy Drive System10Lights1& turn signals 16Moonroof 22Multi-information display218Parking brake12Power outlets-12V DC 17Power outlets-115V AC17Rear seat entertainment system26Seat adjustments-Front 13Seat adjustments-Rear13Seat heaters 22Seats-Folding down second row seats 15Seats-Head restraints14
Seats-Stowing third row seats14Steering lock release 12Steering wheel switches25Te l e p h o n e controls (Bluetooth®)19Tilt and telescopic steering wheel 12Transmission 11Windows-Power 18
Windshield wipers & washers 15
Doors-Child safety locks 29Door locks 28Seatbelts28Seatbelts-Shoulder belt anchor28Spare tire & tools29
Tire Pressure Monitoring (warning) System 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
Seats-Removing Center-StowTMsecond row seat14
412781M2.qxd 8/18/08 1:27 PM Page 1

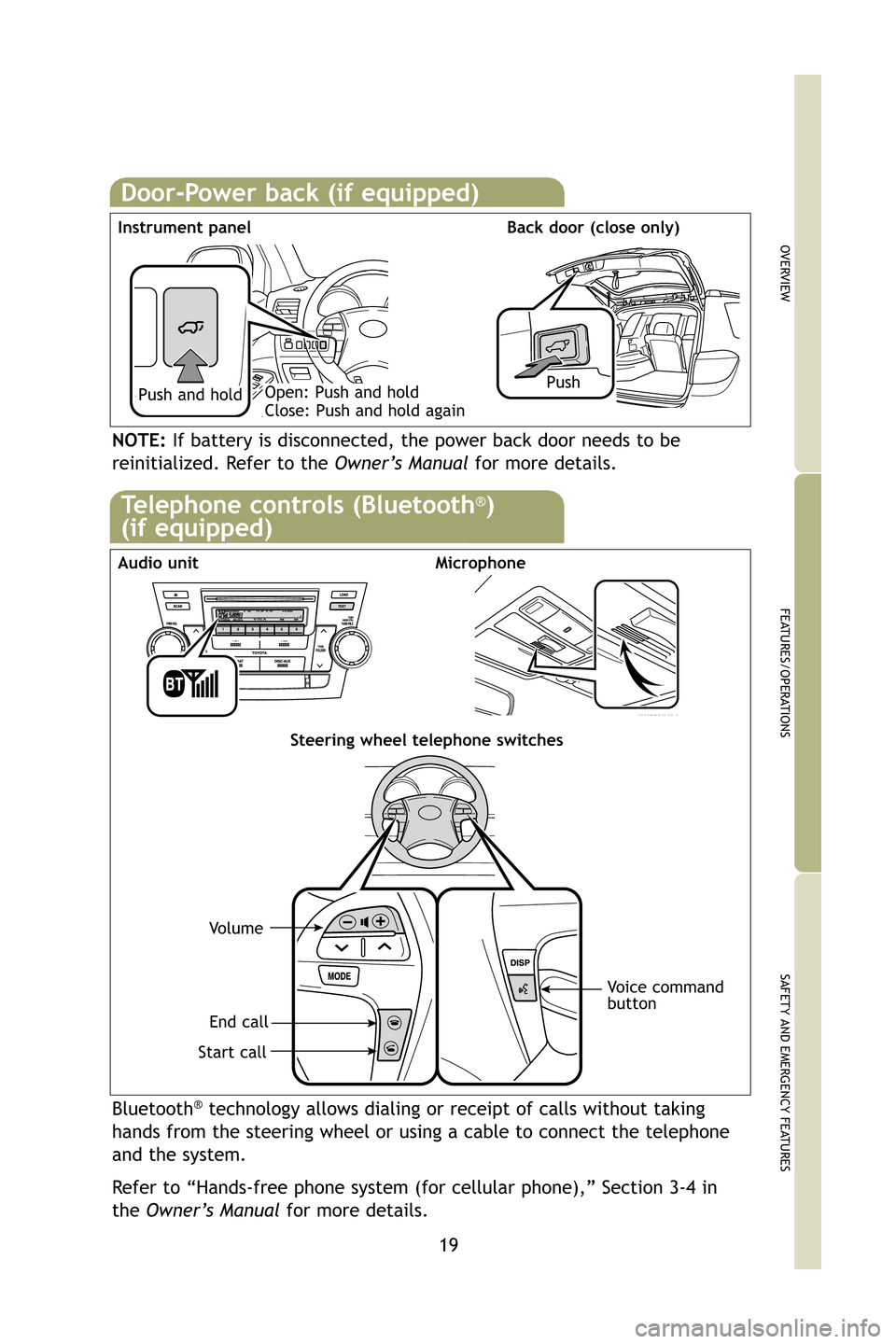

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Door-Power back (if equipped)
PushPush and hold
Instrument panel Back door (close only)Open: Push and hold
Close: Push and hold again
NOTE:
If battery is disconnected, the power back door needs to be
reinitialized. Refer to the Owner’s Manualfor more details.
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to “Hands-free phone system (for cellular phone),” Section \
3-4 in
the Owner’s Manual for more details.
Telephone controls (Bluetooth®)
(if equipped)
MicrophoneAudio unit
Steering wheel telephone switches
Vo l u m e
Start call
End call Voice command
button
412781M2.qxd 8/18/08 1:27 PM Page 19

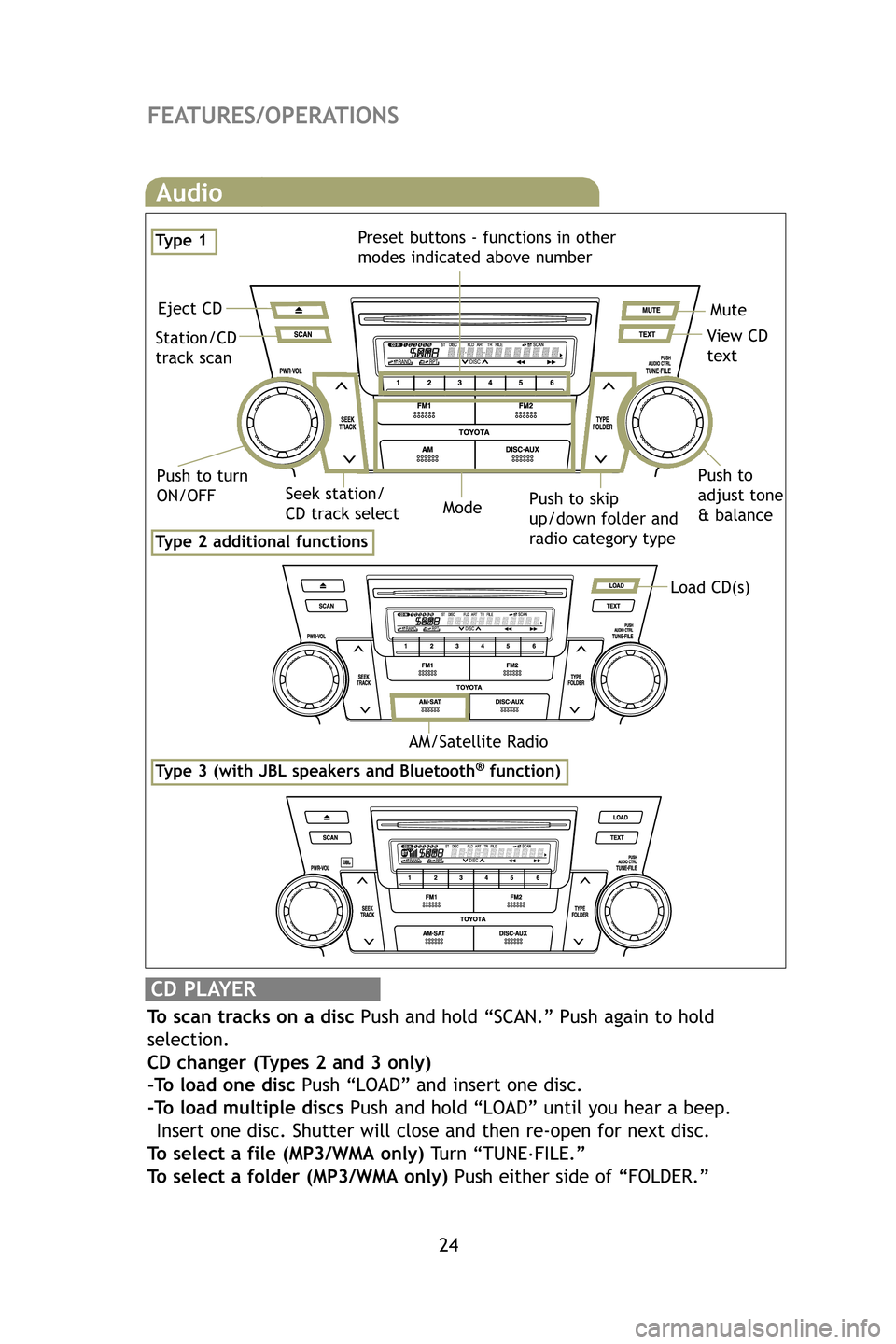

24
FEATURES/OPERATIONS
Type 2 additional functions
Type 3 (with JBL speakers and Bluetooth®function)
Audio
Eject CD
Push to turn
ON/OFF View CD
text
Seek station/
CD track select
Station/CD
track scan
Mode
AM/Satellite Radio
Preset buttons - functions in other
modes indicated above number
Load CD(s)
Ty p e 1
Push to skip
up/down folder and
radio category type
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Types 2 and 3 only)
-To load one disc
Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE.”
To select a folder (MP3/WMA only) Push either side of “FOLDER.”
Push to
adjust tone
& balance
Mute
412781M2.qxd 8/18/08 1:27 PM Page 24
