3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Vehicles without navigation
systemManual Air ConditioningVehicles with navigation
system
Tilt and telescopic steering lock release
Fuel filler door opener
Power back door button
Instrument panel light control
115V AC Power outlet ON/OFF switch
1
Windshield wiper de-ice switch1
Power rearview mirror control
Outside rearview mirror1/Back window defogger button
Air Conditioning controls
1If equipped2For vehicles with a navigation system, refer to the “ Navigation System
Owner’s Manual .”
412781M2.qxd 8/18/08 1:27 PM Page 3

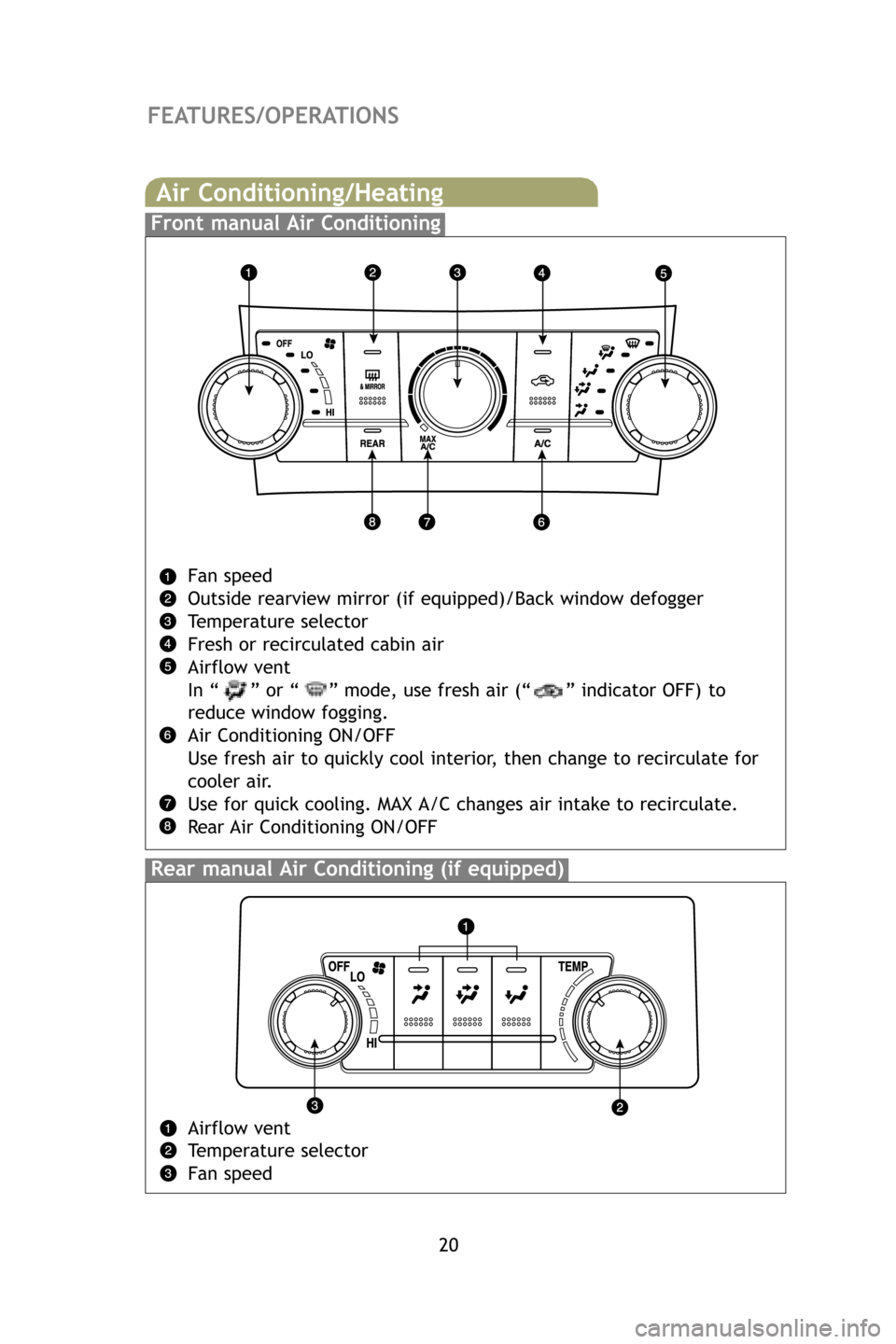

20
FEATURES/OPERATIONS
Air Conditioning/Heating
Rear manualAir Conditioning (if equipped)
Front manual Air Conditioning
Airflow vent
Temperature selector
Fan speed
Fan speed
Outside rearview mirror (if equipped)/Back window defogger
Temperature selector
Fresh or recirculated cabin air
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Use for quick cooling. MAX A/C changes air intake to recirculate.
Rear Air Conditioning ON/OFF
412781M2.qxd 8/18/08 1:27 PM Page 20

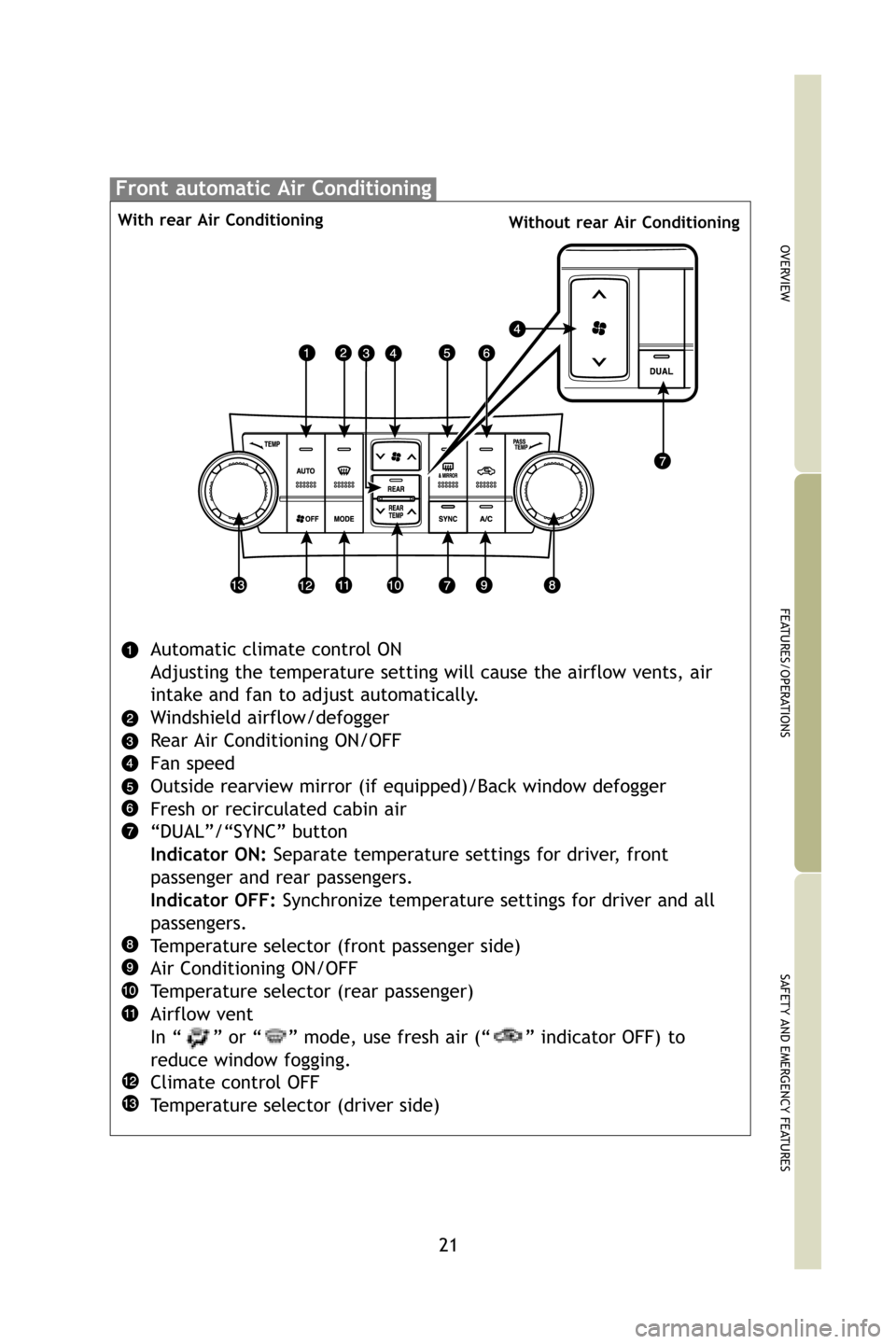

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Front automatic Air Conditioning
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Windshield airflow/defogger
Rear Air Conditioning ON/OFF
Fan speed
Outside rearview mirror (if equipped)/Back window defogger
Fresh or recirculated cabin air
“DUAL”/“SYNC” button
Indicator ON:Separate temperature settings for driver, front
passenger and rear passengers.
Indicator OFF: Synchronize temperature settings for driver and all
passengers.
Temperature selector (front passenger side)
Air Conditioning ON/OFF
Temperature selector (rear passenger)
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Climate control OFF
Temperature selector (driver side)
With rear Air Conditioning Without rear Air Conditioning
412781M2.qxd 8/18/08 1:27 PM Page 21
