Page 41 of 592
41
1-1. Hybrid system
1
Before driving
NOTICE
■
Hybrid battery air vents
●Do not put foreign objects over the air vents. The hybrid battery (traction
battery) may overheat and be damaged.
● Clean the air vents regularly to prevent the hybrid battery (traction battery)
from overheating.
● Do not wet the air vents. It may cause a short circuit and damage the
hybrid battery (traction battery).
● Do not load a large amount of water such as water cooler into the vehicle.
If water spills over the hybrid battery (traction battery), the battery may be
damaged.
Page 42 of 592
42

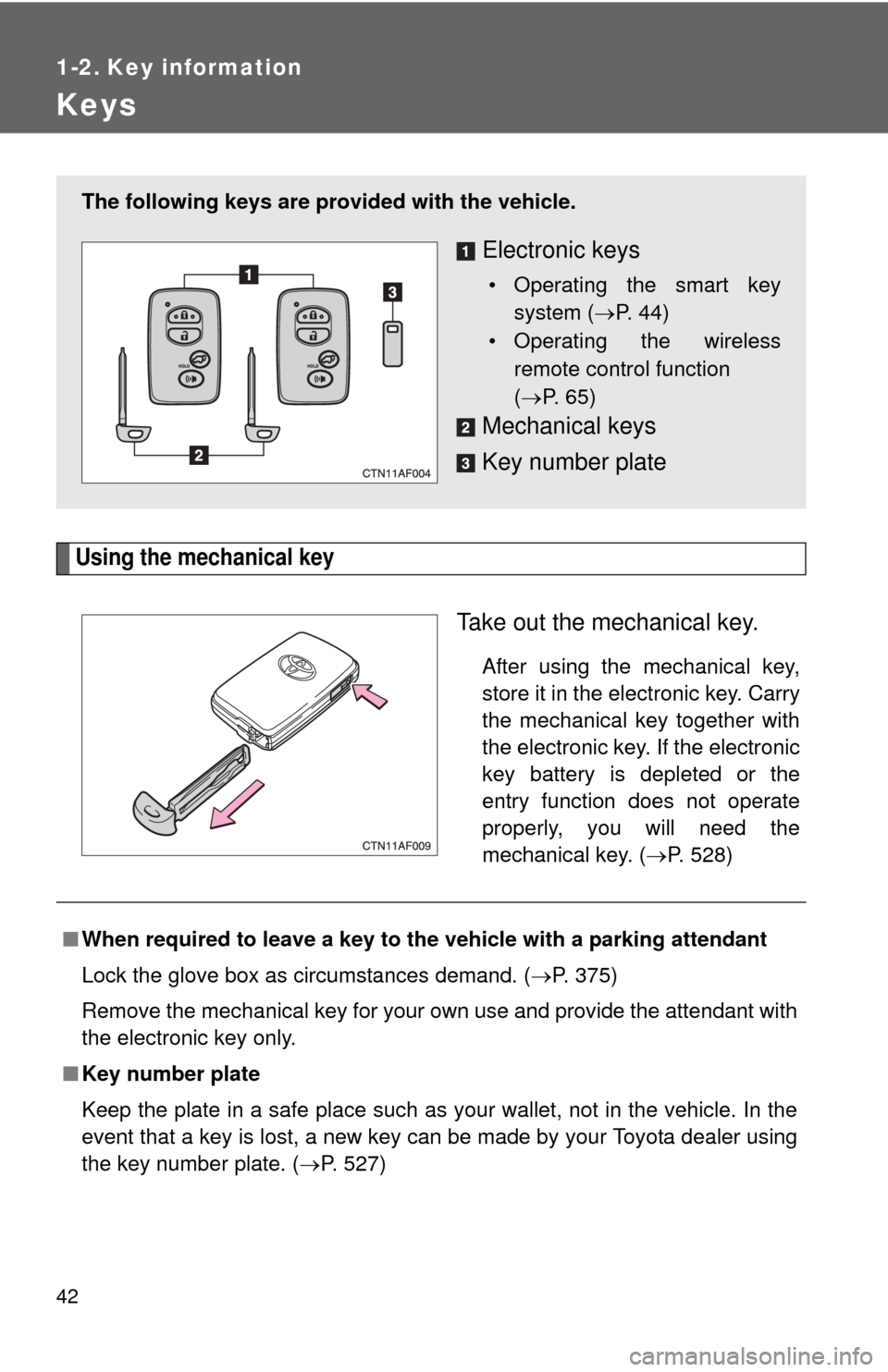

1-2. Key information
Keys
Using the mechanical key
Take out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the
entry function does not operate
properly, you will need the
mechanical key. (P. 528)
The following keys are provid ed with the vehicle.
Electronic keys
• Operating the smart key
system ( P. 44)
• Operating the wireless remote control function
( P. 65)
Mechanical keys
Key number plate
■When required to leave a key to the vehicle with a parking attendant
Lock the glove box as circumstances demand. ( P. 375)
Remove the mechanical key for your own use and provide the attendant with
the electronic key only.
■ Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by your Toyota dealer using
the key number plate. ( P. 527)
Page 43 of 592
43
1-2. Key information
1
Before driving
■
When riding in an aircraft
When bringing a electronic key onto an aircraft, make sure you do not press
any buttons on the electronic key while inside the aircraft cabin. If you are
carrying a electronic key in your bag etc, ensure that the buttons are not
likely to be pressed accidentally. Pressing a button may cause the electronic
key to emit radio waves that could interfere with the operation of the a\
ircraft.
NOTICE
■To prevent key damage
●Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
● Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
● Do not disassemble the electronic key.
Page 44 of 592
44

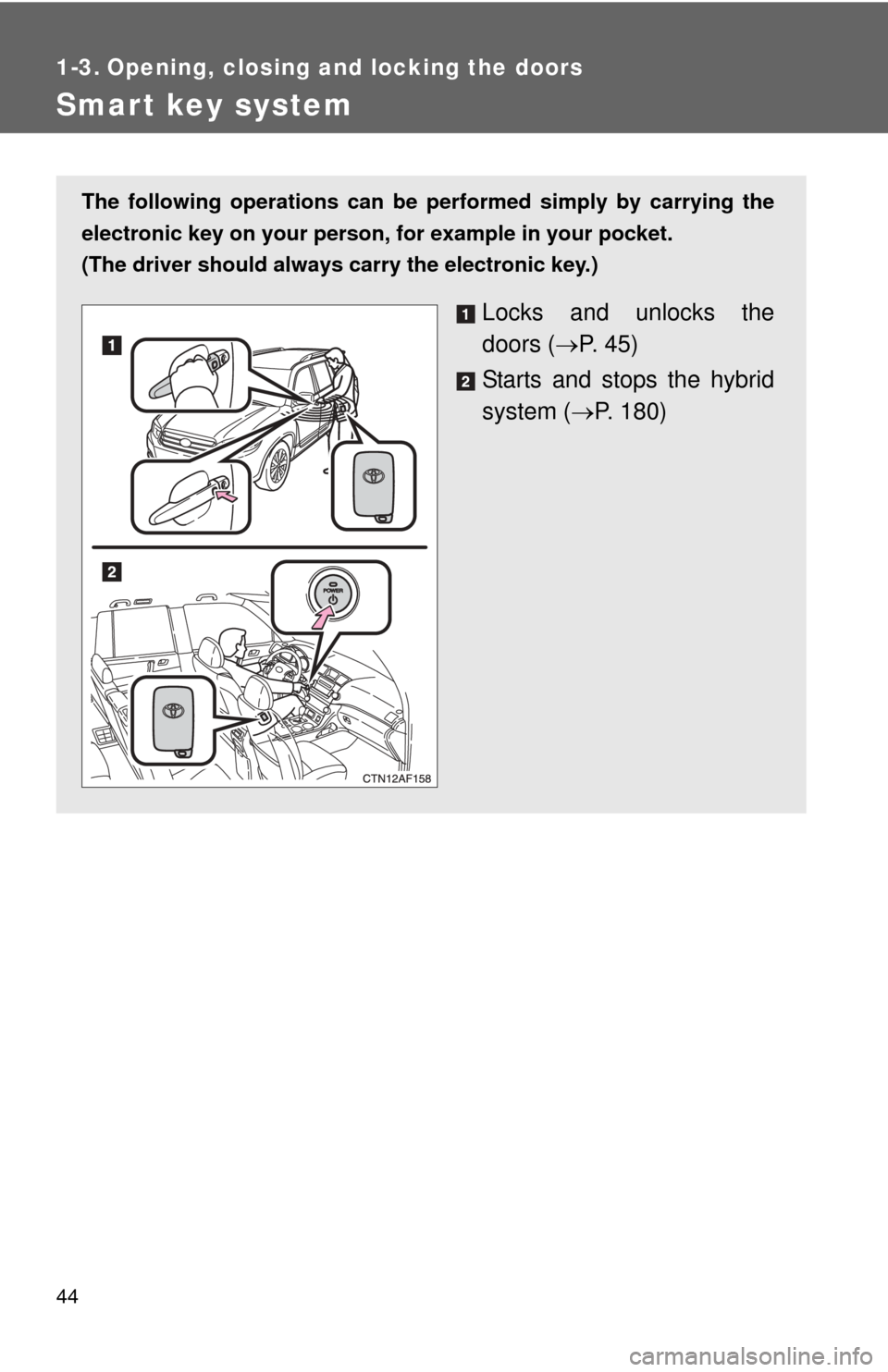

1-3. Opening, closing and locking the doors
Smart key system
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the
doors ( P. 45)
Starts and stops the hybrid
system ( P. 180)
Page 45 of 592
45

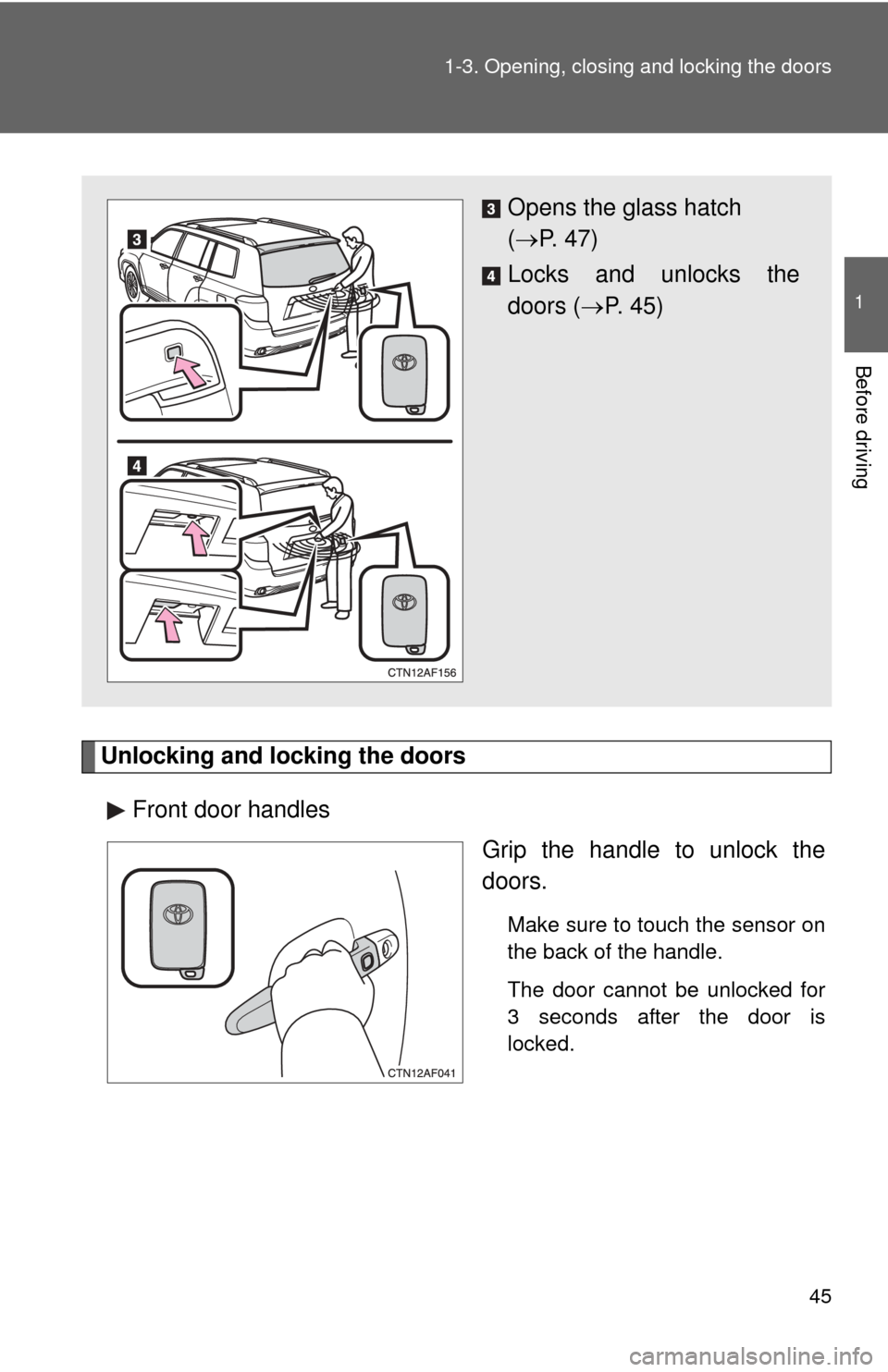

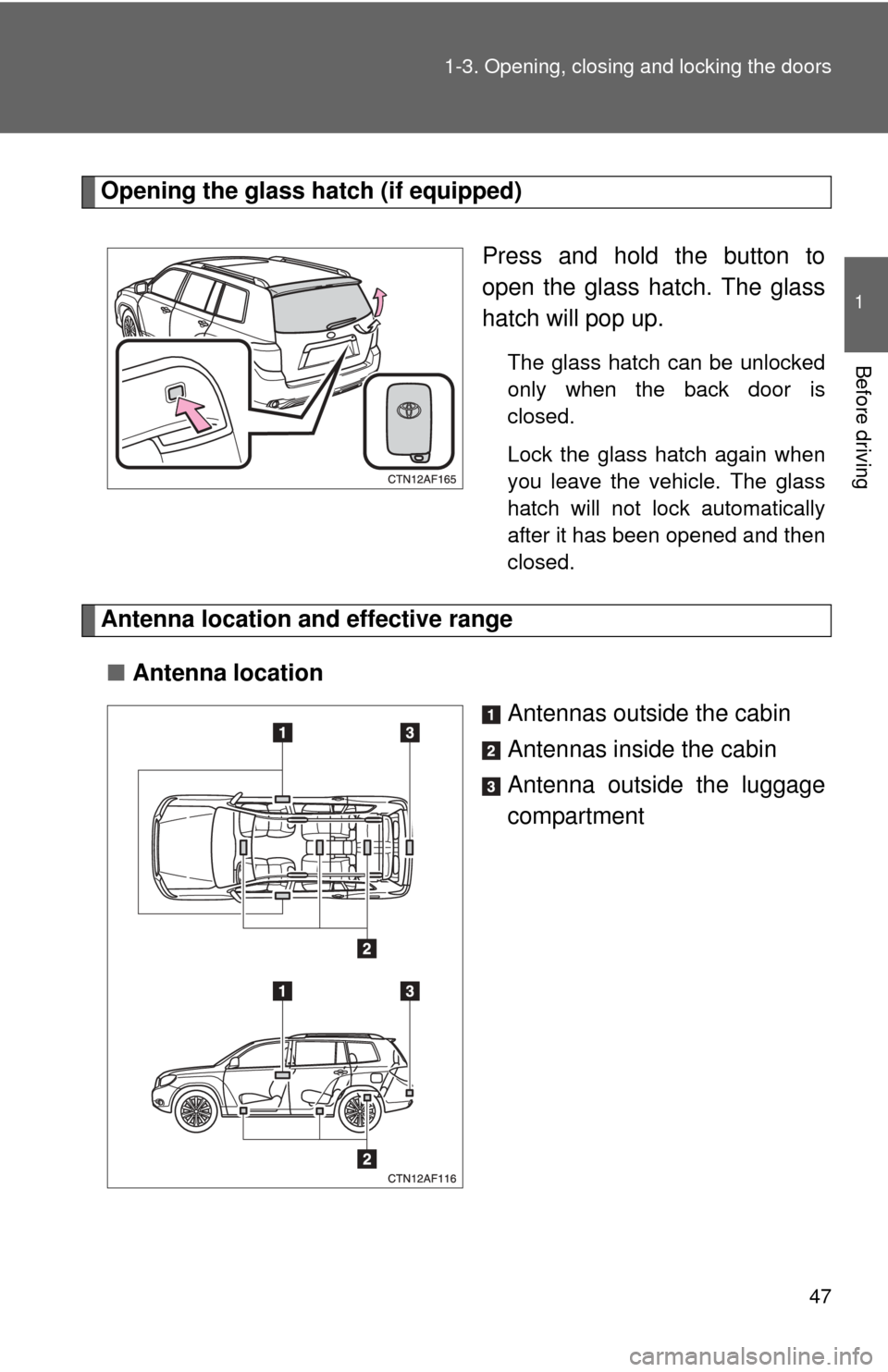

1-3. Opening, closing and locking the doors
1
Before driving
Unlocking and locking the doors
Front door handles Grip the handle to unlock the
doors.
Make sure to touch the sensor on
the back of the handle.
The door cannot be unlocked for
3 seconds after the door is
locked.
Opens the glass hatch
( P. 47)
Locks and unlocks the
doors ( P. 45)
Page 46 of 592

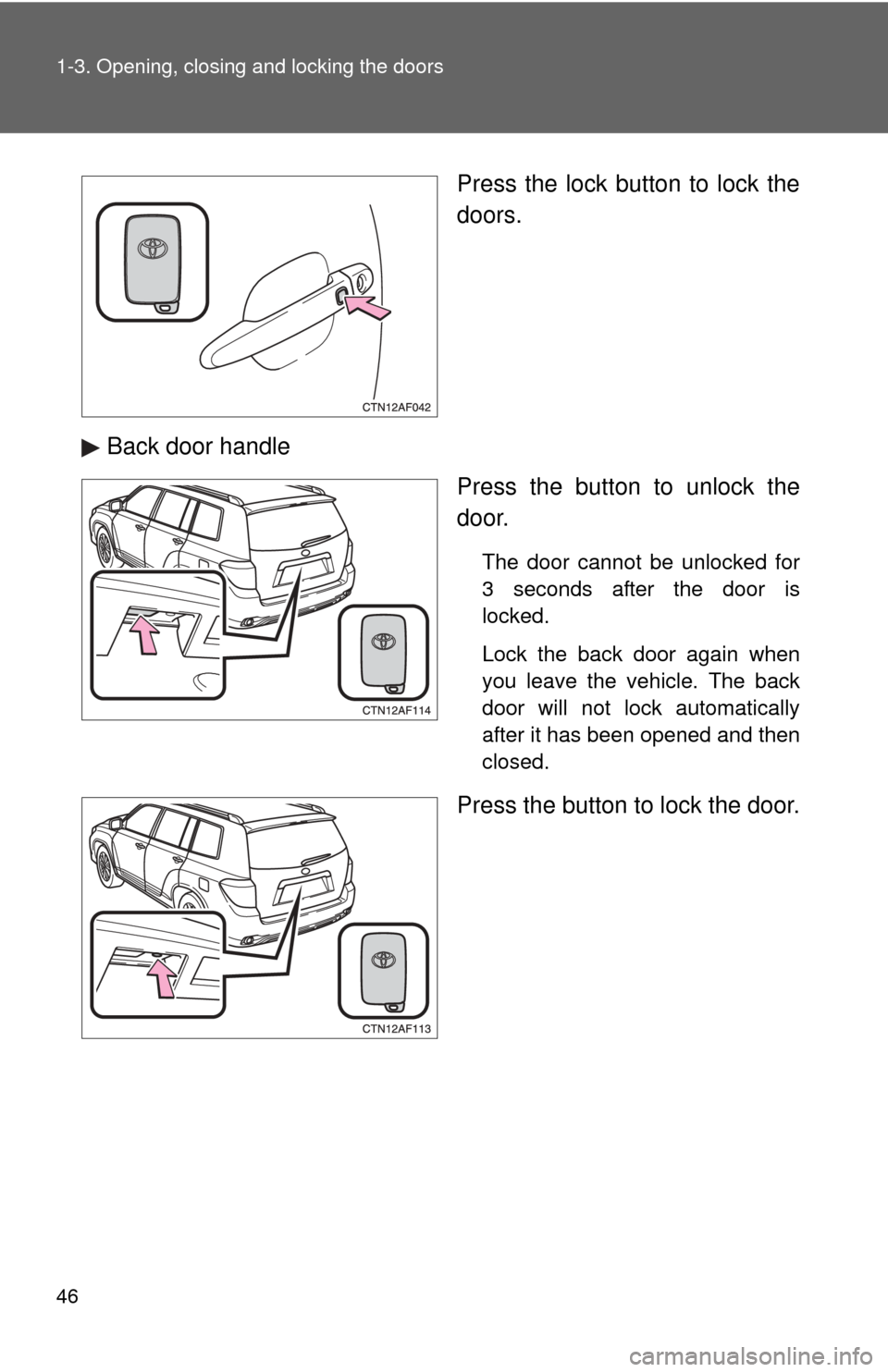

46 1-3. Opening, closing and locking the doors
Press the lock button to lock the
doors.
Back door handle Press the button to unlock the
door.
The door cannot be unlocked for
3 seconds after the door is
locked.
Lock the back door again when
you leave the vehicle. The back
door will not lock automatically
after it has been opened and then
closed.
Press the button to lock the door.
Page 47 of 592
47
1-3. Opening, closing and locking the doors
1
Before driving
Opening the glass hatch (if equipped)
Press and hold the button to
open the glass hatch. The glass
hatch will pop up.
The glass hatch can be unlocked
only when the back door is
closed.
Lock the glass hatch again when
you leave the vehicle. The glass
hatch will not lock automatically
after it has been opened and then
closed.
Antenna location and effective range
■ Antenna location
Antennas outside the cabin
Antennas inside the cabin
Antenna outside the luggage
compartment
Page 48 of 592
48 1-3. Opening, closing and locking the doors

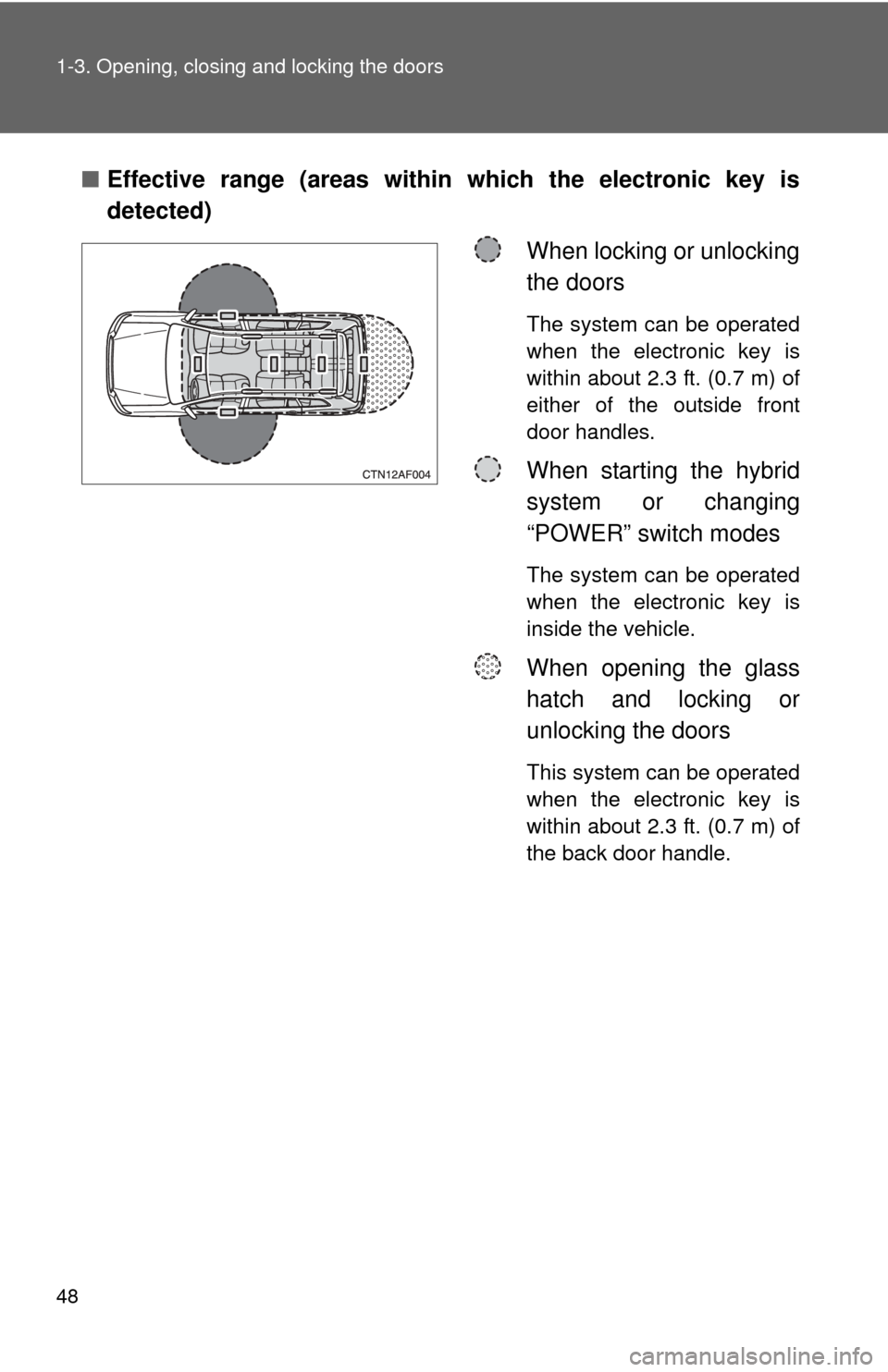

■Effective range (areas within which the electronic key is
detected)
When locking or unlocking
the doors
The system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
either of the outside front
door handles.
When starting the hybrid
system or changing
“POWER” switch modes
The system can be operated
when the electronic key is
inside the vehicle.
When opening the glass
hatch and locking or
unlocking the doors
This system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
the back door handle.
Page 49 of 592
49
1-3. Opening, closing and locking the doors
1
Before driving
■
Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
■ Conditions affecting operation
The smart key system uses weak radio waves. In the following situations,
the communication between the electronic key and the vehicle may be
affected, preventing the smart key system and wireless remote control from
operating properly. (Ways of coping: P. 528)
● When the electronic key battery is depleted
● Near a TV tower, electronic power plant, gas station, radio station, large
display, airport or other facility that generates strong radio waves or elec-
trical noise
● When carrying a portable radio, ce llular phone, cordless phone or other
wireless communication devices
● When the electronic key has come into contact with, or is covered by a
metallic object
● When multiple electronic keys are in the vicinity
● When carrying or using the electronic key together with the following
devices that emit radio waves
• Another vehicle’s electronic key
• A wireless key that emits radio waves
• Personal computer
● If window tint with a metallic content or metallic objects are attached to
the rear window
■ Switching the door unlock function
It is possible to set which doors the entry function unlocks.
Turn the “POWER” switch OFF.
When the indicator on the key surface is turned off, push and hold
, or for approximately 5 seconds while pushing
on the key.
STEP1
STEP2
Page 50 of 592

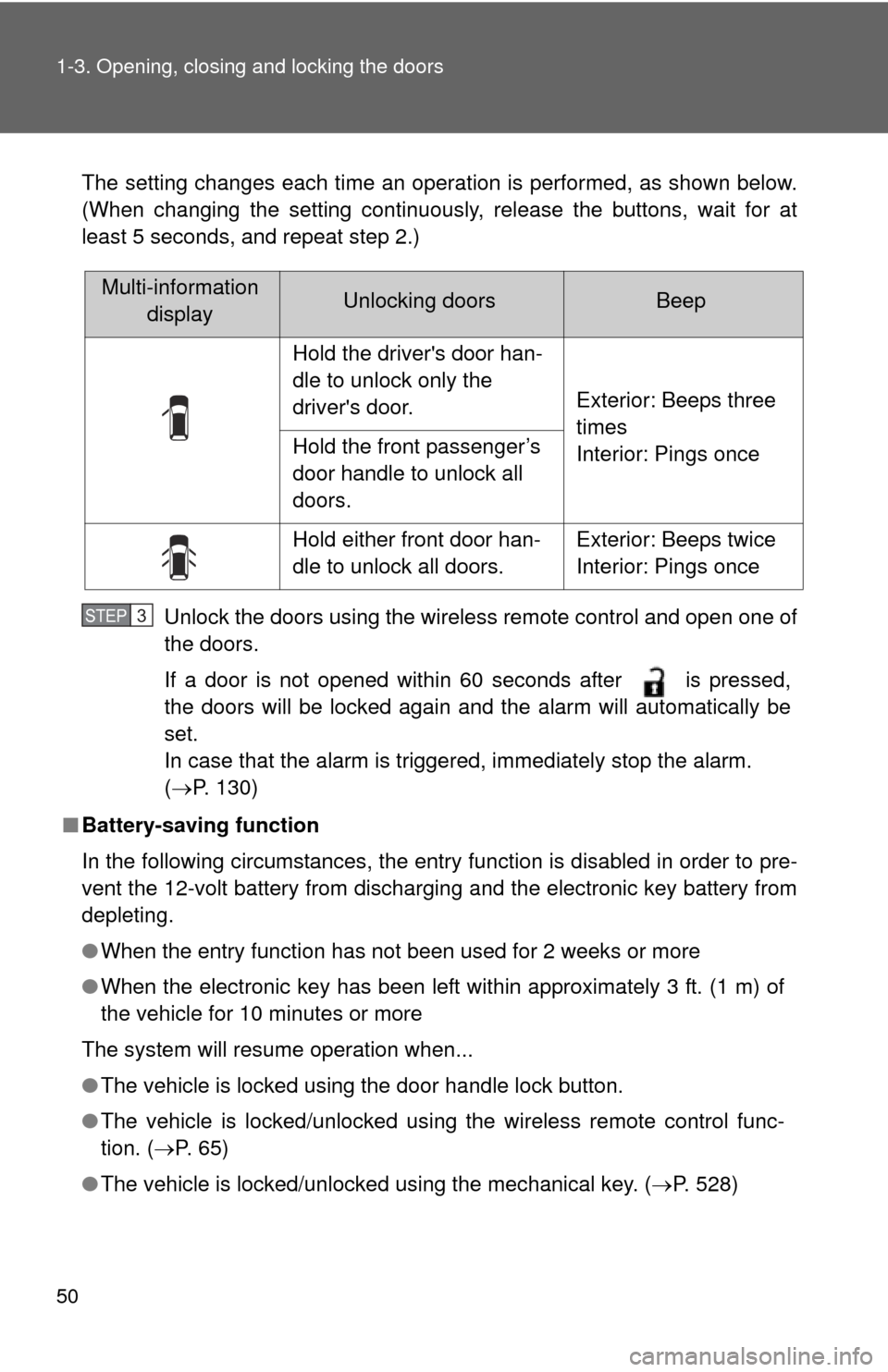

50 1-3. Opening, closing and locking the doors
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at
least 5 seconds, and repeat step 2.)Unlock the doors using the wireless remote control and open one of
the doors.
If a door is not opened within 60 seconds after is pressed,
the doors will be locked again and the alarm will automatically be
set.
In case that the alarm is triggered, immediately stop the alarm.
(P. 130)
■ Battery-saving function
In the following circumstances, the entry function is disabled in order to pre-
vent the 12-volt battery from discharging and the electronic key battery from
depleting.
●When the entry function has not been used for 2 weeks or more
● When the electronic key has been left within approximately 3 ft. (1 m) of
the vehicle for 10 minutes or more
The system will resume operation when...
● The vehicle is locked using the door handle lock button.
● The vehicle is locked/unlocked using the wireless remote control func-
tion. ( P. 6 5 )
● The vehicle is locked/unlocked using the mechanical key. ( P. 528)
Multi-information
displayUnlocking doorsBeep
Hold the driver's door han-
dle to unlock only the
driver's door.
Exterior: Beeps three
times
Interior: Pings once
Hold the front passenger’s
door handle to unlock all
doors.
Hold either front door han-
dle to unlock all doors.Exterior: Beeps twice
Interior: Pings once
STEP3
