light TOYOTA HIGHLANDER HYBRID 2011 XU40 / 2.G Quick Reference Guide

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-7 in the Owner’s Manualfor
more details.
For programming assistance, contact HomeLink
®at 1-800-355-3515, or
visit http://www.homelink.com.
* HomeLink®is a registered trademark of Johnson Controls, Inc.

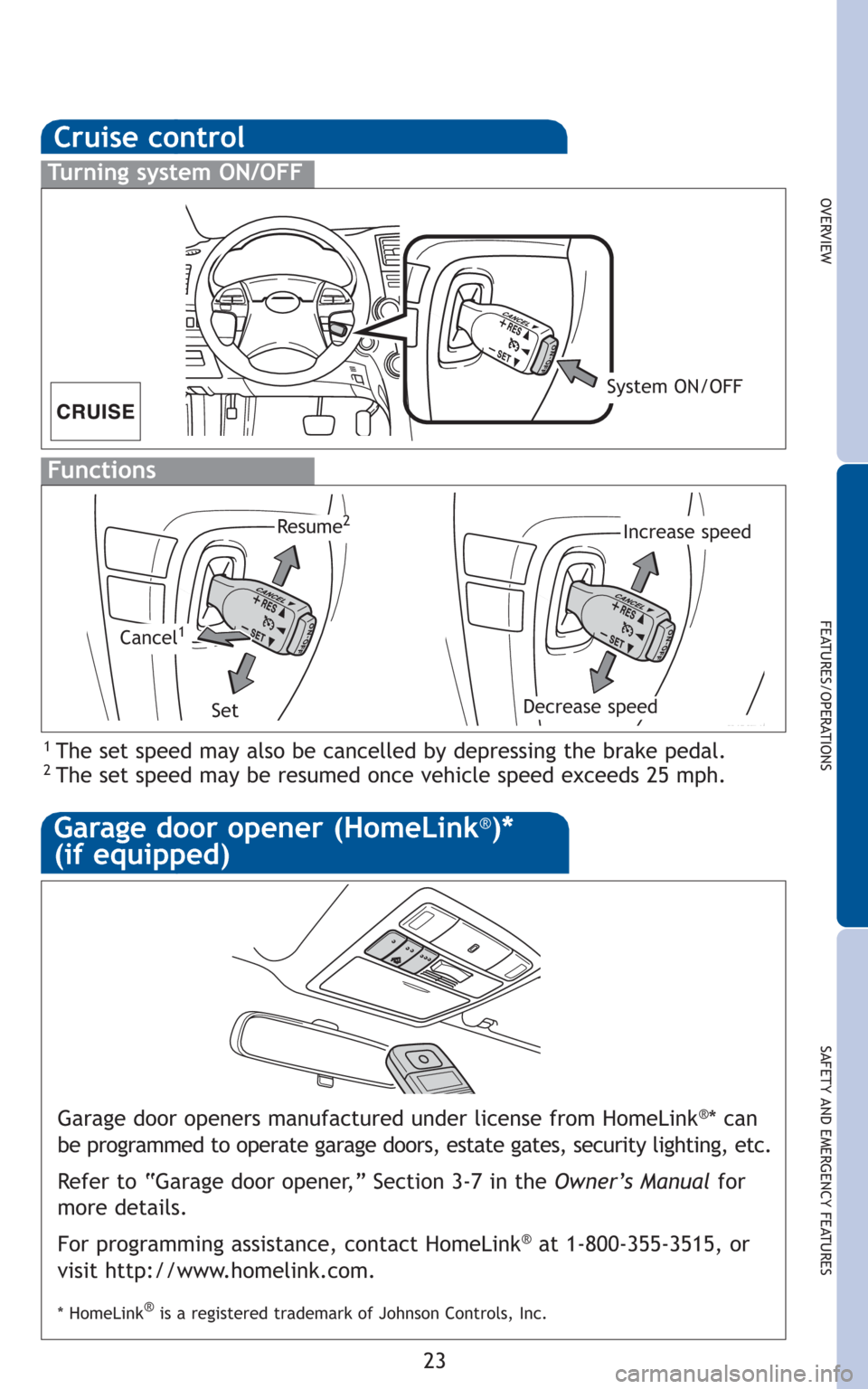

Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set

28
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or squeeze
lock release to lower
Seat belts-Shoulder belt anchor
Door locks
LockUnlock
If tire pressure becomes critically low on any of the tires (including the
spare), “ ” indicator light illuminate. Correctly adjusting tire inflation
will turn off the light after a few minutes. If the light does not turn off,
have the system checked by your Toyota dealer.
Refer to the Owner’s Manualfor more details.
Tire Pressure Monitoring (warning)
System

2011
Highlander Hybrid
!A word about safe vehicle operations This Quick Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guideis not intended as a substitute for
theOwner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review theOwner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Highlander Hybrid.
This Quick Reference Guideis not a full description of
Highlander Hybrid operations. Every Highlander Hybrid owner
should review the Owner’s Manualthat accompanies this
vehicle.
Pay special attention to the boxed
information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
29
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the cover under the center deck board to find the spare tire
clamp bolt.
(2) Assemble the jack handle.
(3) Put the socket adapter on the spare tire clamp bolt. Loosen the bolt
by turning it counterclockwise with the jack handle.
Refer to the Owner’s Manualfor tire changing and jack positioning
procedures.
Wrench
Spare tire
Jack handle
Towing eyeletSocket
adapter
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Jack
Jack handle
Doors-Child safety locks
(2)(3)(1)
