audio TOYOTA HIGHLANDER HYBRID 2011 XU40 / 2.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 9Fuel tank door release and cap 8Hood release 8Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyless entry16Light control-Instrument panel 9
Smart Key system1,27
Air Conditioning/Heating 20-22Audio 24-25Auto lock functions111Bluetooth®audio 25Clock 19Cruise control 23Cup holders 27Door-Power back 18EV-Drive Mode 12Garage door opener (HomeLink®)323Hill-start Assist Control (HAC) 27Hybrid Synergy Drive System 10Lights1& turn signals 16Moonroof 22Multi-information display226Parking brake 12Power outlets-12V DC 19Power outlets-120V AC 19Seat adjustments-Front 13Seat adjustments-Rear 13Seat heaters 22Seats-Folding down second row seats 15Seats-Head restraints 14
Seats-Returning third row seats 15Seats-Stowing third row seats 15Steering lock release 12Steering wheel controls 26Telephone controls (Bluetooth®)18Tilt and telescopic steering wheel 12Transmission 11Windows-Power 17
Windshield wipers & washers 17
Doors-Child safety locks 29Door locks 28Seat belts 28Seat belts-Shoulder belt anchor 28Spare tire & tools 29
Tire Pressure Monitoring (warning) System 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
Seats-Removing Center-Stow
second row seat14

2
OVERVIEW
Instrument panel
Steering wheel controlsAutomatic Air Conditioning
Steering wheel audio controls
Steering wheel climate controls1
Multi-information display button
Voice command button2
Telephone controls2
Headlight and turn signal controls/Headlight, turn signal and front fog
light controls
Wiper and washer controls
Multi-information display
Audio system or navigation system-integrated audio system
1,2
Theft deterrent system/Immobilizer indicator
Emergency flasher button
“AIR BAG ON” and “AIR BAG OFF” indicator and front passenger
seat belt reminder lights
Power back door main switch
1
Power button (Smart Key)1
Cruise control

18
FEATURES/OPERATIONS
Door-Power back (if equipped)
PushPush and hold Instrument panel Back door (close only)Open: Push and hold
Close: Push and hold again
NOTE:If battery is disconnected, the power back door needs to be
reinitialized. Refer to the Owner’s Manualfor more details.
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to “Using the hands-free phone system (for cellular phone),” Section
3-4 in the Owner’s Manual, or go to Toyota.LetsTalk.com for more
information about phone connections and compatibility.
MicrophoneAudio unit
Steering wheel telephone switches
Vo l u m e
Start call
End callVoice command
button
Telephone controls (Bluetooth®)

24
FEATURES/OPERATIONS
Audio
Load CD(s)
Radio
To preset stations Tune in the desired station and hold down a preset
button (from to ) until you hear a beep. Push desired preset
button (from to ) to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
CD player
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Tu r n “ T U N E.
SCROLL” or press “ ” or “ ”
on .
To select a folder (MP3/WMA only) Push either side of “TYPE.
FOLDER.”
vv
Type 2 additional functions
Eject CD
Push to turn
ON/OFFView CD
text
Seek station/
CD track select Station/CD
track scan
Mode Preset buttons - functions in other
modes indicated above button
Ty p e 1
Push to skip
up/down folder and
radio category type
Push to
adjust tone
& balance
Setting preset buttons
MenuMute

25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
By inserting a mini plug into the USB/AUX port, you can listen to music
from a portable audio device through the vehicle’s speaker system while
in USB/AUX mode.
USB/AUX port
Without seat heaterWith seat heater
The Bluetooth®audio system enables you to enjoy music played on a
portable digital audio player from the vehicle speaker via wireless
communication.
Refer to “Using the Bluetooth
® audio system,” Section 3-3 in the Owner’s
Manualfor more details.
Microphone Audio unit
Steering wheel audio switches
Selects a track and album
Turns the power on,
selects an audio source
Vo l u m e
Bluetooth®audio

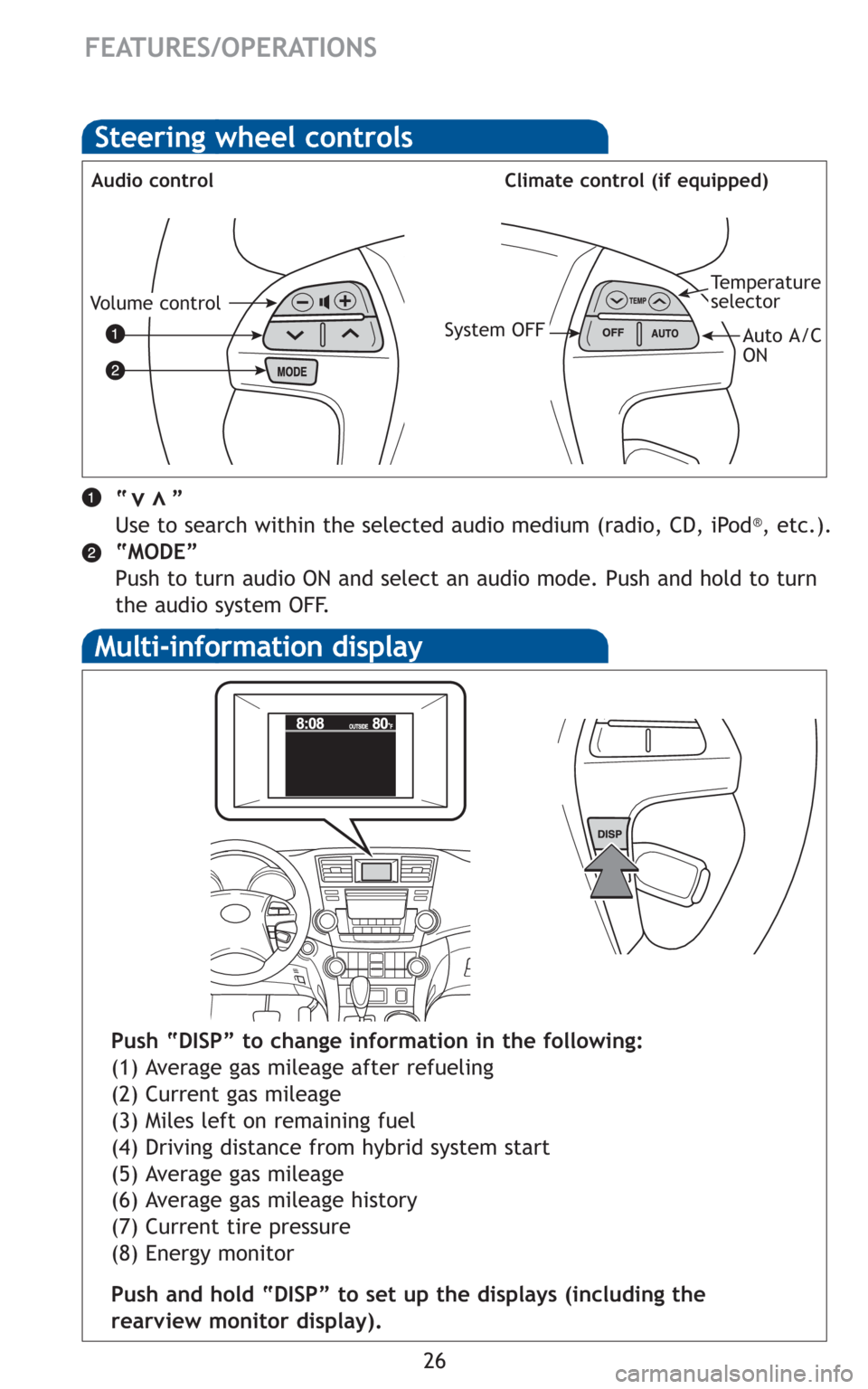

26
FEATURES/OPERATIONS
Steering wheel controls
Audio controlClimate control (if equipped)
“ ”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.
vv
Volume controlTemperature
selector
Auto A/C
ONSystem OFF
Multi-information display
Push “DISP” to change information in the following:
(1) Average gas mileage after refueling
(2) Current gas mileage
(3) Miles left on remaining fuel
(4) Driving distance from hybrid system start
(5) Average gas mileage
(6) Average gas mileage history
(7) Current tire pressure
(8) Energy monitor
Push and hold “DISP” to set up the displays (including the
rearview monitor display).
