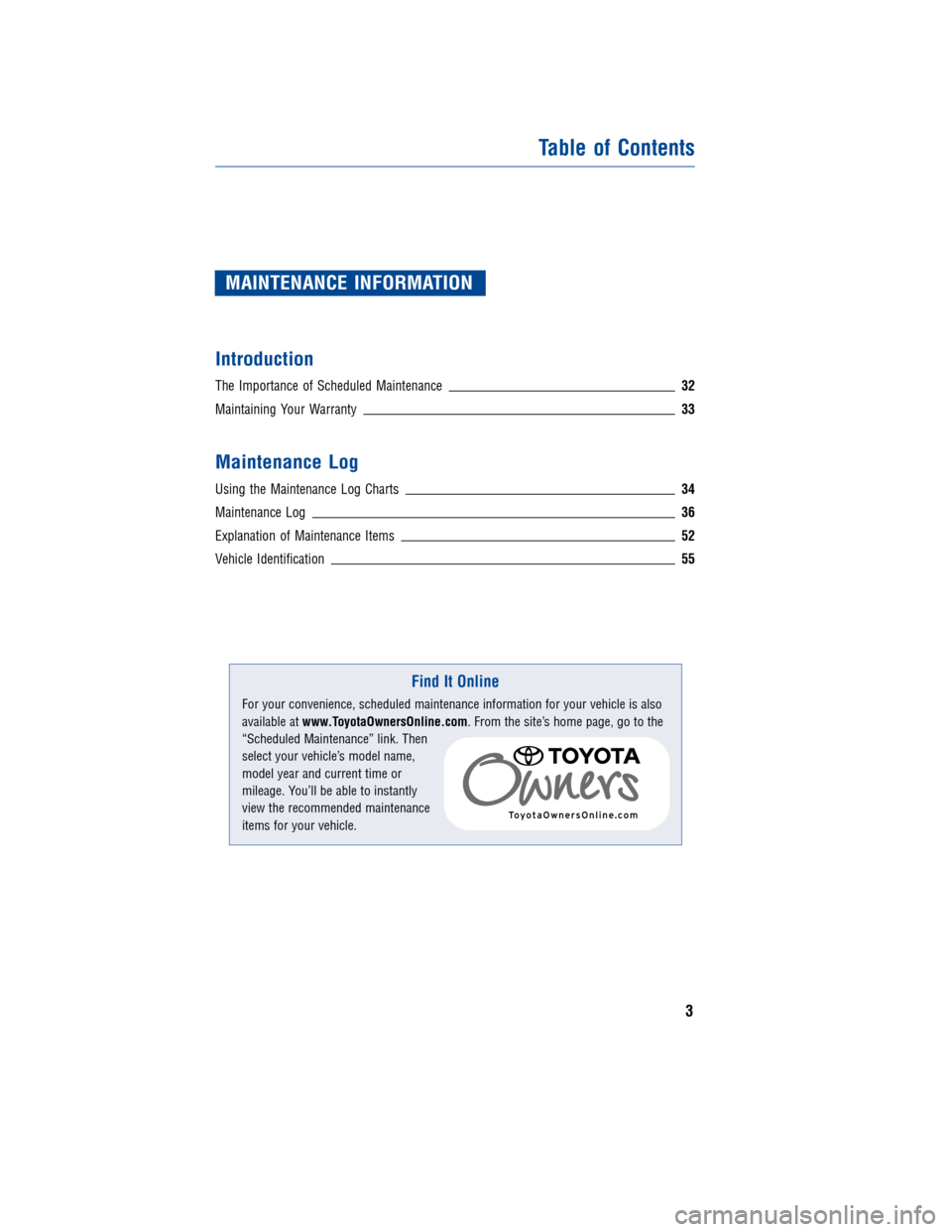

MAINTENANCE INFORMATION
Introduction
The Importance of Scheduled Maintenance 32
Maintaining Your Warranty33
Maintenance Log
Using the Maintenance Log Charts34
Maintenance Log36
Explanation of Maintenance Items 52
Vehicle Identification 55
Find It Online
For your convenience, scheduled maintenance information for your vehicle is also
available atwww.ToyotaOwnersOnline.com. From the site’s home page, go to the
“Scheduled Maintenance” link. Then
select your vehicle’s model name,
model year and current time or
mileage. You’ll be able to instantly
view the recommended maintenance
items for your vehicle.
Table of Contents
3

JOBNAME: 317235-2011-hhv-toyw PAGE: 53 SESS: 12 OUTPUT: Mon Jul 12 14:57:59 2010
/tweddle/toyota/sched-maint/317235-en-hhv/wg
Drive Shaft Boots
Check the drive shaft boots and clamps
for cracks, deterioration and damage.
Replace any deteriorated or damaged parts
and, if necessary, repack the grease.
Re-torque drive shaft bolt. A qualified
technician should perform these
operations.
Driver’s Floor Mat
•Only use the driver’s floor mat
designed specifically for the model
and model year of your vehicle.
• Always properly secure the driver’s
floor mat using the retaining hooks.
• Never install another floor mat on top
of the existing driver’s floor mat.
• Never install the driver’s floor mat
upside down.
Engine Air Filter
Replace at specified intervals. When
performing inspections, check for damage,
excessive wear and oiliness, and replace if
necessary.
Engine/Inverter Coolant
Drain the cooling system and refill with an
ethylene-glycol type coolant. Inspect hoses
and connections for corrosion and leaks.
Tighten connections and replace parts
when necessary. A qualified technician
should perform these operations. (For
further details, refer to Radiator,
Condenser and Hoses in theVehicle
Maintenance and Care section of the
Owner’s Manual).
Your Toyota is equipped with Genuine
Toyota Super Long-Life Coolant. The
replacement intervals for engine
coolant recommended in this booklet
are based on replacement with
Genuine Toyota Super Long-Life
Coolant or similar high-quality
non-silicate, non-amine, non-borate
ethylene-glycol coolant with long-life
hybrid organic acid technology (i.e., a
combination of low phosphates and
organic acids). If another type of
ethylene-glycol coolant is used,
replacement intervals may be different.
Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the
Owner’s Manual.
NOTE:Your vehicle is factory filled and
certified with Genuine Toyota 0W20 motor
oil. For VEHICLES CERTIFIED FOR 0W20
motor oil, the oil change interval is
10,000 miles or 12 months IF 0W20
MOTOR OIL IS BEING USED. If 0W20 is
not available, 5W20 mineral oil may be
used. However, it must be replaced at A
5,000 miles or 6 month INTERVAL with
0W20 motor oil.
For customers who primarily drive their
vehicle under any of the listed Special
Operating Conditions, the motor oil and
filter should be replaced at 5,000 miles or
6 months, REGARDLESS OF THE OIL
USED (OR CERTIFICATION OF THE
VEHICLE).
Explanation of Maintenance Items
Maintenance Log53
