SAFE T Y PRECAUTIONS

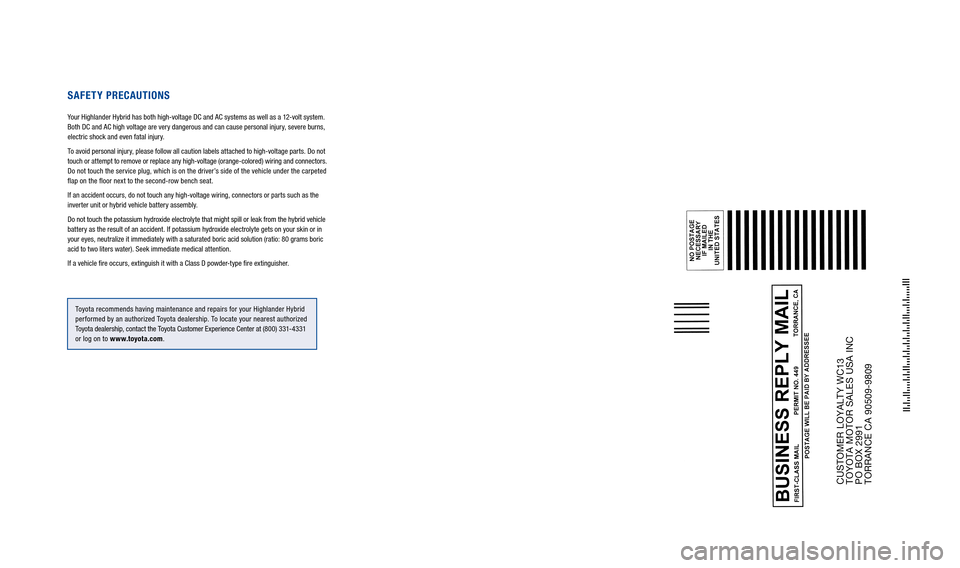

Your Highlander Hybrid has both high-voltage DC and AC systems as well as a 12-volt system.
Both DC and AC high voltage are very dangerous and can cause personal injury, severe burns,
electric shock and even fatal injury.
To avoid personal injury, please follow all caution labels attached to high-voltage parts. Do not
touch or attempt to remove or replace any high-voltage (orange-colored) wiring and connectors.
Do not touch the service plug, which is on the driver’s side of the vehicle under the carpeted
flap on the floor next to the second-row bench seat.
If an accident occurs, do not touch any high-voltage wiring, connectors or parts such as the
inverter unit or hybrid vehicle battery assembly.
Do not touch the potassium hydroxide electrolyte that might spill or leak from the hybrid vehicle
battery as the result of an accident. If potassium hydroxide electrolyte gets on your skin or in
your eyes, neutralize it immediately with a saturated boric acid solution (ratio: 80 grams boric
acid to two liters water). Seek immediate medical attention.
If a vehicle fire occurs, extinguish it with a Class D powder-type fire extinguisher.
Toyota recommends having maintenance and repairs for your Highlander Hybrid
performed by an authorized Toyota dealership. To locate your nearest authorized
Toyota dealership, contact the Toyota Customer Experience Center at (800) 331-4331
or log on to www.toyota.com .
09-TCS-03859_WarrMaintGuide_HighlanderHybrid_1_0F_lm.indd 27/8/10 10:53 AM

JOBNAME: 317235-2011-hhv-toyw PAGE: 1 SESS: 4 OUTPUT: Mon Jul 12 14:57:59 2010
/tweddle/toyota/sched-maint/317235-en-hhv/wg
T
hank you for purchasing a Toyota
vehicle.We know you have many
options when considering which
vehicle to buy, and we appreciate your
decision to select Toyota.
We want you to enjoy owning your Toyota
as much as you enjoy driving it. This
booklet is designed to help. Here you’ll
find information on Toyota’s warranty
coverage and maintenance recommenda-
tions for your vehicle. There are two
easy-to-follow sections: one for warranty
and one for maintenance. The tab on the
side of each page identifies the section
you are in. For more information about our vehicles,
our company or the products and services
available for your vehicle, please visit
Toyota’s official Web site,
www.toyota.com.
We wish you many miles of safe and
pleasurable driving, and we look forward
to serving you in the years ahead.
Welcome to the Toyota family!
Welcome to the Toyota Family
1
2011
(HHV) 2011(HHV)

JOBNAME: 317235-2011-hhv-toyw PAGE: 2 SESS: 11 OUTPUT: Mon Jul 12 14:57:59 2010
/tweddle/toyota/sched-maint/317235-en-hhv/wg

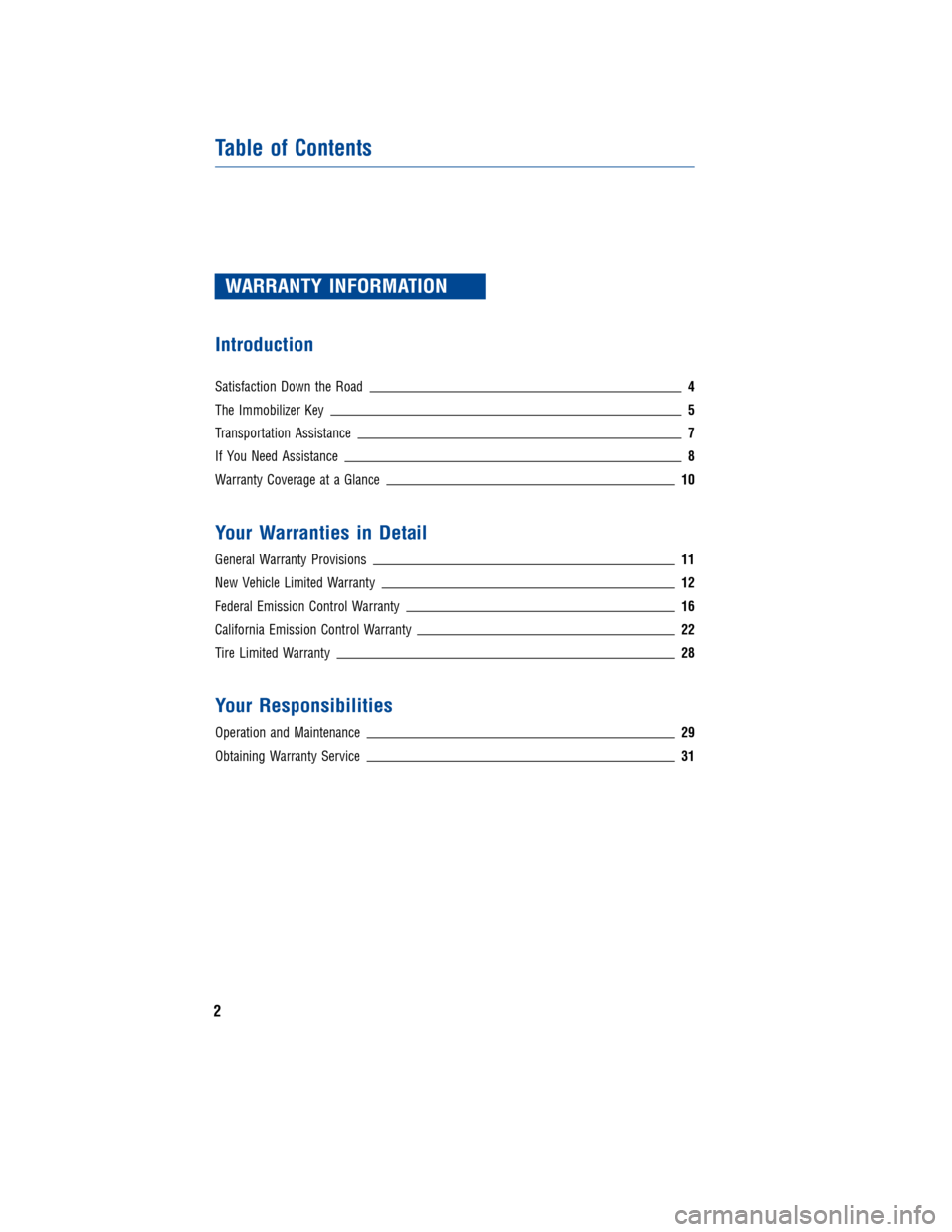

WARRANTY INFORMATION
Introduction
Satisfaction Down the Road 4
The Immobilizer Key 5
Transportation Assistance7
If You Need Assistance8
Warranty Coverage at a Glance10
Your Warranties in Detail
General Warranty Provisions11
New Vehicle Limited Warranty 12
Federal Emission Control Warranty16
California Emission Control Warranty 22
Tire Limited Warranty28
Your Responsibilities
Operation and Maintenance29
Obtaining Warranty Service31
Table of Contents
2

JOBNAME: 317235-2011-hhv-toyw PAGE: 4 SESS: 11 OUTPUT: Mon Jul 12 14:57:59 2010
/tweddle/toyota/sched-maint/317235-en-hhv/wg
A
t Toyota, our top priority is always
our customers. We know your
Toyota is an important part of your
life and something you depend on every
day. That’s why we’re dedicated to building
products of the highest quality and
reliability.
Our excellent warranty coverage is
evidence that we stand behind the quality
of our vehicles. We’re confident — as you
should be — that your Toyota will provide
you with many years of enjoyable driving.
To further demonstrate our commitment to
our customers’ satisfaction, occasionally
we may establish a special policy
adjustment to pay for specific repairs that
are no longer covered by warranty. When
we establish such a policy adjustment, we
mail details to all applicable owners we
have on record. That’s why it’s important
to send in the card at the back of this
booklet if you change your address or if
you’ve purchased this vehicle from a
previous owner.
To provide you with added protection
against unexpected service costs, we offer
Toyota Extra Care vehicle service
agreements and Toyota Auto Care pre-paid
maintenance programs. Both offer plans to
meet a wide variety of needs. Your
dealership can help you select the plan
that’s best for you. Our goal is for every Toyota customer to
enjoy outstanding quality, dependability
and peace of mind throughout their
ownership experience. We want you to be
a satisfied member of the Toyota family
for many miles to come.
Pages 5–31 of this booklet describe
the terms of Toyota warranty coverage
as well as general owner
responsibilities. The scheduled
maintenance section describes your
vehicle’s maintenance requirements. Be
sure to review this information
carefully, since proper maintenance is
required to ensure that warranty
coverage remains intact.
All information in this booklet is the latest
available at the time of publication and,
with the exception of the emission control
warranties, is subject to change without
notice.
Satisfaction Down the Road
WARRANTY
4Introduction

JOBNAME: 317235-2011-hhv-toyw PAGE: 5 SESS: 2 OUTPUT: Mon Jul 12 14:57:59 2010
/tweddle/toyota/sched-maint/317235-en-hhv/wg

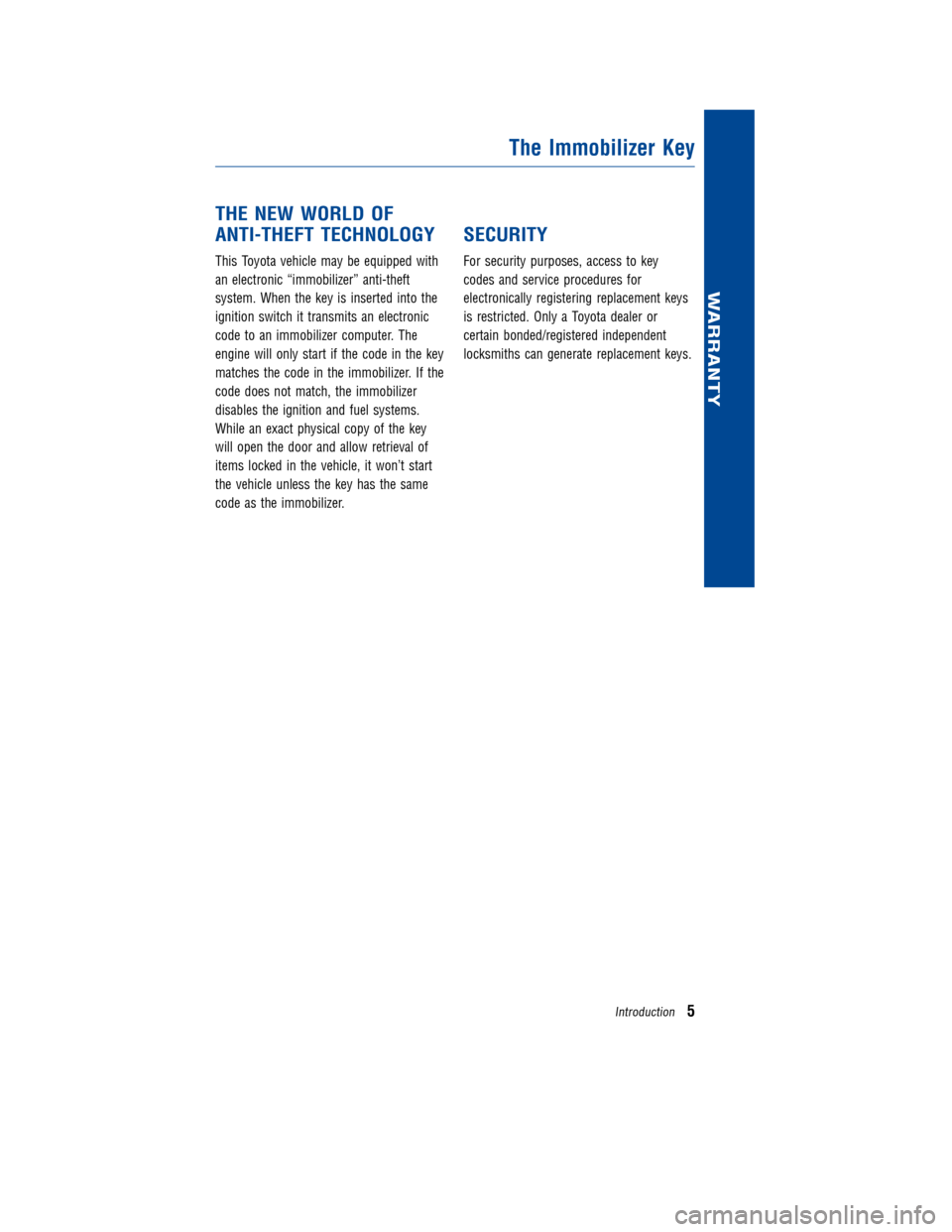

THE NEW WORLD OFANTI-THEFT TECHNOLOGY
This Toyota vehicle may be equipped with
an electronic “immobilizer” anti-theft
system. When the key is inserted into the
ignition switch it transmits an electronic
code to an immobilizer computer. The
engine will only start if the code in the key
matches the code in the immobilizer. If the
code does not match, the immobilizer
disables the ignition and fuel systems.
While an exact physical copy of the key
will open the door and allow retrieval of
items locked in the vehicle, it won’t start
the vehicle unless the key has the same
code as the immobilizer.
SECURITY
For security purposes, access to key
codes and service procedures for
electronically registering replacement keys
is restricted. Only a Toyota dealer or
certain bonded/registered independent
locksmiths can generate replacement keys.
The Immobilizer Key
WARRANTY
Introduction5

JOBNAME: 317235-2011-hhv-toyw PAGE: 6 SESS: 2 OUTPUT: Mon Jul 12 14:57:59 2010
/tweddle/toyota/sched-maint/317235-en-hhv/wg
REPLACING THE KEY
Upon purchase, each vehicle should have
two master keys, one valet key and an
aluminum tag with a key-code imprinted
on it.
To generate a fully functional replacement
key (one that will both open the doors and
start the engine), one of the master keys
is required. To make a key that will open
the door for retrieval of items locked
inside the vehicle, the valet key or
aluminum key-code tag can be used. If a
master key or the aluminum key-code tag
is not available, a Toyota dealer or certain
registered locksmiths can obtain the key
code from a restricted-access database.
These businesses can also access a
service utility to reprogram the
immobilizer if all registered master keys
have been lost. If a Toyota dealer is not
available, please refer towww.aloa.orgto
find a bonded/registered locksmith who
performs high security key service.
KEEPING THE KEY SAFE
Replacing an immobilizer key may be
costly. It is advisable to keep a spare
master key and the aluminum key-code
tag in a safe place. If you record the
key-code in more than one place, do not
record it in a way that can be easily
identified and associated with the vehicle.
For example, don’t leave the code
somewhere that can be accessed by a
valet. It is wise to keep a copy of the
key-code outside of the vehicle.
If the vehicle was delivered with less than
all three keys and the aluminum key-code
tag, consider having the Toyota dealer or a
qualified independent automotive
locksmith make a duplicate key before you
need it.
The Immobilizer Key
WARRANTY
6Introduction

JOBNAME: 317235-2011-hhv-toyw PAGE: 7 SESS: 2 OUTPUT: Mon Jul 12 14:57:59 2010
/tweddle/toyota/sched-maint/317235-en-hhv/wg

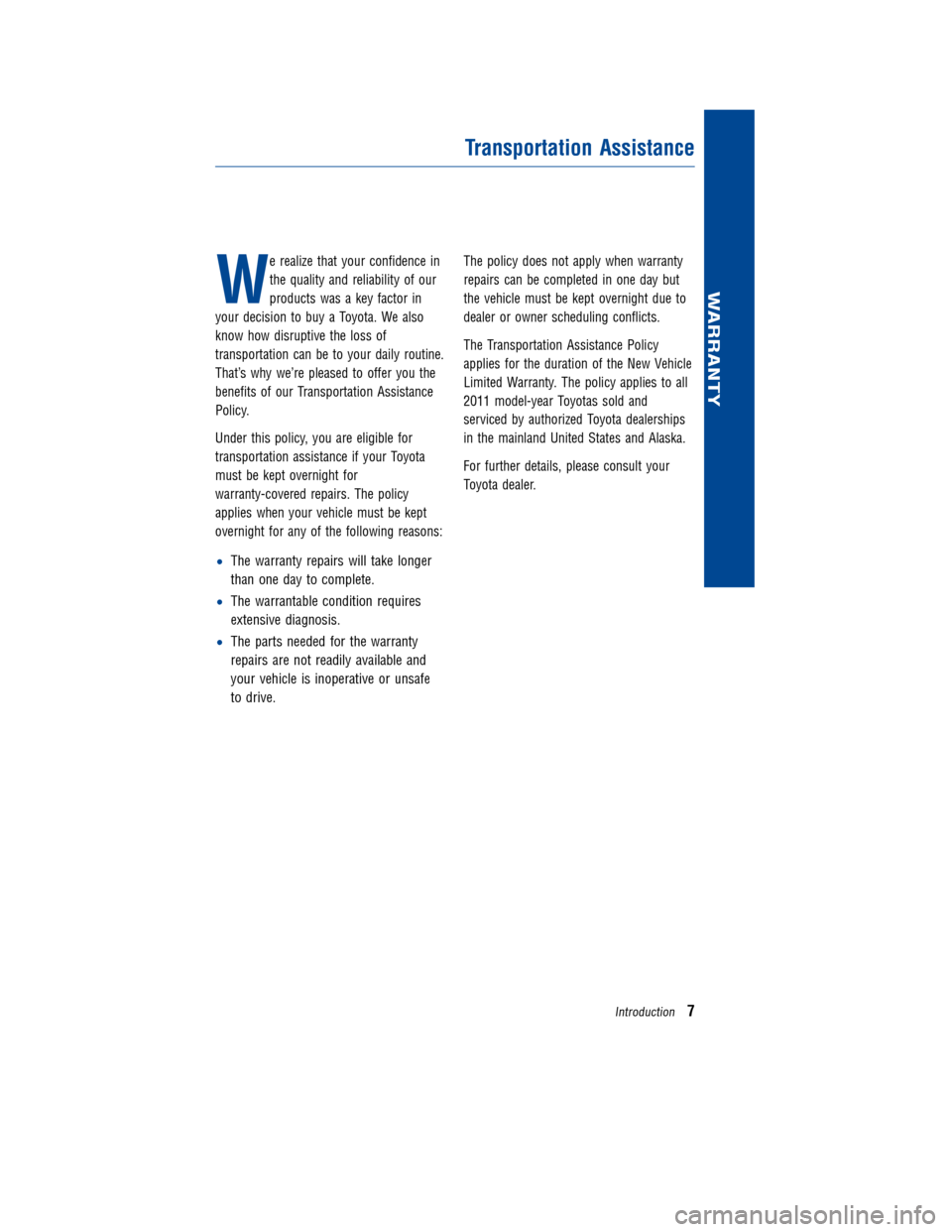

W
