WHAT IS COVERED AND
HOW LONG
Basic Warranty
This warranty covers repairs and
adjustments needed to correct defects in
materials or workmanship of any part
supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 13-14.
Coverage is for 36 months or
36,000 miles, whichever occurs first, with
the exception of wheel alignment and
wheel balancing, which are covered for
12 months or 20,000 miles, whichever
occurs first.
Hybrid System Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of the components listed
here and supplied by Toyota, subject to
the exceptions indicated under “What Is
Not Covered” on pages 13-14.
•Battery control module (battery
voltage sensor)
• Hybrid battery
• Hybrid control module (power
management control module)
• Inverter with converter
Coverage is for 96 months or
100,000 miles, whichever occurs first.
Powertrain Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of any component listed
below and in the next column and
supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 13-14.
Coverage is for 60 months or
60,000 miles, whichever occurs first.
Engine
Cylinder block and head and all internal
parts, timing gears and gaskets, timing
chain/belt and cover, valve covers, oil pan,
oil pump, engine mounts, engine control
computer, water pump, fuel pump, seals
and gaskets.
Transaxle/Motor/Generator
Case and all internal parts, transaxle
mounts, seals and gaskets.
Front-Wheel-Drive System
Final drive housing and all internal parts,
axle shafts, drive shafts, constant velocity
joints, front hub and bearings, seals and
gaskets.
New Vehicle Limited Warranty
WARRANTY
12Your Warranties in Detail

JOBNAME: 934394-2012-hhv-toyw PAGE: 17 SESS: 12 OUTPUT: Mon Jul 25 14:05:09 2011
/tweddle/toyota/sched-maint/934394-en-hhv/wg
WHAT IS NOT COVERED
These warranty obligations do not apply to
failures or noncompliance caused by:
•The use of replacement parts not
certified in accordance with
aftermarket parts certification
regulations.
• The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not
Covered” section of the New Vehicle
Limited Warranty also apply to this
warranty.
WARRANTY PARTS LIST
Air Conditioning System
•Compressor
• Condenser
• Evaporator
• Associated Parts
Air/Fuel Metering System
•Air/fuel ratio feedback control system
• Electronic fuel injection system
components
– Airflow sensor
– Engine control module (8/80)
– Throttle body
– Other components
Air Induction System
• Intake manifold and intake air surge
tank
Catalyst System
•Catalytic converter and protector
(8/80)
• Constricted fuel filler neck
• Exhaust manifold
• Exhaust pipe (manifold to catalyst
and/or catalyst to catalyst)
Evaporative Control System
•Charcoal canister
• Diaphragm valve
• Fuel filler cap
• Fuel tank
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Federal Emission Control Warranty
WARRANTY
Your Warranties in Detail17

JOBNAME: 934394-2012-hhv-toyw PAGE: 18 SESS: 12 OUTPUT: Mon Jul 25 14:05:09 2011
/tweddle/toyota/sched-maint/934394-en-hhv/wg
Hybrid System
•Battery control module (battery
voltage sensor) (8/80)*
• Battery thermistor
• Electric vehicle junction box
• Generator
• Hybrid battery*
• Hybrid control module (power
management control module) (8/80)*
• Inverter with converter*
• Motor
• System main relay and battery current
sensor
Ignition System
•Distributor and internal parts
• Ignition coil and ignitor
• Ignition wires
• Spark plugs †
Positive Crankcase Ventilation
(PCV) System
•Oil filler cap
• PCV valve or orifice
Other Parts Used in Above
Systems
•Data link connector (8/80)
• Hoses, clamps, fittings, tubing and
mounting hardware
• Malfunction indicator light and bulb
(8/80)
• Pulleys, belts and idlers
• Sealing gaskets and devices
• Sensors, solenoids, switches and
valves
* Covered under the Hybrid System Warranty for eight years or 100,000 miles, whichever occurs first.
† Warranted until first required maintenance under terms of the California Emission Control Warranty.
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Federal Emission Control Warranty
WARRANTY
18Your Warranties in Detail

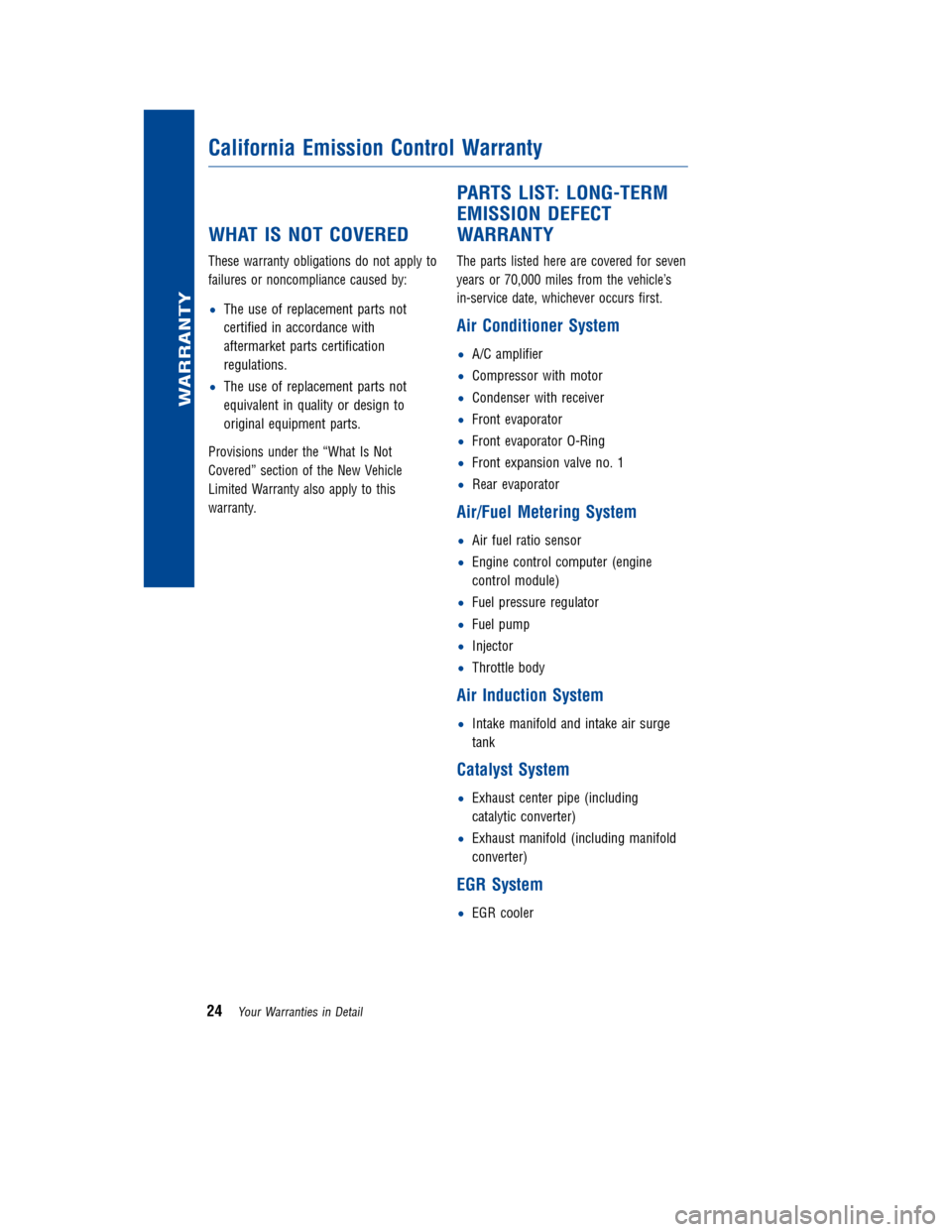

JOBNAME: 934394-2012-hhv-toyw PAGE: 24 SESS: 12 OUTPUT: Mon Jul 25 14:05:09 2011
/tweddle/toyota/sched-maint/934394-en-hhv/wg
WHAT IS NOT COVERED
These warranty obligations do not apply to
failures or noncompliance caused by:
•The use of replacement parts not
certified in accordance with
aftermarket parts certification
regulations.
• The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not
Covered” section of the New Vehicle
Limited Warranty also apply to this
warranty.
PARTS LIST: LONG-TERM
EMISSION DEFECT
WARRANTY
The parts listed here are covered for seven
years or 70,000 miles from the vehicle’s
in-service date, whichever occurs first.
Air Conditioner System
•A/C amplifier
• Compressor with motor
• Condenser with receiver
• Front evaporator
• Front evaporator O-Ring
• Front expansion valve no. 1
• Rear evaporator
Air/Fuel Metering System
•Air fuel ratio sensor
• Engine control computer (engine
control module)
• Fuel pressure regulator
• Fuel pump
• Injector
• Throttle body
Air Induction System
•Intake manifold and intake air surge
tank
Catalyst System
•Exhaust center pipe (including
catalytic converter)
• Exhaust manifold (including manifold
converter)
EGR System
•EGR cooler
California Emission Control Warranty
WARRANTY
24Your Warranties in Detail

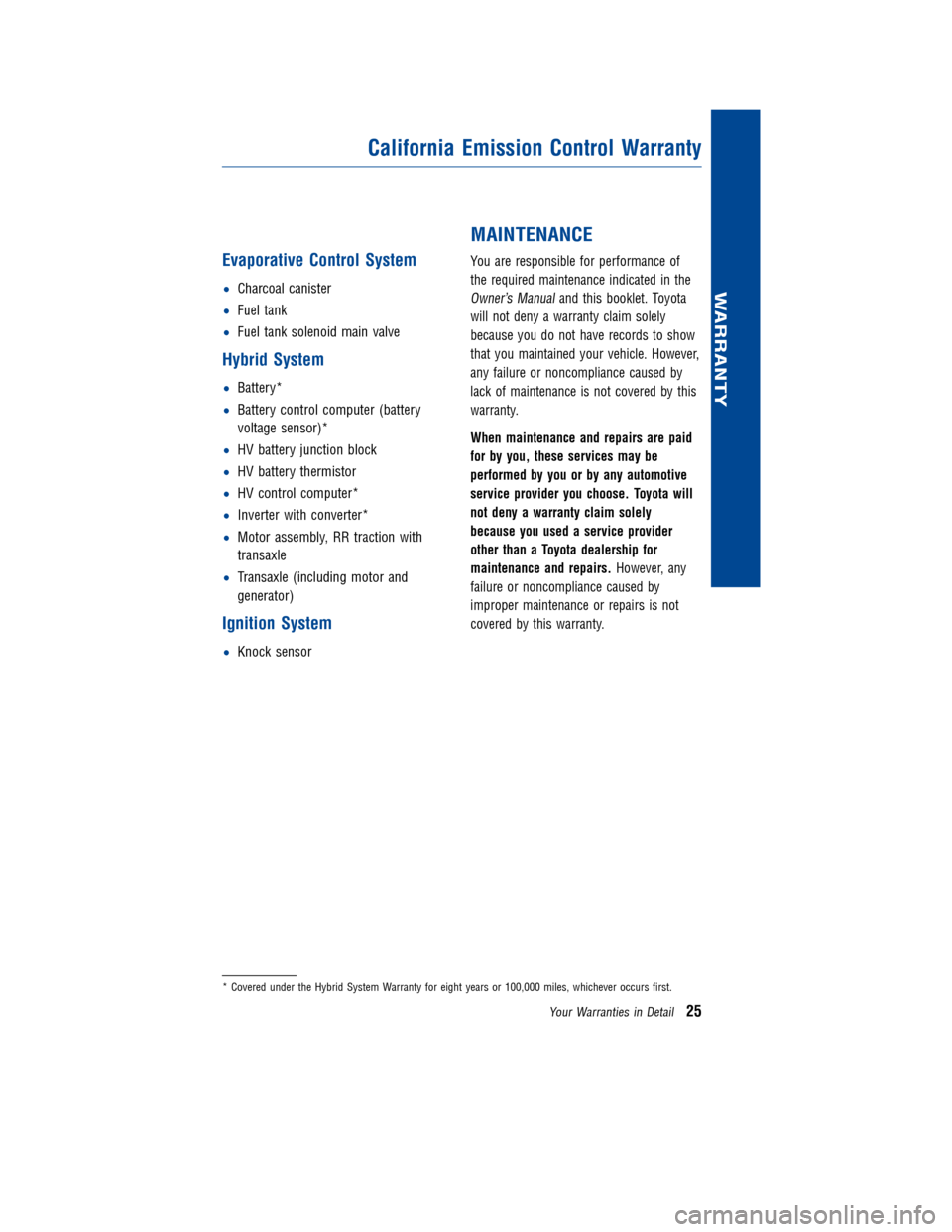

JOBNAME: 934394-2012-hhv-toyw PAGE: 25 SESS: 12 OUTPUT: Mon Jul 25 14:05:09 2011
/tweddle/toyota/sched-maint/934394-en-hhv/wg
Evaporative Control System
•Charcoal canister
• Fuel tank
• Fuel tank solenoid main valve
Hybrid System
•Battery*
• Battery control computer (battery
voltage sensor)*
• HV battery junction block
• HV battery thermistor
• HV control computer*
• Inverter with converter*
• Motor assembly, RR traction with
transaxle
• Transaxle (including motor and
generator)
Ignition System
•Knock sensor
MAINTENANCE
You are responsible for performance of
the required maintenance indicated in the
Owner’s Manualand this booklet. Toyota
will not deny a warranty claim solely
because you do not have records to show
that you maintained your vehicle. However,
any failure or noncompliance caused by
lack of maintenance is not covered by this
warranty.
When maintenance and repairs are paid
for by you, these services may be
performed by you or by any automotive
service provider you choose. Toyota will
not deny a warranty claim solely
because you used a service provider
other than a Toyota dealership for
maintenance and repairs. However, any
failure or noncompliance caused by
improper maintenance or repairs is not
covered by this warranty.
* Covered under the Hybrid System Warranty for eight years or 100,000 miles, whichever occurs first.
California Emission Control Warranty
WARRANTY
Your Warranties in Detail25
