Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1 6
Light control-Instrument panel 9
Smart Key system
1,2 7
Air Conditioning/Heating 20-22
Audio 24-25
Auto lock/unlock
1 11
Bluetooth® audio 25
Clock 19
Cruise control 23
Cup holders 27
Door-Power back 18
EV-Drive Mode 12
Garage door opener (HomeLink
®)3 22
Hill-start Assist Control (HAC) 27Hybrid Synergy Drive System 10
Lights1 & turn signals 16
Moonroof 22
Multi-Information Display
2 26
Parking brake 12
Power outlets-12V DC 19
Power outlet-120V AC 19
Rear seat entertainment system 26
Seat adjustments-Front 13
Seat adjustments-Rear 13
Seat heaters 20
Seats-Folding down second row seats 15
Seats-Head restraints 14
Seats-Removing Center-Stow second row seat 14
Seats-Returning third row seats 15
Seats-Stowing third row seats 15
Steering lock release 12
Steering wheel controls 23
Telephone controls (Bluetooth
®) 18
Tilt and telescopic steering wheel 12
Transmission 11
Windows-Power 17
Windshield wipers & washers 17
Doors-Child safety locks 29
Door locks 28
Floor mat installation 31
Seat belts 28
Seat belts-Shoulder belt anchor 28
Spare tire & tools 29
Star Safety System
TM 30-31
Tire Pressure Monitoring (warning) System 28
2013Highlander-HV.indd 18/8/12 8:41 PM

18
FEATURES/OPERATIONS
Door-Power back (if equipped)
PushPush and hold
Instrument panel
Back door (close only)Open: Push and hold
Close: Push and hold again
NOTE: If battery is disconnected, the power back door needs to be reinitialized.
Refer to the Owner’s Manual for more details.
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the telephone and the system.
Refer to “Using the hands-free phone system (for cellular phone),” Section 3-4 in
the Owner’s Manual , for more details.
MicrophoneAudio unit
Steering wheel telephone switches
Volume
Start call
End call Voice command
button
Telephone controls (Bluetooth®)
Power outlets-12V DC
Instrument panel (with seat heater)
The “POWER”/ignition switch must be set at “ACC” or “ON” position to be used.
Power outlet-120V AC (if equipped)
Beside second row seat
Center console
The “POWER”/ignition switch must be set at “ON” position to be used.
Clock
Press and hold “DISP” button located on steering wheel. Select “CLOCK” on menu
screen. Adjust as indicated on screen.
2013Highlander-HV.indd 188/8/12 9:07 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
NOTE: If battery is disconnected, the power back door needs to be reinitialized.
Refer to the Owner’s Manual for more details.
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the telephone and the system.
Refer to “Using the hands-free phone system (for cellular phone),” Section 3-4 in
the Owner’s Manual , for more details.
Power outlets-12V DC
Luggage compartment
Instrument panel (with seat heater)Instrument panel (without seat heater)
The “POWER”/ignition switch must be set at “ACC” or “ON” position to be used.
Power outlet-120V AC (if equipped)
Beside second row seat
Center console
The “POWER”/ignition switch must be set at “ON” position to be used.
Clock
Press and hold “DISP” button located on steering wheel. Select “CLOCK” on menu
screen. Adjust as indicated on screen.
2013Highlander-HV.indd 198/8/12 9:07 PM

20
FEATURES/OPERATIONS
Air Conditioning/Heating
Front manual Air Conditioning
Fan speed
Outside rearview mirror (if equipped)/Back window defogger
Temperature selector
Recirculate cabin air (fresh air when OFF)
Airflow vent
In “
” or “” mode, use fresh air (“” indicator OFF) to reduce window
fogging.
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for cooler air.
Use for quick cooling. Air intake will automatically be set to recirculate.
Rear Air Conditioning ON/OFF
Front automatic Air Conditioning
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Windshield airflow/defogger
Rear Air Conditioning ON/OFF
Fan speed
Outside rearview mirror (if equipped)/Back window defogger
Recirculate cabin air (fresh air when OFF)
Temperature selector (front passenger side)
Air Conditioning ON/OFF
“SYNC” button
Indicator ON: Separate temperature settings for driver, front passenger and
rear passengers.
Indicator OFF: Synchronize temperature settings for driver and all passengers.
Temperature selector (rear)
Airflow vent
In “
” or “” mode, use fresh air (“” indicator OFF) to reduce window
fogging.
Climate control OFF
Temperature selector (driver side)
Rear automatic Air Conditioning
Fan speed
Temperature selector
Airflow vent
Automatic climate control ON
Climate control OFF
Seat heaters (if equipped)
PushTurn
Push knob to pop the controller out. Turn clockwise for heater.
Push
Driver seat
Front passenger seat
2013Highlander-HV.indd 208/8/12 9:09 PM

28
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or squeeze
lock release to lower
Seat belts-Shoulder belt anchor
Door locks
LockUnlock
If tire pressure becomes critically low on any of the tires (including the spare),
“
” indicator light illuminate. Correctly adjusting tire inflation will turn off the
light after a few minutes. If the light does not turn off, have the system checked
by your Toyota dealer.
Refer to the Owner’s Manual for more details.
Tire Pressure Monitoring (warning)
System
Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the cover under the center deck board to find the spare tire clamp bolt.
(2) Assemble the jack handle.
(3) Put the socket adapter on the spare tire clamp bolt. Loosen the bolt by turning
it counterclockwise with the jack handle.
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Moving the lever downward will allow the door to be opened only from the outside.
Doors-Child safety locks
(1)
Rear door
2013Highlander-HV.indd 288/8/12 9:10 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
29
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Take up slack
If tire pressure becomes critically low on any of the tires (including the spare),
“
” indicator light illuminate. Correctly adjusting tire inflation will turn off the
light after a few minutes. If the light does not turn off, have the system checked
by your Toyota dealer.
Refer to the Owner’s Manual for more details.

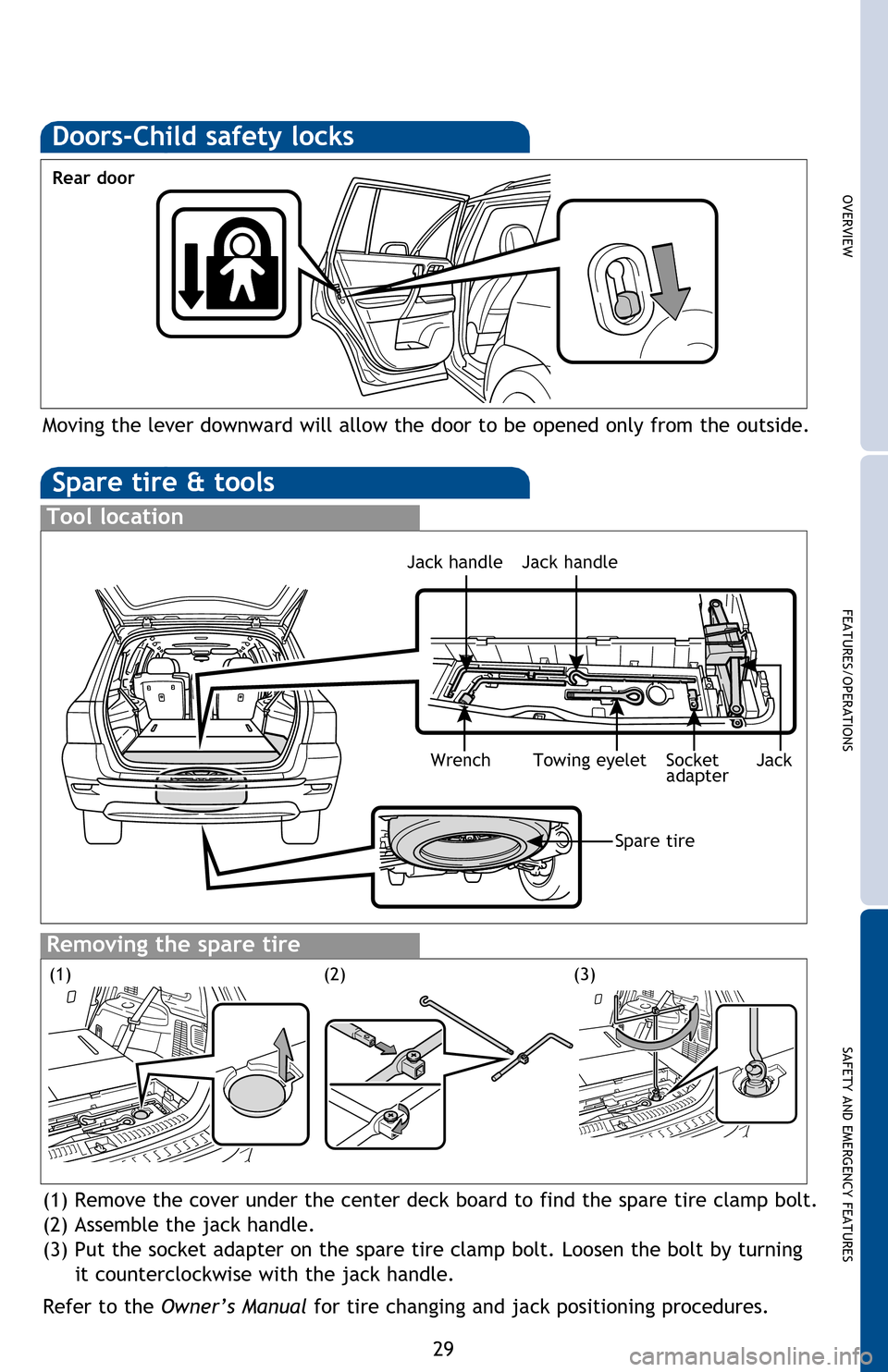

Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the cover under the center deck board to find the spare tire clamp bolt.
(2) Assemble the jack handle.
(3) Put the socket adapter on the spare tire clamp bolt. Loosen the bolt by turning
it counterclockwise with the jack handle.
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Wrench
Spare tire
Jack handle
Towing eyeletSocket
adapter
Moving the lever downward will allow the door to be opened only from the outside.
Jack
Jack handle
Doors-Child safety locks
(2)(3)(1)
Rear door
2013Highlander-HV.indd 298/8/12 9:10 PM
