engine TOYOTA HIGHLANDER HYBRID 2014 XU50 / 3.G Owners Manual

5
1
8 7
6
5
4
3
2
HIGHLANDER_HV_U (OM48D74U)
9
6-1. Maintenance and careCleaning and protecting the vehicle exterior ................ 380
Cleaning and protecting the vehicle interior ................. 383
6-2. Maintenance Maintenance requirements ................... 386
General maintenance ........ 389
Emission inspection and maintenance (I/M)
programs ......................... 393
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions ..................... 394
Hood.................................. 396
Positioning a floor jack ...... 398
Engine compartment ......... 399
12-volt battery ................... 407
Tires .................................. 412
Tire inflation pressure........ 421
Wheels .............................. 424
Air conditioning filter .......... 426
Electronic key battery ........ 428
Checking and replacing fuses ............................... 430
Light bulbs ......................... 434 7-1. Essential information
Emergency flashers ........... 450
If your vehicle has to be stopped in an
emergency....................... 451
7-2. Steps to take in an emergency
If your vehicle needs to be towed ...................... 452
If you think something is wrong ........................... 456
If a warning light turns on or a warning buzzer
sounds ............................. 457
If a warning message is displayed ......................... 466
If you have a flat tire .......... 486
If the hybrid system will not start ........................... 510
If the shift lever cannot be shifted from P ............. 512
If the electronic key does not operate properly ........ 513
If the 12-volt battery is discharged ....................... 516
If your vehicle overheats.... 521
If the vehicle becomes stuck ................................ 525
6Maintenance and care7When trouble arises

10
HIGHLANDER_HV_U (OM48D74U)Your Toyota is equipped with several sophisticated computers that will record
certain data, such as:
• Engine speed
• Electric motor speed (traction motor speed)
• Accelerator status
• Brake status
• Vehicle speed
• Shift position
• Hybrid battery (traction battery) status
The recorded data varies according to the vehicle grade level and options
with which it is equipped. Furthermore, these computers do not record con-
versations, sounds or pictures.
●Data usage
Toyota may use the data recorded in these computers to diagnose malfunc-
tions, conduct research and development, and improve quality.
Toyota will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if the vehicle is leased
• In response to an official request by the police, a court of law or a govern- ment agency
• For use by Toyota in a law suit
• For research purposes where the data is not tied to a specific vehicle or vehicle owner
●Usage of data collected through Safety Connect (U.S. mainland only)
If your Toyota has Safety Connect and if you have subscribed to those ser-
vices, please refer to the Safety Connect Telematics Subscription Service
Agreement for information on data collected and its usage.
Vehicle data recordings

17Pictorial index
HIGHLANDER_HV_U (OM48D74U)Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 531
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 536
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 316
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 412
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 486
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 396
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 396
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 532
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 521
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 469
Headlights/daytime running lights . . . . . . . . . . . . . . . . . . . . P. 244
Front fog lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 254
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
6
7
8
Light bulbs of the exterior lights for driving

(Replacing method: P. 434, Watts: P. 539)
*: If equipped
9
10
11
12
13
14
15

81
1
For safety and security
HIGHLANDER_HV_U (OM48D74U)

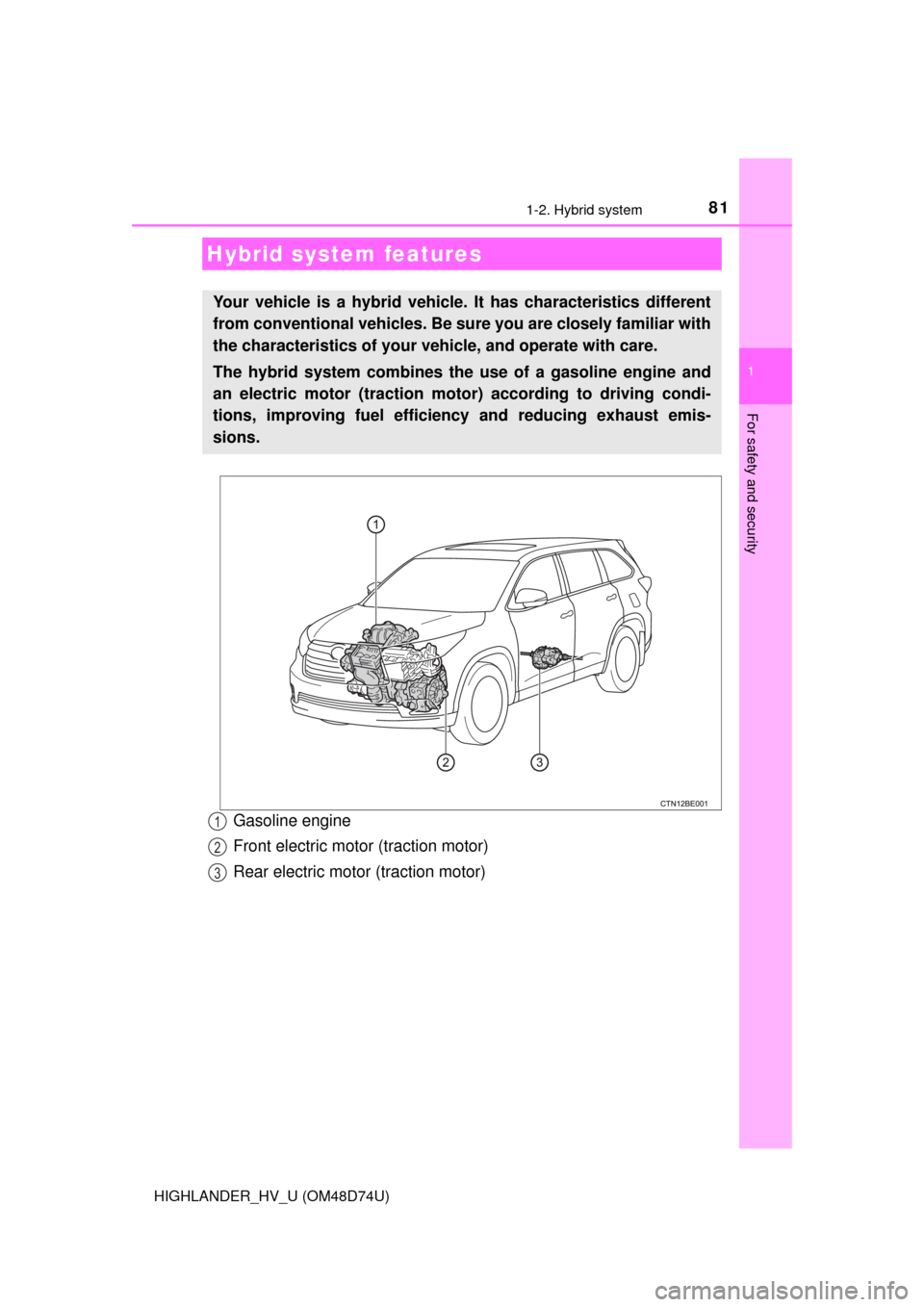

1-2. Hybrid system
Gasoline engine
Front electric motor (traction motor)
Rear electric motor (traction motor)
Hybrid system features
Your vehicle is a hybrid vehicle. It has characteristics different
from conventional vehicles. Be sure you are closely familiar with
the characteristics of your vehicle, and operate with care.
The hybrid system combines the use of a gasoline engine and
an electric motor (traction moto r) according to driving condi-
tions, improving fuel efficien cy and reducing exhaust emis-
sions.
1
2
3

821-2. Hybrid system
HIGHLANDER_HV_U (OM48D74U)
◆When stopped/during start off
The gasoline engine stops when the vehicle is stopped. During start
off, the electric motor (traction mo tor) drives the vehicle. At slow
speeds or when traveling down a gentle slope, the engine is
stopped and the electric moto r (traction motor) is used.
◆During normal driving
The gasoline engine is predominantly used. The electric motor
(traction motor) charges the hybrid battery (traction battery) as nec-
essary.
◆When accelerating sharply
When the accelerator pedal is depressed heavily, the power of the
hybrid battery (traction battery) is added to that of the gasoline
engine via the electric motor (traction motor).
◆When braking (regenerative braking)
The electric motor (traction motor) charges the hybrid battery (trac-
tion battery).
When the gasoline engine is off while driving, a sound is produced to
warn pedestrians, people riding bi cycles or other people and vehicles
in the surrounding area that the vehicle is approaching. The pitch of
the sound adjusts according to vehicle speed. When vehicle speed is
approximately 16 mph (25 km/h) or more, the warning system turns
off.
Vehicle Proximity Notification System

831-2. Hybrid system
1
For safety and security
HIGHLANDER_HV_U (OM48D74U)

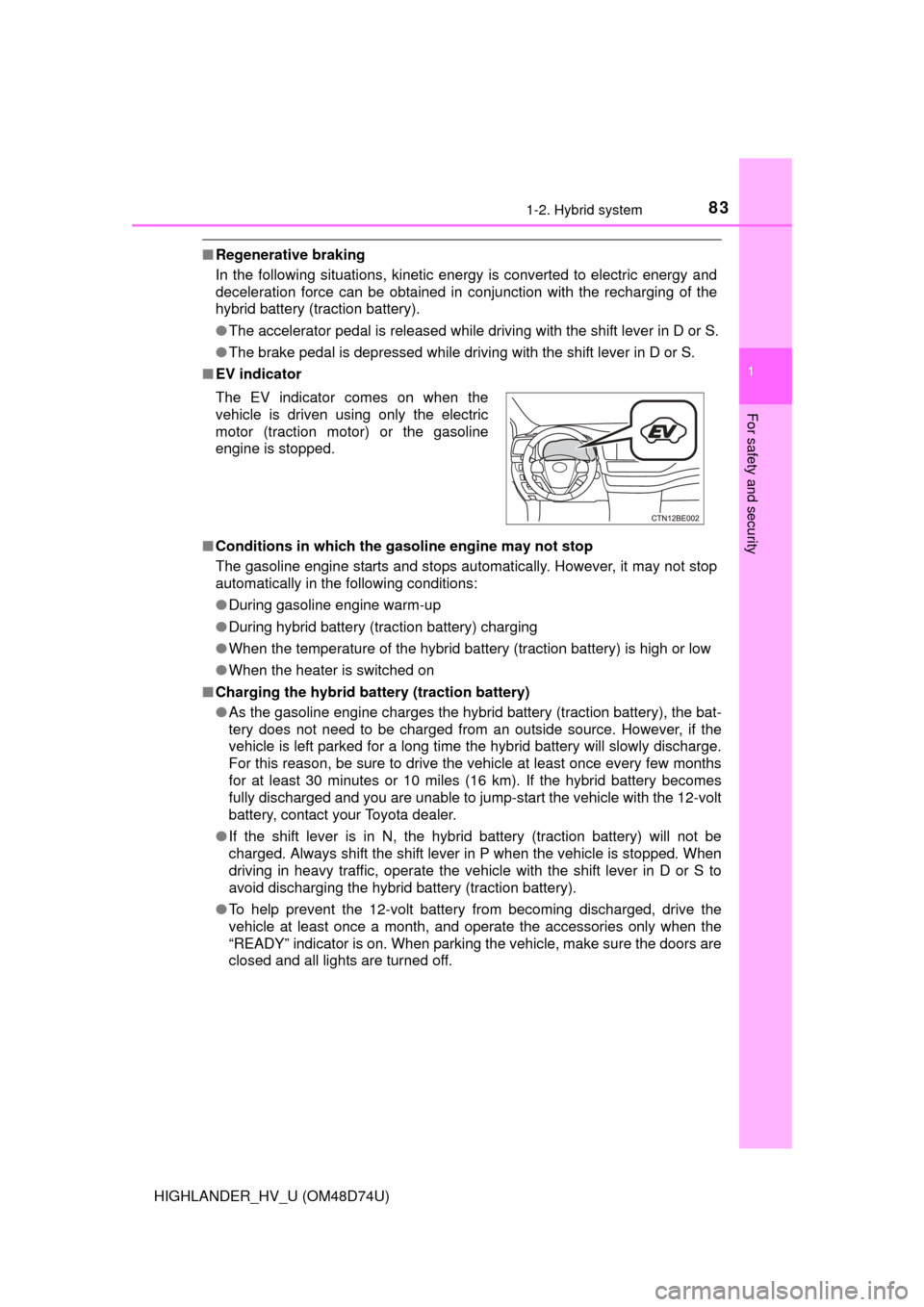

■Regenerative braking
In the following situations, kinetic energy is converted to electric energy and
deceleration force can be obtained in conjunction with the recharging of the
hybrid battery (traction battery).
●The accelerator pedal is released while driving with the shift lever in D or S.
● The brake pedal is depressed while driving with the shift lever in D or S.
■ EV indicator
■ Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop
automatically in the following conditions:
●During gasoline engine warm-up
● During hybrid battery (traction battery) charging
● When the temperature of the hybrid battery (traction battery) is high or low
● When the heater is switched on
■ Charging the hybrid battery (traction battery)
●As the gasoline engine charges the hybrid battery (traction battery), the bat-
tery does not need to be charged from an outside source. However, if the
vehicle is left parked for a long time the hybrid battery will slowly discharge.
For this reason, be sure to drive the vehicle at least once every few months
for at least 30 minutes or 10 miles (16 km). If the hybrid battery becomes
fully discharged and you are unable to jump-start the vehicle with the 12-volt
battery, contact your Toyota dealer.
● If the shift lever is in N, the hybrid battery (traction battery) will not be
charged. Always shift the shift lever in P when the vehicle is stopped. When
driving in heavy traffic, operate the vehicle with the shift lever in D or S to
avoid discharging the hybrid battery (traction battery).
● To help prevent the 12-volt battery from becoming discharged, drive the
vehicle at least once a month, and operate the accessories only when the
“READY” indicator is on. When parking the vehicle, make sure the doors are
closed and all lights are turned off.
The EV indicator comes on when the
vehicle is driven using only the electric
motor (traction motor) or the gasoline
engine is stopped.

841-2. Hybrid system
HIGHLANDER_HV_U (OM48D74U)■
Charging the 12-volt battery
P. 518
■ After the 12-volt battery has discharged or has been changed or
removed
The gasoline engine may not stop even if the vehicle is running on the hybrid
battery (traction battery). If this continues for a few days, contact your Toyota
dealer.
■ Sounds and vibrations specific to a hybrid vehicle
There may be no engine sounds or vibration even though the vehicle is able
to move. Always shift the shift lever to P when parked.
The following sounds or vibrations may occur when the hybrid system is
operating and are not a malfunction:
●Motor sounds may be heard from the engine compartment.
● Sounds may be heard from the hybrid battery (traction battery) under t\
he
rear seats when the hybrid system starts or stops.
● Sounds from the hybrid system may be heard when the back door is open.
● Sounds may be heard from the hybrid transmission when the gasoline
engine starts or stops, or during idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to regenerative braking when the brake pedal is
depressed or accelerator is loosened.
● Vibration may be felt when the gasoline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vents under the rear
seat.
■ Vehicle Proximity Notification System
In the following cases, the Vehicle Proximity Notification System sound may
be difficult for pedestrians, people ridi ng bicycles or other people and vehicles
in the surrounding area to hear:
● When there is a lot of noise in the vicinity
● When it is raining or during strong winds
● When in the area surrounding the rear of the vehicle, rather than in front of
the vehicle
■ Maintenance, repair, recycling, and disposal
Contact your Toyota dealer regarding maintenance, repair, recycling and dis-
posal. Do not dispose of the vehicle yourself.
■ Customization
Settings (e.g. on/off operation of the EV indicator) can be changed.
(Customizable features P. 556)

992. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM47D74U)

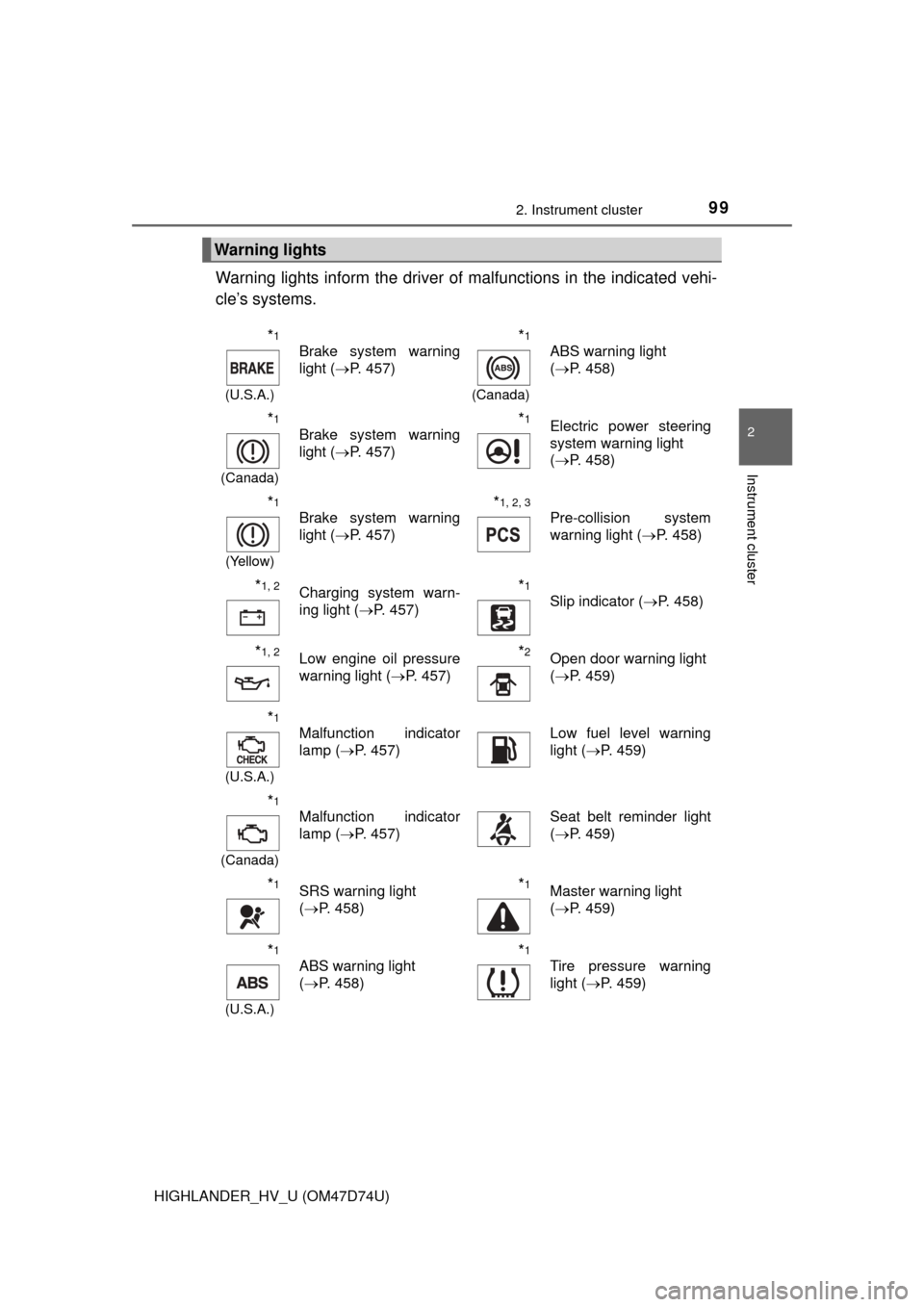

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 457)*1
(Canada)
ABS warning light
(P. 458)
*1
(Canada)
Brake system warning
light ( P. 457)*1Electric power steering
system warning light
(P. 458)
*1
(Yellow)
Brake system warning
light ( P. 457)*1, 2, 3
Pre-collision system
warning light ( P. 458)
*1, 2Charging system warn-
ing light ( P. 457)*1
Slip indicator ( P. 458)
*1, 2Low engine oil pressure
warning light (P. 457)*2Open door warning light
(P. 459)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 457)Low fuel level warning
light (P. 459)
*1
(Canada)
Malfunction indicator
lamp ( P. 457)Seat belt reminder light
(P. 459)
*1SRS warning light
(P. 458)*1Master warning light
(P. 459)
*1
(U.S.A.)
ABS warning light
(P. 458)*1
Tire pressure warning
light ( P. 459)

1022. Instrument cluster
HIGHLANDER_HV_U (OM47D74U)
*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by your Toyota dealer.
*2: If equipped
*3: Refer to “Navigation and Multimedia System Owner’s Manual”.
*4: The light comes on when the system is turned off. The light flashes fasterthan usual to indicate that the system is operating.
*5: In order to confirm operation, the BS M outside rear view mirror indicators
illuminate in the following situations:
• When the power switch is turned to ON mode while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the power switch is in ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota dealer.
*6: This light illuminates on the outside rear view mirrors.
*7: This light illuminates on the center panel.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

1042. Instrument cluster
HIGHLANDER_HV_U (OM47D74U)
Hybrid System Indicator
Displays hybrid system output or regeneration level.
Multi-information display
Presents the driver with a variety of driving-related data.
Speedometer
Fuel gauge
Trip meter reset knob
Switches the trip information.
Outside temperature
Odometer and trip meter display
Shift position and shift range
Displays the selected shift position or selected shift range. (P. 237)
Meter panel lights control button
Engine coolant temperature gauge
Displays the engine coolant temperature.
Switches between the trip meter
“A” and “B” displays. When the trip
meter is displayed, pressing and
holding the knob will reset the trip
meter.
The brightness of the meter pa nel lights can be adjusted.
Pressing the button will adjust the
brightness of the meter panel
lights.
The brightness level of the meters
when the surroundings are bright
(day mode) and dark (night mode)
can be adjusted individually. How-
ever, when in day mode, adjusting
the brightness level will also
change the brightness level of
night mode.
Changing the trip meter display
1
2
3
4
5
6
7
8
9
10
Instrument panel light control
