TOYOTA HIGHLANDER HYBRID 2016 XU50 / 3.G Owners Manual

2114-1. Before driving
4
Driving
HIGHLANDER_HV_U (OM48F12U)
Contact your Toyota dealer for further information about additional
requirements such as a towing kit, etc.
Trailer towing
Your vehicle is designed primarily as a passenger-and-load-car-
rying vehicle. Towing a trailer can have an adverse impact on
handling, performance, braking, durability, and fuel consump-
tion. For your safety and the safe ty of others, you must not over-
load your vehicle or trailer. You must also ensure that you are
using appropriate towing equipmen t, that the towing equipment
has been installed correctly a nd used properly, and that you
employ the requisite driving habits.
Vehicle-trailer stability and braking performance are affected by
trailer stability, brake performance and setting, trailer brakes,
the hitch and hitch systems (if equipped).
To tow a trailer safely, use extreme care and drive the vehicle in
accordance with your trailer’s characteristics and operating
conditions.
Toyota warranties do not apply to damage or malfunction
caused by towing a trailer for commercial purposes.

2124-1. Before driving
HIGHLANDER_HV_U (OM48F12U)■

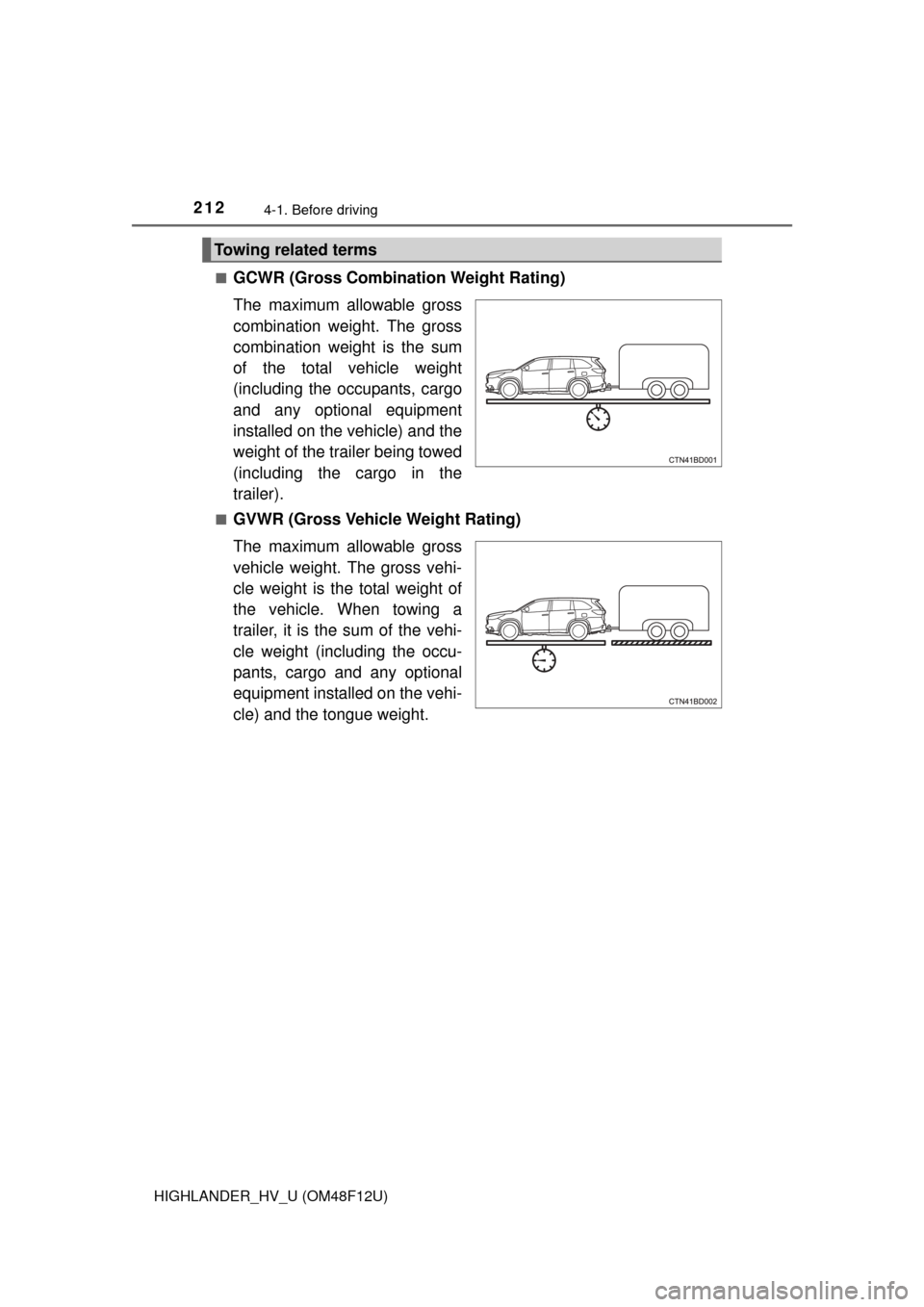

GCWR (Gross Combination Weight Rating)
The maximum allowable gross
combination weight. The gross
combination weight is the sum
of the total vehicle weight
(including the occupants, cargo
and any optional equipment
installed on the vehicle) and the
weight of the trailer being towed
(including the cargo in the
trailer).
■GVWR (Gross Vehicl
e Weight Rating)
The maximum allowable gross
vehicle weight. The gross vehi-
cle weight is the total weight of
the vehicle. When towing a
trailer, it is the sum of the vehi-
cle weight (including the occu-
pants, cargo and any optional
equipment installed on the vehi-
cle) and the tongue weight.
Towing related terms

2134-1. Before driving
4
Driving
HIGHLANDER_HV_U (OM48F12U)■

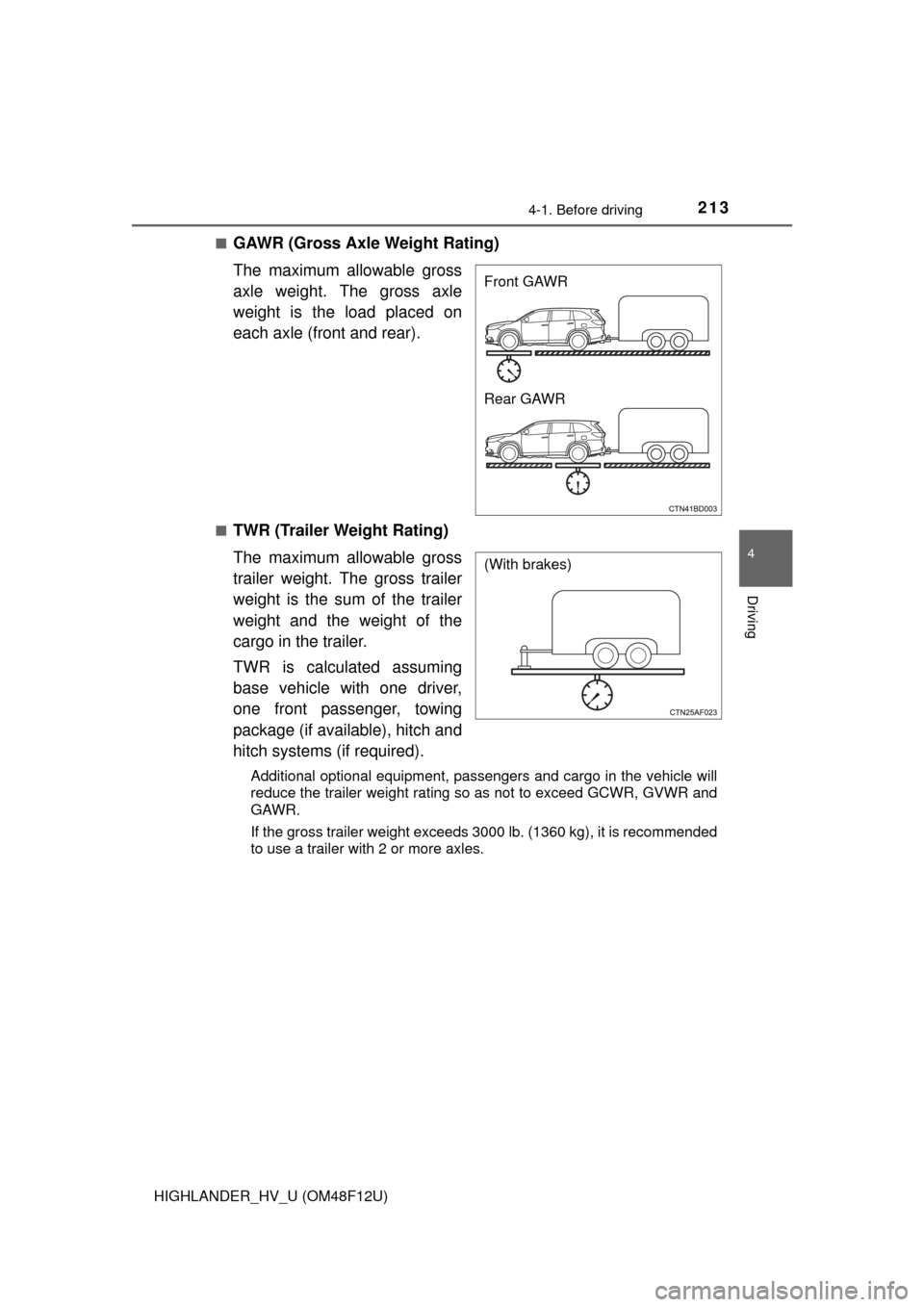

GAWR (Gross Axle Weight Rating)
The maximum allowable gross
axle weight. The gross axle
weight is the load placed on
each axle (front and rear).
■TWR (Trailer Weight Rating)
The maximum allowable gross
trailer weight. The gross trailer
weight is the sum of the trailer
weight and the weight of the
cargo in the trailer.
TWR is calculated assuming
base vehicle with one driver,
one front passenger, towing
package (if available), hitch and
hitch systems (if required).
Additional optional equipment, passengers and cargo in the vehicle will
reduce the trailer weight rating so as not to exceed GCWR, GVWR and
GAWR.
If the gross trailer weight exceeds 3000 lb. (1360 kg), it is recommended
to use a trailer with 2 or more axles.
Front GAWR
Rear GAWR
(With brakes)

2144-1. Before driving
HIGHLANDER_HV_U (OM48F12U)■

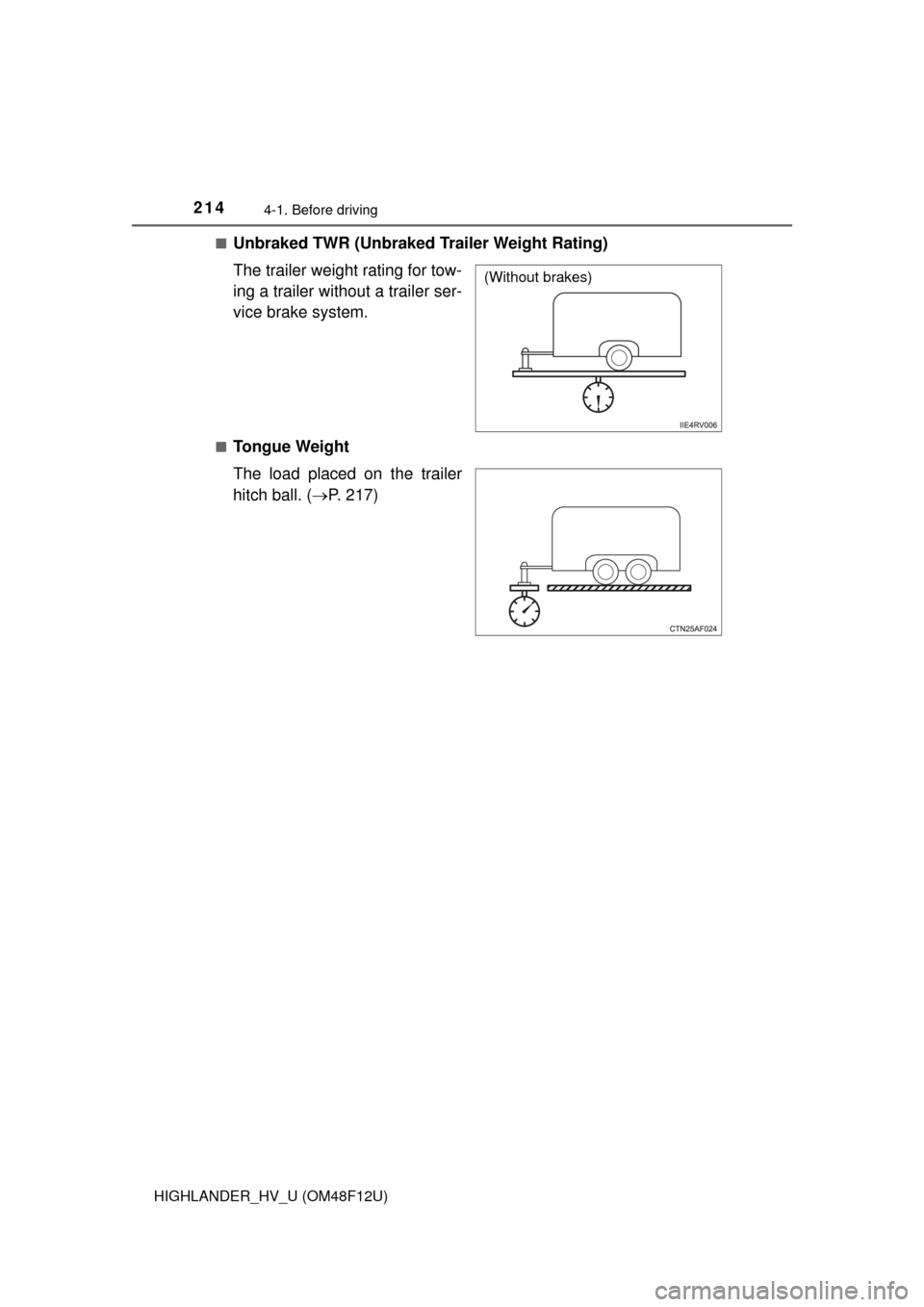

Unbraked TWR (Unbraked Trailer Weight Rating)
The trailer weight rating for tow-
ing a trailer without a trailer ser-
vice brake system.
■Tongue Weight
The load placed on the trailer
hitch ball. (
P. 217)
(Without brakes)

2154-1. Before driving
4
Driving
HIGHLANDER_HV_U (OM48F12U)
●The gross trailer weight must never exceed the TWR described in
the table. ( P. 216)
● The gross combination weight must never exceed the GCWR
described in the table. ( P. 216)

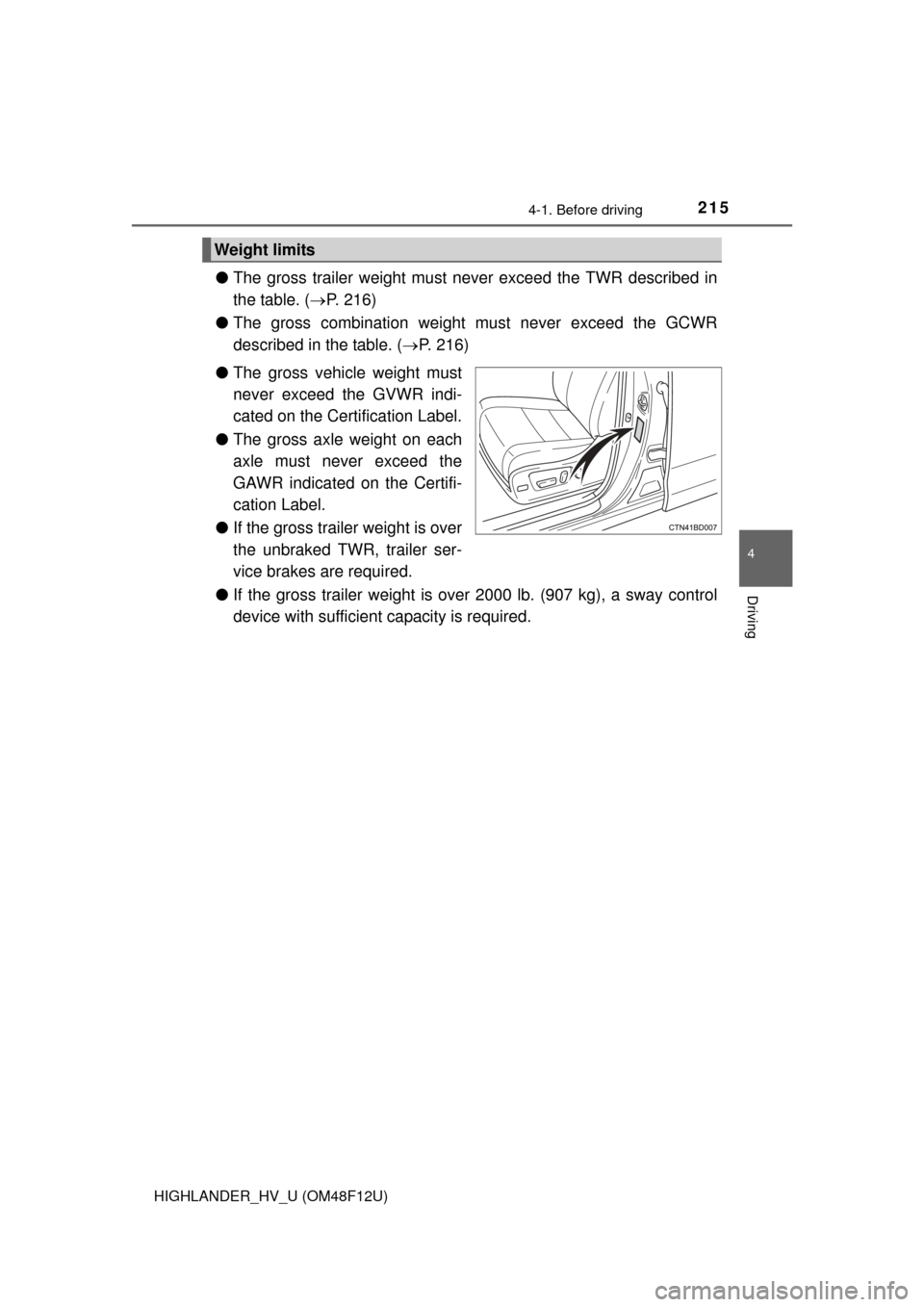

● The gross vehicle weight must
never exceed the GVWR indi-
cated on the Certification Label.
● The gross axle weight on each
axle must never exceed the
GAWR indicated on the Certifi-
cation Label.
● If the gross trailer weight is over
the unbraked TWR, trailer ser-
vice brakes are required.
● If the gross trailer weight is over 2000 lb. (907 kg), a sway control
device with sufficient capacity is required.
Weight limits

2164-1. Before driving
HIGHLANDER_HV_U (OM48F12U)
Confirm that the gross trailer weight, gross combination weight, gross
vehicle weight, gross axle weight and tongue weight are all within the
limits.

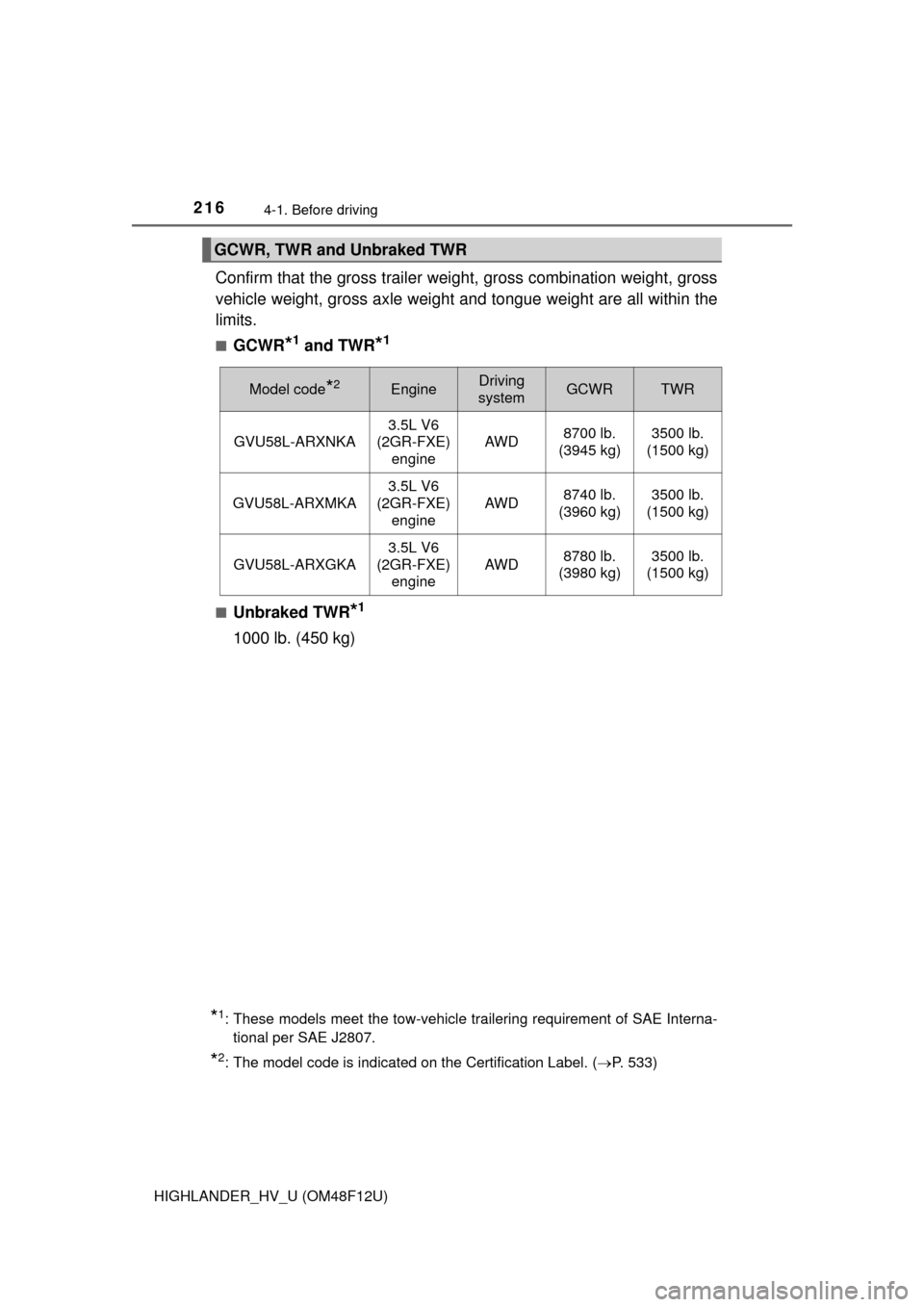

■GCWR*1 and TWR*1
■Unbraked TWR*1
1000 lb. (450 kg)
GCWR, TWR and Unbraked TWR
*1: These models meet the tow-vehicle trailering requirement of SAE Interna-tional per SAE J2807.
*2: The model code is indicated on the Certification Label. (P. 533)
Model code*2EngineDriving
systemGCWRTWR
GVU58L-ARXNKA
3.5L V6
(2GR-FXE) engine
AWD8700 lb.
(3945 kg)3500 lb.
(1500 kg)
GVU58L-ARXMKA
3.5L V6
(2GR-FXE)
engine
AWD8740 lb.
(3960 kg)3500 lb.
(1500 kg)
GVU58L-ARXGKA
3.5L V6
(2GR-FXE) engine
AWD8780 lb.
(3980 kg)3500 lb.
(1500 kg)

2174-1. Before driving
4
Driving
HIGHLANDER_HV_U (OM48F12U)
●A recommended tongue weight varies in accordance with the types
of trailers or towing as described below.
● To ensure the recommended values shown below, the trailer must
be loaded by referring to the following instructions.

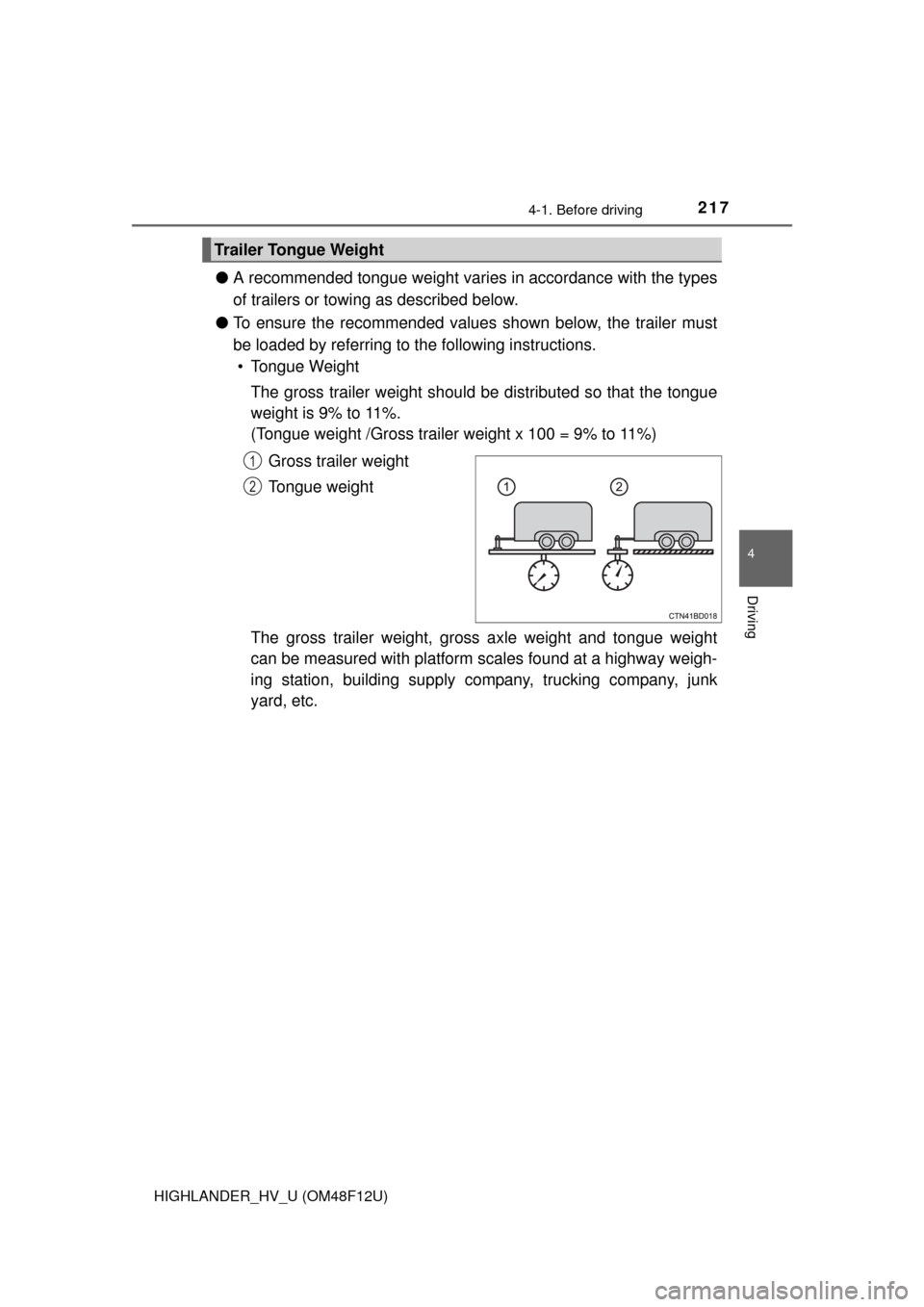

• Tongue Weight
The gross trailer weight should be distributed so that the tongue
weight is 9% to 11%.
(Tongue weight /Gross trailer weight x 100 = 9% to 11%)
Gross trailer weight
Tongue weight
The gross trailer weight, gross axle weight and tongue weight
can be measured with platform scales found at a highway weigh-
ing station, building supply company, trucking company, junk
yard, etc.
Trailer Tongue Weight
1
2

2184-1. Before driving
HIGHLANDER_HV_U (OM48F12U)
Trailer hitch assemblies have different weight capacities. Toyota rec-
ommends the use of Toyota hitch/bracket for your vehicle. For details,
contact your Toyota dealer.
●If you wish to install a trailer hitch, contact your Toyota dealer.
● Use only a hitch that conforms to the gross trailer weight require-
ment of your vehicle.
● Follow the directions supplied by the hitch manufacturer.
● Lubricate the hitch ball with a light coating of grease.
● Remove the trailer hitch whenever you are not towing a trailer. After
removing the hitch, seal any mounting hole in the vehicle body to
prevent entry of any subs tances into the vehicle.

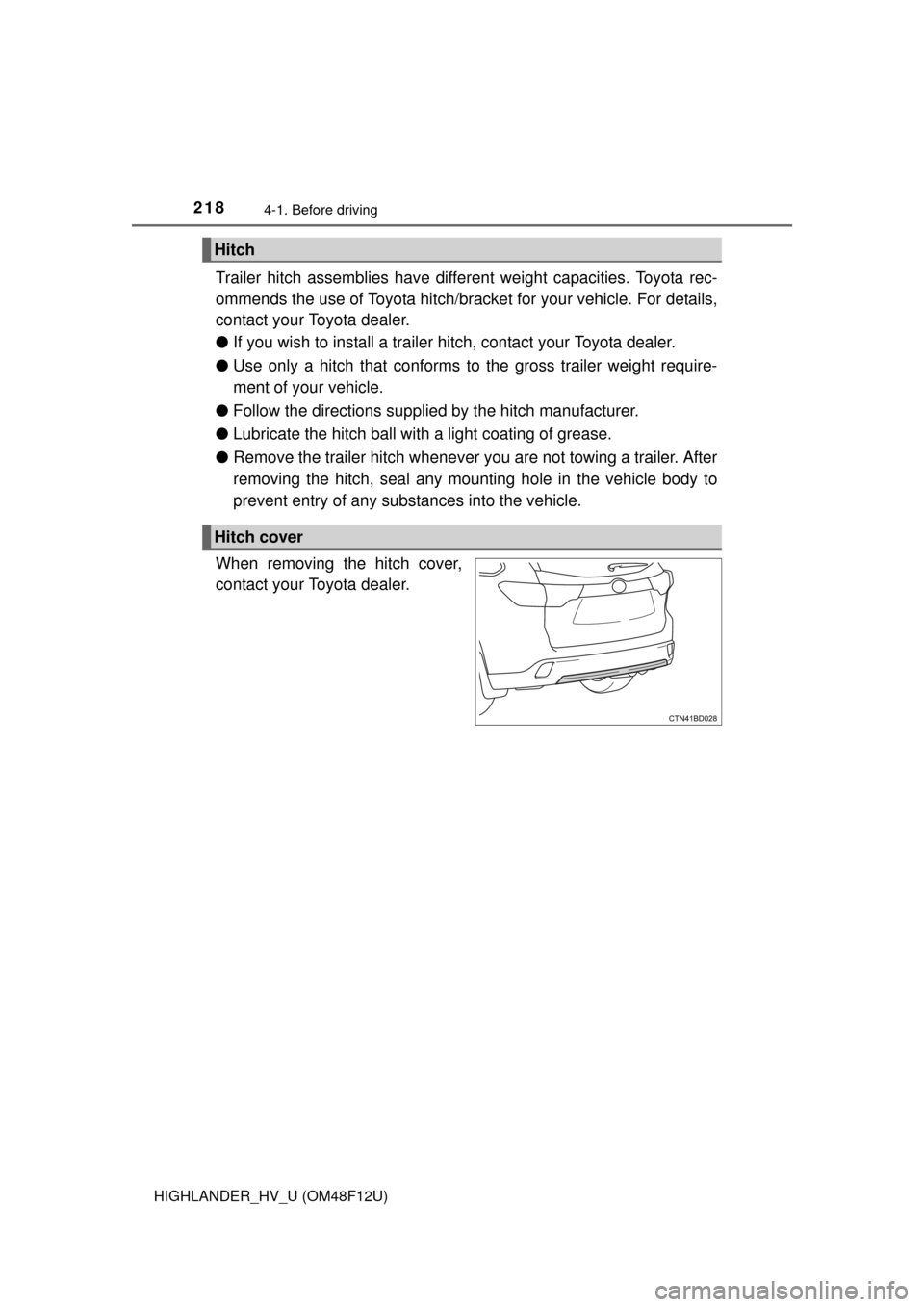

When removing the hitch cover,
contact your Toyota dealer.
Hitch
Hitch cover

2194-1. Before driving
4
Driving
HIGHLANDER_HV_U (OM48F12U)

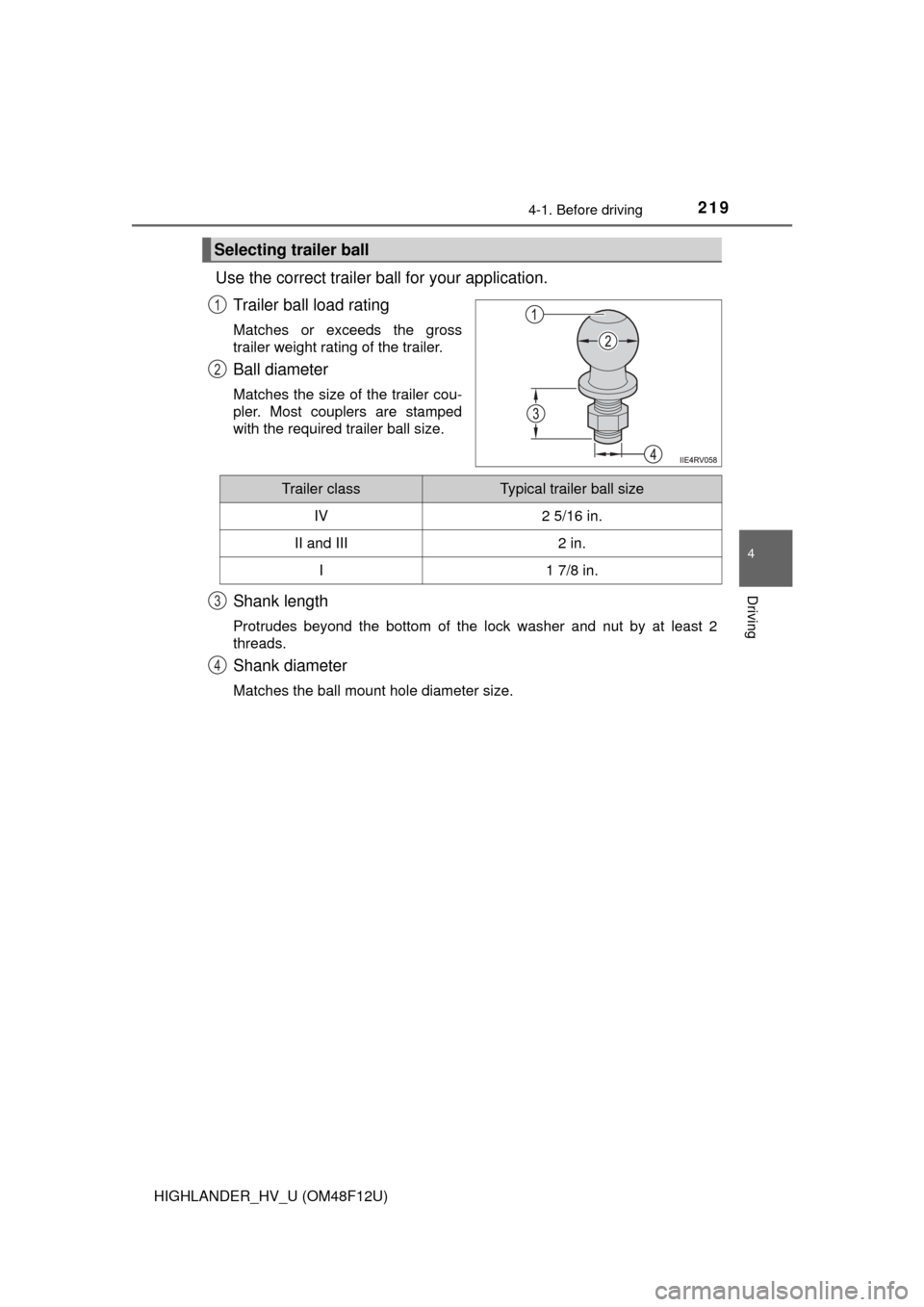

Use the correct trailer ball for your application.Trailer ball load rating
Matches or exceeds the gross
trailer weight rating of the trailer.
Ball diameter
Matches the size of the trailer cou-
pler. Most couplers are stamped
with the required trailer ball size.
Shank length
Protrudes beyond the bottom of the lock washer and nut by at least 2
threads.
Shank diameter
Matches the ball mount hole diameter size.
Selecting trailer ball
1
2
Trailer classTypical trailer ball size
IV2 5/16 in.
II and III2 in.
I1 7/8 in.
3
4

2204-1. Before driving
HIGHLANDER_HV_U (OM48F12U)

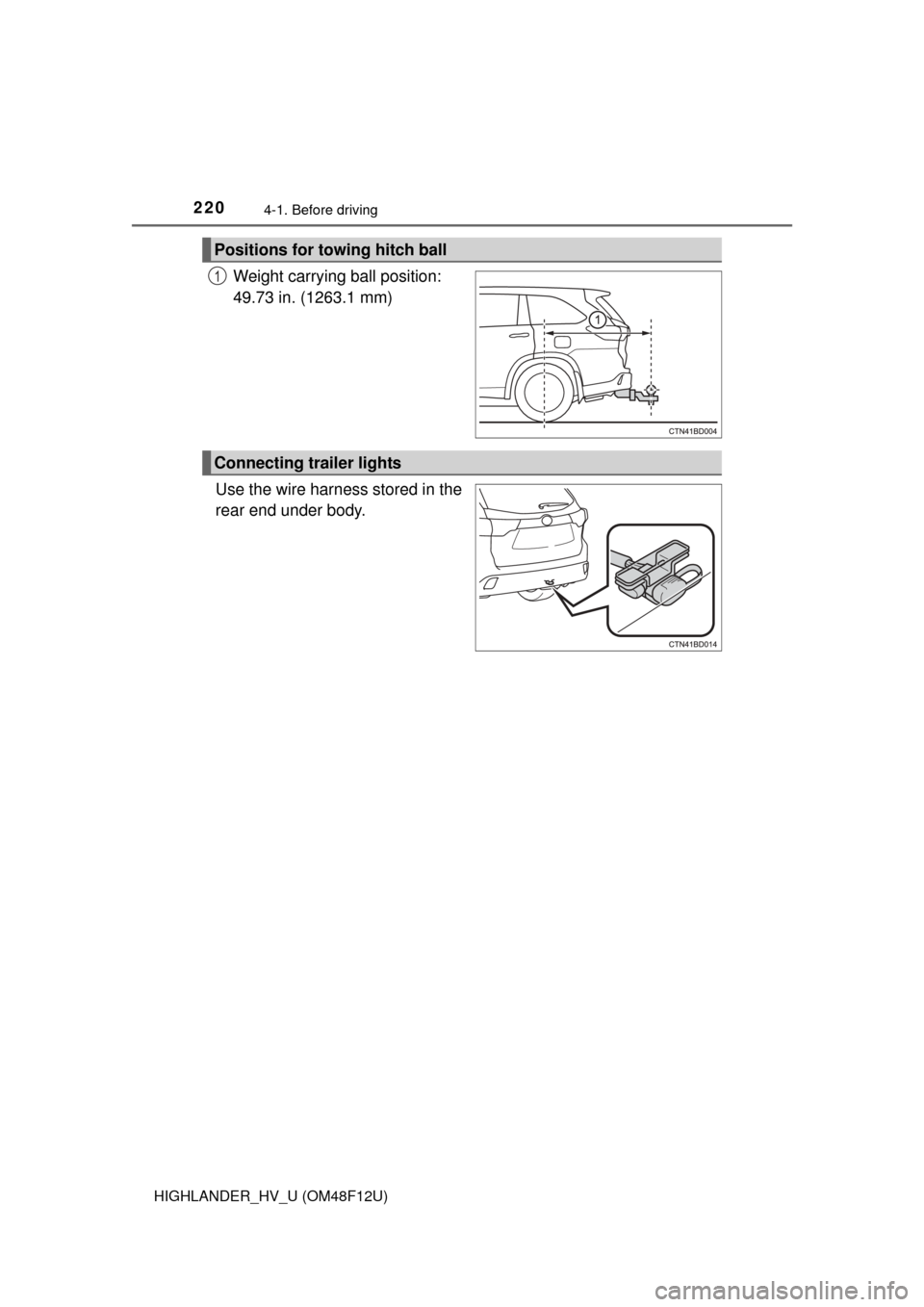

Weight carrying ball position:
49.73 in. (1263.1 mm)
Use the wire harness stored in the
rear end under body.
Positions for towing hitch ball
1
Connecting trailer lights
