21Pictorial index
HIGHLANDER_HV_U (OM48F12U)Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
Driving position memory switches
*1. . . . . . . . . . . . . . . . . . P. 163
Outside rear view mirror switch . . . . . . . . . . . . . . . . . . . . . . P. 175
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 177
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 178
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . P. 525
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
Page 22 of 716
22Pictorial index
HIGHLANDER_HV_U (OM48F12U)Talk switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 427

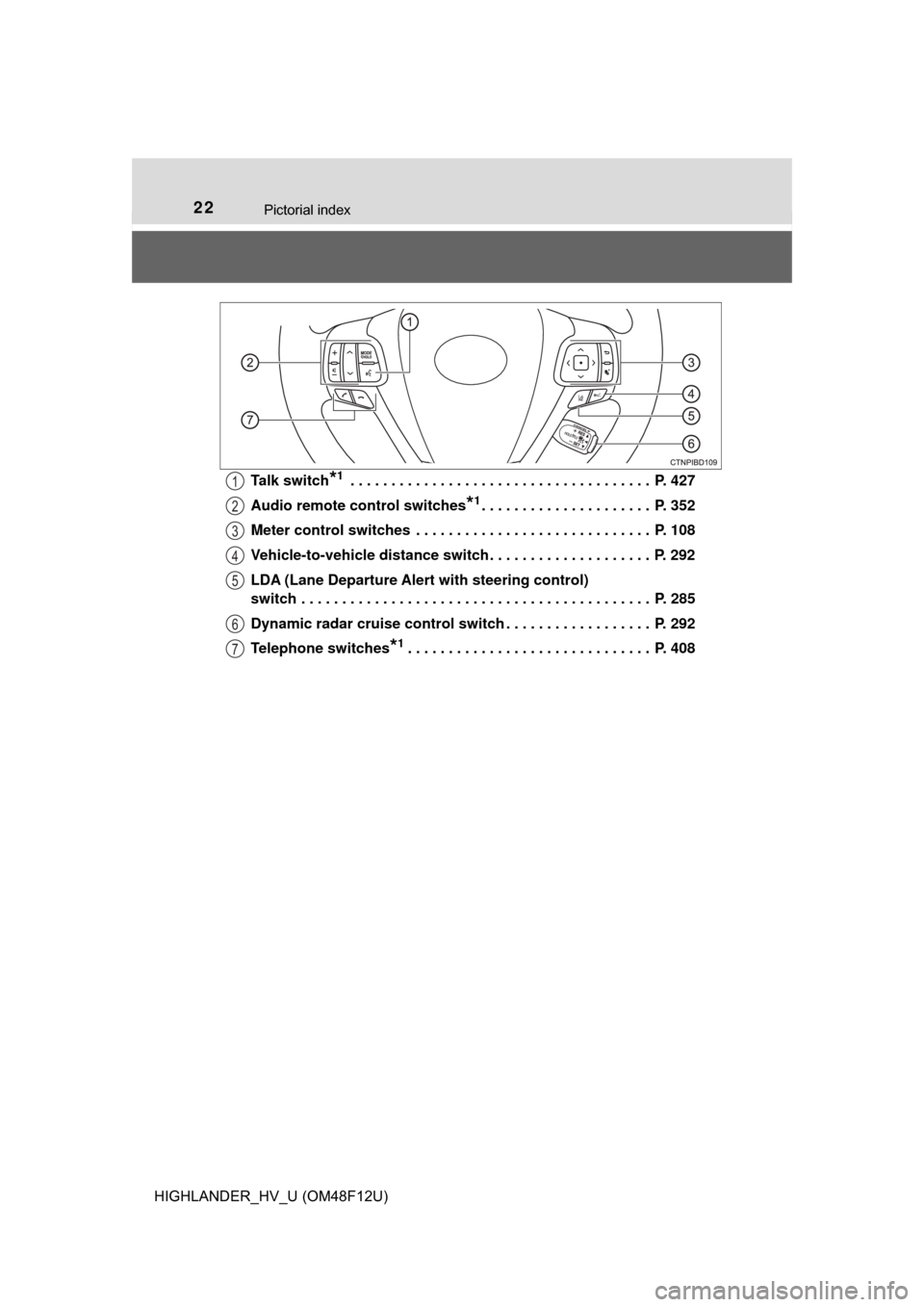

Audio remote control switches
*1. . . . . . . . . . . . . . . . . . . . . P. 352
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 108
Vehicle-to-vehicle distance switch . . . . . . . . . . . . . . . . . . . . P. 292
LDA (Lane Departure Alert with steering control)
switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 285
Dynamic radar cruise control switch . . . . . . . . . . . . . . . . . . P. 292
Telephone switches
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 408
1
2
3
4
5
6
7
Page 23 of 716
23Pictorial index
HIGHLANDER_HV_U (OM48F12U)VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 330
“ECO MODE” switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234
EV drive mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Seat heater/ven
tilator switches
*2. . . . . . . . . . . . . . . . . . . . . P. 445
Seat heater switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 445
Type B
Type A
1
2
3
4
5
*1: For vehicles with Entune Premium Audio or Entune Audio Plus, refer to “NAVIGA-
TION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: If equipped
Page 24 of 716
24Pictorial index
HIGHLANDER_HV_U (OM48F12U)

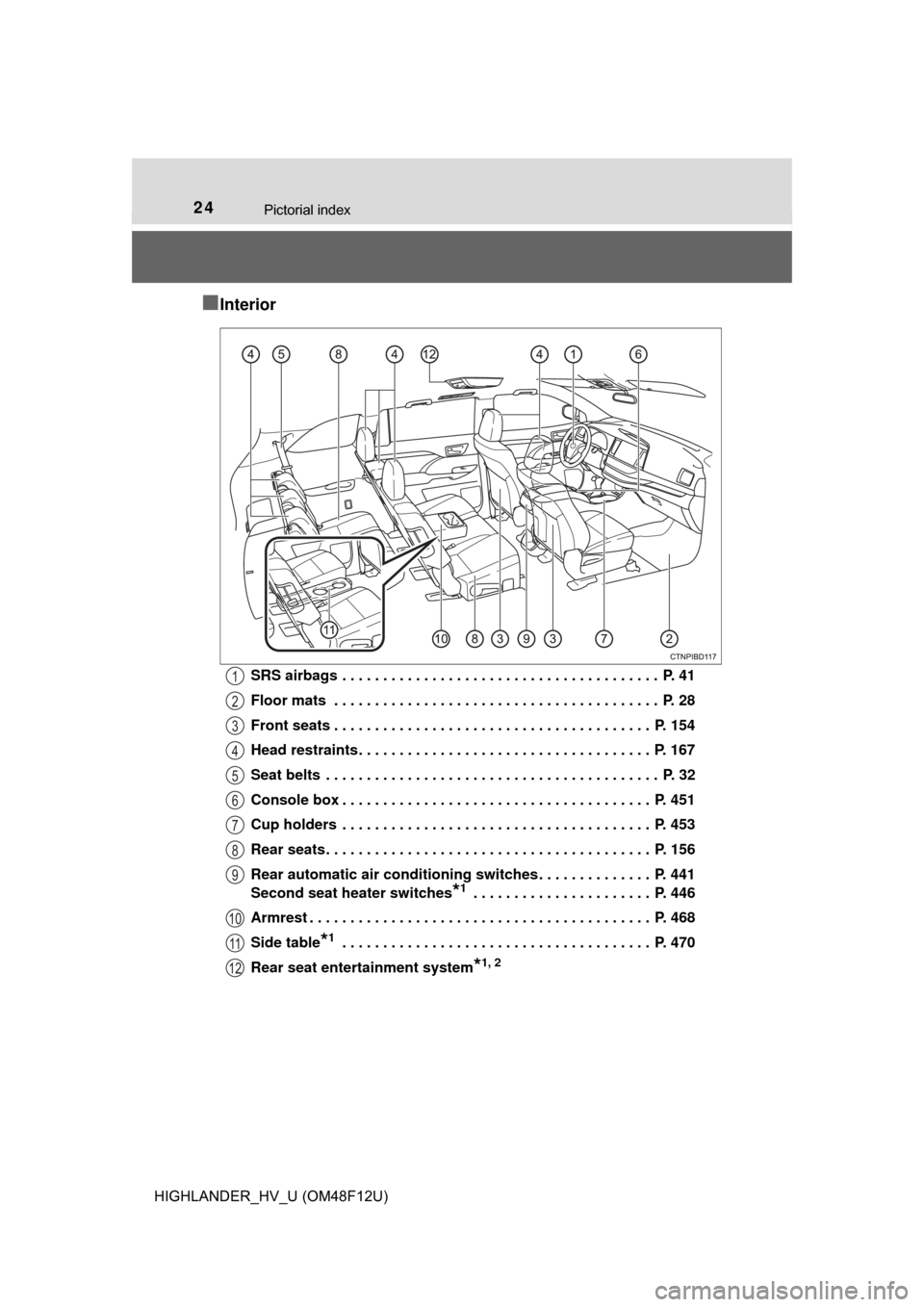

■Interior
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 41
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 154
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 167
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 32
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 451
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 453
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
Rear automatic air conditioning switches . . . . . . . . . . . . . . P. 441
Second seat heater switches
*1 . . . . . . . . . . . . . . . . . . . . . . P. 446
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 468
Side table
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Rear seat entertainment system
*1, 2
1
2
3
4
5
6
7
8
9
10
11
12
Page 25 of 716
25Pictorial index

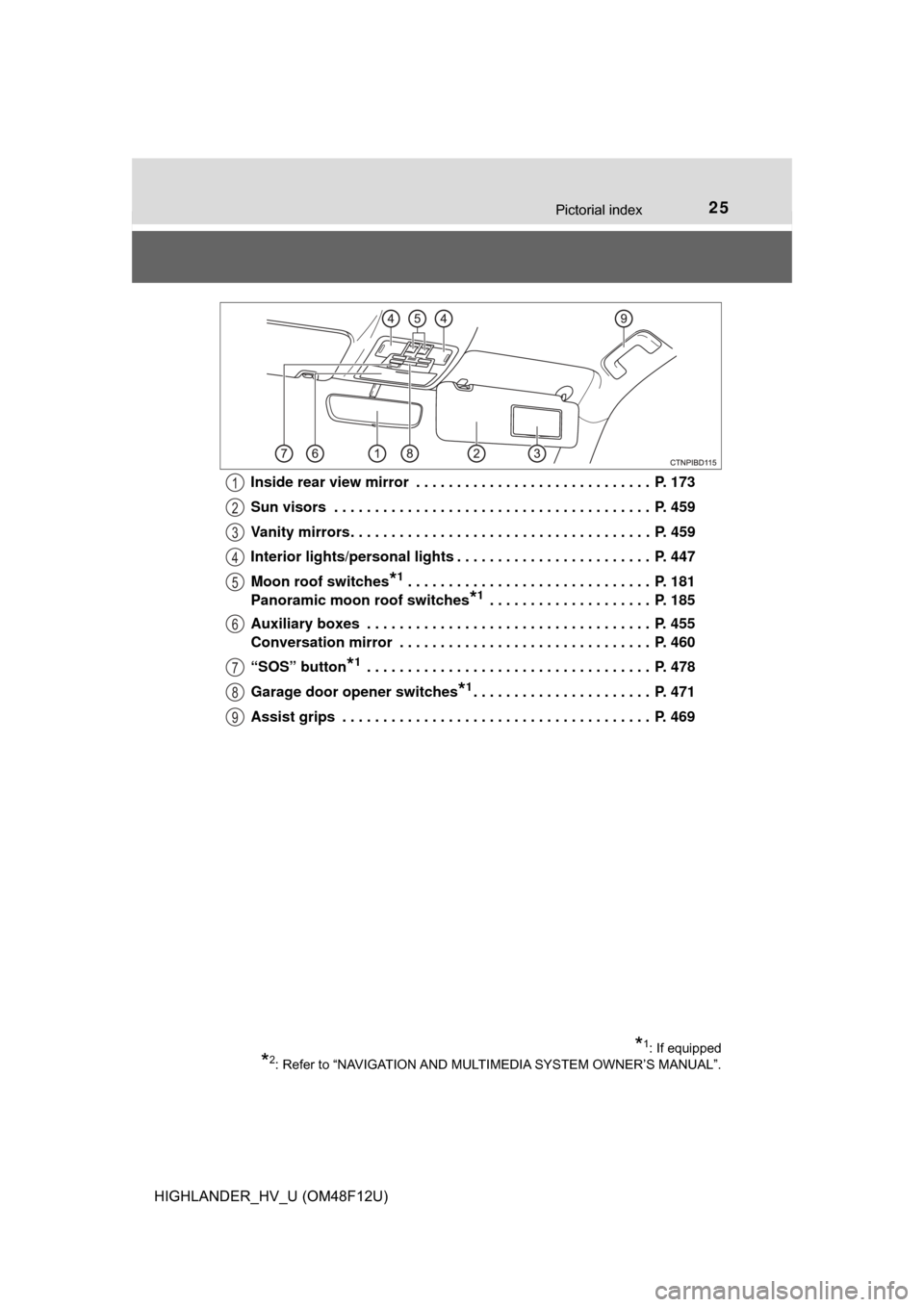

HIGHLANDER_HV_U (OM48F12U)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 459
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 459
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . . . . . P. 447
Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
Panoramic moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . P. 185
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 455
Conversation mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 460
“SOS” button
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 478
Garage door opener switches
*1. . . . . . . . . . . . . . . . . . . . . . P. 471
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 469
1
2
3
4
5
6
7
8
9
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
Page 26 of 716
26Pictorial index
HIGHLANDER_HV_U (OM48F12U)
Page 27 of 716
27
For safety and security1
HIGHLANDER_HV_U (OM48F12U)1-1. For safe use
Before driving ...................... 28
For safety drive ................... 30
Seat belts ............................ 32
SRS airbags ........................ 41
Front passenger occupant classification system ......... 54
Safety information for children ............................. 61
Child restraint systems........ 62
Installing child restraints...... 66
Exhaust gas precautions..... 80
1-2. Hybrid system Hybrid system features ....... 81
Hybrid system precautions ....................... 85
1-3. Theft deterrent system Immobilizer system ............. 91
Alarm................................... 93
Page 28 of 716
28
HIGHLANDER_HV_U (OM48F12U)
1-1. For safe use

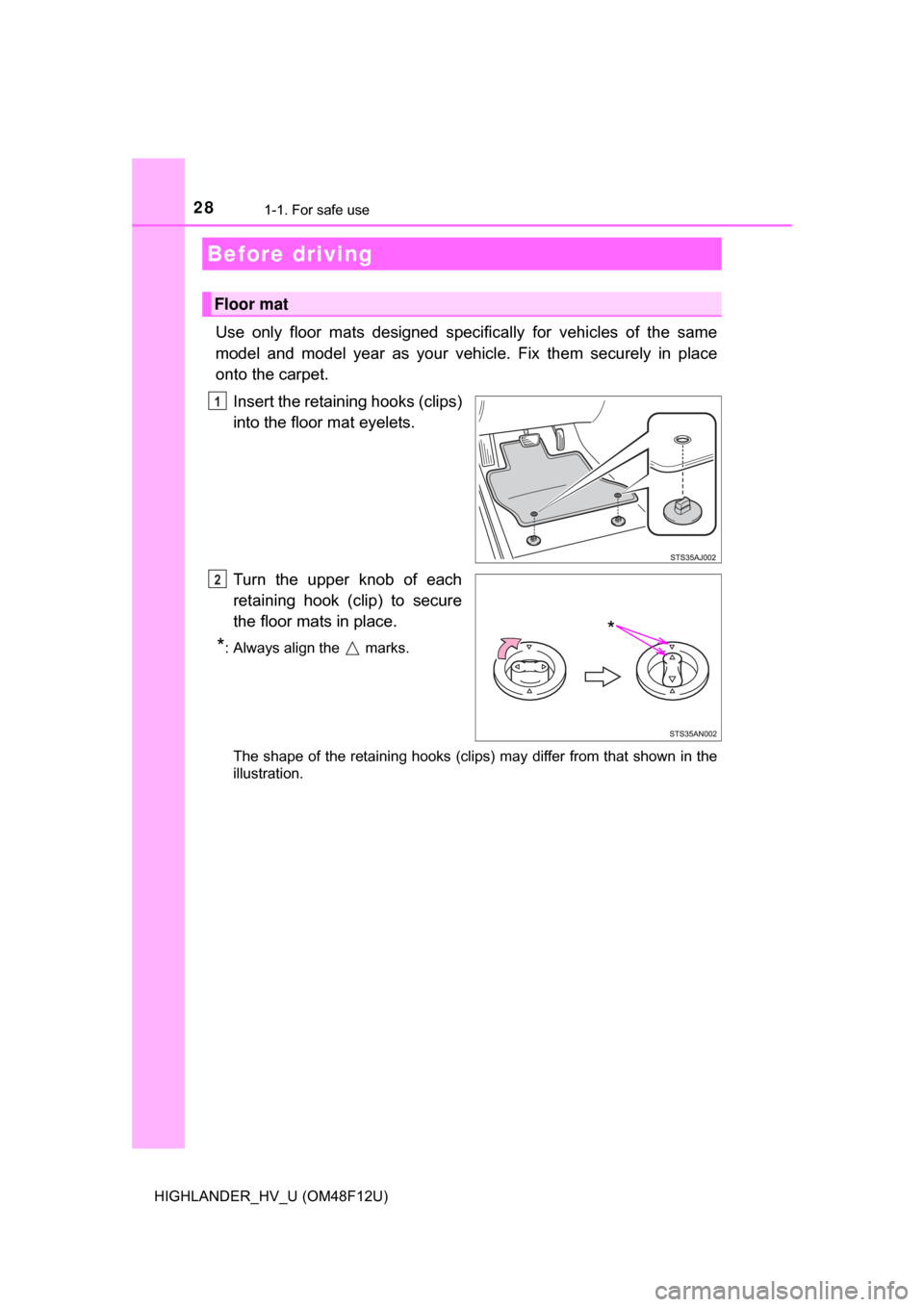

Use only floor mats designed specifically for vehicles of the same
model and model year as your vehi cle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Before driving
Floor mat
1
*
2
Page 29 of 716
291-1. For safe use
1
For safety and security
HIGHLANDER_HV_U (OM48F12U)
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■When installing the driver’s floor mat
● Do not use floor mats designed for ot her models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the hybrid system stopped and the
shift lever in P, fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.
Page 30 of 716
301-1. For safe use
HIGHLANDER_HV_U (OM48F12U)
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (→P. 154)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( →P. 154)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( →P. 167)
Wear the seat belt correctly. ( →P. 3 2 )
Make sure that all occupants are we aring their seat belts before driv-
ing the vehicle. ( →P. 3 2 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( → P. 62)
For safety drive
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4
