engine TOYOTA HIGHLANDER HYBRID 2017 XU50 / 3.G Quick Reference Guide

16

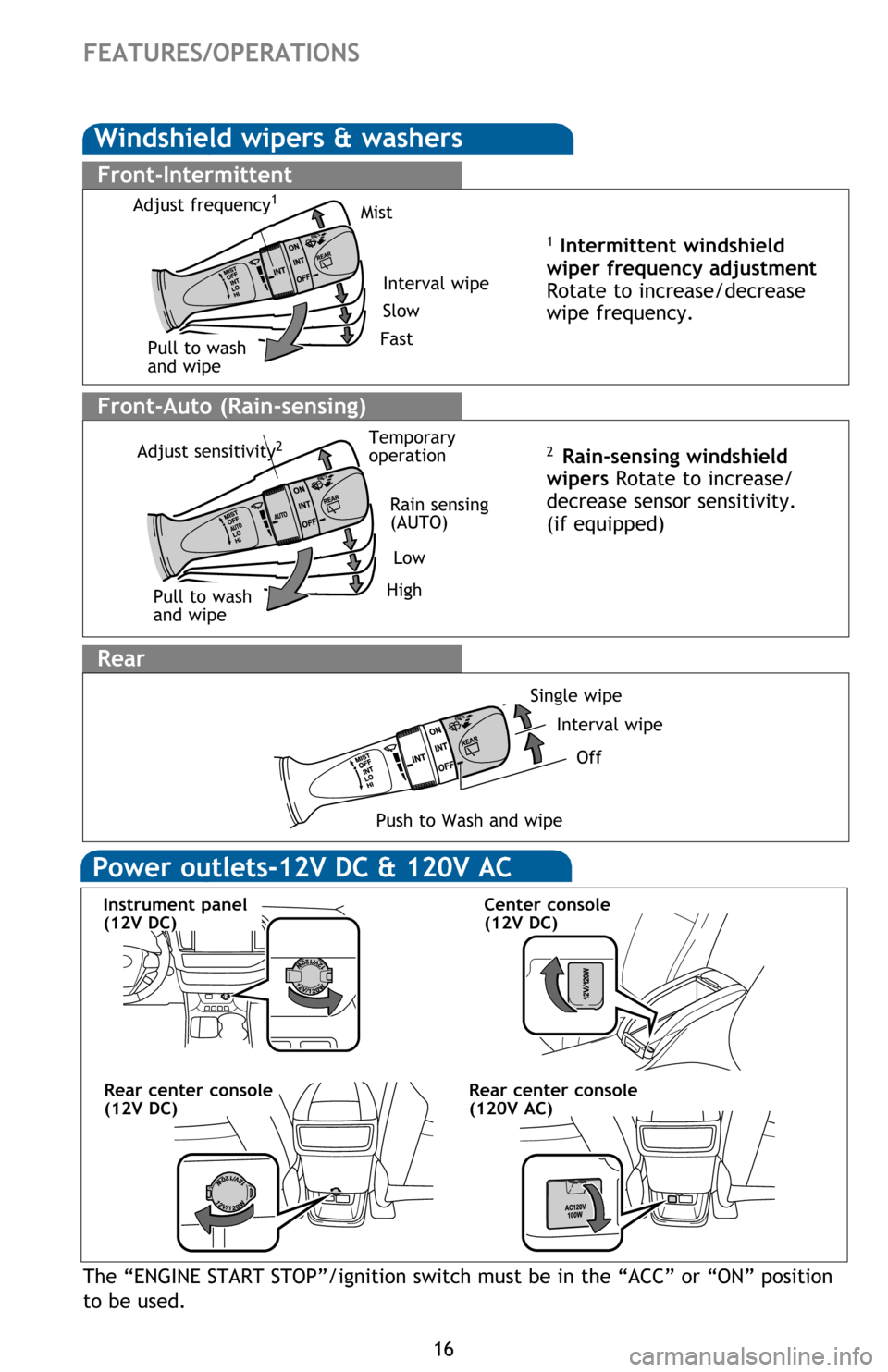

Windshield wipers & washers
FEATURES/OPERATIONS
Power outlets-12V DC & 120V AC
Instrument panel
(12V DC)
The “ENGINE START STOP”/ignition switch must be in the “ACC” or “ON” position
to be used.
Center console
(12V DC)
Rear center console
(120V AC)Rear center console
(12V DC)
Single wipe
Interval wipe
Off
Push to Wash and wipe
Rear
Front-Intermittent
Front-Auto (Rain-sensing)
1 Intermittent windshield
wiper frequency adjustment
Rotate to increase/decrease
wipe frequency.
2 Rain-sensing windshield
wipers Rotate to increase/
decrease sensor sensitivity.
(if equipped)Temporary
operation
Rain sensing
(AUTO)
Low
HighAdjust sensitivity2
Pull to wash
and wipe
Interval wipe Mist
Slow
Fast Adjust frequency
1
Pull to wash
and wipe

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
(3) Acceleration when there are no longer any preceding vehicles driving
slower than the set speed
The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.
Note: When your vehicle is too close to a vehicle ahead, and sufficient automatic
deceleration via the cruise control is not possible, the display will flash and the
buzzer will sound to alert the driver. An example of this would be if another driver
cuts in front of you while you are following a vehicle. Depress the brake pedal to
ensure an appropriate vehicle-to-vehicle distance.
Switching to constant speed control mode
If you are already using DRCC “”, push “ON-OFF” button to turn the system off
first, then push and hold “ON-OFF” button for at least 1.5 seconds to switch.
Note: When the engine is turned off, it will automatically default to Dynamic
Radar Cruise Control.
1.5 seconds
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFFmonchrome
color display
Increase speed
Decrease speed
Cancel1
Resume2
Set

22
FEATURES/OPERATIONS

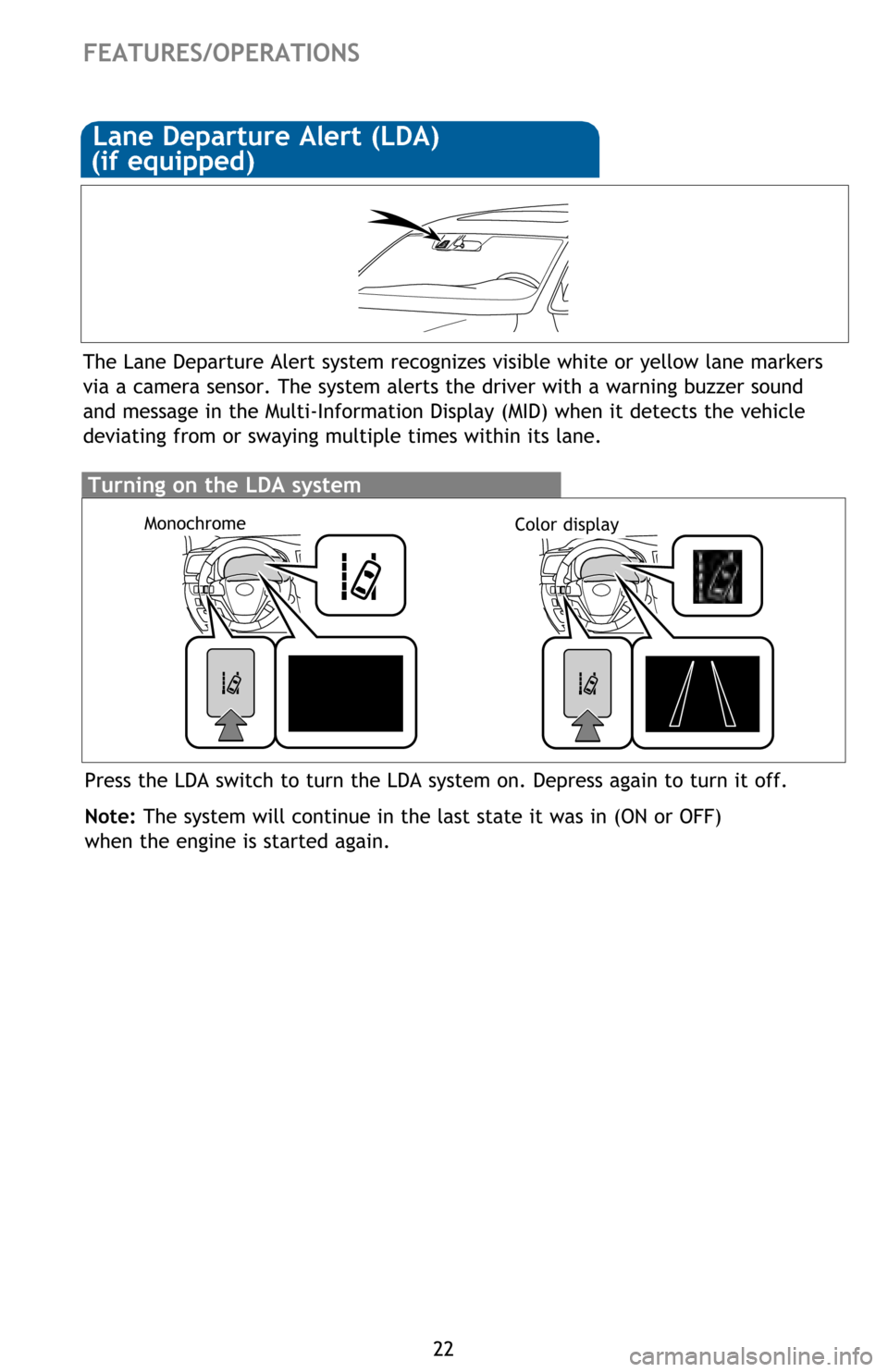

Lane Departure Alert (LDA)
(if equipped)
The Lane Departure Alert system recognizes visible white or yellow lane markers
via a camera sensor. The system alerts the driver with a warning buzzer sound
and message in the Multi-Information Display (MID) when it detects the vehicle
deviating from or swaying multiple times within its lane.
Press the LDA switch to turn the LDA system on. Depress again to turn it off.
Note: The system will continue in the last state it was in (ON or OFF)
when the engine is started again.
Turning on the LDA system
MonochromeColor display

24

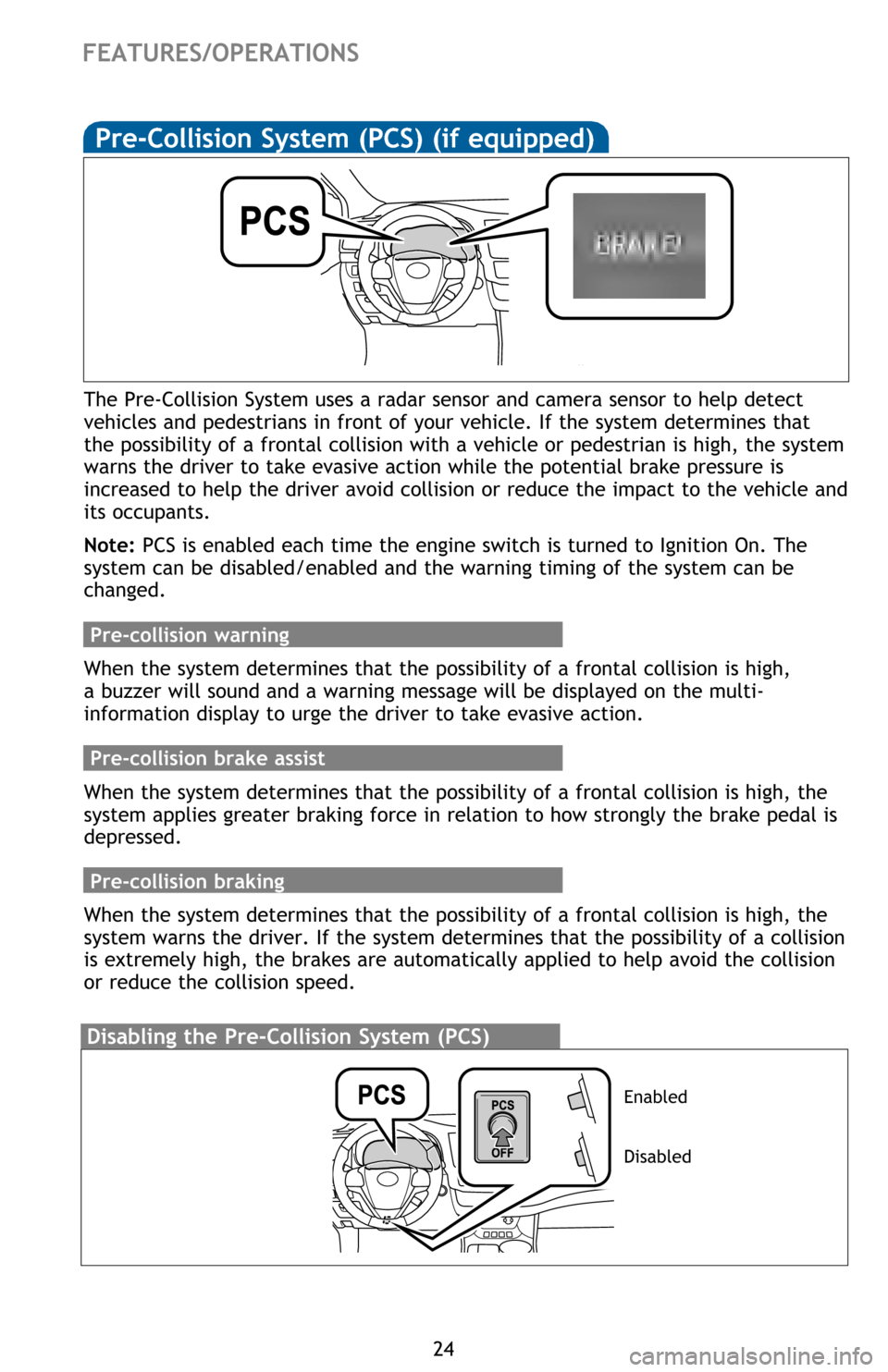

Pre-Collision System (PCS) (if equipped)
The Pre-Collision System uses a radar sensor and camera sensor to help detect
vehicles and pedestrians in front of your vehicle. If the system determines that
the possibility of a frontal collision with a vehicle or pedestrian is high, the system
warns the driver to take evasive action while the potential brake pressure is
increased to help the driver avoid collision or reduce the impact to the vehicle and
its occupants.
Note: PCS is enabled each time the engine switch is turned to Ignition On. The
system can be disabled/enabled and the warning timing of the system can be
changed.
Pre-collision warning
When the system determines that the possibility of a frontal collision is high,
a buzzer will sound and a warning message will be displayed on the multi-
information display to urge the driver to take evasive action.
Pre-collision brake assist
When the system determines that the possibility of a frontal collision is high, the
system applies greater braking force in relation to how strongly the brake pedal is
depressed.
Pre-collision braking
When the system determines that the possibility of a frontal collision is high, the
system warns the driver. If the system determines that the possibility of a collision
is extremely high, the brakes are automatically applied to help avoid the collision
or reduce the collision speed.

Disabling the Pre-Collision System (PCS)
Enabled
Disabled
FEATURES/OPERATIONS

25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Conditions where Automatic High Beams will turn ON/OFF automatically
When all of these conditions are met, high beams will be automatically turned on
(after approximately 1 second):
=9HKLFOHVSHHGLVDERYHDSSUR[LPDWHO\PSKNPK
=7KHDUHDDKHDGRIWKHYHKLFOHLVGDUN
=7KHUHDUHQRRQFRPLQJRUSUHFHGLQJYHKLFOHVZLWKKHDGOLJKWVRUWDLOOLJKWV
turned on.
If any of these conditions occur, high beams will be automatically turned off:
=9HKLFOHVSHHGGURSVEHORZDSSUR[LPDWHO\PSKNPK
=7KHDUHDDKHDGRIWKHYHKLFOHLVQRWGDUN
=2QFRPLQJRUSUHFHGLQJYHKLFOHVKDYHKHDGOLJKWVRUWDLOOLJKWVWXUQHGRQ
=7KHUHDUHPDQ\VWUHHWOLJKWVRQWKHURDGDKHDG
Activating the Automatic High Beam System
(1) With the engine switch in IGNITION ON mode and headlight switch turned to
“AUTO” position, push lever away from you.
(2) Push the Automatic High Beam switch.
The AHB indicator will come on when the headlights are turned on
automatically to indicate that the system is active.
Note: To turn the AHB system off, pull the lever back toward you. The AHB
indicator will turn off and the high beam indicator will turn on. The AHB uses an in-vehicle camera sensor to assess the brightness of streetlights,
the lights of oncoming and preceding vehicles, etc., and automatically turns high
beam on or off as necessary.
Automatic High Beams (AHB) (if equipped)
(1) (2)

36
SAFETY AND EMERGENCY FEATURES

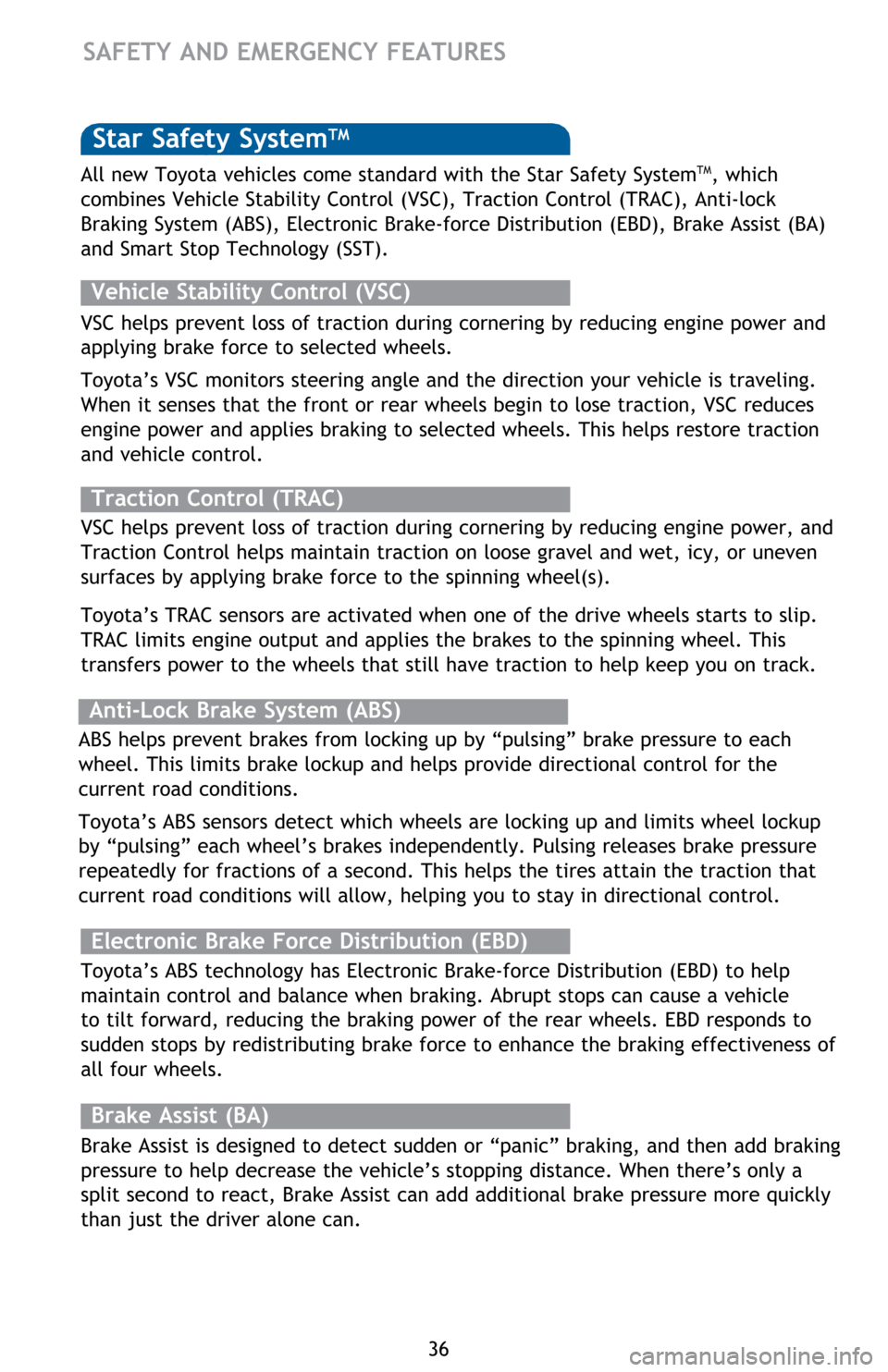

Star Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
Brake Assist (BA)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels. All new Toyota vehicles come standard with the Star Safety System
TM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
