Page 27 of 52
25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Conditions where Automatic High Beams will turn ON/OFF automatically
When all of these conditions are met, high beams will be automatically turned on
(after approximately 1 second):
= 9 H K L F O H V S H H G L V D E R Y H D S S U R [ L P D W H O \ P S K N P K
= 7 K H D U H D D K H D G R I W K H Y H K L F O H L V G D U N
= 7 K H U H D U H Q R R Q F R P L Q J R U S U H F H G L Q J Y H K L F O H V Z L W K K H D G O L J K W V R U W D L O O L J K W V
turned on.
If any of these conditions occur, high beams will be automatically turned off:
= 9 H K L F O H V S H H G G U R S V E H O R Z D S S U R [ L P D W H O \ P S K N P K
= 7 K H D U H D D K H D G R I W K H Y H K L F O H L V Q R W G D U N
= 2 Q F R P L Q J R U S U H F H G L Q J Y H K L F O H V K D Y H K H D G O L J K W V R U W D L O O L J K W V W X U Q H G R Q
= 7 K H U H D U H P D Q \ V W U H H W O L J K W V R Q W K H U R D G D K H D G
Activating the Automatic High Beam System
(1) With the engine switch in IGNITION ON mode and headlight switch turned to
“AUTO” position, push lever away from you.
(2) Push the Automatic High Beam switch.
The AHB indicator will come on when the headlights are turned on
automatically to indicate that the system is active.
Note: To turn the AHB system off, pull the lever back toward you. The AHB
indicator will turn off and the high beam indicator will turn on. The AHB uses an in-vehicle camera sensor to assess the brightness of streetlights,
the lights of oncoming and preceding vehicles, etc., and automatically turns high
beam on or off as necessary.
Automatic High Beams (AHB) (if equipped)
(1) (2)
Page 28 of 52
26
FEATURES/OPERATIONS
Multi-Information Display (MID)
Type 1 (3.5” monochrome display)
Push “DISP” to change information in the following:
(1) Current fuel consumption
(2) Driving range
(3) Average fuel economy after refill
(4) Distance driven since last reset
(6) Customization of EV indicator light, language and unit settings
(6) Energy monitor
Type 2 (4.2” color display)
Push “meter control switches” to change information in the following:
(1) Drive information
(2) Navigation system linked display
(3) Audio system linked display
(4) Dynamic Radar Cruise Control (DRCC)
(5) Lane Departure Alert (LDA) status
(6) Warning messages
(7) Settings display
Page 34 of 52
32

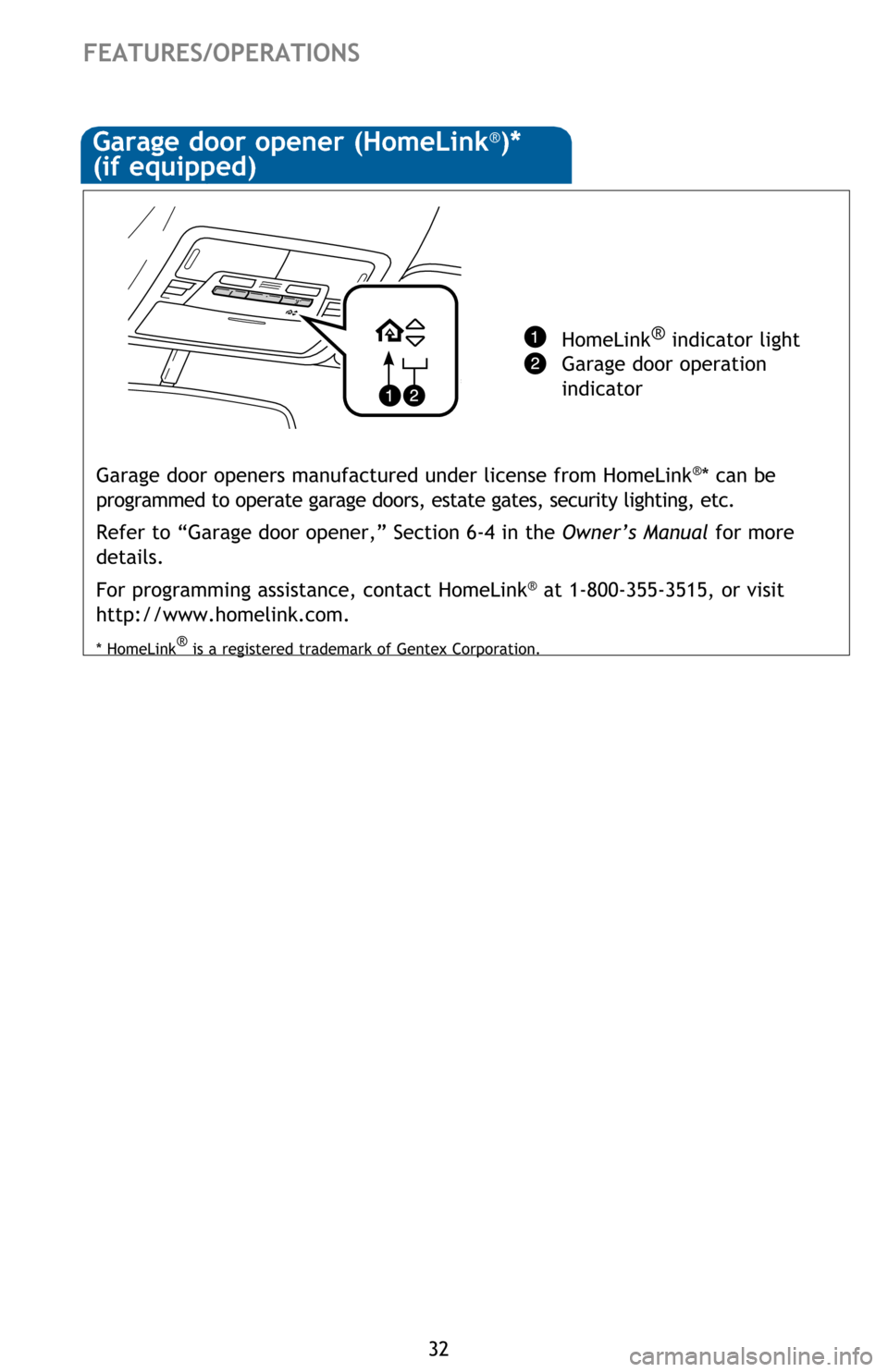

Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink®
is a registered trademark of Gentex Corporation.
HomeLink®
indicator light
Garage door operation
indicator
FEATURES/OPERATIONS
Page 35 of 52
33
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

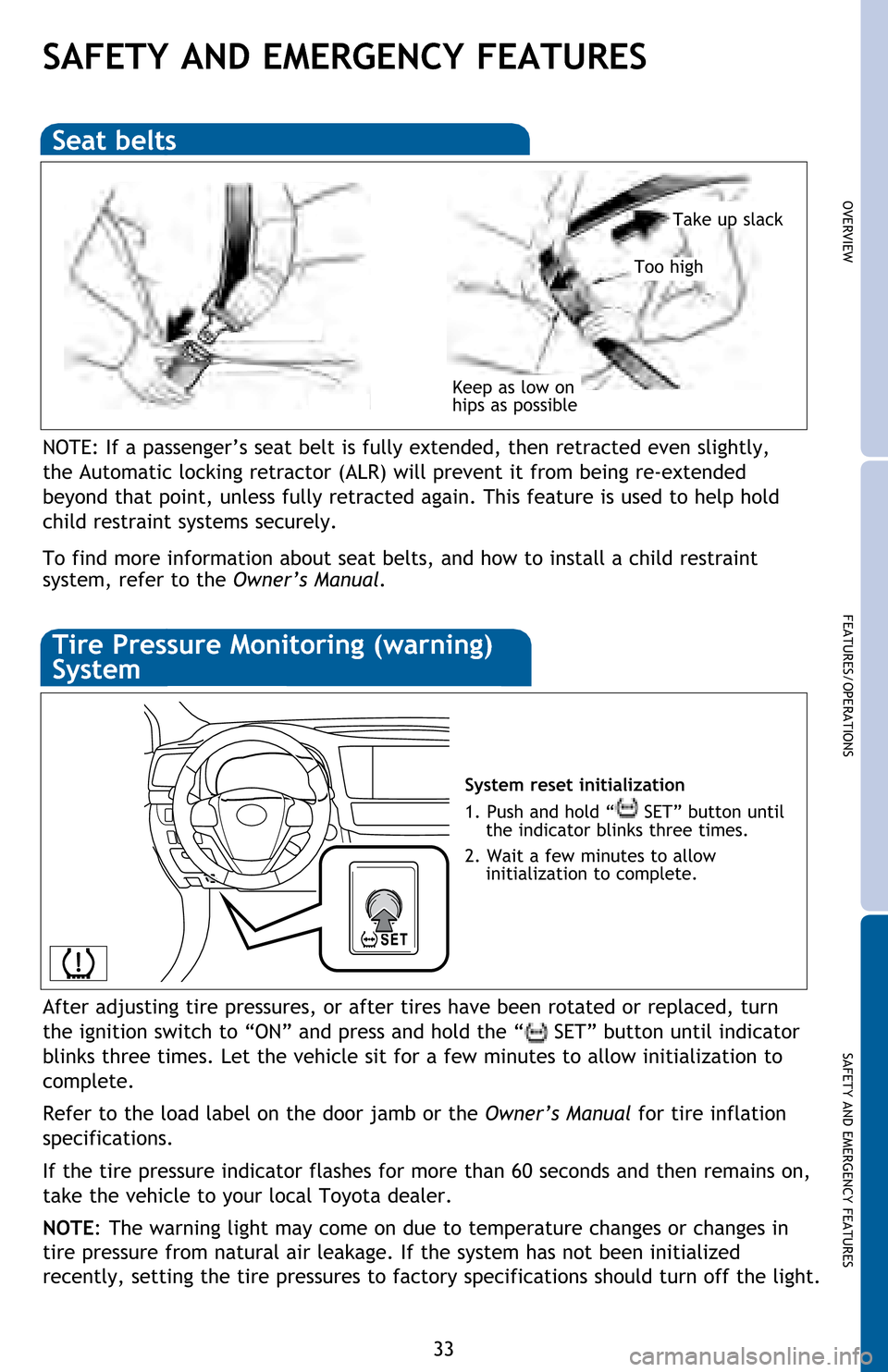

SAFETY AND EMERGENCY FEATURES
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
System reset initialization
1. Push and hold “
SET” button until
the indicator blinks three times.
2. Wait a few minutes to allow
initialization to complete.
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or replaced, turn
the ignition switch to “ON” and press and hold the “
SET” button until indicator
blinks three times. Let the vehicle sit for a few minutes to allow initialization to
complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or changes in
tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the light.
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Page 41 of 52
39 Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is quick and
easy: all Android mobile digital devices have Bluetooth integrated; all you have to
do is setup the phone and multimedia system to “talk” to each other and form a
connection.
2
Initiate Bluetooth® on your Android®
STEP 1STEP 2STEP 3STEP 4
From your APPS
SCREEN, select
SETTINGS.Select
CONNECTIONS and
select BLUETOOTH.Ensure
BLUETOOTH
is ON.Select YOUR PHONE
DEVICE to make it
discoverable.
Phone will seek out
Bluetooth devices while
remaining discoverable.
STEP 5
While your Android device is seeking
out Bluetooth devices, proceed to
your Entune Multimedia Head Unit on
your Toyota vehicle.
Bluetooth® Pairing for Android® phone
and Entune™ touch screen system
1 To determine which head unit is installed in your vehicle, refer to the Audio section in this guide. 2 Some Android devices may have slightly different SETTINGS screen layout depending on manufacturer of
device and Android OS version.
To begin the Bluetooth® Pairing process, press the HOME button on the
faceplate of your Toyota Vehicle Entune™ Multimedia Head Unit.1
