FEATURES/OPERATIONS

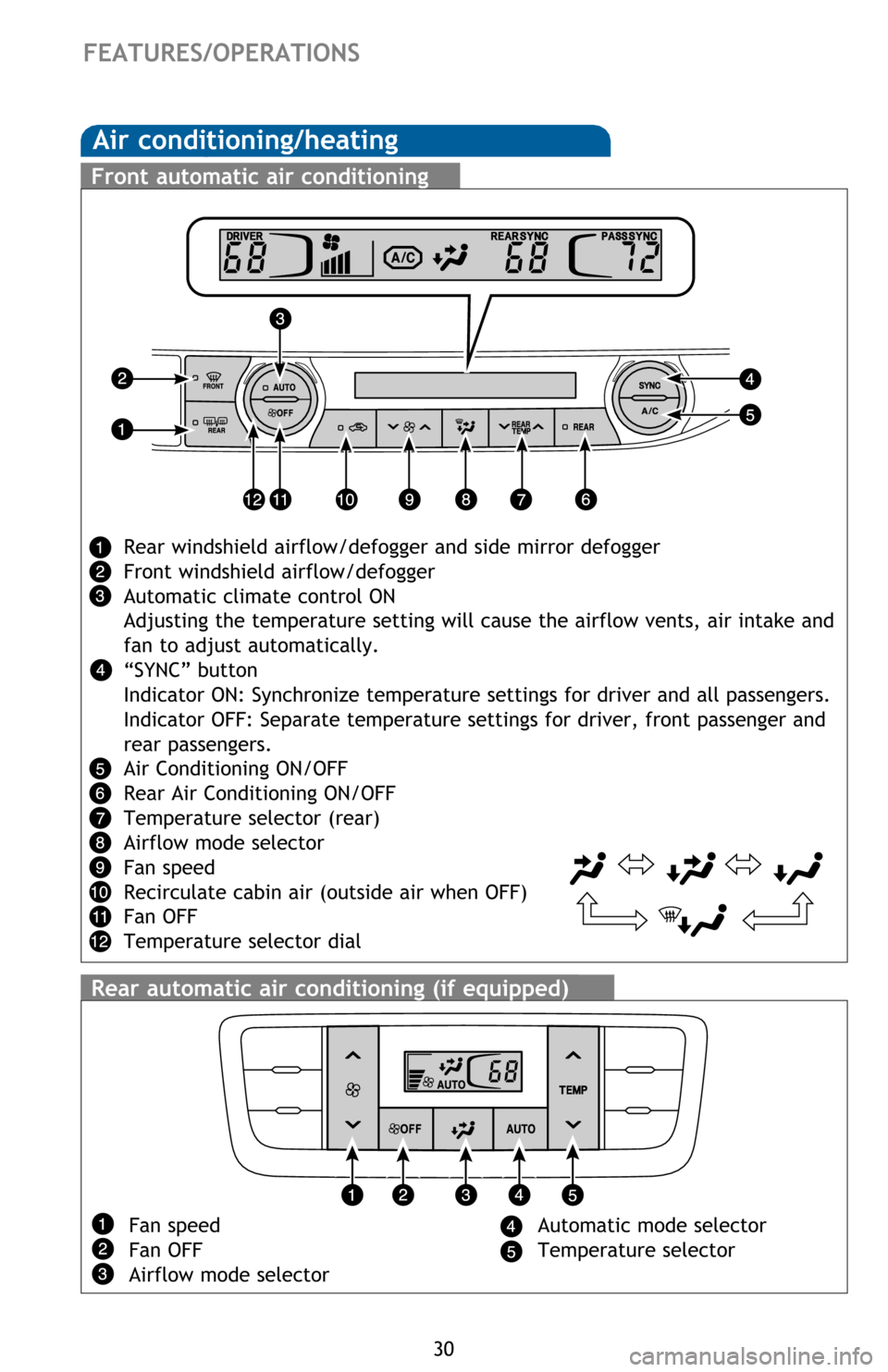

Air Conditioning/Heating
Front automatic Air Conditioning
Air conditioning/heating
Front automatic air conditioning
Rear automatic Air Conditioning (if equipped)Rear automatic air conditioning (if equipped)
Fan speed
Fan OFF
Airflow mode selectorAutomatic mode selector
Temperature selector
Rear windshield airflow/defogger and side mirror defogger
Front windshield airflow/defogger
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
“SYNC” button
Indicator ON: Synchronize temperature settings for driver and all passengers.
Indicator OFF: Separate temperature settings for driver, front passenger and
rear passengers.
Air Conditioning ON/OFF
Rear Air Conditioning ON/OFF
Temperature selector (rear)
Airflow mode selector
Fan speed
Recirculate cabin air (outside air when OFF)
Fan OFF
Temperature selector dial
