clock TOYOTA HIGHLANDER HYBRID 2017 XU50 / 3.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2
6
Light control-Instrument cluster 9
Smart Key system
1,2
7
Air conditioning
1,2/heating 30
Audio 29
Auto lock/unlock
1 12
Automatic High Beam (AHB) 25
Bluetooth
® Device Pairing Section 38-47
Clock 31
Cruise control 21
Door locks
1,2 12
Door-Power Liftgate (back door)1,2 18
Driver Easy Speak 28
Dynamic Radar Cruise Control
(DRCC) 19-21
ECO drive mode 11
EV drive mode 11
Garage door opener (HomeLink
®)3
32
Hybrid Synergy Drive System 10
Hybrid transmission 11
Lane Deparature Alert (LDA) 22-23
Lights
1,2 & turn signals1 17
Moon roof1 13
Multi-Information Display (MID)2 26
Panoramic moon roof 13
Parking brake 12
Power outlets-12V DC & 120V AC 16
Pre-Collision System (PCS) 24
Rear seat entertainment system 28
Seat adjustments-Front 14
Seat adjustments-Rear 15
Seat heaters/ventilators 31
Seats-Head restraints 15
Seats-Stowing & returning
third row seats 15
1
INDEX
OVERVIEW
SAFETY AND
EMERGENCY FEATURESFEATURES/OPERATIONS
FEATURES/OPERATIONS
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
Doors-Child safety locks 34
Floor mat installation 37
Seat belts
1 33
Seat belts-Shoulder belt anchor 34
Spare tire & tools 35
Star Safety System
TM 36-37
Third row center seat belt 34
Tire Pressure Monitoring
(warning) System 33
Steering lock release 14
Steering wheel switches and
telephone controls (Bluetooth
®) 27
Tilt and telescopic steering wheel 14
USB/AUX port 28
Vehicle Stability Control (VSC)/
TRAC OFF switch 12
Windows-Power
1 27
Windshield wipers & washers1 16

Telephone controls1
Audio remote control switches1
Voice command button1,2
Multi-Information Display (MID) control switches
Change displayed drive information “DISP” switch
Dynamic Radar Cruise Control (DRCC) vehicle-to-vehicle distance button
1
Dynamic Radar Cruise Control (DRCC)1 or Cruise control1 switch
Outside rear view mirror or rear window defogger button
Air conditioning controls
Headlight and turn signal controls/headlight, turn signal and front fog
light
1 controls
Instrument cluster
Wiper and washer controls
Emergency flasher button
Clock
Audio/navigation system
2,3
VSC OFF switch
ECO drive mode button
EV drive mode switch
1
Seat heater/ventilator switches1
2
OVERVIEW
Instrument panel
Steering wheel controls (if equipped)
Type A
Type B

31
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURESClock
Press “H” for Hours and “M” for minutes to set or change the time.
Hour
Minute
Seat heaters/ventilators
Turn the seat heater on and adjust the number, the higher the number, the
warmer the seat becomes.
Front seat heaters (if equipped)
Driver’s seatFront passenger’s seat
Type B Type A
Driver’s seatFront passenger’s seat
Hi temperature
OFF switch
Low temperature
Second row seat heaters (if equipped)
Hi temperature
OFF switch
Low temperature

35
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

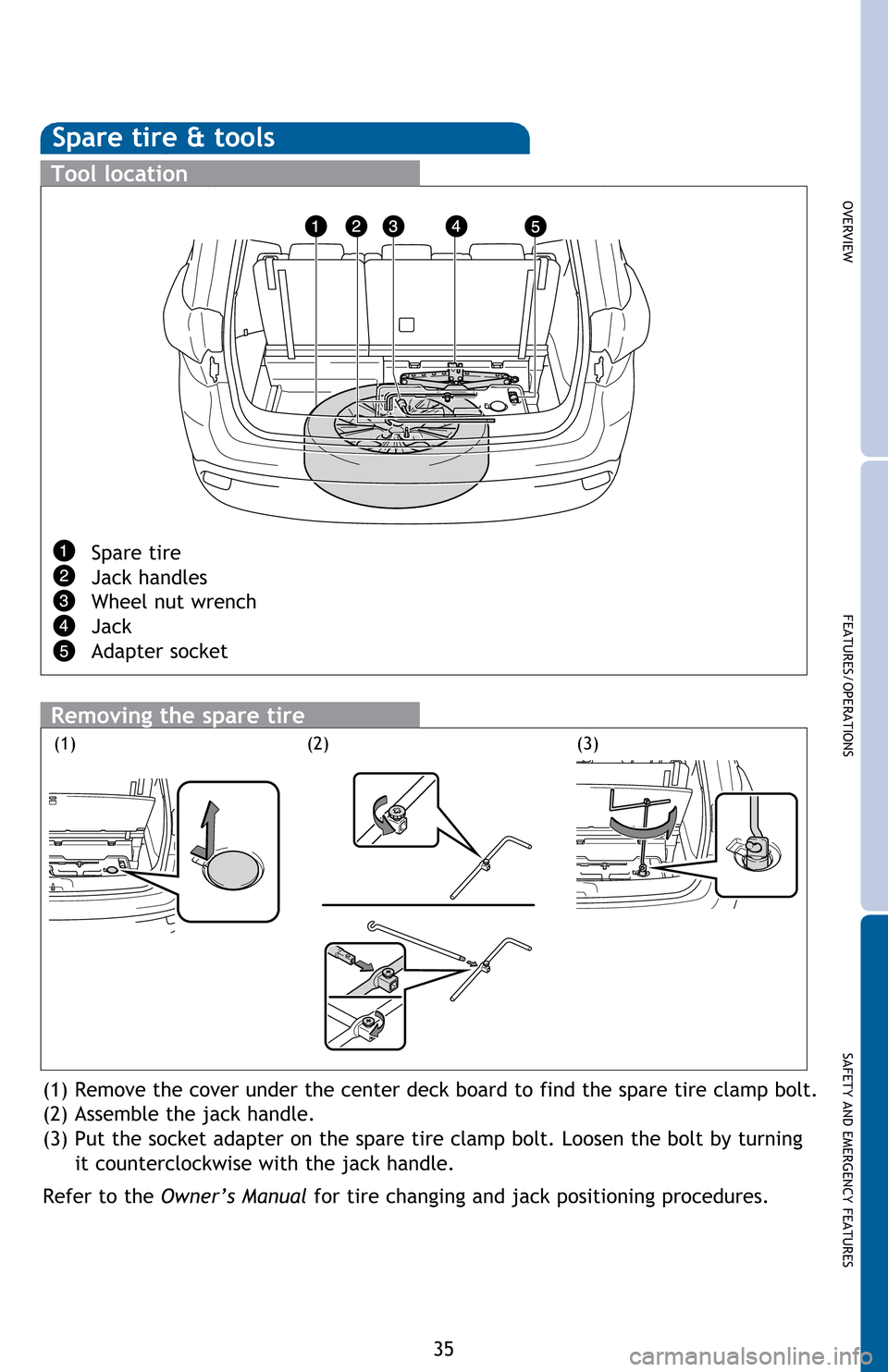

Spare tire & tools
Tool location
Removing the spare tire
(1)(3)(2)
Spare tire
Jack handles
Wheel nut wrench
Jack
Adapter socket
(1) Remove the cover under the center deck board to find the spare tire clamp bolt.
(2) Assemble the jack handle.
(3) Put the socket adapter on the spare tire clamp bolt. Loosen the bolt by turning
it counterclockwise with the jack handle.
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
