tow TOYOTA HIGHLANDER HYBRID 2017 XU50 / 3.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2
6
Light control-Instrument cluster 9
Smart Key system
1,2
7
Air conditioning
1,2/heating 30
Audio 29
Auto lock/unlock
1 12
Automatic High Beam (AHB) 25
Bluetooth
® Device Pairing Section 38-47
Clock 31
Cruise control 21
Door locks
1,2 12
Door-Power Liftgate (back door)1,2 18
Driver Easy Speak 28
Dynamic Radar Cruise Control
(DRCC) 19-21
ECO drive mode 11
EV drive mode 11
Garage door opener (HomeLink
®)3
32
Hybrid Synergy Drive System 10
Hybrid transmission 11
Lane Deparature Alert (LDA) 22-23
Lights
1,2 & turn signals1 17
Moon roof1 13
Multi-Information Display (MID)2 26
Panoramic moon roof 13
Parking brake 12
Power outlets-12V DC & 120V AC 16
Pre-Collision System (PCS) 24
Rear seat entertainment system 28
Seat adjustments-Front 14
Seat adjustments-Rear 15
Seat heaters/ventilators 31
Seats-Head restraints 15
Seats-Stowing & returning
third row seats 15
1
INDEX
OVERVIEW
SAFETY AND
EMERGENCY FEATURESFEATURES/OPERATIONS
FEATURES/OPERATIONS
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
Doors-Child safety locks 34
Floor mat installation 37
Seat belts
1 33
Seat belts-Shoulder belt anchor 34
Spare tire & tools 35
Star Safety System
TM 36-37
Third row center seat belt 34
Tire Pressure Monitoring
(warning) System 33
Steering lock release 14
Steering wheel switches and
telephone controls (Bluetooth
®) 27
Tilt and telescopic steering wheel 14
USB/AUX port 28
Vehicle Stability Control (VSC)/
TRAC OFF switch 12
Windows-Power
1 27
Windshield wipers & washers1 16

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Pull

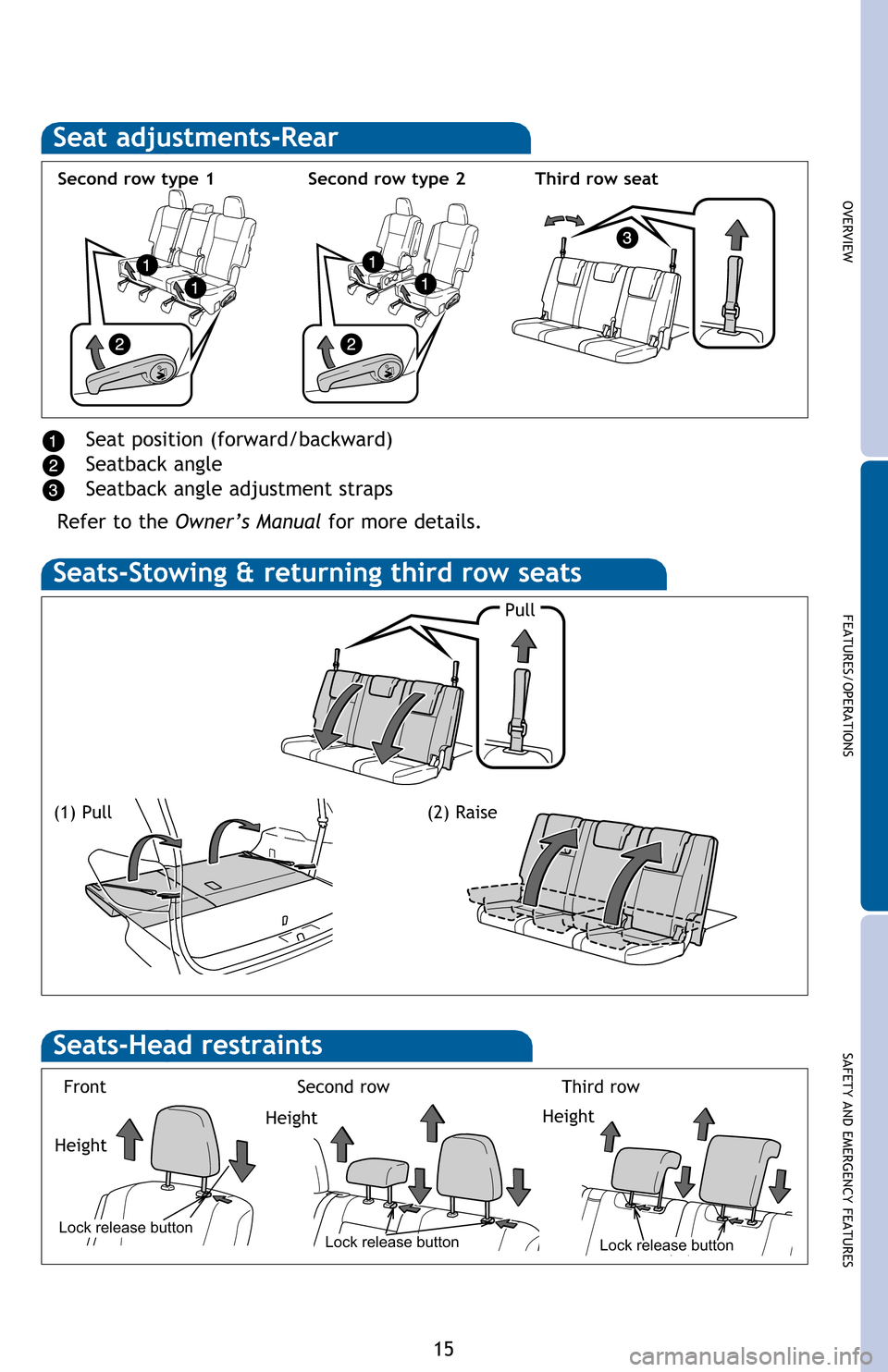

Seats -Stowing & returning third row seats
(1) Pull(2) Raise
Seats-Head restraints
Lock release button
Height
Lock release buttonLock release button
FrontSecond rowThird row
HeightHeight
15
Seat adjustments-Rear
Seat position (forward/backward)
Seatback angle
Seatback angle adjustment straps
Refer to the Owner’s Manual for more details.
Second row type 1 Second row type 2Third row seat

25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Conditions where Automatic High Beams will turn ON/OFF automatically
When all of these conditions are met, high beams will be automatically turned on
(after approximately 1 second):
=9HKLFOHVSHHGLVDERYHDSSUR[LPDWHO\PSKNPK
=7KHDUHDDKHDGRIWKHYHKLFOHLVGDUN
=7KHUHDUHQRRQFRPLQJRUSUHFHGLQJYHKLFOHVZLWKKHDGOLJKWVRUWDLOOLJKWV
turned on.
If any of these conditions occur, high beams will be automatically turned off:
=9HKLFOHVSHHGGURSVEHORZDSSUR[LPDWHO\PSKNPK
=7KHDUHDDKHDGRIWKHYHKLFOHLVQRWGDUN
=2QFRPLQJRUSUHFHGLQJYHKLFOHVKDYHKHDGOLJKWVRUWDLOOLJKWVWXUQHGRQ
=7KHUHDUHPDQ\VWUHHWOLJKWVRQWKHURDGDKHDG
Activating the Automatic High Beam System
(1) With the engine switch in IGNITION ON mode and headlight switch turned to
“AUTO” position, push lever away from you.
(2) Push the Automatic High Beam switch.
The AHB indicator will come on when the headlights are turned on
automatically to indicate that the system is active.
Note: To turn the AHB system off, pull the lever back toward you. The AHB
indicator will turn off and the high beam indicator will turn on. The AHB uses an in-vehicle camera sensor to assess the brightness of streetlights,
the lights of oncoming and preceding vehicles, etc., and automatically turns high
beam on or off as necessary.
Automatic High Beams (AHB) (if equipped)
(1) (2)
