532-2. Connectivity settings
2
Basic function
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
*: Vehicles with DCM
1Enable the Wi-Fi® hotspot
function. ( P. 5 4 )
2 Disable the “Hide Access
Point” function. ( P. 5 4 )
3 Search for the vehicle access
point using the device you
wish to connect.
 For details about operating
the device, refer to the docu-
mentation which came with it.
4 Operate the device to con-
nect it to the vehicle access
point.
 To check the vehicle access
point password, check “Pass-
word”. ( P. 5 4 )
●Hints for connecting to the vehicle
via Wi-Fi® can be displayed.
(  P. 5 4 )
Wi-Fi® Hotspot*
By connecting a device to
the vehicle via Wi-Fi
®, it can
access the internet through
the DCM (Data Communica-
tion Module).
 To use this function, a
Wi-Fi
® hotspot service sub-
scription from AT&T is
required. Connect your
device to the in-vehicle
access point (see instruc-
tions below), or contact the
Customer Experience Cen-
ter at 1-800-331-4331 for
assistance.
 This function is not avail-
able in some countries or
areas.
Connecting a device to
the in-vehicle access
point
Searching for and con-
necting a device to the
vehicle access point

542-2. Connectivity settings
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
1Enable the Wi-Fi® hotspot
function. ( P. 5 4 )
2 Enable the “Hide Access
Point” function. ( P.54)
3 Enter the access point name
(SSID) into the device you
wish to connect and connect
it.
 To check the vehicle access
point password, check “Pass-
word”. ( P.54)
 The security settings on the
device must be the same as
that displayed for “Security”.
( P. 5 4 )
 For details about operating
the device, refer to the docu-
mentation which came with it. 1

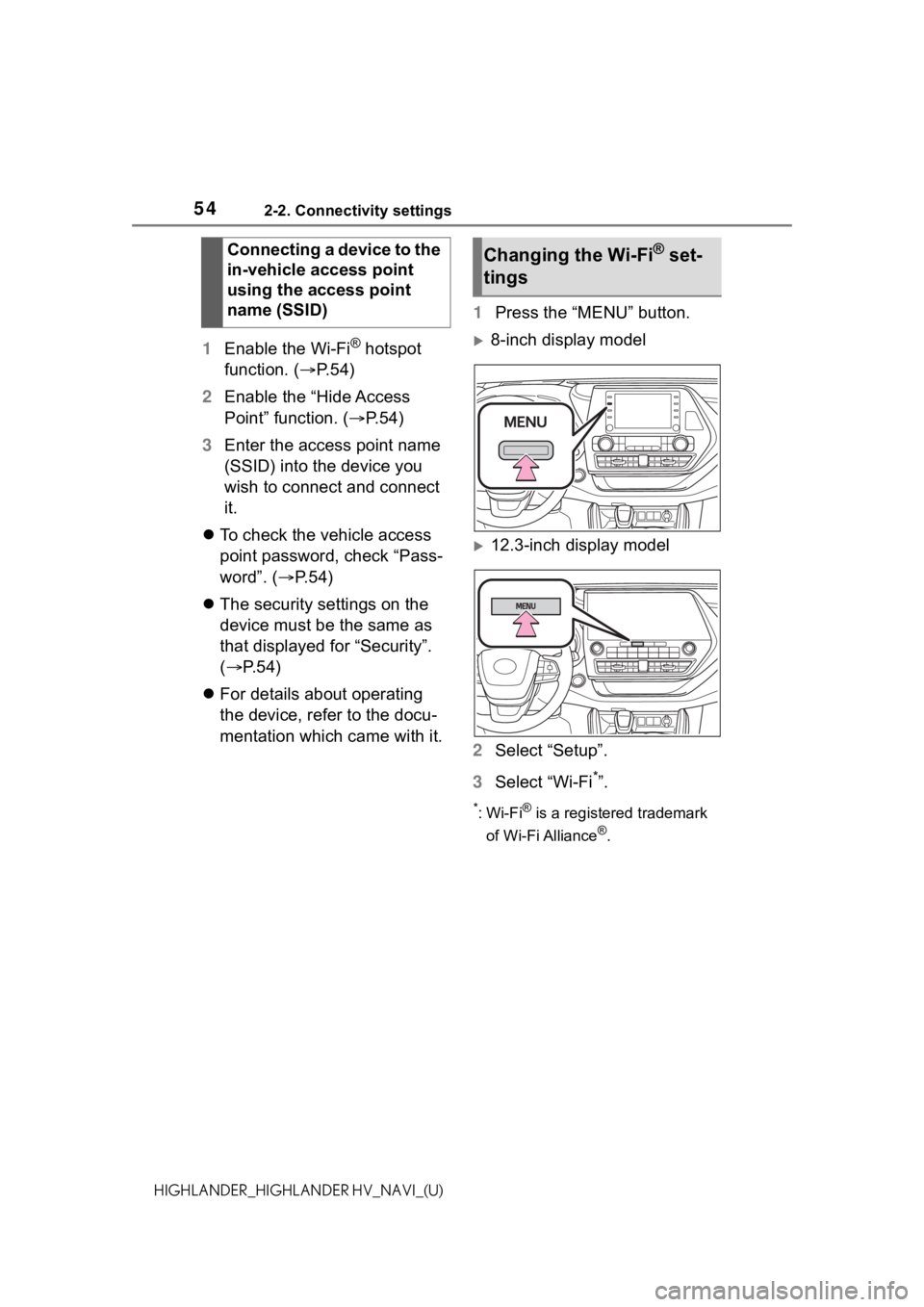

Press the “MENU” button.8-inch display model
12.3-inch display model
2 Select “Setup”.
3 Select “Wi-Fi
*”.
*:Wi-Fi® is a registered trademark
of Wi-Fi Alliance
®.
Connecting a device to the
in-vehicle access point
using the access point
name (SSID)Changing the Wi-Fi® set-
tings

552-2. Connectivity settings
2
Basic function
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
4Select the desired item to be
set.
Select to enable/disable the
Wi-Fi
® hotspot function.
( P. 5 5 )
Select to check/change the
access point password.
( P. 5 6 )
Select to display hints for
connecting to the vehicle via
Wi-Fi
®.
Select to make the access
point searchable/unsearch-
able.
Select to check/change the
security protocol of the
access point (for authentica-
tion and encryption). ( P. 5 6 )
Select to change the access
point name (SSID). ( P. 5 6 )
Select to change the Wi-Fi
®
connection channel (within the 2.4GHz frequency band).
(
P.57)
●If any settings have been
changed, it will be necessary to
reset the Wi-Fi
® system to com-
plete the changes. To reset the
Wi-Fi
® system, select “Yes” on the
pop-up displayed after changing
the settings.
When the Wi-Fi® hotspot func-
tion is enabled, the system
checks for a valid hotspot ser-
vice subscription.
If a hotspot service subscription
has not been started, connect
your device to the in-vehicle
access point to start your sub-
scription. A trial subscription
may be available.
Contact your Toyota dealer for
details about the Toyota mobile
application.
A
B
C
D
E
F
G
Enabling/disabling the
Wi-Fi
® Hotspot function

572-2. Connectivity settings
2
Basic function
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
1Select “Channel”.
2 Check that the following
screen is displayed.
Select to change the chan-
nel selection to auto-
matic/manual.
When “Manual” is selected,
select to change the channel.
1 Set “Select Channel” to
“Manual”.
2 Select “Channel Number”.
3 Enter the desired channel
number and select “OK”.
 Channels 1 through 11 can be
selected.●If a connected device is taken out
of the Wi-Fi® connection area, the
connection will be severed.
●If the vehicle is d riven out of the
cellular communic ation coverage
area, connecting to the internet
via the Wi-Fi
® hotspot will not be
possible.
●If a Bluetooth® device is used
while a device is connected using
the Wi-Fi
® hotspot function, the
communication speed may
decrease.
●If the vehicle is near a radio
antenna, radio station or other
source of strong radio waves and
electrical noise, communication
may be slow or impossible.
Selecting a Wi-Fi® connec-
tion channel
Changing the channel
A
B
:L)LŠIXQFWLRQRSH\
UDWLQJ
KLQWV
:$ 5 1 , 1 *
●Use Wi-Fi® devices only when
safe and legal to do so.
●Your audio unit is fitted with
Wi-Fi® antennas. People with
implantable cardiac pacemak-
ers, cardiac resynchronization
therapy-pacemakers or implant-
able cardioverter defibrillators
should maintain a reasonable
distance between themselves
and the Wi-Fi
® antennas.
The radio waves may affect the
operation of such devices.

582-2. Connectivity settings
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
The condition of Wi-Fi® connec-
tion appears on the right upper
side of the screen. ( P. 1 7 )
 Communication standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (2.4GHz)
 Security
WPA™
WPA2™
• WPA™ and WPA2™ are trade-
marks of Wi-Fi Alliance
®.
WA R N I N G
●Before using Wi-Fi® devices,
users of any electrical medical
device other than implantable
cardiac pacemakers, cardiac
resynchronization ther-
apy-pacemakers or implantable
cardioverter defib rillators should
consult the manufacturer of the
device for information about its
operation under the influence of
radio waves.
Radio waves could have unex-
pected effects on the operation
of such medical devices.
Conditions displayed with
Wi-Fi
® icon
Specifications
