fuses TOYOTA HIGHLANDER HYBRID 2023 Owners Manual

4TABLE OF CONTENTS
Positioning a floor jack .......395
Engine compartment .......... 396
12-volt battery .................... 402
Tires ................................... 404
Tire inflation pressure......... 415
Wheels ............................... 417
Air conditioning filter ........... 418
Cleaning the hybrid battery (trac- tion battery) air intake vents......................................... 420
Electronic key battery ......... 423
Checking and replacing fuses ......................................... 425
Headlight aim ..................... 427
Light bulbs .......................... 428
7-1. Essential information Emergency flashers ........... 438
If your vehicle has to be stopped in an emergency .............. 438
If the vehicle is submerged or water on the road is rising
......................................... 439
7-2. Steps to take in an emergency If your vehicle needs to be towed......................................... 441
If you think something is wrong ......................................... 443
If a warning light turns on or a warning buzzer sounds .... 445
If a warning message is dis- played .............................. 456
If you have a flat tire ........... 461
If the hybrid system will not start ......................................... 474
If you lose your keys .......... 475
If the fuel filler door cannot be opened ............................. 476
If the electronic key does not operate properly ............... 477If the 12-volt battery is dis-
charged ............................ 479
If your vehicle overheats .... 484
If the vehicle becomes stuck ......................................... 488
8-1. Specifications Maintenance data (fuel, oil level, etc.) .................................. 490
Fuel information ................. 498
Tire information .................. 500
8-2. Customization Customizable features ....... 510
8-3. Initialization Items to initialize ................ 523
9-1. For owners Reporting safety defects for U.S. owners ............................. 526
Reporting safety defects for Canadian owners ............. 526
Seat belt instructions for Cana- dian owners (in French) ... 527
SRS airbag instructions for Canadian owners (in French)
......................................... 528
Headlight aim instructions for Canadian owners (in French)......................................... 53
5
What to

do if... (Troubleshooting)
......................................... 538
Alphabetical Index.............. 541
7When trouble arises
8Vehicle specifications
9For owners
Index

379
6
6
Maintenance and care
Maintenance and care
.6-1. Maintenance and careCleaning and protecting the vehicle exterior .......... 380
Cleaning and protecting the vehicle interior ........... 383
6-2. Maintenance Maintenance requirements.................................. 386
General maintenance.. 388
Emission inspection and maintenance (I/M) pro-
grams ........................ 390
6-3. Do-it-yourself mainte- nance
Do-it-yourself service pre- cautions ..................... 392
Hood ........................... 394
Positioning a floor jack .................................. 395
Engine compartment ... 396
12-volt battery ............. 402
Tires ............................ 404
Tire inflation pressure.. 415
Wheels ......... ...............417
Air conditioning filter .... 418
Cleaning the hybrid battery (traction battery) air intake
vents.......................... 420
Electronic key battery.. 423
Checking and replacing fuses.......................... 425
Headlight aim .............. 427Light bulbs ...................
428

3926-3. Do-it-yourself maintenance

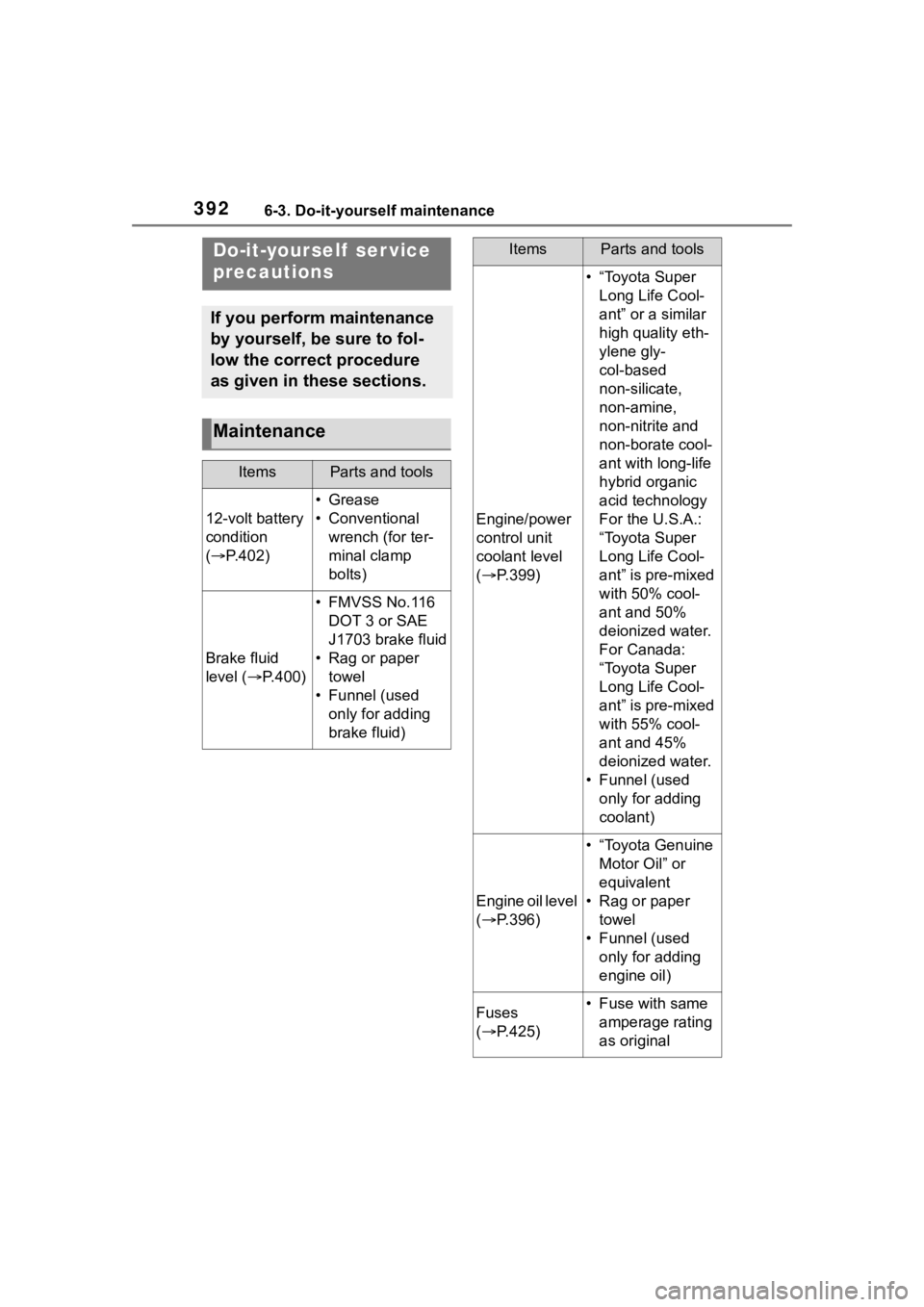

6-3.Do-it-yourself maintenance
Do-it-yourself ser vice
precautions
If you perform maintenance
by yourself, be sure to fol-
low the correct procedure
as given in these sections.
Maintenance
ItemsParts and tools
12-volt battery
condition
( P.402)
•Grease
• Conventional
wrench (for ter-
minal clamp
bolts)
Brake fluid
level ( P.400)
• FMVSS No.116
DOT 3 or SAE
J1703 brake fluid
• Rag or paper towel
• Funnel (used only for adding
brake fluid)
Engine/power
control unit
coolant level
( P.399)
• “Toyota Super
Long Life Cool-
ant” or a similar
high quality eth-
ylene gly-
col-based
non-silicate,
non-amine,
non-nitrite and
non-borate cool-
ant with long-life
hybrid organic
acid technology
For the U.S.A.:
“Toyota Super
Long Life Cool-
ant” is pre-mixed
with 50% cool-
ant and 50%
deionized water.
For Canada:
“Toyota Super
Long Life Cool-
ant” is pre-mixed
with 55% cool-
ant and 45%
deionized water.
• Funnel (used only for adding
coolant)
Engine oil level
( P.396)
• “Toyota Genuine
Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding
engine oil)
Fuses
( P.425)• Fuse with same
amperage rating
as original
ItemsParts and tools

4256-3. Do-it-yourself maintenance
6
Maintenance and care

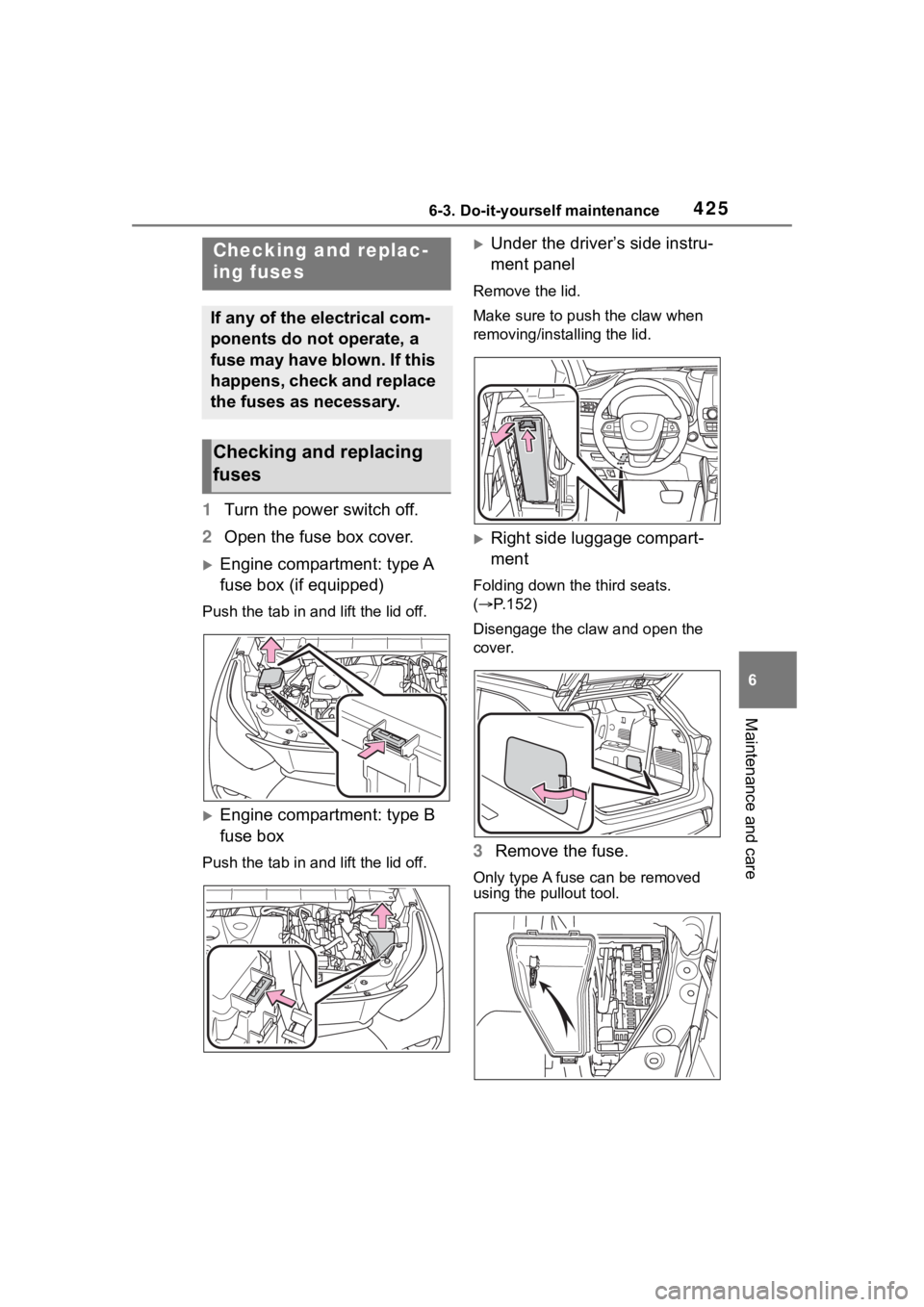

1Turn the power switch off.
2 Open the fuse box cover.
Engine compartment: type A
fuse box (if equipped)
Push the tab in and lift the lid off.
Engine compartment: type B
fuse box
Push the tab in and lift the lid off.
Under the driver’s side instru-
ment panel
Remove the lid.
Make sure to push the claw when
removing/installing the lid.
Right side luggage compart-
ment
Folding down the third seats.
(  P.152)
Disengage the claw and open the
cover.
3 Remove the fuse.
Only type A fuse can be removed
using the pullout tool.
Checking and replac-
ing fuses
If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.
Checking and replacing
fuses

4266-3. Do-it-yourself maintenance

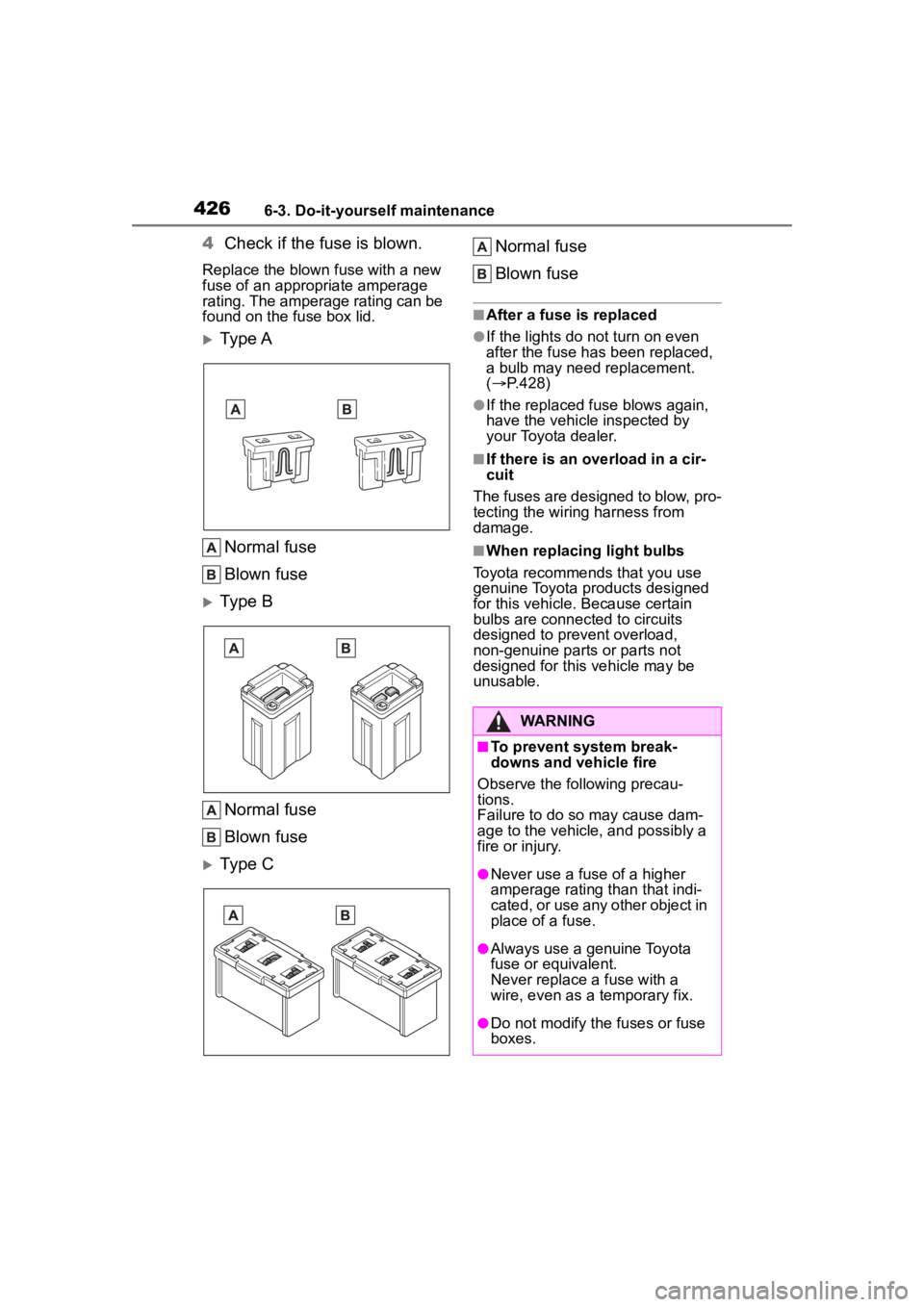

4Check if the fuse is blown.
Replace the blown fuse with a new
fuse of an appropriate amperage
rating. The amperage rating can be
found on the fuse box lid.
Ty p e A
Normal fuse
Blown fuse
Type B
Normal fuse
Blown fuse
Type C Normal fuse
Blown fuse
■After a fuse is replaced
●If the lights do not turn on even
after the fuse has been replaced,
a bulb may need replacement.
(
 P.428)
●If the replaced fuse blows again,
have the vehicle inspected by
your Toyota dealer.
■If there is an ove rload in a cir-
cuit
The fuses are designed to blow, pro-
tecting the wiring harness from
damage.
■When replacing light bulbs
Toyota recommends that you use
genuine Toyota pr oducts designed
for this vehicle. Because certain
bulbs are connected to circuits
designed to prevent overload,
non-genuine parts or parts not
designed for this vehicle may be
unusable.
WARNING
■To prevent system break-
downs and vehicle fire
Observe the following precau-
tions.
Failure to do so may cause dam-
age to the vehicle, and possibly a
fire or injury.
●Never use a fuse of a higher
amperage rating than that indi-
cated, or use any other object in
place of a fuse.
●Always use a genuine Toyota
fuse or equivalent.
Never replace a fuse with a
wire, even as a temporary fix.
●Do not modify the fuses or fuse
boxes.

4276-3. Do-it-yourself maintenance
6
Maintenance and care
Adjustment bolt A
Adjustment bolt B
 Make sure the vehicle has a
full tank of gasoline and the
area around the headlight is
not deformed.
 Park the vehicle on level
ground.
 Make sure the tire inflation
pressure is at the specified
level.
 Have someone sit in the
driver’s seat.
 Bounce the vehicle several
times.

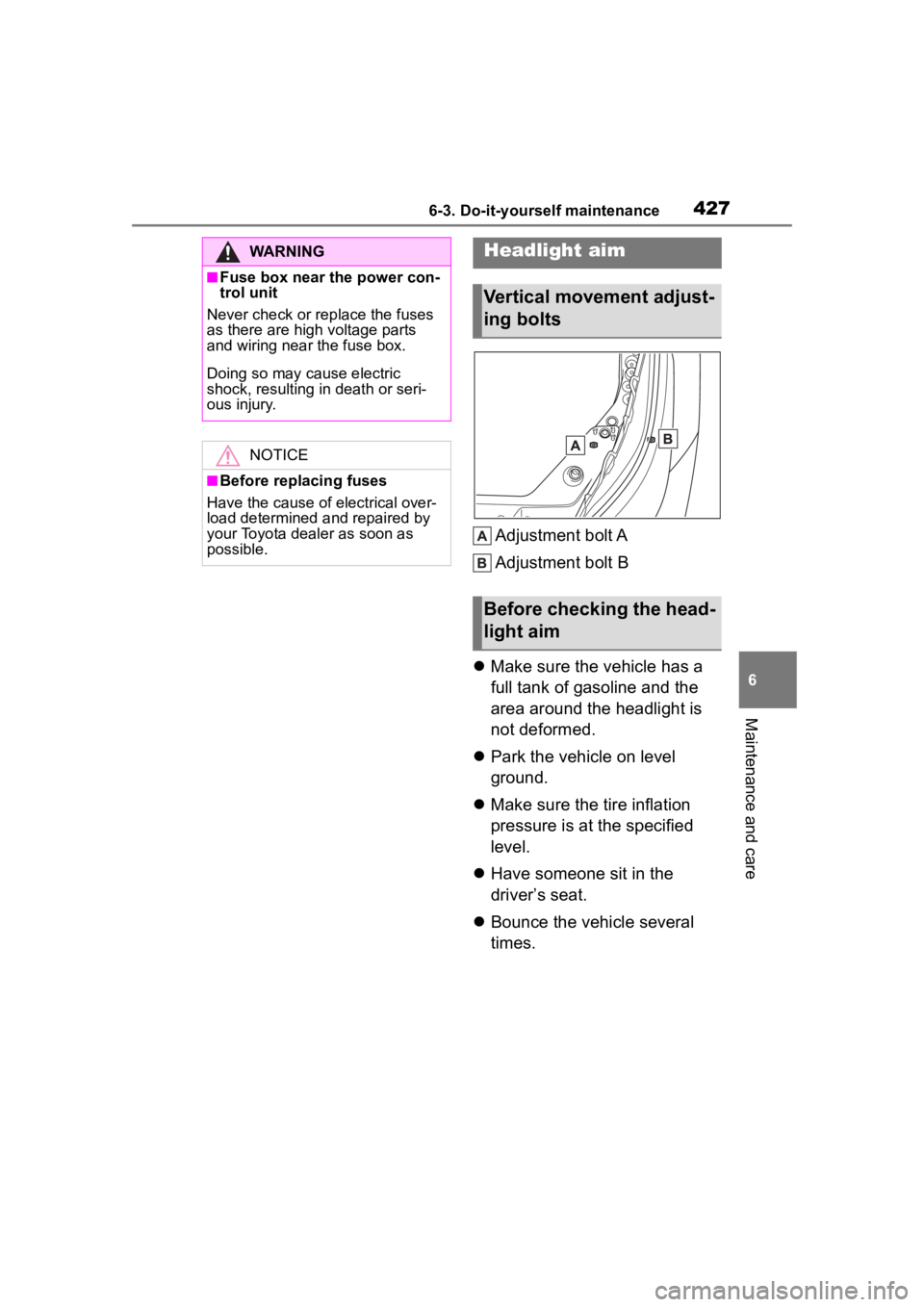

WARNING
■Fuse box near the power con-
trol unit
Never check or replace the fuses
as there are high voltage parts
and wiring near the fuse box.
Doing so may cause electric
shock, resulting in death or seri-
ous injury.
NOTICE
■Before replacing fuses
Have the cause of electrical over-
load determined and repaired by
your Toyota dealer as soon as
possible.
Headlight aim
Vertical movement adjust-
ing bolts
Before checking the head-
light aim

545Alphabetical Index
F
Flat tireTire pressure warning system........................................... 407
Vehicles with a spare tire ..... 461
Floor mats ................................. 24
Fluid Brake .................................... 495
Hybrid transmission.............. 494
Washer ................................. 401
Fog lights Switch................................... 229
Footwell light .................... ...... 343
Front passenger occupant clas- sification system .................... 43
Front seats Adjustment ........................... 147
Cleaning ............................... 383
Correct driving posture ........... 25
Driving position memory....... 153
Head restraints ..................... 156
Memory recall function ......... 155
Seat heaters ......................... 341
Seat position memory .......... 153
Seat ventilators .................... 341
Front side marker light Light switch .......................... 223
Front side marker lights Replacing light bulbs ............ 428
Front turn signal lights Replacing light bulbs ............ 428
Turn signal lever ................... 216
Fuel Capacity ............................... 491
Fuel gauge ....................... 87, 91
Information ........................... 498
Refueling .............................. 234
Type ..................................... 491
Warning light ........................ 448
Fuel consumption Average fuel economy ... 97, 109 Current fuel consumption97, 109
Fuel economy ...................97, 109
Fuel filler door If the fuel filler door cannot be opened ...............................476
Refueling ..............................234
Fuel gauge...........................87, 91
Fuses .......................................425
G
Garage door opene r ...............370
Gauges ................................87, 91
Glove box ................................347
Glove box light........................347
H
Head restraints .......................156
Headlight aim ..........................427
Headlights Adaptive Front-lighting System (AFS) ..................................225
Automatic High Beam system ...........................................226
Light switch...........................223
Replacing light bulbs ............428
Head-up display ...................... 114 Driving information display area........................................... 114
Hybrid System Indicator ....... 117
Navigation system-linked display ........................................... 117
Settings ................................ 116
Heated steering wheel............341
Heaters Automatic air conditioning sys-tem .....................................328
Heated steering wheel..........341
Outside rear view mirrors .....330
Rear automatic air conditioning system ................................337
Seat heaters ....... ..................341

550Alphabetical Index
ReplacingElectronic key battery ........... 423
Fuses ................................... 425
Light bulbs ............................ 428
Tires ..................................... 461
Reporting safety defects for U.S. owners................................... 526
Resetting the message indicat- ing maintenance is required 387
Road Sign Assist .................... 275
RSA (Road Sign Assist) ......... 275
S
Safety Connect ......................... 65
Seat belt reminder light . 448, 449
Seat belts .................................. 27 Automatic Locking Retractor .. 28
Child restraint system installation............................................. 52
Cleaning and maintaining the seat belt.............................. 383
Emergency Locking Retractor 28
How to wear your seat belt..... 28
How your child should wear the seat belt................................ 28
Pregnant women, proper seat belt use................................. 27
Reminder light and buzzer . 448, 449
Seat belt extender .................. 28
Seat belt pretensioners .......... 32
SRS warning light................. 447
Seat heaters ............................ 341
Seat position memory ............ 153
Seat ventilators ...................... 341
Seating capacity ..................... 194
Seats Adjustment ........................... 147
Adjustment precautions........ 147
Child seats/child restraint system installation ............................ 50
Cleaning ............................... 383 Driving position memory .......153
Head restraints .....................156
Properly sitting in the seat ......25
Seat heaters .......
..................341
Seat position memory...........153
Seat ventilators.....................341
Sensor Automatic headlight system .224
Automatic High Beam system...........................................226
Digital Rearview Mirror .........165
Inside rear view mirror ..........161
Intuitive parking assist ..........283
LTA (Lane Tracing Assist) .....253
Parking Support Brake function (rear-crossing vehicles) ......307
Parking Support Brake function (static objects) ....................305
Radar sensor ................237, 279
Rain-sensing windshield wipers ...........................................231
RCTA ....................................292
Service plug ..............................73
Service reminder message ....387
Shift lever Hybrid transmission ..............213
If th e s hif t le ver ca n no t b e s hif te d from P .................................214
Shift lever light........................343
Shift lock system ....................214
Shopping bag hooks ..............351
Side airbags ..............................34
Side doors Door lock ..............................127
Side marker lights Light switch...........................223
Replacing light bulbs ............428
Side mirrors Adjustment ...........................171
BSM (Blind Sport Monitor) ....278
Folding..................................172
Heaters .................................330
