451
3-6. Other interior features
3
Interior features
HILUX_OM_OM0K189E_(EE)

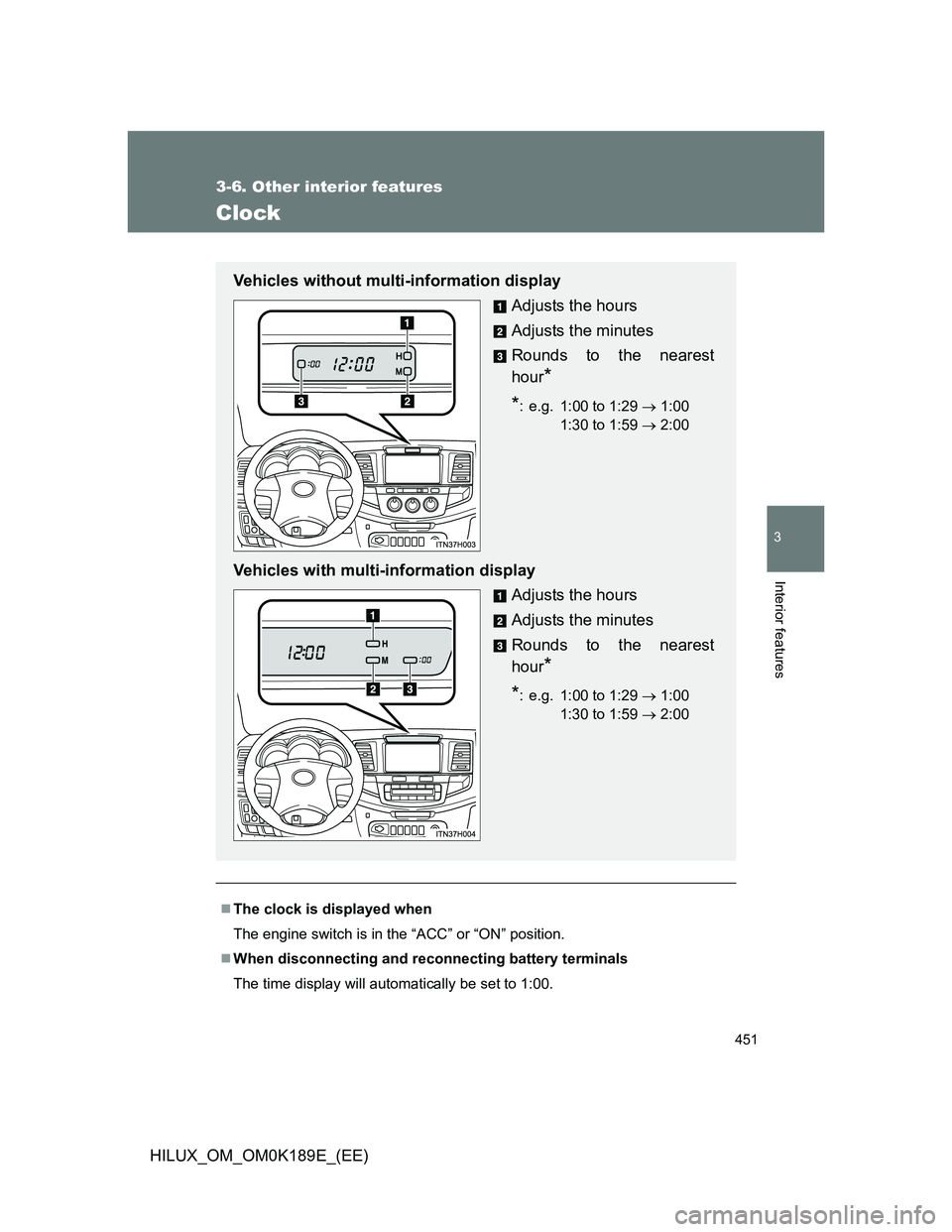

Clock
The clock is displayed when
The engine switch is in the “ACC” or “ON” position.
When disconnecting and reconnecting battery terminals
The time display will automatically be set to 1:00.
Vehicles without multi-information display
Adjusts the hours
Adjusts the minutes
Rounds to the nearest
hour
*
*
: e.g. 1:00 to 1:29  1:00
1:30 to 1:59  2:00
Vehicles with multi-information display
Adjusts the hours
Adjusts the minutes
Rounds to the nearest
hour
*
*
: e.g. 1:00 to 1:29  1:00
1:30 to 1:59  2:00

452
3-6. Other interior features
HILUX_OM_OM0K189E_(EE)

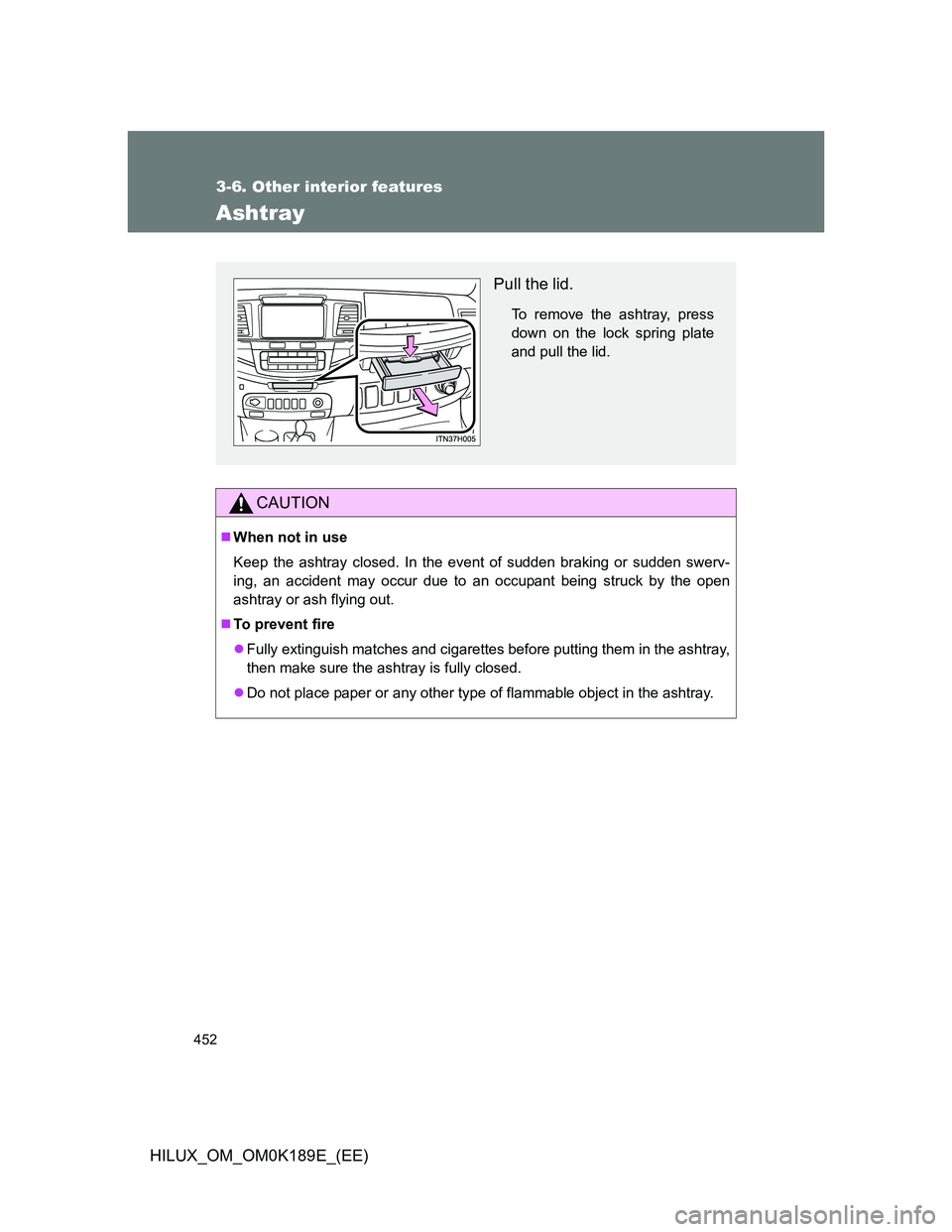

Ashtray
CAUTION
When not in use
Keep the ashtray closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
ashtray or ash flying out.
To prevent fire
Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
Do not place paper or any other type of flammable object in the ashtray.
Pull the lid.
To remove the ashtray, press
down on the lock spring plate
and pull the lid.

453
3-6. Other interior features
3
Interior features
HILUX_OM_OM0K189E_(EE)

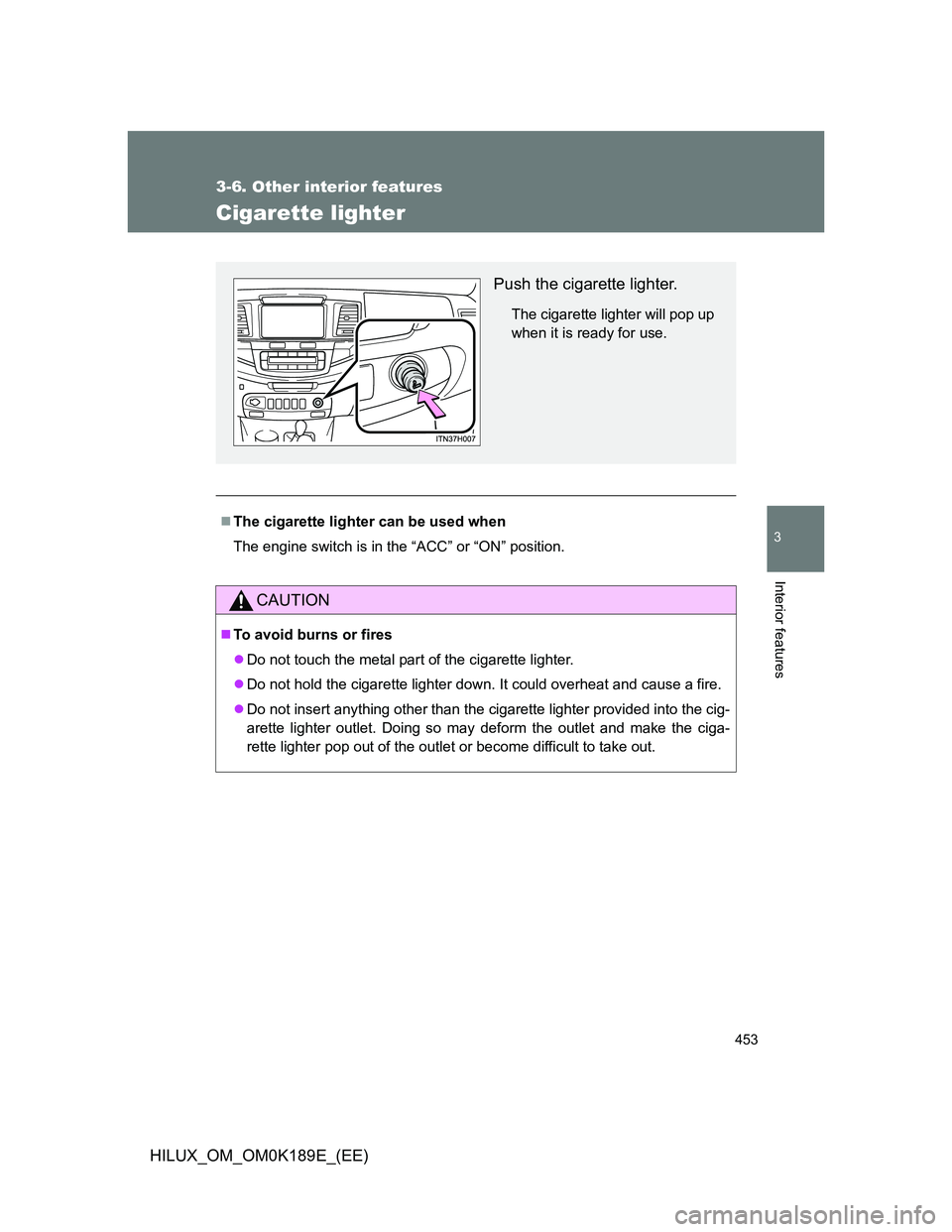

Cigarette lighter
The cigarette lighter can be used when
The engine switch is in the “ACC” or “ON” position.
CAUTION
To avoid burns or fires
Do not touch the metal part of the cigarette lighter.
Do not hold the cigarette lighter down. It could overheat and cause a fire.
Do not insert anything other than the cigarette lighter provided into the cig-
arette lighter outlet. Doing so may deform the outlet and make the ciga-
rette lighter pop out of the outlet or become difficult to take out.
Push the cigarette lighter.
The cigarette lighter will pop up
when it is ready for use.

454
3-6. Other interior features
HILUX_OM_OM0K189E_(EE)

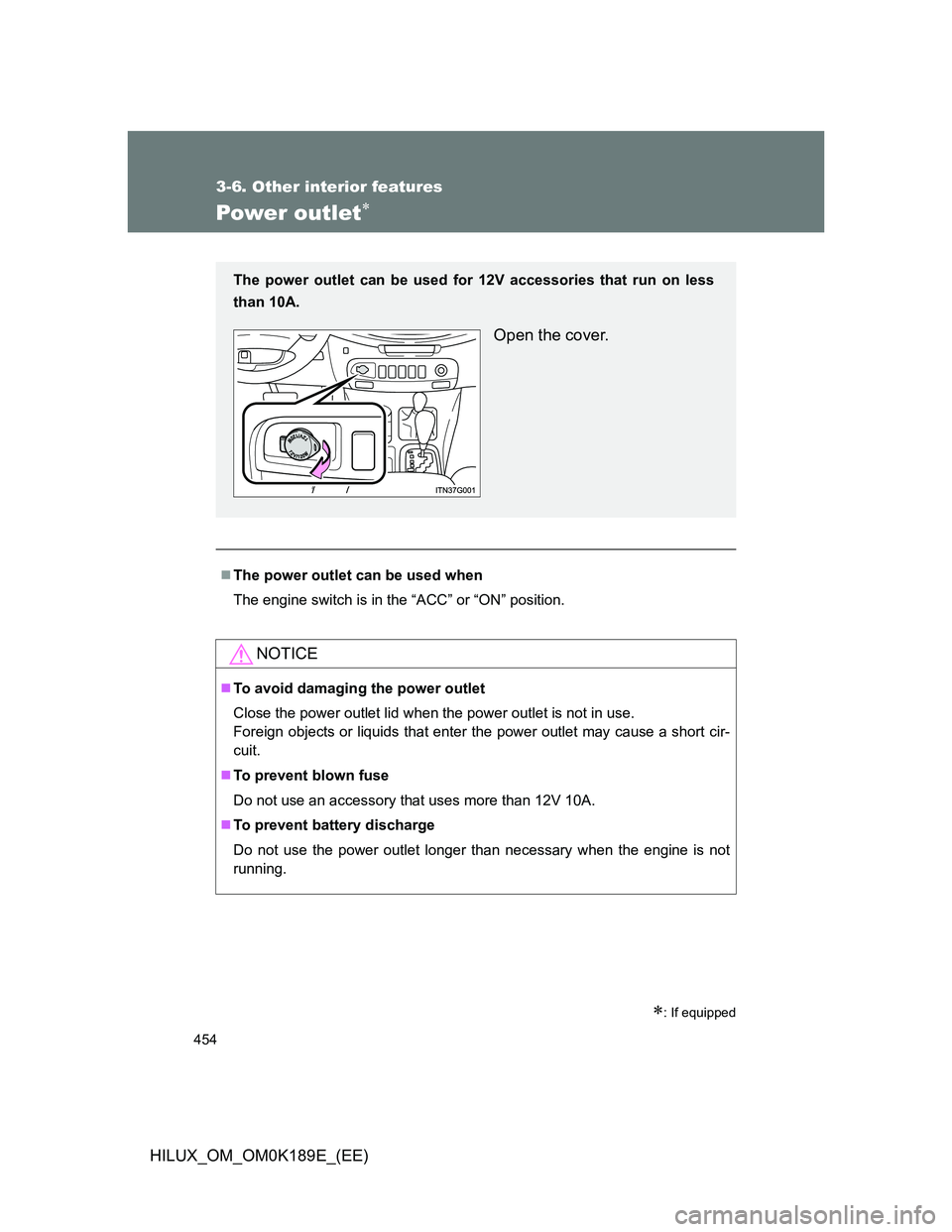

Power outlet
: If equipped
The power outlet can be used when
The engine switch is in the “ACC” or “ON” position.
NOTICE
To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
To prevent blown fuse
Do not use an accessory that uses more than 12V 10A.
To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.
The power outlet can be used for 12V accessories that run on less
than 10A.
Open the cover.

455
3-6. Other interior features
3
Interior features
HILUX_OM_OM0K189E_(EE)

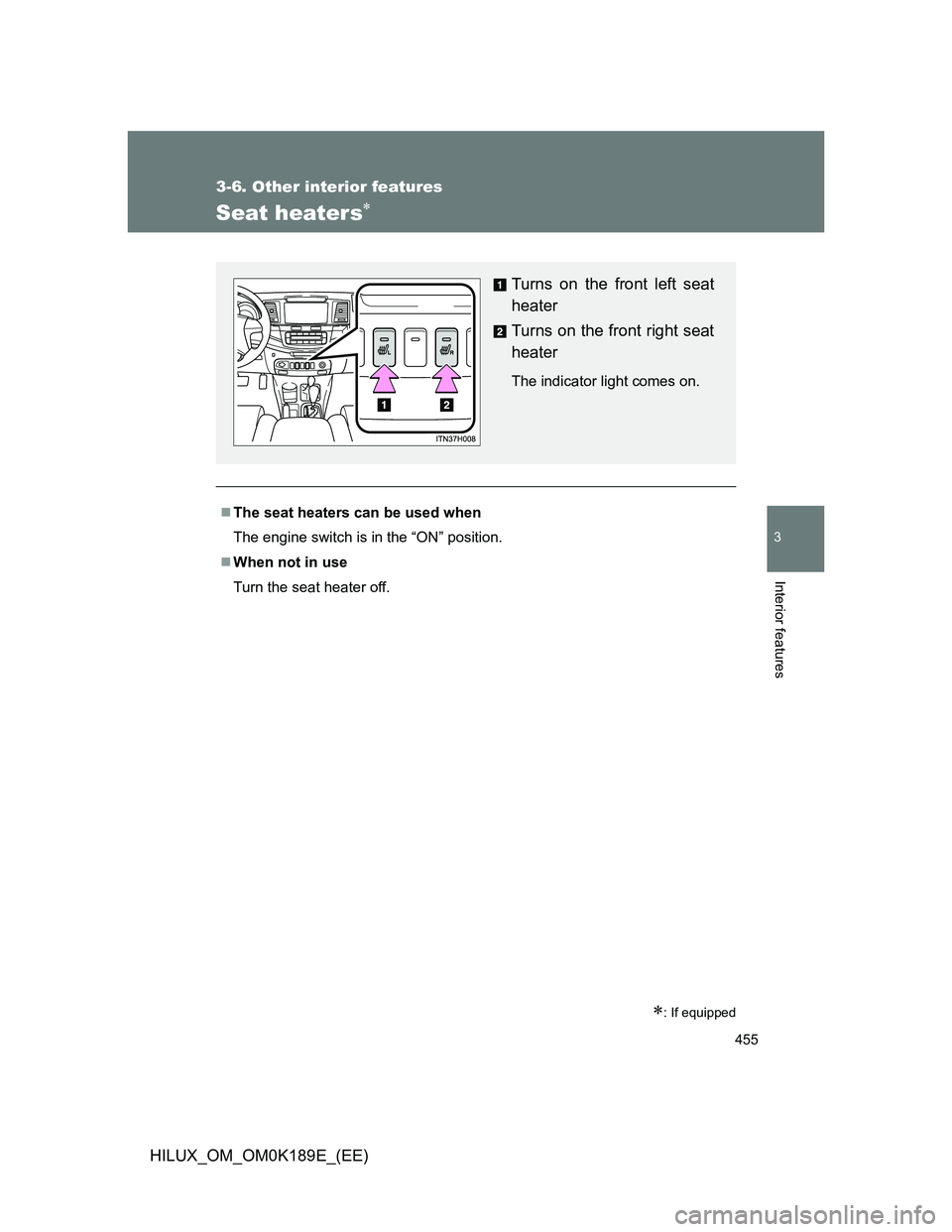

Seat heaters
: If equipped
The seat heaters can be used when
The engine switch is in the “ON” position.
When not in use
Turn the seat heater off.
Turns on the front left seat
heater
Turns on the front right seat
heater
The indicator light comes on.

456 3-6. Other interior features
HILUX_OM_OM0K189E_(EE)

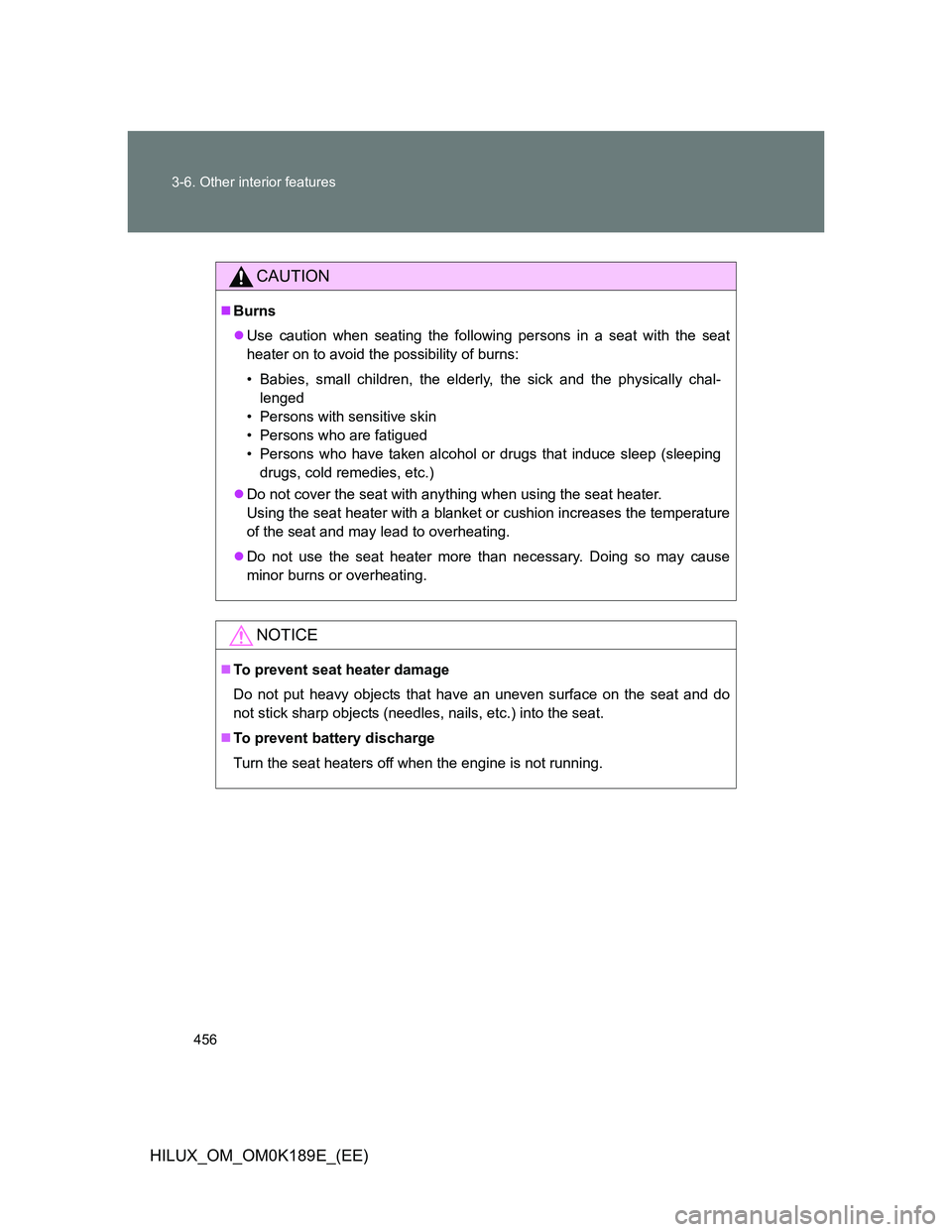

CAUTION
Burns
Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
To prevent battery discharge
Turn the seat heaters off when the engine is not running.

457
3-6. Other interior features
3
Interior features
HILUX_OM_OM0K189E_(EE)

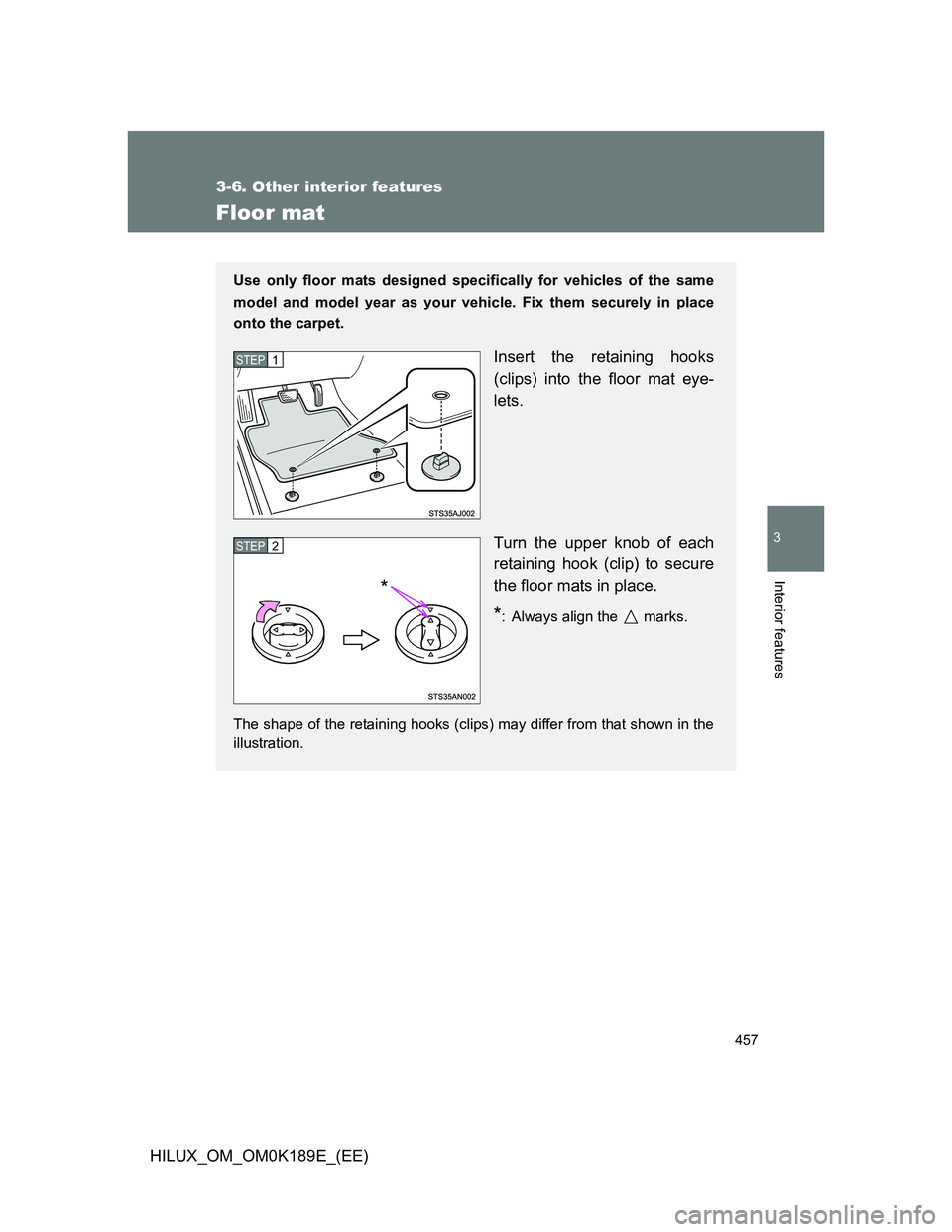

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
STEP1
STEP2
*

458 3-6. Other interior features
HILUX_OM_OM0K189E_(EE)

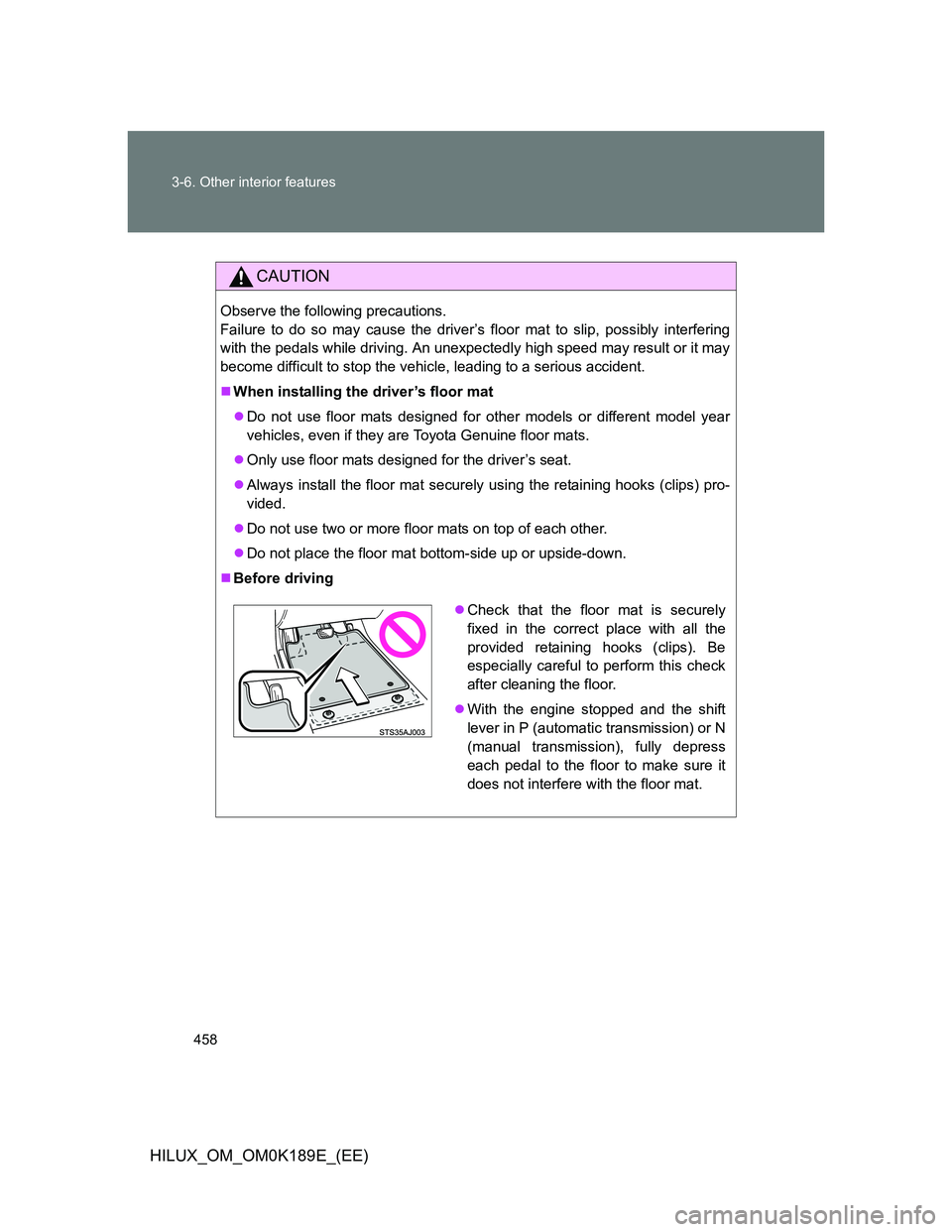

CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in P (automatic transmission) or N
(manual transmission), fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.

459
3-6. Other interior features
3
Interior features
HILUX_OM_OM0K189E_(EE)

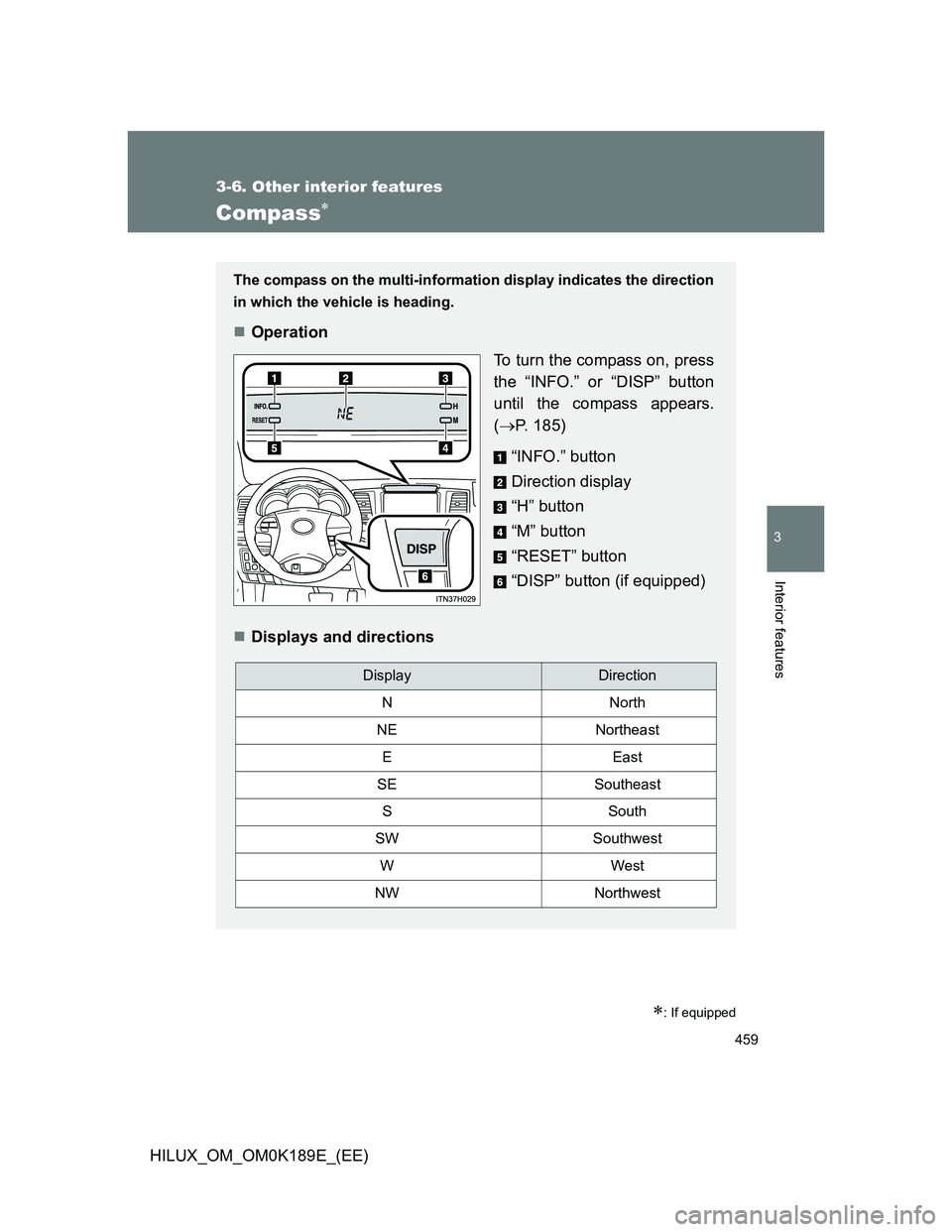

Compass
: If equipped
The compass on the multi-information display indicates the direction
in which the vehicle is heading.
Operation
To turn the compass on, press
the “INFO.” or “DISP” button
until the compass appears.
(P. 185)
“INFO.” button
Direction display
“H” button
“M” button
“RESET” button
“DISP” button (if equipped)
Displays and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWest
NWNorthwest

460 3-6. Other interior features
HILUX_OM_OM0K189E_(EE)

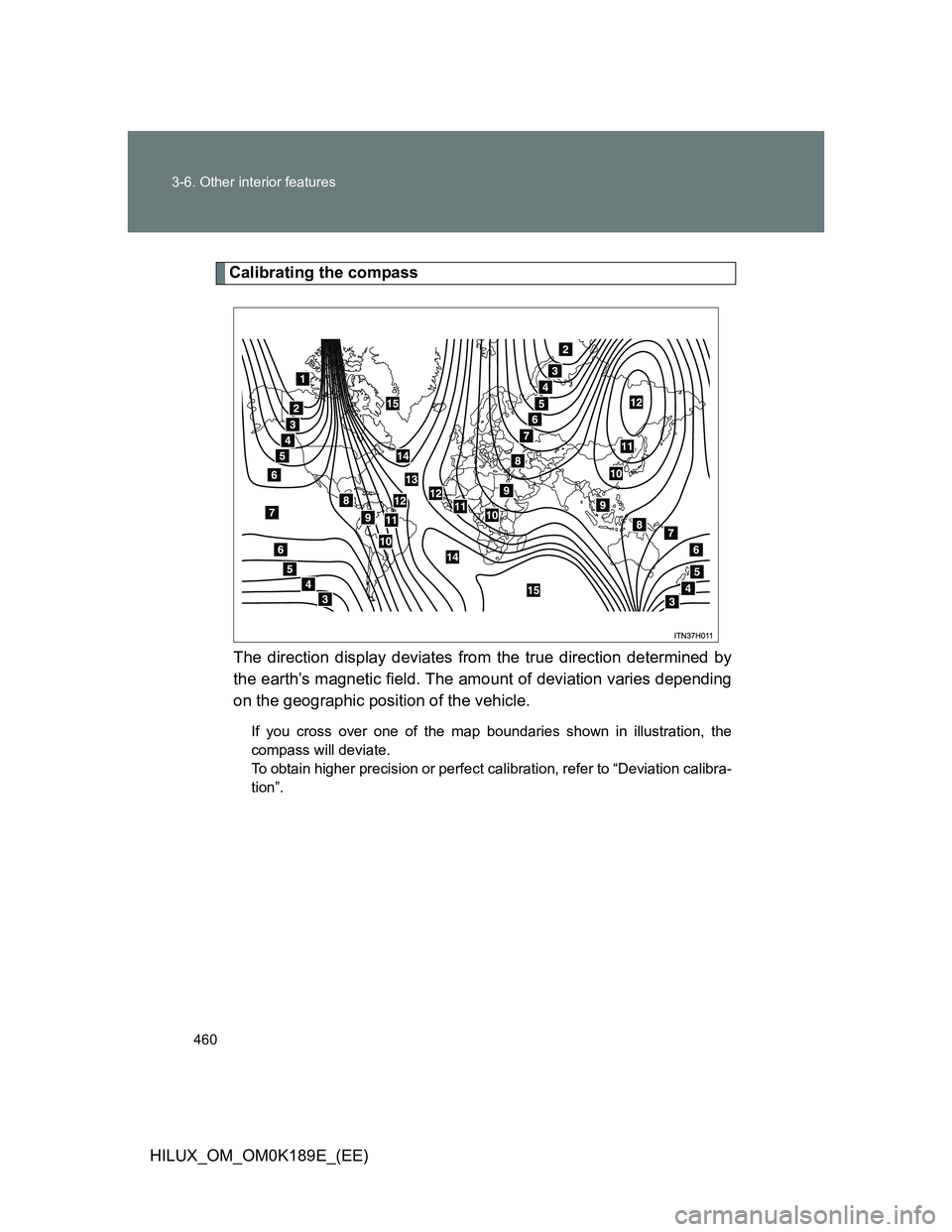

Calibrating the compass
The direction display deviates from the true direction determined by
the earth’s magnetic field. The amount of deviation varies depending
on the geographic position of the vehicle.
If you cross over one of the map boundaries shown in illustration, the
compass will deviate.
To obtain higher precision or perfect calibration, refer to “Deviation calibra-
tion”.
