1211-3. Theft deterrent system
1
HILUX_OM_OM0K375E_(EE)
For safety and security

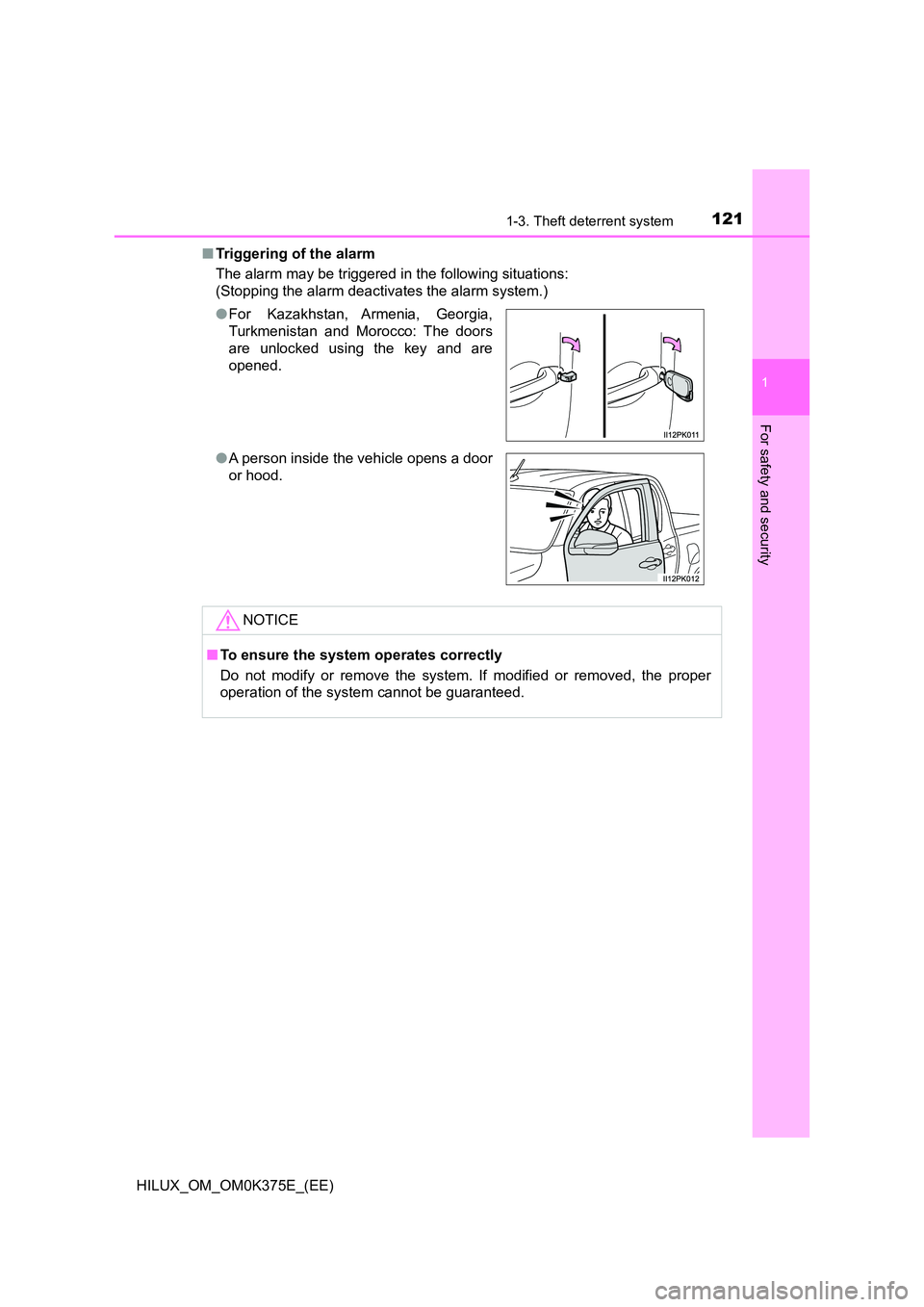

■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
● For Kazakhstan, Armenia, Georgia,
Turkmenistan and Morocco: The doors
are unlocked using the key and are
opened.
● A person inside the vehicle opens a door
or hood.
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

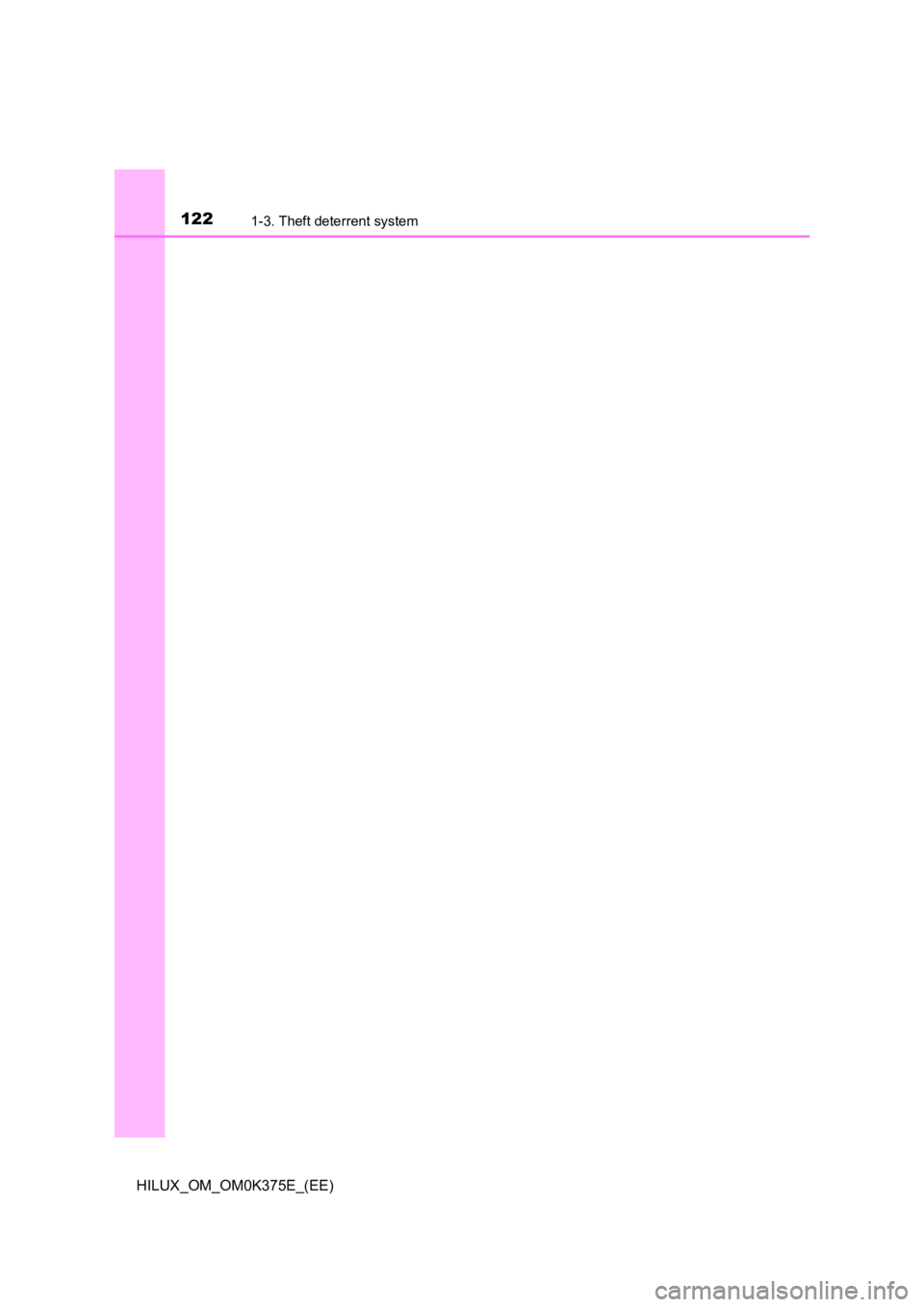

1221-3. Theft deterrent system
HILUX_OM_OM0K375E_(EE)

123

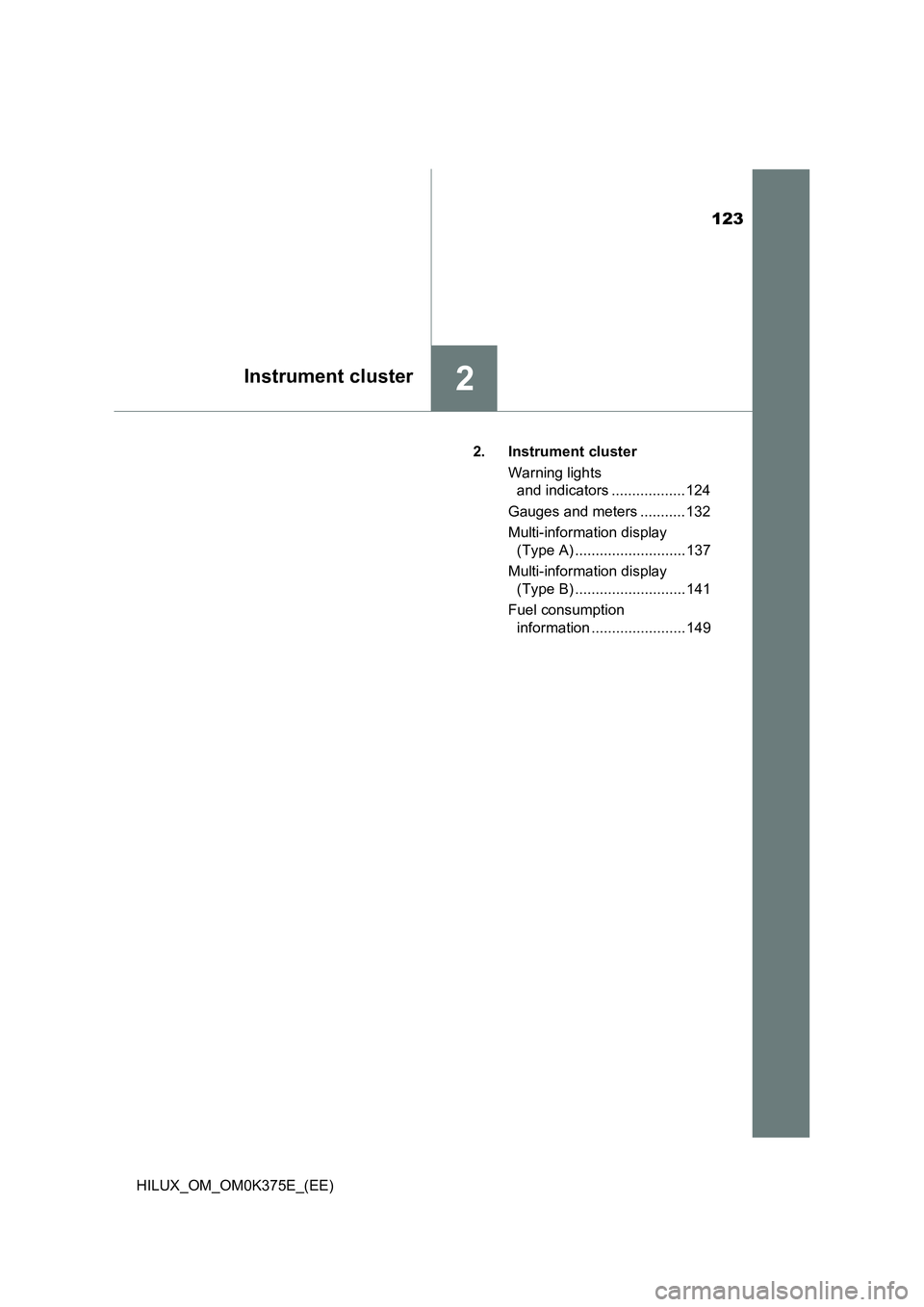

2Instrument cluster
HILUX_OM_OM0K375E_(EE)
2. Instrument cluster
Warning lights
and indicators .................. 124
Gauges and meters ........... 132
Multi-information display
(Type A) ........................... 137
Multi-information display
(Type B) ........................... 141
Fuel consumption
information ....................... 149

1242. Instrument cluster
HILUX_OM_OM0K375E_(EE)

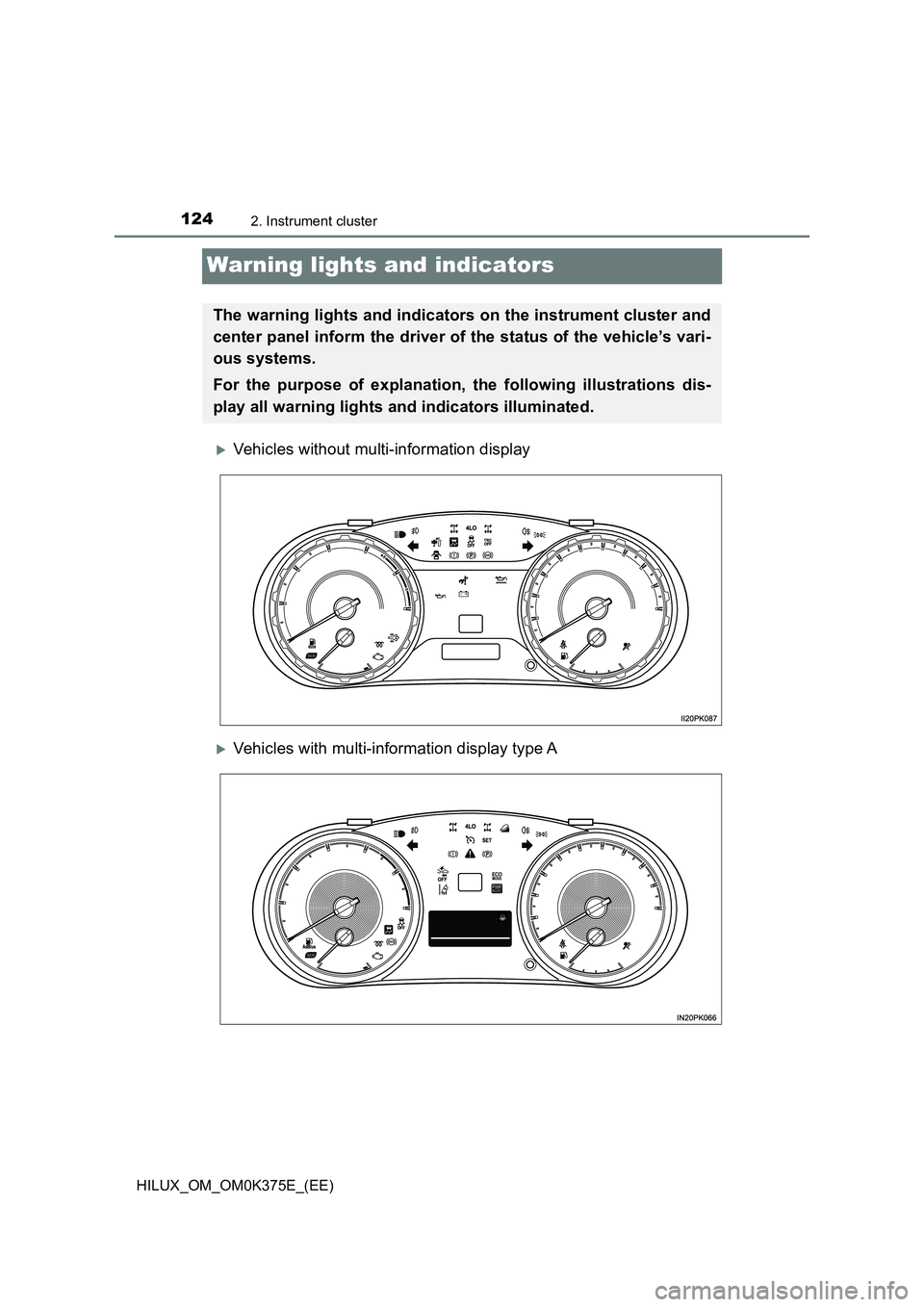

Warning lights and indicators
Vehicles without multi-information display
Vehicles with multi-information display type A
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations dis-
play all warning lights and indicators illuminated.

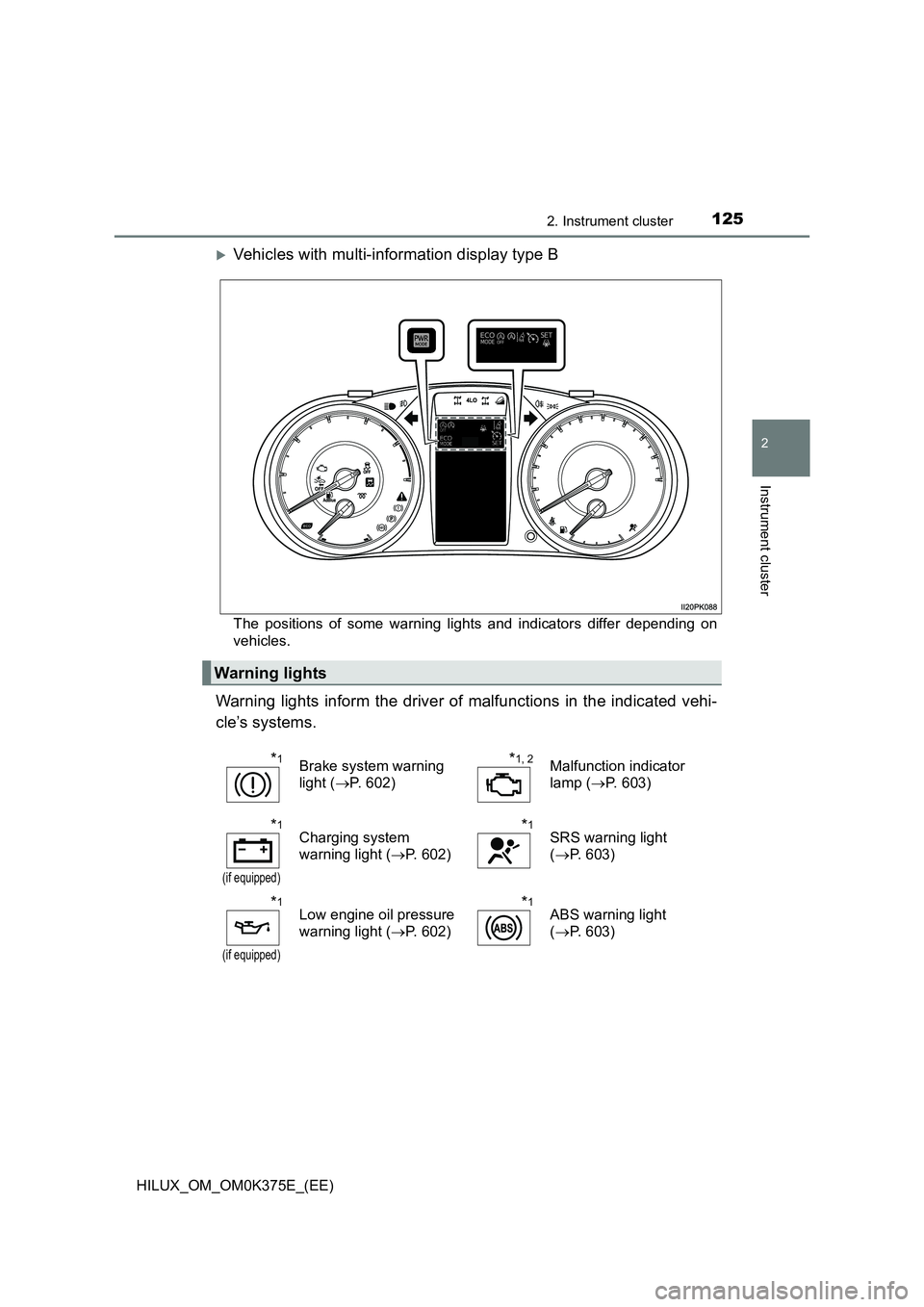

1252. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K375E_(EE)
Vehicles with multi-information display type B
The positions of some warning lights and indicators differ depending on
vehicles.
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light ( P. 602)
*1, 2Malfunction indicator
lamp ( P. 603)
*1
(if equipped)
Charging system
warning light ( P. 602)
*1SRS warning light
( P. 603)
*1
(if equipped)
Low engine oil pressure
warning light ( P. 602)
*1ABS warning light
( P. 603)

1262. Instrument cluster
HILUX_OM_OM0K375E_(EE)

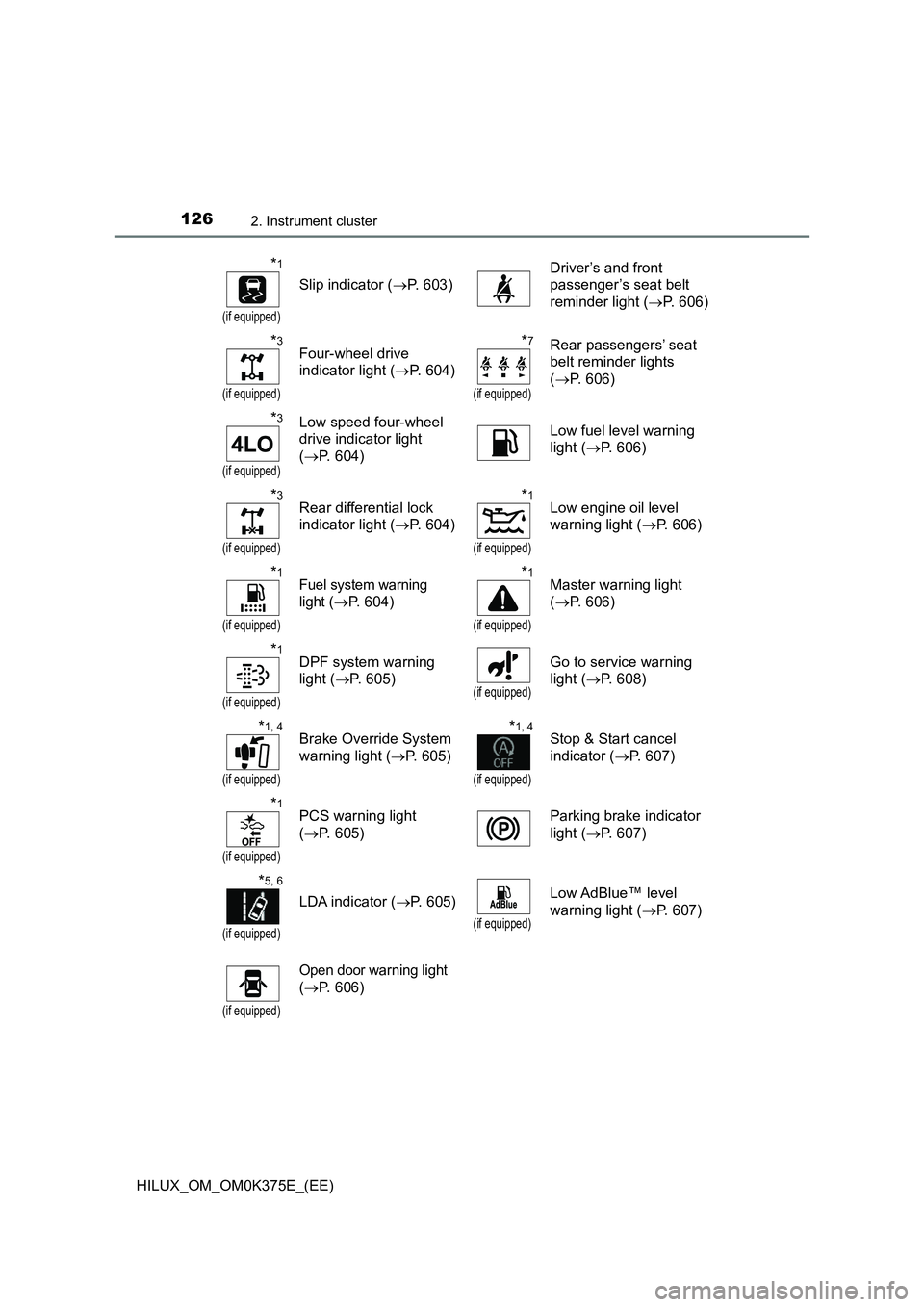

*1
(if equipped)
Slip indicator (P. 603)
Driver’s and front
passenger’s seat belt
reminder light ( P. 606)
*3
(if equipped)
Four-wheel drive
indicator light ( P. 604)
*7
(if equipped)
Rear passengers’ seat
belt reminder lights
( P. 606)
*3
(if equipped)
Low speed four-wheel
drive indicator light
( P. 604)
Low fuel level warning
light ( P. 606)
*3
(if equipped)
Rear differential lock
indicator light ( P. 604)
*1
(if equipped)
Low engine oil level
warning light ( P. 606)
*1
(if equipped)
Fuel system warning
light ( P. 604)
*1
(if equipped)
Master warning light
( P. 606)
*1
(if equipped)
DPF system warning
light ( P. 605)(if equipped)
Go to service warning
light ( P. 608)
*1, 4
(if equipped)
Brake Override System
warning light ( P. 605)
*1, 4
(if equipped)
Stop & Start cancel
indicator ( P. 607)
*1
(if equipped)
PCS warning light
( P. 605)
Parking brake indicator
light ( P. 607)
*5, 6
(if equipped)
LDA indicator (P. 605)
(if equipped)
Low AdBlue™ level
warning light ( P. 607)
(if equipped)
Open door warning light
( P. 606)

1272. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K375E_(EE)

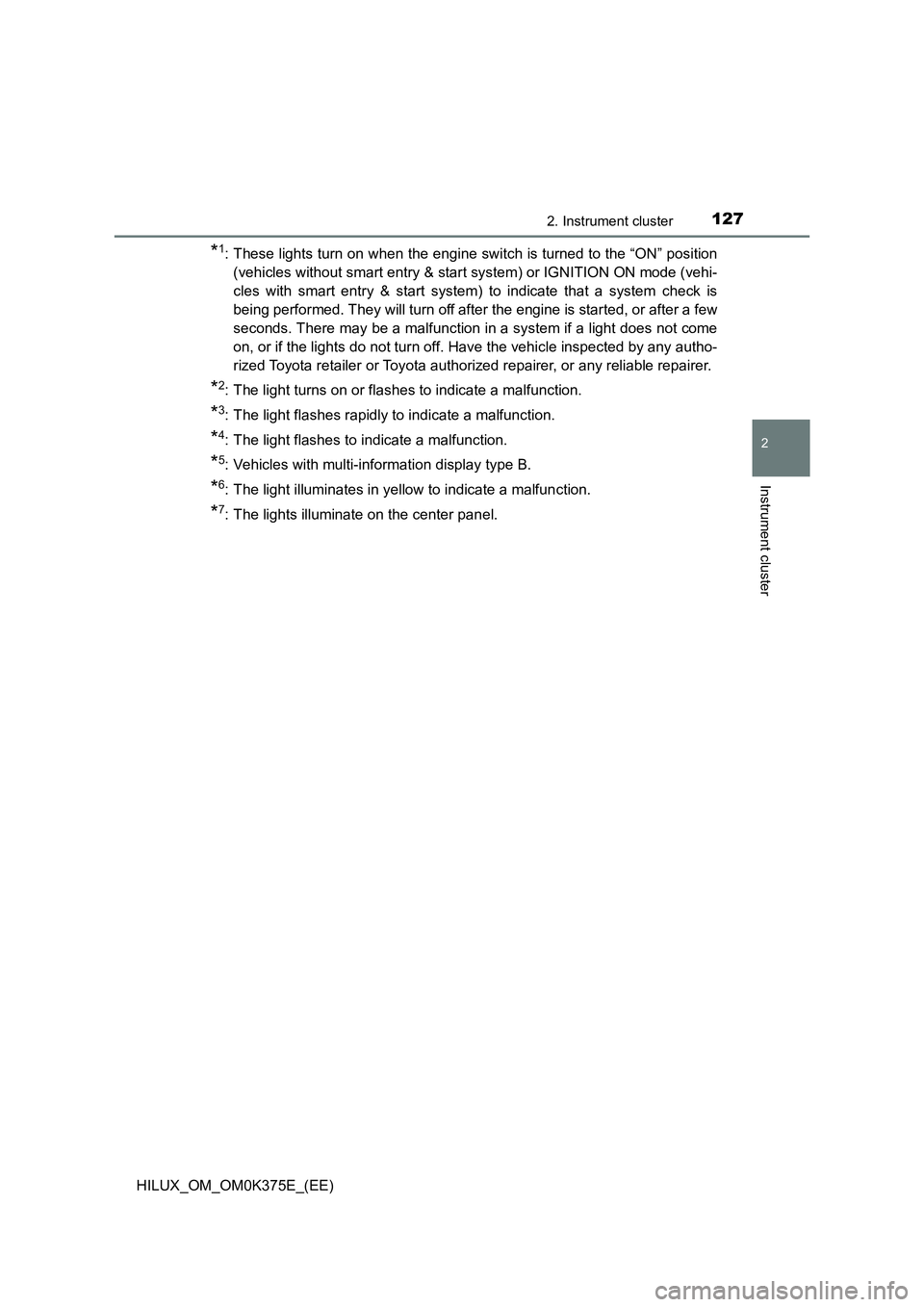

*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: The light turns on or flashes to indicate a malfunction.
*3: The light flashes rapidly to indicate a malfunction.
*4: The light flashes to indicate a malfunction.
*5: Vehicles with multi-information display type B.
*6: The light illuminates in yellow to indicate a malfunction.
*7: The lights illuminate on the center panel.

1282. Instrument cluster
HILUX_OM_OM0K375E_(EE)

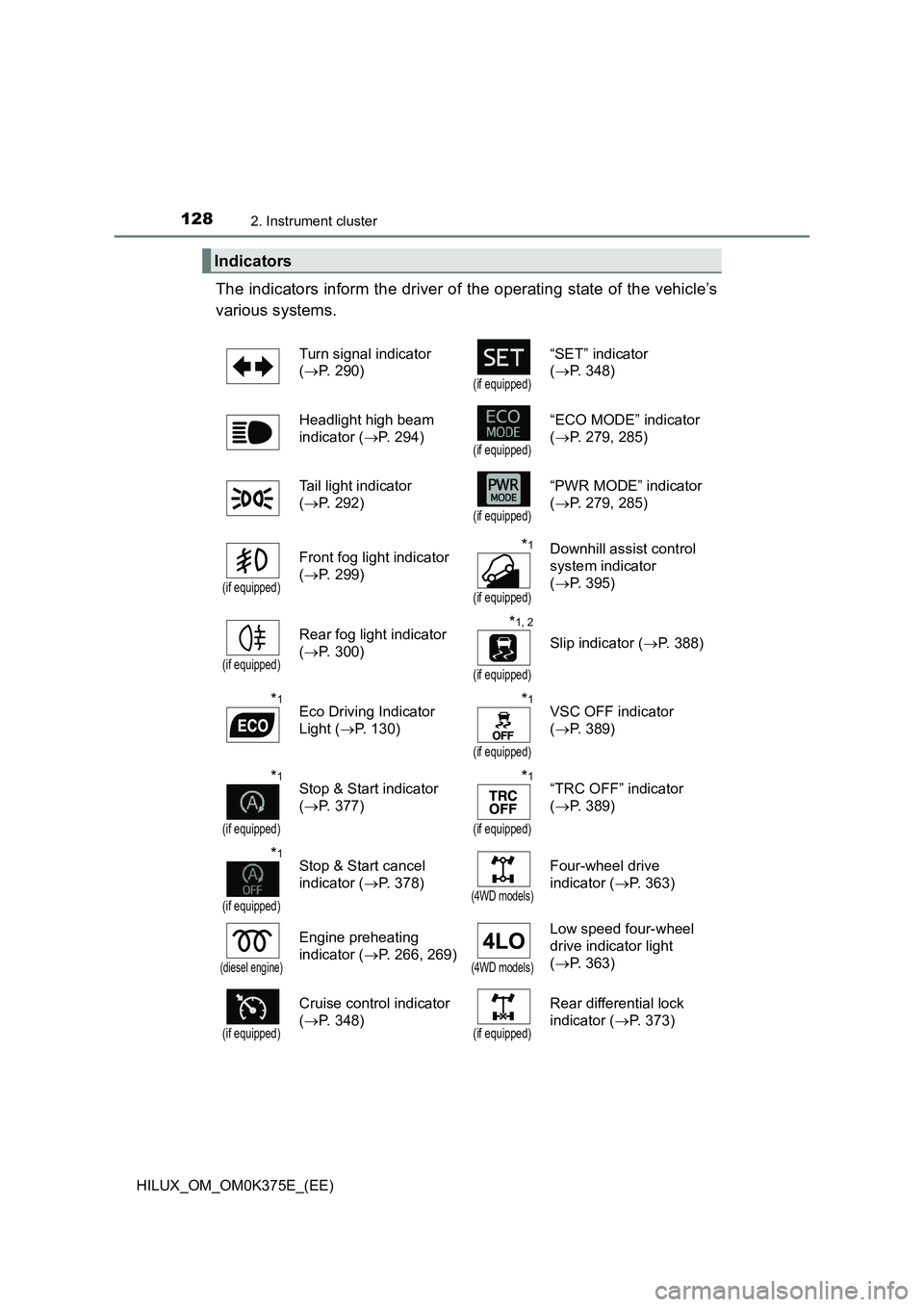

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 290)(if equipped)
“SET” indicator
( P. 348)
Headlight high beam
indicator ( P. 294)(if equipped)
“ECO MODE” indicator
( P. 279, 285)
Tail light indicator
( P. 292)(if equipped)
“PWR MODE” indicator
( P. 279, 285)
(if equipped)
Front fog light indicator
( P. 299)
*1
(if equipped)
Downhill assist control
system indicator
( P. 395)
(if equipped)
Rear fog light indicator
( P. 300)
*1, 2
(if equipped)
Slip indicator (P. 388)
*1Eco Driving Indicator
Light ( P. 130)
*1
(if equipped)
VSC OFF indicator
( P. 389)
*1
(if equipped)
Stop & Start indicator
( P. 377)
*1
(if equipped)
“TRC OFF” indicator
( P. 389)
*1
(if equipped)
Stop & Start cancel
indicator ( P. 378)(4WD models)
Four-wheel drive
indicator ( P. 363)
(diesel engine)
Engine preheating
indicator ( P. 266, 269)(4WD models)
Low speed four-wheel
drive indicator light
( P. 363)
(if equipped)
Cruise control indicator
( P. 348)(if equipped)
Rear differential lock
indicator ( P. 373)

1292. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K375E_(EE)

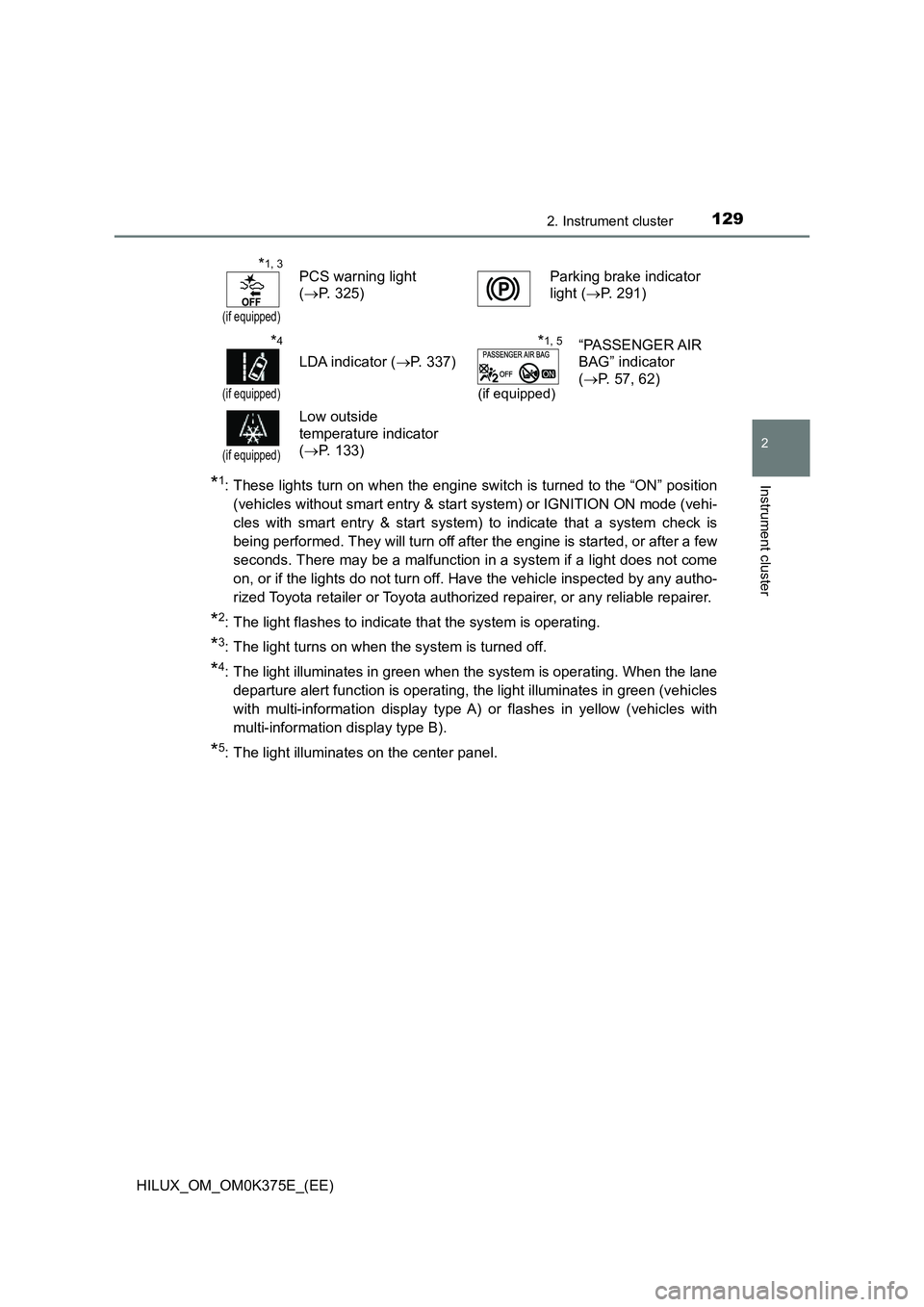

*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turned off.
*4: The light illuminates in green when the system is operating. When the lane
departure alert function is operating, the light illuminates in green (vehicles
with multi-information display type A) or flashes in yellow (vehicles with
multi-information display type B).
*5: The light illuminates on the center panel.
*1, 3
(if equipped)
PCS warning light
( P. 325)
Parking brake indicator
light ( P. 291)
*4
(if equipped)
LDA indicator (P. 337)
*1, 5
(if equipped)
“PASSENGER AIR
BAG” indicator
( P. 57, 62)
(if equipped)
Low outside
temperature indicator
( P. 133)

1302. Instrument cluster
HILUX_OM_OM0K375E_(EE)
■Eco Driving Indicator
If the vehicle exceeds Zone of Eco driving, the right side of Eco Driving Indi-
cator Zone Display will blink (vehicles with multi-information display type A)
or illuminate (vehicles with multi-information display type B).
Eco Driving Indicator Light and Eco Driving Indicator Zone Display will not
operate in the following conditions:
● The shift lever is in anything other than D. (vehicles with automatic transmis-
sion)
● The shift lever is in R. (vehicles with manual transmission)
● The vehicle is in the power mode. (if equipped) (P. 279, 285)
● Downhill assist control system is operating. (if equipped) (P. 395)
● Front-wheel drive control switch is in L4. (if equipped) (P. 363)
● The vehicle speed is approximately 130 km/h (81 mph) or higher.
Eco Driving Indicator Light
Vehicles with automatic transmission:
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the accelerator pedal is
depressed excessively, or when the
vehicle is stopped, the light turns off.
Vehicles with manual transmission:
During Eco-friendly acceleration or in
Eco-friendly shift position (Eco driving),
Eco Driving Indicator Light will turn on.
When the accelerator pedal is
depressed excessively, or when the
vehicle is stopped, the light turns off.
Eco Driving Indicator Zone Display (if
equipped)
Suggests Zone of Eco driving with cur-
rent Eco driving ratio based on acceler-
ation.
Zone of Eco driving
Eco driving ratio based on acceleration
1
2
3
4
