TOYOTA HILUX 2018 Owners Manual

681
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K375E_(EE)

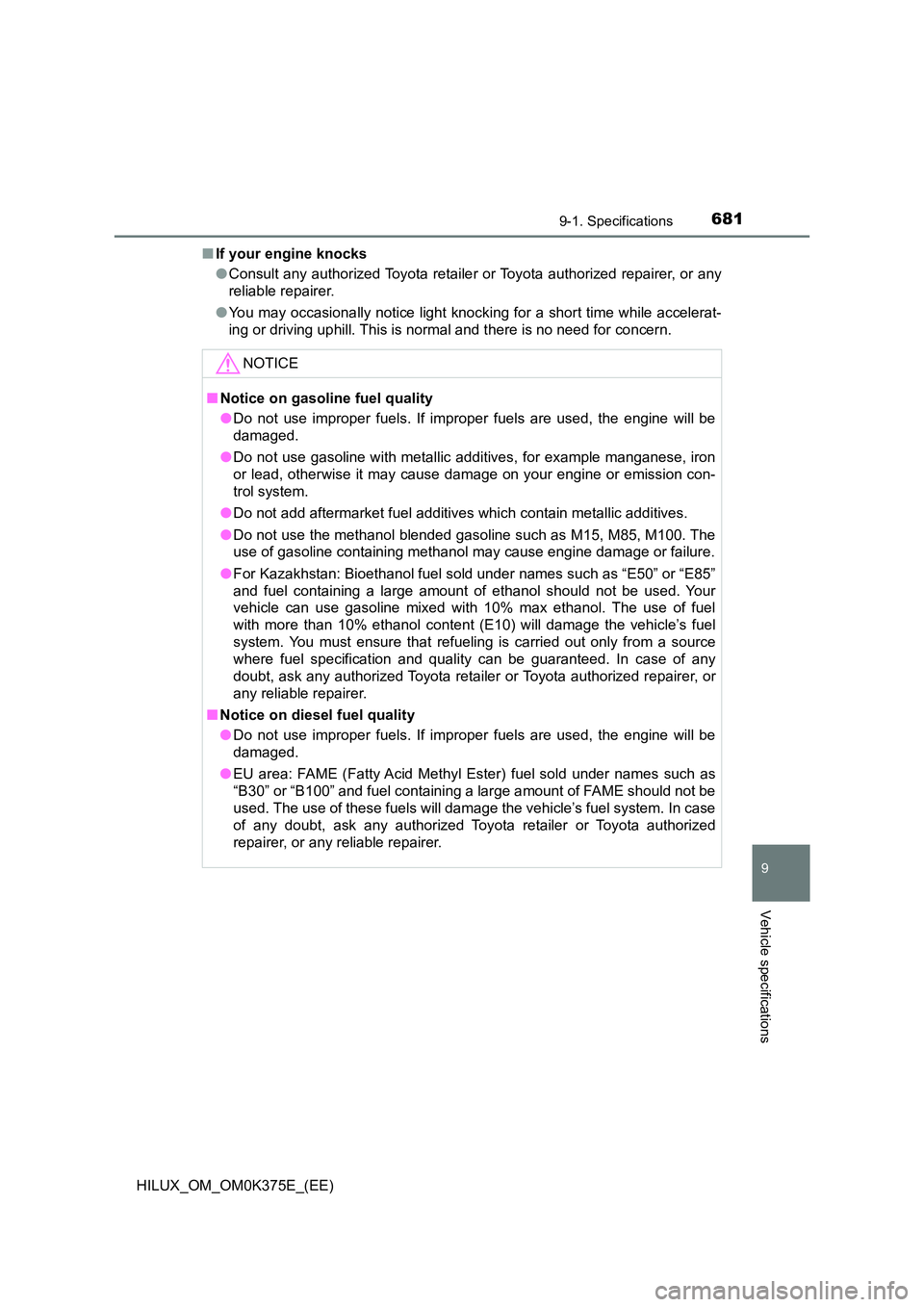

■ If your engine knocks
● Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
NOTICE
■ Notice on gasoline fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use gasoline with metallic additives, for example manganese, iron
or lead, otherwise it may cause damage on your engine or emission con-
trol system.
● Do not add aftermarket fuel additives which contain metallic additives.
● Do not use the methanol blended gasoline such as M15, M85, M100. The
use of gasoline containing methanol may cause engine damage or failure.
● For Kazakhstan: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
■ Notice on diesel fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● EU area: FAME (Fatty Acid Methyl Ester) fuel sold under names such as
“B30” or “B100” and fuel containing a large amount of FAME should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.

6829-1. Specifications
HILUX_OM_OM0K375E_(EE)

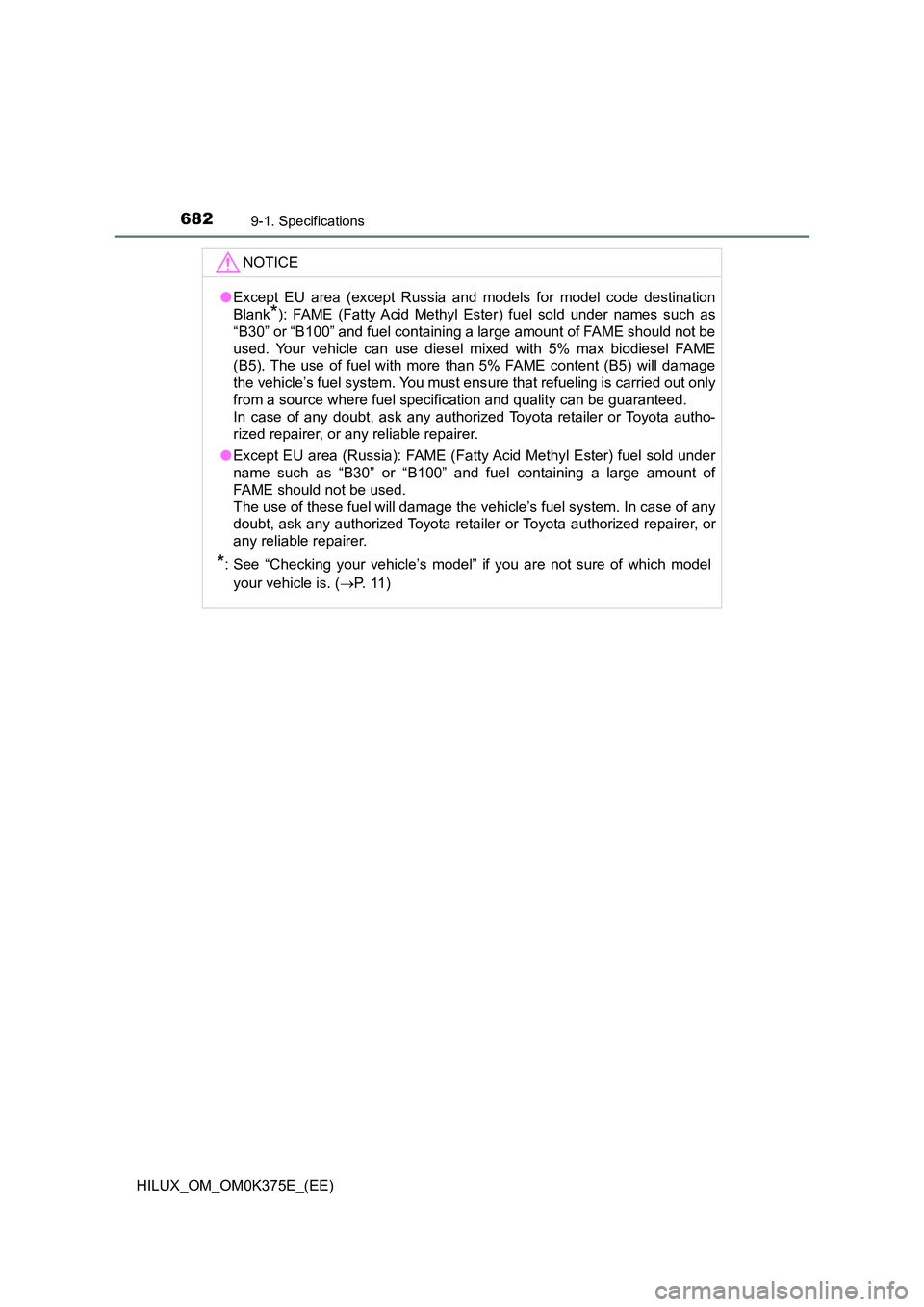

NOTICE
●Except EU area (except Russia and models for model code destination
Blank*): FAME (Fatty Acid Methyl Ester) fuel sold under names such as
“B30” or “B100” and fuel containing a large amount of FAME should not be
used. Your vehicle can use diesel mixed with 5% max biodiesel FAME
(B5). The use of fuel with more than 5% FAME content (B5) will damage
the vehicle’s fuel system. You must ens ure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed.
In case of any doubt, ask any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
● Except EU area (Russia): FAME (Fatty Acid Methyl Ester) fuel sold under
name such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used.
The use of these fuel will damage the vehicle’s fuel system. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 1 )

6839-2. Customization
HILUX_OM_OM0K375E_(EE)
9
Vehicle specifications

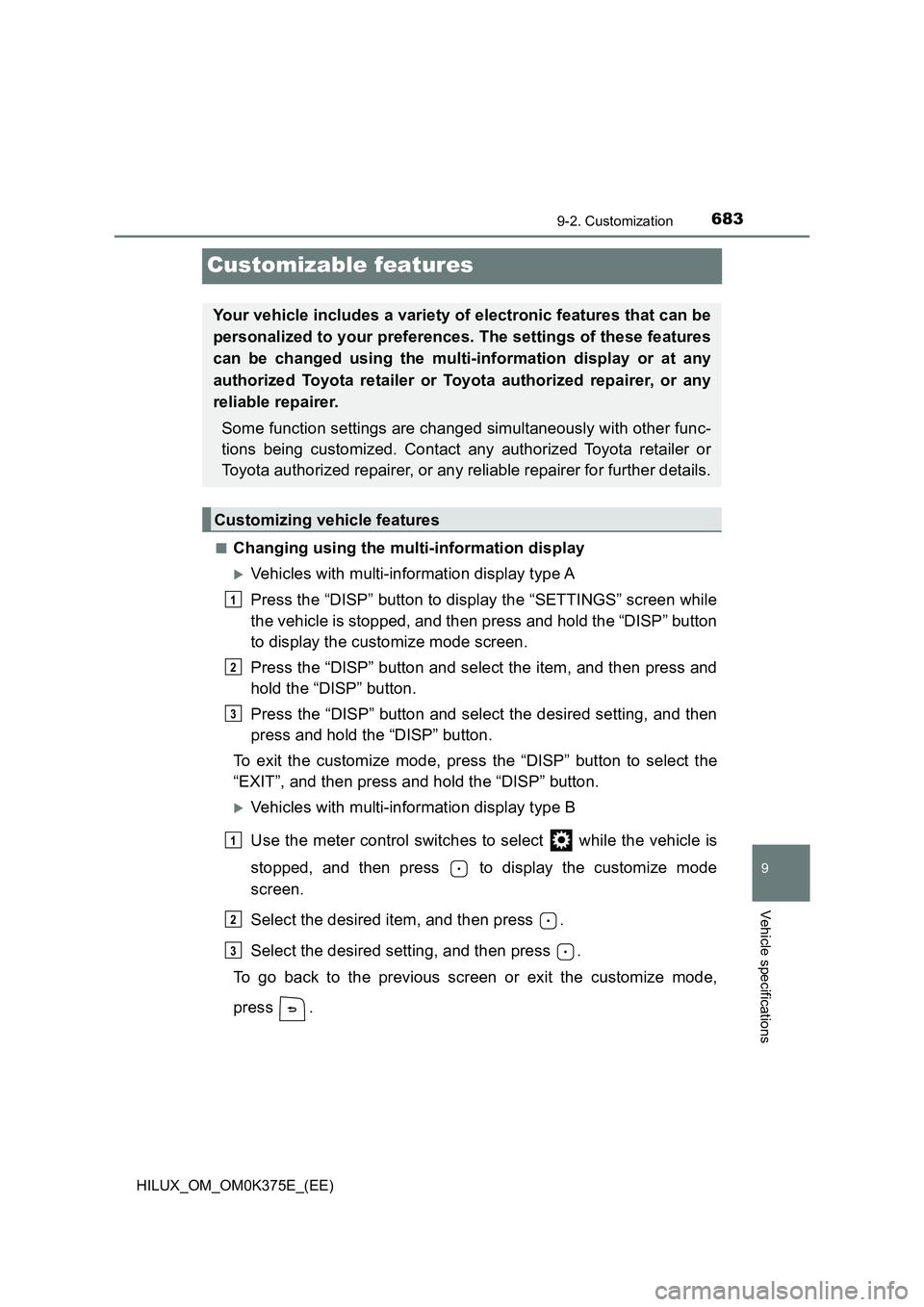

Customizable features
■Changing using the multi-information display
Vehicles with multi-information display type A
Press the “DISP” button to display the “SETTINGS” screen while
the vehicle is stopped, and then press and hold the “DISP” button
to display the customize mode screen.
Press the “DISP” button and select the item, and then press and
hold the “DISP” button.
Press the “DISP” button and select the desired setting, and then
press and hold the “DISP” button.
To exit the customize mode, press the “DISP” button to select the
“EXIT”, and then press and hold the “DISP” button.
Vehicles with multi-information display type B
Use the meter control switches to select while the vehicle is
stopped, and then press to display the customize mode
screen.
Select the desired item, and then press .
Select the desired setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the multi-information display or at any
authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.
Customizing vehicle features
1
2
3
1
2
3

6849-2. Customization
HILUX_OM_OM0K375E_(EE)

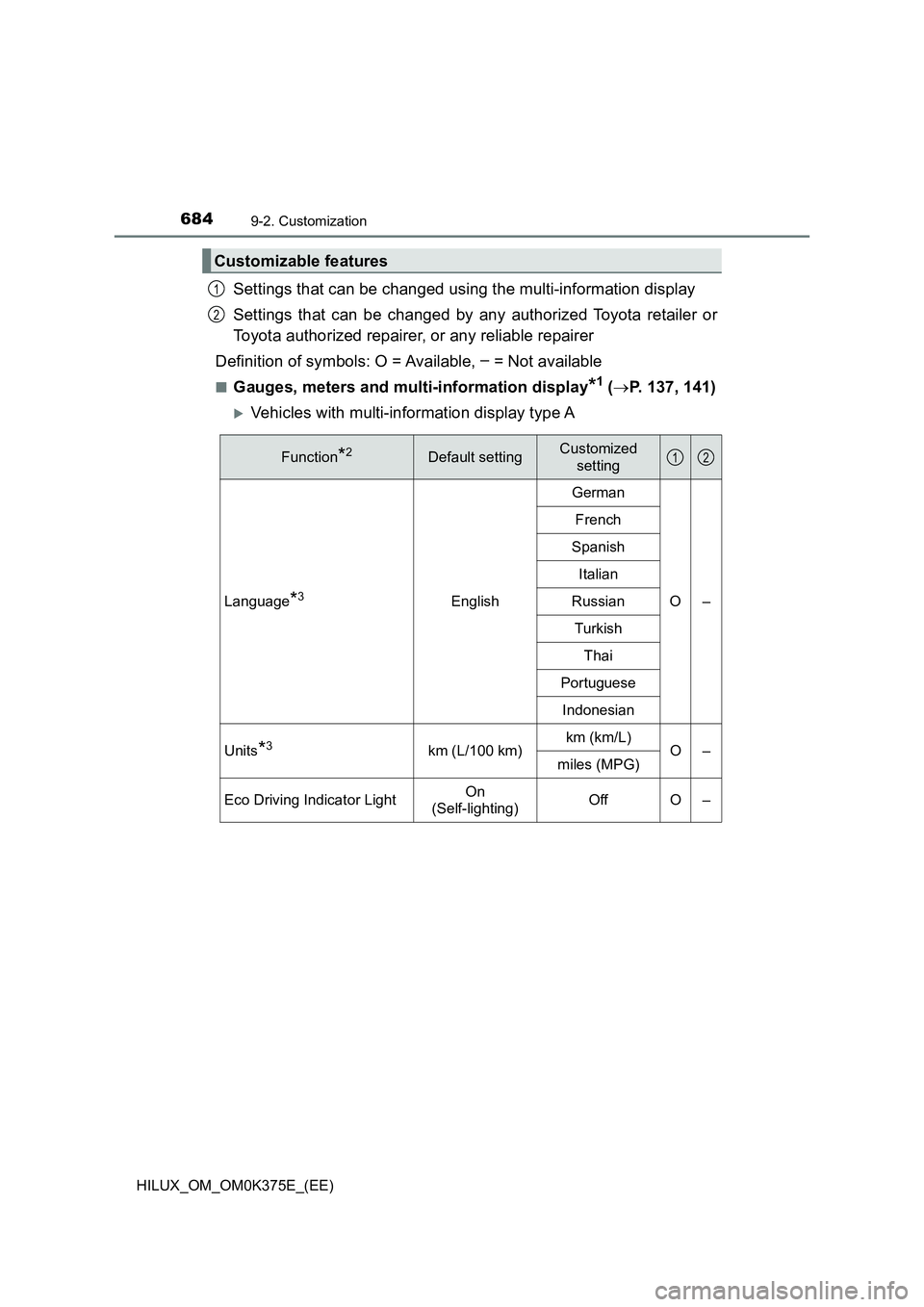

Settings that can be changed using the multi-information display
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Available, – = Not available
■Gauges, meters and multi-information display*1 ( P. 137, 141)
Vehicles with multi-information display type A
Customizable features
1
2
Function*2Default settingCustomized
setting
Language*3English
German
O–
French
Spanish
Italian
Russian
Turkish
Thai
Portuguese
Indonesian
Units*3km (L/100 km) km (km/L) O–miles (MPG)
Eco Driving Indicator Light On
(Self-lighting) Off O –
12

6859-2. Customization
HILUX_OM_OM0K375E_(EE)
9
Vehicle specifications

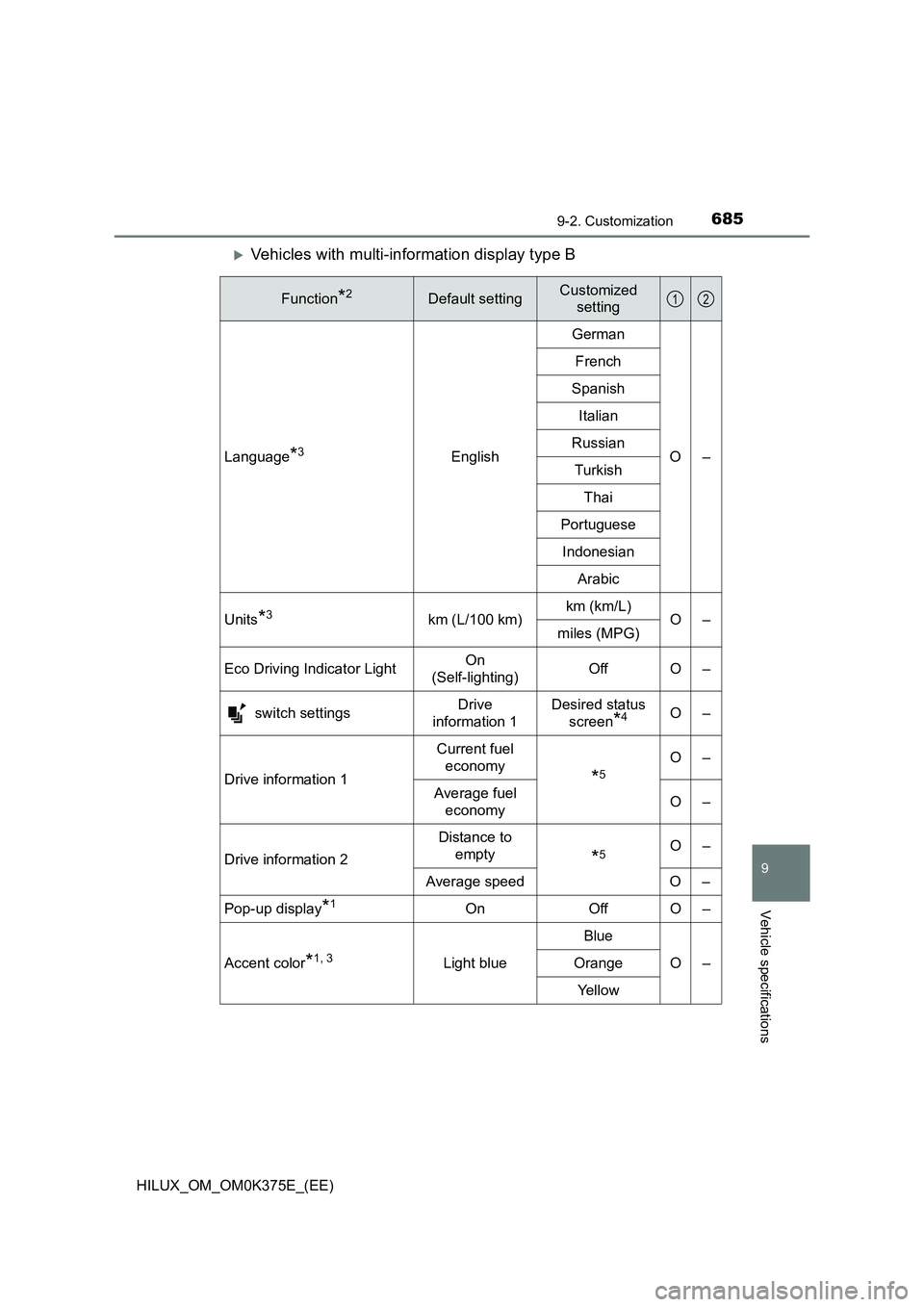

Vehicles with multi-information display type B
Function*2Default settingCustomized
setting
Language*3English
German
O–
French
Spanish
Italian
Russian
Turkish
Thai
Portuguese
Indonesian
Arabic
Units*3km (L/100 km) km (km/L) O–miles (MPG)
Eco Driving Indicator Light On
(Self-lighting) Off O –
switch settings Drive
information 1
Desired status
screen*4O–
Drive information 1
Current fuel
economy*5
O–
Average fuel
economy O–
Drive information 2
Distance to
empty*5O–
Average speed O –
Pop-up display*1On Off O –
Accent color*1, 3Light blue
Blue
O– Orange
Ye l l o w
12

6869-2. Customization
HILUX_OM_OM0K375E_(EE)

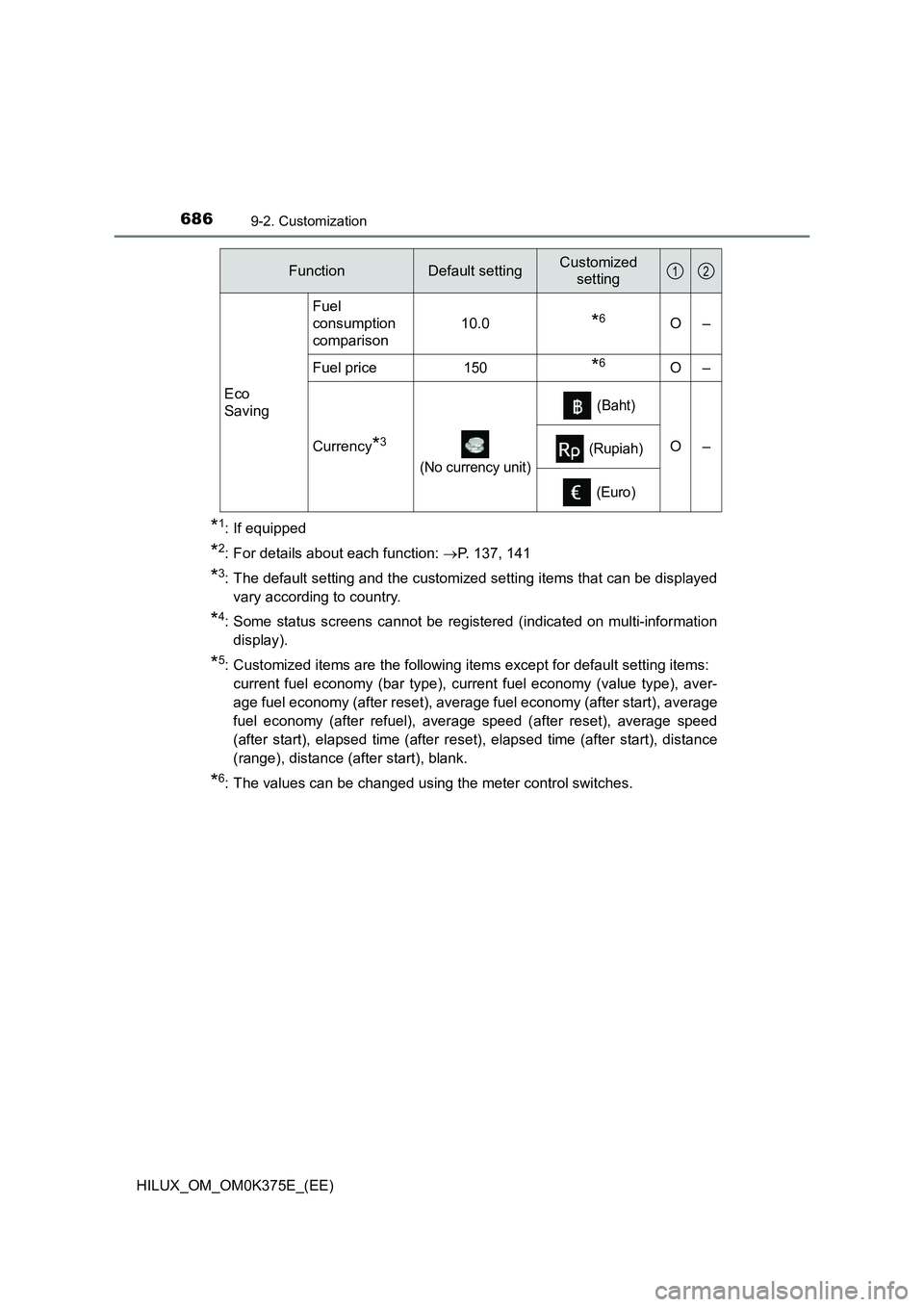

*1: If equipped
*2: For details about each function: P. 137, 141
*3: The default setting and the customized setting items that can be displayed
vary according to country.
*4: Some status screens cannot be registered (indicated on multi-information
display).
*5: Customized items are the following items except for default setting items:
current fuel economy (bar type), curr ent fuel economy (value type), aver-
age fuel economy (after reset), average fuel economy (after start), average
fuel economy (after refuel), average speed (after reset), average speed
(after start), elapsed time (after reset), elapsed time (after start), distance
(range), distance (after start), blank.
*6: The values can be changed using the meter control switches.
FunctionDefault settingCustomized
setting
Eco
Saving
Fuel
consumption
comparison
10.0*6O–
Fuel price150*6O–
Currency*3
(No currency unit)
(Baht)
O– (Rupiah)
(Euro)
12

6879-2. Customization
HILUX_OM_OM0K375E_(EE)
9
Vehicle specifications

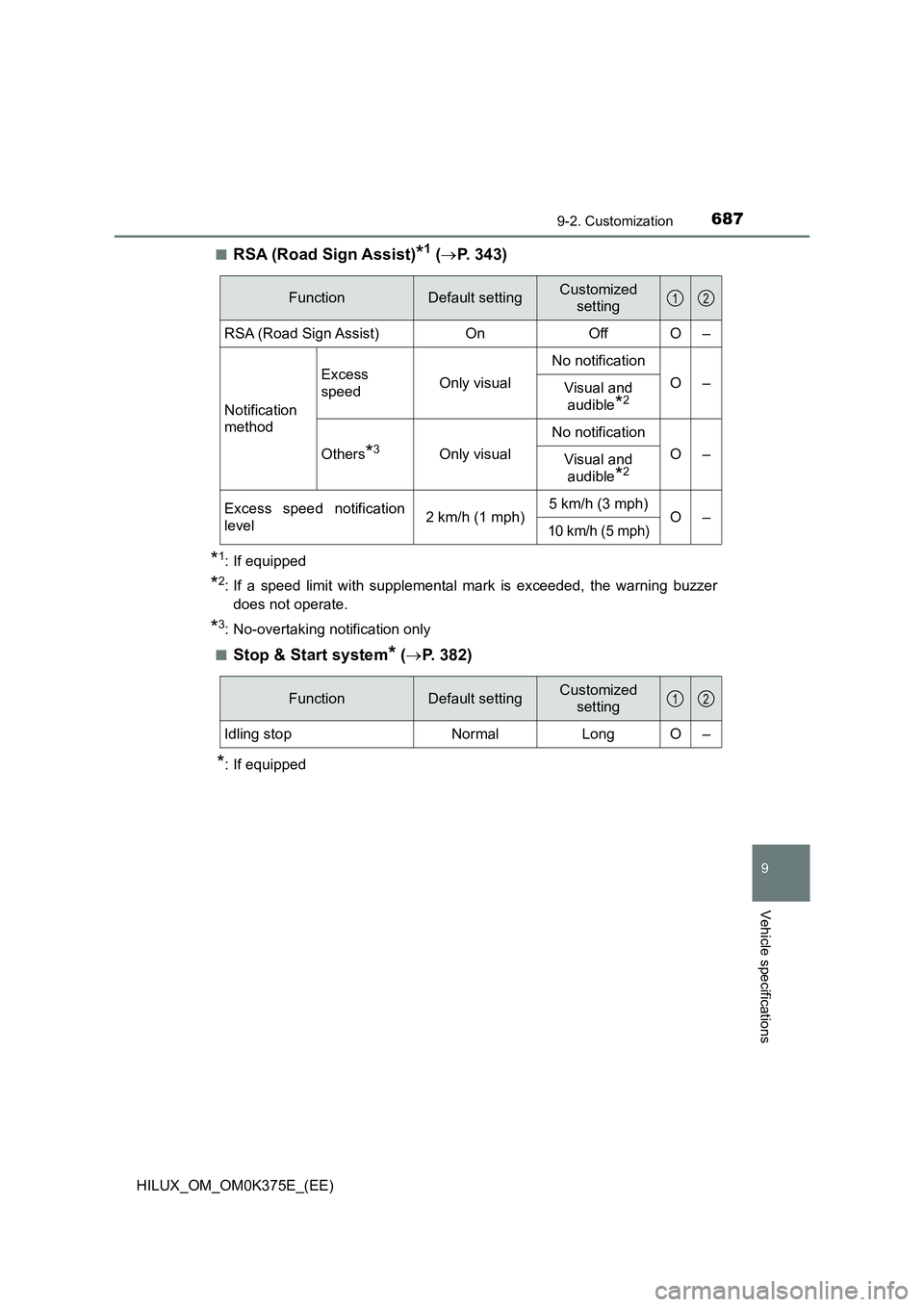

■RSA (Road Sign Assist)*1 (P. 343)
*1: If equipped
*2: If a speed limit with supplemental mark is exceeded, the warning buzzer
does not operate.
*3: No-overtaking notification only
■Stop & Start system* ( P. 382)
*: If equipped
FunctionDefault settingCustomized
setting
RSA (Road Sign Assist)OnOffO–
Notification
method
Excess
speedOnly visual
No notification
O–Visual and
audible*2
Others*3Only visual
No notification
O–Visual and
audible*2
Excess speed notification
level2 km/h (1 mph)5 km/h (3 mph)O–10 km/h (5 mph)
12
FunctionDefault settingCustomized
setting
Idling stopNormalLongO–
12

6889-2. Customization
HILUX_OM_OM0K375E_(EE)

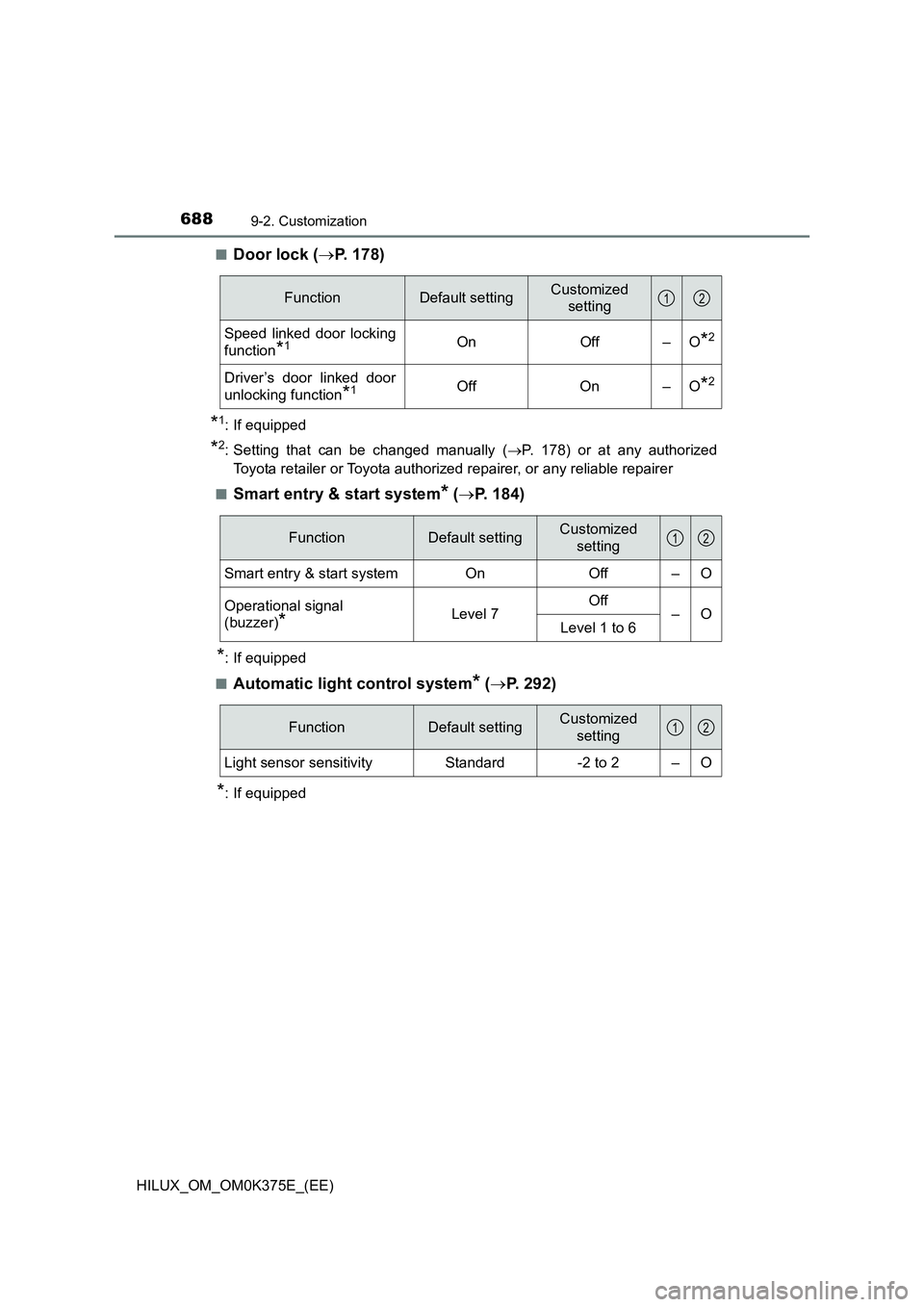

■Door lock ( P. 178)
*1: If equipped
*2: Setting that can be changed manually (P. 178) or at any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
■Smart entry & start system* ( P. 184)
*: If equipped
■Automatic light control system* ( P. 292)
*: If equipped
FunctionDefault settingCustomized
setting
Speed linked door locking
function*1OnOff–O*2
Driver’s door linked door
unlocking function*1OffOn–O*2
12
FunctionDefault settingCustomized
setting
Smart entry & start systemOnOff–O
Operational signal
(buzzer)*Level 7Off–OLevel 1 to 6
12
FunctionDefault settingCustomized
setting
Light sensor sensitivityStandard-2 to 2–O
12

6899-2. Customization
HILUX_OM_OM0K375E_(EE)
9
Vehicle specifications

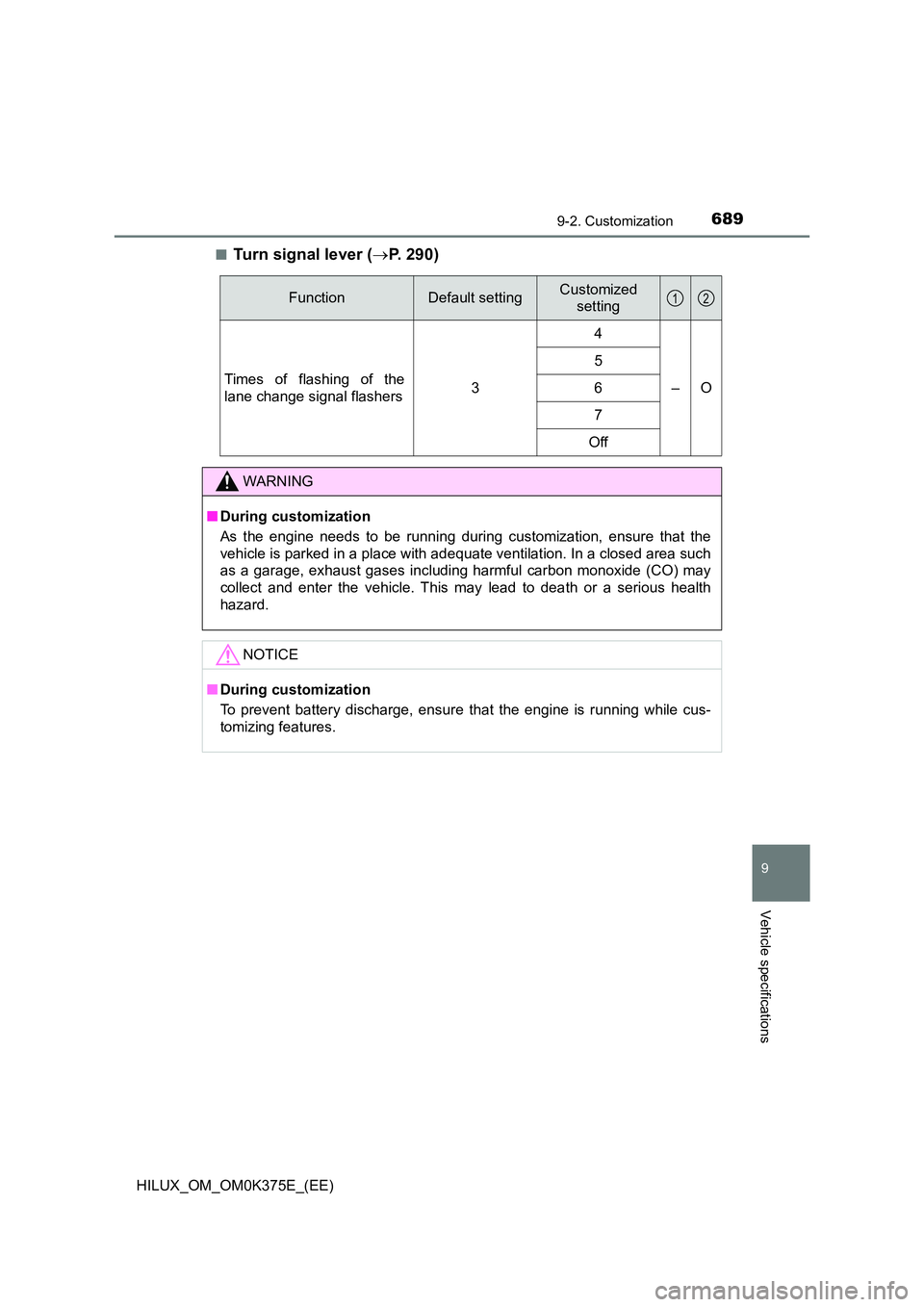

■Turn signal lever (P. 290)
FunctionDefault settingCustomized
setting
Times of flashing of the
lane change signal flashers3
4
–O
5
6
7
Off
WARNING
■ During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■ During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
12

6909-3. Initialization
HILUX_OM_OM0K375E_(EE)

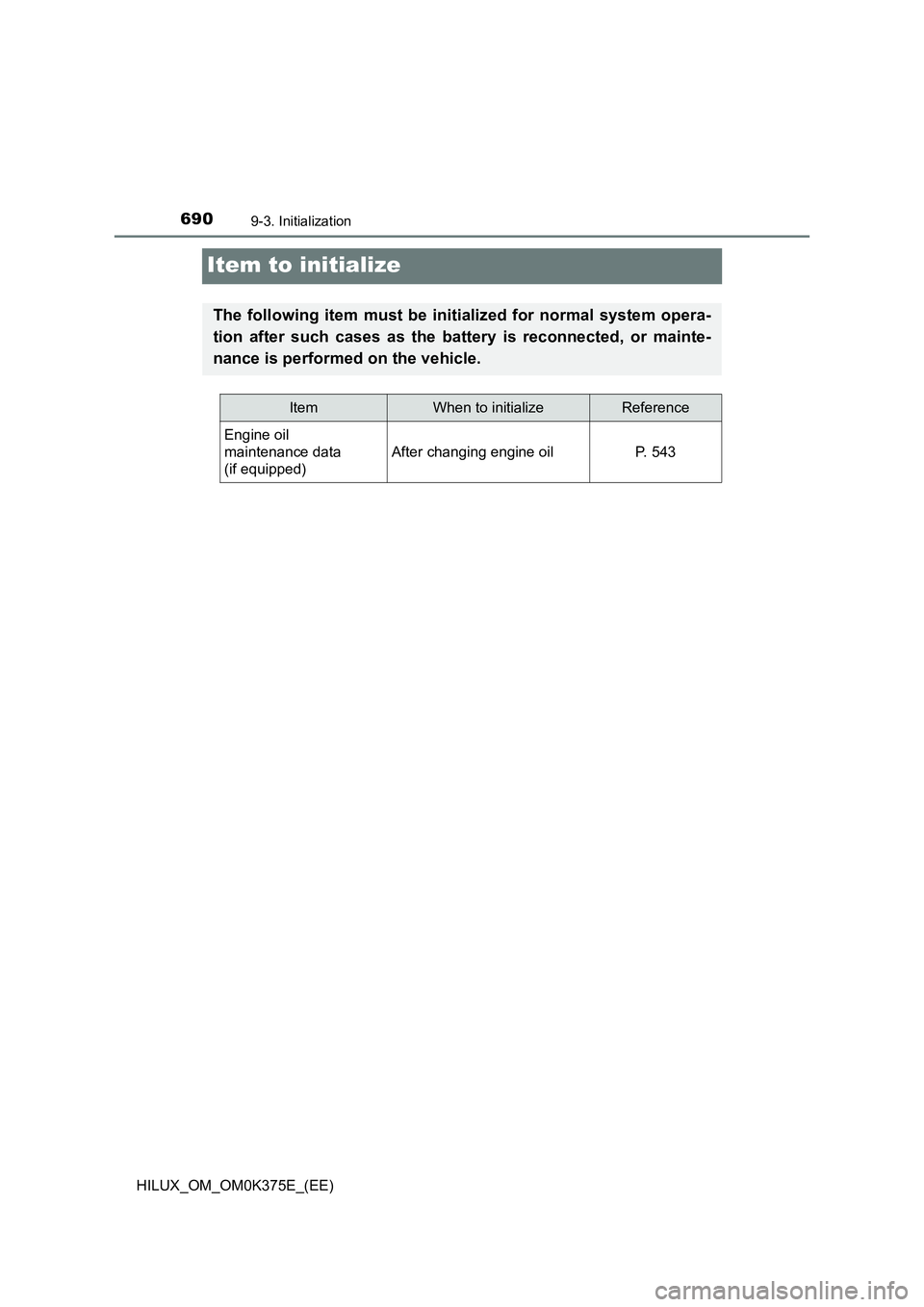

Item to initialize
The following item must be initialized for normal system opera-
tion after such cases as the battery is reconnected, or mainte-
nance is performed on the vehicle.
ItemWhen to initializeReference
Engine oil
maintenance data
(if equipped)
After changing engine oilP. 543
