TOYOTA HILUX 2022 Owners Manual

379
5
5-1. Basic Operations
Audio system
HILUX_OM_OM0K513E_(EE)
Using the steering wheel audio switches
Vo lu m e
• Press: Increases/decreases vol-
ume
• Press and hold: Continuously
increases/decreases volume
Radio mode:
• Press: Select a radio station
saved in preset stations
• Press and hold until you hear a
beep: Seek up/down
CD, MP3/WMA/AAC disc, iPod, USB or Bluetooth® audio mode:
• Press: Select a track/file
• Press and hold until you hear a beep: Select a folder or album
“MODE” switch
• Press: Turn the power on, select an audio source
• Press and hold until you hear a beep:
Radio or AUX mode: Mute
CD, MP3/WMA/AAC disc, iPod, USB or Bluetooth® audio mode:
Pause the current operation.
To cancel the mute or pause, press and hold the switch again.
Q Changing the audio source
Press the “MODE” switch when the audi o system is turned on. The audio
source changes as follows each time the button is pressed. If a mode cannot
be used, it will be skipped.
AM FMCD modeiPod or USB memoryBluetooth® audioAUX
Some audio features can be controlled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, refer to the manual provided with
the audio system or navigation system.
Vehicles without audio system: P. 4 7 0
1
2
3

3805-1. Basic Operations
HILUX_OM_OM0K513E_(EE)

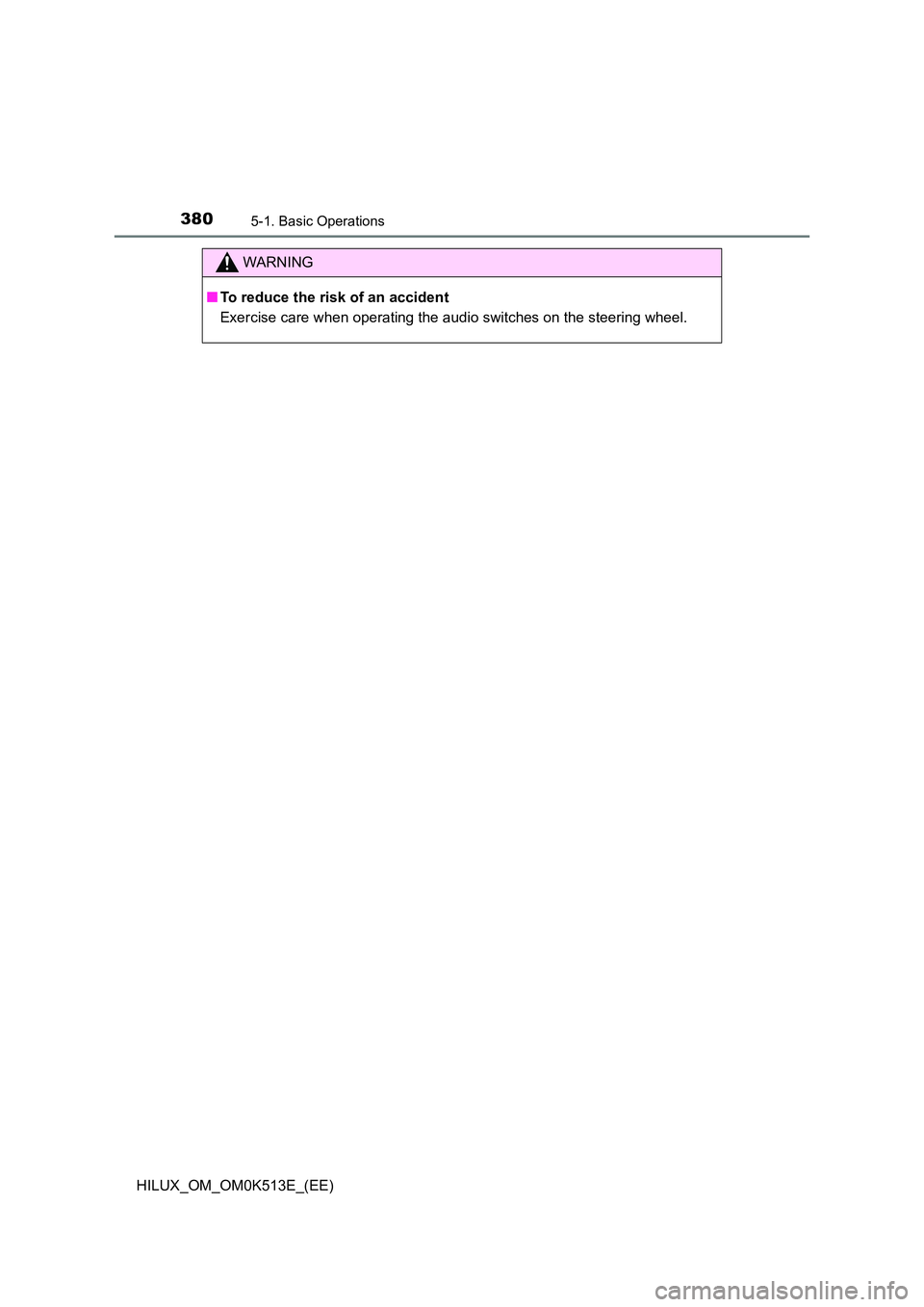

WARNING
QTo reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

381
5
5-1. Basic Operations
Audio system
HILUX_OM_OM0K513E_(EE)

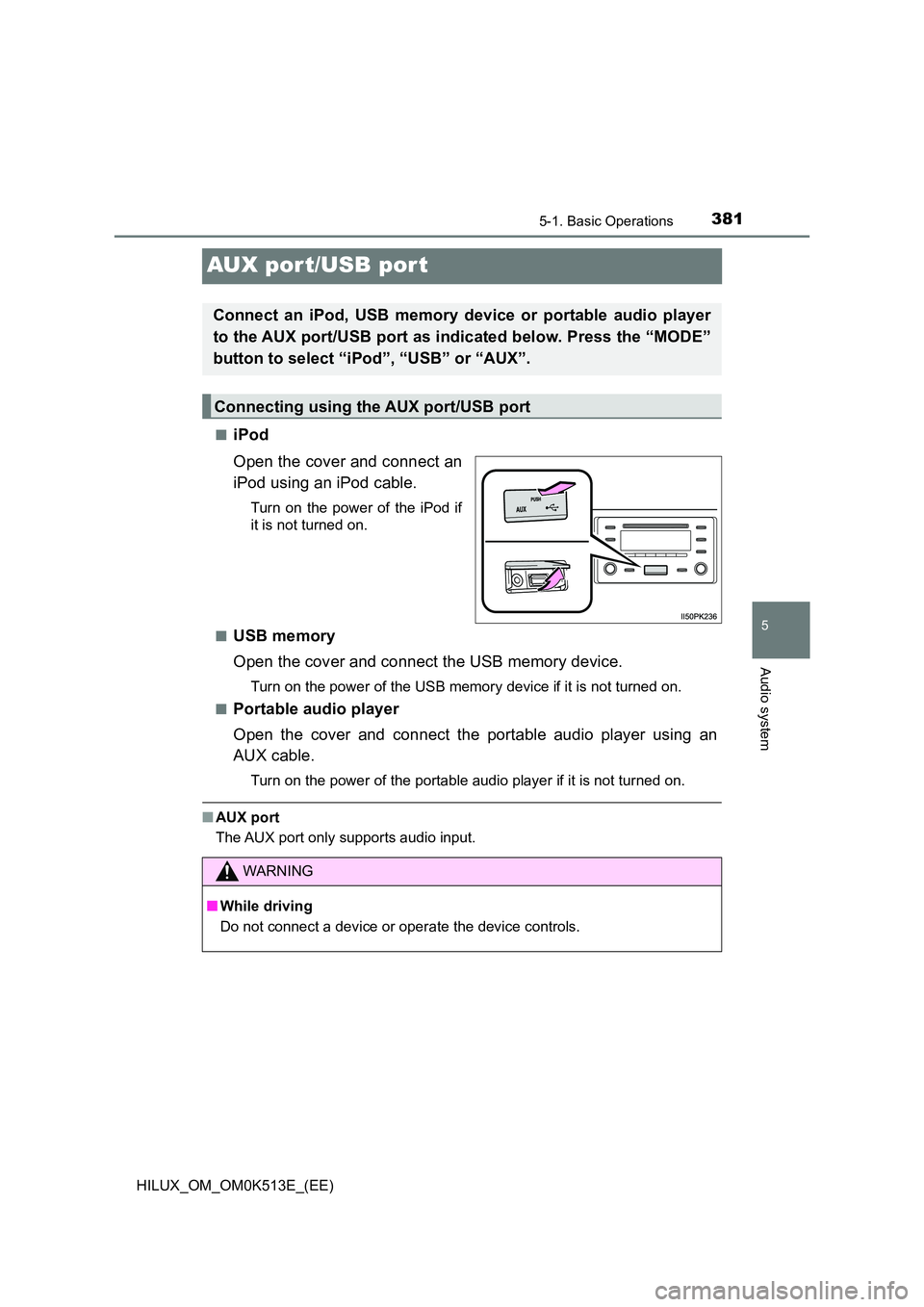

AUX port/USB por t
QiPod
Open the cover and connect an
iPod using an iPod cable.
Turn on the power of the iPod if
it is not turned on.
QUSB memory
Open the cover and connect the USB memory device.
Turn on the power of the USB memory device if it is not turned on.
QPortable audio player
Open the cover and connect the portable audio player using an
AUX cable.
Turn on the power of the portable audio player if it is not turned on.
Q AUX port
The AUX port only supports audio input.
Connect an iPod, USB memory device or portable audio player
to the AUX port/USB port as indicated below. Press the “MODE”
button to select “iPod”, “USB” or “AUX”.
Connecting using the AUX port/USB port
WARNING
Q While driving
Do not connect a device or operate the device controls.

3825-2. Using the audio system
HILUX_OM_OM0K513E_(EE)
Optimal use of the audio system
“TUNE•SELECT” knob
Press: Displays the “SETUP”
menu/Selects the mode
Turn: Changes the following
settings
• “Sound Setting”
 P. 3 8 2
• “RADIO”
 P. 3 8 4
• “Bluetooth”
 P. 4 1 5
•“TEL”
 P. 4 1 9
Day mode button
When the headlights are turned on, the screen dims.
However, the screen can be switched to day mode (full brightness) by
selecting day mode.
The screen will stay in day mode when the headlights are turned on until
day mode is selected again.
QChanging sound quality modes
Press the “TUNE•SELECT” knob.
Turn the knob to select “Sound Setting”.
Press the knob.
Turn the knob as corresponds to the desired mode.
“BASS”, “TREBLE”, “FADER”, “BAL ANCE”, or “ASL” can be selected.
Press the knob.
The sound quality, volume balance and ASL settings can be
adjusted and the day mode can be selected.
1
2
Day mode
Using the audio control function
1
2
3
4
5

3835-2. Using the audio system
5
Audio system
HILUX_OM_OM0K513E_(EE)

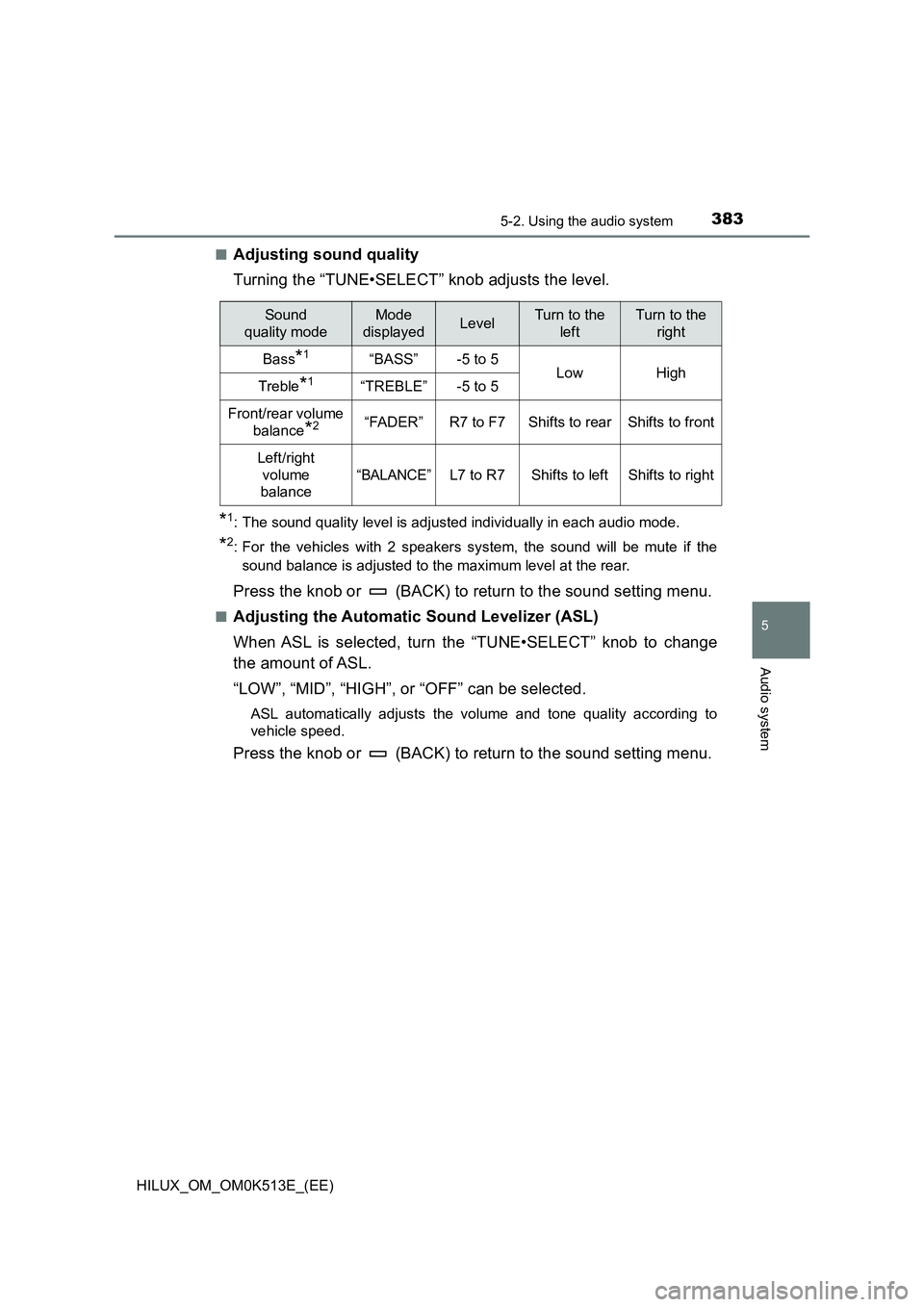

QAdjusting sound quality
Turning the “TUNE•SELECT” knob adjusts the level.
*1: The sound quality level is adjusted individually in each audio mode.
*2: For the vehicles with 2 speakers system, the sound will be mute if the
sound balance is adjusted to the maximum level at the rear.
Press the knob or (BACK) to return to the sound setting menu.
QAdjusting the Automatic Sound Levelizer (ASL)
When ASL is selected, turn the “TUNE•SELECT” knob to change
the amount of ASL.
“LOW”, “MID”, “HIGH”, or “OFF” can be selected.
ASL automatically adjusts the volume and tone quality according to
vehicle speed.
Press the knob or (BACK) to return to the sound setting menu.
Sound
quality mode
Mode
displayedLevelTurn to the
left
Turn to the
right
Bass*1“BASS”-5 to 5LowHighTreble*1“TREBLE”-5 to 5
Front/rear volume
balance*2“FADER”R7 to F7Shifts to rearShifts to front
Left/right
volume
balance
“BALANCE”L7 to R7Shifts to leftShifts to right

3845-3. Using the radio
HILUX_OM_OM0K513E_(EE)

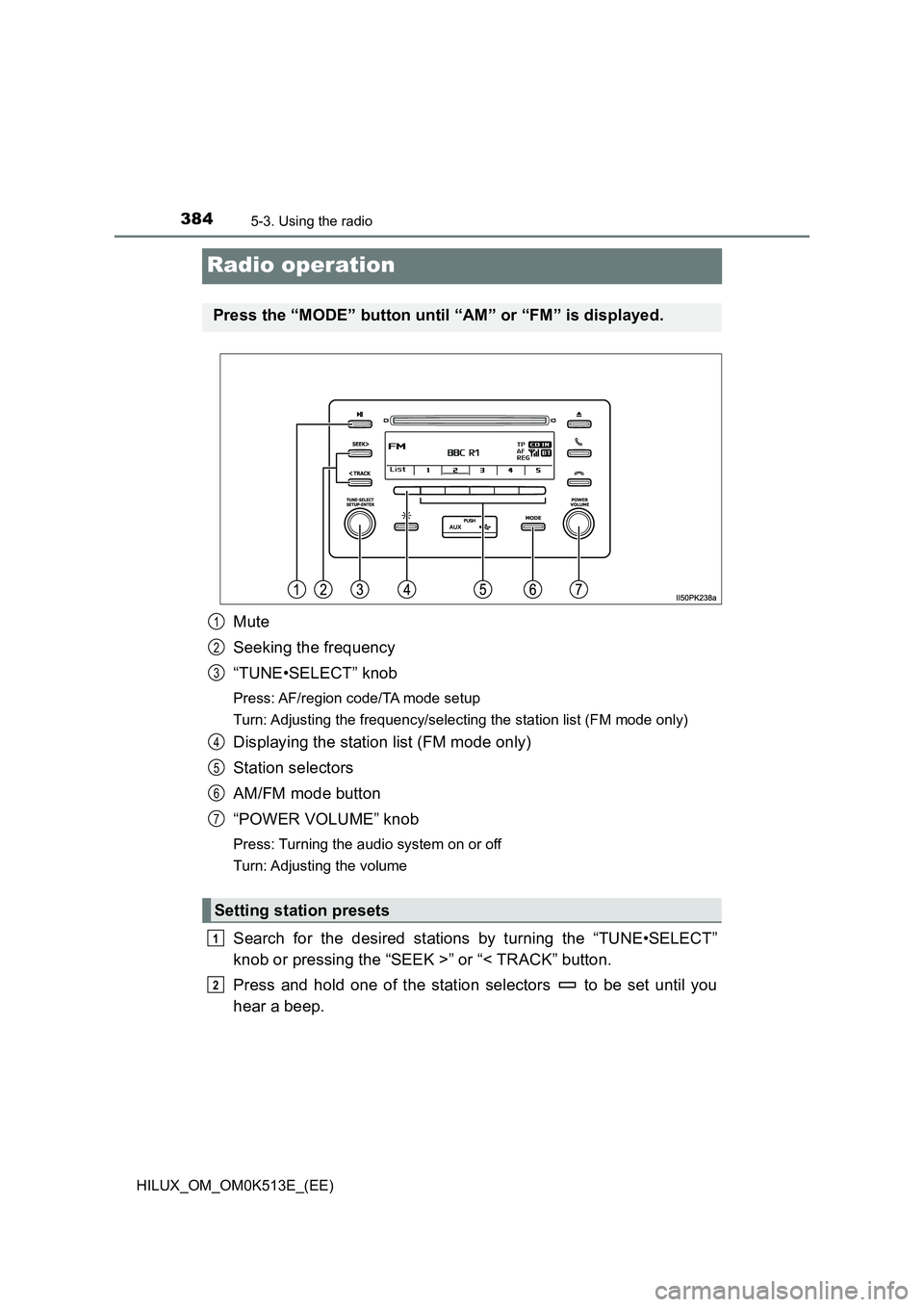

Radio operation
Mute
Seeking the frequency
“TUNE•SELECT” knob
Press: AF/region code/TA mode setup
Turn: Adjusting the frequency/selecting the station list (FM mode only)
Displaying the station list (FM mode only)
Station selectors
AM/FM mode button
“POWER VOLUME” knob
Press: Turning the audio system on or off
Turn: Adjusting the volume
Search for the desired stations by turning the “TUNE•SELECT”
knob or pressing the “SEEK >” or “< TRACK” button.
Press and hold one of the station selectors to be set until you
hear a beep.
Press the “MODE” button until “AM” or “FM” is displayed.
Setting station presets
1
2
3
4
5
6
7
1
2

3855-3. Using the radio
5
Audio system
HILUX_OM_OM0K513E_(EE)
QUpdating the station list
Press (LIST)
The station list will be displayed.
Press (UPDATE) to update the list.
“Updating” is displayed while the searching is in process, beep will be
heard after the searching and then available stations will be listed on the
display.
To cancel the updating process, press (BACK).
QSelecting a station from the station list
Press (LIST).
The station list will be displayed.
Turn the “TUNE•SELECT” knob to select a station.
To return to the previous display, press (BACK).
Press the knob to tune in the station.
This feature allows your radio to receive station.
QListening to stations of the same network
Press the “TUNE•SELECT” knob.
Turn the knob to “RADIO” and press the knob.
Turn the knob as corresponds to the desired mode: “FM AF” or
“Region code”.
Press the knob to select “ON” or “OFF”.
FM AF ON mode:
The station among those of the same network with strong recep-
tion is selected.
Region code ON mode:
The station among those of the same network with strong recep-
tion and broadcasting the same program is selected.
Using the station list
RDS (Radio Data System)
1
2
1
2
3
1
2
3
4

3865-3. Using the radio
HILUX_OM_OM0K513E_(EE)

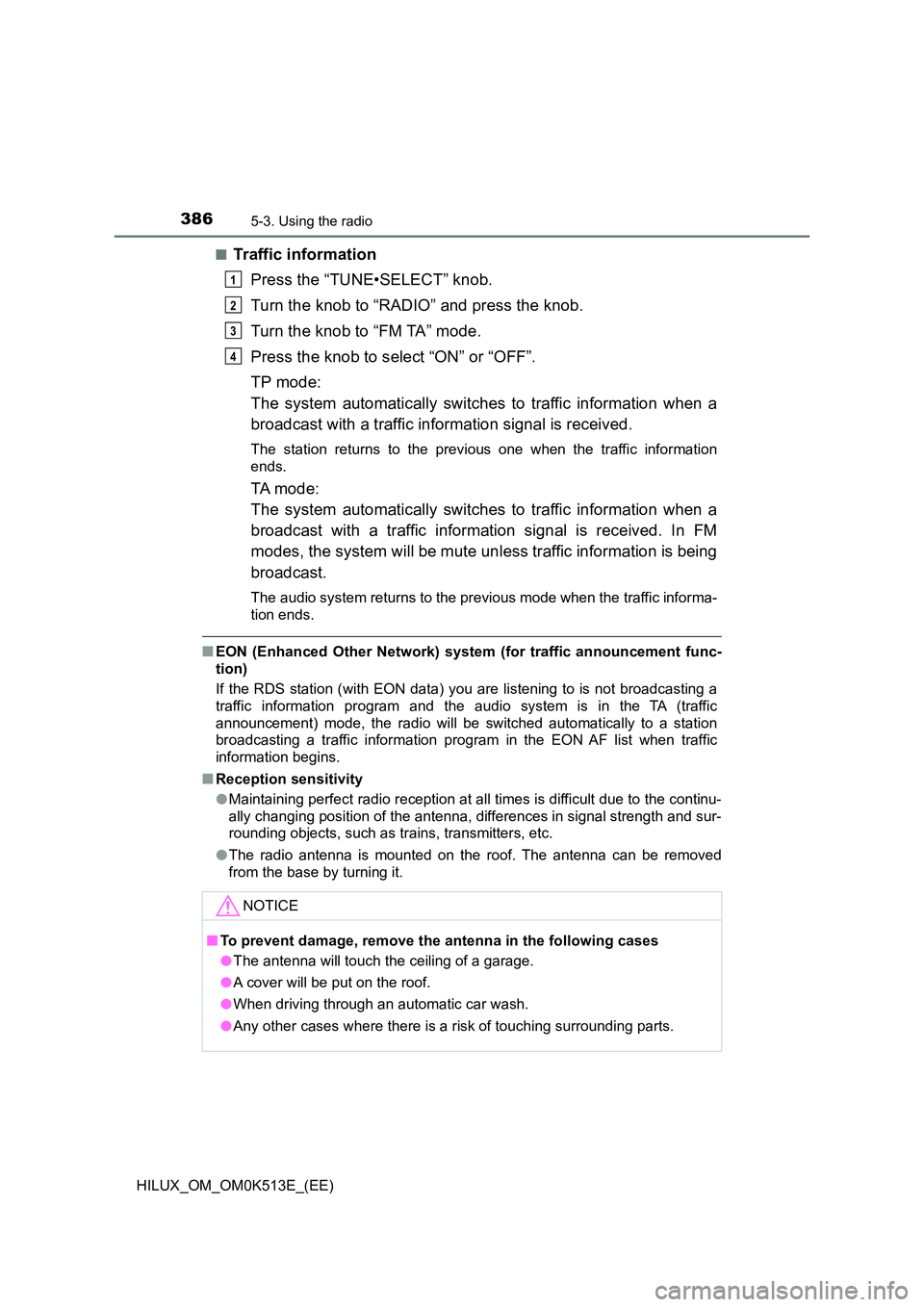

QTraffic information
Press the “TUNE•SELECT” knob.
Turn the knob to “RADIO” and press the knob.
Turn the knob to “FM TA” mode.
Press the knob to select “ON” or “OFF”.
TP mode:
The system automatically switches to traffic information when a
broadcast with a traffic information signal is received.
The station returns to the previous one when the traffic information
ends.
TA mode:
The system automatically switches to traffic information when a
broadcast with a traffic information signal is received. In FM
modes, the system will be mute unless traffic information is being
broadcast.
The audio system returns to the previous mode when the traffic informa-
tion ends.
Q EON (Enhanced Other Network) system (for traffic announcement func-
tion)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
Q Reception sensitivity
O Maintaining perfect radio reception at all times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
rounding objects, such as trains, transmitters, etc.
O The radio antenna is mounted on the roof. The antenna can be removed
from the base by turning it.
NOTICE
Q To prevent damage, remove the antenna in the following cases
O The antenna will touch the ceiling of a garage.
O A cover will be put on the roof.
O When driving through an automatic car wash.
O Any other cases where there is a risk of touching surrounding parts.
1
2
3
4

387
5
5-4. Playing an audio CD and MP3/WMA/AAC discs
Audio system
HILUX_OM_OM0K513E_(EE)

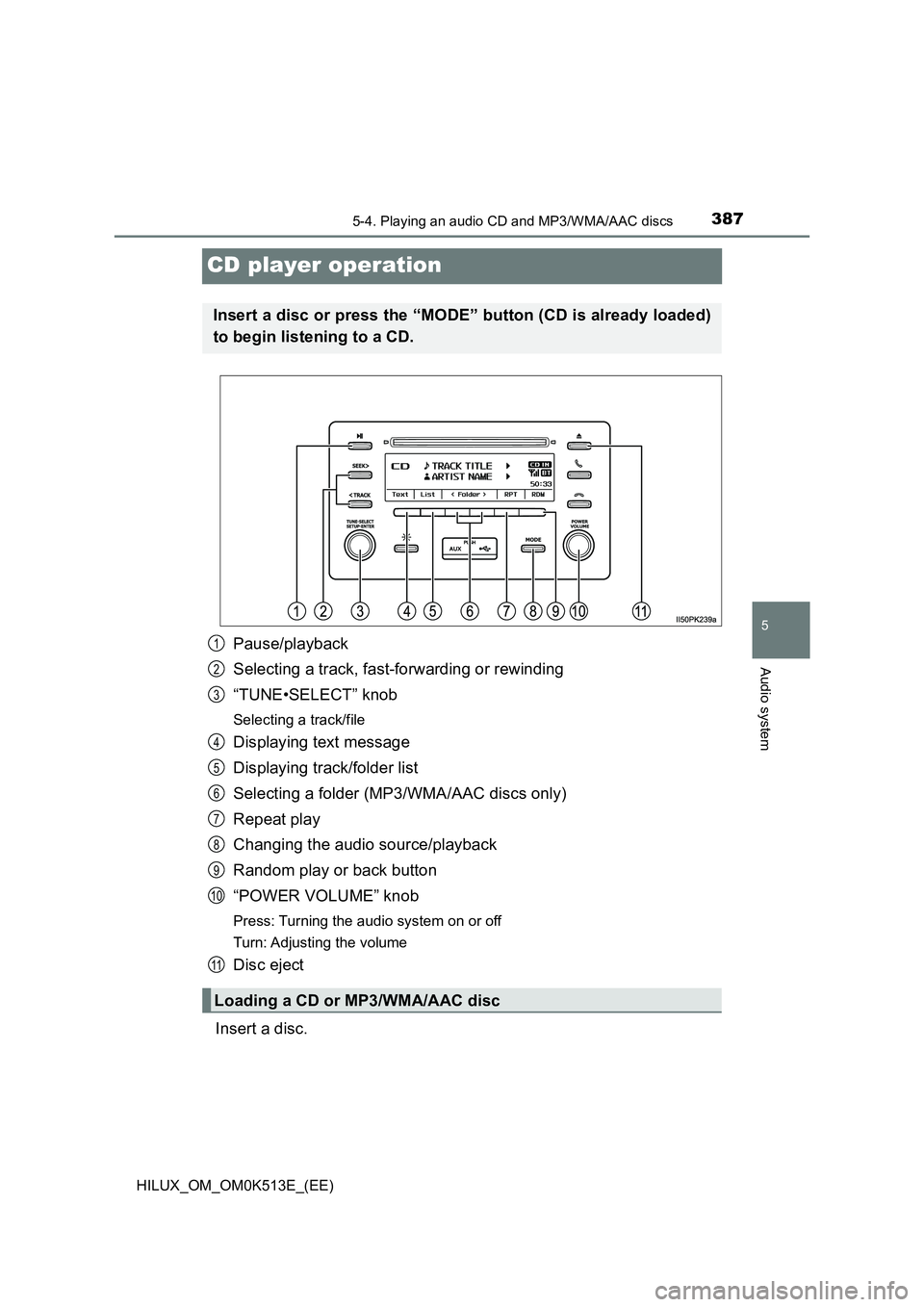

CD player operation
Pause/playback
Selecting a track, fast-forwarding or rewinding
“TUNE•SELECT” knob
Selecting a track/file
Displaying text message
Displaying track/folder list
Selecting a folder (MP3/WMA/AAC discs only)
Repeat play
Changing the audio source/playback
Random play or back button
“POWER VOLUME” knob
Press: Turning the audio system on or off
Turn: Adjusting the volume
Disc eject
Insert a disc.
Insert a disc or press the “MODE” button (CD is already loaded)
to begin listening to a CD.
Loading a CD or MP3/WMA/AAC disc
1
2
3
4
5
6
7
8
9
10
11

3885-4. Playing an audio CD and MP3/WMA/AAC discs
HILUX_OM_OM0K513E_(EE)

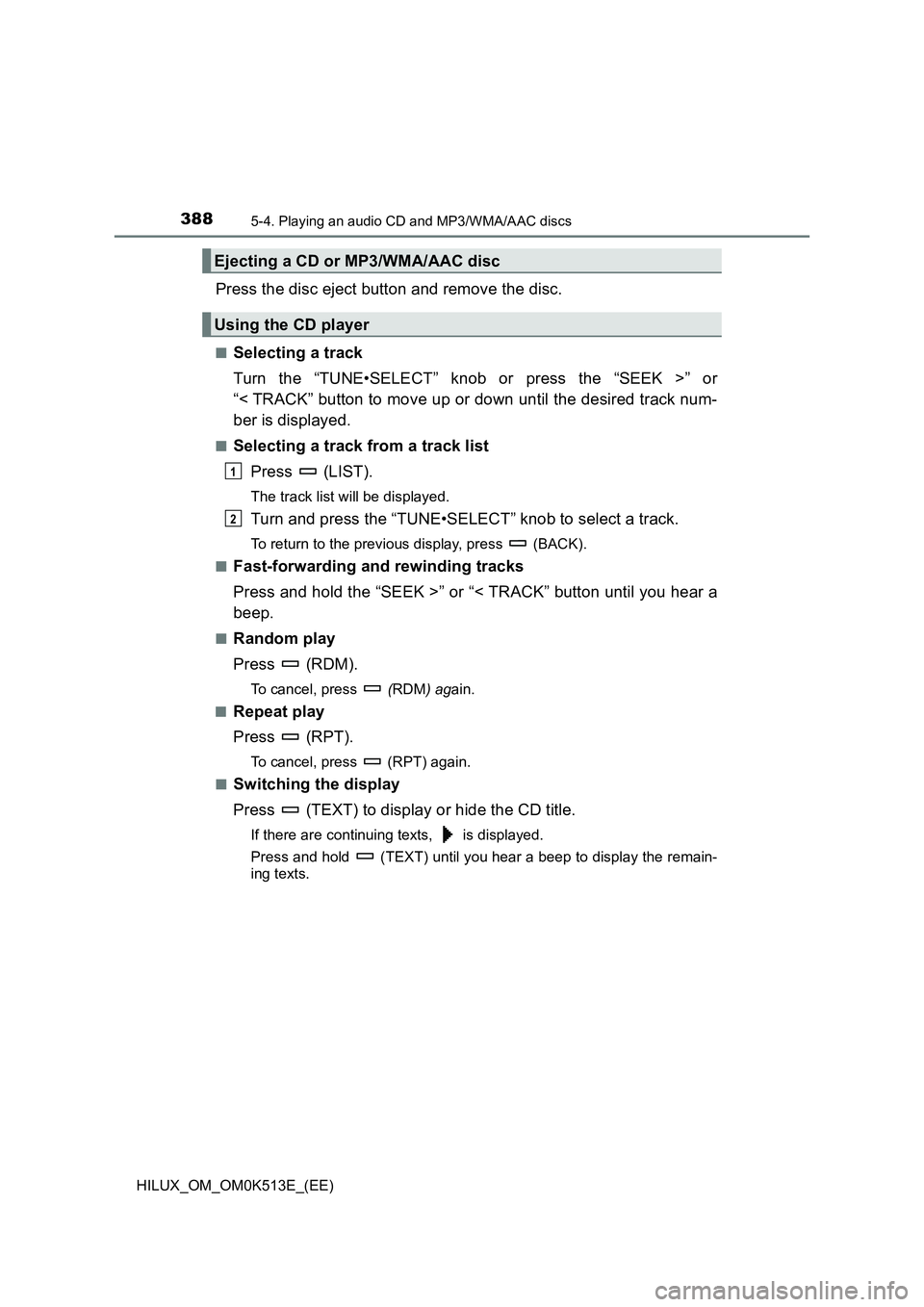

Press the disc eject button and remove the disc.
QSelecting a track
Turn the “TUNE•SELECT” knob or press the “SEEK >” or
“< TRACK” button to move up or down until the desired track num-
ber is displayed.
QSelecting a track from a track list
Press (LIST).
The track list will be displayed.
Turn and press the “TUNE•SELECT” knob to select a track.
To return to the previous display, press (BACK).
QFast-forwarding and rewinding tracks
Press and hold the “SEEK >” or “< TRACK” button until you hear a
beep.
QRandom play
Press (RDM).
To cancel, press (RDM) again.
QRepeat play
Press (RPT).
To cancel, press (RPT) again.
QSwitching the display
Press (TEXT) to display or hide the CD title.
If there are continuing texts, is displayed.
Press and hold (TEXT) until you hear a beep to display the remain-
ing texts.
Ejecting a CD or MP3/WMA/AAC disc
Using the CD player
1
2
