odometer TOYOTA HILUX 2022 Owners Manual

1292. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)

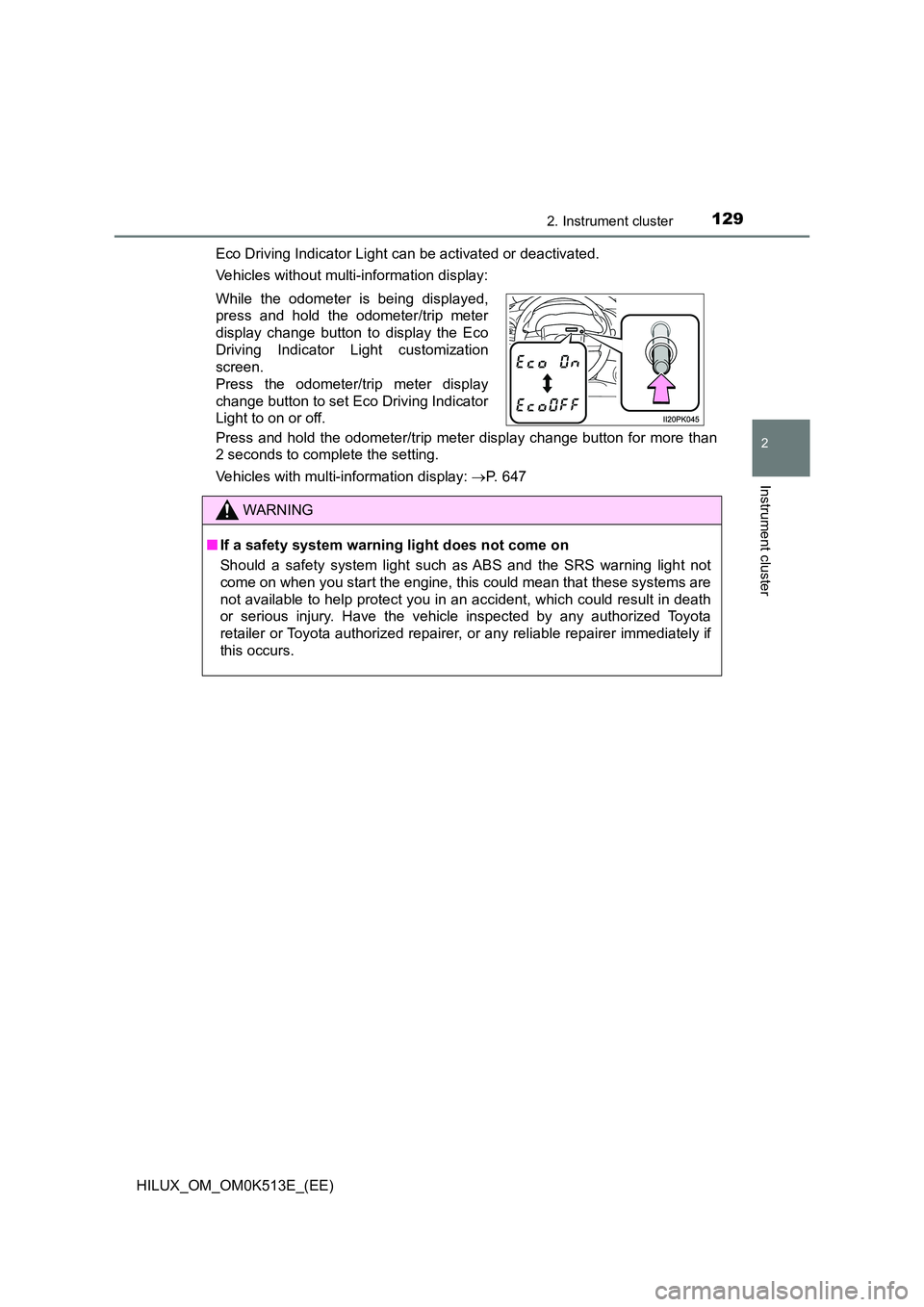

Eco Driving Indicator Light can be activated or deactivated.
Vehicles without multi-information display:
Press and hold the odometer/trip meter display change button for more than
2 seconds to complete the setting.
Vehicles with multi-information display: P. 647
While the odometer is being displayed,
press and hold the odometer/trip meter
display change button to display the Eco
Driving Indicator Light customization
screen.
Press the odometer/trip meter display
change button to set Eco Driving Indicator
Light to on or off.
WARNING
Q If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer immediately if
this occurs.

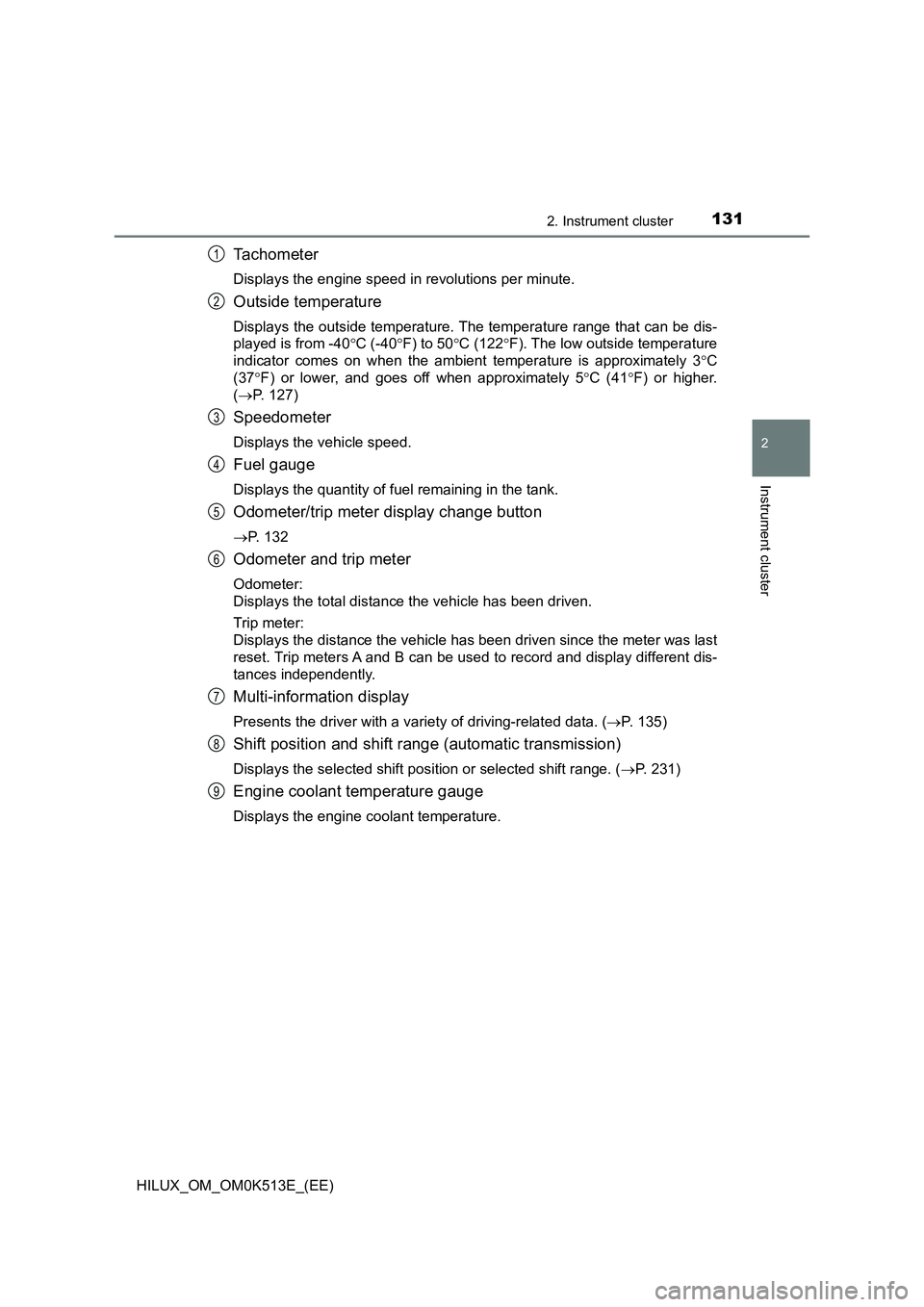

1312. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)
Tachometer
Displays the engine speed in revolutions per minute.
Outside temperature
Displays the outside temperature. The temperature range that can be dis-
played is from -40 C (-40F) to 50C (122F). The low outside temperature
indicator comes on when the ambient temperature is approximately 3 C
(37 F) or lower, and goes off when approximately 5C (41F) or higher.
( P. 127)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter display change button
P. 132
Odometer and trip meter
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Multi-information display
Presents the driver with a variety of driving-related data. ( P. 1 3 5 )
Shift position and shift range (automatic transmission)
Displays the selected shift position or selected shift range. (P. 231)
Engine coolant temperature gauge
Displays the engine coolant temperature.
1
2
3
4
5
6
7
8
9

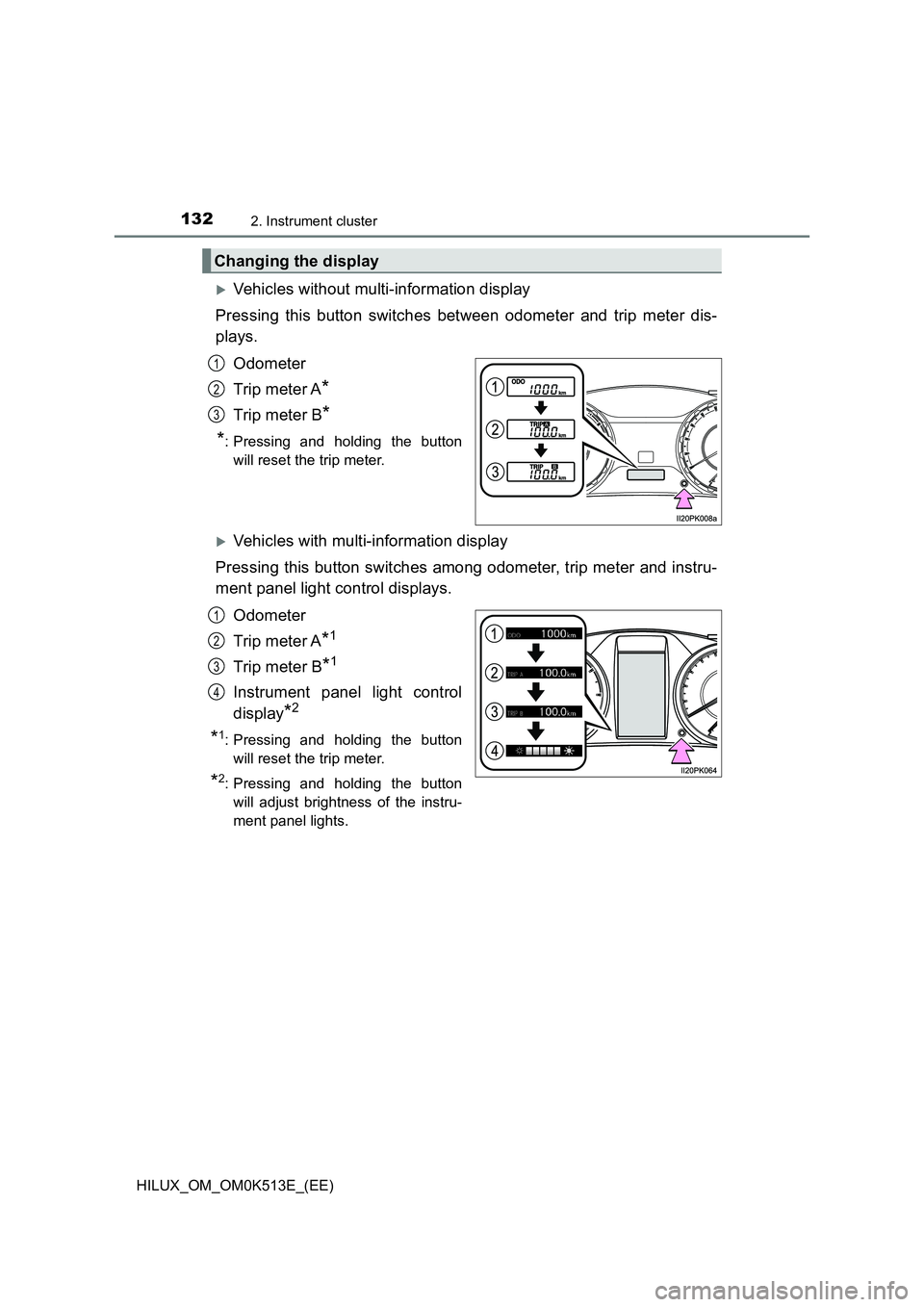

1322. Instrument cluster
HILUX_OM_OM0K513E_(EE)
Vehicles without multi-information display
Pressing this button switches between odometer and trip meter dis-
plays.
Odometer
Trip meter A*
Trip meter B*
*: Pressing and holding the button
will reset the trip meter.
Vehicles with multi-information display
Pressing this button switches among odometer, trip meter and instru-
ment panel light control displays.
Odometer
Trip meter A*1
Trip meter B*1
Instrument panel light control
display*2
*1: Pressing and holding the button
will reset the trip meter.
*2: Pressing and holding the button
will adjust brightness of the instru-
ment panel lights.
Changing the display
1
2
3
1
2
3
4

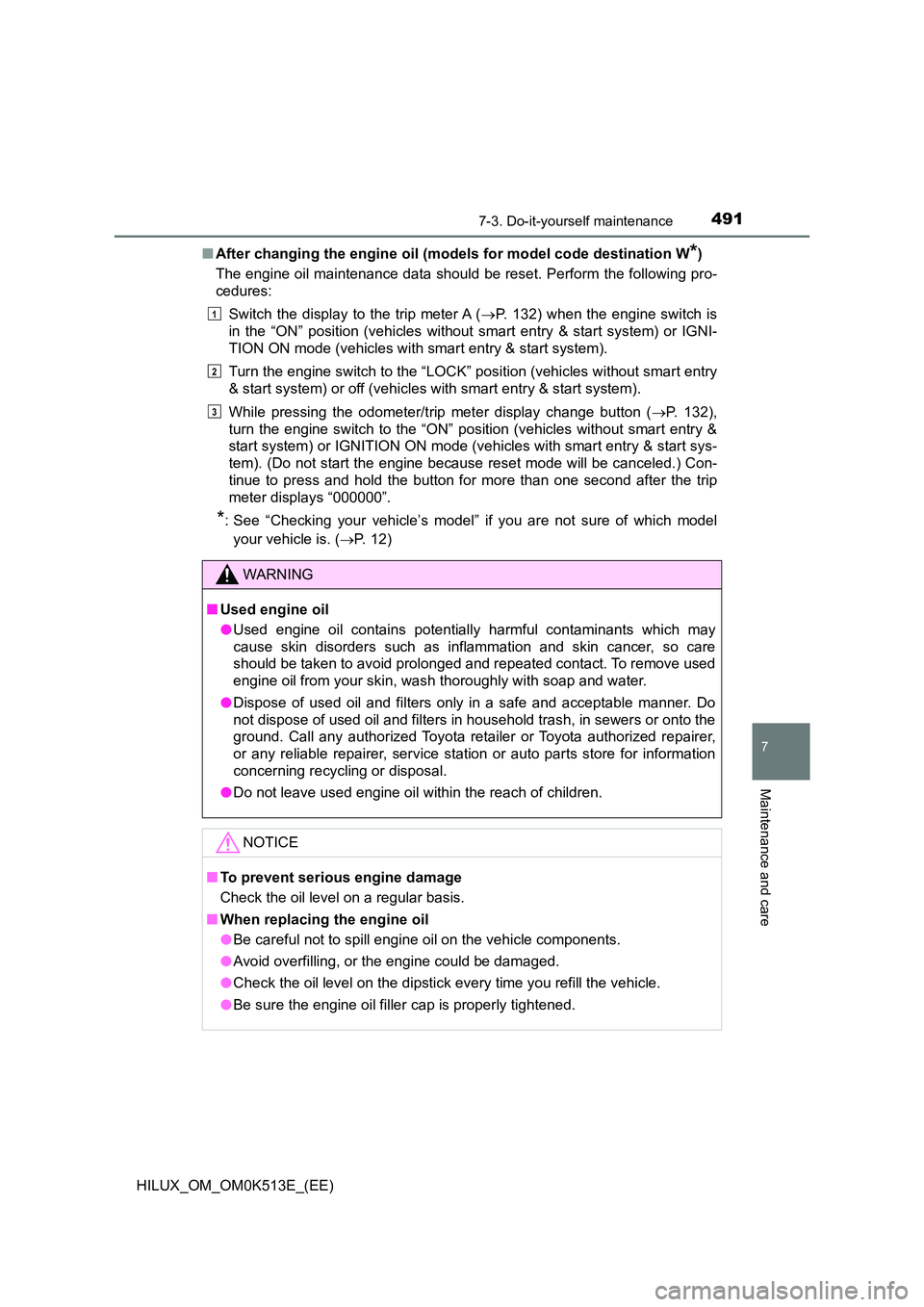

4917-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
QAfter changing the engine oil (models for model code destination W*)
The engine oil maintenance data should be reset. Perform the following pro-
cedures:
Switch the display to the trip meter A ( P. 132) when the engine switch is
in the “ON” position (vehicles without smart entry & start system) or IGNI-
TION ON mode (vehicles with smart entry & start system).
Turn the engine switch to the “LOCK” position (vehicles without smart entry
& start system) or off (vehicles with smart entry & start system).
While pressing the odometer/trip meter display change button ( P. 132),
turn the engine switch to the “ON” position (vehicles without smart entry &
start system) or IGNITION ON mode (vehicles with smart entry & start sys-
tem). (Do not start the engine because reset mode will be canceled.) Con-
tinue to press and hold the button for more than one second after the trip
meter displays “000000”.
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 2 )
WARNING
QUsed engine oil
O Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
O Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Toyota reta iler or Toyota authorized repairer,
or any reliable repairer, service station or auto parts store for information
concerning recycling or disposal.
O Do not leave used engine oil within the reach of children.
NOTICE
QTo prevent serious engine damage
Check the oil level on a regular basis.
Q When replacing the engine oil
O Be careful not to spill engine oil on the vehicle components.
O Avoid overfilling, or the engine could be damaged.
O Check the oil level on the dipstick every time you refill the vehicle.
O Be sure the engine oil filler cap is properly tightened.
1
2
3

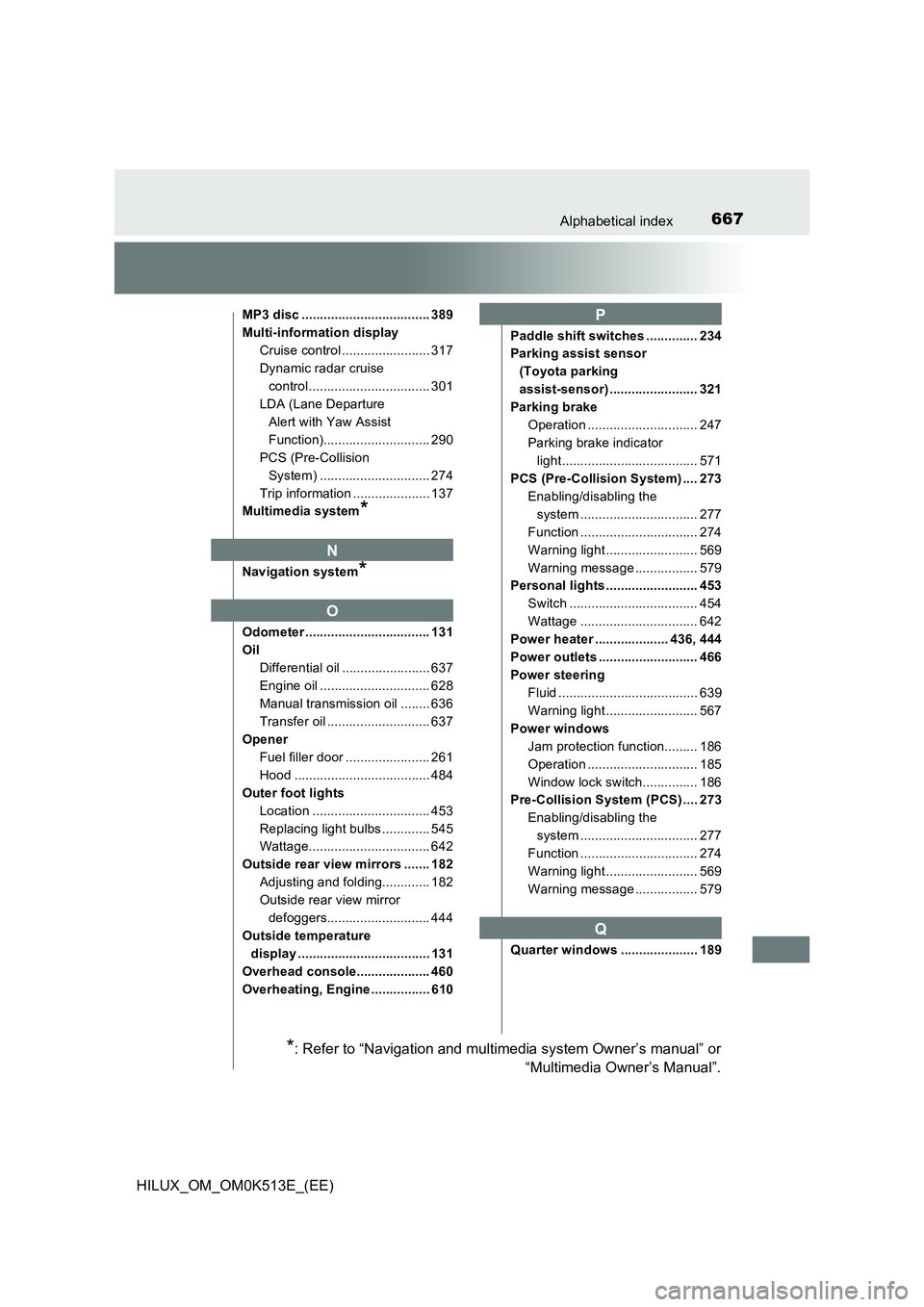

667Alphabetical index
HILUX_OM_OM0K513E_(EE)
MP3 disc ................................... 389
Multi-information display
Cruise control ........................ 317
Dynamic radar cruise
control................................. 301
LDA (Lane Departure
Alert with Yaw Assist
Function)............................. 290
PCS (Pre-Collision
System) .............................. 274
Trip information ..................... 137
Multimedia system*
Navigation system*
Odometer .................................. 131
Oil
Differential oil ........................ 637
Engine oil .............................. 628
Manual transmission oil ........ 636
Transfer oil ............................ 637
Opener
Fuel filler door ....................... 261
Hood ..................................... 484
Outer foot lights
Location ................................ 453
Replacing light bulbs ............. 545
Wattage................................. 642
Outside rear view mirrors ....... 182
Adjusting and folding............. 182
Outside rear view mirror
defoggers............................ 444
Outside temperature
display .................................... 131
Overhead console.................... 460
Overheating, Engine ................ 610
Paddle shift switches .............. 234
Parking assist sensor
(Toyota parking
assist-sensor) ........................ 321
Parking brake
Operation .............................. 247
Parking brake indicator
light..................................... 571
PCS (Pre-Collision System) .... 273
Enabling/disabling the
system ................................ 277
Function ................................ 274
Warning light ......................... 569
Warning message ................. 579
Personal lights ......................... 453
Switch ................................... 454
Wattage ................................ 642
Power heater .................... 436, 444
Power outlets ........................... 466
Power steering
Fluid ...................................... 639
Warning light ......................... 567
Power windows
Jam protection function......... 186
Operation .............................. 185
Window lock switch............... 186
Pre-Collision System (PCS) .... 273
Enabling/disabling the
system ................................ 277
Function ................................ 274
Warning light ......................... 569
Warning message ................. 579
Quarter windows ..................... 189
N
O
P
Q
*: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.
