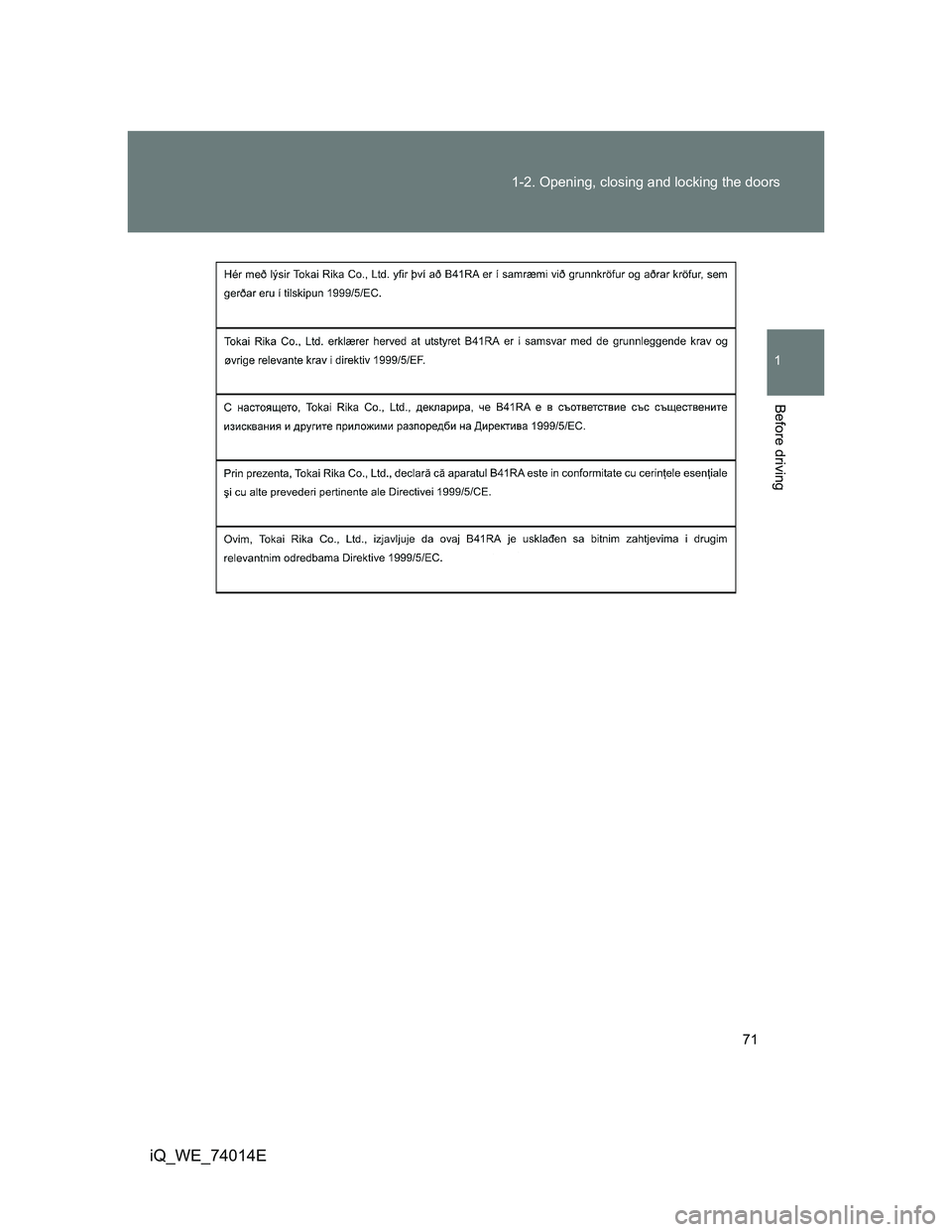

71 1-2. Opening, closing and locking the doors
1
Before driving
iQ_WE_74014E

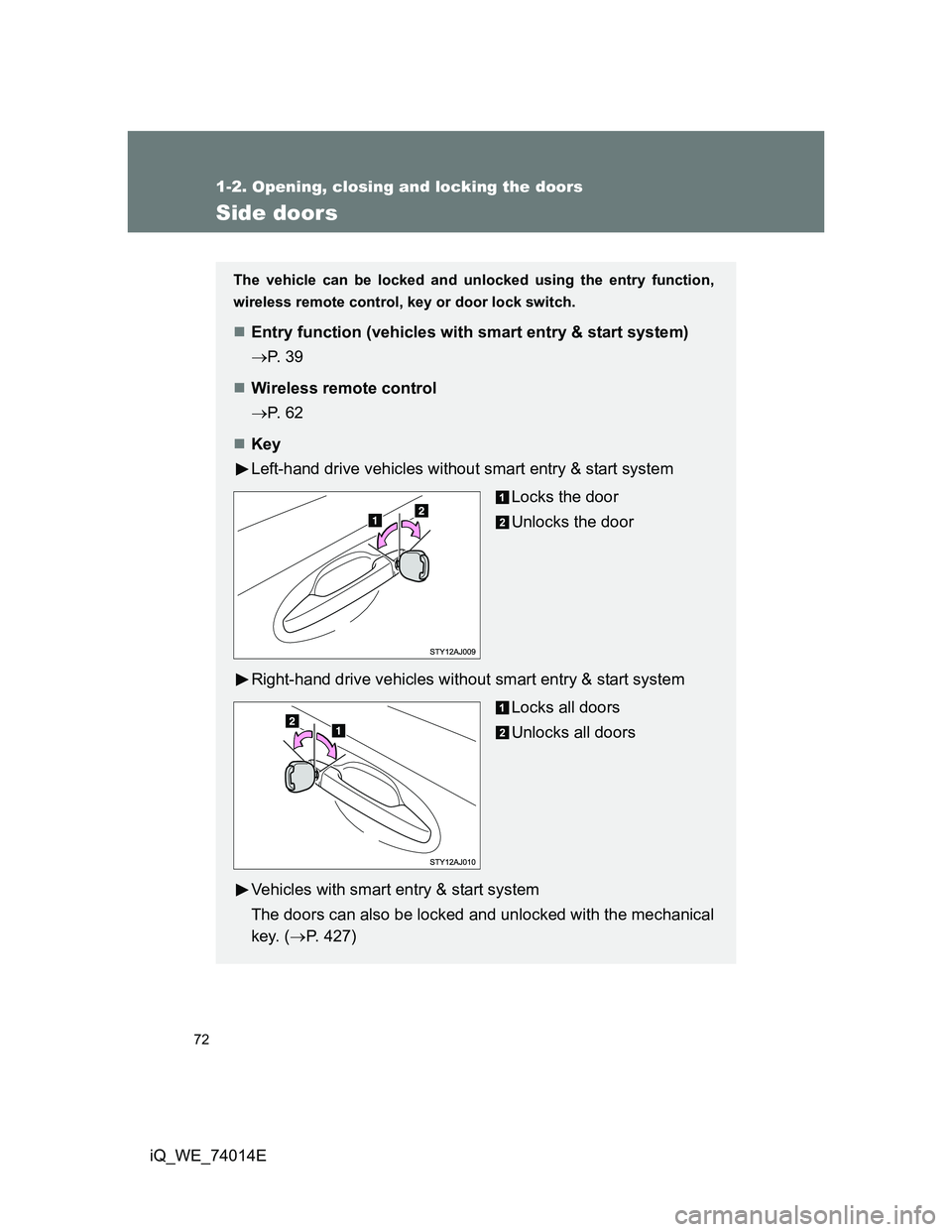

72
1-2. Opening, closing and locking the doors
iQ_WE_74014E
Side doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control, key or door lock switch.
Entry function (vehicles with smart entry & start system)
P. 3 9
Wireless remote control
P. 6 2
Key
Left-hand drive vehicles without smart entry & start system
Locks the door
Unlocks the door
Right-hand drive vehicles without smart entry & start system
Locks all doors
Unlocks all doors
Vehicles with smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. (P. 427)

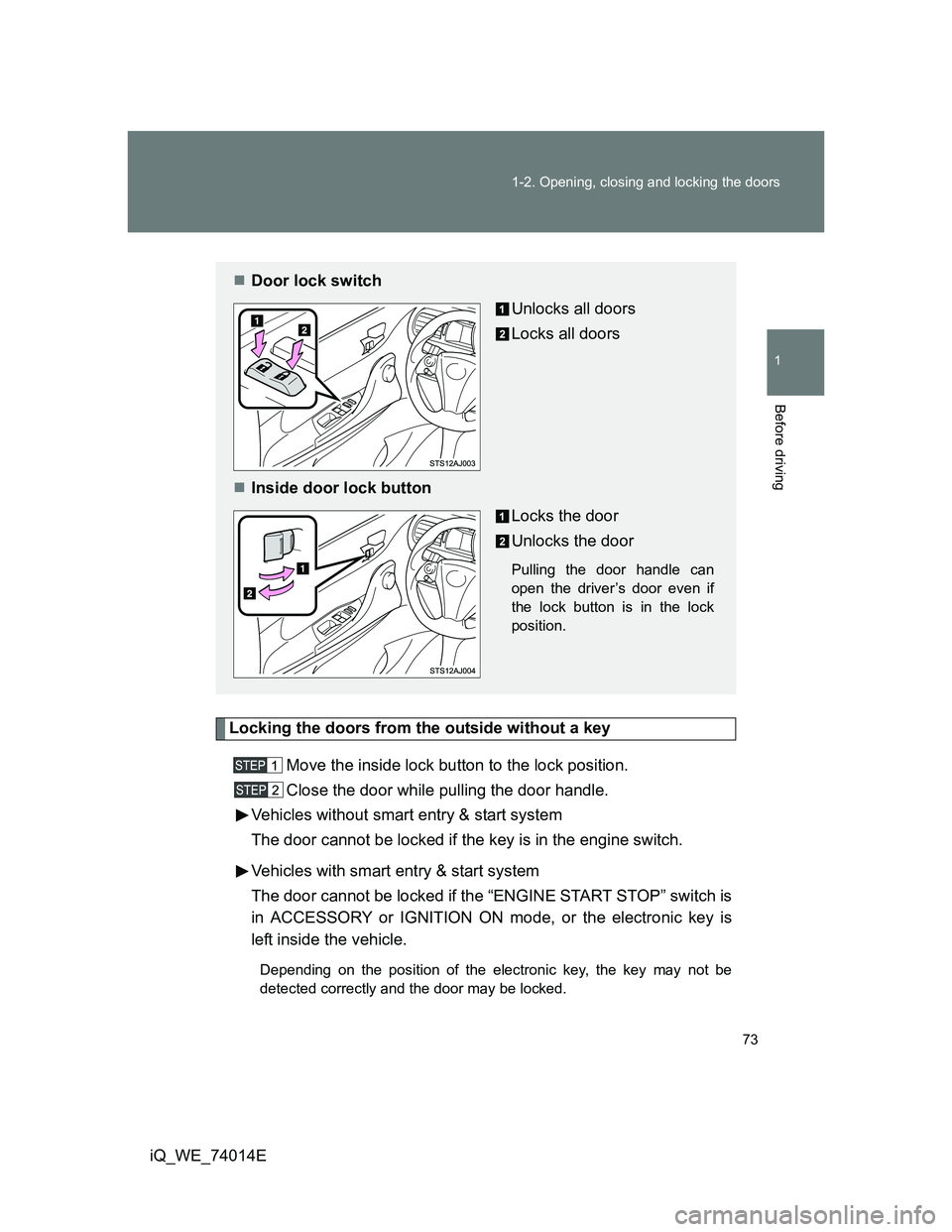

73 1-2. Opening, closing and locking the doors
1
Before driving
iQ_WE_74014E
Locking the doors from the outside without a key
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
Vehicles without smart entry & start system
The door cannot be locked if the key is in the engine switch.
Vehicles with smart entry & start system
The door cannot be locked if the “ENGINE START STOP” switch is
in ACCESSORY or IGNITION ON mode, or the electronic key is
left inside the vehicle.
Depending on the position of the electronic key, the key may not be
detected correctly and the door may be locked.
Door lock switch
Unlocks all doors
Locks all doors
Inside door lock button
Locks the door
Unlocks the door
Pulling the door handle can
open the driver’s door even if
the lock button is in the lock
position.

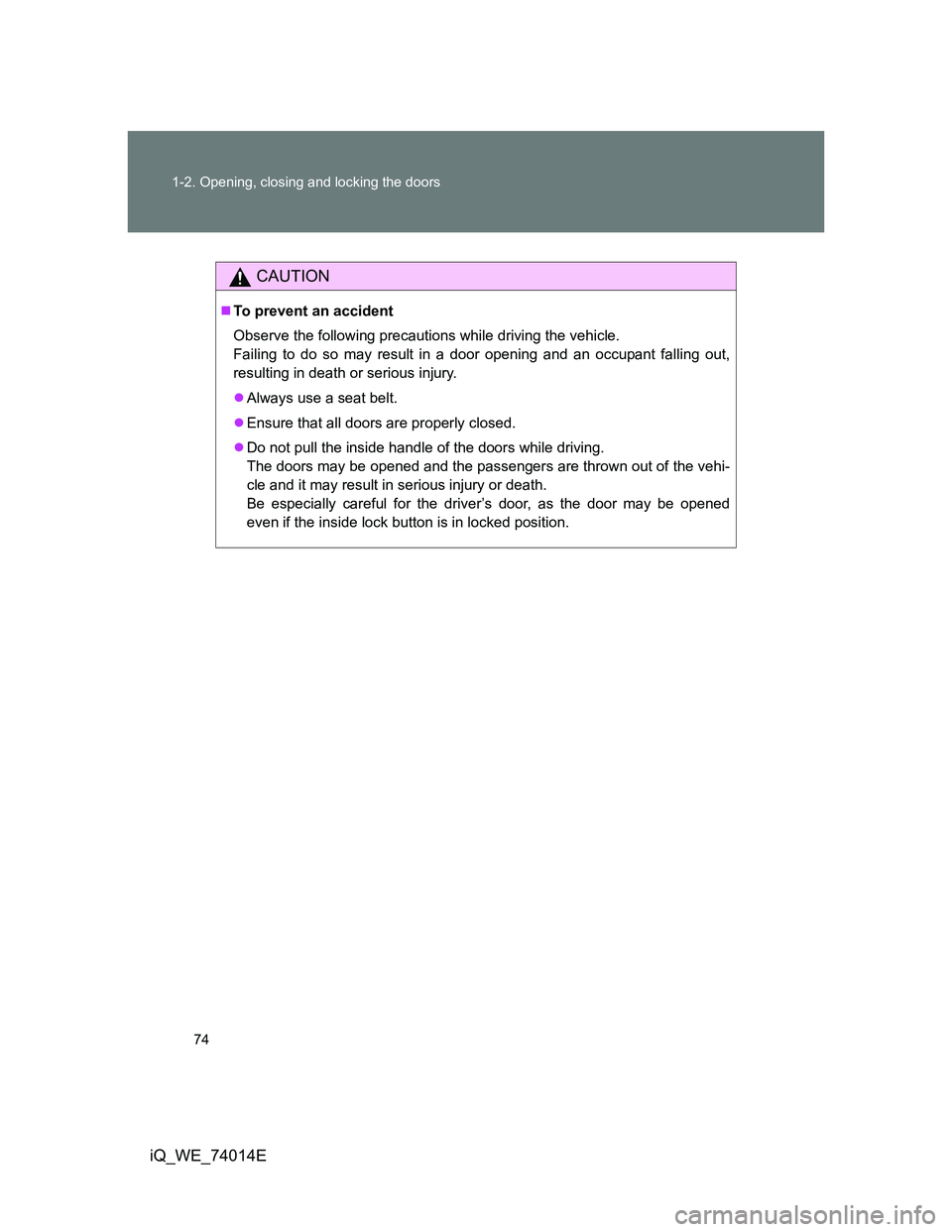

74 1-2. Opening, closing and locking the doors
iQ_WE_74014E
CAUTION
To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
Always use a seat belt.
Ensure that all doors are properly closed.
Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the driver’s door, as the door may be opened
even if the inside lock button is in locked position.

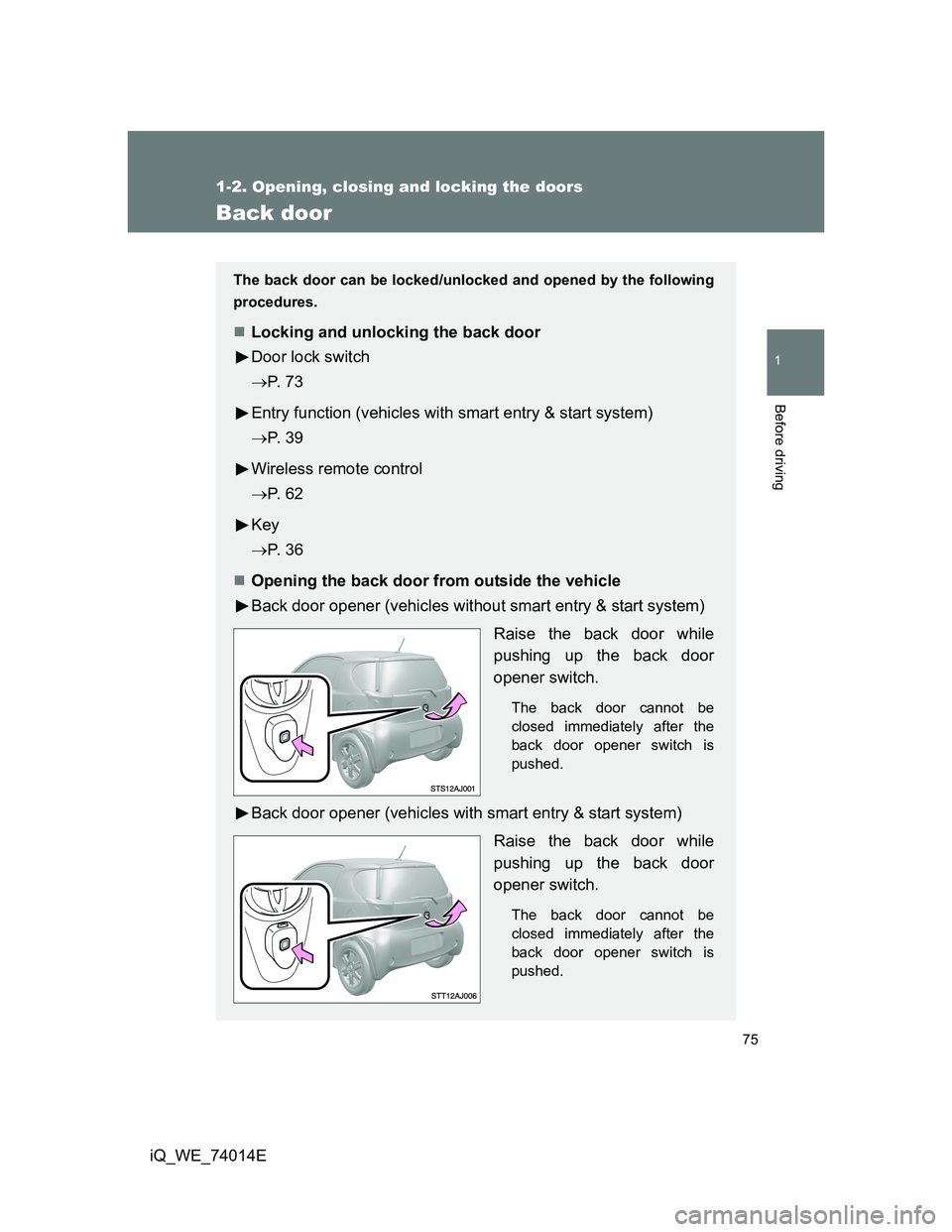

75
1
1-2. Opening, closing and locking the doors
Before driving
iQ_WE_74014E
Back door
The back door can be locked/unlocked and opened by the following
procedures.
Locking and unlocking the back door
Door lock switch
P. 7 3
Entry function (vehicles with smart entry & start system)
P. 3 9
Wireless remote control
P. 6 2
Key
P. 3 6
Opening the back door from outside the vehicle
Back door opener (vehicles without smart entry & start system)
Raise the back door while
pushing up the back door
opener switch.
The back door cannot be
closed immediately after the
back door opener switch is
pushed.
Back door opener (vehicles with smart entry & start system)
Raise the back door while
pushing up the back door
opener switch.
The back door cannot be
closed immediately after the
back door opener switch is
pushed.

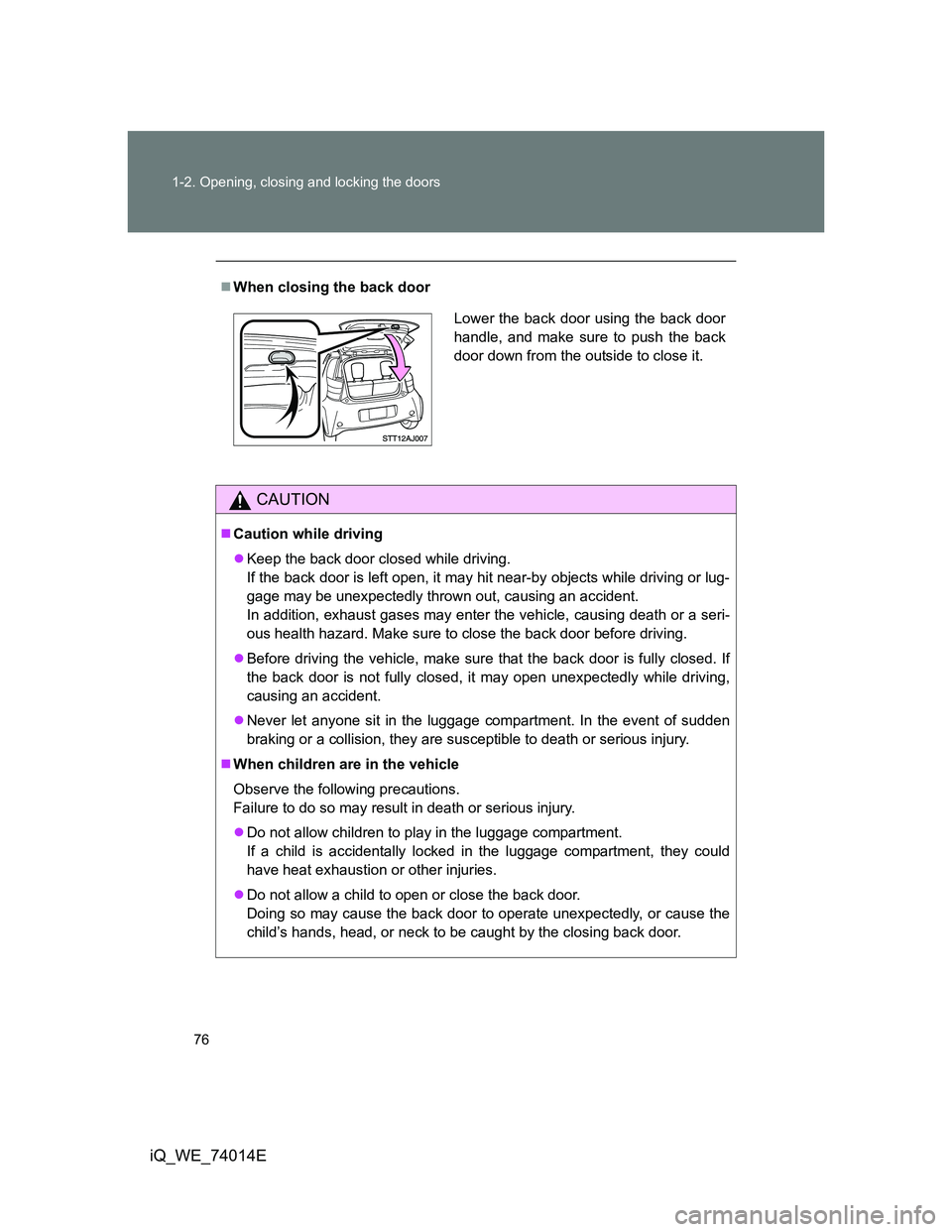

76 1-2. Opening, closing and locking the doors
iQ_WE_74014E
When closing the back door
CAUTION
Caution while driving
Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
Do not allow a child to open or close the back door.
Doing so may cause the back door to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
Lower the back door using the back door
handle, and make sure to push the back
door down from the outside to close it.

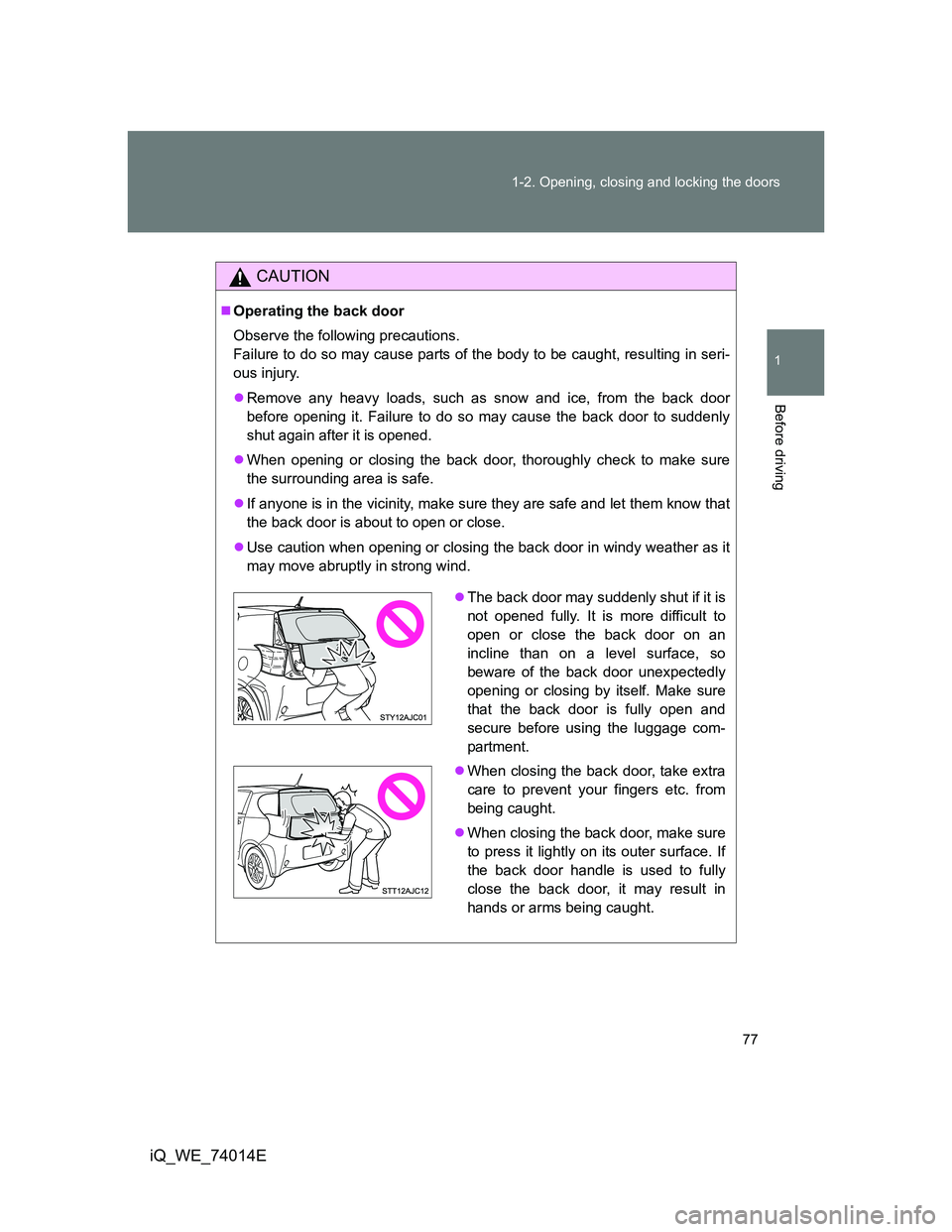

77 1-2. Opening, closing and locking the doors
1
Before driving
iQ_WE_74014E
CAUTION
Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in seri-
ous injury.
Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

78 1-2. Opening, closing and locking the doors
iQ_WE_74014E

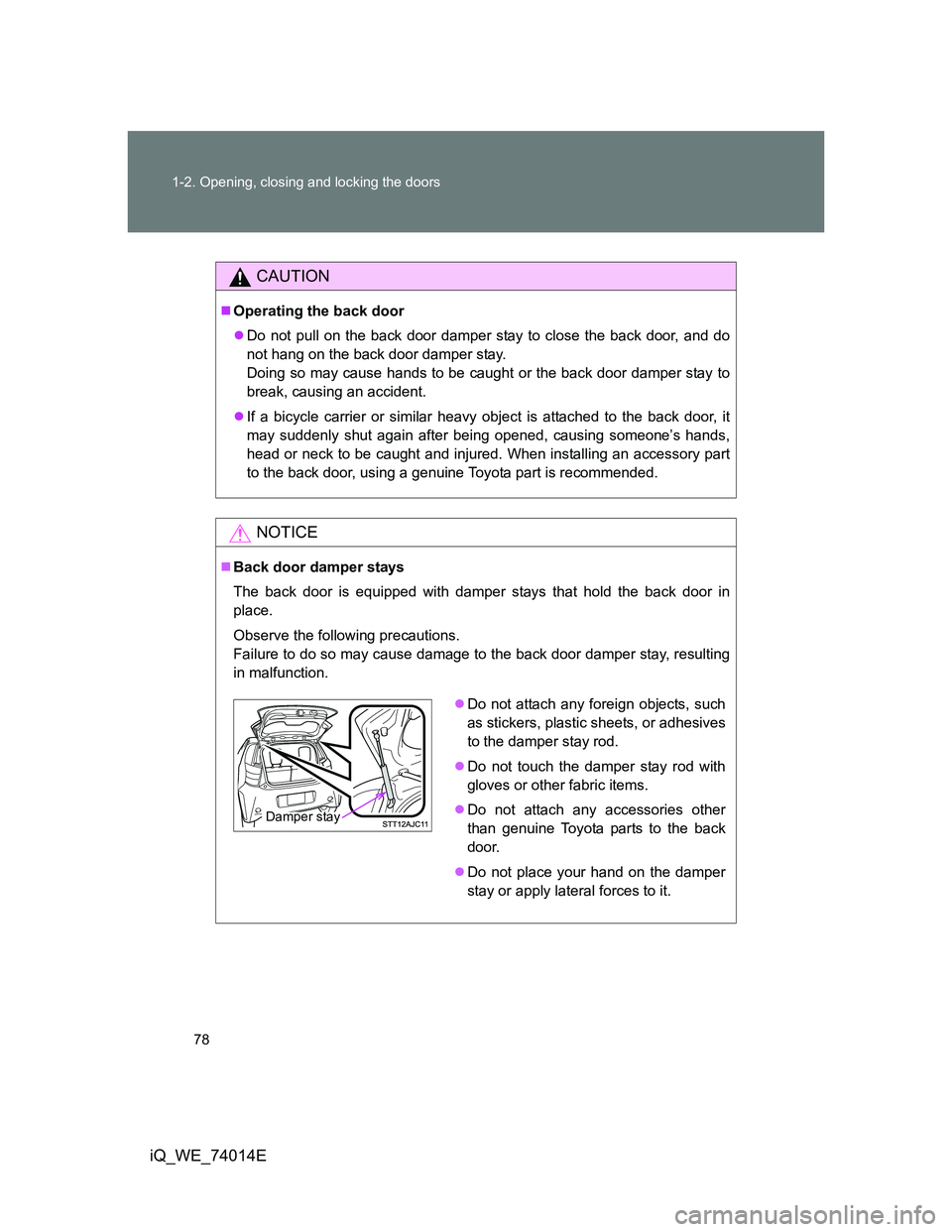

CAUTION
Operating the back door
Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.
NOTICE
Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
Do not touch the damper stay rod with
gloves or other fabric items.
Do not attach any accessories other
than genuine Toyota parts to the back
door.
Do not place your hand on the damper
stay or apply lateral forces to it.
Damper stay

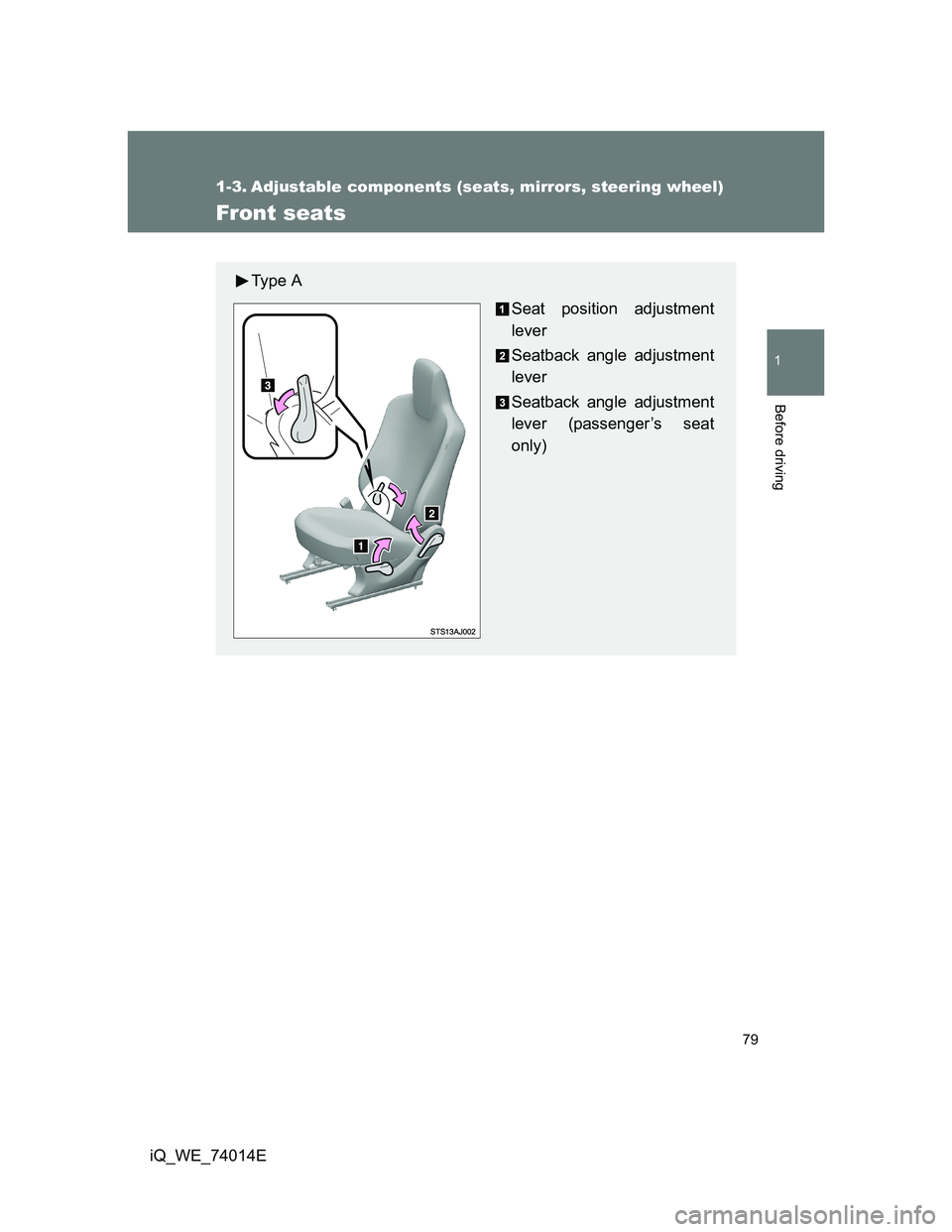

79
1
Before driving
iQ_WE_74014E
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
Ty p e A
Seat position adjustment
lever
Seatback angle adjustment
lever
Seatback angle adjustment
lever (passenger’s seat
only)

80 1-3. Adjustable components (seats, mirrors, steering wheel)
iQ_WE_74014E
Moving the front passenger’s seat
For easy access to the rear seat.
Lift up the seatback angle adjustment lever.
When the seatback is folded to the forward limit, the seat can slide
back and forth.
Slide the seat to the front-most position.
After rear passengers are in, lift up the seatback and return the seat
until it locks.
By raising the seatback, the seat locks at the upright position.

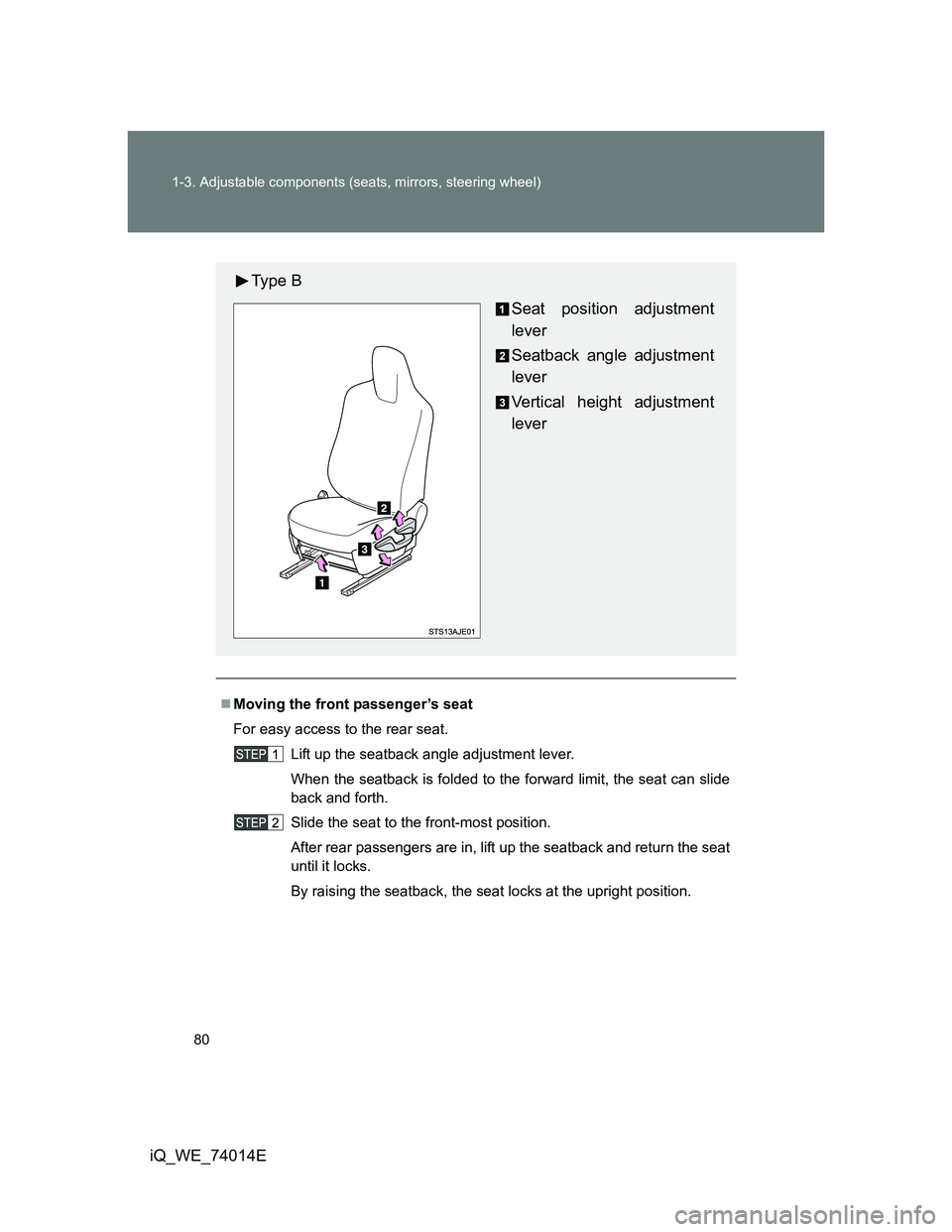

Ty p e B
Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever
