TOYOTA IQ 2014 Owners Manual

241
4-3. Do-it-yourself maintenance
4
Maintenance and care
Open the case cover using a
coin protected with tape etc.
and remove the depleted bat-
tery.
Insert a new battery with the
“+” terminal facing up.
For type C electronic key (
P. 24)
Lift the cover.
Insert the screw driver in the
slot and push down.
Remove the cover.
Insert the screw driver in the
bottom of the key and push
down.

242 4-3. Do-it-yourself maintenance
■If the key battery is discharged
The following symptoms may occur.
●The wireless remote control will not function properly.
● The operational range is reduced.
■ Use a lithium battery
●Batteries can be purchased at your Scion dealer, jewelers, or camera
stores.
● Replace only with the same or equivalent type recommended by your
Scion dealer.
● Dispose of used batteries according to local laws.
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.

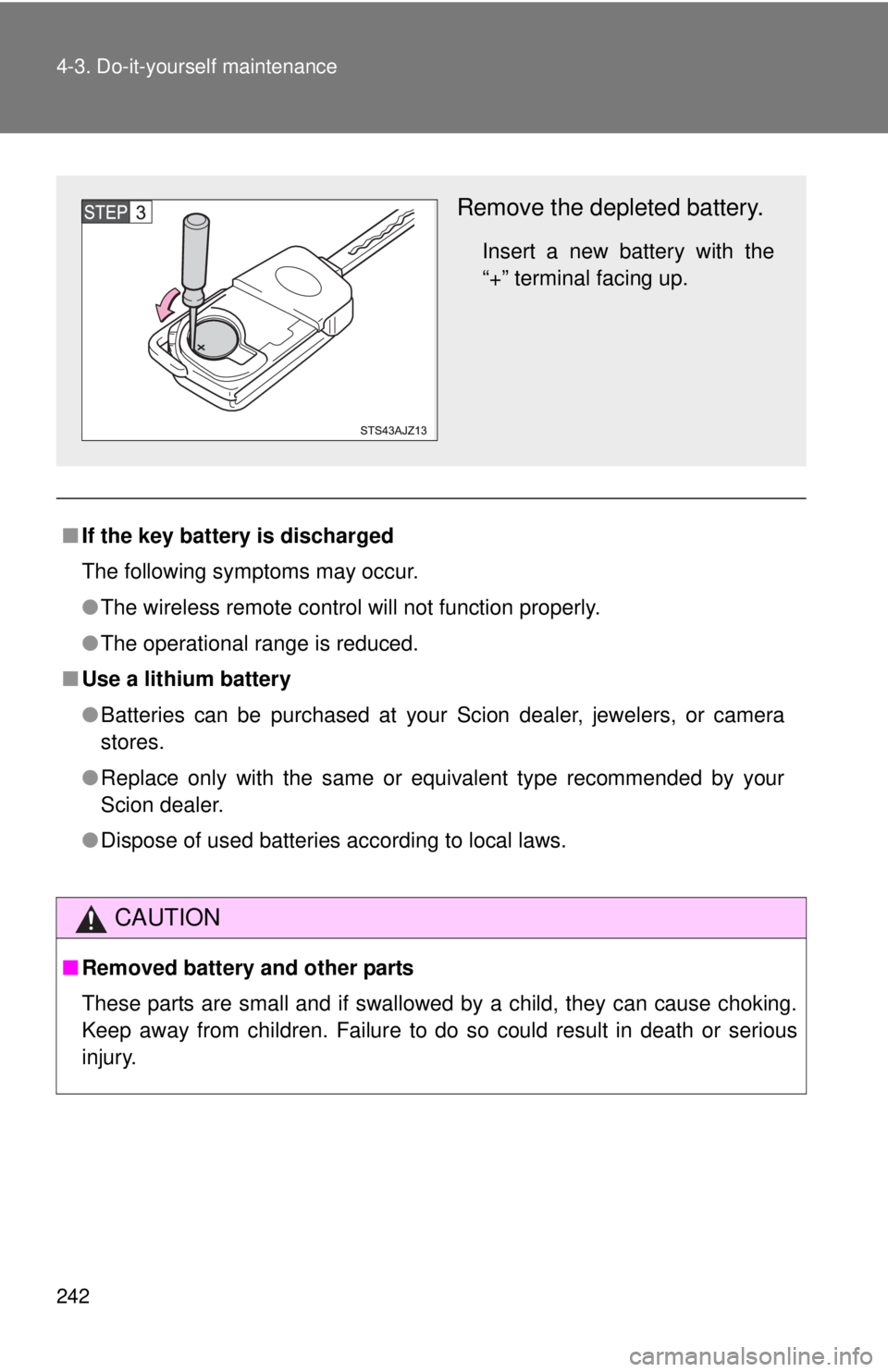

Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.

243
4-3. Do-it-yourself maintenance
4
Maintenance and care
NOTICE
■
For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend either of the battery terminals.

244
4-3. Do-it-yourself maintenance

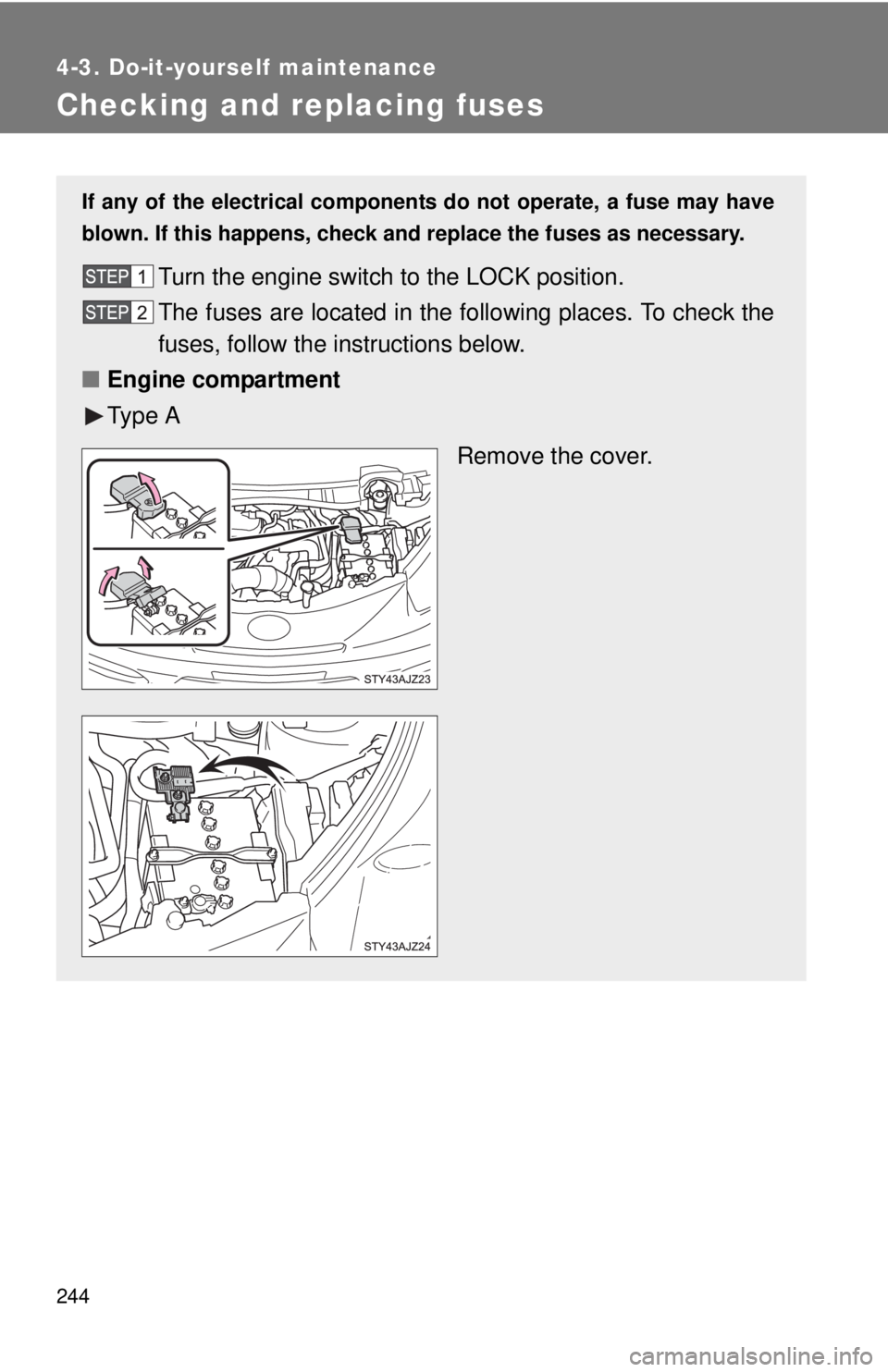

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the engine switch to the LOCK position.
The fuses are located in the following places. To check the
fuses, follow the in structions below.
■ Engine compartment
Ty p e A
Remove the cover.

245
4-3. Do-it-yourself maintenance
4
Maintenance and care

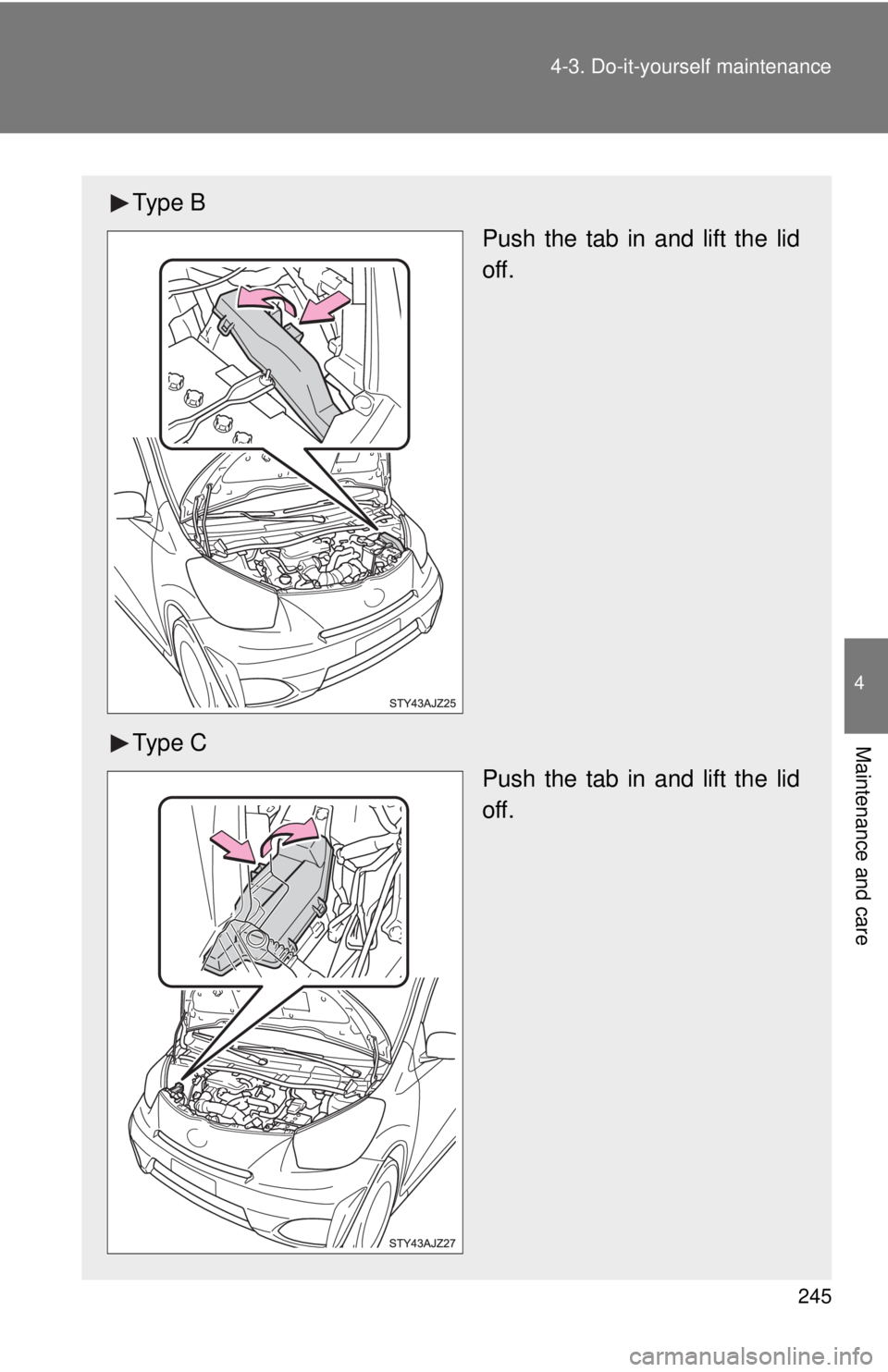

Ty p e B
Push the tab in and lift the lid
off.
Ty p e C Push the tab in and lift the lid
off.

246 4-3. Do-it-yourself maintenance

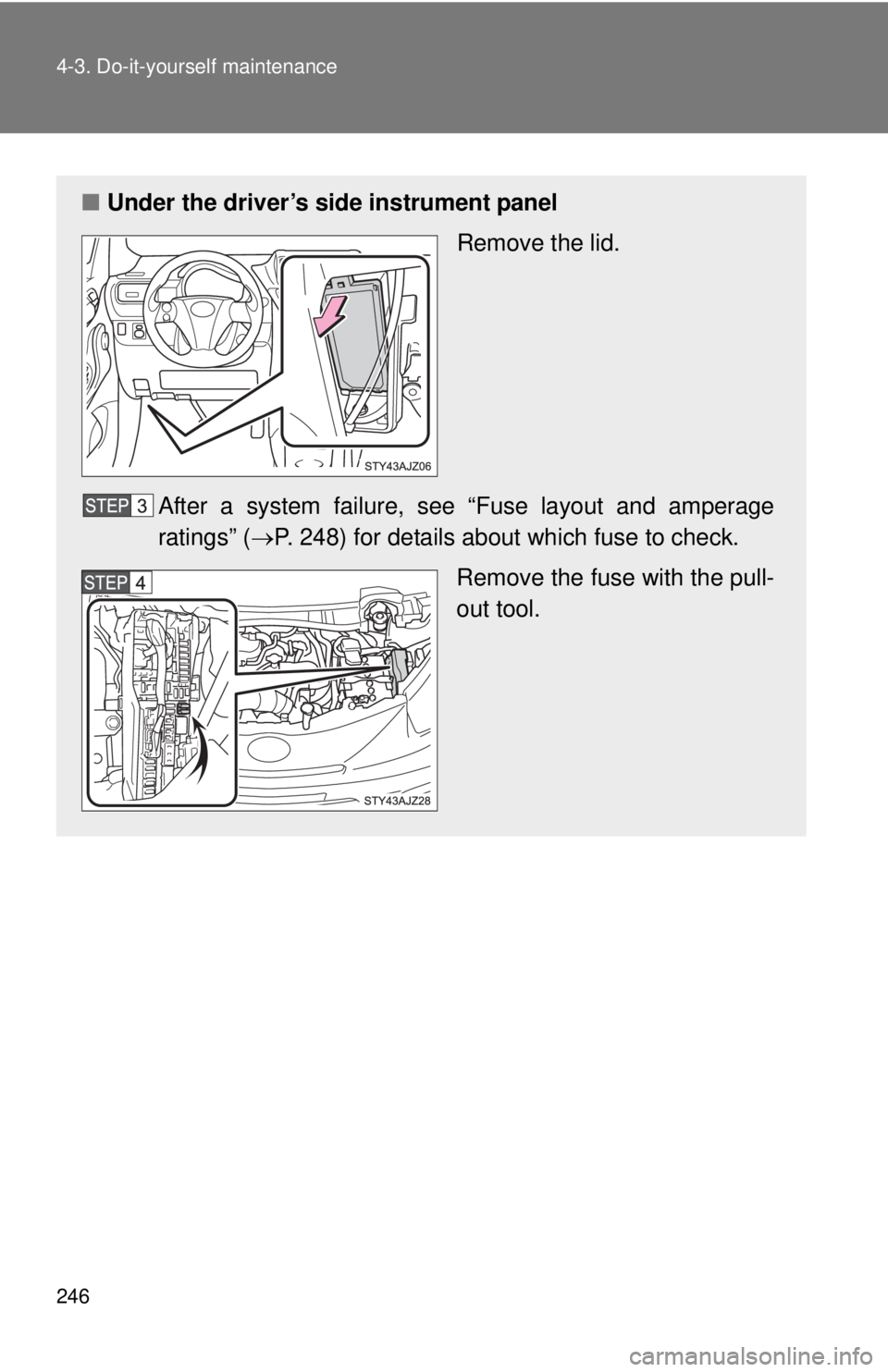

■Under the driver’s side instrument panel
Remove the lid.
After a system failure, s ee “Fuse layout and amperage
ratings” ( P. 248) for details about which fuse to check.
Remove the fuse with the pull-
out tool.

247
4-3. Do-it-yourself maintenance
4
Maintenance and care

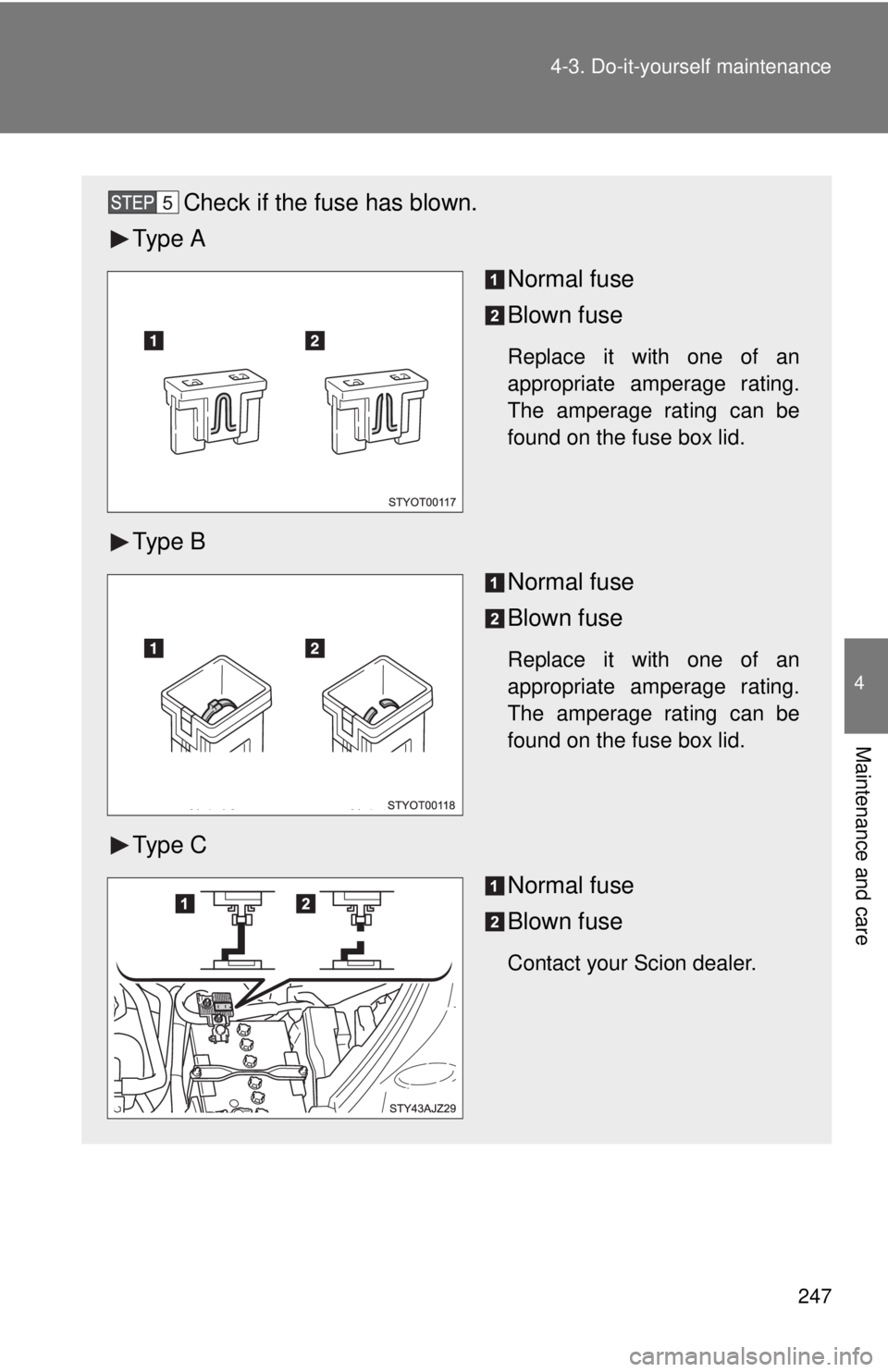

Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Contact your Scion dealer.

248 4-3. Do-it-yourself maintenance

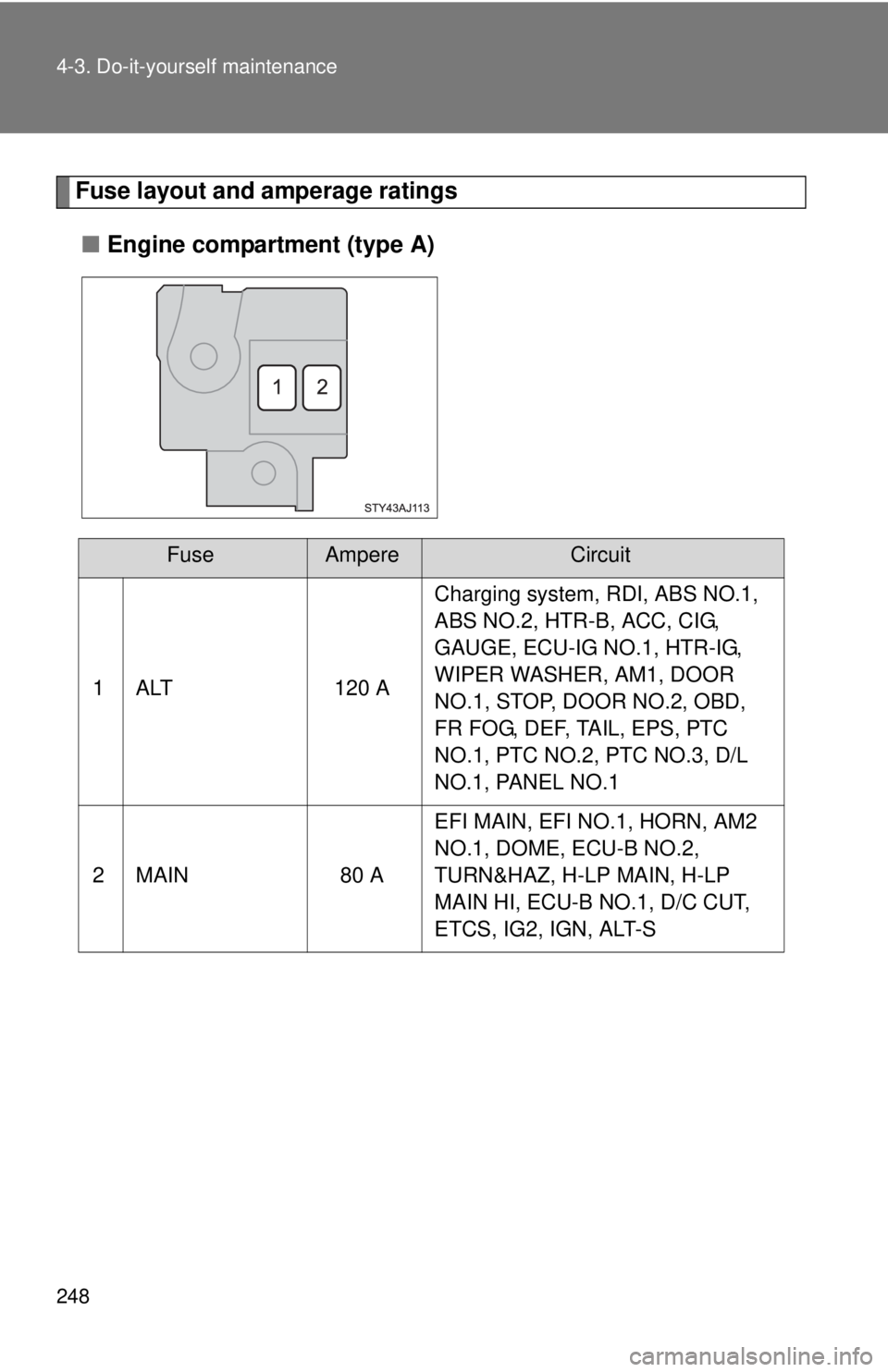

Fuse layout and amperage ratings■ Engine compartment (type A)
FuseAmpereCircuit
1 ALT 120 A Charging system, RDI, ABS NO.1,
ABS NO.2, HTR-B, ACC, CIG,
GAUGE, ECU-IG NO.1, HTR-IG,
WIPER WASHER, AM1, DOOR
NO.1, STOP, DOOR NO.2, OBD,
FR FOG, DEF, TAIL, EPS, PTC
NO.1, PTC NO.2, PTC NO.3, D/L
NO.1, PANEL NO.1
2 MAIN 80 A EFI MAIN, EFI NO.1, HORN, AM2
NO.1, DOME, ECU-B NO.2,
TURN&HAZ, H-LP MAIN, H-LP
MAIN HI, ECU-B NO.1, D/C CUT,
ETCS, IG2, IGN, ALT-S

249
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

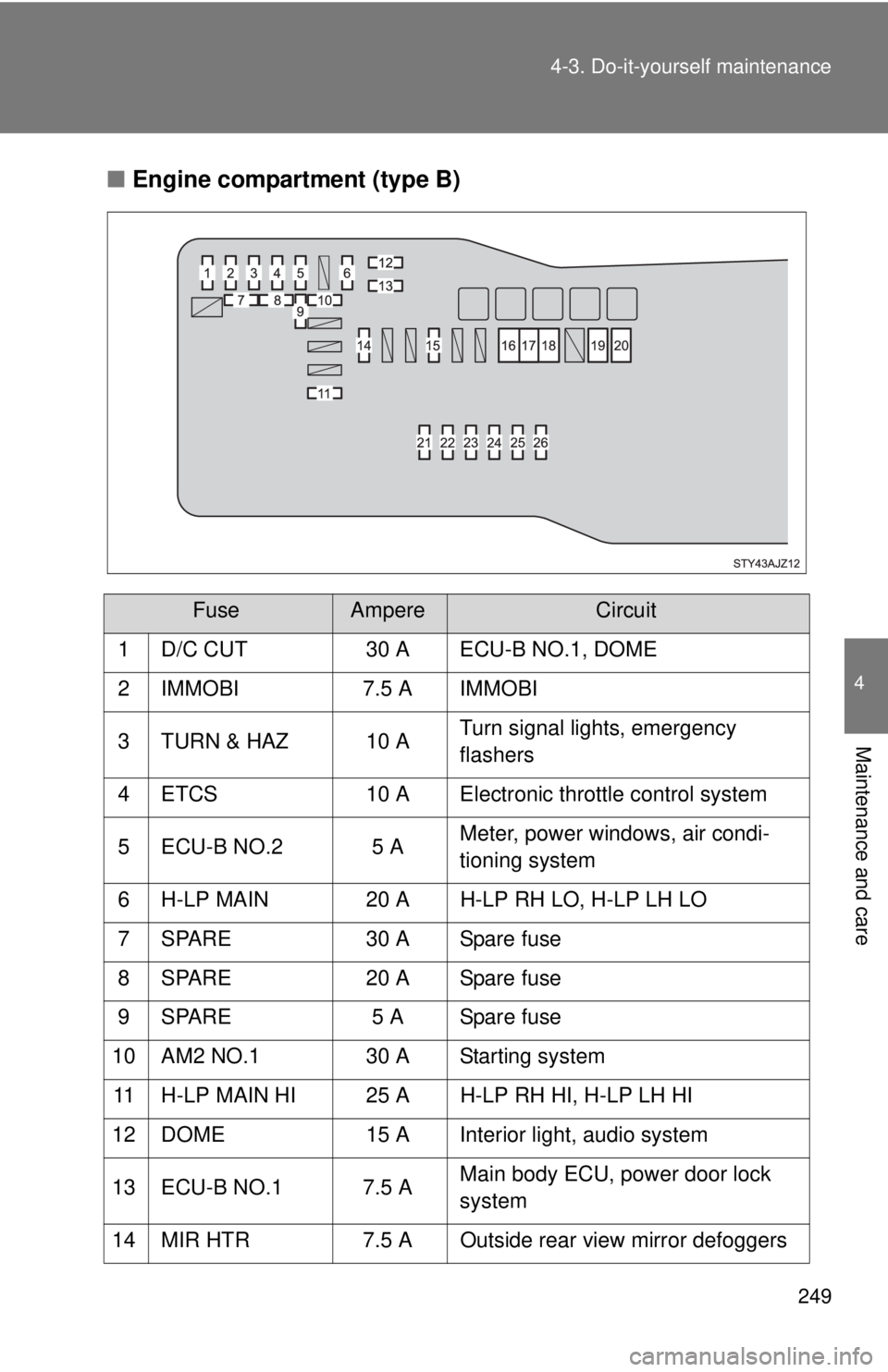

Engine compartment (type B)
FuseAmpereCircuit
1 D/C CUT 30 A ECU-B NO.1, DOME
2 IMMOBI 7.5 A IMMOBI
3 TURN & HAZ 10 A Turn signal lights, emergency
flashers
4 ETCS 10 A Electronic throttle control system
5 ECU-B NO.2 5 A Meter, power windows, air condi-
tioning system
6 H-LP MAIN 20 A H-LP RH LO, H-LP LH LO
7 SPARE 30 A Spare fuse
8 SPARE 20 A Spare fuse
9 SPARE 5 A Spare fuse
10 AM2 NO.1 30 A Starting system 11 H-LP MAIN HI 25 A H-LP RH HI, H-LP LH HI
12 DOME 15 A Interior light, audio system
13 ECU-B NO.1 7.5 A Main body ECU, power door lock
system
14 MIR HTR 7.5 A Outside rear view mirror defoggers

250 4-3. Do-it-yourself maintenance
15 DEFOGGER 30 A Rear window defogger
16 EPS 50 A Electric power steering
17 RDI 30 A RDI FAN
18 ABS NO.1 50 A Vehicle stability control system
19 HTR-B 40 A HTR, BLR
20 ABS NO.2 30 A Vehicle stability control system
21 HORN 10 A Horn
22 EFI-MAIN 20 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, Fuel pump
23 ALT-S 7.5 A Charging system
24 IGN 15 A Injection, igniter
25 IG2 10 A SRS airbag system, meter
26 EFI NO.1 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
FuseAmpereCircuit
