TOYOTA IQ 2014 Owners Manual

321
6-1. Specifications
6
Vehicle specifications
Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identifi cation number for your Scion. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is stamped under
the front passenger seat.
This number is also on the Certi-
fication Label.

322 6-1. Specifications

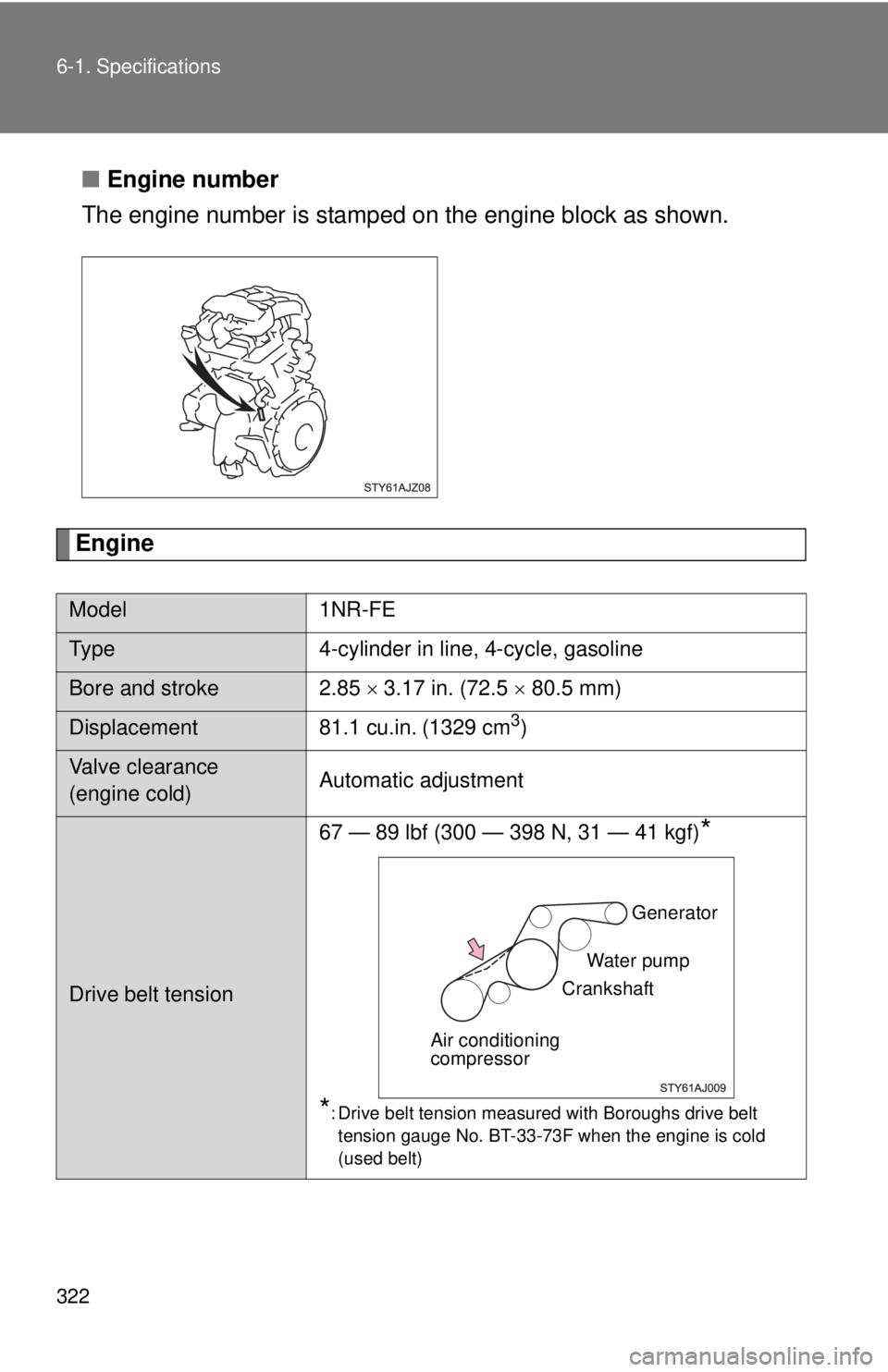

■Engine number
The engine number is stamped on the engine bl ock as shown.
Engine
Model1NR-FE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 2.85  3.17 in. (72.5  80.5 mm)
Displacement 81.1 cu.in. (1329 cm3)
Valve clearance
(engine cold) Automatic adjustment
Drive belt tension67 — 89 lbf (300 — 398 N, 31 — 41 kgf)
*
*
: Drive belt tension measur ed with Boroughs drive belt
tension gauge No. BT-33-73F when the engine is cold
(used belt)
Generator
Water pump
Air conditioning
compressor Crankshaft

323
6-1. Specifications
6
Vehicle specifications

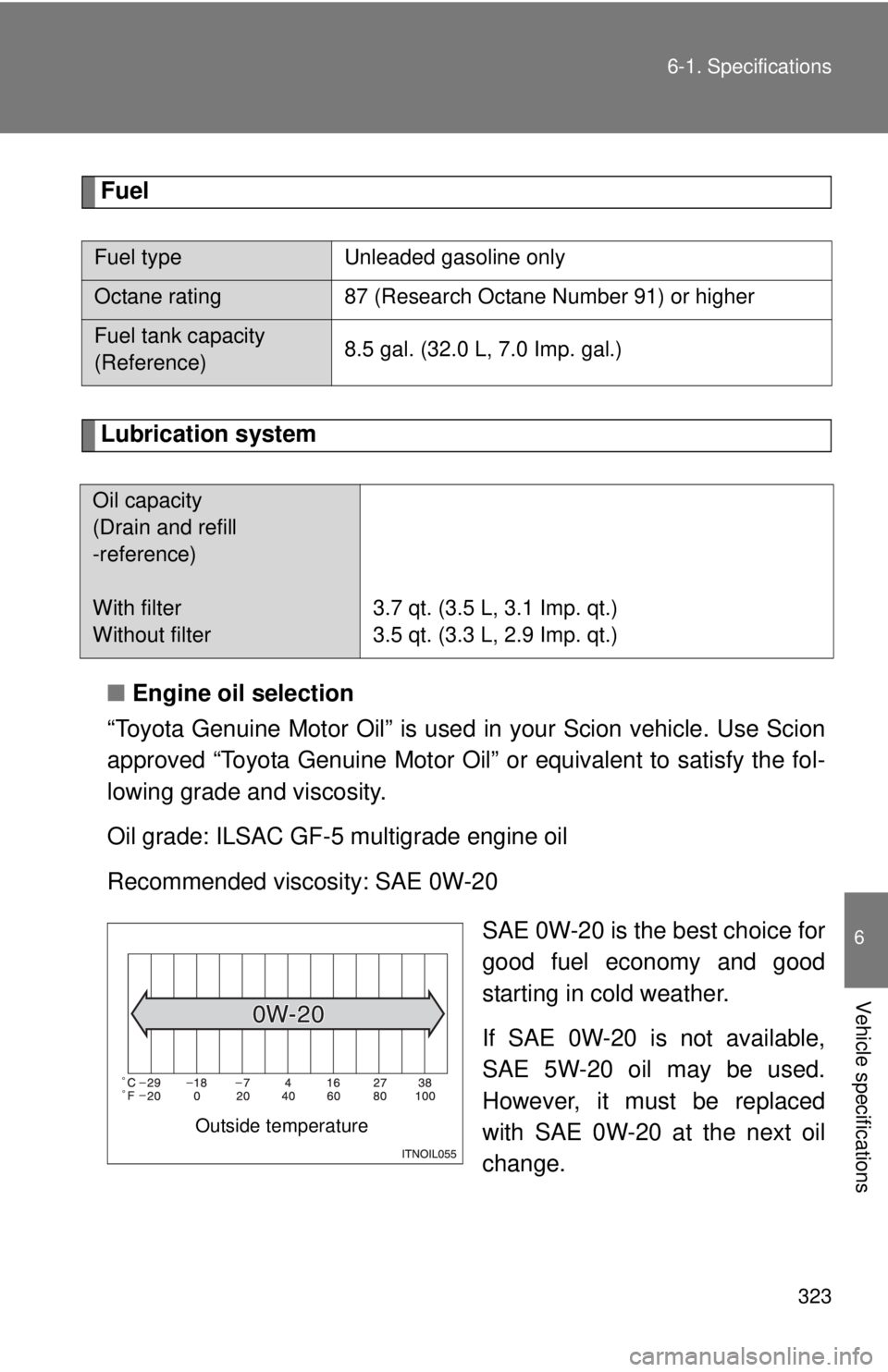

Fuel
Lubrication system
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Scion vehicle. Use Scion
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Fuel typeUnleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference) 8.5 gal. (32.0 L, 7.0 Imp. gal.)
Oil capacity
(Drain and refill
-reference)
With filter
Without filter 3.7 qt. (3.5 L, 3.1 Imp. qt.)
3.5 qt. (3.3 L, 2.9 Imp. qt.)
Outside temperature

324 6-1. Specifications
The 0W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehi-
cle is operated at high speeds, or under extreme load conditions.

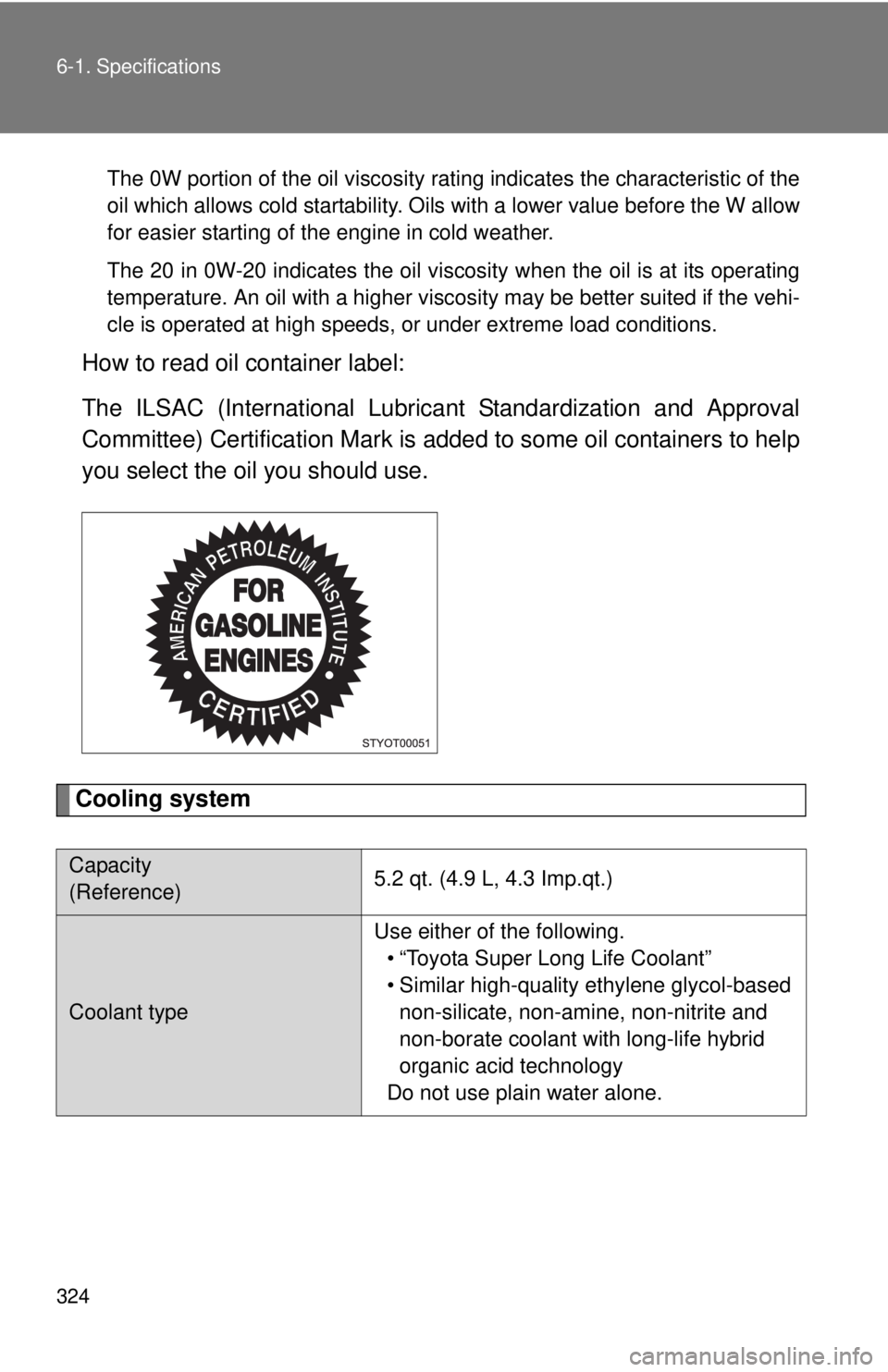

How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
Cooling system
Capacity
(Reference) 5.2 qt. (4.9 L, 4.3 Imp.qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.

325
6-1. Specifications
6
Vehicle specifications
Ignition system
Electrical system
Spark plug
Make DENSO SC20HR11
Gap
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage* at
68 F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(
*: Voltage checked 20 minutes after
the engine and all the lights are
turned off)
Charging rates 5 A max.

326 6-1. Specifications
Automatic transmission
*: The fluid capacity is the quantity of reference. If replacement is necessary,contact your Scion dealer.
Brakes
*1: Minimum pedal clearance when depressed with a force of 66 lbf (300 N, 30 kgf) while the engine running
*2: Parking brake lever travel when pulled up with a force of 44 lbf (200 N, 20kgf)
Fluid capacity*6.5 qt. (6.2 L, 5.4 Imp.qt.)
Fluid type TOYOTA Genuine CVT Fluid FE
NOTICE
■Automatic transmission fluid type
Using transmission fluid other than “TOYOTA Genuine CVT Fluid FE” may
cause deterioration in shift quality, locking up of your transmission accompa-
nied by vibration, and ultimately damage the transmission of your vehicle.
Pedal clearance *13.58 in. (91 mm) Min.
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Brake lining wear limit 0.04 in. (1.0 mm)
Parking brake lever travel *26 — 9 clicks
Fluid typeFMVSS No. 116 DOT 3 or SAE J1703

327
6-1. Specifications
6
Vehicle specifications
Steering
Tires and wheels
Free play
Less than 1.2 in. (30 mm)
Tire size175/60R16 82H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Driving under normal conditions
Front tires:
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Wheel size 16  5 J
Wheel nut torque 76 ft·lbf (103 N·m, 10.5 kgf·m)
CAUTION
■When replacing tires and wheels
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to the peripheral parts of the tires,
as well as dangerous handling characteristics, which may lead to fatal or
injury accidents.
Do not use tire sizes or wheel sizes other than those recommended by
Scion.

328 6-1. Specifications
Light bulbs
A: HB3 halogen bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs
Light BulbsBulb NoWTy p e
ExteriorHeadlights
High beam
Low beam 9005
— 60
55 A
B
Parking/front side
marker lights —5 C
Front turn signal lights — 21 C
Side turn signal lights — 5 C
Rear turn signal lights 7440A 21 C
Stop/tail and rear side
marker lights 7443 21/5 D
Back-up lights — 16 D
License plate light — 5 D

329
6-1. Specifications
6
Vehicle specifications

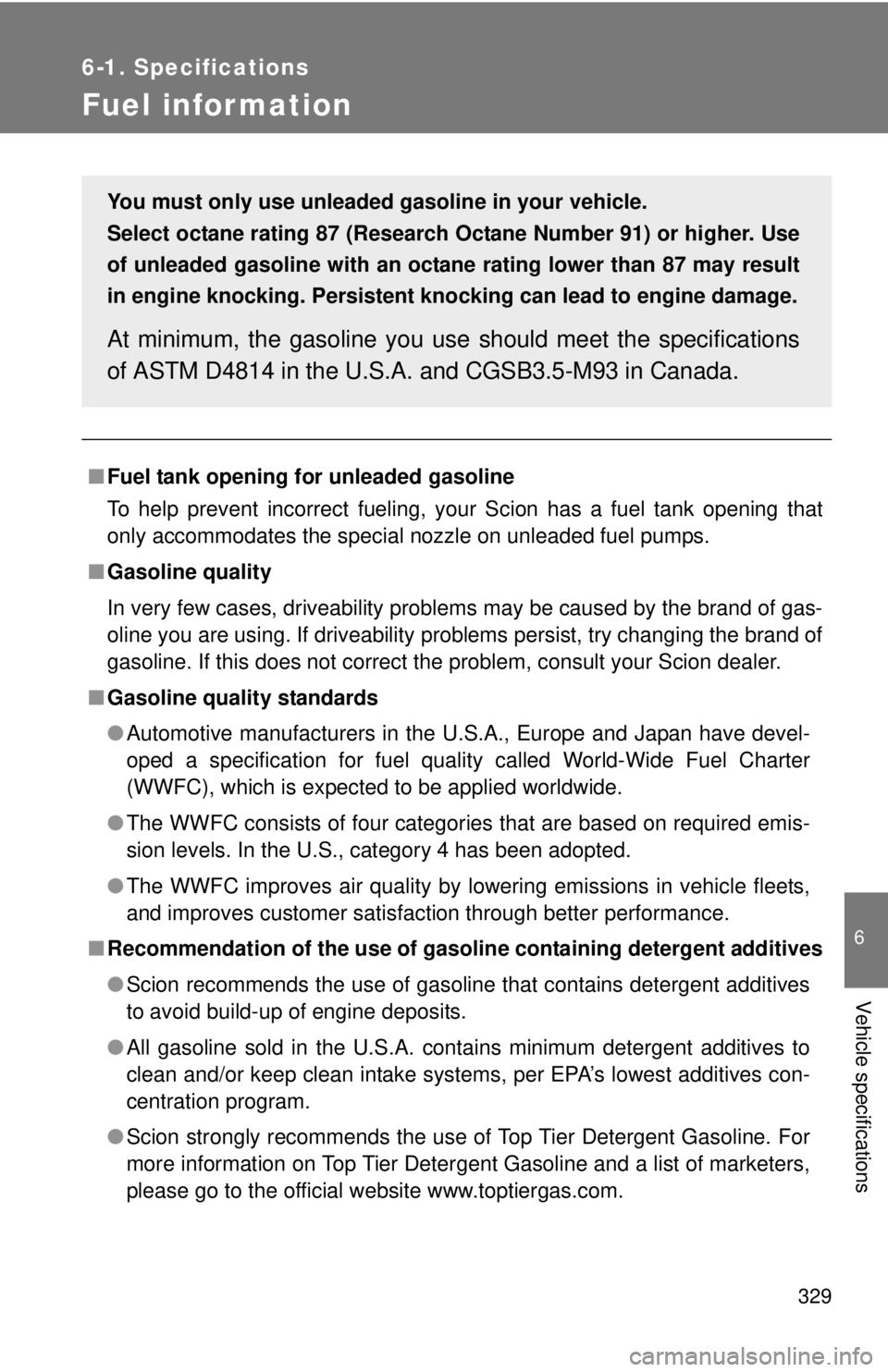

Fuel infor mation
■Fuel tank opening fo r unleaded gasoline
To help prevent incorrect fueling, your Scion has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Scion dealer.
■ Gasoline quality standards
●Automotive manufacturers in the U.S.A., Europe and Japan have devel-
oped a specification for fuel quality called World-Wide Fuel Charter
(WWFC), which is expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emis-
sion levels. In the U.S., category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets,
and improves customer satisfaction through better performance.
■ Recommendation of the use of gaso line containing detergent additives
● Scion recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives con-
centration program.
● Scion strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
You must only use unleaded gasoline in your vehicle.
Select octane rating 87 (Research Octane Number 91) or higher. Use
of unleaded gasoline with an octane rating lower than 87 may result
in engine knocking. Persistent kno cking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications
of ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

330 6-1. Specifications
■Recommendation of the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Scion recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
■ Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
● Scion does not recommend the use of gasoline containing methanol.
■ Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methyl-
cyclopentadienyl Manganese Tricarbonyl).
Scion does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Scion dealer for service.

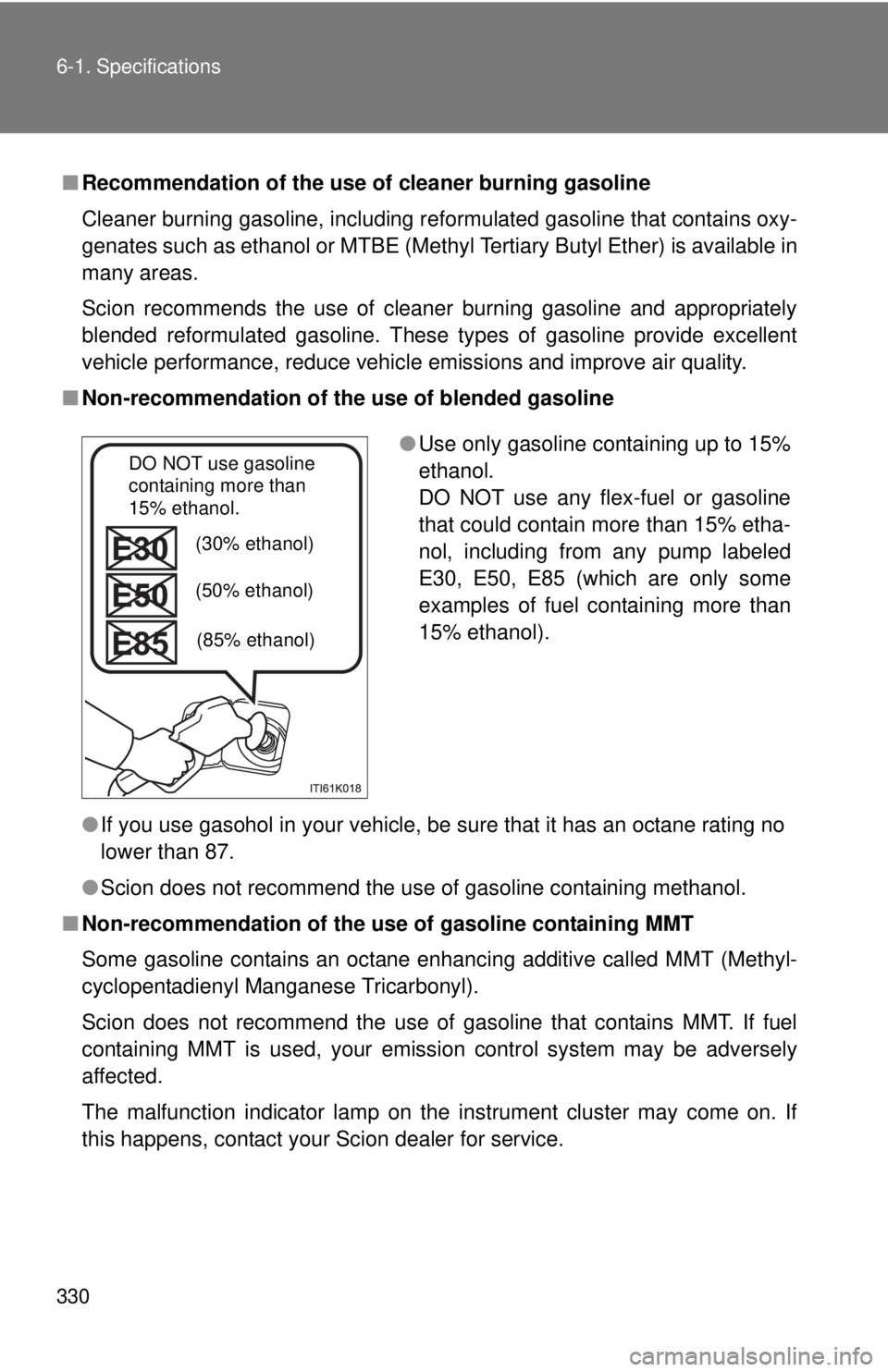

●Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).DO NOT use gasoline
containing more than
15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)
