TOYOTA IQ 2014 Owner's Guide

31
1-2. Opening, closing and locking the doors
1
Before driving

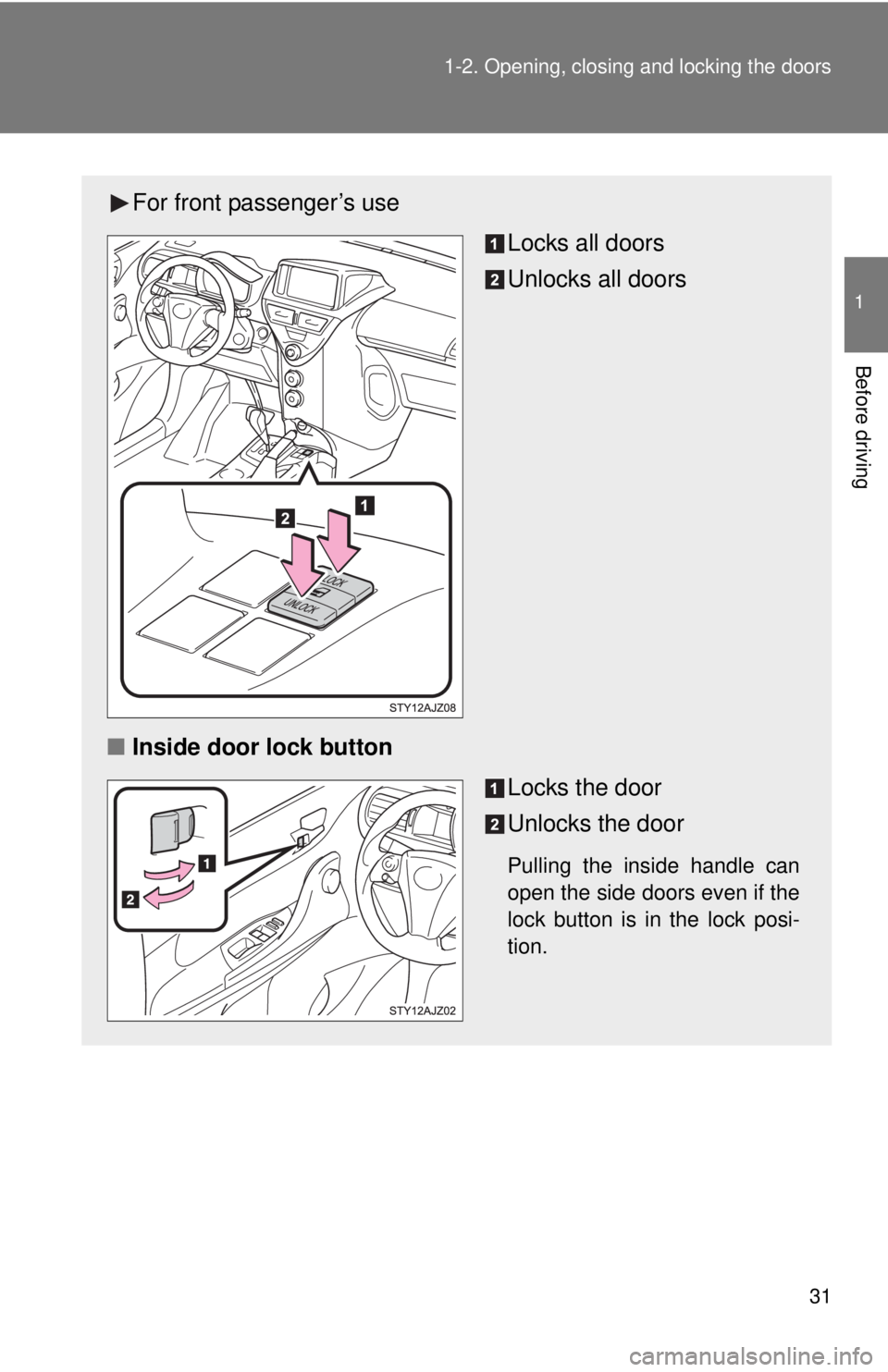

For front passenger’s use
Locks all doors
Unlocks all doors
■ Inside door lock button
Locks the door
Unlocks the door
Pulling the inside handle can
open the side doors even if the
lock button is in the lock posi-
tion.

32 1-2. Opening, closing and locking the doors
Locking the side doors from the outside without a keyMove the inside door lock button to the lock position.
Close the door.
The door cannot be locked if the key is in the engine switch.
■ Key reminder buzzer
A buzzer sounds if the driver’s door is opened, while the engine switch is in
the ACC or LOCK position to remind you to remove the key.
■ Customization that can be configured at Scion dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 343)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seat belt.
● Always lock all doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
● Be especially careful for the side doors, as the doors may be opened even
if the inside lock buttons are in locked position.

33
1
1-2. Opening, closing and locking the doors
Before driving

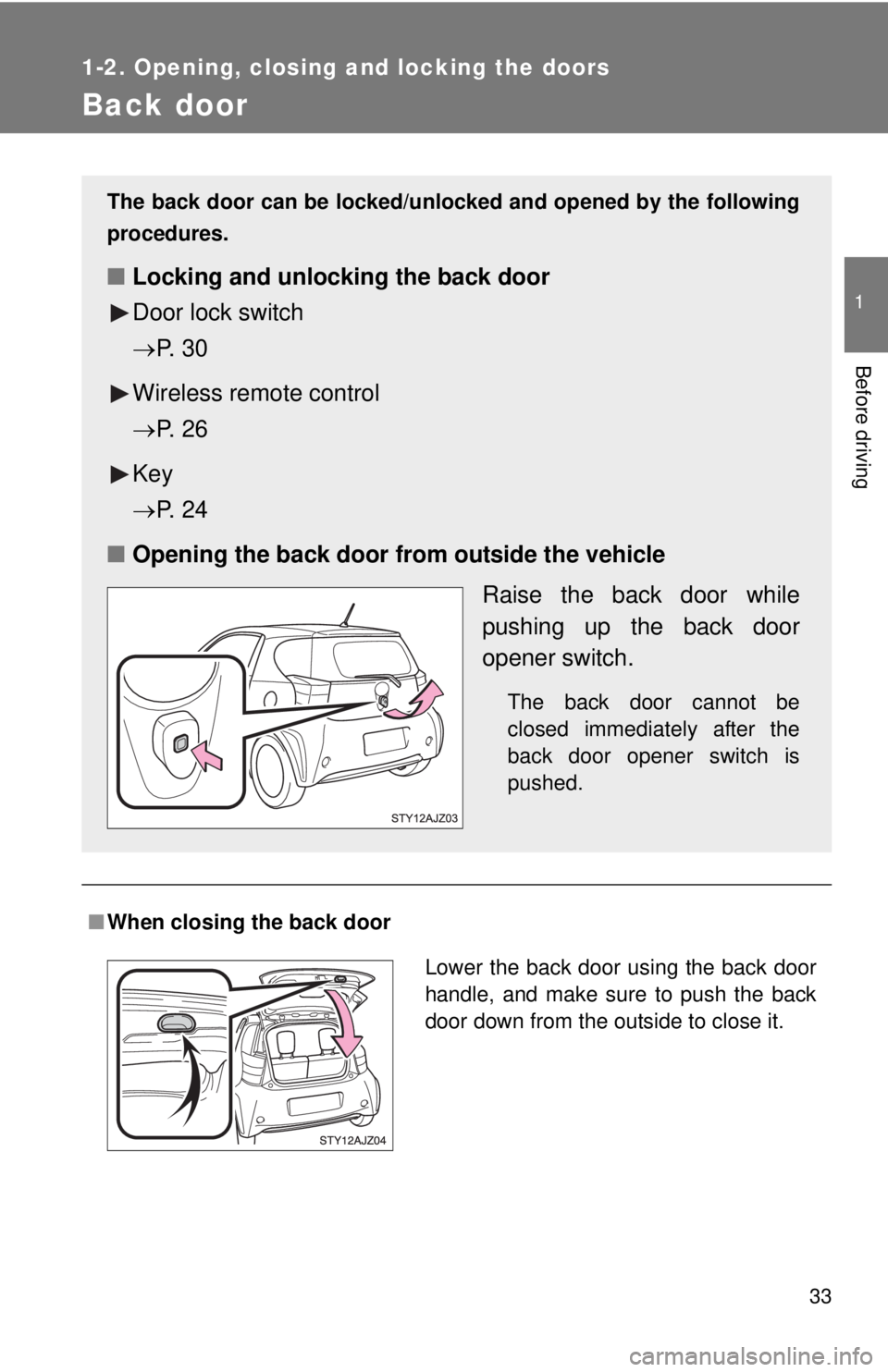

Back door
■When closing the back door
The back door can be locked/unlocked and opened by the following
procedures.
■ Locking and unlocking the back door
Door lock switch
P. 3 0
Wireless remote control
 P. 2 6
Key
 P. 2 4
■ Opening the back door from outside the vehicle
Raise the back door while
pushing up the back door
opener switch.
The back door cannot be
closed immediately after the
back door opener switch is
pushed.
Lower the back door using the back door
handle, and make sure to push the back
door down from the outside to close it.

34 1-2. Opening, closing and locking the doors
CAUTION
■Caution while driving
●Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
■ Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
●Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.

35
1-2. Opening, closing and locking the doors
1
Before driving
CAUTION
■
Operating the back door
●Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
● If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Scion part is recommended.
●The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
● When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
● When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

36 1-2. Opening, closing and locking the doors
NOTICE
■Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
●Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any heavy accessory to
the back door. Scion recommends gen-
uine Scion parts.
● Do not place your hand on the damper
stay or apply lateral forces to it.
Damper stay

37
1
Before driving
1-3. Adjustable components (seats, mirrors, steering wheel)

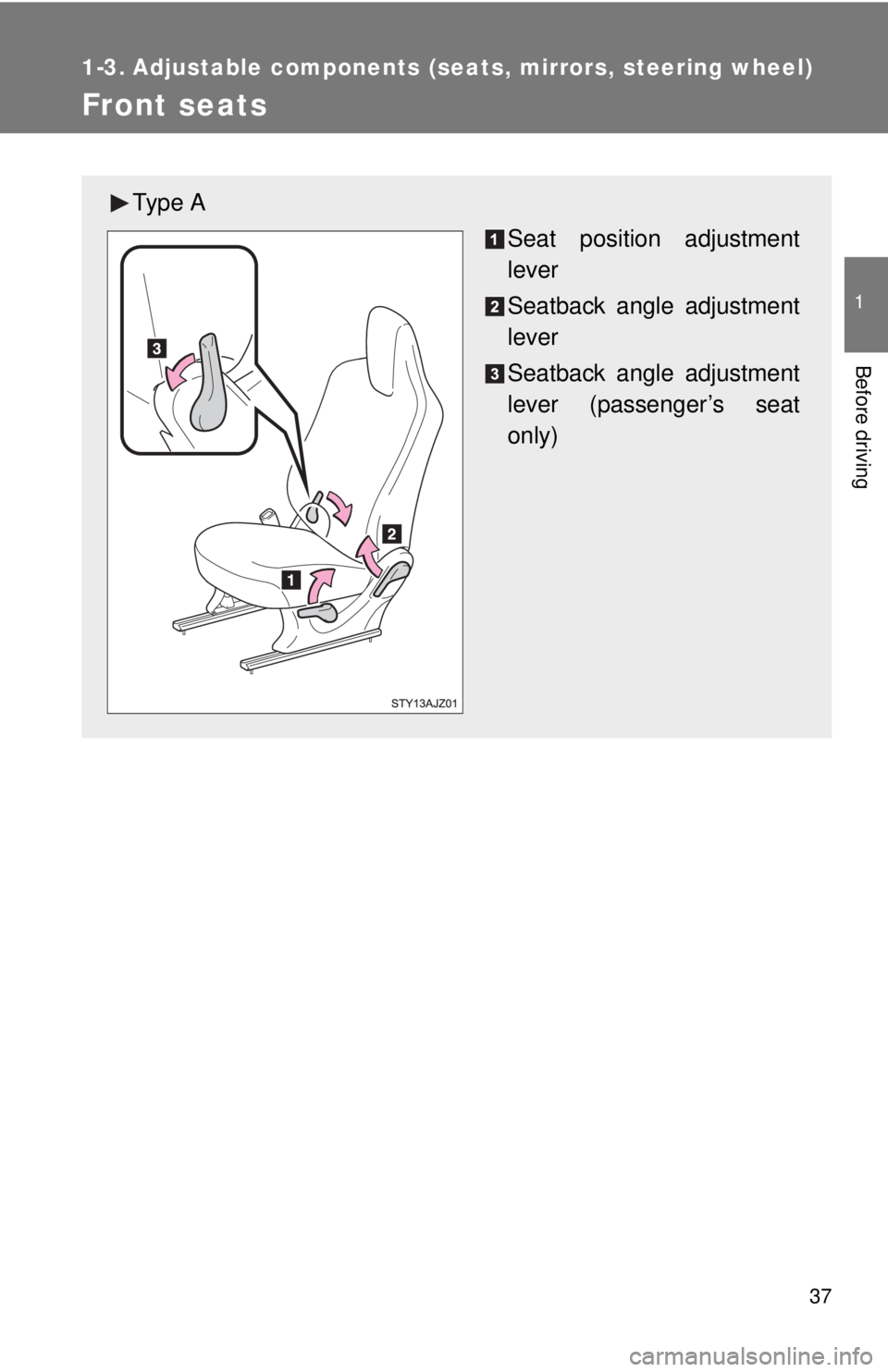

Front seats
Ty p e A
Seat position adjustment
lever
Seatback angle adjustment
lever
Seatback angle adjustment
lever (passenger’s seat
only)

38 1-3. Adjustable components (seats, mirrors, steering wheel)
■Moving the front passenger’s seat
For easy access to the rear seat.
Lift up the seatback angle adjustment lever.
When the seatback is folded to the forward limit, the seat can slide
back and forth.
Slide the seat to the front-most position.
After rear passengers are in, lift up the seatback and return the seat
until it locks.
By raising the seatback, the seat locks at the upright position.
■ Head restraints
Head restraints are provided for all front seats.
The head restraints do not have adjustment function.
Ty p e B
Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever

39
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
CAUTION
■Seat adjustment
●When sliding the seat rearward, make sure not to squash the legs of the
rear passengers.
● Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
● After adjusting the seat, make sure that the seat is locked in position.
● When returning the seatback upright, be careful not to be hit by the seat-
back which will rebound with considerable spring force.
● When operating the front seat from the rear seat, make sure that no pas-
senger is seated in the front seat.
■ After returning the seatback
Push and pull the seatback to confirm that it is securely locked.
■ When sitting down or getting up off the rear seat
When sitting down or getting up off the rear seat, make sure not to trip over
the seat rail grooves.
■ Caution while driving
●Never operate the seat position adjustment lever and the seatback angle
adjustment lever while driving.
● Do not place anything under the front seats.
The items may fly out and interrupt pedal operation in events such as sud-
den braking, and may cause an accident.

40
1-3. Adjustable components (seats, mirrors, steering wheel)

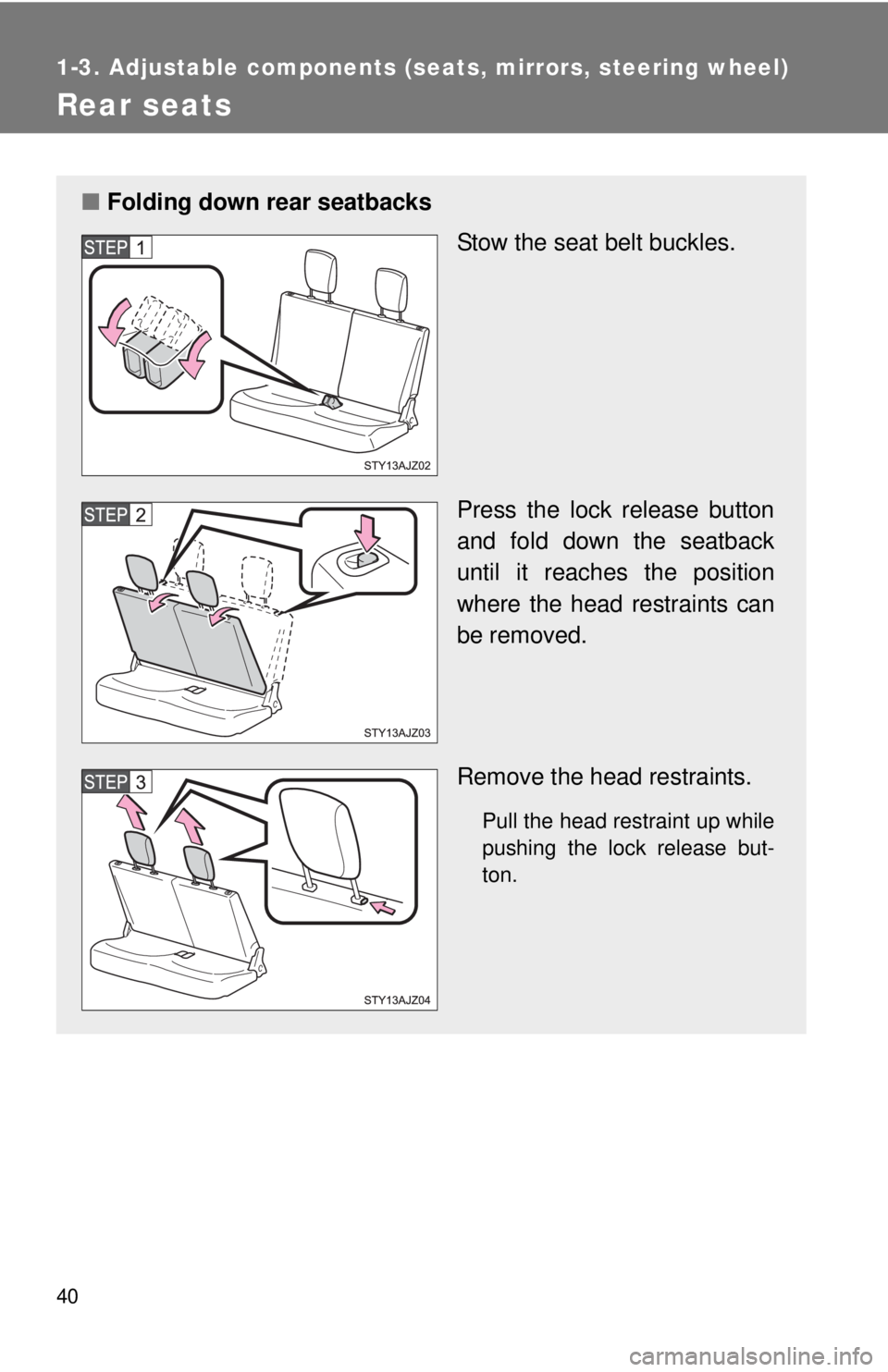

Rear seats
■Folding down rear seatbacks
Stow the seat belt buckles.
Press the lock release button
and fold down the seatback
until it reaches the position
where the head restraints can
be removed.
Remove the head restraints.
Pull the head restraint up while
pushing the lock release but-
ton.
