B13332Hose Clipper Air Drain Hose
B06546
Pressure
Gauge
Pressure EC-6
- EMISSION CONTROLEVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM
1694 Author
: Date
:
2004 LAND CRUISER (RM1071U)
(e) Check the vacuum at idle.
Vacuum:
Maintain at 0.368 - 19.713 in.Hg (5 - 268 in.Aq) for over
5 seconds
HINT:
If the vacuum does not change, you can conclude that the hose
connecting the VSV to the service port has come loose or is
blocked, or the VSV is malfunctioning.
(f) TOYOTA Hand-Held Tester:
Conclude forced driving of the VSV for the EVAP.
(1) Stop the engine.
(2) Disconnect the TOYOTA hand-held tester from the
DLC3.
(g) If you have no TOYOTA Hand-Held Tester:
Conclude forced driving of the VSV for the EVAP.
(1) Stop the engine.
(2) Disconnect the positive (+) and negative (-) leads
from the battery from the VSV terminals for the
EVAP.
(3) Connect the VSV connector for the EVAP.
(h) Disconnect the vacuum gauge from the EVAP service
port on the purge line.
(i) Connect a pressure gauge to the EVAP service port on
the purge line.
(j) Check the pressure.
(1) Close off the air drain hose at the marked position
of the canister with a hose clipper or similar instru-
ment.
(2) Add the pressure (13.5 - 15.5 in.Aq) from the EVAP
service port.
Pressure:
2 minutes after the pressure is added, the gauge
should be over 7.7 - 8.8 in.Aq.
HINT:
If you can't add pressure, you can conclude that the hose con-
necting the VSV
canister
fuel tank has slipped off or the
VSV is open.

B06547
Fuel Tank Cap
B13333
EVAP Line Hose
Air
B13334
EVAP Line Hose
Purge Line Hose
Air
- EMISSION CONTROLEVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM
EC-7
1695 Author
: Date
:
2004 LAND CRUISER (RM1071U)
(3) Check if the pressure decreases when the fuel tank
cap is removed while adding pressure.
HINT:
If the pressure does not decrease when the filler cap is re-
moved, then you can conclude that the hose connecting the
service port to the fuel tank is blocked, etc.
(k) Disconnect the pressure gauge from the EVAP service
port on the purge line.
5. CHECK AIRTIGHTNESS IN FUEL TANK AND FILLER
PIPE
(a) Disconnect the EVAP line hose from the charcoal canister
side and then pressurize and make the internal pressure
in the fuel tank 4 kPa (41 gf/cm
2, 0.58 psi).
(b) Check that the internal pressure of the fuel tank can be
hold for 1 minute.
(c) Check the connected portions of each hose and pipe.
(d) Check the installed parts on the fuel tank.
If there is no abnormality, replace the fuel tank and filler pipe.
(e) Reconnect the EVAP line hose to the charcoal canister.
6. INSPECT FUEL CUTOFF VALVE AND FILL CHECK
VA LV E
(a) Disconnect the purge line hose and EVAP line hose from
the charcoal canister.
(b) Plug the cap to the air drain hose.
(c) Pressurize 4 kPa (41 gf/cm
2, 0.58 psi) to the purge port
and check that there is ventilation through the EVAP line
hose.
HINT:
In the condition that the fuel is full, as the float value of the fill
check valve is closed and has no ventilation, it is necessary to
check the fuel amount (volume).
(d) Check if there is any struck in the vent line hose and EVAP
line hose.
If there is no stuck in hoses, replace the fuel cutoff valve and fill
check valve.
(e) Reconnect the purge line hose and EVAP line hose to the
charcoal canister.

EM0KR-09
A04458
Compression
Gauge
- ENGINE MECHANICALCOMPRESSION
EM-3
1576 Author
: Date
:
2004 LAND CRUISER (RM1071U)
COMPRESSION
INSPECTION
HINT:
If there is a lack of power, excessive oil consumption or poor fuel
economy, measure the compression pressure.
1. WARM UP AND STOP ENGINE
Allow the engine to warm up to the normal operating tempera-
ture.
2. REMOVE SPARK PLUGS
(See page IG-1)
3. CHECK CYLINDER COMPRESSION PRESSURE
(a) Insert a compression gauge into the spark plug hole.
(b) Fully open the throttle.
(c) While cranking the engine, measure the compression
pressure.
HINT:
Always use a fully charged battery to obtain the engine speed
at 250 rpm or more.
(d) Repeat steps (a) to (c) for each cylinder.
NOTICE:
This measurement must be done as quickly as possible.
Compression pressure:
1,324 kPa (13.5 kgf/cm
2, 192 psi) or more
Minimum pressure:
981 kPa (10.0 kgf/cm
2, 142 psi)
Difference between each cylinder:
98 kPa (1.0 kgf/cm
2, 14 psi) or less
(e) If the cylinder compression in one or more cylinders is
lower than the specification, pour a small amount of en-
gine oil into the cylinder through the spark plug hole and
repeat steps (a) to (c) for the cylinders.

If adding oil helps the compression, chances are
that the piston rings and/or cylinder bore are worn
or damage.

If the pressure stays low, a valve may be sticking or
the seating is improper, or there may be leakage
past the gasket.
4. REINSTALL SPARK PLUGS
(See page IG-1)

A17674
A19480
Upper Intake ManifoldVSV for EVAP
18 (185, 13)

Gasket
Fuel
Pressure
Pulsation
Damper

Upper
Gasket
* 33 (340, 24)

39 (400, 29)

Lower Gasket Spacer
Spacer RH Delivery Pipe
LH Delivery Pipe
N´m (kgf´cm, ft´lbf) : Specified torque

Non-reusable part
* For use with SST
Grommet
Injector
O-Ring

Insulator
Fuel Return Pipe
Fuel Return
Hose
Front Fuel Pipe
Gasket

Gasket
Throttle Body Assembly
39 (400, 29)
39 (400, 29)

O-Ring Fuel Pressure Regulator
Spacer
Gasket
Lower
Intake
Manifold
Vacuum Hose
21 (214, 15)
21 (214, 15)
7.5 (80, 66 in.´lbf)
EM-32
- ENGINE MECHANICALCYLINDER HEAD
1605 Author
: Date
:
2004 LAND CRUISER (RM1071U)

A05517
A05516
A08655
A03190
White Painted
Mark
A17671A19482
EM-68
- ENGINE MECHANICALCYLINDER HEAD
1641 Author
: Date
:
2004 LAND CRUISER (RM1071U)
14. INSTALL REAR WATER BYPASS JOINT
(a) Install 2 new gaskets to the cylinder head.
(b) Install the 4 nuts holding the water bypass joint to the cyl-
inder heads. Alternately tighten the nuts.
Torque: 18 N´m (185 kgf´cm, 13 ft´lbf)
15. INSTALL FRONT WATER BYPASS JOINT
Install 2 new gaskets and the water bypass joint with the 4 nuts.
Alternately tighten the nuts.
Torque: 18 N´m (185 kgf´cm, 13 ft´lbf)
16. INSTALL WATER INLET AND INLET HOUSING AS-
SEMBLY (See page CO-8)
17. ASSEMBLE UPPER AND LOWER INTAKE MAN-
IFOLDS
(a) Install the 2 delivery pipes and the 8 injectors (See page
SF-27).
(b) Install new 2 gaskets, the fuel pressure regulator and the
fuel pulsation damper.
(c) Install the fuel return hose to the lower intake manifold
with the 3 bolts.
(d) Connect the fuel return hose to the fuel pressure regula-
tor.
18. INSTALL INTAKE MANIFOLD ASSEMBLY
(a) Place 2 new gaskets on the cylinder heads with white
painted mark facing upward.
NOTICE:

Align the port holes of the gasket and cylinder head.

Be careful of the installation direction.
(b) Place the intake manifold assembly on the cylinder
heads.
(c) Install and uniformly tighten the 6 bolts and the 4 nuts in
several passes.
Torque: 18 N´m (185 kgf´cm, 13 ft´lbf)

A05514
A19472
A05562
B01208
A17668A19481
(p)
(o)
(n)
(m)(r)
(q)
- ENGINE MECHANICALCYLINDER HEAD
EM-69
1642 Author
: Date
:
2004 LAND CRUISER (RM1071U)
(d) Install the EVAP pipe to the intake manifold with the 2
bolts.
(e) Connect the wire protector to the intake manifold with the
2 bolts.
(f) Install the engine wire to the engine hanger.
(g) Install the engine wire to the LH No.1 timing belt rear
plate.
(h) Install the engine wire to the bracket.
(i) Connect the wire protector to the rear water bypass joint
and RH cylinder head with the 2 bolts.
(j) Install the 2 ground cables to the RH and LH cylinder
head.
(k) Install the guide for A/T bracket to the LH cylinder head.
(l) Connect the 2 wire clamps to the wire clamp bracket on
the RH delivery pipe.
(m) Connect the fuel pressure regulator vacuum hose to the
fuel pressure regulator pipe.
(n) Connect the PCV hose to the PCV valve on the LH cylin-
der head.
(o) Connect the EVAP hose (from charcoal canister) to the
VSV for EVAP.
(p) Connect the EVAP hose (from charcoal canister) to the
EVAP pipe on the intake manifold.
(q) Connect the EVAP hose (from intake air connector) to
EVAP pipe on the the intake manifold.

A17668A19481
(k)
(j)(i)
(n)(m)
(l)
B15320B16469No. 1 Water Bypass Hose
A17670
Wire Clamp
A08664
Wire Protector
Ground Cable
EM-36
- ENGINE MECHANICALCYLINDER HEAD
1609 Author
: Date
:
2004 LAND CRUISER (RM1071U)
(h) Disconnect the fuel pressure regulator vacuum hose from
the fuel pressure regulator pipe.
(i) Disconnect the PCV hose from the PCV valve on the LH
cylinder head.
(j) Disconnect the EVAP hose (from charcoal canister) from
VSV for EVAP.
(k) Disconnect the EVAP hose (from charcoal canister) from
the EVAP pipe on the intake manifold.
(l) Disconnect the EVAP hose (from intake air connector)
from the EVAP pipe on the intake manifold.
(m) Disconnect the PS air hose from the intake manifold.
(n) Disconnect the No.1 water bypass hose from the front wa-
ter by-pass joint.
(o) Disconnect the 2 wire clamps from the wire clamp bracket
on the RH delivery pipe.
(p) Remove the 2 bolts and disconnect the engine wire pro-
tector from the rear water bypass joint and the RH cylinder
head.
(q) Remove the guide for A/T bracket from the LH cylinder
head.
(r) Remove the 2 ground cables from the RH and LH cylinder
head.

A19472
A17671A19482
A17679
A09148
EVAP Pipe
A08655
- ENGINE MECHANICALCYLINDER HEAD
EM-37
1610 Author
: Date
:
2004 LAND CRUISER (RM1071U)
(s) Remove the 2 bolts and disconnect the engine wire pro-
tector from the intake manifold.
(t) Remove the engine wire from the engine hanger.
(u) Remove the engine wire from the wire bracket.
(v) Remove the RH rear and the LH front V-bank cover
brackets.
(w) Remove the 6 bolts, the 4 nuts, the intake manifold as-
sembly and the 2 gaskets.
13. DISASSEMBLE UPPER AND LOWER INTAKE MAN-
IFOLDS
(a) Remove the throttle body (See page SF-36).
(b) Remove the 13 bolts, the 3 nuts, the upper intake man-
ifold and the gasket.
(c) Disconnect the EVAP hose from the upper intake man-
ifold, and remove the accelerator cable clamp and VSV
for EVAP.
(d) Remove the bolt, the union, the 2 gaskets and the brake
booster tube from the upper intake manifold.
(e) Remove the 2 bolts and the EVAP pipe from the intake
manifold.
(f) Disconnect the fuel return hose from the fuel pressure
regulator.
(g) Remove the 3 bolts holding the fuel return hose from the
lower intake manifold.
(h) Remove the fuel pressure regulator, the fuel pressure
pulsation damper and the 2 gaskets.
(i) Remove the bolt and the rear fuel pipe.
(j) Remove the 2 delivery pipes and the 8 injectors (See
page
SF-22).

2004 LAND CRUISER (EWD548U)
68G ELECTRICAL WIRING ROUTING
Position of Parts in Engine Compartment
A 1 A/C Ambient Temp. Sensor
A 4 Pressure SW
A 5 A/C Lock Sensor
A/C Magnetic Clutch
A 12 ABS Speed Sensor Front LH
A 13 ABS Speed Sensor Front RH
A 15 Airbag Sensor Front LH
A 16 Airbag Sensor Front RH
A 17 Auto Antenna Motor
A 37 ABS & BA & TRAC & VSC Actuator
A 38 ABS & BA & TRAC & VSC Actuator
A 39 ABS & BA & TRAC & VSC Actuator
A 40 ABS & BA & TRAC & VSC Actuator
C 1 Camshaft Position Sensor
C 2 Center Diff. Lock Control Motor
C 3 Crankshaft Position Sensor
D 1 Data Link Connector 1
D 2 Daytime Running Light Relay No.3
D 3 Daytime Running Light Relay No.3
D 4 Detection SW (Center Diff. Lock)
D 5 Detection SW (Transfer L Position)
D 6 Detection SW (Transfer Neutral Position)E 1 Electronically Controlled Transmission Solenoid
E 2 Engine Coolant Temp. Sensor
E 3 Engine Hood Courtesy SW
F 1 Front Fog Light LH
F 2 Front Fog Light RH
F 3 Front Turn Signal Light LH
Side Marker Light LH
F 4 Front Turn Signal Light RH
Side Marker Light RH
F 5 Front Wiper Motor
F 14 Fuel Pump Resistor
F 15 Fusible Link Block
F 16 Fusible Link Block
F 17 Fusible Link Block
F 18 Fusible Link Block
F 19 Fusible Link Block
G 1 Generator
G 2 Generator

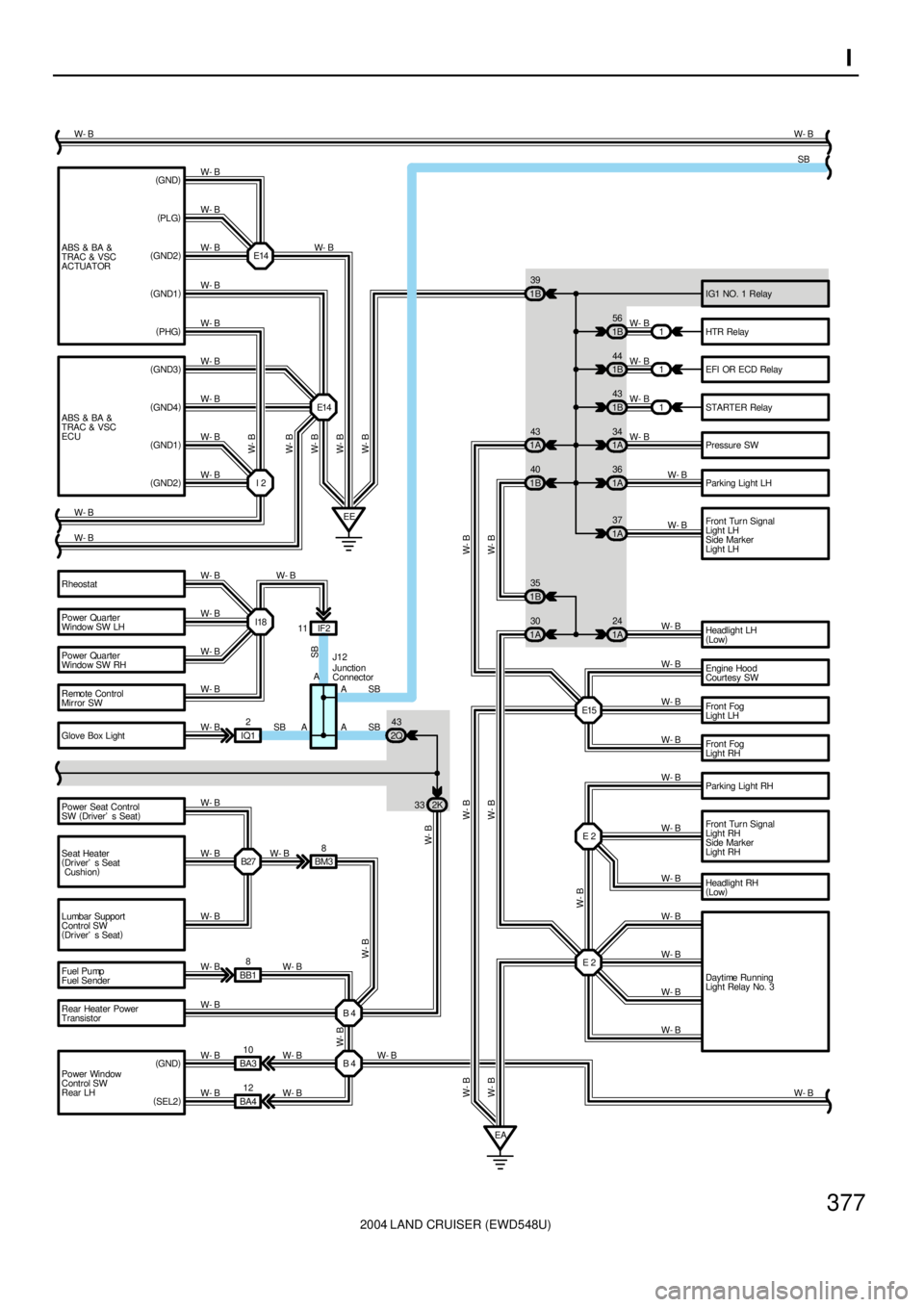

2004 LAND CRUISER (EWD548U)
377I
Seat Heater
(
Dr iver' s Seat
Cushi on) Power Seat Control
SW (
Driver' s Seat)
B27 W- B W- B
Lumbar Support
Control SW
(
Dr iver' s Seat)W- BBM38
W- BE 2HTR Relay
Headlight LH
(
Low) Parking Light LH
Front Tur n Signal
Light LH
Side Marker
Light LH
Fron t Fog
Light LH
Fron t Fog
Light RH
Parking Light RH
Front Tur n Signal
Light RH
Side Marker
Light RH
Headlight RH
(
Low)
Fuel Pump
Fuel Sender
B 41B56
44
1B
1B43
1A24 1A36
1A37
E 2 1A30
EAW- BW- B
W- B
W- B
W- B
W- B
W- B
W- B
W- B
W- B
W- B
Rear Heater Power
Transistor
W- BW- B
W- B
W- B
W- B
W- B W- B
W- B
Pressure SW
W- B
W- B
B 4 BA310
W- B
BA412
W- B Power Window
Control SW
Rear LHW- B W- B
W- B
(
GND2)
(
GND1)
(
PHG)
(
GND3)
(
GND1) (
GND)
(
PLG)
ABS & BA &
TRAC & VSC
ACTUATOR
(
GND4)
ABS & BA &
TRAC & VSC
ECU
Rheostat
Power Quarter
Window SW LH
Power Quarter
Window SW RH
Remote Control
Mir ror SW(
GND2)
I 2 E14 W- B W- B W- B
W- B
W- B
W- B
W- B
W- B
W- BW- B W- BW- B
BB182K 331A341
1
1 W- B
W- B
W- BIG1 NO. 1 Relay
EFI OR ECD Relay
STARTER Relay 1B39
W- B
1B35 1B40
W- B
Daytime Running
Light Relay No. 3 E15Engine Hood
Courtesy SW W- B 1A43
W- B W- B
Glove Box Light 2Q43
IQ12
W- B SB SBAAEE E14
W- B
W- B
W- B W- B
W- B
W- B
W- B
SB
ASB I18
IF2 11
A
SB
W- B W- B
W- B
W- B
W- BJ12
W- B
W- B Junction
Connector
(
GND)
(
SEL2)
