83
2003 Land Cruiser 100 Navigation (OM60A00U)
1. Push the “MENU” switch.
2. Touch the
“Setup” switch.
3UE001
3. Select your desired day and/or night
Map color and then touch the ”OK”switch to return to the Map screen. See
“The map color list” below for details.
Touch the
“Normal” switch to default the
Map color.
Touch the
“Auto” switch to select the Map
color automatically. The Map color is
changed in every three months. The Map color list
Switch NO.Map color“Auto” mode
1GreenMar.−May
2BlueJun.−Aug.
3GraySep.−Nov.
4BeigeDec.−Feb.
When the auto reroute feature is turned
on, the system will automatically search
for a new route to the destination if you
leave the guidance route. This feature
does
not operate while you are driving on
roads where the guidance is not avail-
able.
1. Push the
“MENU” switch to display
the Menu screen, and touch the “Set-
up” switch.
1UE040
Map colorAuto reroute

84
2003 Land Cruiser 100 Navigation (OM60A00U)
3UE002
2. Touch the “On” switch of the “Auto
reroute”. If you cannot find the item on
the list, touch
or switch to
scroll the list.
INFORMATION
If your vehicle leaves the guidance
route, the system searches for a new
route to the destination. The new route
may or may not take you back to the
previous route depending on how far
you are off the original guidance route.
When the estimated travel time feature is
turned on, the time required to reach the
destination is displayed on the Route
guidance screen.
1UE040
To turn the Estimated travel time on:
1. Push the
“MENU” switch to display
the Menu screen, and touch the “Set-
up” switch.
3UE003
2. Touch the “On” switch of the Esti-
mated travel time. If you cannot find the
item on the list, touch
or switch
and scroll the list.
Estimated travel time

85
2003 Land Cruiser 100 Navigation (OM60A00U)
3UE004
To set the average speeds:
1. Touch the “Change speed” switch of
Estimated travel time.
2. Touch
or to set the average ve-
hicle speeds for driving on a Freeway,
Main street and Residential area.
If you touch the
“Default” switch, the de-
fault speed is set at each item.
3. After you finish setting the desired
speeds, touch the
“OK” switch. The Set-
up screen returns.
INFORMATION
 The displayed time to the destination
is the approximate driving time cal-
culated based on the speeds you se-
lected and your actual position
along the guidance route.
 The time shown may vary greatly de-
pending on your progress along the
route (which may be af fected by road
conditions such as traffic jams,
construction work, etc.)
 Up to 99 hours 59 minutes can be dis-
played.
1. Push the “MENU” switch.
1UE040
2. Touch the “Setup” switch.
3UE005
Adjusting time zone

86
2003 Land Cruiser 100 Navigation (OM60A00U)
3. Touch the “Adjust” switch, the Ad-
just time zone screen appears on the dis-
play.
3UE006a
4. Select your desired time zone. Se-
lected switch is highlighted in green.
Touch the
“On” switch and then touch
or switch to set the daylight saving time.
5. Touch the
“OK” switch on the screen
and the Setup screen returns. 1. Push the
“MENU” switch.
1UE040
2. Touch the “Setup” switch.
3UE007
3. Touch “km” or “miles” to select
your desired units.
4. Touch the
“OK” switch. 1. Push the
“MENU” switch.
1UE040
2. Touch the “Setup” switch.
3UE008
Distance indicationNotifying seasonal restriction

87
2003 Land Cruiser 100 Navigation (OM60A00U)

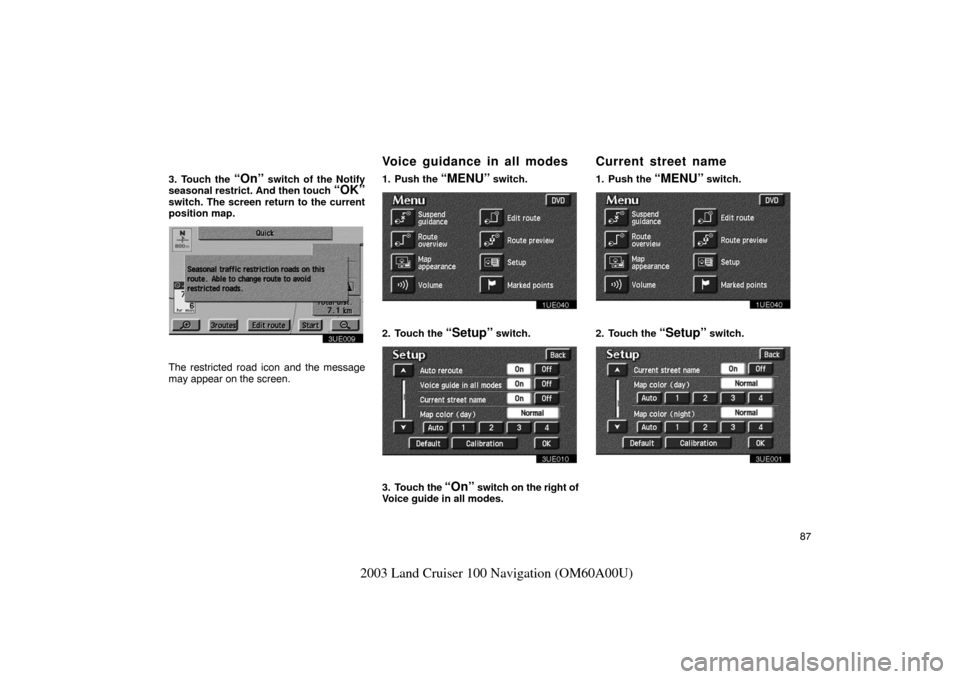

3. Touch the “On” switch of the Notify
seasonal restrict. And then touch “OK”switch. The screen return to the current
position map.
3UE009
The restricted road icon and the message
may appear on the screen. 1. Push the
“MENU” switch.
1UE040
2. Touch the “Setup” switch.
3UE010
3. Touch
the “On” switch on the right of
Voice guide in all modes. 1. Push the
“MENU” switch.
1UE040
2. Touch the “Setup” switch.
3UE001
Voice guidance in all modesCurrent street name

88
2003 Land Cruiser 100 Navigation (OM60A00U)
3. Touch the “On” switch on the right of
Current street name.
The current street name appears on the Map
screen.
3UE011
3UE012T
This system has a function which informs
you of the time to replace certain parts or
components as well as other information
shown on the screen. (See “Information
items” on page 89.) When the system
begins operating after reaching either the
Information Item’s date or driving dis-
tance, the Information screen will be dis-
played.
The Information screen will not be displayed
again by touching the
“Do not display
this message again”
switch.
3UE013
1. Push the “INFO” button to display
the Information Menu screen. Touch the
“Maintenance” switch to display the
Maintenance screen.
2. Touch your desired icon and input the
conditions.
Maintenance information

89
2003 Land Cruiser 100 Navigation (OM60A00U)
3UE014
Date of notice: Input the next maintenance
date.
Distance of notice: Input the driving dis-
tance until the next maintenance check. You
can input a five−digit number for the driving
distance.
When you touch the
! switch on the
screen, the screen changes to display the
change name screen. Touch the keys to in-
put your desired name and then input the
conditions. After you input the information, touch the
“OK” switch. The screen then returns to
the Maintenance screen. The icon’s color will
change to green after the date or driving dis-
tance are input. The icon’s color will change
to orange when your vehicle needs to be ser-
viced. The following switches appear on the
Maintenance screen.
Delete all: Cancel all conditions which have
been input.
Reset all: Reset the item which has satisfied
either condition.
Touch the
“Off” switch of the Maintenance
screen, and the Information screen will no
longer be displayed.
INFORMATION
 For scheduled maintenance infor-
mation, please refer to the “Owner’s
Manual Supplement / Scheduled
Maintenance”.
 Depending on your driving or the
road conditions, the system may
have a timelag between the data
which has been input and the actual
date and driving distance.
Information items
Oil change
Replace oil filter
Rotate tires
Replace tires
Replace battery
Replace brake linings
Replace wiper blades
Replace engine coolant

90
2003 Land Cruiser 100 Navigation (OM60A00U)
Replace brake fluid
Replace ATF
Scheduled maintenance
Replace air filter
Personal
3UE013
You can register your dealer’s name and
address. Touch the
“Set dealer”
switch on the Maintenance screen.
3UE015
1. Enter your dealer’s location address in
the same way as you input any destina-
tion. (See page 8 through 22.)
Dealer setting(a) Registering dealer

91
2003 Land Cruiser 100 Navigation (OM60A00U)
3UE016T
2. After you enter your dealer, the screen
changes and displays the map location of
the dealer. If it is OK, touch the
“OK”switch.
The current screen changes to the screen
where you can edit the data of your dealer.
(See (b) Editing dealer.)
By touching the
“View map” switch of
Edit dealer screen. Y ou can see the location
of the dealer. (See “Entering Destination” on
page 22.)
3UE017T
1. Touch the “Set dealer” switch and
touch the “Change” switch of the item
to edit.
Editing the name of the dealer or staff
in charge
3UE018
Touch alphabet or numeral keys directly
to input the name.
After you finish your entry, touch the
“OK”
switch. The previous screen will be dis-
played.
(b) Editing dealer

92
2003 Land Cruiser 100 Navigation (OM60A00U)
Editing the location
3UE019T
Touch the arrows to scroll to your desired
point on the Map screen.
Touch the
“OK” switch when the cursor
moves to your desired point.
The previous screen will be displayed.
Editing the phone number
3UE020
Touch numeral keys directly.
After you finish your entry, touch the
“OK”
switch.
The previous screen will be displayed.
After you finish any editing, touch the
“Back” switch.
3UE017T
1. Touch the “Set dealer” switch and
touch the “Delete dealer” switch.
(c) Deleting dealer
