2003 Land Cruiser 100 Navigation (OM60A00U)
Overview of Touch Screen and Switches
Switch operation
This system operates mainly by the
switches on the screen. To protect the
screen, lightly touch switches on the
screen with your finger. When you touch
a switch on the screen or push the button,
a beep sounds.INFORMATION
 If the system does not respond to a
touch of a switch, move your finger
away from the screen and then touch
it again.
 You cannot operate dimmed
switches.
 Wipe off fingerprints on the surface
of the display using a glass cleaning
cloth.
 The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.
0cu003
Speech command system
Some descriptions in this manual are
marked with the above indicator. This
means that this function can be activated
using the speech command system.
For the operation of the speech command
system and the command list, see page 98
and 151.

2
2003 Land Cruiser 100 Navigation (OM60A00U)
The navigation system operates by
switches on the screen and the switches
located on the front face around the
screen. When you touch or push a switch,
a beep sounds. When using the switches
on the touch screen, please use only light
pressure with your finger to protect the
screen from damage. Do not use objects
other than your finger to touch the
screen.
1UE001
To type in an address etc., directly touch al-
phabet keys on the screen. If you touch a
wrong letter, delete it using the
switch.
Touching the
switch erases one letter. Touching
the
“List” switch will change the
screen to a display of the database items that
match the name or address that you have
entered on the screen. The number of
matching items is shown to the right side of
the screen. If the matching item is more than
9,999, the system displays
“” on the
screen.
To input numerals, touch the
“0–9” switch
and the display will change the screen to
number input display.
1UE002
Touching the “A–Z” switch changes the
screen back to the previous name input dis-
play.
1UE003
When a list is displayed, you can scroll or
page through the list by using the appropri-
ate switch.
To shift to the next or previous
page.
To scroll up or down one item at a
time.
This expresses a displayed screen
position.
Inputting letters and number

23
2003 Land Cruiser 100 Navigation (OM60A00U)
Touch the “Detour” switch of “Re-
stricted road” to search for a route other
than restricted road.
Touching the
“Allow” switch on each item
allows to use it.
The switches you select are highlighted in
green. After choosing conditions, touch the
“OK” switch.
1UE038
The system starts searching for a route to
your destination.
1UE039
If you want to see the other routes and make
a comparison, touch the
“3 routes”
switch. Three types of the routes are dis-
played on the screen. Quick:
A route on which you can reach the
destination in the shortest time
This route is shown as an orange line.
Short: A route on which you can reach the
destination in the shortest distance
This route is shown as a purple line.
Alternative: Other route
This route is shown as a green line.
Touch the switch to select the route.
If you want to add a destination, see the fol-
lowing “(b) Adding destination”.
After selecting one, you can start the route
guidance by touching the
“Start” switch or
starting to move your vehicle.
If you want to change the search condition,
touch the
“Edit. route” switch. The
screen changes and displays the Edit route.
(For details, see page 30.)
When you keep touching the
“Start”
switch until you hear a beep, Demo mode will
start.

82
2003 Land Cruiser 100 Navigation (OM60A00U)
You can set the values shown on the Set-
up screen.
1. Push the
“MENU” switch.
1UE040
2. Touch the “Setup” switch to display
the Setup screen. Select your desired
items you want to set. Selected items will
be highlighted in green.
3UE001
3. Touch the “OK” switch on the screen
and the previous screen returns.
To default: Touch the
“Default” switch on
the screen. All of the settings can be de-
faulted.
Map color (day or night): You can select
your desired map color.
Auto reroute: You can set the system will or
will not automatically search for a new route
to the destination.
Estimated travel time: You can set to dis-
play the time required to reach the destina-
tion on the road guidance screen.
Adjust time zone: You can select your de-
sired time zone. Distance:
You can change “km” or “miles” to
display your desired units.
Notify seasonal restrict: You can select to
notify or not to notify a seasonal restriction.
Voice guide in all modes: You can set the
voice guide in all modes or not.
Current street name: You can select to
show or not to show a current street name on
the Map screen.
Setup

86
2003 Land Cruiser 100 Navigation (OM60A00U)

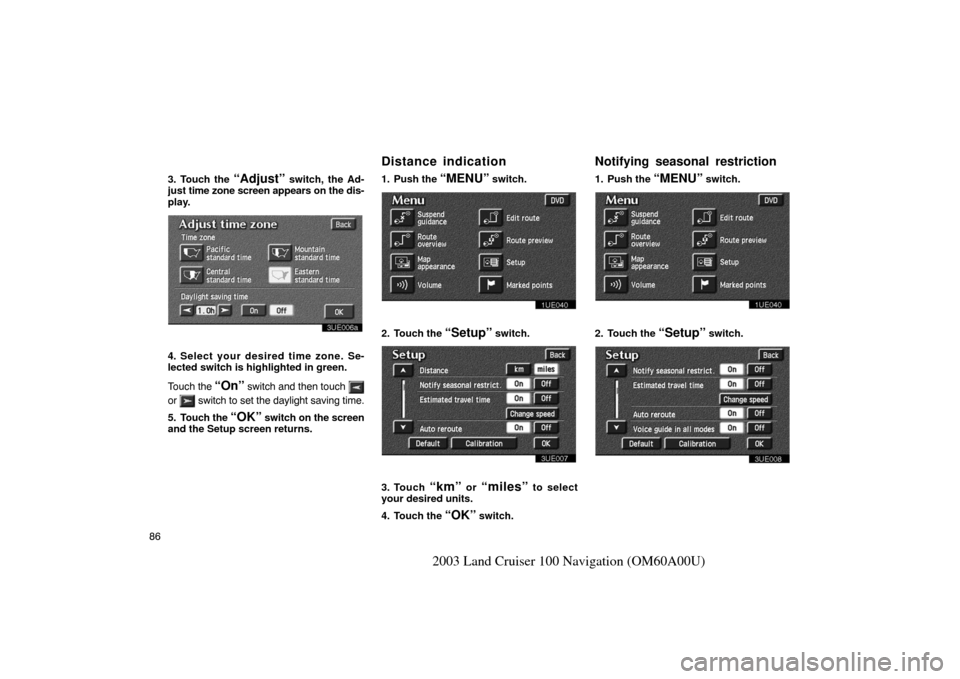

3. Touch the “Adjust” switch, the Ad-
just time zone screen appears on the dis-
play.
3UE006a
4. Select your desired time zone. Se-
lected switch is highlighted in green.
Touch the
“On” switch and then touch
or switch to set the daylight saving time.
5. Touch the
“OK” switch on the screen
and the Setup screen returns. 1. Push the
“MENU” switch.
1UE040
2. Touch the “Setup” switch.
3UE007
3. Touch “km” or “miles” to select
your desired units.
4. Touch the
“OK” switch. 1. Push the
“MENU” switch.
1UE040
2. Touch the “Setup” switch.
3UE008
Distance indicationNotifying seasonal restriction

102
2003 Land Cruiser 100 Navigation (OM60A00U)
Trip information such as driving time,
driving distance, average vehicle speed,
fuel consumption, etc. can be displayed
on the screen.
1. Push the
”INFO” button to display
the information menu screen.
UNG403a
2. To u c h t h e ”Trip Information”switch.
UNG401
Consumption
The consumption is calculated and dis-
played based on the driving distance and
the fuel consumption for 2 seconds with
engine running.
The value is updated every 2 seconds.
If you are driving at low speeds just before
stopping, the accurate figure way not be
shown.
After Refueling
The consumption after refueling is calcu-
lated and displayed based on the total
driving distance and the total fuel con-
sumption after refueling.
The value is updated every 10 seconds. When refueling, be
sure to stop your vehicle
and turn the ignition switch off.
Cruising Range
How far you can drive with the remaining
fuel is displayed.
Even though the display indicates sufficient
miles to run, if the fuel level on the fuel gauge
approaches ”E” or the low fuel level warning
light comes on, fill the fuel tank as soon as
possible.
INFORMATION
 When you first start driving your new
vehicle, the correct cruising range
may not be shown. One or more re-
fills of 10 gallons or more may be re-
quired for the system to set its cal-
ibration.
 The cruising range displayed is cal-
culated based on past fuel consump-
tion and may vary according to your
driving style and road condition.
Trip information

104
2003 Land Cruiser 100 Navigation (OM60A00U)
UNG405
Contrast and brightness adjustment
CONTRAST ”+”:
Strengthens the contrast of the screen.
CONTRAST ””:
Weakens the contrast of the screen.
BRIGHTNESS ”+”: Brightens the screen.
BRIGHTNESS ””: Darkens the screen.
The screen turns off when you push the
”SCREEN OFF”. To turn the display screen
back on, push any bezel switch such as
”INFO”, etc. The selected screen appears.
UNX401
Color and tone adjustment
You can adjust the color and the tone while
the DVD video and Video CD are being
played.
COLOR ”RED”:
Strengthens the red color of the screen.
COLOR ”GREEN”:
Strengthens the green color of the screen.
TONE ”+”: Strengthens the tone of the
screen.
TONE ””: Weakens the tone of the screen.
UNG407
Depending on the position of the head-
light switch, the screen changes to the
day mode or night mode.
To display the screen in the day mode even
with the head light switch on, touch ”DAY
MODE” on the adjustment screen for bright-
ness and contrast control.
However, if the instrument panel light control
switch is turned fully to the right, mode
switching cannot be done. It remains in the
day mode. In this case, ”DAY MODE” is not
shown on the screen.
If the screen is set in the day mode with the
headlight switch turned to on, this condition
is memorized in the system even with the en-
gine turned off.

109
2003 Land Cruiser 100 Navigation (OM60A00U)
UNC502
2. Use the ”TEMP” button to set the de-
sired temperature.
The ”TEMP” button is used to set the de-
sired passenger compartment temperature.
The temperature of air delivered to the pas-
senger compartment will be controlled auto-
matically according to the setting. SETTING OPERATION manual control
When one of the manual control buttons
is depressed while operating in automat-
ic mode, the mode relevant to the de-
pressed button is set. Other conditions
continue to be
adjusted automatically.
If manual air flow selection is desired
The outlets from which air is delivered can be
selected manually by touching the switch.
The function of each mode is as follows:
1 Panel − Air flows mainly from the instru-
ment panel vents.
2 Bilevel − Air flows from both the floor
vents and the instrument panel vents.
3 Floor − Air flows mainly from the floor
vents.
It is recommended that you close the lower
vent. For details about this, see page 113.
4 Floor/Windshield Air flows mainly
from the floor vents and windshield
vents.
It is recommended that you close the lower
vent. For details about this, see page 113.
The selected mode is highlighted in green.
If quick heating or cooling is desired
UNC502
Push the ”TEMP” button on either side and
hold it until the maximum figure or minimum
figure appears.

11 0
2003 Land Cruiser 100 Navigation (OM60A00U)
If manual fan speed control is desired
 1Fan speed at low
2Fan speed at high
The fan speed can be set to your desired
speed by touching the appropriate air flow
control switch. The higher the fan speed is,
the more air is delivered. Pushing the ”OFF”
button turns of f the fan.
To remove exterior windshield frost, use the
high speed setting.
The selected mode is highlighted in green. If manual switching of air intake is de-
sired
UNC503
The air
intake control button is used to switch
the air intake between the OUTSIDE AIR
mode and RECIRCULATED AIR mode.
With the button in the OUTSIDE AIR mode,
the OUTSIDE AIR mode indicator light will
come on and the system will take fresh out-
side air into the vehicle.
If quick circulation of cooled air is desired,
push the air intake control button for RECIR-
CULATED AIR. The RECIRCULATED AIR
mode indicator light will come on. For normal use, it is best to keep the air in-
take control button set to OUTSIDE AIR
mode. If
recirculated air is used during heat-
ing, the windows will fog up more easily.
If the engine coolant temperature becomes
extremely high, the RECIRCULATED AIR
mode is automatically selected. This is not
a malfunction. When the engine coolant
temperature is lowered, the previous mode
resumes.

11 8
2003 Land Cruiser 100 Navigation (OM60A00U)
Push the ”AM”, ”FM”, ”TAPE” or ”DISC”
button to turn on that mode. The selected
mode turns on directly.
Push these buttons if you want to switch from
one mode to another.
If the tape or disc is not set, the cassette play-
er or compact disc player does not turn on.
You can turn off the cassette player by eject-
ing the cassette tape. If the audio system
was previously off, then the entire audio sys-
tem will be turned off when you eject the cas-
sette tape. If another function was previously
playing, it will come on again.
UNG604
UNG605
The switches for radio, cassette tape and
disc player operation are displayed on
the liquid crystal display. Touch them
lightly and directly on the screen.
