Introduction
Thank you for your purchase of the Navigation System. Please read this manual carefully to ensure proper use. Keep this manual
in your vehicle at all times.
The Navigation System is one of the most technologically advanced vehicle accessories ever developed. The system receives satellite signals
from the Global Positioning System (GPS) operated by the U.S. Department of Defense. Using these signals and other vehicle sensors, the
system indicates your present position and assists in locating a desired destination.
The navigation system is designed to select efficient routes from your present starting location to your destination. The system is designed
to direct you to a destination that is unfamiliar to you in an efficient manner. The system uses the maps of DENSO. The calculated routes
may not be the shortest nor the least traffic congested. Your own personal local knowledge or “short cut” may at times be faster than the calcu-
lated routes.
The navigation system’s database includes about 75 Point of Interest categories to allow you to easily select destinations such as restaurants
and banks. If a destination is not in the database, you can enter the street address or a major intersection close to it and the system will guide
you there. The system will provide both a visual map and audio instructions. The audio instructions will announce the distance remaining
and the direction to turn in approaching a fork or intersection. These voice instructions will help you keep your eyes on the road and are timed
to provide enough time to allow you to maneuver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite condition, road configuration, vehicle condition or other circumstan-
ces. For more information on the limitations of the system, refer to pages 9 through 11.
 2003 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written permission of Toyota Motor Corporation.

83
3. Touch the “On” switch of “Auto Voice
Guidance”.
The selected switch is highlighted in
green.
Voice guidance in all modes
When the “Voice Guidance in All Modes”
feature is turned on, you can hear the
voice guidance in all modes.
When the “Voice Guidance in All Modes”
feature is turned off, voice guidance can-
not be heard when you using the audio
system.
To turn the “Voice Guidance in All Modes”
on:
1. Push the
“MENU” button.2. Touch the “Setup” switch. Then
touch
switch to display page 2 of the
“Setup” screen.

11 0
By pushing the telephone button above,
you can receive a call or hang up without
your hands off the steering wheel.
unl303a
You can use the microphone above when
talking on the phone.The receiving voice outputs from the driver’s
speaker. When the incoming calls or receiv-
ing voice outputs, the audio from the Audio
system or voice guidance from the Navigation
system will be muted.
INFORMATION
Talk alternately with the remote party
on the phone. If you talk at the same
time, the voice may not reach each
other. (It is not a malfunction.)
Keep the volume of receiving voice
down. Otherwise, echo is coming up.
When you talk on the phone, speak
clearly towards the microphone.
In the following situation, your voice
may not reach the remote party.
Driving on unpaved road. (Making
a traffic noise.)
Driving at the high speed.
The window is open.
Turning the airconditioning vents
towards the microphone.
The sound of the airconditioning
fan is loud.
1Indicates a condition of Bluetooth
connection.
“Blue” indicates excellent condition of Blue-
tooth connection.
“Yellow” indicates the condition easy to dis-
connect the Bluetooth, causing the inferiority
in audio.
Not indicates: no connection of the Blue-
tooth.
2Indicates the receiving area.
“Rm” is displayed when receiving in Roam-
ing area.
“Ho” is displayed when receiving in Home
area.

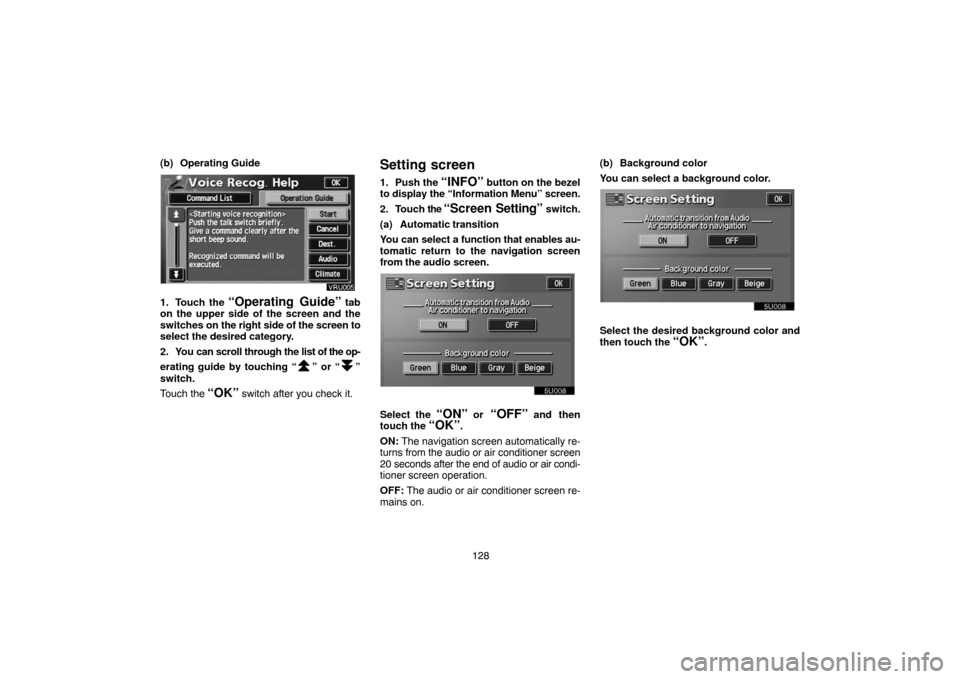

128 (b) Operating Guide
1. Touch the “Operating Guide” tab
on the upper side of the screen and the
switches on the right side of the screen to
select the desired category.
2. You can scroll through the list of the op-
erating guide by touching “
” or “”
switch.
Touch the
“OK” switch after you check it.
Setting screen
1. Push the “INFO” button on the bezel
to display the “Information Menu” screen.
2. Touch the
“Screen Setting” switch.
(a) Automatic transition
You can select a function that enables au-
tomatic return to the navigation screen
from the audio screen.
5u008
Select the “ON” or “OFF” and then
touch the “OK”.
ON: The navigation screen automatically re-
turns from the audio or air conditioner screen
20 seconds after the end of audio or air condi-
tioner screen operation.
OFF: The audio or air conditioner screen re-
mains on.(b) Background color
You can select a background color.
Select the desired background color and
then touch the
“OK”.

141
AUDIO SYSTEM
Audio system142 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION VI

 For the JBL brand audio system, “JBL” logo is provided on the panel.
142
Audio system
Quick reference for your audio system
Page
1 Audio operation screen display
button 143. . . . . . . . . . . . . . . . . . . . . . . .
2 Function switch display
screen 144. . . . . . . . . . . . . . . . . . . . . . .
3 Cassette tape slot 151. . . . . . . . . . . . .
4 Frequency turning knob 148. . . . . . .
5 [Radio mode] Preset tuning 148. . . .
[Tape mode] Side change of
cassette tape 151. . . . . . . . . . . . . . . . .
[DISC mode] Disc selection 155. . . .
6 SCAN button 149, 156. . . . . . . . . . . . . .
7 Mode selectors 144. . . . . . . . . . . . . . . .
8 Stopping and ejecting a
cassette tape 151. . . . . . . . . . . . . . . . .
9 [Radio mode] Seek tuning 148. . . . . .
[Tape/DISC mode] Direct access to
a desired program 152/156. . . . . . . . . .
10 Turning the system on and
adjusting volume 143. . . . . . . . . . . . . .

143
Using your audio system:
some basics
This section describes some of the basic fea-
tures of the Toyota audio system. Some in-
formation may not pertain to your system.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
NOTICE
To prevent the battery from being
discharged, do not leave the car audio
on longer than necessary when the
engine is not running.
oxu002
By pushing the switch above, you can op-
erate the speech command system.
For the operation of the speech command
system and the command, see page 126 and
127.
(a) Turning the system on and off
UNX602
POWERVOL: Push this knob to turn the au-
dio system on and off. Turn this knob to adjust
the volume. The system turns on in the last
mode used.
AUDIO: Push this button to display switches
for audio system.
VI

144
Push the “AM”, “FM”, “TAPE” or “DISC”
button to turn on that mode. The selected
mode turns on directly.
Push these buttons if you want to switch from
one mode to another.
If the tape or disc is not set, the cassette play-
er or compact disc player does not turn on.
You can turn off the cassette player by eject-
ing the cassette tape. If the audio system was
previously off, then the entire audio system
will be turned off when you eject the cassette
tape. If another function was previously play-
ing, it will come on again.The switches for radio, cassette tape and
disc player operation are displayed on the
liquid crystal display. Touch them lightly
and directly on the screen.
The selected switch is highlighted in green.

145
(b) Automatic sound levelizer
When the audio sound becomes difficult to be
heard due to road noise, wind noise, etc. dur-
ing driving, touch the “ASL” switch. The sys-
tem adjusts to the optimum volume and tone
quality according to the noise level.
(c) Tone and balance
How good an audio program sounds to you is
largely determined by the mix of the treble,
mid−range, and bass levels. In fact, different
kinds of music and vocal programs usually
sound better with different mixes of treble,
mid−range, and bass.
A good balance of the left and right stereo
channels and of the front and rear sound lev-
els is also important.
Keep in mind that if you are listening to a ste-
reo recording or broadcast, changing the
right/left balance will increase the volume of
one group of sounds while decreasing the
volume of another.

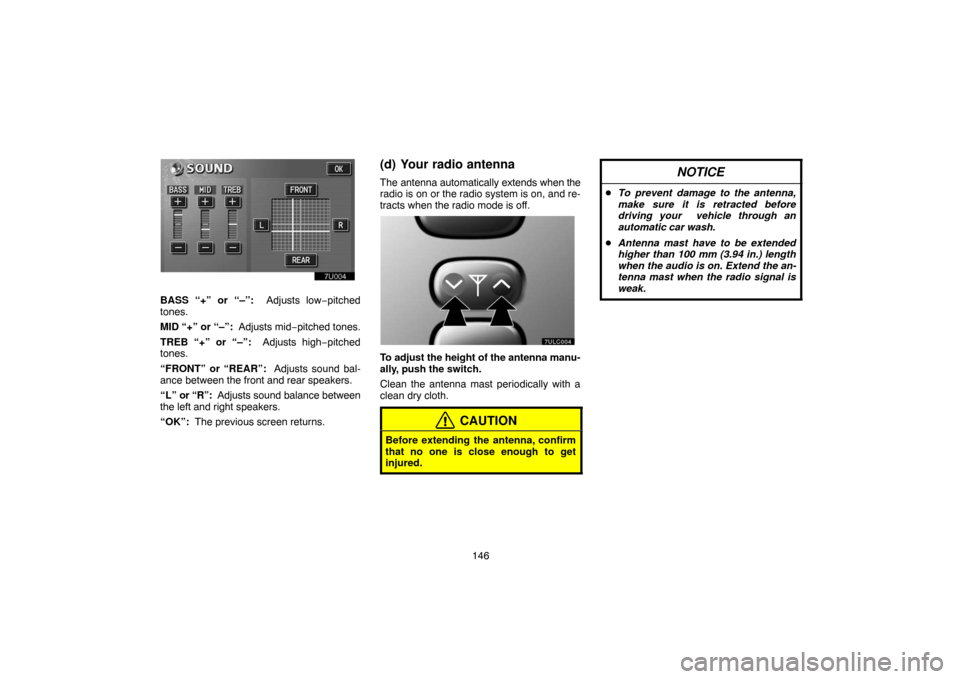

Touching the “SOUND” switch on the
screen displays the sound adjustment
screen.
VI

146
BASS “+” or “–”: Adjusts low−pitched
tones.
MID “+” or “–”: Adjusts mid−pitched tones.
TREB “+” or “–”: Adjusts high−pitched
tones.
“FRONT” or “REAR”: Adjusts sound bal-
ance between the front and rear speakers.
“L” or “R”: Adjusts sound balance between
the left and right speakers.
“OK”: The previous screen returns.
(d) Your radio antenna
The antenna automatically extends when the
radio is on or the radio system is on, and re-
tracts when the radio mode is off.
UNX602
To adjust the height of the antenna manu-
ally, push the switch.
Clean the antenna mast periodically with a
clean dry cloth.
CAUTION
Before extending the antenna, confirm
that no one is close enough to get
injured.
NOTICE
To prevent damage to the antenna,
make sure it is retracted before
driving your vehicle through an
automatic car wash.
Antenna mast have to be extended
higher than 100 mm (3.94 in.) length
when the audio is on. Extend the an-
tenna mast when the radio signal is
weak.
