TOYOTA LAND CRUISER 2004 J100 Owners Manual

133
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
When the “VSC/TRAC” warning light and
“VSC OFF” indicator light come on, the
vehicle stability control system and/or ac-
tive traction control system are not operat-
ing, but there is no problem if you contin-
ue to drive.
(n) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver ’s door with
the ignition key in the “ACC” or “LOCK”
position.
CHECKING SERVICE REMINDER INDICA-
TORS (except the low fuel level warning
light)1. Apply the parking brake.
2. Open one of the side doors or back door.
The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Place the four −wheel drive control lever
in “N” position and the selector lever
in “P” position. 5. Turn the ignition key to “ON”, but do
not start the engine.
All the service reminder indicators ex-
cept the open door warning light should
come on. The “ABS”, “VSC/TRAC”,
“VSC OFF”, “TRAC”, and slip indicator
light go off after a few seconds. The
SRS warning light goes off after about
6 seconds.
There may be the case that the “ABS”,
“VSC/TRAC” and “VSC OFF” stay on
for about 60 seconds after the ignition
key is turned to “ON” position. It is
normal if they go out after a while.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.
Trip information display
The following information is shown with
the ignition key turned on. Each time
you push the “MODE” button, the dis-
played information is changed.
Average vehicle speed
Driving distance after engine starting
Available driving range
Average fuel consumption after refuel-
ing
Current fuel consumption
The displayed cruise information values
indicate the general driving condition and
may not always reflect precise and actual
conditions.

134
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Average vehicle speed
The average vehicle speed is calculated
and displayed based on the total driv-
ing distance and the total driving time
with the engine running.
The displayed value is updated every 10
seconds.
To begin recalculating, push the “RESET”
button for about 1 second.Driving distance after engine starting
The driving distance after engine start-
ing is displayed.
To begin recalculating, push the “RESET”
button for about 1 second.Available driving range
The available driving range is calcu-
lated and displayed depending on the
amount of remaining fuel.

135
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Average fuel consumption after re-
fueling
The average fuel consumption after re-
fueling is calculated and displayed
based on the total driving distance and
the total fuel consumption after refuel-
ing.
The value is updated every 10 seconds.
When refueling, be sure to stop your ve-
hicle and turn the ignition key off.Current fuel consumption
The current fuel consumption is calcu-
lated and displayed based on the driv-
ing distance and the fuel consumption
per 2 second interval with the engine
running.
The value is updated every 2 seconds.
If you are driving at low speeds just be-
fore stopping, the accurate figure may not
be shown.

136
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

137
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch with steering lock138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 139
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Four −wheel drive system 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Parking brake 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Cruise control 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Active traction control system 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle stability control system 151
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 7

138
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
“START”—Starter motor on. The key
will return to the “ON” position when
released.
For starting tips, see page 235.
It is not a malfunction even if the needle
of the tachometer, fuel gauge, engine
coolant temperature gauge, engine oil
pressure gauge or voltmeter returns to
bottom position when the ignition switch is
turned to the “START” position.
“ON”—Engine on and all accessories
on.
This is the normal driving position.“ACC”—Accessories such as the radio
operate, but the engine is off.
If you leave the key in the “ACC” or
“LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key.
“LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position.
To turn the key from “ACC” to the “LOCK”
position, you must put the selector lever
in the “P” position.
Once you remove the key, the engine im-
mobilizer system is automatically set. (See
“Engine immobilizer system” on page 12.)
When starting the engine, the key may
seem stuck at the “LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
NOTICE
Do not leave the key in the “ON”
position if the engine is not running.
The battery will discharge and the
electronic ignition system could be
damaged.
Ignition switch with steering
lock

139
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

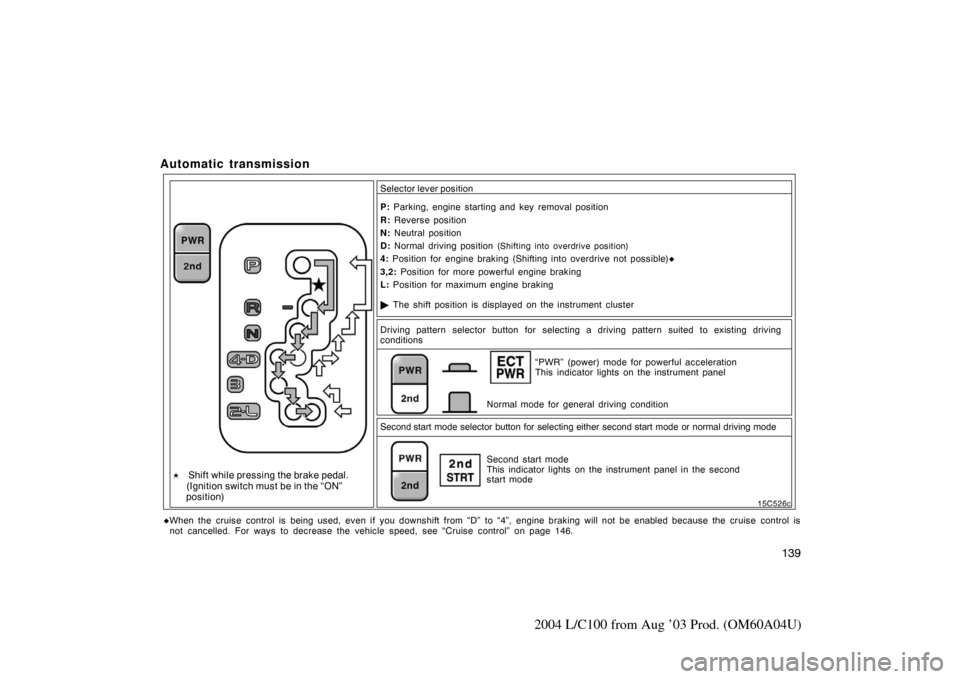

Automatic transmission
 The shift position is displayed on the instrument cluster
P:
Parking, engine starting and key removal position
R: Reverse position
N: Neutral position
D: Normal driving position
(Shifting into overdrive position)
4: Position for engine braking (Shifting into overdrive not possible)
3,2: Position for more powerful engine braking
Driving pattern selector button for selecting a driving pattern suited to existing driving
conditions
Normal mode for general driving condition“PWR” (power) mode for powerful acceleration
This indicator lights on the instrument panel
Second start mode selector button for selecting either second start mode or no\
rmal driving mode Second start mode
This indicator lights on the instrument panel in the second
start mode
L:
Position for maximum engine braking
 Shift while pressing the brake pedal.
(Ignition switch must be in the “ON”
position)
Selector lever position
When the cruise control is being used, even if you downshift from “D” to “4”, engine braking will not be enabled because the cr uise control is
not cancelled. For ways to decrease the vehicle speed, see “Cruise control” on page 146.

140
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed with the ignition
switch in “ON” position.
(a) Normal driving1. Start the engine as instructed in “How to start the engine” on page 235. The
transmission must be in “P” or “N”.
2. With your foot holding down the brake pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always use the “D” position for better fuel
economy and quieter driving. If the engine
coolant temperature is low, the transmis-
sion will not shift into the overdrive gear
even in the “D” position.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
(b) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Shift into the “4” position. The trans-
mission will downshift to fourth gear
and engine braking will be enabled.
Shift into the “3” position. The trans-
mission will downshift to third gear
when the vehicle speed drops down to
or lower than following speed for third
gear, and more powerful engine braking
will be enabled. Four
–wheel drive control lever
in “H” 124 km/h (77 mph) . . . . . . . . . . .
Four
–wheel drive control lever
in “L” 49 km/h (31 mph) . . . . . . . . . . .
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than following speed for sec-
ond gear, and more powerful engine
braking will be enabled.
Four
–wheel drive control lever
in “H” 83 km/h (52 mph) . . . . . . . . . . .
Four
–wheel drive control lever
in “L” 33 km/h (21 mph) . . . . . . . . . . .
Shift into the “L” position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than following speed for “L”
position and maximum engine braking
will be enabled.
Four
–wheel drive control lever
in “H” 43 km/h (27 mph) . . . . . . . . . . .
Four
–wheel drive control lever
in “L” 17 km/h (11 mph) . . . . . . . . . . .
When the cruise control is being used,
even if you downshift from “D” to “4”,
engine braking will not be enabled be-
cause the cruise control is not cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” on page 146.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.

141
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
(c) Using “3”, “2” and “L” positions
The “3”, “2” and “L” positions are used for
strong engine braking as described pre-
viously.
With the selector lever in “3”, “2” or “L”,
you can start the vehicle in motion as
with the lever in “D”.
With the selector lever in “3” and “2”, the
vehicle will start in first gear and automat-
ically shift to third or second gear.
With the selector lever in “L”, the trans-
mission is engaged in first gear.NOTICE
Be careful not to over-rev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given below for your reference:
km/h (mph)
Transmission Transfer L H
4 67 (42) 165 (102) . . . . . . .
3 48 (30) 118 (73) . . . . . . .
2 33 (20) 81 (50) . . . . . . .
L 19 (12) 47 (29) . . . . . . .
 Do not continue hill climbing or
hard towing for a long time in the
“3”, “2” or “L” position. This may
cause severe automatic transmis-
sion damage from overheating. To
prevent such damage, “4” position
should be used in hill climbing or
hard towing.
(d) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the selector lever to the
“R” position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.

142
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
(e) Parking1. Bring the vehicle to a complete stop.
2. Pull the parking brake lever up fully to securely apply the parking brake.
3. With the brake pedal pressed down, shift the selector lever to the “P” posi-
tion.
If the four–wheel drive control is in the
“N” position while the selector lever is in
the “P” position, the transmission will
damage and the wheels will not lock.
CAUTION
While the vehicle is moving, never
attempt to move the selector lever
into “P” position under any circum-
stances. Serious mechanical damage
and loss of vehicle control may re-
sult.
(f) Good driving practice
If the transmission repeatedly shifts up
and down between fourth gear and ov-
erdrive gears when climbing a gentle
slope, shift the selector lever to the “4”
position. Be sure to shift the selector
lever to the “D” position immediately
afterward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Always use the brake pedal or the
parking brake to hold the vehicle on
an upgrade. Do not attempt to hold
the vehicle using the accelerator ped-
al, as this can cause the transmission
to overheat.
(g) Driving in “PWR” (Power) mode
In the “PWR” mode, the transmission is
shifted up and down at a higher vehicle
speed than in the Normal mode and a
more powerful acceleration is achieved. To
set the “PWR” mode, push in the driving
pattern selector button. The “PWR” mode
indicator light comes on.
For ordinary driving, Toyota recommends
using the Normal mode to improve fuel
economy.
(h) If you cannot shift the selector le- ver out of “P” position
If you cannot shift the selector lever from
the “P” position even though the brake
pedal is depressed, use the shift lock
override button. For instructions, see “If
you cannot shift automatic transmission
selector lever” on page 271.
