TOYOTA LAND CRUISER 2004 J100 Owner's Guide

23
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power win-
dows. You must also make sure
the heads, hands and other parts
of the bodies of all occupants
are kept completely inside the
vehicle. If someone’s neck, head
or hands get caught in a closing
window, it could result in a seri-
ous injury. When anyone closes
the power windows, make sure
he or she operates the windows
safely.
When small children are in the
vehicle, never let them use the
power window switches without
supervision. Use the window
lock switch to prevent them from
making unexpected use of the
switches.
Be sure to remove the ignition
key when you leave your vehicle.
Never leave anyone (particularly
a small child) alone in your ve-
hicle, especially with the ignition
key still inserted. Otherwise, he
or she could use the power win-
dow switches and get trapped in
a window. Unattended person
(particularly a small child) can
be involved in a serious acci-
dent.
Never try jamming any part of your
body in a window to activate the
jam protection function intention-
ally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.

24
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Power quarter windows
The rear quarter windows can be oper-
ated with the “REAR VENT” switches
on the instrument panel.
The power rear quarter windows work
when the ignition switch is in the “ON”
position.
Both left and right rear quarter windows
move as long as you hold the switch.
To open: Push the right one of the
switches.
To close: Push the left one of the
switches.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power
quarter windows, always make
sure there is nobody around the
power quarter windows. You
must also make sure the hands
and other parts of the bodies of
all occupants are kept complete-
ly inside the vehicle. If some-
one’s hands get caught in a
closing window, it could result in
a serious injury. When anyone
closes the power quarter win-
dows, make sure he or she oper-
ates the windows safely.
Be sure to remove the ignition
key when you leave your vehicle.
Never leave anyone (particularly
a small child) alone in your ve-
hicle, especially with the ignition
key still inserted. Otherwise, he
or she could use the power
quarter window switches and get
trapped in a window. Unattended
person (particularly a small child)
can be involved in a serious ac-
cident.

25
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Back door
LOCKING AND UNLOCKING WITH KEY
Insert the key into the key hole and
turn it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
All the doors lock and unlock simulta-
neously with back door.
Operating the power door lock switch si-
multaneously locks or unlocks all the side
doors and the back door. (See “Side
doors” on page 13.)
To open the back door, pull the lock re-
lease lever.Pull the handle toward you and pull
down the lower side of the back door.
When closing the back door, make sure
it is fully closed.
See “Cargo and luggage” on page 229 for
precautions when loading luggage.LOCKING AND UNLOCKING FROM IN-
SIDE
To lock: Push the knob.
To unlock: Pull the knob.
Operating the power door lock switch si-
multaneously locks or unlocks all the side
doors and the back door. (See “Side
doors” on page 13.)

26
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Push the handle and push down the
lower side of the back door.
When closing the back door, make sure
it is fully closed.
See “Cargo and luggage” on page 229 for
precautions when loading luggage.
CAUTION
Keep the back door closed while
driving. This not only keeps the
luggage from being thrown out
but also prevents exhaust gases
from entering the vehicle.
If the open back door hides the
stop and tail lights, rear turn sig-
nal lights or rear retro reflectors
while you are parked, other road
users must be warned of the
presence of your vehicle by a
warning triangle or other device.
BACK DOOR CHILDPROTECTOR
Move the lock lever to the “LOCK”
position as shown on the label.
This feature allows you to lock a back
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.

27
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
CAUTION
Before driving, be sure that the back
door is closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
Hood
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.

28
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

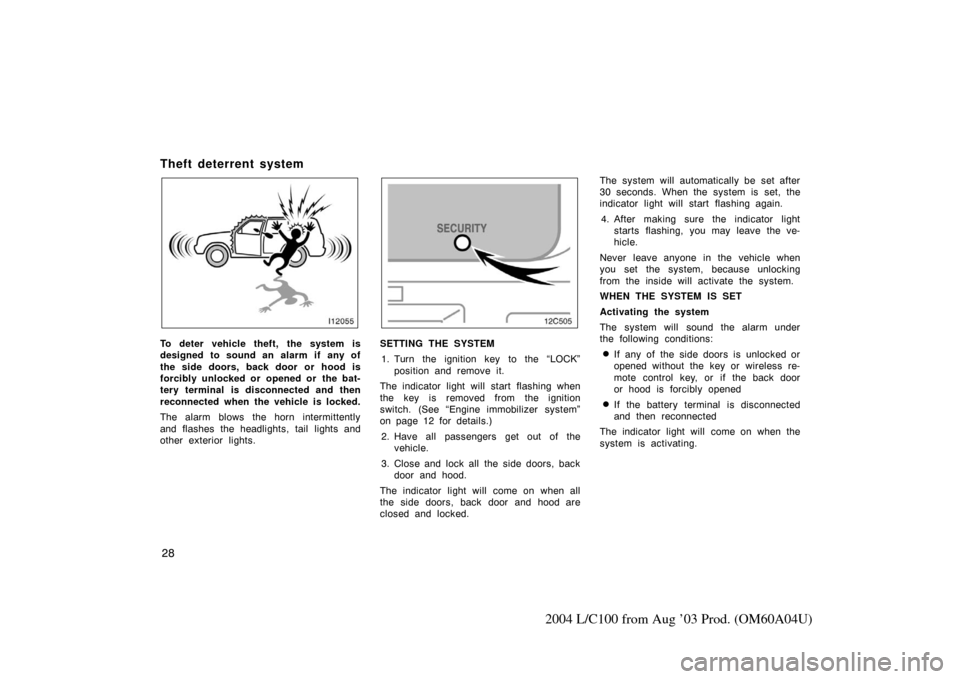

Theft deterrent system
To deter vehicle theft, the system is
designed to sound an alarm if any of
the side doors, back door or hood is
forcibly unlocked or opened or the bat-
tery terminal is disconnected and then
reconnected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
other exterior lights.SETTING THE SYSTEM1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 12 for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will come on when all
the side doors, back door and hood are
closed and locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:If any of the side doors is unlocked or
opened without the key or wireless re-
mote control key, or if the back door
or hood is forcibly opened
If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activating.

29
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
If any of the side door or back door is
unlocked without the key or wireless re-
mote control key and the key is not in the
ignition switch, all the side doors and
back door will be automatically locked
again.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
two ways:
Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the side doors or back
door with the key or wireless remote
control key.
These ways cancel the system at the
same time. TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The side doors and back door should
be locked with the key or wireless re-
mote control key. Be sure to wait until
the indicator light goes off or starts
flashing.
3. Unlock any side door or back door from the inside. The system should ac-
tivate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors, back door and hood. When test-
ing the hood, also check that the sys-
tem is activated when the battery ter-
minal is disconnected and then
reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
Fuel tank cap
12C503
This indicates that the fuel filler door
is on the left side of your vehicle.

30
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

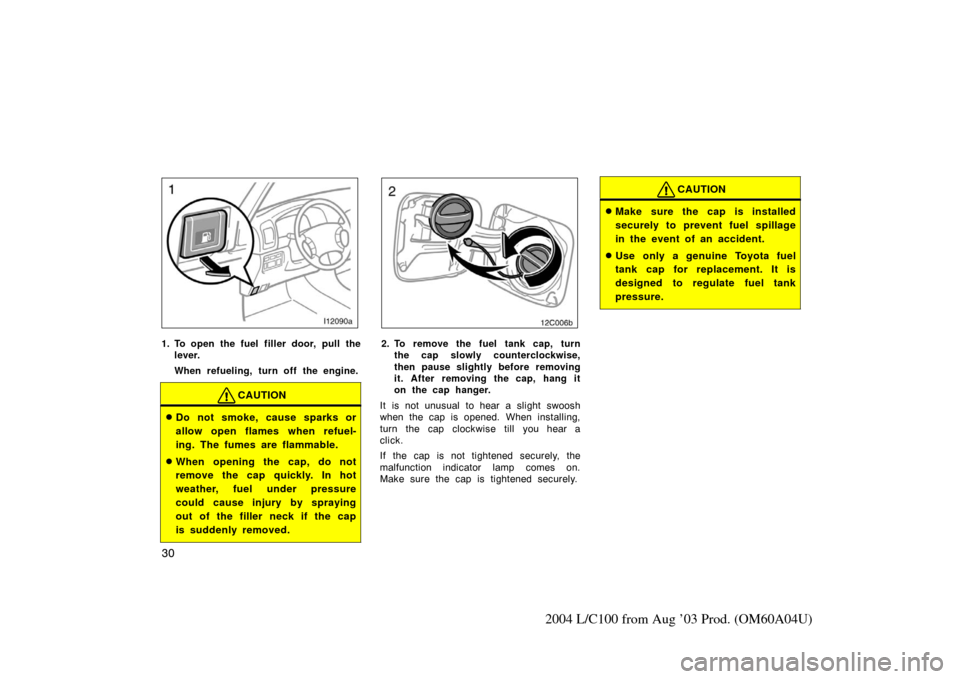

1. To open the fuel filler door, pull thelever.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or
allow open flames when refuel-
ing. The fumes are flammable.
When opening the cap, do not
remove the cap quickly. In hot
weather, fuel under pressure
could cause injury by spraying
out of the filler neck if the cap
is suddenly removed.
12C006b
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
CAUTION
Make sure the cap is installed
securely to prevent fuel sp illage
in the event of an accident.
Use only a genuine Toyota fuel
tank cap for replacement. It is
designed to regulate fuel tank
pressure.

31
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Electric moon roof
Sliding operation
Tilting operation
To operate the moon roof, use the
switches beside the personal light.
The moon roof works when the ignition
switch is in the “ON” position. However,
if both front doors are closed, it works for
45 seconds even after the ignition switch
is turned off. It stops working when either
of the front doors is opened.
Sun shade operation—
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the rear
side.
The roof will open and stop partway 30
mm (1.2 in.) from the fully opened posi-
tion. When you push the switch again, the
moon roof will open fully. To stop the roof
partway, push the same switch or tilt
switch while the roof is moving.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof partway
30 mm (1.2 in.) from the fully opened
position.
The sun shade will be opened together
with the roof.
To close: Push the switch on the front
side.The roof will fully close. To stop the roof
partway, push the same switch or tilt
switch.
Tilting operation—
To tilt up: Push the switch on the “UP”
side.
The roof will tilt up fully. To stop the roof
partway, push the same switch or slide
switch.
To lower: Push the switch on the opposite
side of the “UP” side.
The roof will fully close. To stop the roof
partway, push the same switch or slide
switch.
Jam protection function (closing opera-
tion only):
If something gets caught be-
tween the moon roof and frame during
closing operation, the moon roof stops and
opens halfway.
If an impact is given to the moon roof,
this function may work without anything
caught.

32
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
If the battery terminals is disconnected
or the battery is run down, the moon
roof may not operate automatically and
the jam protection function will not operate
correctly after you reconnect, replace or
recharge the battery with the moon roof
slide −opened or tilted up. In any of these
cases, you should return the moon roof to
normal.
To normalize the moon roof, push and
hold the switch until the moon roof is
closed or tilted down completely.
Make sure the moon roof opens and
closes automatically. If the moon roof can-
not be operated properly, have it checked
by your Toyota dealer.CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, al-
ways keep the heads, hands and
other parts of the bodies of all
occupants away from the roof
opening. Otherwise, they could
be seriously injured if the ve-
hicle stops suddenly or if the ve-
hicle is involved in an accident.
Before you close the moon roof,
always make sure there is no-
body around the moon roof. You
must also make sure nobody
places his or her head, hands
and other parts of the body in
the roof opening. If someone’s
neck, head or hands get caught
in the closing roof, it could re-
sult in a serious injury. When
anyone closes the moon roof,
first make sure it is safe to do
so.
Be sure to remove the ignition
key when you leave your vehicle.
