TOYOTA LAND CRUISER 2005 J100 Owners Manual

171
(c) When the “TAPE” mode is selected
“
PROG ” button: Push this button
to select the other side of a cassette
tape.
“
TRACK ” button: Push the left or
right side to skip forward or backward to
locate the song you want to hear. For
details, see “SEEK TRACK button” on
page 163.
(d) When the “CD” or “DVD” mode is selected
“
DISC ” button: Use this button to
search a desired disc.
“
TRACK ” button: Use this button
to search a desired track or push this
button and hold it to fast forward or rever-
se. (e) Some basics
This system cannot be used if the audio
system is not turned on.
On this system, you cannot listen to XM
satellite radio*.
*: Use of satellite radio requires XM tuner
and service. Contact your Toyota dealer
for details.
You cannot select “AM” or “FM” mode in
the rear seat if the “FM” or “AM” mode
is used on the front seats side.
If you select the same mode as the front
seats side, operating the controller will
affect the mode on the front seats side.
Vehicles with navigation system only:
When the XM satellite radio* is se-
lected in the front seat, the “CD” or
“DVD” mode cannot be selected in the
rear seat.
When the “CD” or “DVD” mode is se-
lected in the rear seat, selecting the
XM satellite radio* in the front seat will
automatically change the “CD” or
“DVD” to “AM” mode in the rear seat.
CAUTION
This system is not designed for a
driver. So, the driver should not use
this system while driving.

172
The switches are installed on the left side
of the steering wheel.
“MODE” switch: Use this switch to
change the mode. If a tape or compact
disc is not inserted, the “TAPE” or “CD”
mode is skipped. When you push the
switch with the audio system turned off,
the audio system turns on.
“
” switches: Use this switches to ad-
just the volume. Push “+” to increase the
volume and “–” to decrease the volume.
The volume continues to increase or de-
crease while the switch is being pressed. (a) When the radio mode is selected
“
” or “” switch:
Push this switch for
seek tuning or to select a station.
To select a preset station, push the
switch briefly. Do this again to select
the next preset station.
To seek a station, push and hold the
switch until you hear a beep. Do this
again to find the next station. If you
push the switch on either side of the
“  ” or “ ” during the seek mode,
seeking will be canceled.
To step up or down the frequency,
push and hold the switch even after
you hear a beep. When you release
from the switch, the radio will begin
seeking up or down for a station. Do
this again to find the next station.
XM satellite radio*—
To select a preset channel, push the “ ”
or “ ” side of the switch. Repeat until a
desired channel is found.
*: Use of satellite radio requires XM tuner and service. Contact your Toyota dealer
for details. (b) When the “TAPE” mode is selected
“
” or “” switch:
Push this switch to
fast forward or rewind the tape or for
automatic program selection.
Push this switch until you hear a beep
to fast forward or rewind the tape. To
stop fast forwarding or rewinding, push
the same side on the switch until you
hear a beep.
Push this switch briefly for automatic
program selection. When automatically
selecting a program, you can skip up
to 9 programs at a time. For details,
see “SEEK TRACK button” on page
163.
Audio remote controls
(steering switches)

173
(c) When the “CD” or “DVD” mode isselected
“
” or “” switch: Use this switch to
select a desired track or disc.
Push this switch briefly to select a de-
sired track.
To select a desired disc, push and hold
this switch until the desired number of
the disc appears and you hear a beep.
CAUTION
Operate the switches with due care
while you are driving to avoid acci-
dents.

174

175
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Front air conditioning system:Controls 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Air flow selector settings 180
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips 181
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Instrument panel vents 183
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear air conditioning system:
Controls 184
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Air flow selector settings 186
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicle equipped with Navigation system, please refer to the
separate “ Navigation System Owner’s Manual”.
SECTION 1 9

176

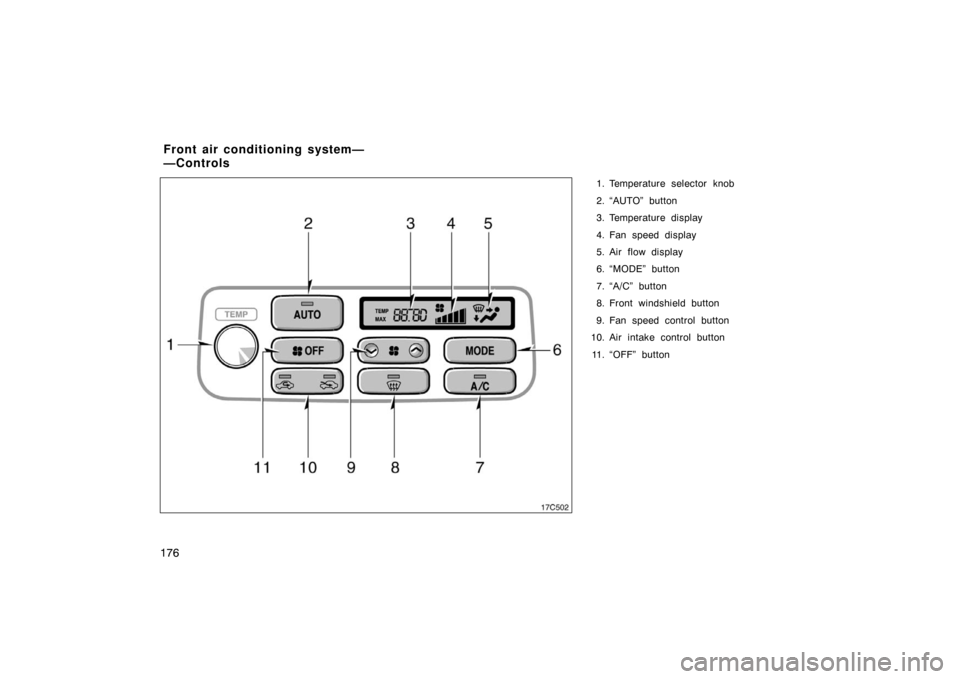

1. Temperature selector knob
2. “AUTO” button
3. Temperature display
4. Fan speed display
5. Air flow display
6. “MODE” button
7. “A/C” button
8. Front windshield button
9. Fan speed control button
10. Air intake control button
11. “OFF” button
Front air conditioning system—
—Controls

177
“AUTO” button
For automatic operation of the air condi-
tioning, press the “AUTO” button. An indi-
cator light will illuminate to show that the
automatic operation mode has been se-
lected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed and air flow according to the tem-
perature.
You may use manual controls if you want
to select your own settings.
To turn off the automatic operation, press
the “MODE” or fan speed control button.
Fan speed control button
Push the “” (increase) or “ ” (decrease)
button to adjust the fan speed.
In automatic operation, you do not have
to adjust the fan speed unless you desire
another fan speed mode.
Temperature selector knob
To increase the temperature, turn the knob
to right side, to decrease it, turn the knob
to left side. “MAX COLD” appears when you adjust to
maximum cooling, and “MAX HOT” ap-
pears when you adjust to maximum warm-
ing.
“OFF” button
Push the button to turn off the air condi-
tioning system.
“MODE” button
Push the button to select the vents used
for air flow.
In automatic operation, you do not have
to select the air flow unless you desire
another air flow mode.
1. Panel— Air flows mainly from the
instrument panel vents.
2. Bilevel— Air flows from both the floor
vents and the instrument panel vents.
3. Floor— Air flows mainly from the floor
vents.
It is recommended that you close the
lower vent. For details about this, see
“Instrument panel vents” described be-
low.

178
4. Floor/Windshield—Air flows mainly
from the floor vents and windshield
vents.
It is recommended that you close the
lower vent. For details about this, see
“Instrument panel vents” described be-
low.
For details about air flow selector settings,
see “Air flow selector settings” described
below.

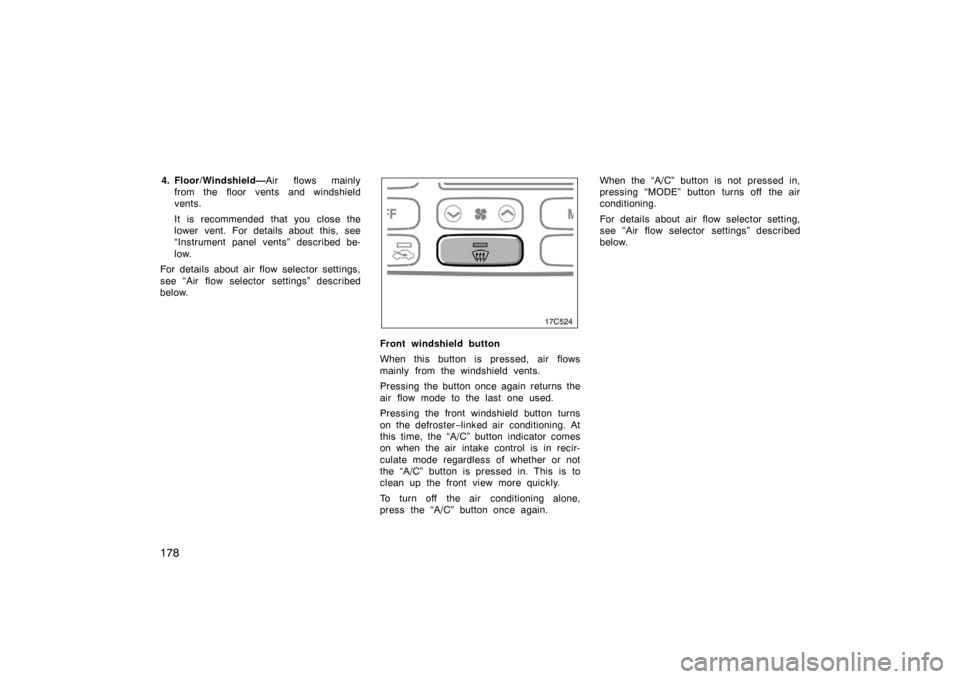

Front windshield button
When this button is pressed, air flows
mainly from the windshield vents.
Pressing the button once again returns the
air flow mode to the last one used.
Pressing the front windshield button turns
on the defroster −linked air conditioning. At
this time, the “A/C” button indicator comes
on when the air intake control is in recir-
culate mode regardless of whether or not
the “A/C” button is pressed in. This is to
clean up the front view more quickly.
To turn off the air conditioning alone,
press the “A/C” button once again. When the “A/C” button is not pressed in,
pressing “MODE” button turns off the air
conditioning.
For details about air flow selector setting,
see “Air flow selector settings” described
below.

179

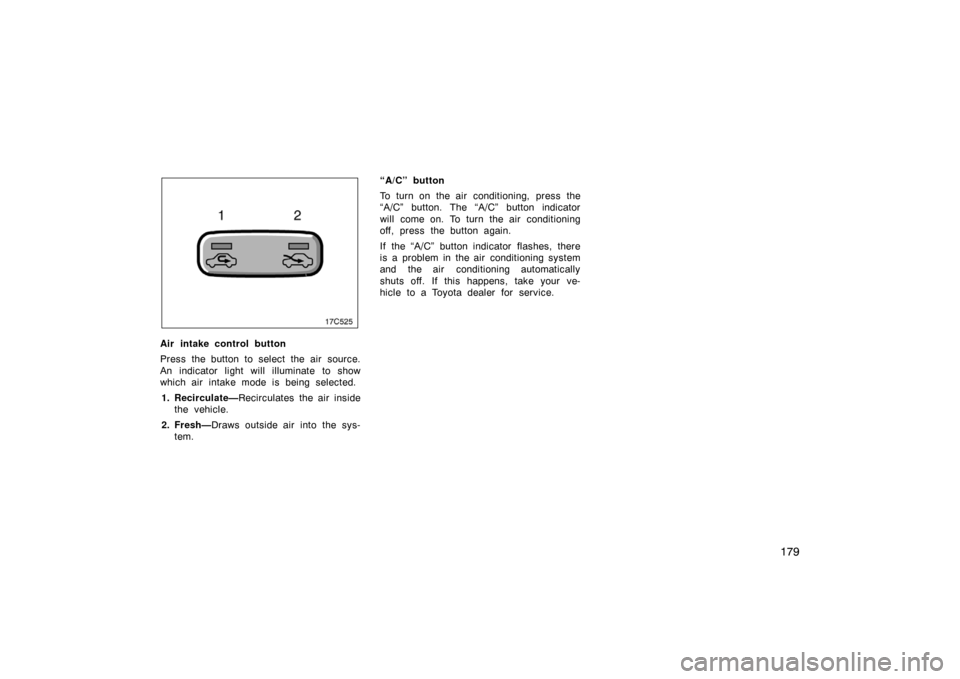

Air intake control button
Press the button to select the air source.
An indicator light will illuminate to show
which air intake mode is being selected.1. Recirculate— Recirculates the air inside
the vehicle.
2. Fresh— Draws outside air into the sys-
tem. “A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.

180

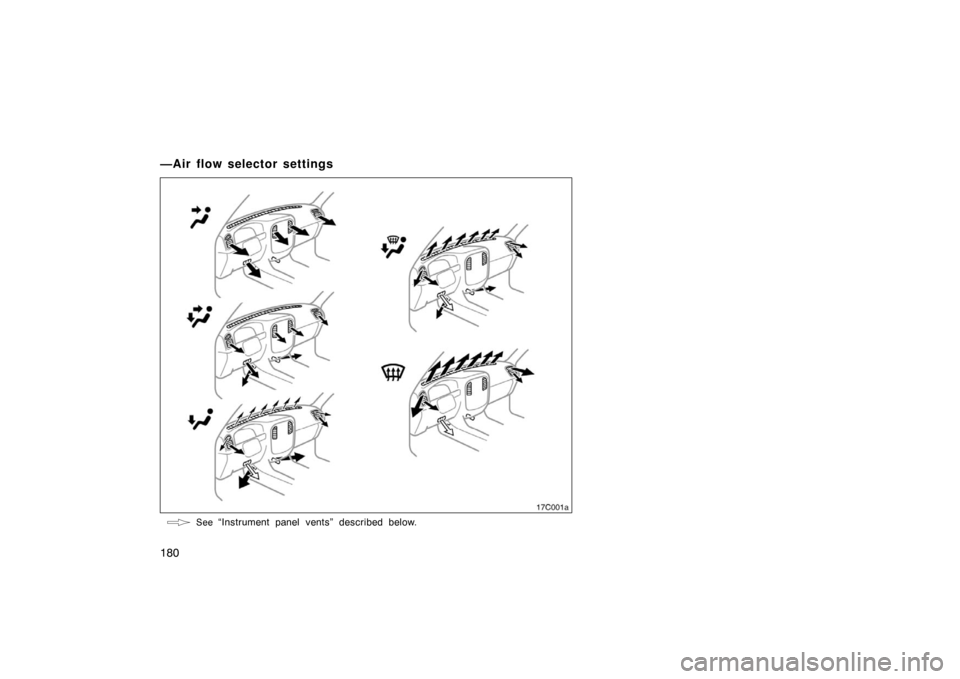

—Air flow selector settings
See “Instrument panel vents” described below.
17C001a
