Map TOYOTA LAND CRUISER 2006 J100 Navigation Manual

37
— Destination input by
“Coordinates”
Touch the “Coordinates” switch on the
“Destination” screen.
Input the latitude and the longitude.
When the input is finished, touch the
“OK”switch.
When you touch the switch of the desired
point, the screen changes and displays
the map location of the selected destina-
tion and the route preference. (See “ —
Entering destination” on page 38.)
— Destination input by
“Phone #”
Touch the “Phone #” switch on the
“Destination” screen.
Input a telephone number.
After inputting a telephone number, touch
the
“OK” switch, and the screen changes
and displays the map location of the se-
lected destination and the road prefer-
ence. (See “ — Entering destination” on
page 38.)
If there is more than one site having the same
number, the following screen appears.
INFORMATION
 If there is no match for the telephone
number inputted, a list of identical
numbers but with different area
codes will be displayed.
 To set a memory point as a destina-
tion using the phone number, the
number must be registered previous-
ly. (See page 72.)

38
Starting route guidance —
— Entering destination
After you input the destination, the screen
changes and displays the map location of
the selected destination and the route
preference.
SCREEN A
1. When you touch an arrow facing the
desired point, the map scrolls in that
direction. When you release your finger,
scrolling stops.
2. To set the destination and display
SCREEN B, touch the
“Enter” switch.
When the destination is already set, the
“Add to ” switch and the “Replace
” switch are displayed.
“Add to
”: To add a destination. “Replace
”:
To delete the existing destina-
tions and set a new one.
“Change”: To change the route preference.
(See page 39.)
“Info.”: If this switch is displayed on the top
of the screen, touch the switch to see name,
address, and phone number, etc.
SCREEN B
3. To start guidance, touch the
“Guide”switch.
“3 Routes”: To select the desired route from
three possible routes. (See page 39.)
“Route”: To change the route. (See pages
42 and 44.)
INFORMATION
 Guidance can be suspended or re-
sumed. (See page 62.)
 If you keep touching the
“Guide”switch until a beep sounds, Demo
mode will start.

42
The system announces your approach to the
final destination.
1“Your destination is ahead.”
2“You have arrived at your destina-
tion. The route guidance is now
finished.”
INFORMATION
If the system cannot determine the
current vehicle position correctly (in
cases of poor GPS signal reception),
the voice guidance may be made ear-
ly or delayed.
 If you did not hear the voice guidance
command, touch the
“MAP/
VOICE” button to hear it again.
 To adjust the voice guidance volume,
see page 63.
Setting and deleting
destination
(a) Adding destinations
You can add destinations and search
again for the routes.
1. Touch the “Route” switch.
2. Touch the “Add” switch of “Destina-
tion”.

49
Show POI icons
Points of Interest such as gas stations and
restaurants can be displayed on the map
screen. You can also set their location as
a destination and use them for route guid-
ance.
1. Touch the “Map View” switch.
2. Touch the “Show POI Icon” switch
to display a particular type of Point of In-
terest on the screen.
A screen with a limited choice of Points of In-
terest will be displayed. (To change the dis-
played POI, see page 90.) When you touch
the desired Point of Interest category, sym-
bols will appear on the map screen indicating
where the POI addresses are located.
To turn off the symbols of the Points of In-
terest on the map screen, touch the
“POI
Off” switch.
“More”: If you cannot find your desired Point
of Interest on the limited choice screen, touch
this switch. The screen then displays the
complete POI listing screen.
You can display up to 5 categories of icons on
the screen.

50
When you select a Point of Interest type from
either the limited list or the complete list, the
screen will display symbols at those locations
on the map screen.
Touching the
“Delete” switch will delete the
last selected icon.
“Local POI List”: If you want to search for the
nearest Point of Interest, touch this switch.
Then choose one of the categories. The sys-
tem will list the points within 20 miles (30 km).
Touch the switch of your desired Point of In-
terest. Selected Points of Interest are dis-
played on the map screen.
“Dist.”: To sort in the order of distance from
your current location.
“Icon”: To sort in the order of the POI icons.
“Name”: To sort in alphabetical order by
name.
“On Route”: When the indicator is illumi-
nated by touching this switch, the list of the
items searched along the route is displayed.
To set a POI as a destination
You can select one of the Points of Interest
icons on the map screen as a destination and
use it as route guidance.
Directly touch the Point of Interest icon
that you wish to set as a destination.
The map will shift so that the icon is centered
on the screen and overlaps with the cursor
. At this time, the distance from your cur-
rent position can be displayed on the screen.
The distance shown is measured as a straight
line from the current vehicle position to the
POI.
When your desired Point of Interest over-
laps with the cursor, touch the
“Enter
” switch. The screen changes and dis-
plays the map location of the selected des-
tination and route preference. (See “ —
Entering destination” on page 38.)

51
Route overview
1. Touch the “Map View” switch.
2. Touch the “Route Overview”switch.
The entire route from the current position to
the destination is displayed.
“Guide”: To start guidance.
“Route”: To change the route. (For details,
see pages 42 and 44.)
“Turn List”: The following screen displays
the list of the roads up to your destination.You can scroll through the list of roads by
touching
or . However, not all road
names in the route may appear on the list. If
a road changes its name without requiring a
turn (such as on a street that runs through two
or more cities), the name change will not ap-
pear on the list. The street name closest to
the starting point will be displayed with a mile-
age to the next turn.
These marks indicate the
direction in which you should turn
at an intersection.

52
Touch the
“Map” switch of your desired
point. The point which you choose is dis-
played on the map screen.Route preview
1. Touch the “Map View” switch.
2. Touch the “Route Preview” switch.
:To indicate the next destination.
:To preview the route to the next des-
tination.
: To preview the route to the next des-
tination in fast −forward mode.
: To stop the preview.
:To review the route to the previous
destination or starting point.
: To review the route to the previous
destination or starting point in fast −
forward mode.
: To indicate the previous destination
or starting point.

53
Screen configuration
You can choose any one of the screen
configurations.
1. Touch this switch to display the follow-
ing screen.
2. To select the desired screen configura-
tion, touch one of the following switches. Depending on the conditions, it may not be
possible to select certain screen configura-
tion switches.
:
To display single map screen. (See
page 53.)
: To display dual map screen. (See
page 54.)
: To display compass mode screen.
(See page 54.)
: To display turn list screen. (See page
55.)
: To display arrow screen. (See page
55.)
: To display freeway information
screen. (See page 55.)
: To display intersection guidance
screen or guidance screen on free-
way. (See page 56.)
(a) Single map
The screen shows the single map.

54

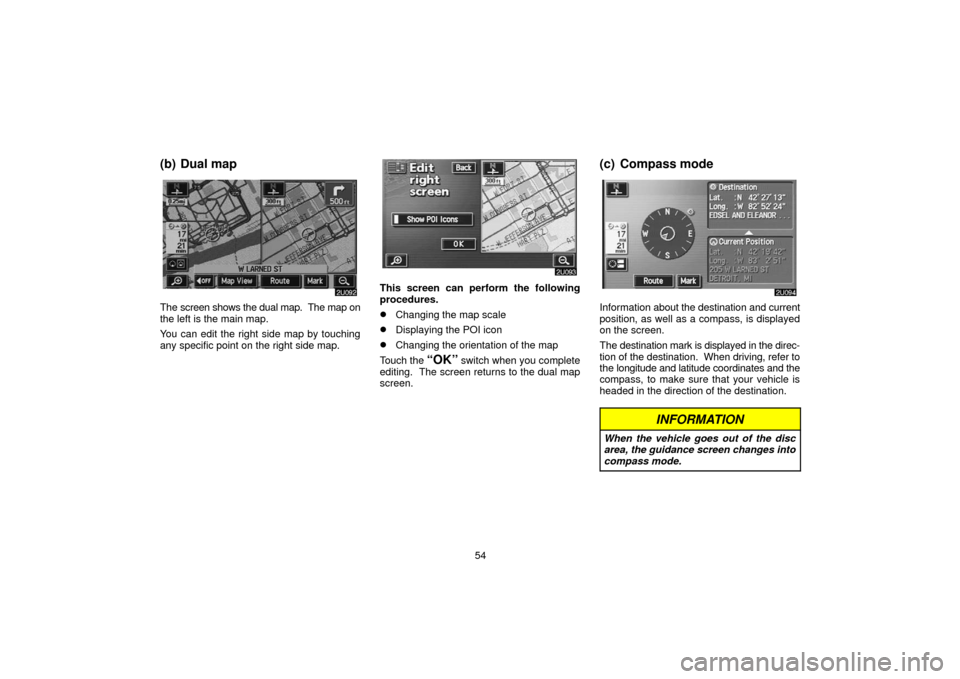

(b) Dual map
The screen shows the dual map. The map on
the left is the main map.
You can edit the right side map by touching
any specific point on the right side map.
This screen can perform the following
procedures.
Changing the map scale
Displaying the POI icon
Changing the orientation of the map
Touch the
“OK” switch when you complete
editing. The screen returns to the dual map
screen.
(c) Compass mode
Information about the destination and current
position, as well as a compass, is displayed
on the screen.
The destination mark is displayed in the direc-
tion of the destination. When driving, refer to
the longitude and latitude coordinates and the
compass, to make sure that your vehicle is
headed in the direction of the destination.
INFORMATION
When the vehicle goes out of the disc
area, the guidance screen changes into
compass mode.

55
(d) Turn list screen
The screen shows the turn list. You cannot
scroll through the list of roads.
(e) Arrow screen
The screen shows the current road name and
the distance to the next corner.
(f) Freeway information screen
This screen displays the distance to the next
junction and exit, or POIs in the vicinity of the
freeway exit.
“Map”: To display the selected map of the
exit vicinity.
On the left side of the
“Map” switch, up to
five POIs around the selected exit are dis-
played.
: To scroll for farther junctions or exits.
:To scroll for closer junctions or exits.
:To scroll for the closest three junctions
or exits.
