ECO mode TOYOTA LAND CRUISER 2006 J100 Navigation Manual

134

The automatic air conditioning automat-
ically maintains the set temperature.
This air conditioning features automatic fan
speed and air flow control which automati-
cally selects the most suitable fan speed
and air flow to control the temperature. The
ignition key must be in the “ON” position.
CLIMATE: Push this button to display
switches for automatic air conditioning con-
trols.
NOTICE
To prevent the battery from being dis-
charged, do not leave the air condition-
ing on longer than necessary when the
engine is not running.
oxu002
By pushing the switch above, you can op-
erate the speech command system.
For the operation of the speech command
system and the command, see page 126 and
128.
(a) Climate control
SETTING OPERATION automatic control
1. Push the “AUTO” button.
Air flow quantity, switching of the diffusers,
on−off of the air conditioning, and switching of
the air intake between RECIRCULATED AIR
and OUTSIDE AIR are automatically ad-
justed. The operation status is shown by
each indicator.
When one of the manual control buttons is de-
pressed while operating in automatic mode,
the mode relevant to the depressed button is
set. Other conditions continue to be adjusted
automatically.
Push the “OFF” button to turn the air condi-
tioning off.
It is recommended that you close the lower
vent. For details about this, see page 139.

135
UNX503
2. Use the “TEMP” button to set the de-
sired temperature.
The “TEMP” button is used to set the desired
passenger compartment temperature. The
temperature of air delivered to the passenger
compartment will be controlled automatically
according to the setting. SETTING OPERATION manual control
When
one of the manual control buttons is
depressed while operating in automatic
mode, the mode relevant to the depressed
button is set. Other conditions continue to
be adjusted automatically.
If manual air flow selection is desired
The outlets from which air is delivered can be
selected manually by touching the switch.
The function of each mode is as follows:
1 Panel − Air flows mainly from the instru-
ment panel vents.
2 Bilevel − Air flows from both the floor
vents and the instrument panel vents.
3 Floor − Air flows mainly from the floor
vents.
It is recommended that you close the lower
vent. For details about this, see page 139.
4 Floor/Windshield − Air flows mainly
from the floor vents and windshield
vents.
It is recommended that you close the lower
vent. For details about this, see page 139.
The selected mode is highlighted in green.
If quick heating or cooling is desired
Push the “TEMP” button on either side and
hold it until the maximum figure or minimum
figure appears.

136
If manual fan speed control is desired
 1
Fan speed at low
2Fan speed at high
The fan speed can be set to your desired
speed by touching the appropriate air flow
control switch. The higher the fan speed is,
the more air is delivered. Pushing the “OFF”
button turns of f the fan.
To remove exterior windshield frost, use the
high speed setting.
The selected mode is highlighted in green. If manual switching of air intake is desired

UNX506
The air intake control button is used to switch
the air intake between the OUTSIDE AIR
mode and RECIRCULATED AIR mode.
With the button in the OUTSIDE AIR mode,
the OUTSIDE AIR mode indicator light will
come on and the system will take fresh out-
side air into the vehicle.
If quick circulation of cooled air is desired,
push the air intake control button for RECIR-
CULATED AIR. The RECIRCULATED AIR
mode indicator light will come on.
For normal use, it is best to keep
the air intake
control button set to OUTSIDE AIR mode. If
recirculated air is used during heating, the
windows will fog up more easily. If the engine coolant temperature becomes
extremely high, the RECIRCULATED AIR
mode is
automatically selected. This is not a
malfunction. When the engine coolant tem-
perature is lowered, the previous mode re-
sumes.
In the following cases, the RECIRCULATED
mode may change to the OUTSIDE AIR
mode automatically to prevent interior fog.
When the outside temperature becomes
lower than 4 C (39F).
When the air conditioning compressor
malfunctions.
When the air conditioning cooler refriger-
ant decreases.

137
If manual onoff of the air conditioning is
desired
Push the “A/C”
switch to turn the air condi-
tioning on and push it again to turn the air
conditioning off. If you turn off the air condi-
tioning manually, the EXHAUST GAS AUTO-
MATIC mode will be cancelled.
If the outside temperature is lowered down to
around 0 C (32 F), the air conditioning will
turn off automatically. At this time, the indica-
tor on the A/C button is off and the EXHAUST
GAS AUTOMATIC indicator light remains on.
However, the EXHAUST GAS AUTOMATIC
mode does not operate. When the air condi-
tioning turns on as with the raised tempera-
ture, the EXHAUST GAS AUTOMATIC mode
resumes.
If the system is used for ventilation, heating in
dry weather or removing frost or exterior fog
on the windshield, turn the air conditioning off
once it is no longer required. This will improve
fuel economy. The air conditioning can be
used for year−round automatic temperature
control including cooling and dehumidifying
operation.
(b) Windshield defogging and de-
frosting

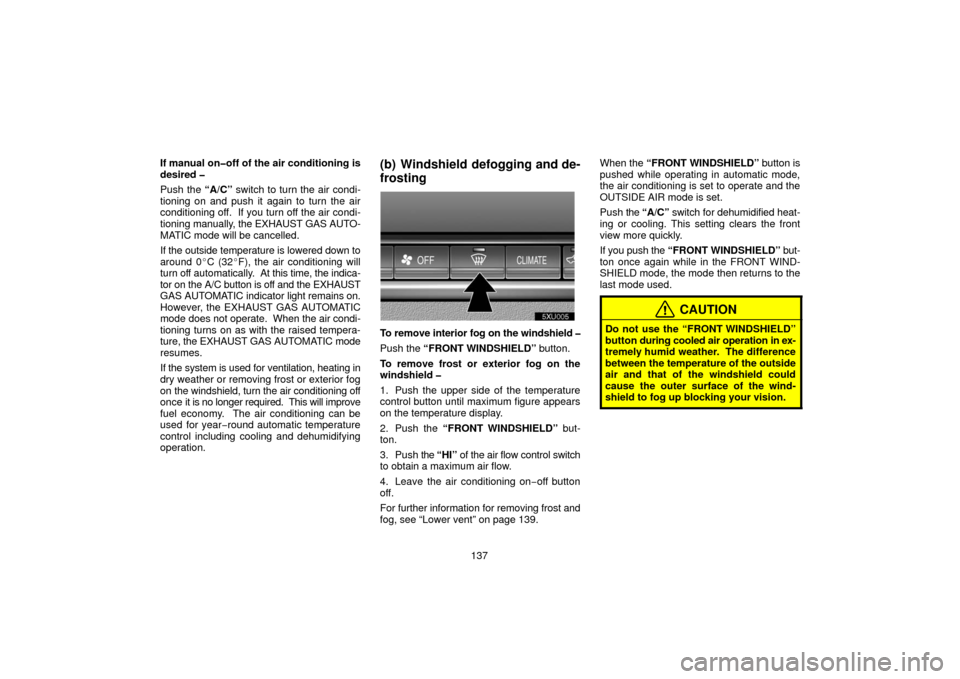

To remove interior fog on the windshield
Push the “FRONT WINDSHIELD” button.
To remove frost or exterior fog on the
windshield
1. Push the upper side of the temperature
control button until maximum figure appears
on the temperature display.
2. Push the “FRONT WINDSHIELD” but-
ton.
3. Push the “HI” of the air flow control switch
to obtain a maximum air flow.
4. Leave the air conditioning on −off button
off.
For further information for removing frost and
fog, see “Lower vent” on page 139. When the
“FRONT WINDSHIELD” button is
pushed while operating in automatic mode,
the air conditioning is set to operate and the
OUTSIDE AIR mode is set.
Push the “A/C” switch for dehumidified heat-
ing or cooling. This setting clears the front
view more quickly.
If you push the “FRONT WINDSHIELD” but-
ton once again while in the FRONT WIND-
SHIELD mode, the mode then returns to the
last mode used.
CAUTION
Do not use the “FRONT WINDSHIELD”
button during cooled air operation in ex-
tremely humid weather. The difference
between the temperature of the outside
air and that of the windshield could
cause the outer surface of the wind-
shield to fog up blocking your vision.

139

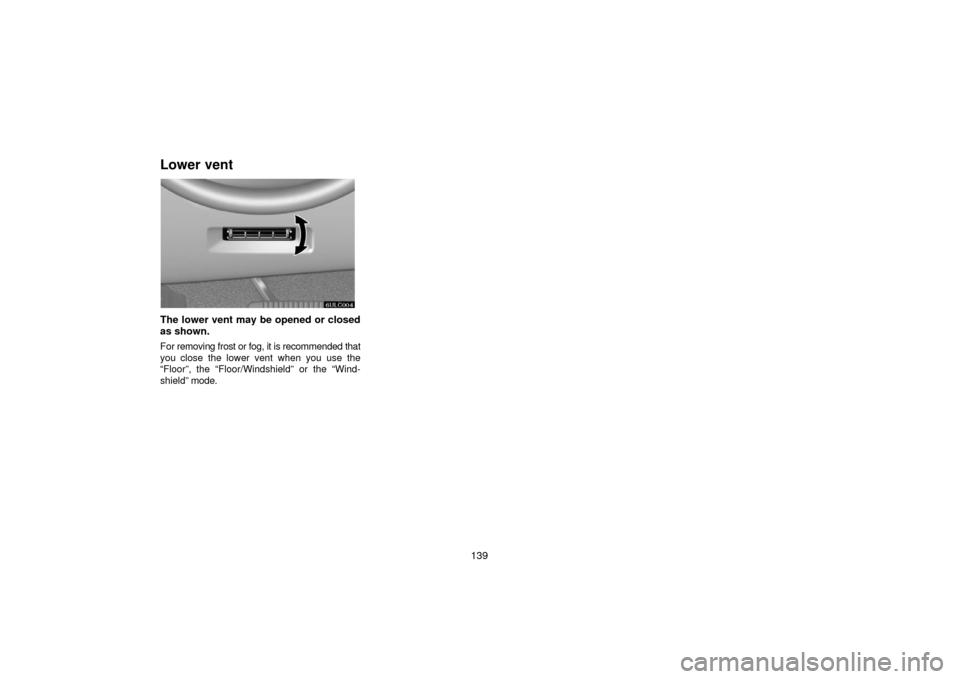

Lower vent
The lower vent may be opened or closed
as shown.
For removing frost or fog, it is recommended that
you close the lower vent when you use the
“Floor”, the “Floor/Windshield” or the “Wind-
shield” mode.

157
Cassette tape player
operation
(a) Playing a cassette tape
7ulc008a
When you insert a cassette tape, the ex-
posed tape should be to the right.
The player will automatically start when you
insert a cassette tape. At this time, “Tape” ap-
pears on the display.
If a metal or chrome equivalent cassette tape
is put in the cassette player, the player will au-
tomatically adapt to it and “MTL” appears on
the display.
To stop or eject the cassette tape, push the
“
” button.
lxb006a
If a cassette is already in the slot, push the
“TAPE” button.
Dolby \b Noise Reduction* feature: If you are
listening to a tape that was recorded with
Dolby \b B Noise Reduction, touch the “
”
switch. The “
” switch will be highlighted in
green. Touch the switch again to turn off
Dolby \b B NR.
The Dolby NR mode reduces tape noise by
about 10 dB. For best sound reproduction,
play your tapes with this switch on or off ac-
cording to the mode used for recording the
tape.
* Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing
Corporation. “DOLBY” and the double −D
symbol
are trademarks of Dolby Labora-
tories Licensing Corporation.
(b) Manual program selection
Reverse switch: You can reverse the tape by
touching the “” switch or “PROG” but-
ton. The display will show the opposite direc-
tion after reversing the tape. Also if the tape
reaches the end of one side, it is automatically
reversed to the other side.
Fast forward and Rewind switches: Yo u
can fast forward or fast rewind by touching the
“  ” or “ ” switch.
To stop the tape while it is fast forwarding,
touch “ ”, to stop the tape while it is rewind-
ing, touch “ ”.
If a tape rewinds completely, the cassette
player will stop and then play the same side.
If a tape fast forwards completely, the cas-
sette player will play the other side of the tape
using the auto −reverse feature.
VI

159
If you set “REW 1”, the player will rewind
to the beginning of the current program.
When counting the number of programs
you want to rewind, remember to count the
current program as well. For example, if
you want to rewind to a song that is two be-
fore the song you are listening to, push this
button until “REW 3” appears on the dis-
play.
When the beginning of the tape is reached,
the player automatically resumes normal
play.
There must be at least 5 seconds of blank
space between programs for this feature to
work correctly.
“RPT”, “SKIP” or “Automatic program
selection” features: These features may
not work well with some spoken word, live or
classical recordings.
DVD player operation
The DVD player can play audio CDs, DVD
video discs and video CDs.
For appropriate discs for this paper, see “Car
audio/video system operating hints” on page
175.
For safety reasons, you can enjoy DVD video
discs and video CDs only when the vehicle is
completely stopped with the ignition switch in
the “ACC” or “ON” position and the parking
brake applied. While you are driving, you can
hear audio alone even in the DVD video or
video CD mode.
The DVD player can play the discs labeled as
shown below.
(a) Inserting discs
unx604
1. Pull the lock release lever and open the
console box.
unx605
2. Push this button to eject the magazine.
VI

164
CAUTION
Conversational speech on some DVDs
is recorded at a low volume to empha-
size the impact of sound effects. If you
adjust the volume assuming that the
conversations represent the maximum
volume level that the DVD will play, you
may be startled by louder sound effects
or when you change to a different audio
source. The louder sounds may have a
significant impact on the human body or
pose a driving hazard. Keep this in mind
when you adjust the volume.
The “DVD Hint !” screen appears when the
video screen is first displayed after you
turn the ignition key to “ACC” or “ON”.
Touch the “OK” switch when you read the
message. (i) Playing a DVD video disc
lxb009a
Push the “AUDIO” button to display this
screen. You
can operate the switches and
choose the number of the disc you want to
play. The selected disc is automatically
played.
When you touch the “WIDE MODE” switch,
the screen mode can be changed.
When you touch the “PICTURE” switch, the
video screen returns.

172
(ii) Displaying operation switches
If you touch the part where switches are not
located while you are watching video on the
video CD, video CD operation switches will
appear.
“
Page 2” switch: Use this switch to display
the operation switches on the second page.
“Page 1” switch: Use this switch to display
the operation switches on the top page.
“Hide Buttons” switch: Use this switch to
turn off the operation switches from the dis-
play.
If “
” appears on the display when you touch
the switch, the operation is not permitted. (iii) Description of each switch
Switches on top page
“Select Number” switch: The track or num-
ber search screen appears. (See “Searching
by track” on this page.)
“Prev. Menu” switch: When you touch this
switch while the disc menu is displayed, the
previous page appears on the screen. If you
touch this switch while the player is playing
video, the previous track is searched and
played.
“Next Menu” switch: When you touch this
switch while the disc menu is displayed, the
next page appears on the display. If you
touch this switch while the player is playing
video, the next track is searched and played.
“Main/Sub” switch: A multiplex transmis-
sion changing switch. The mode changes
from Main/Sub to Main, to Sub and back to
Main/Sub by touching this switch.
