air conditioning TOYOTA LAND CRUISER 2006 J100 Navigation Manual

11 0
By pushing the telephone button above,
you can receive a call or hang up without
taking your hands off the steering wheel.
unl303a
You can use the microphone above when
talking on the phone.The party’s voice outputs from the driver’s
speaker. When the received calls or
received
voice outputs, the audio from the Audio sys-
tem or voice guidance from the Navigation
system will be muted.
INFORMATION
Talk alternately with your party on the
phone. If you talk at the same time, the
voice may not reach each other. (It is
not a malfunction.)
 Keep the volume of receiving voice
down. Otherwise, echo is coming up.
When you talk on the phone, speak
clearly towards the microphone.
 In the following situations, your voice
may not reach the party.
Driving on unpaved road. (Making
a traffic noise.)
 Driving at the high speed.
 The window is open.
 Turning the airconditioning vents
towards the microphone.
 The sound of the airconditioning
fan is loud.
1Indicates a condition of Bluetooth
connection.
“Blue” indicates excellent condition of Blue-
tooth connection.
“Yellow” indicates the condition easy to dis-
connect the Bluetooth, causing a deteriora-
tion in voice.
Not displayed: no connection to the Blue-
tooth.
2Indicates the receiving area.
“Rm” is displayed when receiving in Roam-
ing area.
“Hm” is displayed when receiving in Home
area.

131
AIR CONDITIONING
Automatic air conditioning controlss132
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION V

132

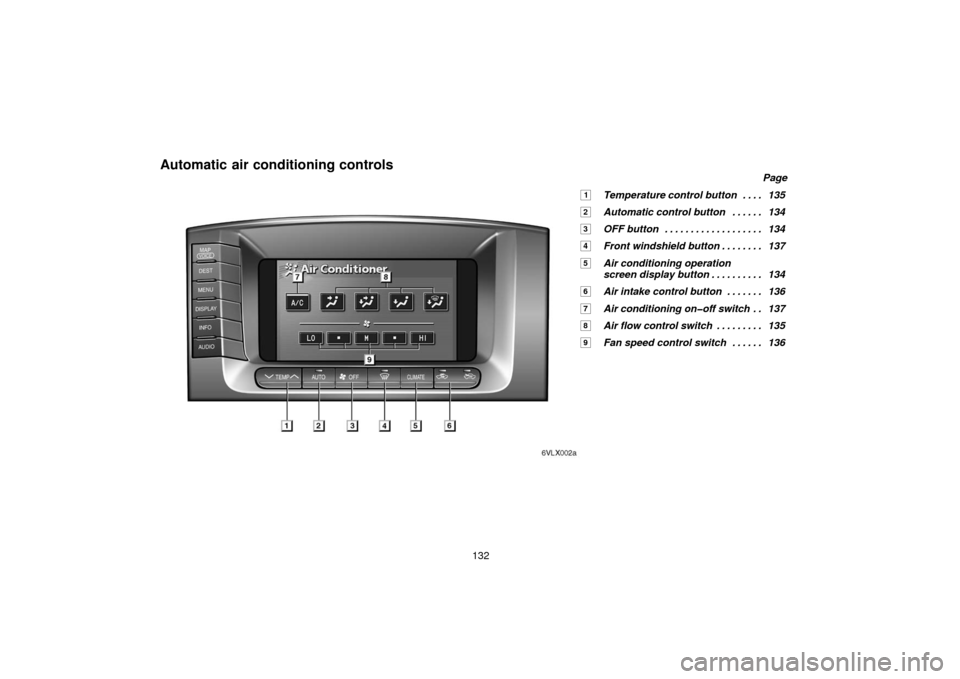

Automatic air conditioning controls
Page
1Temperature control button 135 . . . .
2Automatic control button 134 . . . . . .
3OFF button 134
. . . . . . . . . . . . . . . . . . .
4Front windshield button 137 . . . . . . . .
5Air conditioning operation
screen display button 134. . . . . . . . . .
6Air intake control button 136 . . . . . . .
7Air conditioning onoff switch 137 . .
8Air flow control switch 135
. . . . . . . . .
9Fan speed control switch 136 . . . . . .

134

The automatic air conditioning automat-
ically maintains the set temperature.
This air conditioning features automatic fan
speed and air flow control which automati-
cally selects the most suitable fan speed
and air flow to control the temperature. The
ignition key must be in the “ON” position.
CLIMATE: Push this button to display
switches for automatic air conditioning con-
trols.
NOTICE
To prevent the battery from being dis-
charged, do not leave the air condition-
ing on longer than necessary when the
engine is not running.
oxu002
By pushing the switch above, you can op-
erate the speech command system.
For the operation of the speech command
system and the command, see page 126 and
128.
(a) Climate control
SETTING OPERATION automatic control
1. Push the “AUTO” button.
Air flow quantity, switching of the diffusers,
on−off of the air conditioning, and switching of
the air intake between RECIRCULATED AIR
and OUTSIDE AIR are automatically ad-
justed. The operation status is shown by
each indicator.
When one of the manual control buttons is de-
pressed while operating in automatic mode,
the mode relevant to the depressed button is
set. Other conditions continue to be adjusted
automatically.
Push the “OFF” button to turn the air condi-
tioning off.
It is recommended that you close the lower
vent. For details about this, see page 139.

136
If manual fan speed control is desired
 1
Fan speed at low
2Fan speed at high
The fan speed can be set to your desired
speed by touching the appropriate air flow
control switch. The higher the fan speed is,
the more air is delivered. Pushing the “OFF”
button turns of f the fan.
To remove exterior windshield frost, use the
high speed setting.
The selected mode is highlighted in green. If manual switching of air intake is desired

UNX506
The air intake control button is used to switch
the air intake between the OUTSIDE AIR
mode and RECIRCULATED AIR mode.
With the button in the OUTSIDE AIR mode,
the OUTSIDE AIR mode indicator light will
come on and the system will take fresh out-
side air into the vehicle.
If quick circulation of cooled air is desired,
push the air intake control button for RECIR-
CULATED AIR. The RECIRCULATED AIR
mode indicator light will come on.
For normal use, it is best to keep
the air intake
control button set to OUTSIDE AIR mode. If
recirculated air is used during heating, the
windows will fog up more easily. If the engine coolant temperature becomes
extremely high, the RECIRCULATED AIR
mode is
automatically selected. This is not a
malfunction. When the engine coolant tem-
perature is lowered, the previous mode re-
sumes.
In the following cases, the RECIRCULATED
mode may change to the OUTSIDE AIR
mode automatically to prevent interior fog.
When the outside temperature becomes
lower than 4 C (39F).
When the air conditioning compressor
malfunctions.
When the air conditioning cooler refriger-
ant decreases.

137
If manual onoff of the air conditioning is
desired
Push the “A/C”
switch to turn the air condi-
tioning on and push it again to turn the air
conditioning off. If you turn off the air condi-
tioning manually, the EXHAUST GAS AUTO-
MATIC mode will be cancelled.
If the outside temperature is lowered down to
around 0 C (32 F), the air conditioning will
turn off automatically. At this time, the indica-
tor on the A/C button is off and the EXHAUST
GAS AUTOMATIC indicator light remains on.
However, the EXHAUST GAS AUTOMATIC
mode does not operate. When the air condi-
tioning turns on as with the raised tempera-
ture, the EXHAUST GAS AUTOMATIC mode
resumes.
If the system is used for ventilation, heating in
dry weather or removing frost or exterior fog
on the windshield, turn the air conditioning off
once it is no longer required. This will improve
fuel economy. The air conditioning can be
used for year−round automatic temperature
control including cooling and dehumidifying
operation.
(b) Windshield defogging and de-
frosting
To remove interior fog on the windshield
Push the “FRONT WINDSHIELD” button.
To remove frost or exterior fog on the
windshield
1. Push the upper side of the temperature
control button until maximum figure appears
on the temperature display.
2. Push the “FRONT WINDSHIELD” but-
ton.
3. Push the “HI” of the air flow control switch
to obtain a maximum air flow.
4. Leave the air conditioning on −off button
off.
For further information for removing frost and
fog, see “Lower vent” on page 139. When the
“FRONT WINDSHIELD” button is
pushed while operating in automatic mode,
the air conditioning is set to operate and the
OUTSIDE AIR mode is set.
Push the “A/C” switch for dehumidified heat-
ing or cooling. This setting clears the front
view more quickly.
If you push the “FRONT WINDSHIELD” but-
ton once again while in the FRONT WIND-
SHIELD mode, the mode then returns to the
last mode used.
CAUTION
Do not use the “FRONT WINDSHIELD”
button during cooled air operation in ex-
tremely humid weather. The difference
between the temperature of the outside
air and that of the windshield could
cause the outer surface of the wind-
shield to fog up blocking your vision.

138

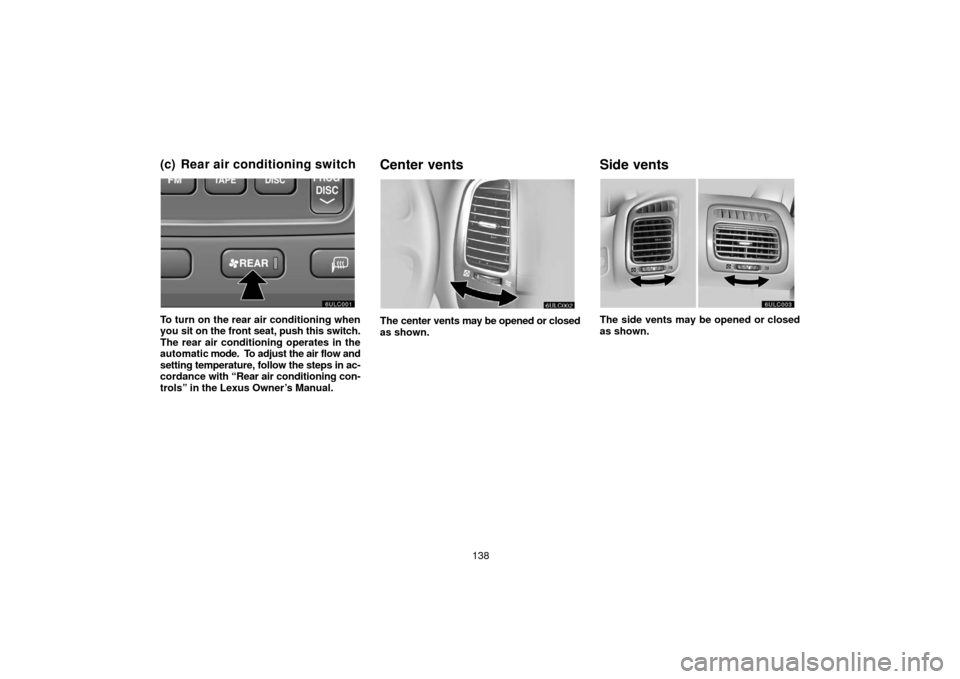

(c) Rear air conditioning switch
To turn on the rear air conditioning when
you sit on the front seat, push this switch.
The rear air conditioning operates in the
automatic mode. To adjust the air flow and
setting temperature, follow the steps in ac-
cordance with “Rear air conditioning con-
trols” in the Lexus Owner’s Manual.
Center vents
The center vents may be opened or closed
as shown.
Side vents
The side vents may be opened or closed
as shown.

177
Caring for your multidisc player and
discs
Your multi
−disc player is intended for use
with 12 cm (4.7 in.) discs only.
Extremely high temperature can keep
your multi−disc player from working. On
hot days, use air conditioning to cool the
vehicle interior before you listen to a disc.
Bumpy roads or other vibrations may
make your multi −disc player skip.
If moisture gets into your multi −disc player,
you may not hear any sound even though
your multi− disc player appears to be work-
ing. Remove the magazine from the play-
er and wait until it dries.
CAUTION
Multidisc players use an invisible laser
beam which could cause hazardous
radiation exposure if directed outside
the unit. Be sure to operate the player
correctly.
Audio CDs
DVD video discs
Video CDs
DVD player
Use only compact discs marked as shown
above. The following products may not be
playable on your compact disc player.
SACD dts− CD
Copy −protected CD
CD−R(CD−Recordable)
CD−RW(CD−Re−writable)
CD−ROM
DVD−R
DVD+R
DVD−RW
DVD+RW
DVD−ROM
DVD−RAM
20R458
Special shaped discs
Transparent/translucent
