109
Average Speed
The Average Speed is displayed. The av-
erage
vehicle speed is calculated and dis-
played based on the total driving distance
and the total driving time after the engine
is started.
The displayed value is updated every 10 sec-
onds.
To calculate from the beginning, touch the
“Reset” switch.
Distance
The distance after engine starting is dis-
played.
When refueling, be sure to stop your vehicle
and turn the ignition switch off.
Handsfree system
Handsfree system allows you to make or
receive a call without taking your hands
off the steering wheel by connecting your
cellular phone.
This system supports the Bluetooth. Blue-
tooth is a wireless data system by which you
can call without your cellular phone connect-
ing with a cable or placing on a cradle.
If your cellular phone does not support the
Bluetooth, this system can not function.
CAUTION
While you are driving, do not use a cellu-
lar phone or connect the Bluetooth
phone.
NOTICE
Do not leave your cellular phone in the
car. The temperature indoor may be
high and damage the phone.
INFORMATION
In the following conditions, the system
may not function.
 The cellular phone is turned OFF.
 The current position is outside the
communication area.
 The cellular phone is not connected.
 The cellular phone has a low battery.

11 0
By pushing the telephone button above,
you can receive a call or hang up without
taking your hands off the steering wheel.
unl303a
You can use the microphone above when
talking on the phone.The party’s voice outputs from the driver’s
speaker. When the received calls or
received
voice outputs, the audio from the Audio sys-
tem or voice guidance from the Navigation
system will be muted.
INFORMATION
Talk alternately with your party on the
phone. If you talk at the same time, the
voice may not reach each other. (It is
not a malfunction.)
 Keep the volume of receiving voice
down. Otherwise, echo is coming up.
When you talk on the phone, speak
clearly towards the microphone.
 In the following situations, your voice
may not reach the party.
Driving on unpaved road. (Making
a traffic noise.)
 Driving at the high speed.
 The window is open.
 Turning the airconditioning vents
towards the microphone.
 The sound of the airconditioning
fan is loud.
1Indicates a condition of Bluetooth
connection.
“Blue” indicates excellent condition of Blue-
tooth connection.
“Yellow” indicates the condition easy to dis-
connect the Bluetooth, causing a deteriora-
tion in voice.
Not displayed: no connection to the Blue-
tooth.
2Indicates the receiving area.
“Rm” is displayed when receiving in Roam-
ing area.
“Hm” is displayed when receiving in Home
area.

111
3Indicates the level of reception.

Too bad Excellent
The level of reception does not always corre-
spond with the one of your cellular phone.
4“A” is displayed when calling in ana-
logue.
“D” is displayed when calling in digital.
Not displayed when the system can get no in-
formation from your cellular phone.
INFORMATION
This system supports the following ser-
vice.
 HFP (Hands Free Profile) Ver. 1.0
 OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not support
HFP, you cannot enter the Bluetooth
phone, and take OPP service individual-
ly.
An antenna for the Bluetooth connection
is built in the display. The indication of the
Bluetooth connection may turn yellow and
the system may not function when you
use the Bluetooth phone in the following
conditions and places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove box
and console box).
Your cellular phone touches or covered
with metal materials.
Leave the Bluetooth phone on the place
where “Blue” indication is displayed.
Bluetooth is a trademark owned by Bluetooth
SIG. Inc.
FCC ID: HYQBTA01A
IC ID: 1551ABTA01A
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules and RSS −210. Operation is
subject to the following two conditions: (1)
This device may not cause harmful interfer-
ence, and (2) This device must accept any
interference received, including interfer-
ence that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s au-
thority to operate the equipment.

11 2
(a) Enter the Bluetooth phone
To use a handsfree system, you need to
enter your phone in the system. Once you
registered it, you can make a handsfree
call.

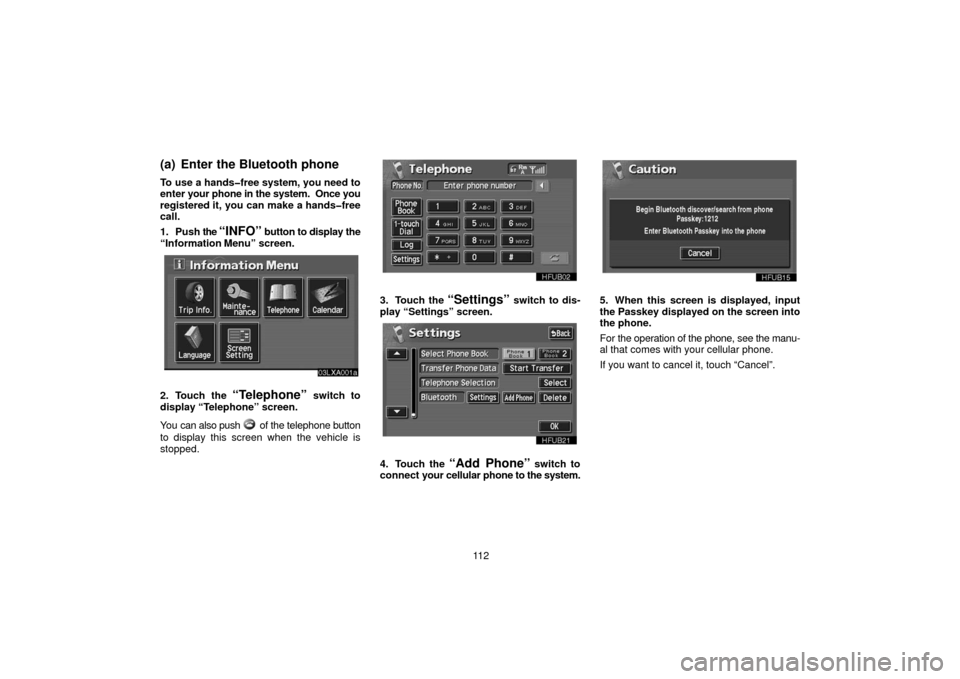

1. Push the
“INFO” button to display the
“Information Menu” screen.
5u004
2. Touch the “Telephone” switch to
display “Telephone” screen.
You can also push
of the telephone button
to display this screen when the vehicle is
stopped.
3. Touch the “Settings” switch to dis-
play “Settings” screen.
4. Touch the “Add Phone” switch to
connect your cellular phone to the system.
5. When this screen is displayed, input
the Passkey displayed on the screen into
the phone.
For the operation of the phone, see the manu-
al that comes with your cellular phone.
If you want to cancel it, touch “Cancel”.

11 3
6. When the connection is completed, de-
vice name and Bluetooth Device Address
is displayed.
You do not need to enter it in case of using the
same phone.

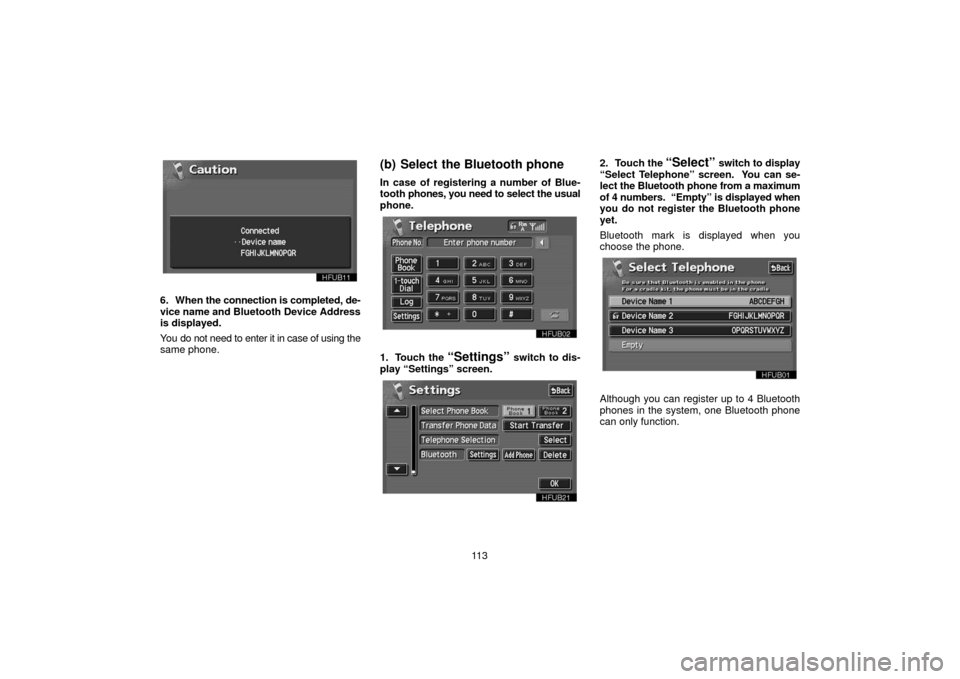

(b) Select the Bluetooth phone
In case of registering a number of Blue-
tooth phones, you need to select the usual
phone.
1. Touch the “Settings” switch to dis-
play “Settings” screen.
2. Touch the “Select” switch to display
“Select Telephone” screen. You can se-
lect the Bluetooth phone from a maximum
of 4 numbers. “Empty” is displayed when
you do not register the Bluetooth phone
yet.
Bluetooth mark is displayed when you
choose the phone.
Although you can register up to 4 Bluetooth
phones in the system, one Bluetooth phone
can only function.

11 4

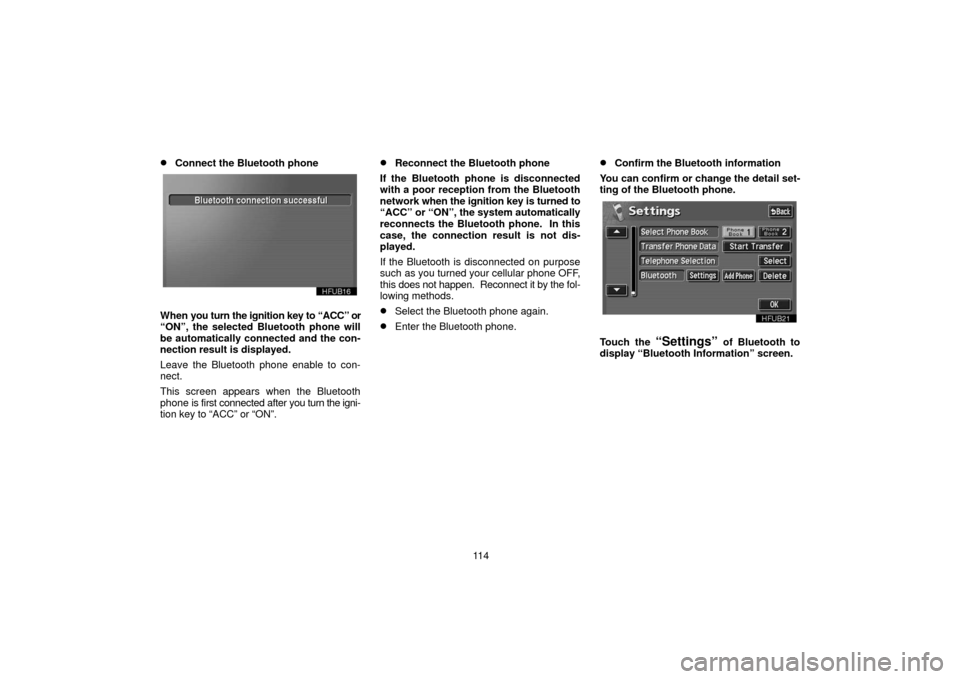

Connect the Bluetooth phone
When you turn the ignition key to “ACC” or
“ON”, the selected Bluetooth phone will
be automatically connected and the con-
nection result is displayed.
Leave the Bluetooth phone enable to con-
nect.
This screen appears when the Bluetooth
phone is first connected after you turn the igni-
tion key to “ACC” or “ON”.
Reconnect the Bluetooth phone
If the Bluetooth phone is disconnected
with a poor reception from the Bluetooth
network when the ignition key is turned to
“ACC” or “ON”, the system automatically
reconnects the Bluetooth phone. In this
case, the connection result is not dis-
played.
If the Bluetooth is disconnected on purpose
such as you turned your cellular phone OFF,
this does not happen. Reconnect it by the fol-
lowing methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.

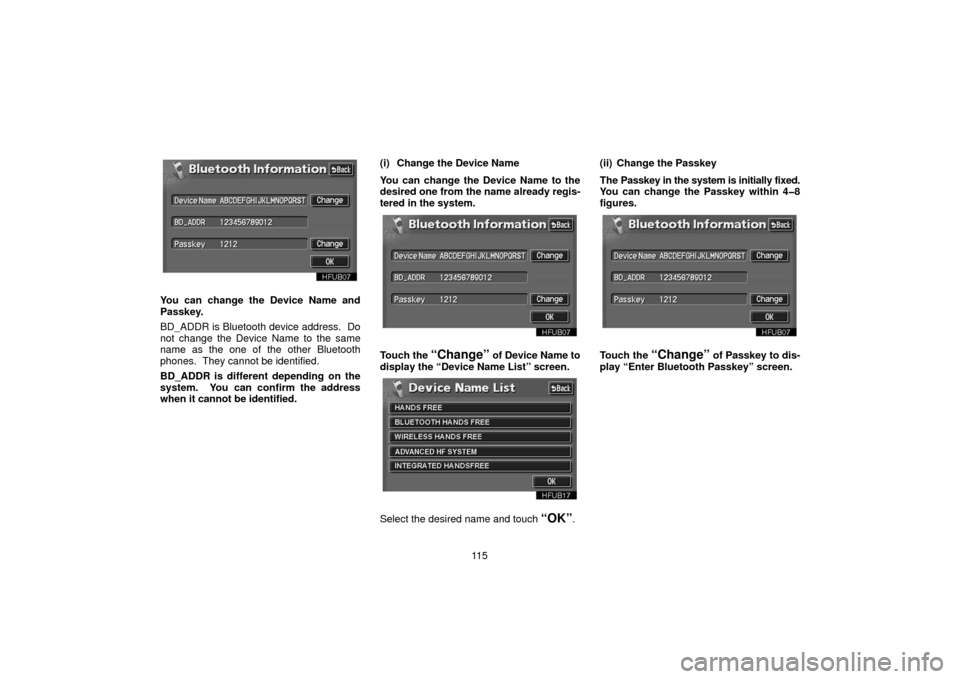

Confirm the Bluetooth information
You can confirm or change the detail set-
ting of the Bluetooth phone.
Touch the “Settings” of Bluetooth to
display “Bluetooth Information” screen.

11 5
You can change the Device Name and
Passkey.
BD_ADDR is Bluetooth device address. Do
not change the Device Name to the same
name as the one of the other Bluetooth
phones. They cannot be identified.
BD_ADDR is different depending on the
system. You can confirm the address
when it cannot be identified.(i) Change the Device Name
You can change the Device Name to the
desired one from the name already regis-
tered in the system.
Touch the “Change” of Device Name to
display the “Device Name List” screen.
Select the desired name and touch “OK”. (ii) Change the Passkey
The Passkey in the system is initially fixed.
You can change the Passkey within 48
figures.

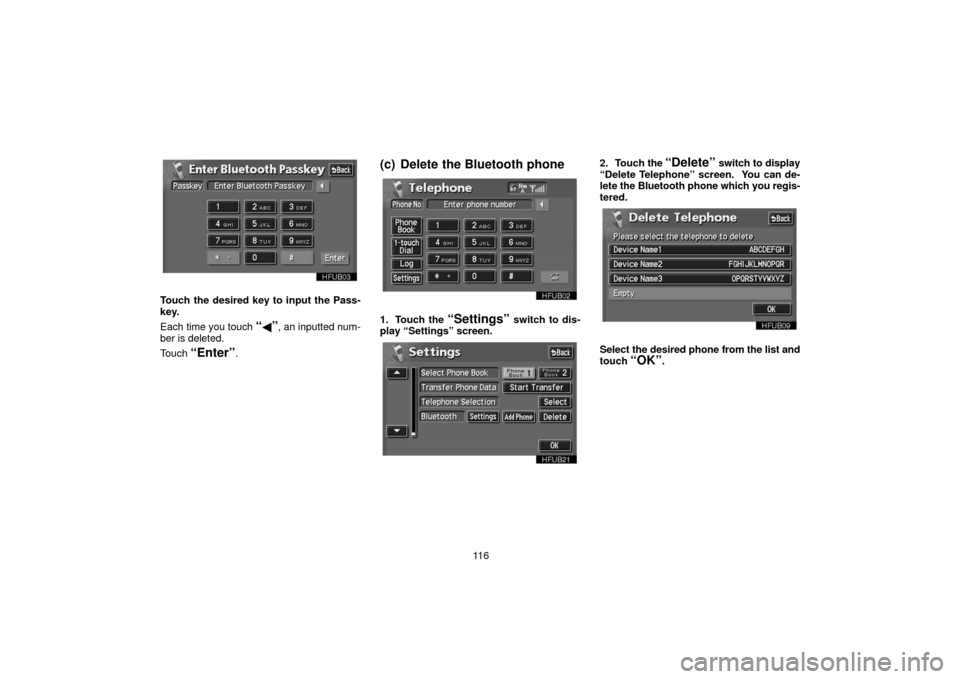

Touch the “Change” of Passkey to dis-
play “Enter Bluetooth Passkey” screen.

11 6
Touch the desired key to input the Pass-
key.
Each time you touch
“”, an inputted num-
ber is deleted.
Touch
“Enter”.
(c) Delete the Bluetooth phone
1. Touch the “Settings” switch to dis-
play “Settings” screen.
2. Touch the “Delete” switch to display
“Delete Telephone” screen. You can de-
lete the Bluetooth phone which you regis-
tered.
Select the desired phone from the list and
touch
“OK”.

11 7
(d) Call on the Bluetooth phone
After you enter the Bluetooth phone, you
can call by using handsfree system. This
system has 6 methods below by which
you call.

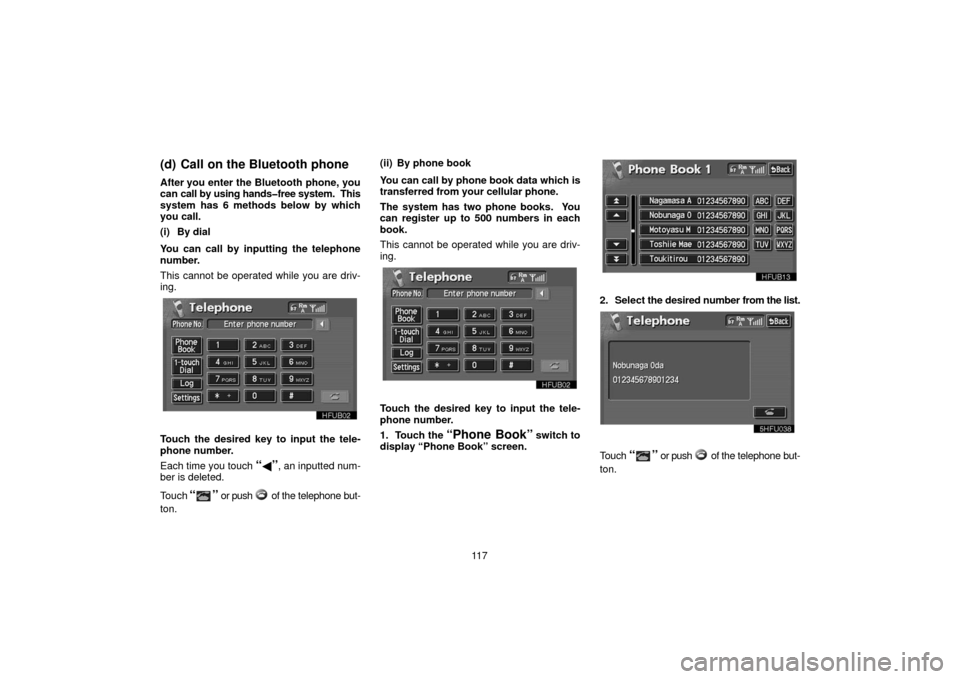

(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while you are driv-
ing.
Touch the desired key to input the tele-
phone number.
Each time you touch
“”, an inputted num-
ber is deleted.
Touch
“” or push of the telephone but-
ton. (ii) By phone book
You can call by phone book data which is
transferred from your cellular phone.
The system has two phone books. You
can register up to 500 numbers in each
book.
This cannot be operated while you are driv-
ing.
Touch the desired key to input the tele-
phone number.
1. Touch the
“Phone Book” switch to
display “Phone Book” screen.
2. Select the desired number from the list.
Touch “” or push of the telephone but-
ton.

120

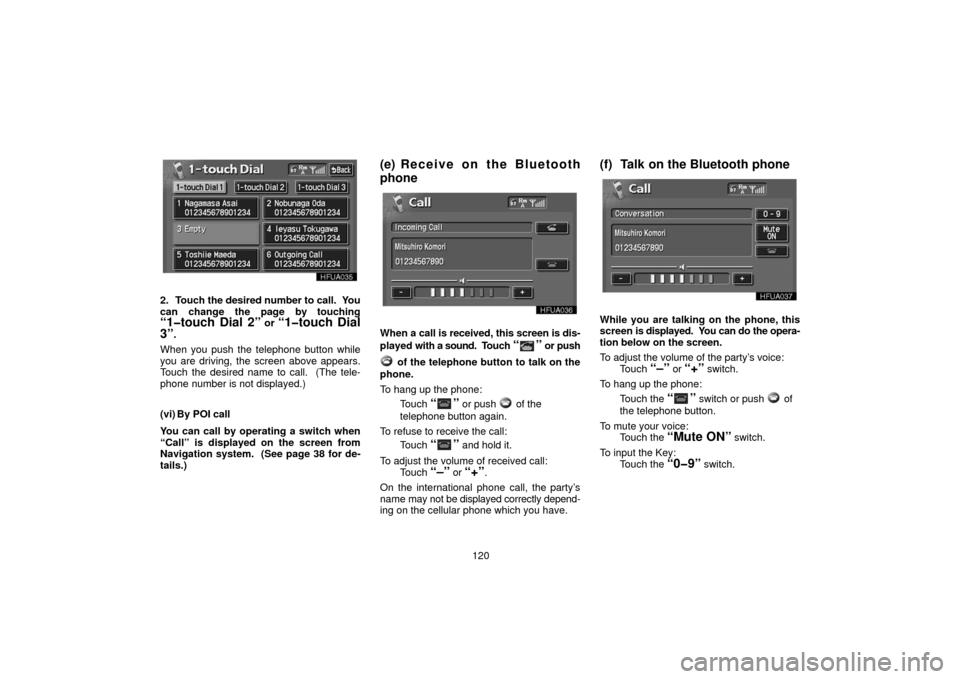

2. Touch the desired number to call. You
can change the page by touching
“1touch Dial 2” or “1touch Dial
3”
.
When you push the telephone button while
you are driving, the screen above appears.
Touch the desired name to call. (The tele-
phone number is not displayed.)
(vi) By POI call
You can call by operating a switch when
“Call” is displayed on the screen from
Navigation system. (See page 38 for de-
tails.)
(e) Receive on the Bluetooth
phone
When a call is received, this screen is dis-
played with a sound. T ouch
“” or push
of the telephone button to talk on the
phone.
To hang up the phone:
Touch
“” or push of the
telephone button again.
To refuse to receive the call: Touch
“” and hold it.
To adjust the volume of received call: Touch
“–” or “+”.
On the international phone call, the party’s
name may not be displayed correctly depend-
ing on the cellular phone which you have.
(f) Talk on the Bluetooth phone
While you are talking on the phone, this
screen is displayed. You can do the opera-
tion below on the screen.
To adjust the volume of the party’s voice: Touch
“–” or “+” switch.
To hang up the phone: Touch the
“” switch or push of
the telephone button.
To mute your voice: Touch the
“Mute ON” switch.
To input the Key: Touch the
“09” switch.
