Important information about this manual
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if the
warning is ignored. You are informed
about what you must or must not do in
order to reduce the risk of injury to
yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning is
ignored. You are informed about what
you must or must not do in order to
avoid or reduce the risk of damage to
your vehicle and its equipment.
INFORMATION
This provides additional information.
Initial screen
When you start the engine or turn the ignition
switch to the “ACC” position, the initial
screen appears and the system begins
operating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the park-
ing brake for safety.
After a few seconds, the “CAUTION” screen
appears.

12
Map database information and
updates
This system uses the maps of DENSO.
© GDT, Geographic Data Technology,
Inc.
Data by infoUSA Copyright ©2002, All
Rights Reserved.
© 2002 VISA Corporation
National Research Bureau ©2002
END USER LICENSE AGREEMENT
PLEASE READ THIS AGREEMENT
CAREFULLY BEFORE USING THE
NAVIGATION SYSTEM
THIS IS A LICENSE AGREEMENT FOR
YOUR COPY OF THE MAP DAT ABASE
(“The DATABASE”), ORIGINALLY
MADE BY Geographic Data T echnology,
Inc. (“GDT”), USED IN THE
NAVIGATION SYSTEM. BY USING THE
DATABASE, YOU ACCEPT AND
AGREE TO ALL TERMS AND
CONDITIONS SET FORTH BELOW.
OWNERSHIP
The DATABASE and the copyrights and
intellectual property or neighboring rights
therein are owned by GDT or its
licensors.
LICENSE GRANT
GDT grants you a non− exclusive license
to use your copy of the DATABASE for
your personal use or for use in your
business’ internal operations. This
license does not include the right to grant
sub−licenses.
LIMITATIONS ON USE
The DATABASE is restricted for use in
the specific system for which it was
created. Except to the extent explicitly
permitted by mandatory laws, you may
not extract or re− utilize any portion of the
contents of the DATABASE, nor
reproduce, copy, modify, adapt,
translate, disassemble, decompile, or
reverse engineer any portion of the
DATABASE.
TRANSFER
You may not transfer the DATABASE to
third parties, except together with the
system for which it was created, provided
that you do not retain any copy of the
DATABASE, and provided that the
transferee agrees to all terms and
conditions of this AGREEMENT.DISCLAIMER OF WARRANTY
GDT does not warrant or make any
representations regarding, either
express or implied, regarding the use or
results of the use of the DATABASE in
terms of its correctness, accuracy,
reliability, or otherwise, and expressly
disclaims any implied warranties of
quality, performance, merchantability,
fitness for a particular purpose or
non−infringement. GDT does not
warrant that the DATABASE is or will be
error free. No oral or written information
or advice provided by GDT, your supplier
or any other person shall create a
warranty.

14

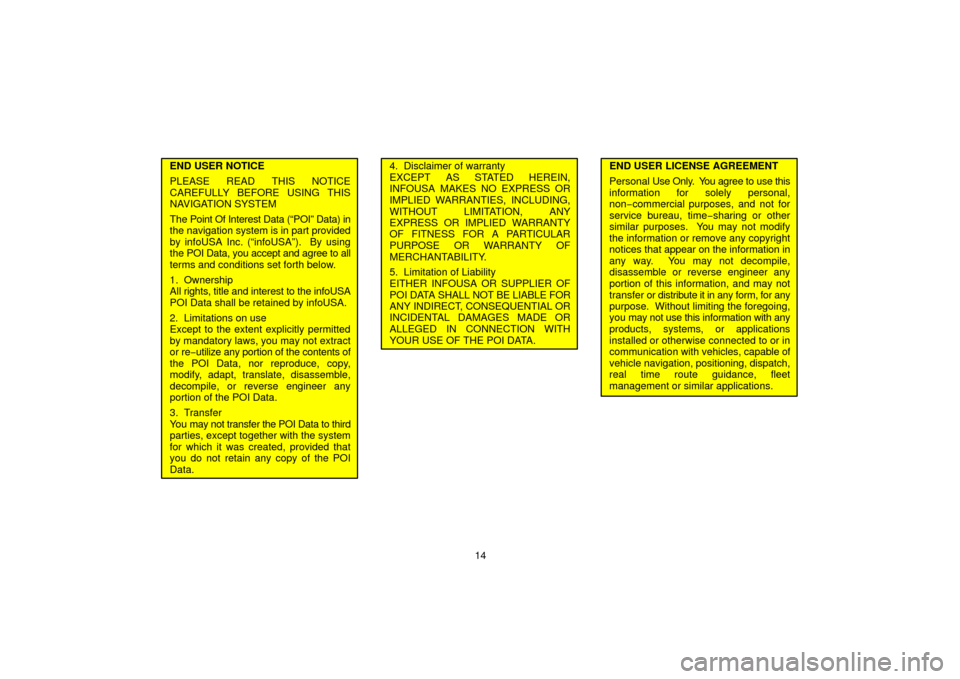

END USER NOTICE
PLEASE READ THIS NOTICE
CAREFULLY BEFORE USING THIS
NAVIGATION SYSTEM
The Point Of Interest Data (“POI” Data) in
the navigation system is in part provided
by infoUSA Inc. (“infoUSA”). By using
the POI Data, you accept and agree to all
terms and conditions set forth below.
1. Ownership
All rights, title and interest to the infoUSA
POI Data shall be retained by infoUSA.
2. Limitations on use
Except to the extent explicitly permitted
by mandatory laws, you may not extract
or re−utilize any portion of the contents of
the POI Data, nor reproduce, copy,
modify, adapt, translate, disassemble,
decompile, or reverse engineer any
portion of the POI Data.
3. Transfer
You may not transfer the POI Data to third
parties, except together with the system
for which it was created, provided that
you do not retain any copy of the POI
Data.4. Disclaimer of warranty
EXCEPT AS STATED HEREIN,
INFOUSA MAKES NO EXPRESS OR
IMPLIED WARRANTIES, INCLUDING,
WITHOUT LIMITATION, ANY
EXPRESS OR IMPLIED WARRANTY
OF FITNESS FOR A PARTICULAR
PURPOSE OR WARRANTY OF
MERCHANTABILITY.
5. Limitation of Liability
EITHER INFOUSA OR SUPPLIER OF
POI DATA SHALL NOT BE LIABLE FOR
ANY INDIRECT, CONSEQUENTIAL OR
INCIDENTAL DAMAGES MADE OR
ALLEGED IN CONNECTION WITH
YOUR USE OF THE POI DATA.END USER LICENSE AGREEMENT
Personal Use Only. You agree to use this
information for solely personal,
non−commercial purposes, and not for
service bureau, time −sharing or other
similar purposes. You may not modify
the information or remove any copyright
notices that appear on the information in
any way. You may not decompile,
disassemble or reverse engineer any
portion of this information, and may not
transfer or distribute it in any form, for any
purpose. Without limiting the foregoing,
you may not use this information with any
products, systems, or applications
installed or otherwise connected to or in
communication with vehicles, capable of
vehicle navigation, positioning, dispatch,
real time route guidance, fleet
management or similar applications.

97
“Reset
All”: To reset the item which has sat-
isfied a condition.
Touch the
“Off” switch at the top of the
“Maintenance” screen to turn off the informa-
tion screen.
When your vehicle needs to be serviced, the
icon color will change to orange.
INFORMATION
 For scheduled maintenance informa-
tion, please refer to the “Scheduled
Maintenance Guide” or “Owner’s
Manual Supplement”.
 Depending on driving or road condi-
tions, the actual date and distance
may differ from the stored date and
distance in the system.

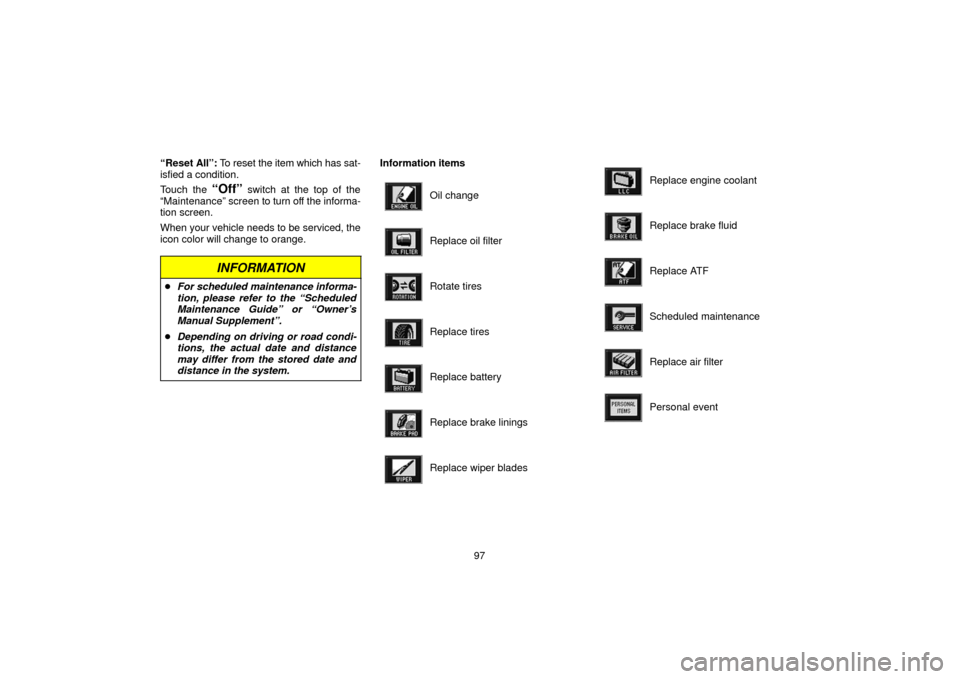

Information items
Oil change
Replace oil filter
Rotate tires
Replace tires
Replace battery
Replace brake linings
Replace wiper blades
Replace engine coolant
Replace brake fluid
Replace ATF
Scheduled maintenance
Replace air filter
Personal event

108
Trip information
Trip information such as driving time, driv-
ing distance, average vehicle speed, fuel
consumption, etc. can be displayed on the
screen.
1. Push the
“INFO” button to display the
information menu screen.
5u004
2. Touch the “Trip Information”switch.
Consumption
The consumption is calculated and dis-
played based on the driving distance and
the fuel consumption for 2 seconds with
engine running.
The value is updated every 2 seconds.
If you are driving at low speeds just before
stopping, the accurate figure way not be
shown.
After Refueling
The consumption after refueling is calcu-
lated and displayed based on the total
driving distance and the total fuel con-
sumption after refueling.
The value is updated every 10 seconds.
When refueling, be sure to stop your vehicle
and turn the ignition switch off. Cruising Range
How far you can drive with the remaining
fuel is displayed.
Even though the display indicates sufficient
miles to run, if the fuel level on the fuel gauge
approaches “E” or the low fuel level warning
light comes on, fill the fuel tank as soon as
possible.
INFORMATION

When you f irst start driving your new
vehicle, the correct cruising range
may not be shown. One or more refills
of 10 gallons or more may be required
for the system to set its calibration.
 The cruising range displayed is calcu-
lated based on past fuel consumption
and may vary according to your driv-
ing style and road condition.

109
Average Speed
The Average Speed is displayed. The av-
erage
vehicle speed is calculated and dis-
played based on the total driving distance
and the total driving time after the engine
is started.
The displayed value is updated every 10 sec-
onds.
To calculate from the beginning, touch the
“Reset” switch.
Distance
The distance after engine starting is dis-
played.
When refueling, be sure to stop your vehicle
and turn the ignition switch off.
Handsfree system
Handsfree system allows you to make or
receive a call without taking your hands
off the steering wheel by connecting your
cellular phone.
This system supports the Bluetooth. Blue-
tooth is a wireless data system by which you
can call without your cellular phone connect-
ing with a cable or placing on a cradle.
If your cellular phone does not support the
Bluetooth, this system can not function.
CAUTION
While you are driving, do not use a cellu-
lar phone or connect the Bluetooth
phone.
NOTICE
Do not leave your cellular phone in the
car. The temperature indoor may be
high and damage the phone.
INFORMATION
In the following conditions, the system
may not function.
 The cellular phone is turned OFF.
 The current position is outside the
communication area.
 The cellular phone is not connected.
 The cellular phone has a low battery.

122
(g) Change the settings of the
Bluetooth phone
Touch the “Settings” switch to display
“Settings” screen.
You can change the settings of the phone.(i) Change the phone book
The system has two phone books. You
can select either of a phone book.
Touch
the “Phone Book 1” or “Phone
Book 2”
switch. (ii) Transfer the telephone number
You can transfer the telephone numbers in
your Bluetooth phone to the system. Up to
500 numbers can be registered in one
phone book.
Transfer it while the engine is running.
1. Touch the “Start Transfer” switch
to display “Data Transfer” screen.

134

The automatic air conditioning automat-
ically maintains the set temperature.
This air conditioning features automatic fan
speed and air flow control which automati-
cally selects the most suitable fan speed
and air flow to control the temperature. The
ignition key must be in the “ON” position.
CLIMATE: Push this button to display
switches for automatic air conditioning con-
trols.
NOTICE
To prevent the battery from being dis-
charged, do not leave the air condition-
ing on longer than necessary when the
engine is not running.
oxu002

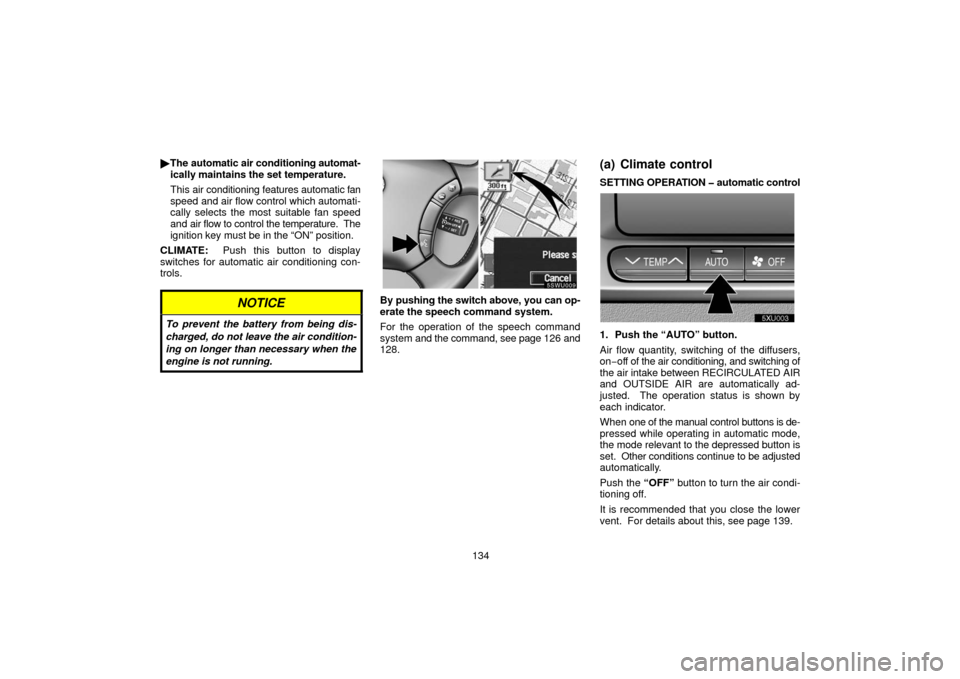

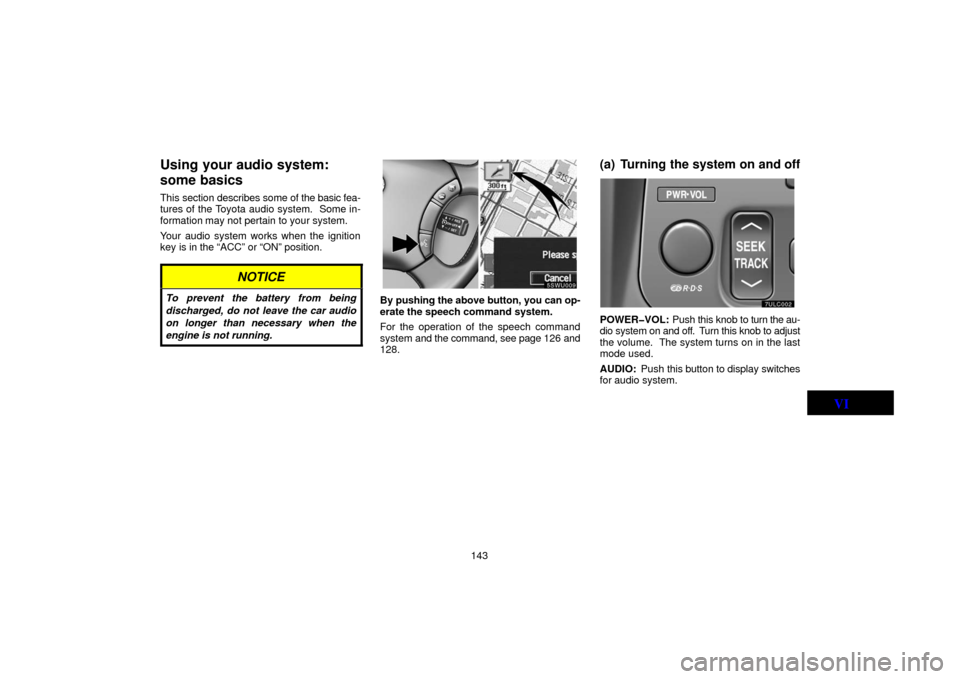

By pushing the switch above, you can op-
erate the speech command system.
For the operation of the speech command
system and the command, see page 126 and
128.
(a) Climate control
SETTING OPERATION automatic control
1. Push the “AUTO” button.
Air flow quantity, switching of the diffusers,
on−off of the air conditioning, and switching of
the air intake between RECIRCULATED AIR
and OUTSIDE AIR are automatically ad-
justed. The operation status is shown by
each indicator.
When one of the manual control buttons is de-
pressed while operating in automatic mode,
the mode relevant to the depressed button is
set. Other conditions continue to be adjusted
automatically.
Push the “OFF” button to turn the air condi-
tioning off.
It is recommended that you close the lower
vent. For details about this, see page 139.

136

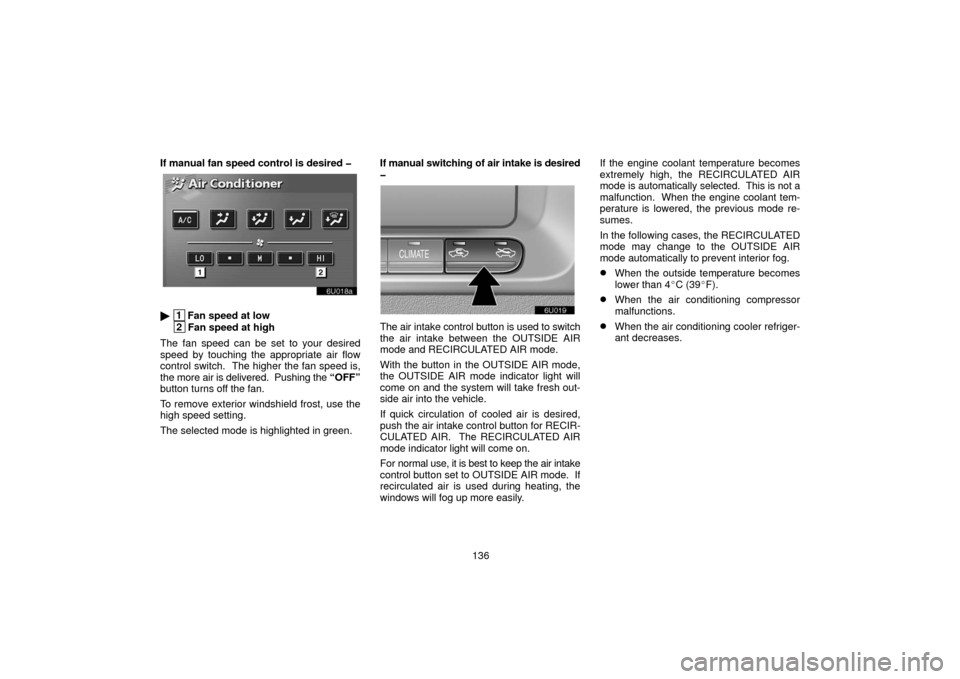

If manual fan speed control is desired
 1
Fan speed at low
2Fan speed at high
The fan speed can be set to your desired
speed by touching the appropriate air flow
control switch. The higher the fan speed is,
the more air is delivered. Pushing the “OFF”
button turns of f the fan.
To remove exterior windshield frost, use the
high speed setting.
The selected mode is highlighted in green. If manual switching of air intake is desired

UNX506
The air intake control button is used to switch
the air intake between the OUTSIDE AIR
mode and RECIRCULATED AIR mode.
With the button in the OUTSIDE AIR mode,
the OUTSIDE AIR mode indicator light will
come on and the system will take fresh out-
side air into the vehicle.
If quick circulation of cooled air is desired,
push the air intake control button for RECIR-
CULATED AIR. The RECIRCULATED AIR
mode indicator light will come on.
For normal use, it is best to keep
the air intake
control button set to OUTSIDE AIR mode. If
recirculated air is used during heating, the
windows will fog up more easily. If the engine coolant temperature becomes
extremely high, the RECIRCULATED AIR
mode is
automatically selected. This is not a
malfunction. When the engine coolant tem-
perature is lowered, the previous mode re-
sumes.
In the following cases, the RECIRCULATED
mode may change to the OUTSIDE AIR
mode automatically to prevent interior fog.
When the outside temperature becomes
lower than 4 C (39F).
When the air conditioning compressor
malfunctions.
When the air conditioning cooler refriger-
ant decreases.

143
Using your audio system:
some basics
This section describes some of the basic fea-
tures of the Toyota audio system. Some in-
formation may not pertain to your system.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
NOTICE
To prevent the battery from being
discharged, do not leave the car audio
on longer than necessary when the
engine is not running.
oxu002
By pushing the above button, you can op-
erate the speech command system.
For the operation of the speech command
system and the command, see page 126 and
128.
(a) Turning the system on and off
UNX602
POWERVOL: Push this knob to turn the au-
dio system on and off. Turn this knob to adjust
the volume. The system turns on in the last
mode used.
AUDIO: Push this button to display switches
for audio system.
VI
