language TOYOTA LAND CRUISER 2006 J100 Navigation Manual

iii
Touch either “English” or
“Français” to select a language. Read
and follow the instructions.
When you touch the
“I Agree” switch
on the screen, the map screen appears.
You can access this screen when you push
the
“INFO” button and touch the “Lan-
guage”
switch. Then you can select a lan-
guage.

63
Volume
You can use voice guidance when ap-
proaching a destination.
You can adjust the volume of the voice or turn
off voice guidance.
Push the “MENU” button to display the
“Menu” screen, and touch the “Volume”
switch.
To adjust the volume, select the desired level
by touching the appropriate number.
If you do not need voice guidance, touch the
“Off” switch.
The selected item is highlighted in green.
INFORMATION
During route guidance, the voice guid-
ance continues even if the navigation
screen is changed to other screens.
“Adaptive V olume Control”: If you turn the
“Adaptive Volume Control” on, the volume is
turned up automatically when the vehicle
speed exceeds 50 mph (80 km/h).
To turn the “Adaptive Volume Control” system
on, touch the switch. The indicator will be
highlighted.
User selection
The system can memorize the following
settings for up to three users.
Map direction
Map scale
Guidance mode
Setup
Volume
Language
Push the “MENU” button to display the
“Menu” screen. Then touch the
“Select
User”
switch.

167
(vi) Changing the subtitle language
Each time you touch “Sub title”, the lan-
guage is selected from the ones stored in
the discs and changed.
To turn off the subtitle, touch “Hide”.
Touch “Back”, and the previous screen re-
turns.
(vii) Changing the audio languageEach time you touch “Audio”, the lan-
guage is
selected from the ones stored in
the discs and changed.
Touch “Back”, and the previous screen re-
turns. (viii) Changing the angleThe angle can be selected for discs that
are multiangle compatible when the
angle mark appears on the display.
Each time you touch “Angle”, the angle
changes.
Touch “Back”, and the previous screen re-
turns.
VI

168
(ix) Setup menu
The initial setting can be changed.
Audio language
You can change the audio language.
1. Touch “Audio Lang.”
2. Touch the language you want to hear
on the “Select Audio Lang.” screen and
“Enter”.
If you cannot find the language you want to
hear on this screen, touch “Others” and enter
a language code. For the entry of language
code, see the following “(x) Entry of language
code”.
Subtitle language
You can change the subtitle language.
1. Touch “Subtitle Lang.”
2. Touch a language you want to read on
the “Select Subtitle Lang.” screen and
“Enter”.
If you cannot find the language you want to
read on this screen, touch “Others” and enter
a language code. For the entry of language
code, see the following “(x) Entry of language
code”.
DVD language
You can change the language on the DVD
video menu.
1. Touch “DVD Language”
2. Touch the language you want to read
on the “Select DVD Language” screen and
“Enter”.
If you cannot find the language you want to
read on this screen, touch “Others” and enter
a language code. For the entry of language
code, see the following “(x) Entry of language
code”.
Angle mark
The multiangle mark can be turned on or
off on the screen while the disc which is
multiangle compatible is being played.
Each time you touch “Angle Mark”, the
angle mark on the display turns on or off
alternately.
Parental
The level of viewer restrictions can be
changed.
1. Touch “Parental”.
2. Touch the numbers of your personal
code on the “Enter personal code” screen
and touch “Enter”. If you enter the wrong
numbers, touch “Clear” to delete the num-
bers.
10 touches of “Clear” will initialized the per-
sonal code.
3. Touch a parental level (18) on the “Se-
lect Restriction Level” and “Enter”.
When you touch “Default” , all the settings
except “Parental”of this menu will be initial-
ized.

169

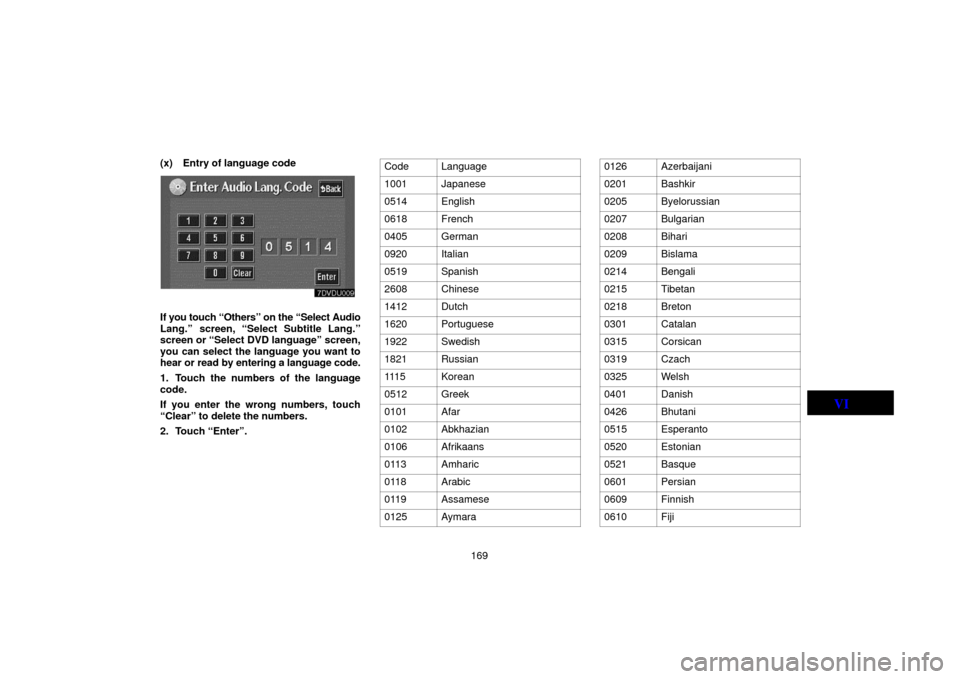

(x) Entry of language code
If you touch “Others” on the “Select Audio
Lang.” screen, “Select Subtitle Lang.”
screen or “Select DVD language” screen,
you can select the language you want to
hear or
read by entering a language code.
1. Touch the numbers of the language
code.
If you enter the wrong numbers, touch
“Clear” to delete the numbers.
2. Touch “Enter”. Code
Language
1001Japanese
0514English
0618French
0405German
0920Italian
0519Spanish
2608Chinese
1412Dutch
1620Portuguese
1922Swedish
1821Russian
111 5Korean
0512Greek
0101Afar
0102Abkhazian
0106Afrikaans
0113Amharic
0118Arabic
0119Assamese
0125Aymara
0126Azerbaijani
0201Bashkir
0205Byelorussian
0207Bulgarian
0208Bihari
0209Bislama
0214Bengali
0215Tibetan
0218Breton
0301Catalan
0315Corsican
0319Czach
0325Welsh
0401Danish
0426Bhutani
0515Esperanto
0520Estonian
0521Basque
0601Persian
0609Finnish
0610Fiji
VI

174
(h) DVD player and DVD video
disc information
(i) DVD video discs
This DVD player conforms to NTSC color
TV formats. The DVD video disc conform-
ing to another formats such as PAL or SE-
CAM cannot be used.
Region codes: Some DVD video discs have
a region code indicating a country where you
can use the DVD video disc on this DVD play-
er. If the DVD video disc is not labeled as
“ALL” or “1”, you cannot use it on this DVD
player. If you attempt to play an inappropriate
DVD video disc on this player, “REGION
CODE ERROR” appears on the screen.
Even if the DVD video disc does not have a re-
gion code, there is a case that you cannot use
it. Marks shown on DVD video discs:Indicates NTSC format
of color TV.
Indicates the number of
audio tracks.
Indicates the number of
language subtitles.
Indicates the number of
angles.
Indicates the screen to
be selected.
Wide screen: 16 : 9
Standard: 4 : 3
Indicates a region code
by which this video disc
can be played.
ALL: in all countries
Number: region code
(ii) DVD video disc glossary
DVD video discs:
Digital versatile Disc that
holds video. DVD video discs have adopted
“MPEG2”, one of the world standards of digi-
tal compression technologies. The picture
data is compressed by 1/40 on average and
stored. Variable rate encoded technology in
which the volume of data assigned to the pic-
ture is changed depending on the picture for-
mat has also been adopted. Audio data is
stored using PCM and Dolby digital, which
enables higher quality of sound. Further-
more, multi−angle and multi −language fea-
tures will also help you enjoy the more ad-
vanced technology of DVD video.
Viewer r estrictions: This feature limits what
can be viewed in conformity with a level of re-
strictions of the country. The level of restric-
tions varies depending on the DVD video
disc. Some DVD video discs cannot be
played at all, or violent scenes are skipped or
replaced with other scenes.
Level 1: DVD video discs for children can be
played.
Level 2 − 7: DVD video discs for children and
G−rated movie can be played.
Level 8: All types of the DVD video discs can
be played.

175
Multiangle feature: You can enjoy the
same scene at different angles.
Multilanguage feature: You can select a
language of the subtitle and audio.
Region codes: The region codes are pro-
vided on DVD players and DVD discs. If the
DVD video disc does not have the same re-
gion
code as the DVD player , you cannot play
the disc on the DVD player. For region codes,
see page 174.
Audio: This DVD player can play liner PCM,
Dolby digital and MPEG audio format DVD.
Other decoded type cannot be played.
Title and chapter: Video and audio pro-
grams stored in DVD video disc are divided in
parts by title and chapter.
Title: The largest unit of the video and audio
programs stored on DVD video discs. Usual-
ly, one piece of movie, one album, or one au-
dio program is assigned as a title.
Chapter: The unit smaller than that of title. A
title comprises plural chapters. Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and
the doubleD symbol are trademarks of
Dolby Laboratories. Confidential unpub-
lished works.

19921997 Dolby Laboratories. All
rights reserved.
This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents and
other intellectual property rights owned by
Macrovision Corporation and other rights
owners. Use of this copyright protection
technology must be authorized by Macro-
vision Corporation, and is intended for
home and other limited viewing uses only
unless otherwise authorized by Macrovi-
sion Corporation. Reverse engineering or
disassembly is prohibited.
“DTS” is a trademark of Digital Theater
Systems, Inc.
Audio/video system operating
hints
NOTICE
To ensure the correct audio/video sys-
tem operation:
 Be careful not to spill beverages over
the audio system.
 Do not put anything other than a cas-
sette tape or magazine into the cas-
sette tape slot or DVD player.
 The use of cellular phone inside or
near the vehicle may cause a noise
from the speakers of the audio
system which you are listening to.
However, this does not indicate a
malfunction.
VI
