TOYOTA LAND CRUISER 2006 J100 Owners Manual

341
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15 – 0.25 (0.006 – 0.010)
Exhaust 0.25 – 0.35 (0.010 – 0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt.,
Imp.qt.) With filter 6.8 (7.2, 6.0)
Without filter 6.4 (6.8, 5.6)
Oil grade:
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota ap-
proved “Toyota Genuine Motor Oil” or
equivalent to satisfy the following grade
and viscosity.
Oil grade:
API grade, SL “Energy −Conserving” or

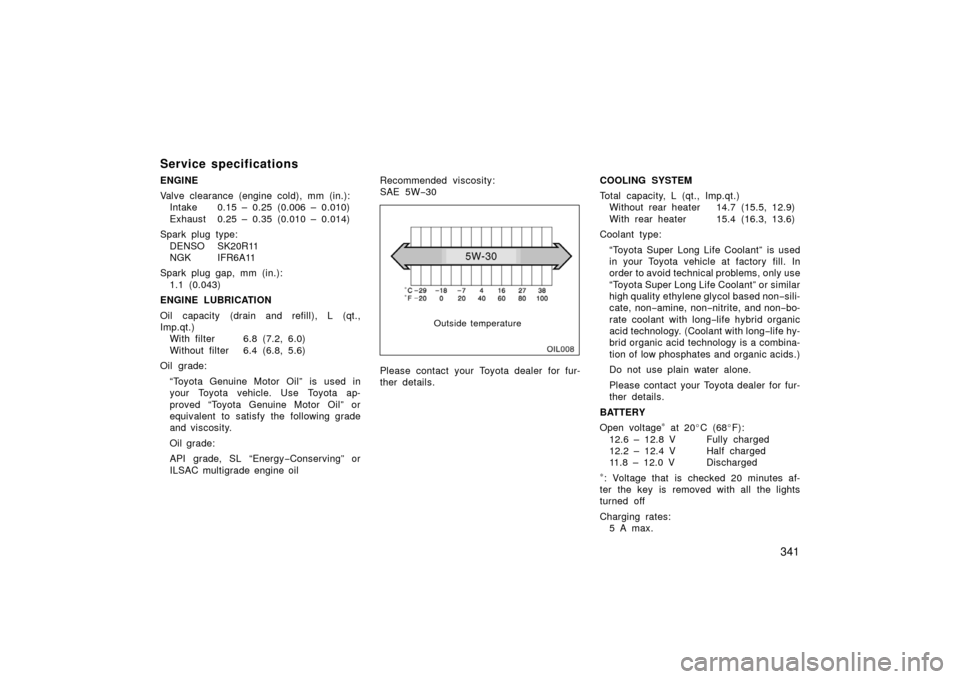

ILSAC multigrade engine oil Recommended viscosity:
SAE 5W
−30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp.qt.)
Without rear heater 14.7 (15.5, 12.9)
With rear heater 15.4 (16.3, 13.6)
Coolant type:
“Toyota Super Long Life Coolant” is used
in your Toyota vehicle at factory fill. In
order to avoid technical problems, only use
“Toyota Super Long Life Coolant” or similar
high quality ethylene glycol based non −sili-
cate, non −amine, non− nitrite, and non− bo-
rate coolant with long −life hybrid organic
acid technology. (Coolant with long −life hy-
brid organic acid technology is a combina-
tion of low phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for fur-
ther details.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6 – 12.8 V Fully charged
12.2 – 12.4 V Half charged
11.8 – 12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.

342
AUTOMATIC TRANSMISSION
Fluid capacity (drain and refill), L (qt.,
Imp.qt.) Up to 3.0 (3.2, 2.6)
Fluid type: “Toyota Genuine ATF WS”
Change automatic transmission fluid
only as necessary.
Generally, it is necessary to change au-
tomatic transmission fluid only if your
vehicle is driven under one of the Spe-
cial Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission
fluid, use only “Toyota Genuine ATF
WS” (ATF JWS3324 or NWS9638) to aid
in assuring maximum transmission per-
formance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
WS” may cause deterioration in shift
quality, locking up of your transmis-
sion accompanied by vibration, and
ultimately damage the automatic
transmission of your vehicle. TRANSFER
Oil capacity, L (qt., Imp.qt.)
1.3 (1.4, 1.1)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90
DIFFERENTIAL
Oil capacity, L (qt., Imp.qt.): Front 1.6 (1.7, 1.4)
Rear 3.3 (3.5, 2.9)
Oil type: Hypoid gear oil API GL −5
Recommended oil viscosity: Above –18 C (0 F)
SAE 90
Below –18 C (0 F)
SAE 80W or 80W −90 CHASSIS LUBRICATION
Wheel bearings:
Lithium base wheel bearing grease,
NLGI No.2
Front drive shaft thrust bushings: Synthetic oil and lithium soap base
chassis grease, NLGI No.1
Propeller shafts: SpidersLithium base chassis grease, NLGI
No.2
Slide yoke Lithium base chassis grease, NLGI
No.2 or Molybdenum—disulfide lithium
base chassis grease, NLGI No.2

343
BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.): 116 (4.6)
Pedal free play, mm (in.): 1 – 6 (0.04 – 0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 4 – 6 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 40 mm (1.6 in.)
Power steering fluid type: Automatic transmission fluid DEXRON
II
or III

344
Tires
Tire size and inflation pressure:kPa (psi)
Ti r e siz e
FrontRearWheel sizeNormal drivingTr ailer towingNormal drivingTr ailer towing
P275/60R18 111H200 (29)220 (32)220 (32)240 (35)18  8JJ
Wheel nut torque, N·m (kgf·m, ft·lbf): 131 (13.4, 96.6)
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” on page 320 through “Aluminum wheel precautions” on page 328.

345
Fuses
Engine compartment
Fuses1. ABS NO.2 40 A: Anti−lock brake sys-
tem
2. ABS NO.1 50 A:
Anti−lock brake system
3. AHC 50 A: No circuit
4. WIPS 7.5 A:
No circuit
5. TOWING 30 A: Trailer lights
6. MIR HTR 15 A: Outside rear view mirror
defogger
7. RR HTR 10 A: Rear air conditioning sys-
tem
Left side kick panel
8. HAZTRN 15 A: Emergency flashers,
Turn signal lights
9. ALTS 7.5 A: Charging system
10. NVIR 20 A: No circuit
11. FR FOG 15 A:
Fog lights
12. TOWING BRK 30A: Trailer lights
13. HEAD CLNER 20 A:
Headlight cleaner
14. FRIG 10 A: Charging system
15. PANEL 7.5 A: Instrument panel light
16. TOWING TAIL 30 A: Trailer lights
17. TAIL 15 A: Parking lights, Tail lights
Right side kick panel
18. BAT 30 A: All components in “ECU− B2”
19. TEL 7.5 A: No circuit
20. AMP 30 A: Audio system
21. EFI or ECD No.1 25 A: Multiport fuel
injection system/Sequential multiport fuel
injection system
22. AM2 15 A: All components in “IGN”
23. ETCS 10 A: Multiport fuel injection sys-
tem/Sequential multiport fuel injection sys-
tem
24. HORN 10 A: Horns
25. HEAD (RHLWR) 10 A: Right−hand
headlight (low beam)

346
81C506
Engine compartment
26. HEAD (LHLWR) 10 A: Left−hand head-
light (low beam)
27. HEAD (RHUPR) 20 A: Right −hand
headlight (high beam)
28. HEAD (LHUPR) 20 A: Left −hand head-
light (high beam)
29. PWR OUTLET 15 A: Power outlets
30. CIG 15 A: Cigarette lighter
31. ACC 7.5 A: Instrument panel light
32. AM1 7.5 A: Multiport fuel injection sys-
tem/Sequential multiport fuel injection
system
33. DEFOG 20 A:
Rear window defogger
34. AHCB 15 A: Active height control sus-
pension (AHC)
35. FUEL HTR 20 A: Fuel heater
36. POWER HTR 7.5 A: Power heater
37. AHCIG 20 A: Active height control sus-
pension (AHC)
38. EFI or ECD No.2 10 A: Emission con-
trol system
39. GAUGE1 10 A: Gauges and meters
40. ECUIG1 10 A: Multiport fuel injection
system/S equential multiport fuel injec-
tion system
41. ECUB1 10 A:
Navigation system
42. DBL LOCK 15 A: Double lock system
43. A/C 15 A: Air conditioning system
44. STOP 15 A: Stop lights
45. OBD2 7.5 A: On −board diagnosis sys-
tem
46. IDEL UP 7.5 A: Idle −up system
47. LH SEAT 30 A: Power seat system
48. DOOR 25 A: Power door lock system,
Power windows
49. SUN ROOF 25 A: Electronic moon roof
50. RR WIPER 15 A: Rear wiper system
51.ECUB2 10 A: Power door lock system,
Power window
52. DIFF 20 A: Four−wheel drive system
53. WASHER 15 A: Windshield washer
54. RADIO 10 A: Audio system
55. DOME 10 A: Interior lights
56. VGRS 40 A: Variable gear ratio steer-
ing system
57. P/W (FL) 20 A: Power window
58. P/W (RL) 20 A: Power window
59. WIPER 25 A: Windshield wiper
60. ECUIG2 10 A: Rear air conditioning
system
61. SEAT HTR 15 A: Seat heater
62. GAUGE2 10 A: Back−up lights
63. MET 7.5 A: Gauges and meters
64. IGN 7.5 A: Multiport fuel injection sys-
tem/Sequential multiport fuel injection
system
65. SECURITY 7.5 A: Theft deterrent sys-
tem
66. P/W (RR) 20 A: Power window
67. P/W (FR) 20 A: Power window
68. BATT CHARGE 30 A: Trailer charging
system
69. TIL&TEL 20 A: Tilt and telescopic
steering

347
70. RR A/C 30 A: Rear air conditioning
system
71. RH SEAT 30 A: Power seat system
72. AIR PUMP 50A: Multiport fuel injection
system/S equential multiport fuel injec-
tion system
73. A/F HTR 15A: Multiport fuel injection
system/S equential multiport fuel injec-
tion system

348

349
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS AND UNIFORM TIRE QUALITY
GRADING
Reporting safety defects for U.S. ownerss350
. . . . . . . . . . . . . . . . . . . .
SECTION 9

350
If you believe that your vehicle has
a defect whi ch coul d cause a cr ash
or could cause injury or death, you
should immediately inform the Na-
tional Highway Traffic Safety Ad-
ministration (NHTSA) in addition to
notifying Toyota Motor Sales,
U.S.A., Inc. (Toll−free:
1 −800 −331 −4331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety de-
fect exists in a group of vehicles, it
may order a recall and remedy
campaign. However, NHTSA cannot
become involved in individual prob-
lems between you, your dealer, or
Toyota Motor Sales, U.S.A., Inc. To contact NHTSA, you may either
call the Auto Safety Hotline toll
−free
at 1 −888 −327 −4236 (or 366 −0123
in Washington, D.C. area) or write
to: NHTSA, U.S. Department of
Transportation, Washington, D.C.
20590. You can also obtain other
information about motor vehicle
safety from the Hotline.
Reporting safety defects for
U.S. owners
