stop start TOYOTA LAND CRUISER 2008 J200 Navigation Manual

AUDIO/VIDEO SYSTEM
218
DVD audio
If you touch a part of the screen, where
controls are not located while watching
video, DVD controls will appear.
“> Page2”: Touching this will display on
the second page of DVD controls.
“< Page1”: Touching this will display the
top page of DVD controls.
“Hide Buttons”: Touching this will turn off
the controls from the screen.
If “
” appears on the screen when you
touch a control, the operation relevant to
the control is not permitted.
Description of DVD controls
TOP PAGE OF DVD VIDEO CONTROLS
“Menu” and “Top Menu”: If you touch ei-
ther button, the menu screen for DVD vid-
eo appears. (For the operation, see the
manual that come with the DVD video disc
provided separately.)
: The menu control key appears on
the screen. (See page 219.)
: Touching this will pause the video
screen.
: Touching this will fast reverse.
: Touching this will stop the DVD
video disc.
: Touching this will resume normal
play after stop or pause.
: Touch this button to fast forward
during the playback. During pause, touch
this button briefly to advance frame by
frame, or touch and hold it to play slowly.
SECOND PAGE OF DVD VIDEO
CONTROLS
“Setup”: The initial setup screen appears.
(See page 224.)
“Search”: The title search screen ap-
pears. (See page 220.)
“Return”: Touching this will display the
predetermined scene and start playing
from there.
“AUDIO”: The audio changing screen ap-
pears. (See page 223.)
“Subtitle”: The subtitle changing screen
appears. (See page 222.)
“Angle”: The angle selection screen ap-
pears. (See page 224.)

AUDIO/VIDEO SYSTEM
219
TOP PAGE OF DVD AUDIO CONTROLS
“Top Menu”: If you touch this button, the
menu screen for DVD audio appears. (For
operation, refer to the DVD audio disc
manual that is provided separately.)
“AUDIO”: The audio changing screen ap-
pears. (See page 223.)
: The menu control key appears on
the screen. (See page 219.)
: Touch this button to pause the
disc.
: Touching this will fast reverse.
: Touching this will stop the disc.
: Touching this will resume normal
play after stop or pause.
: Touch this button to fast forward
during the playback. During pause, touch
this button briefly to advance frame by
frame, or touch and hold it to play slowly.
SECOND PAGE OF DVD AUDIO
CONTROLS
“Setup”: The initial setup screen ap-
pears. (See page 224.)
“Select Number”: The track or number
search screen appears. (See page 220.)
“Search”: The group search screen ap-
pears. (See page 221.)
“Return”: Touching this will display the
predetermined scene and start playing
from there.
“Prev. Still”: Touch this button to reverse
the still pictures. (See page 222.)
“Next Still”: Touch this button to forward
the still pictures. (See page 222.)
“Subtitle”: The subtitle changing screen
appears. (See page 222.)
“Angle”: The angle selection screen ap-
pears. (See page 224.)
Selecting a menu item
Enter the menu item using , , and
 buttons and touch “Enter”.
The changer starts playing video for that
menu item. (For details, see the manual
that comes with the DVD video disc pro-
vided separately.)
Each time you touch “Move Buttons”, the
controls on the screen move upward and
downward.
When you touch “< will disappear. To display them again,
touch “>>ON”.
When you touch
, the previous
screen returns.

AIR CONDITIONING
246
The automatic air conditioning auto-
matically maintains the set tempera-
ture.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed, air flow, air intake and on−off the air
conditioning according to the temperature.
The “ENGINE START STOP” switch must
be in the IGNITION ON mode.
“CLIMATE”: Push this button to display
touch−screen buttons for automatic air
conditioning controls.
NOTICE
To prevent the battery from being dis-
charged, do not leave the air condi-
tioning on longer than necessary
when the engine is not running.
(a) Climate control
SETTING OPERATION automatic con-
trol
1. Push the “AUTO” button.
An indicator light will illuminate to show
that the automatic operation mode has
been selected.
Air flow quantity, switching of the diffusers,
on−off of the air conditioning and switching
of the air intake between RECIRCULATED
AIR and OUTSIDE AIR are automatically
adjusted. When you push the “AUTO”
button with the air intake mode at OUT-
SIDE AIR, internal circulation may be ap-
plied for maximum cooling. The operation
status is shown by each indicator and dis-
play.
When one of the manual control buttons is
depressed while operating in automatic
mode, the operation corresponding to the
depressed button is set. Other conditions
continue to be adjusted automatically.
Push the “OFF” button to turn the air
conditioning system off.

AIR CONDITIONING
254
The air conditioning filter is behind the
glove box.
The air conditioning filter may clog after
long use. The filter may need to be re-
placed if the air flow of the air conditioner
and heater experiences extreme reduc-
tions in operating efficiency, or if the win-
dows become to fog up easily.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning fil-
ter according to the maintenance sched-
ule. In dusty areas or areas with heavy
traffic flow, such as inner city or desert
areas, early replacement may be required.
(For scheduled maintenance information,
please refer to the “Warranty and Services
Guide/Owner’s Manual Supplement/
Scheduled Maintenance”.)
Before replacing the air conditioning filter,
turn the “ENGINE START STOP” switch
IGNITION ON mode and switch to recircu-
lated air mode, then turn the “ENGINE

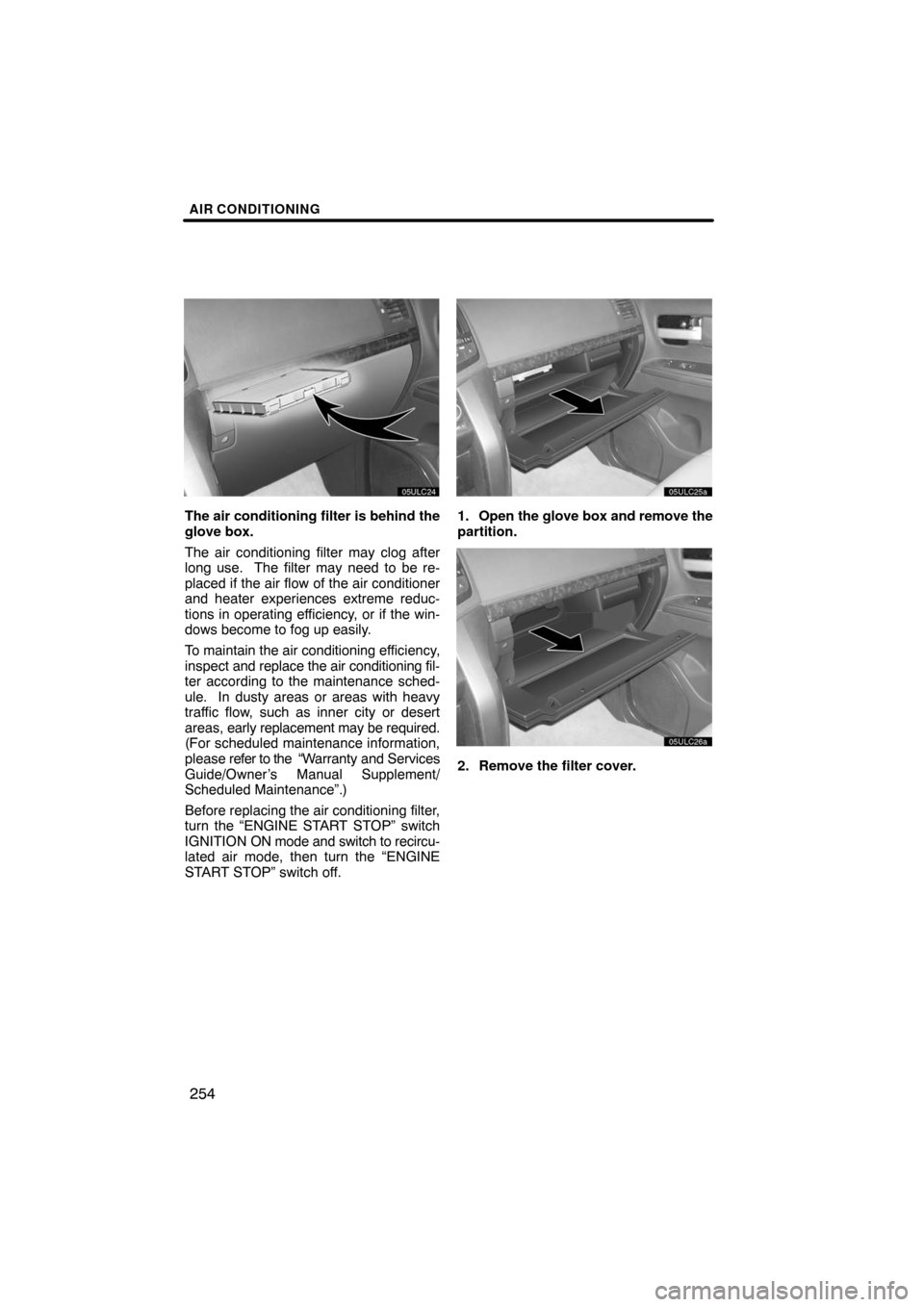

START STOP” switch off.1. Open the glove box and remove the
partition.
2. Remove the filter cover.

REAR VIEW MONITOR SYSTEM
258
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle while backing
up. The left and right displayed on the
screen are the same as those of the in-
side rear view mirror.
To display the rear view image on the
screen, place the selector lever in the
“R” position when the “ENGINE START
STOP”switch is in the IGNITION ON
mode.
If you move the selector lever out of the “R”
position, the screen returns to the previous
screen. Operating another function of the
navigation system will display another
screen.
The rear view monitor system is a supple-
ment device intended to assist back up.
When backing up, be sure to check behind
and all around the vehicle visually.

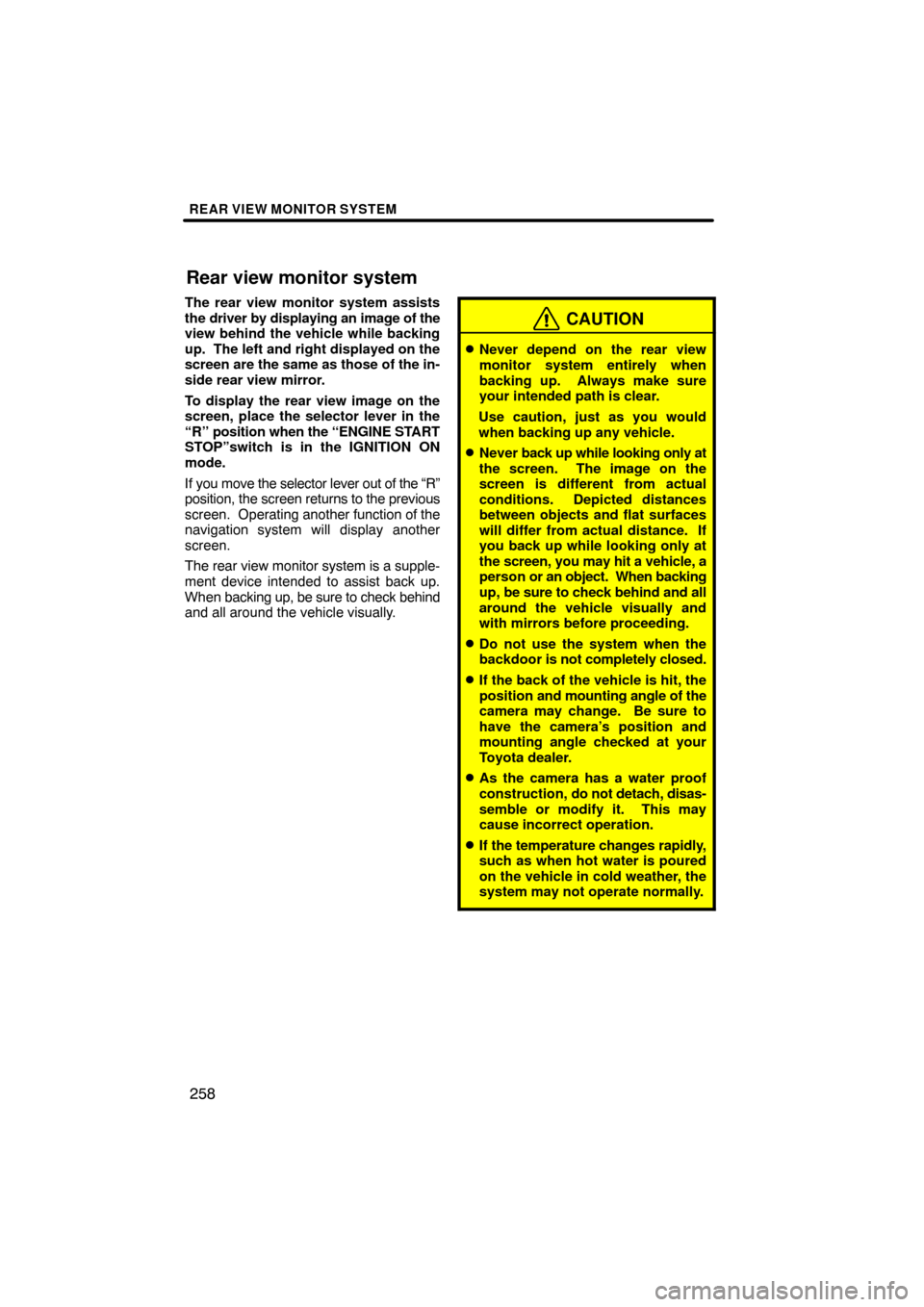

CAUTION
Never depend on the rear view
monitor system entirely when
backing up. Always make sure
your intended path is clear.
Use caution, just as you would
when backing up any vehicle.
Never back up while looking only at
the screen. The image on the
screen is different from actual
conditions. Depicted distances
between objects and flat surfaces
will differ from actual distance. If
you back up while looking only at
the screen, you may hit a vehicle, a
person or an object. When backing
up, be sure to check behind and all
around the vehicle visually and
with mirrors before proceeding.
Do not use the system when the
backdoor is not completely closed.
If the back of the vehicle is hit, the
position and mounting angle of the
camera may change. Be sure to
have the camera’s position and
mounting angle checked at your
Toyota dealer.
As the camera has a water proof
construction, do not detach, disas-
semble or modify it. This may
cause incorrect operation.
If the temperature changes rapidly,
such as when hot water is poured
on the vehicle in cold weather, the
system may not operate normally.
Rear view monitor system
