TOYOTA LAND CRUISER 2008 J200 Navigation Manual

5

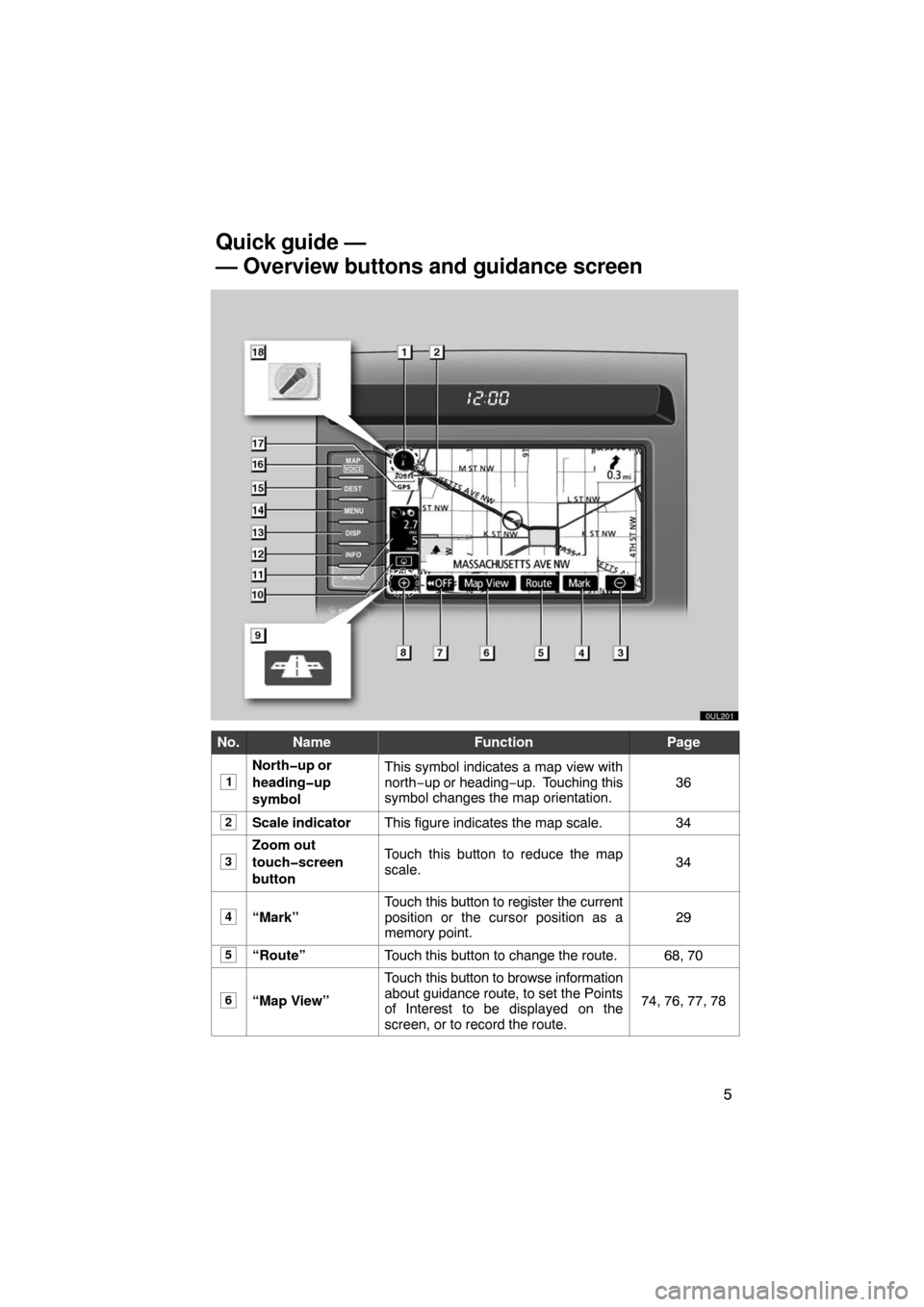

No.NameFunctionPage
1
Northup or
headingup
symbolThis symbol indicates a map view with
north−up or heading−up. Touching this
symbol changes the map orientation.
36
2Scale indicatorThis figure indicates the map scale.34
3
Zoom out
touchscreen
buttonTouch this button to reduce the map
scale.34
4“Mark”
Touch this button to register the current
position or the cursor position as a
memory point.
29
5“Route”Touch this button to change the route.68, 70
6“Map View”
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
74, 76, 77, 78
Quick guide —
— Overview buttons and guidance screen

6
No.NameFunctionPage
7“OFF”
Touch this button to obtain a broader
view. Some of the buttons on the screen
are not displayed. They are displayed
again by touching “ON”.
104
8
Zoom in
touchscreen
buttonTouch this button to magnify the map
scale.34
9
Foot print map
touchscreen
buttonTouch this button to display the foot print
map and the building information.35
10
Screen
configuration
touchscreen
button
Touch this button to change the screen
mode.32
11Distance and time
to destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
67
12“INFO” buttonPush this button to display the “Informa-
tion” screen.22, 114, 118,
178, 181
13“DISP” buttonPush this button to display the “Display”
screen.176
14“MENU” buttonPush this button to display the “Menu”
screen.7, 9, 82, 84,
85, 86, 89, 102,
275
15“DEST” buttonPush this button to display the “Destina-
tion” screen.11, 12, 38, 39
16“MAP/VOICE”
buttonPush this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and display the current posi-
tion.
28, 66
17
“GPS” mark
(Global
Positioning
System)Whenever the vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
264
18
Speech
command system
indicatorThe microphone is shown by pushing
the speech command switch. The
speech command system can be oper-
ated while this indicator is shown.
171

7

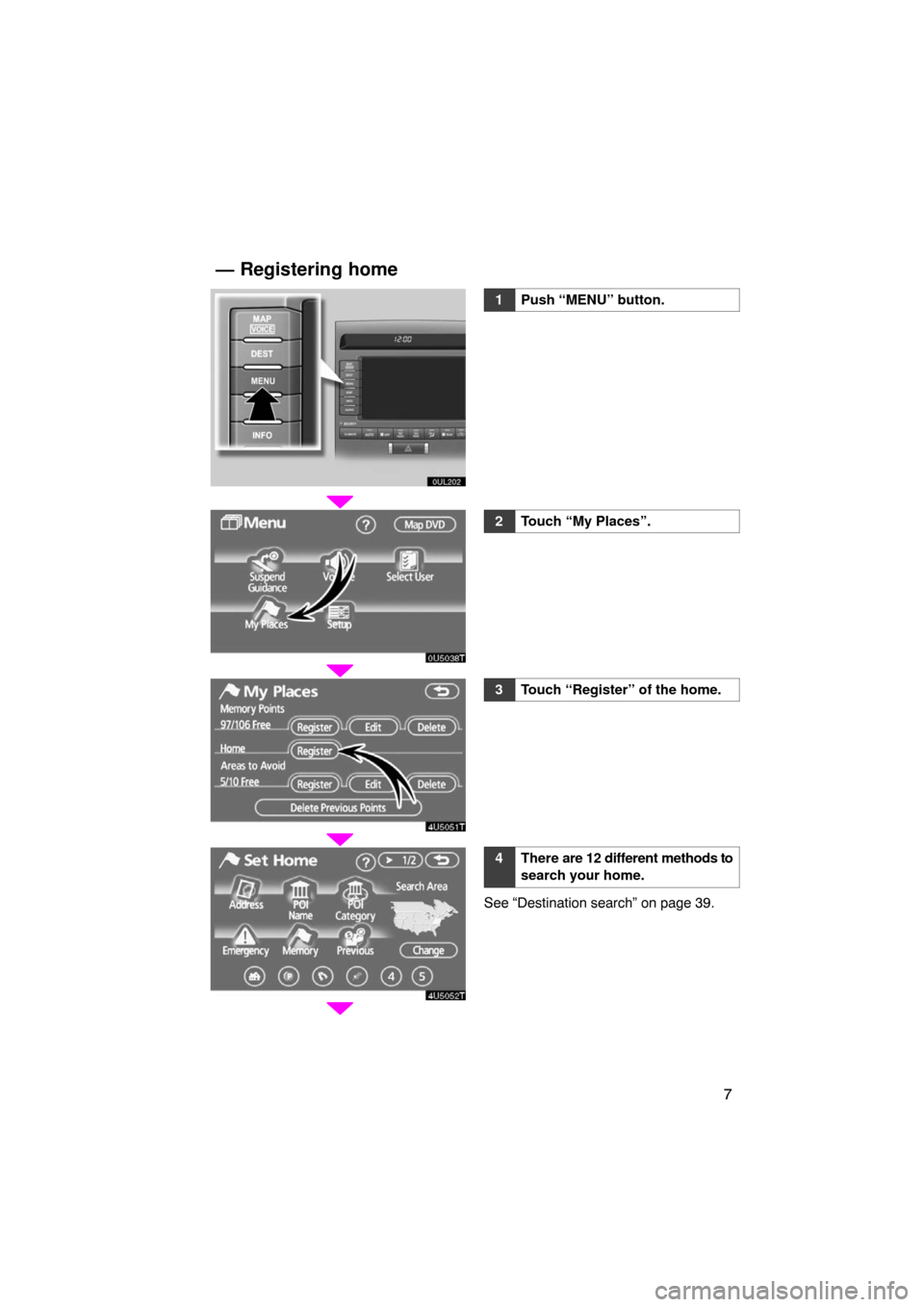

1Push “MENU” button.
2Touch “My Places”.
3Touch “Register” of the home.
4There are 12 different methods to
search your home.
See “Destination search” on page 39.
— Registering home

8

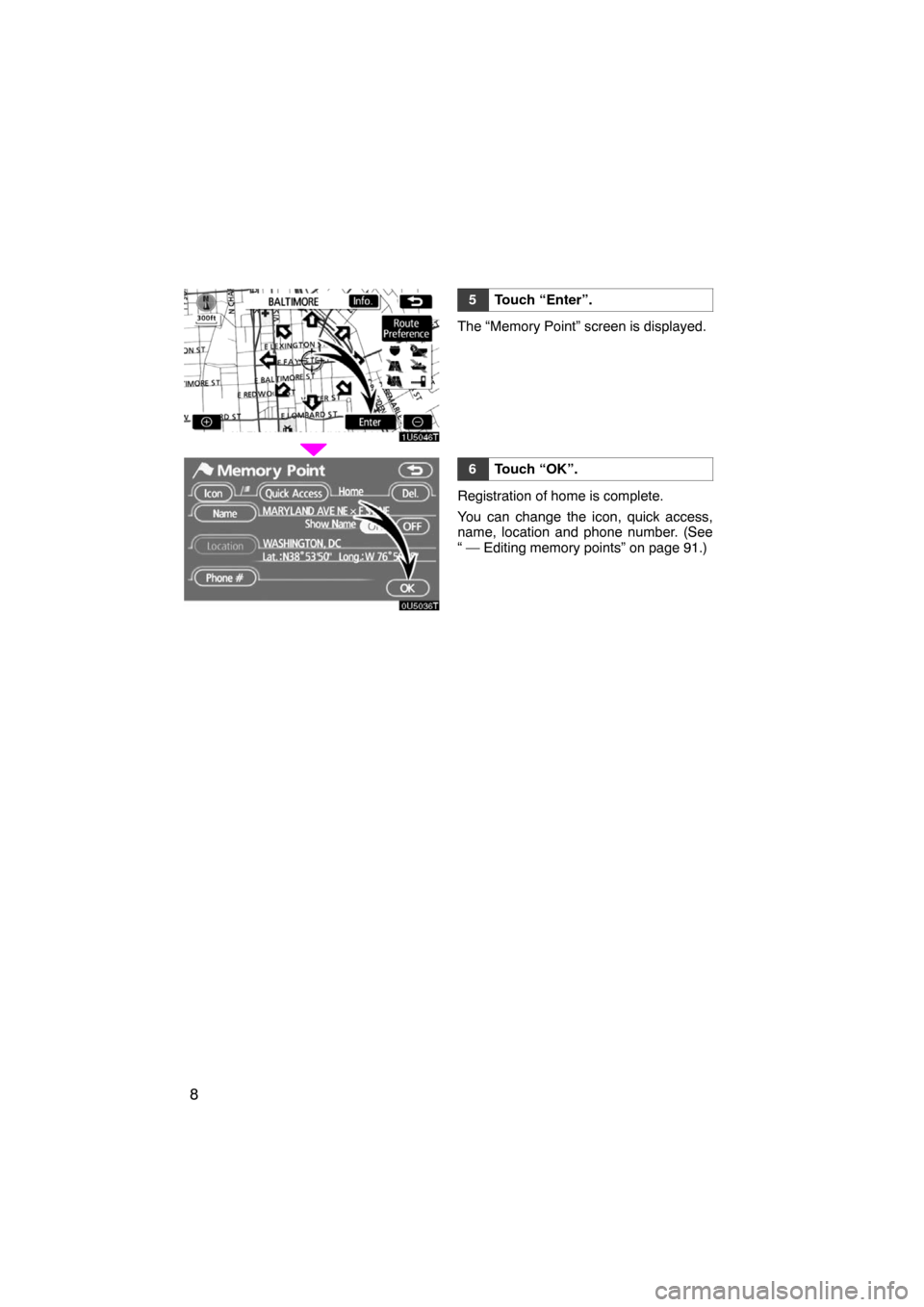

5Touch “Enter”.
The “Memory Point” screen is displayed.
6Touch “OK”.
Registration of home is complete.
You can change the icon, quick access,
name, location and phone number. (See
“ — Editing memory points” on page 91.)

9

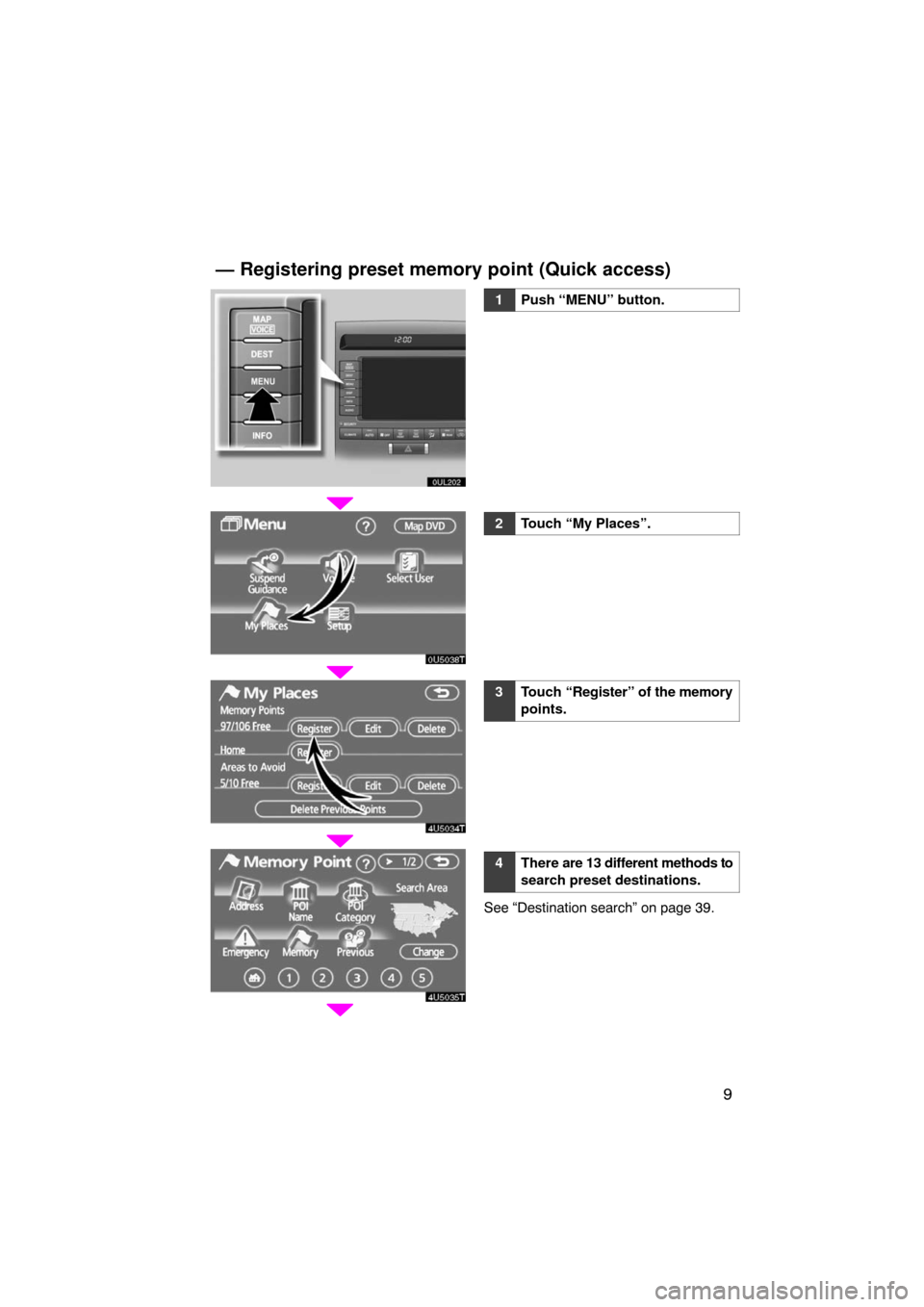

1Push “MENU” button.
2Touch “My Places”.
3Touch “Register” of the memory
points.
4There are 13 different methods to
search preset destinations.
See “Destination search” on page 39.
— Registering preset memory point (Quick access)

10
5Touch “Enter”.
The “Memory Point” screen is displayed.
6Touch “Quick Access”.
7Touch one of preset buttons 1 to
5.
8Touch “OK”.
Registration of preset memory point is
complete.
You can change the icon, quick access,
name, location and phone number. (See
“ — Editing memory points” on page 91.)
The registered points can be used on the
“Destination” screen. (See “—Destination
search by Quick access” on page 42.)

11

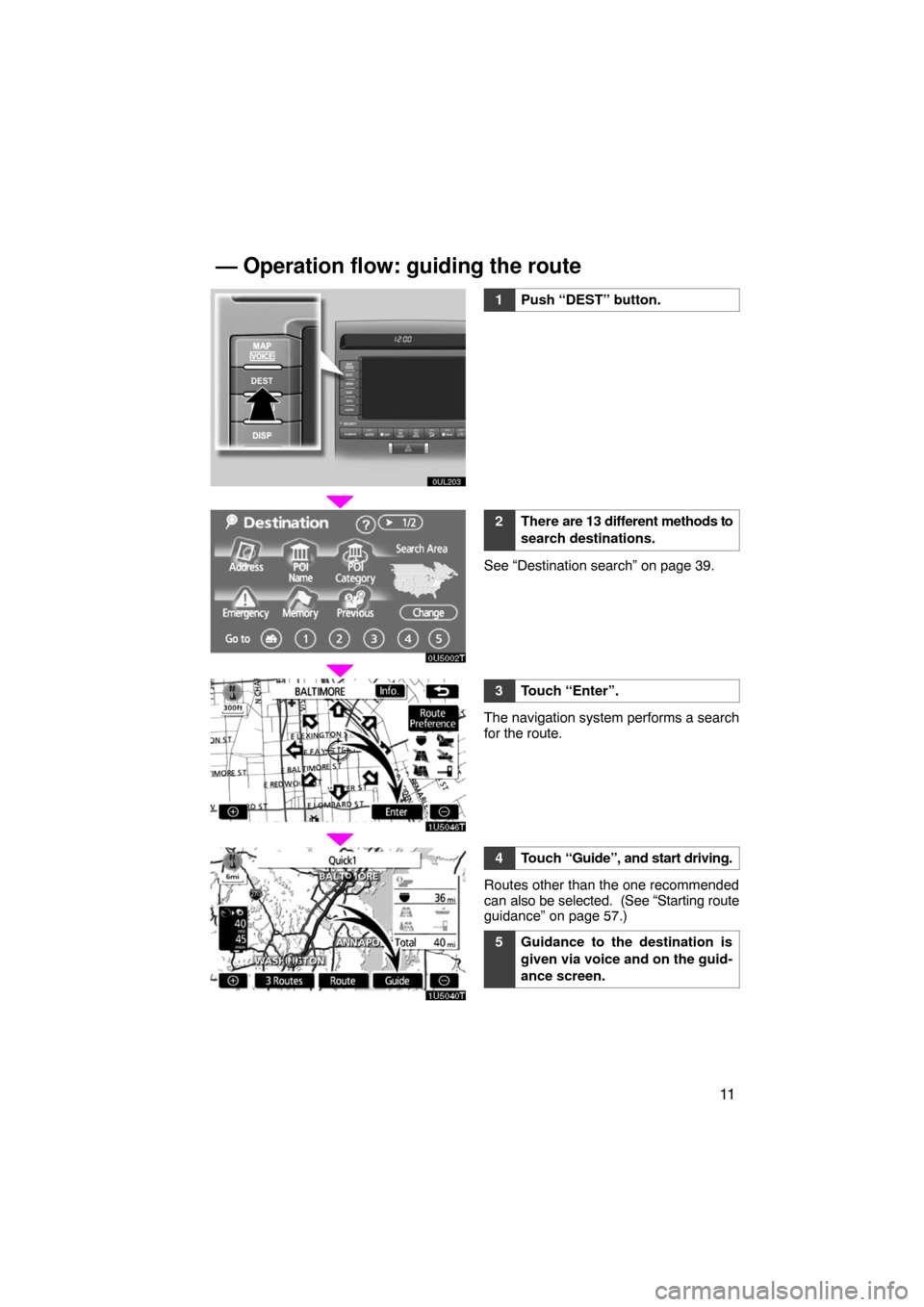

1Push “DEST” button.
2There are 13 different methods to
search destinations.
See “Destination search” on page 39.
3Touch “Enter”.
The navigation system performs a search
for the route.
4Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 57.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
— Operation flow: guiding the route

12
1Push “DEST” button.
2Touch .
The can be used if your home has
been registered. (To register “Home”, see
“ — Registering home” on page 96.)
3Touch “Enter”.
The navigation system performs a search
for the route.
4Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 57.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
— Setting home as the destination
